2A5HP-L04OWS Bluetooth headset

Wear Take the earphones out of the charging box and put them on according to the left and right marks on the earphones. Tip: After use, please put the earphones back into the charging box in time to extend the service life of the earphones and prevent loss. Put the earphones into the charging box and automatically enter the charging state. Power on Make sure the charging box has power and the earphones are in the charging box. Open the charging box and take out the earphones. The earphones will turn on automatically. Charge To charge your headphones: Plug in the Type-C charging cable to charge the earbuds and charging case at the same time. The indicator flashes when charging, and the indicator lights on when fully charged. To charge the charging case: Shut down Put the earphones into the charging box and close the lid. The earphones will automatically disconnect and start charging. They will automatically shut down when fully charged. The headset enters the pairing state and is not in the charging box. If it is not connected to the device within 6 minutes, the headset will automatically shut down. Connect First time connection When you turn on the phone when there is no pairing record, the left and right earphones will directly enter the pairing state. Open the Bluetooth search on your phone and click "OWS L04" to connect the earphones. Hint: When unpaired, the headset emits a beep sound; if the connection fails, please put the headset back into the charging box, close the cover, and repeat the above operation. Reset Take out a single earphone from the compartment, and when the earphone is in the search st ate, clear the pairing after 5 consecutive clicks, and the earphone will enter the shutdown st ate. The headphones can be used normally after being taken out of the warehouse. Connect other devices 1. The headset is reset and can be connected to new devices. 2. Turn off the Bluetooth of the currently connected device, put the earphones into the charging box, close the cover and reopen it, and then you can search for and connect the earphones on the new device (without pairing record). Automatic reconnection Within the connection range, it will automatically connect to paired Bluetooth devices after powering on. Disconnected When a device is connected, the headphones will be disconnected when the device turns off Bluetooth, goes beyond the headphone connection range, or puts the left and right headphones into the case and closes the cover. Volume sync After connecting the device, you need to synchronize the Bluetooth device volume with the mobile phone (Android system devices only). Tap the left or right ear touch area 5 times in a row Security Information Before using and operating the equipment, please read and comply with the following precautions to ensure optimal equipment performance and avoid dangerous or illegal situations. To avoid interfering with the work of medical instruments, when using this device, please keep at least 15 cm away from implanted medical devices or personal medical devices (such as pacemakers, cochlear implants, hearing aids, etc.) and inform your physician or its manufacturer Ask about the limitations of this device. Do not throw old batteries into domestic garbage. Dispose of this device and used batteries in accordance with local laws and re gulations. FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. Features 1. The earphones may malfunction when you touch them when your hands become dry due to cold weather outdoors. 2. Since the multi-function touch area of the device is sensitive, if you accidentally touch this area when picking up and placing the headphones, it may trigger the paired Bluetooth device to perform the play/pause function. Hint: Ans wer an inc oming call: Touc h the multi-functio n butt on 2 times (any earphone) when ma king an inco ming call. Ha ng up the call: Touc h the multi-functio n butt on 2 times during the call (a ny e arphone) Rejec t a call: Pre ss and hol d the mul ti- func tio n button o f a ny earphone for 2 seconds Call Previous song: Pre ss and hold the left earphone multi-functio n button for 2 seconds Nex t s ong: Pre ss and hold the multi-functio n butt on o n the right earphone f or 2 sec onds Play/Pause: When playing music, to uch the multi- func tio n butt on o f a ny ear phone 2 times to pause, and to uch 2 times again t o play. Music Voic e A ssistant: Three -clic k the multi-functio…

Text truncated - open the document above for the full version.

Shenzhen Zhilian Shengya Electronic Technology Co. , Ltd. U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: AOCE Corporation Inc. FRN: 0033401381 Contact Name: Johnson.wang Address: 6547 N Academy Bivd #2266, Colorado Springs, CO,80918 United States Telephone No: +1-346-582-5234 Email: [email protected] This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: 2024/5/30 Signed by (Printed Name/Title): The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: Shenzhen Zhilian Shengya Electronic Technology Co. , Ltd. Grantee Code: 2A5HP FCC ID: 2A5HP-L04 FRN: 0032060626 Contact Name: Liping Huang Address: No.5th floor, Building B, Huawan Industrial Park, Xixiang Street, Bao’an District, Shenzhen, China Telephone No: 18681075440 Email: [email protected] Applicant Signature: Date: 2024/5/30 Signed by (Printed Name/Title): Liping Huang / Manager

Shenzhen Zhilian Shengya Electronic Technology Co., Ltd 2024/5/30 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2A5HP-L04) [Shenzhen Zhilian Shengya Electronic Technology Co., Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Liping Huang Shenzhen Zhilian Shengya Electronic Technology Co., Ltd 2024/5/30 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2A5HP-L04) [Shenzhen Zhilian Shengya Electronic Technology Co., Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Liping Huang

Shenzhen Zhilian Shengya Electronic Technology Co., Ltd 2024/5/30 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION EUT NAME: OWS Bluetooth headset Trademark: N/A MODEL: L04, L04S, L04C, L04D, L05, L05S, L05C, L05D FCC ID: 2A5HP-L04 To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title: Liping Huang / Manager Contact information / address: No.5th floor, Building B, Huawan Industrial Park, Xixiang Street, Bao’an District, Shenzhen, China

Shenzhen Zhilian Shengya Electronic Technology Co., Ltd 2024/5/30 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: OWS Bluetooth headset Trademark: N/A MODEL: L04, L04S, L04C, L04D, L05, L05S, L05C, L05D FCC ID: 2A5HP-L04 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title: Liping Huang / Manager Contact information / address: No.5th floor, Building B, Huawan Industrial Park, Xixiang Street, Bao’an District, Shenzhen, China

Shenzhen Zhilian Shengya Electronic Technology Co., Ltd 2024/5/30 EUT NAME: OWS Bluetooth headset Trademark: N/A MODEL: L04, L04S, L04C, L04D, L05, L05S, L05C, L05D FCC ID: 2A5HP-L04 All the model are the same circuit and RF module, except model names and appearance color. Client’s signature: Client’s name / title: Liping Huang / Manager Contact information / address: No.5th floor, Building B, Huawan Industrial Park, Xixiang Street, Bao’an District, Shenzhen, China

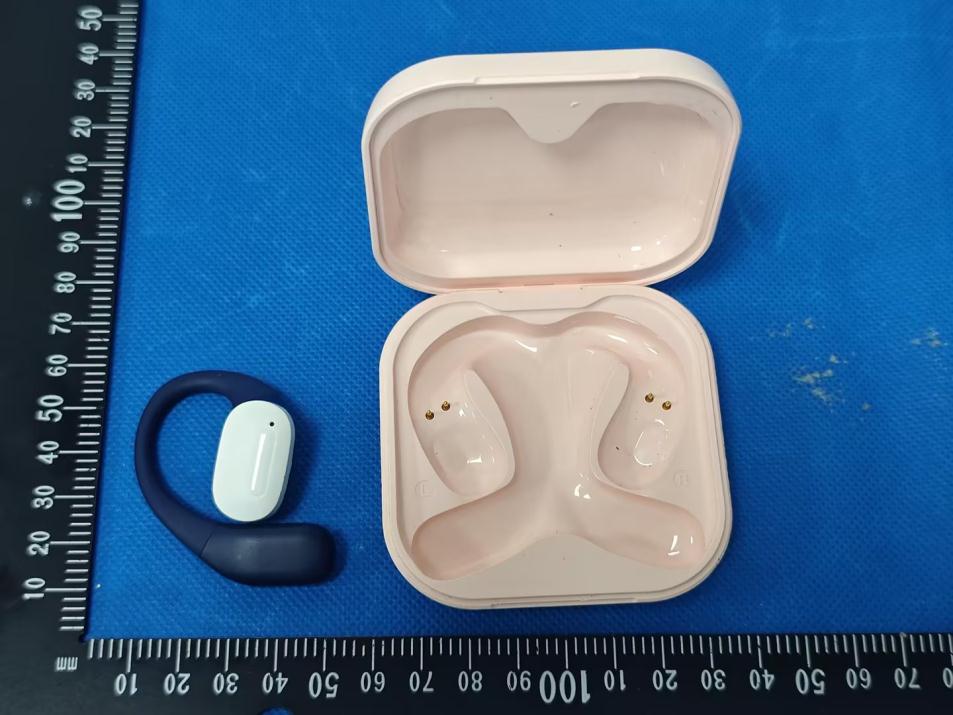

External Photos

Size:10*4mm FCC ID: 2A5HP-L04 Label location

Internal Photos Antenna

FCC ID: 2A5HP-L04 RF exposure evaluation §2.1093 Radiofrequency radiation exposure evaluation: Portable Devices. According to§15.247(i) and§1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidance. The 1-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  When the minimum test separation distance is < 5 mm, a distance of 5 mm according is applied to determine SAR test exclusion.  The result is rounded to one decimal place for comparison  GFSK Modulation Frequency (GHz) Max. Power (dBm) Tune up Power (dBm) Max. Tune up Power (dBm) Max. Tune up Power (mW) Test distance (mm) Result exclusion thresholds for 1-g SAR 3-DH1 2.480 2.51 2±1 3 2.00 5 0.63 3.0 GFSK(2Mbps) 2.440 -1.36 -2±1 -1 0.79 5 0.25 3.0 Conclusion: For the max result : 0.63W/Kg ≤ FCC Limit 3.0 for 1g SAR. The Product unsupported at the same time to Transmitting.

1 Antenna Part Specification Project name： L05 Antenna type： FPC version： V1.0 Date： 2024.05.06 Supplier Address： 505-506 ,ABlock,Donglian Building,Chuangye 2 road,Baoan District,Shenzhen,Guangdong,P.R china Supplier： Shenzhen Cicent Communication Technology Co., Ltd. 2 Change record Compile / change date Reason for change Changed content Version 2024.05.06 First edition First edition V1.0 3 I: The report of passive data Angilent E5071C S11 parameter： 4 Efficiency： free space Frequency （MHz） Gain (dBi) Efficiency (dB ) Efficiency 2400 -6.64 -10.778.37 2410 -6.08 -10.369.21 2420 -5.62 -10.029.95 2430 -5.32 -9.9110.20 2440 -5.16 -9.9210.18 2450 -4.92 -9.7710.54 2460 -4.91 -9.8710.29 2470 -4.58 -9.6510.84 2480 -4.56 -9.6310.88 Average value -5.31-9.9910.05 5 2D Antenna radiation pattern: Theta=90.00deg Phi=0.00deg Phi=90.00deg 6 3D Antenna radiation pattern: OTA Standard Chamber III：Matching circuit Number Value E1 N/A E2 0Ω E3 N/A 8 IV：Structure file：
