2A5HP-S136Smart watch

Shenzhen Zhilian Shengya Electronic Technology Co. , Ltd. 2.911 (d)(5)(ii) Applicant Attestation v1.2 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Shenzhen Zhilian Shengya Electronic Technology Co. , Ltd. Address: 5th floor, Building B, Huawan Industrial Park, Xixiang Street, Bao’an District, Shenzhen, China Product Name: Smart watch FCC ID: 2A5HP-S136 Model(s): S136 Z136, ZW13-AMD, ZL66CJ, ZL66J, ZL66, ZW10-AMD, Z121, Z121CJ, Z121J, ZW08-AMD 2.911(d)(5)(ii) Applicant filing We, [Shenzhen Zhilian Shengya Electronic Technology Co. , Ltd.] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Liping Huang Date: 2024/7/24 Title and Company name: Manager / Shenzhen Zhilian Shengya Electronic Technology Co. , Ltd. NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Zhilian Shengya Electronic Technology Co. , Ltd. Agent Authorization Company: Shenzhen Zhilian Shengya Electronic Technology Co. , Ltd. Address: 5th floor, Building B, Huawan Industrial Park, Xixiang Street, Bao’an District, Shenzhen, China Product Name: Smart watch Model Number(s): S136 Z136, ZW13-AMD, ZL66CJ, ZL66J, ZL66, ZW10-AMD, Z121, Z121CJ, Z121J, ZW08-AMD We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Liping Huang Date: 2024/7/24 Title: Manager Signature of applicant:

Shenzhen Zhilian Shengya Electronic Technology Co. , Ltd. Model Difference 2024/7/24 EUT NAME: Smart watch Trademark: N/A MODEL: S136 Z136, ZW13-AMD, ZL66CJ, ZL66J, ZL66, ZW10-AMD, Z121, Z121CJ, Z121J, ZW08-AMD FCC ID: 2A5HP-S136 All the models are the same circuit and RF module, except model names and appearance of the color. Regards Sincerely Client’s signature: Client’s name / title : Liping Huang / Manager Contact information / address: 5th floor, Building B, Huawan Industrial Park, Xixiang Street, Bao’an District, Shenzhen, China

Shenzhen Zhilian Shengya Electronic Technology Co. , Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2024/7/24 Subject; Request for Confidentiality FCC ID: 2A5HP-S136 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Liping Huang Title: Manager

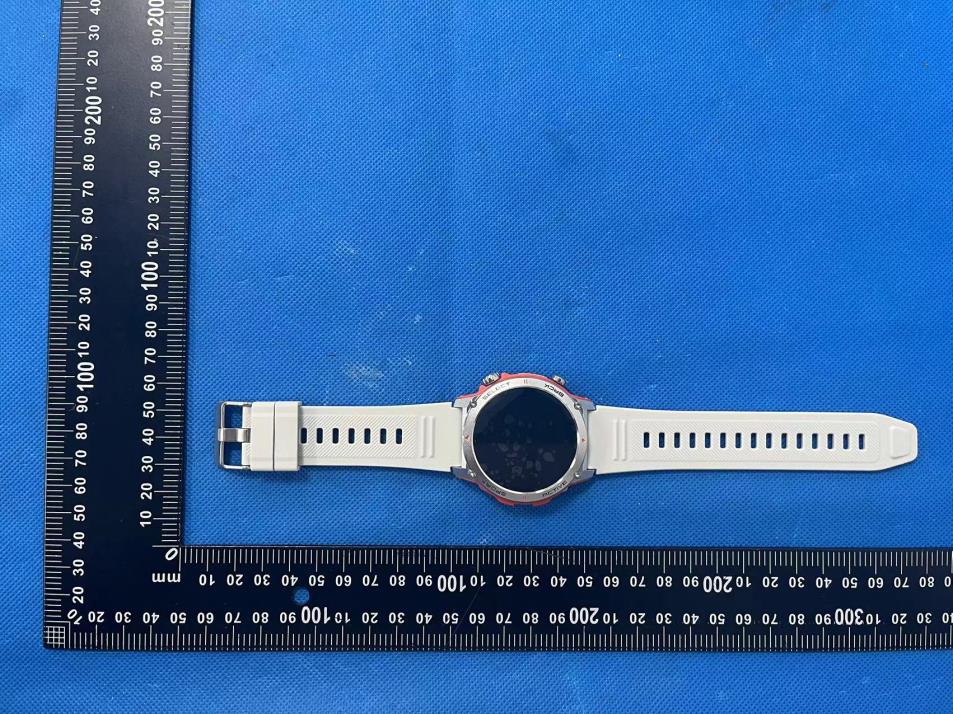

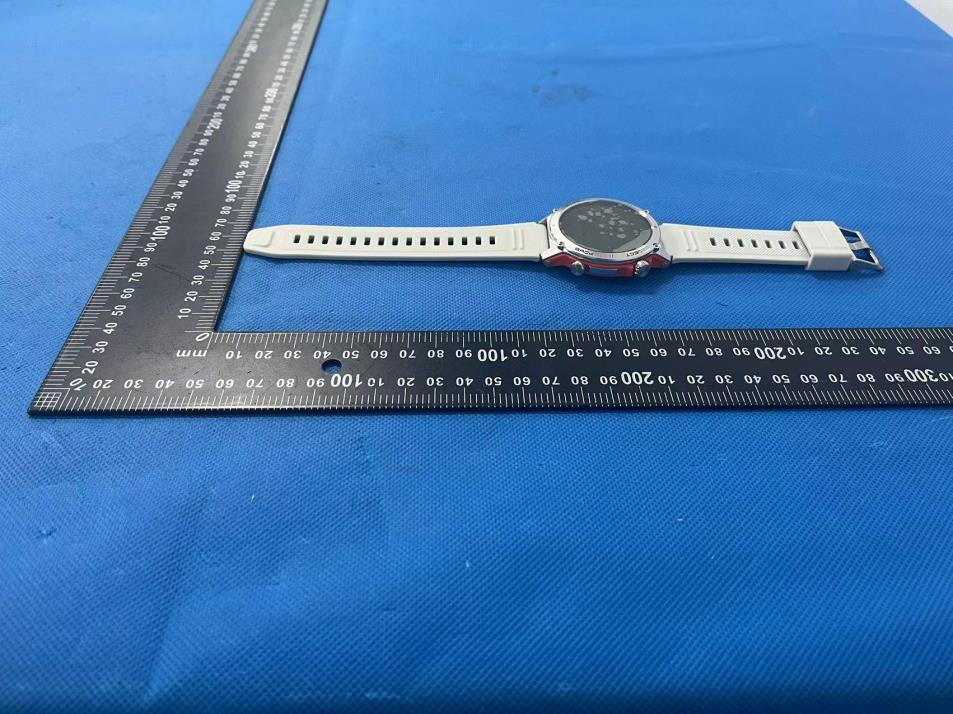

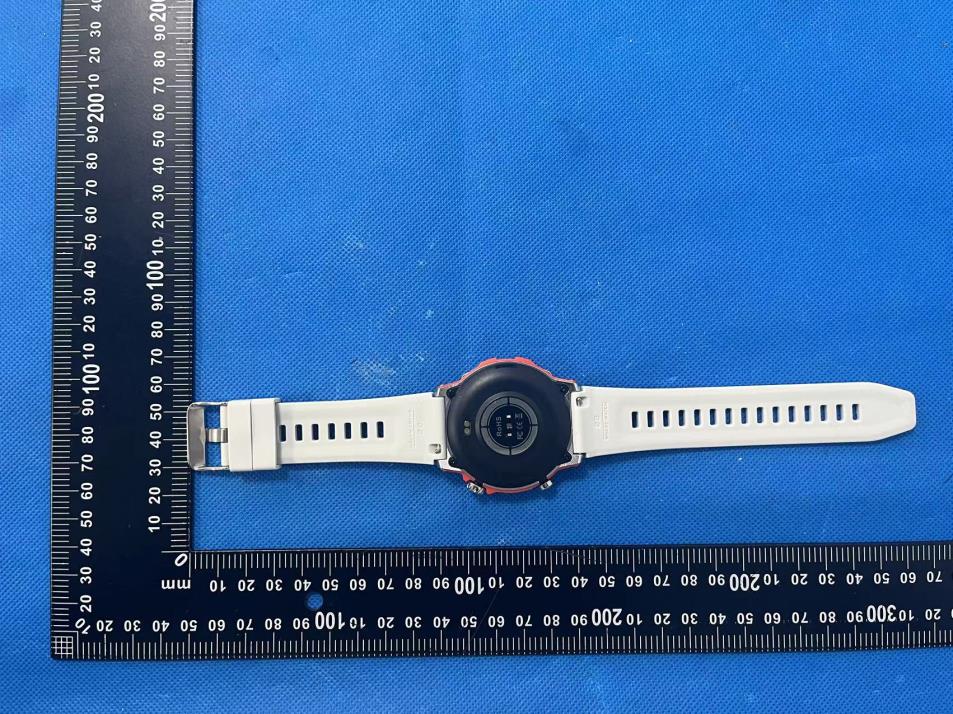

External Photos

Label & label location Location: Label: Smart watch Model: S136 IC: 32634-S136 FCC ID: 2A5HP-S136

Internal Photos Antenna

RF EXPOSURE EVALUATION METHOD FCC ID: 2A5HP-S136 Applicable standard： In accordance with FCC 47 CFR part 2 (2.1093) this device has been defined as a portable device which is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable devices must be evaluated using the specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEEC95.1-1992. and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2003. Per FCC KDB 447498 D01 v06, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances s 50 mm are determined by: SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BT: Frequency Maximum Conducted Output Power(PK) Conducted Output Power Limit (MHz) (dBm) dBm GFSK 2402 4.98 21 2441 4.79 21 2480 4.04 21 π/ 4 DQPSK 2402 4.21 21 2441 4.27 21 2480 4.26 21 8DPSK 2402 4.47 21 2441 4.44 21 2480 4.46 21 max possible output power (PK,conducted)：5±1dBm 6dBm=3.98mW 2402MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 3.98/5*√2.402=1.234≤3.0 2441MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 3.98/5*√2.441=1.244≤3.0 2480MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 3.98/5*√2.48=1.254≤3.0 Conclusion: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0. 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required. BLE: Frequency Maximum Conducted Output Power(PK) Conducted Output Power Limit (MHz) (dBm) dBm GFSK 1Mbps 2402 4.82 30 2440 4.01 30 2480 4.02 30 GFSK 2Mbps 2402 4.92 30 2440 4.04 30 2480 4.11 30 max possible output power (PK,conducted)：5±1dBm 6dBm=3.98mW 2402MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 3.98/5*√2.402=1.234≤3.0 2440MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 3.98/5*√2.44=1.243≤3.0 2480MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 3.98/5*√2.48=1.254≤3.0 Conclusion: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0. 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required.

ShenzhenYixiantong cable co.,ltd Address: Building 21, Wan Feng 98 Industrial City, Shajing StreetBaoan District, Shenzhen. Antenna Specification for Approval 客户名称 CustomerName：深圳市魔样科技有限公司 产品名称： ProductName： 2.4G天线 全长22mm红色 客户型号： ProductName: 产品料号： Part NO.: C10- 35- 2.5 制 表 ： WriteBy：庄杰彬 日 期： IssuedDate: 2021- 10-08 客 户: 工程R& D Dept 采购Business Dept 承认 Approved By 一线通 研发R& D Dept 工程 Engineer Dept 审核 Approval 庄彩虹 庄杰彬 庄杰彬 Product Specification A. ElectricalCharacteristics Frequency 2400MHz ~2500MHz VSWR<3.0 Efficiency >30% Impedance 50 Ohm Polarization Line Gain 0DBi B. Material & MechanicalCharacteristics Material of Radiator Cu Cable Type 1.0 19P 红 Connector Type : NO Dimension C. Environmental Operation Temperature - 30 °C ~ + 80 ° C Storage Temperature - 30 ° C~+ 85 °C Test Equipment & Conditions 1. NetworkAnalyzers: Agilent 8753D 5071C 2. Communications TestSet: Agilent E5525C 3. 3D Chamber TestSystem Effiency& Gain Radiation Pattern:

No.：BCTC/RF-EMC-005 Page: 1 of 80 Edition：B.2 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2406785569-2E Applicant: Shenzhen Zhilian Shengya Electronic Technology Co. , Ltd Product Name: Smart watch Test Model: S136 Tested Date: 2024-06-17 to 2024-07-11 Issued Date: 2024-07-12 Report No.: BCTC2406785569-2E No.：BCTC/RF-EMC-005 Page: 2 of 80 Edition：B.2 FCC ID: 2A5HP-S136 The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: Smart watch Trademark: N/A Model/Type Reference: S136 Z136, ZW13-AMD, ZL66CJ, ZL66J, ZL66, ZW10-AMD, Z121, Z121CJ, Z121J, ZW08-AMD Prepared For: Shenzhen Zhilian Shengya Electronic Technology Co. , Ltd. Address: 5th floor, Building B, Huawan Industrial Park, Xixiang Street, Bao'an District, Shenzhen, China Manufacturer: Shenzhen Zhilian Shengya Electronic Technology Co. , Ltd. Address: 5th floor, Building B, Huawan Industrial Park, Xixiang Street, Bao'an District, Shenzhen, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2024-06-17 Sample Tested Date: 2024-06-17 to 2024-07-11 Issue Date: 2024-07-12 Report No.: BCTC2406785569-2E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is Bluetooth Classic radio test report. Tested by: Approved by: Shanshan. Zhang / Project Handler Zero Zhou/Reviewer Report No.: BCTC2406785569-2E No.：BCTC/RF-EMC-005 Page: 3 of 80 Edition：B.2 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 9 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List ........................................................................................................ 10 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT operating Conditions ................................................................................... 13 6.5 Test Result .......................................................................................................... 14 7. Radiated emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure .................................................................................................... 18 7.4 EUT operating Conditions ................................................................................... 19 7.5 Test Result .......................................................................................................... 19 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 25 8.1 Block Diagram Of Test Setup .............................................................................. 25 8.2 Limit .................................................................................................................... 25 8.3 Test procedure .................................................................................................... 26 8.4 EUT operating Conditions ................................................................................... 26 8.5 Test Result .......................................................................................................... 27 9. Spurious RF Conducted Emissions ..................................................................... 28 9.1 Block Diagram Of Test Setup .............................................................................. 28 9.2 Limit .................................................................................................................... 28 9.3 Test procedure ..........................................................................…
