2A5PM-XCORPROIIELECTRONIC HEADMUFF

(Axil and Associated Brands) Rev 2026-04-24 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 07-25-2026 Ref: Attestation Statements Part 2.911(d)(5)(i) and Part 2.911(d)(5)(ii) FCC ID: 2A5PM-XCORPROII Part 2.911(d)(5)(i) [Axil and Associated Brands] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment and does not contain anti-virus software or cybersecurity software prohibited from receiving an equipment authorization pursuant to 47 CFR 2.903, KDB 986446 D01 Covered Equipment Guidance, and FCC Covered List (www.fcc.gov/supplychain/coveredlist). Part 2.911(d)(5)(ii) [Axil and Associated Brands] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, Ken Williams / Manager Axil and Associated Brands

Axil and Associated Brands U.S. Agent Designation for Service of Process - Certification Attestation Letter July 25, 2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID: 2A5PM-XCORPROII Applicant FRN: 0032100380 Axil and Associated Brands certifies that, as of the date of the filing of the application, Axil and Associated Brands is our designated U.S. agent for service of process for the above referenced FCC ID. Axil and Associated Brands accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Axil and Associated Brands accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company Name: Axil and Associated Brands FCC Registration Number (FRN): 0032100380 Physical U.S. Company Address: 13065 South 120 East, Draper, Utah, 84020, United States Contact Person: Ken Williams phone: (801)566-0240 Agent Email Address: [email protected] Sincerely, Company: Axil and Associated Brands Company: Axil and Associated Brands Company Representative: Ken Williams Company Representative: Ken Williams Title: Manage r Si gnature: Title: Manager Signature:

(Axil and Associated Brands) Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2A5PM-XCORPROII Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block diagram, Schematic, Operational Description Block diagram.pdf, Schematic.pdf , Operational Description.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: Short-term confidentiality requested: 180 days Exhibit Type File Name Internal photos, Test setup photos, User Manual Internal photos.pdf, Test setup photos.pdf, User Manual.pdf Sincerely, Ken Williams / Manager July 25, 2026 Axil and Associated Brands

Declaration Differences FCC ID: 2A5PM-XCORPROII XCOR PRO II, XCOR PRO II SE These two models only differ in name and packaging. However, all other schematic diagrams, PCB layouts, etc. are the same. Therefore, we have chosen the model XCOR PRO II for the test. Sincerely, Ken Williams / Manager 2026.07.25 Axil and Associated Brands

(Axil and Associated Brands) Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Date: July 25, 2026 SUBJECT: FCC Application for FCC ID: 2A5PM-XCORPROII To Whom It May Concern: We, the undersigned, hereby authorize Tony Wei at EMTEK(NINGBO) CO., LTD. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by EMTEK(NINGBO) CO., LTD. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Ken Williams / Manager Axil and Associated Brands

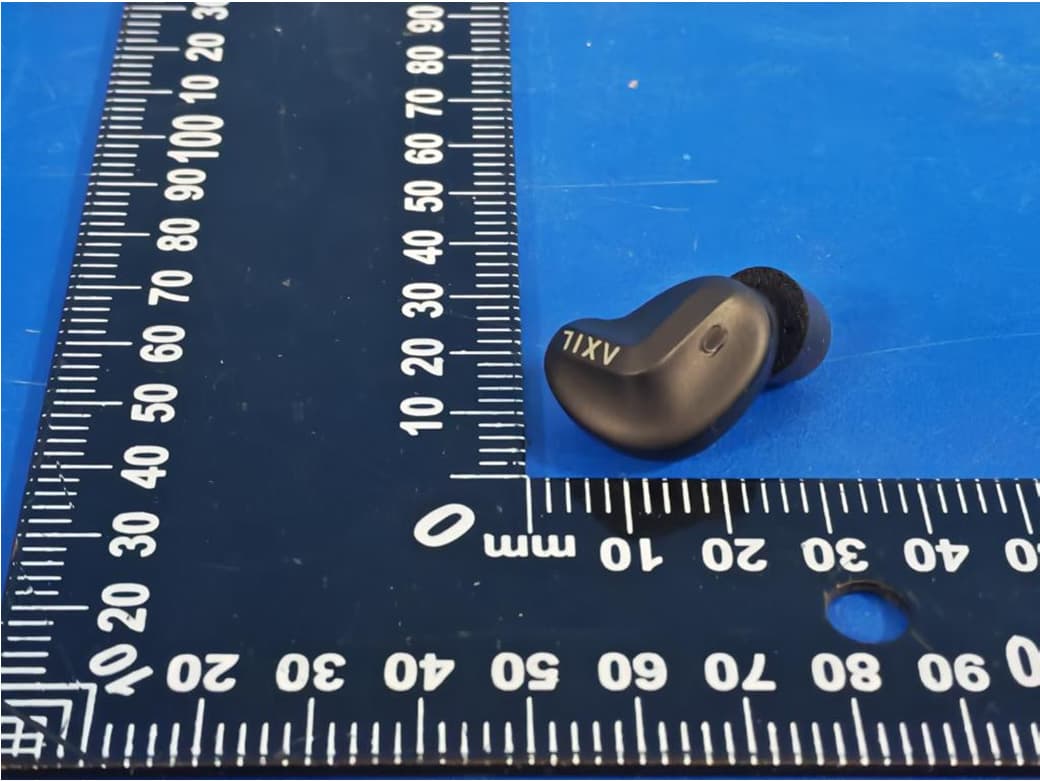

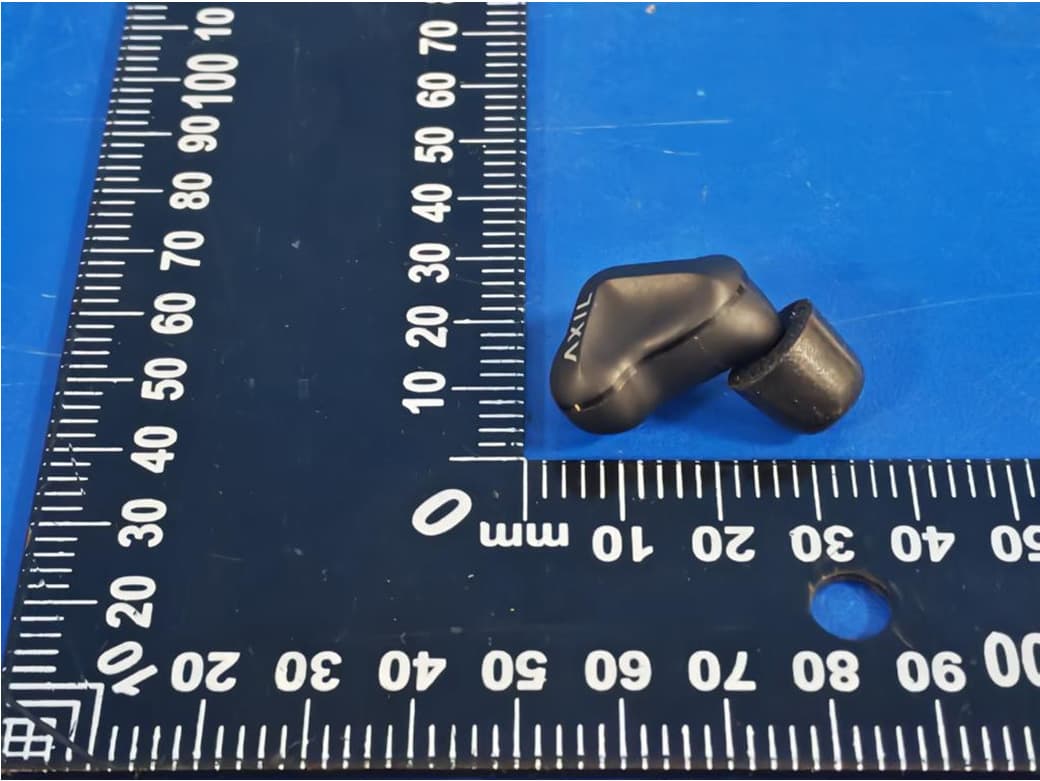

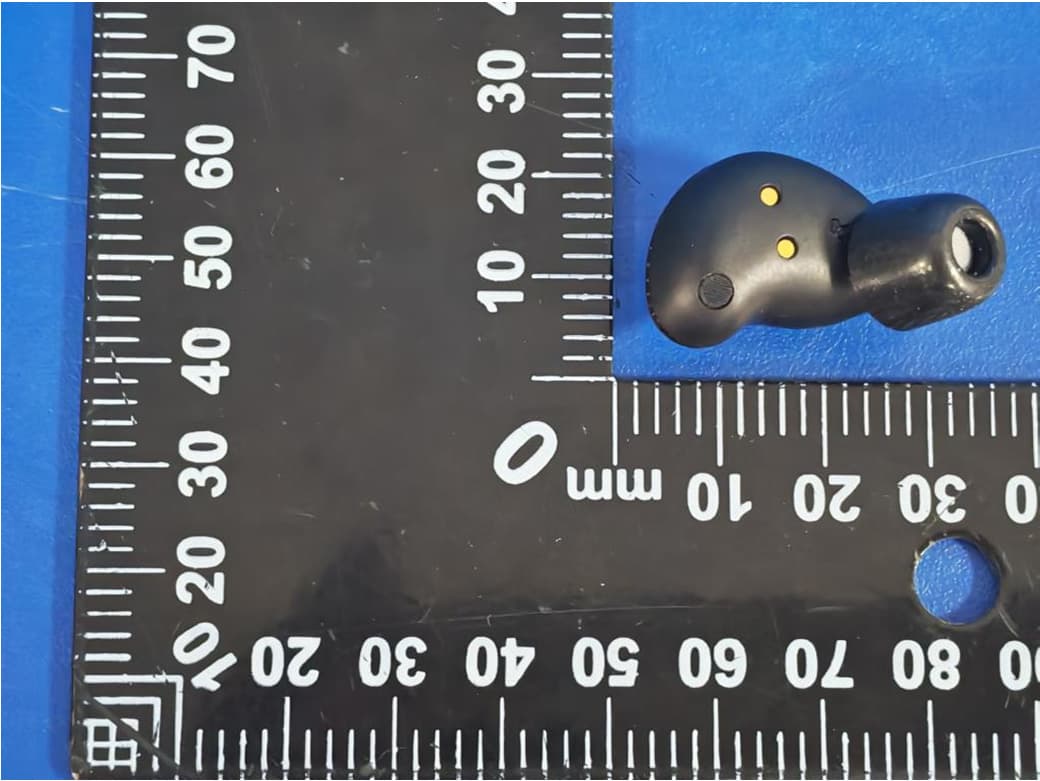

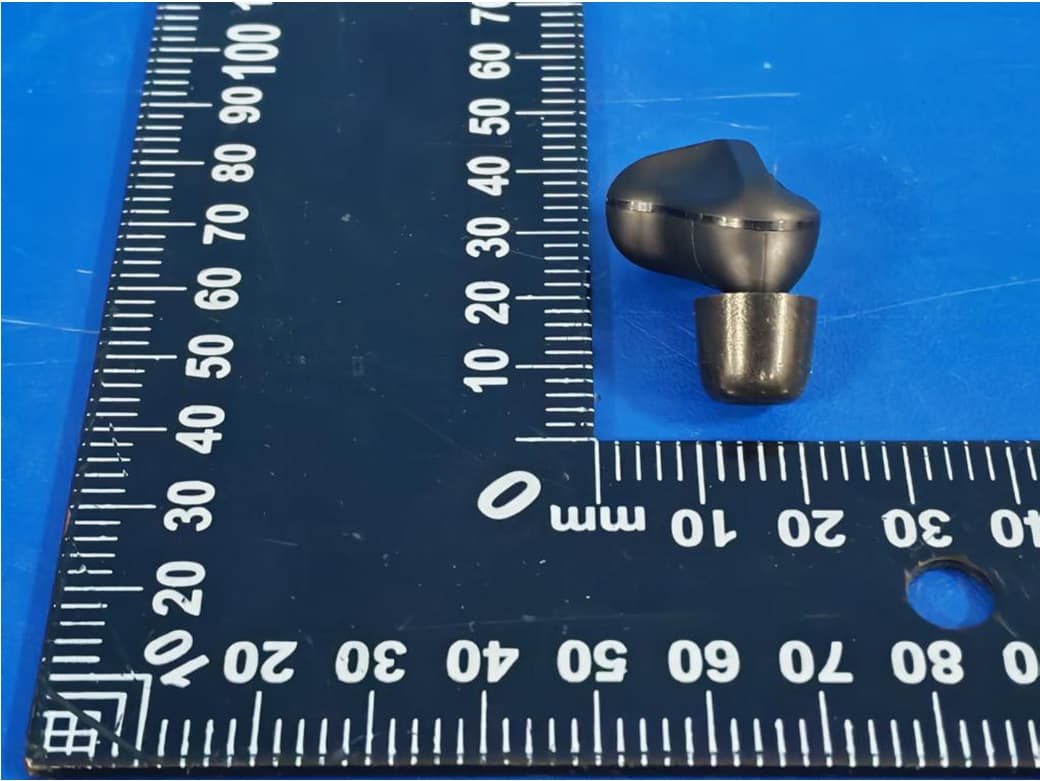

Left ear Right ear

Label Location In the User Manual In the Outer packaging

FCC ID: 2A5PM-XCORPROII RF EXPOSURE EVALUATION According to KDB 447498 D01 General RF Exposure Guidance v06 and FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b): Routine SAR evaluation refers to that specifically required by §2.1093, using measurements or computer simulation. When routine SAR evaluation is not required, portable transmitters with output power greater than the applicable low threshold require SAR evaluation to qualify for TCB approval.  Right-side device Channel (MHz) Maximum output power (dBm) Tune up tolerance (dBm) Max Tune Up Power (dBm) Distance (mm) Calculation results Limit Operating Mode DH5-2402 -0.46 -0.46±1 0.00 5 0.31 3 BT  Left-side device Channel (MHz) Maximum output power (dBm) Tune up tolerance (dBm) Max Tune Up Power (dBm) Distance (mm) Calculation results Limit Operating Mode DH5-2441 -0.59 -0.59±1 -0.5 5 0.28 3 BT Test Results: PASS. ---End of the report---

深圳市信雅通电子有限公司 SHENZHEN XINYATONG Electronic Technology CO.,LTD. Antenna Specification Manufacturer Name: Axil and Associated Brands Manufacturer's Address: 13065 South 120 East, Draper, Utah, 84020, United States Frequency 2400-2500MHz Antenna type FPC Antenna Gain (Peak) -1.58 dBi Operating Temp 0 ~ +40 ̊C Testing items and equipment Testing items Equipment 1. S11参数 （S-parameter） 1. 回波损耗 （Return Loss） 2. 电压驻波比（VSWR） Network analyzer: Agilent E5071B HP 8753D 2. 有源测试 （Active ） 1. 发射功率 （TRP） 2. 接收灵敏度（TIS） 1. Darkroom：ETS 7x4x3 m (3D) Chamber ETS 5x3x3 m (3D) Chamber 2. Comprehensive tester: Agilent 8960 E5515B ×2 StarPoint SP6011 3.无源测试 （Passive） 1.天线增益 （Gain） 2.天线效率 （Efficiency） 1. Darkroom：ETS 7x4x3 m (3D) Chamber ETS 5x3x3 m (3D) Chamber 2. Network analyzer：Agilent E5071B HP 8753D Matching circuit： Standing wave ratio： BT efficiency and gain： Freq (MHz) Effi (%) Gain (dBi) 2400 25.42 -1.84 2410 30.30 -1.68 2420 31.81 -1.86 2430 33.41 -1.58 2440 33.48 -1.83 2450 32.34 -1.88 2460 30.74 -1.72 2470 27.97 -1.92 2480 27.83 -2.22 Structural drawing

Report No. ENB2607150027W00101R Page 1 of 104 Ver.1.0 TEST REPORT Product Name : Electronic Hearing Protection and Bluetooth Earbuds Model Number : XCOR PRO II, XCOR PRO II SE FCC ID : 2A5PM-XCORPROII Prepared for : Axil and Associated Brands Address : 13065 South 120 East, Draper, Utah, 84020, United States Prepared by : EMTEK (NINGBO) CO., LTD. Address : BNo. 8, Building 8, Lane 216, Qingyi Road, Ningbo High-Tech Zone, Ningbo, Zhejiang, China Tel: +86-574-27907998 Fax: +86-574-27721538 Report Number : ENB2607150027W00101R Date(s) of Tests : July 15, 2026 to August 11, 2026 Date of issue : August 21, 2026 $二维码$ Report No. ENB2607150027W00101R Page 2 of 104 Ver.1.0 Table of Contents 1 TEST RESULT CERTIFICATION ......................................................................................................................................... 3 2 EUT TECHNICAL DESCRIPTION ...................................................................................................................................... 5 3 SUMMARY OF TEST RESULT ............................................................................................................................................ 6 4 TEST METHODOLOGY ....................................................................................................................................................... 7 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................................................. 7 4.2 MEASUREMENT EQUIPMENT USED ........................................................................................................................ 7 4.3 DESCRIPTION OF TEST MODES ................................................................................................................................ 9 5 FACILITIES AND ACCREDITATIONS ............................................................................................................................. 10 5.1 FACILITIES .................................................................................................................................................................. 10 5.2 EQUIPMENT ................................................................................................................................................................ 10 5.3 LABORATORY ACCREDITATIONS AND LISTINGS ............................................................................................... 10 6 TEST SYSTEM UNCERTAINTY ....................................................................................................................................... 11 7 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................................... 12 7.1 RADIO FREQUENCY TEST SETUP 1 ........................................................................................................................ 12 7.2 RADIO FREQUENCY TEST SETUP 2 ........................................................................................................................ 12 7.3 CONDUCTED EMISSION TEST SETUP .................................................................................................................... 14 7.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ................................................................................... 15 7.5 SUPPORT EQUIPMENT .............................................................................................................................................. 15 8 FREQUENCY HOPPING SYSTEM REQUIREMENTS ................................................................................................... 16 8.1 Standard Applicable ...................................................................................................................................................... 16 8.2 EUT Pseudorandom Frequency Hopping Sequence ...................................................................................................... 16 8.3 Equal Hopping Frequency Use ...................................................................................................................................... 17 8.4 Frequency Hopping System .......................................................................................................................................... 17 9 TEST REQUIREMENTS ..................................................................................................................................................... 18 9.1 20DB&99%BANDWIDTH ........................................................................................................................................... 18 9.2 ARRIER FREQUENCY SEPARATION ....................................................................................................................... 33 9.3 NUMBER OF HOPPING FREQUENCIES .................................................................................................................. 36 9.4 AVERAGE TIME OF OCCUPANCY (DWELL TIME) ................................................................................................ 39 9.5 MAXIMUM PEAK CONDUCTED OUTPUT POWER ............................................................................................... 42 9.6 CONDUCTED SUPRIOUS EMISSION ....................................................................................................................... 50 9.7 RADIATED SPURIOUS EMISSION ........................................................................................................................... 79 9.8 CONDUCTED EMISSION TEST ............................................................................................................................... 103 9.9 ANTENNA APPLICATION ........................................................................................................................................ 104 Report No. ENB2607150027W00101R Page 3 of…

Text truncated - open the document above for the full version.

Report No. ENB2607150027W00101R Page 50 of 104 Ver.1.0 9.6 CONDUCTED SUPRIOUS EMISSION 9.6.1 Applicable Standard According to FCC Part 15.247(d) and KDB 558074 D01 15.247 MEAS GUIDANCE v05r02 9.6.2 Conformance Limit In any 100 kHz bandwidth outside the frequency band in which the spread spectrum intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted, provided the transmitter demonstrates compliance with the peak conducted power limits. 9.6.3 Test Configuration Test according to clause 7.1 radio frequency test setup 1 9.6.4 Test Procedure The transmitter output (antenna port) was connected to the spectrum analyzer  Reference level measurement Establish a reference level by using the following procedure: Set instrument center frequency to DSS channel center frequency. Set Span = approximately 5 times the 20 dB bandwidth, centered on a hopping channel. Set the RBW = 100 kHz. Set the VBW ≥ 3 x RBW. Set Detector = peak. Set Sweep time = auto couple. Set Trace mode = max hold. Allow trace to fully stabilize. Use the peak marker function to determine the maximum Maximumconducetedlevel. Note that the channel found to contain the maximum conduceted level can be used to establish the reference level.  Band-edge measurement Use the following spectrum analyzer settings: Span = wide enough to capture the peak level of the emission operating on the channel closest to the band-edge, as well as any modulation products which fall outside of the authorized band of operation Set RBW  1% of the span=100kHzSet VBW 3 x RBW Set Sweep = autoSet Detector function = peakSet Trace = max hold Allow the trace to stabilize. Set the marker on the emission at the bandedge, or on the highest modulation product outside of the band, if this level is greater than that at the bandedge. Enable the marker-delta function, then use the marker-to-peak function to move the marker to the peak of the in-band emission. The marker-delta value now displayed must comply with the limit specified in this Section. Now, using the same instrument settings, enable the hopping function of the EUT. Allow the trace to stabilize. Follow the same procedure listed above to determine if any spurious emissions caused by the hopping function also comply with the specified limit.  Emission level measurement Use the following spectrum analyzer settings: Span = wide enough to capture the peak level of the in-band emission and all spurious emissions (e.g., harmonics) from the lowest frequency generated in the EUT up through the 10th harmonic.(30MHz to 25GHz).Set RBW = 100 kHzSet VBW  RBW Set Sweep = autoSet Detector function = peakSet Trace = max hold Allow the trace to stabilize. Set the marker on the peak of any spurious emission recorded. The level displayed must comply with the limit specified in this Section. Report No. ENB2607150027W00101R Page 51 of 104 Ver.1.0 9.6.5 Test Results Temperature: 25 ̊C Relative Humidity: 63% ATM Pressure: 1011 mbar  Right-side device  Reference level measurement Test Mode Antenna Freq(MHz) Max.Point[MHz] Result[dBm] DH5 Ant1 2402 2402.00 -1.33 DH5 Ant1 2441 2440.99 -1.25 DH5 Ant1 2480 2480.03 -2.21 2DH5 Ant1 2402 2402.15 -1.37 2DH5 Ant1 2441 2440.88 -3.36 2DH5 Ant1 2480 2480.00 -1.77 3DH5 Ant1 2402 2402.09 -2.04 3DH5 Ant1 2441 2441.16 -1.16 3DH5 Ant1 2480 2479.88 -3.81  Band-edge measurement  Emission level measurement Test Mode Antenna Frequency[MHz] Freq Range [MHz] Ref Level [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 30~1000 -1.33 -61.7 ≤-21.33 PASS DH5 Ant1 2402 1000~26500 -1.33 -48.41 ≤-21.33 PASS DH5 Ant1 2441 30~1000 -1.25 -61.67 ≤-21.25 PASS DH5 Ant1 2441 1000~26500 -1.25 -49 ≤-21.25 PASS DH5 Ant1 2480 30~1000 -2.21 -61.89 ≤-22.21 PASS DH5 Ant1 2480 1000~26500 -2.21 -48.49 ≤-22.21 PASS 2DH5 Ant1 2402 30~1000 -1.37 -61.87 ≤-21.37 PASS 2DH5 Ant1 2402 1000~26500 -1.37 -48.08 ≤-21.37 PASS 2DH5 Ant1 2441 30~1000 -3.36 -61.66 ≤-23.36 PASS 2DH5 Ant1 2441 1000~26500 -3.36 -48.56 ≤-23.36 PASS 2DH5 Ant1 2480 30~1000 -1.77 -61.51 ≤-21.77 PASS 2DH5 Ant1 2480 1000~26500 -1.77 -48.35 ≤-21.77 PASS 3DH5 Ant1 2402 30~1000 -2.04 -61.63 ≤-22.04 PASS 3DH5 Ant1 2402 1000~26500 -2.04 -48.35 ≤-22.04 PASS 3DH5 Ant1 2441 30~1000 -1.16 -62.16 ≤-21.16 PASS 3DH5 Ant1 2441 1000~26500 -1.16 -48.38 ≤-21.16 PASS 3DH5 Ant1 2480 30~1000 -3.81 -61.95 ≤-23.81 PASS 3DH5 Ant1 2480 1000~26500 -3.81 -48.7 ≤-23.81 PASS Test Mode Antenna Ch Name Frequency[MHz] Ref Level [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -1.33 -48.7 ≤-21.33 PASS DH5 Ant1 High 2480 -2.21 -48.79 ≤-22.21 PASS DH5 Ant1 Low Hop_2402 -5.51 -47.44 ≤-25.51 PASS DH5 Ant1 High Hop_2480 -2.20 -47.53 ≤-22.2 PASS 2DH5 Ant1 Low 2402 -1.37 -49.06 ≤-21.37 PASS 2DH5 Ant1 High 2480 -1.77 -49.04 ≤-21.77 PASS 2DH5 Ant1 Low Hop_2402 -9.18 -48.8 ≤-29.18 PASS 2DH5 Ant1 High Hop_2480 -5.12 -48.54 ≤-25.12 PASS 3DH5 Ant1 Low 2402 -2.04 -48.95 ≤-22.04 PASS 3DH5 Ant1 High 2480 -3.81 -48.65 ≤-23.81 PASS 3DH5 Ant1 Low Hop_2402 -6.97 -49.22 ≤-26.97 PASS 3DH5 Ant1 High Hop_2480 -5.73 -48.22 ≤-25.73 PASS Report No. ENB2607150027W00101R Page 52 of 104 Ver.1.0  Left-side device  Reference level measurement Test Mode Antenna Freq(MHz) Max.Point[MHz] Result[dBm] DH5 Ant1 2402 2401.99 -1.70 DH5 Ant1 2441 2441.16 -1.11 DH5 Ant1 2480 2480.14 -1.72 2DH5 Ant1 2402 2402.00 -1.29 2DH5 Ant1 2441 2441.00 -1.17 2DH5 Ant1 2480 2480.16 -1.85 3DH5 Ant1 2402 2402.00 -1.30 3DH5 Ant1 2441 2441.16 -1.10 3DH5 Ant1 2480 2480.00 -1.75  Band-edge measurement Test Mode Antenna Ch Name Frequency[MHz] Ref Level [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -1.70 -47.11 ≤-21.7 PASS DH5 Ant1 High 2480 -1.72 -48.78 ≤-21.72 PASS DH5 Ant1 Low Hop_2402 -2.01 -48.4 ≤-22.01 PASS DH5 Ant1 High Hop_2480 -2.64 -47.94 ≤-22.64 PASS 2DH5 Ant1 Low 2402 -1.29 -48.95 ≤-21.29 PASS 2DH5 Ant1 High 24…
