2A5RP-S7MINI PC STICK

Quick Start Guide Pocket PC Interfaces And Functions 7 8 5 6 9 3 4 5 789 2 1 3 4 1 1 2 Power key LEDLANUSB 3.0Audio CLR CMOSDCUSB 3.0 HDMI6 Expand Your Storage Packaging And Accessories Information 2 You can install an M.2 SSD, size: 2242, interface protocol: SATA3. Quick Start Guide Pocket PC Mini PC*1Pcs User Manual*1Pcs HDMI Cable*1Pcs Power Adapter*1Pcs SSD 2 3 How to Change Your Audio Playback Devices on Windows Connect speakers, headphones, a webcam with a built- in microphone, a Bluetooth headset, or another audio devices to your Windows PC and need to choose which devices Windows actually uses. 1.Just click the sound icon in your notification area(also known as the system tray). 2.Click the“Select playback device”option. 3.Select the playback device you want to use from the menu. Connecting Peripherals Power On Power OFF Reminder Automatic power-on setting * Connect one end of the HDMI cable to the MINI PC's HDMI port and the other end to your monitor's HDMI port. * Plug the power adapter into your power socket and plug the Power interface into the MINI PC's DC port (power port). * Connect your keyboard and mouse (wired or wireless) to this MINI PC. * This MINI PC has built-in WIFI, and you can also connect your network cable to the MINI PC's network port. Press the power button, the blue LED lights up, and then wait about 15 seconds to enter the system Please do not directly unplug the power to forcibly shut down the power, you can through Windows internal applications to shut down. * This MINI PC supports automatic power-on, you can follow the steps below. * Connect your MINI PC to the power supply, monitor, keyboard and mouse. * Press the power button and hold down the Esc key for about 5 seconds to enter BIOS. * Move the cursor to the CHIPSET option, then move the cursor down to the South Cluster Configuration option and press Enter. * Move the cursor down to the Miscellaneous Configuration option, press Enter, then move the cursor down to Wake On Power(Automatic On), press enter. * Move the cursor up to the S0 State option, press Enter to confirm, then press the F4 key on the keyboard to save and exit. S0 State option supports automatic power-on, S5 State option does not support automatic power-on 4 Hardware Configuration System Information Precautions For Use CPUIntel Gemini Lake J4125(up to 2.70GHz) Intel UHD Graphics 600(up to 750MHz)GPU RAMLPDDR4(4GB/8GB) SSD(M.2 SATA3 2242/128GB/256GB/512GB/1T) Storage Wi-FiRealtek 8821CU/2.4G/5G,WiFi 802.11ac Realtek 8821CU/BT4.2Bluetooth Power SupplyDC 12V 2.5A Power ON:BluePower Indicator OS Windows 11 Pro Multi-Language Language ® In order to continue to improve the user experience,we may occasionally update app and firmware. * Do not use harsh of chemical solvent,cleaning products,we recommend using a soft cloth to wipe. * Do not dispose of by fire,or incinerate,to avoid having fire accident. * Do not attempt to open the housing or to repair,if a failure occurs,please contact the customer service. * Please note seepage while clean electronics,be careful of electric shock. * Check for any frayed or damaged cords or plugs. * Do not arbitrary discard the product,we should protect the environment. * Work environment:-10~45,30%~90% humidity. * Storage environment:-20~60,10%~90% humidity. 5 FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any inte rference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interferenceto radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help.

Shenzhen Borui Zhitong Technology Co., LTD Agent Authorization Company: Shenzhen Borui Zhitong Technology Co., LTD Address: Room 501, Building 1, Nanling Science Park, No.7, Jianmin Road, Nanwan Street, Longgang District, Shenzhen, China Product Name: MINI PC STICK Trade Mark: N/A Model Number(s): S7 FCC ID: 2A5RP-S7 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2023-01-31 Name: JINBO HU Title: general manager Company: Shenzhen Borui Zhitong Technology Co., LTD

Shenzhen Borui Zhitong Technology Co., LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023-01-31 Subject; Request for Confidentiality FCC ID: 2A5RP-S7 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description BOM Software Security Requirements In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Signature: Name / Title: JINBO HU / general manager Company: Shenzhen Borui Zhitong Technology Co., LTD Address: Room 501, Building 1, Nanling Science Park, No.7, Jianmin Road, Nanwan Street, Longgang District, Shenzhen, China Phone: 13538218145 Fax: 13538218145 E-Mail: [email protected]

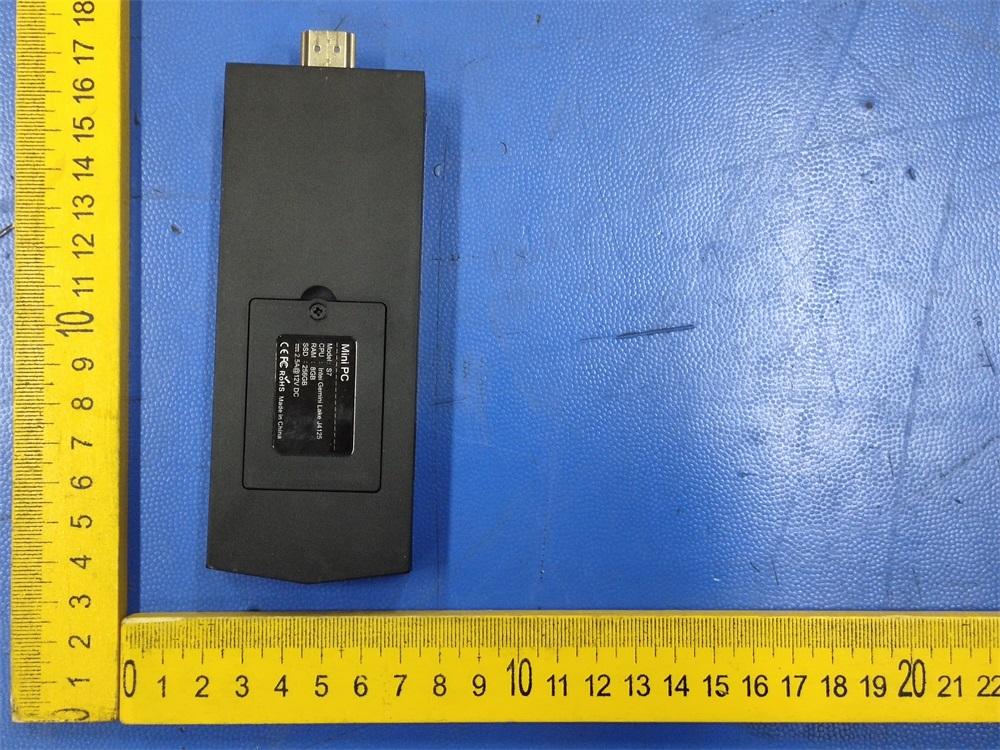

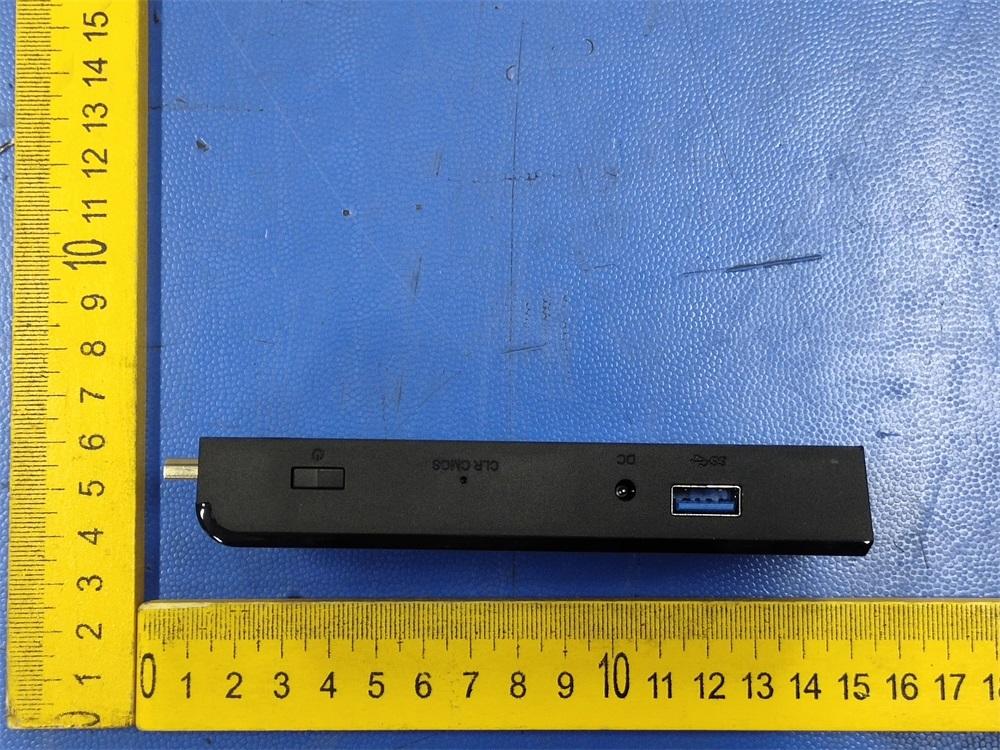

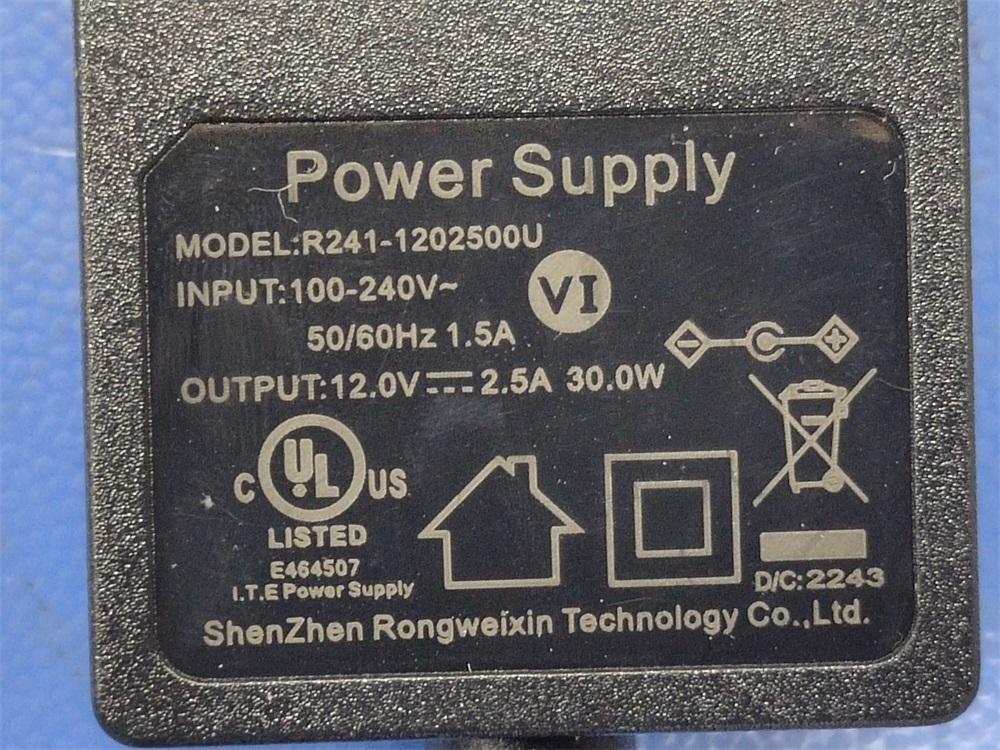

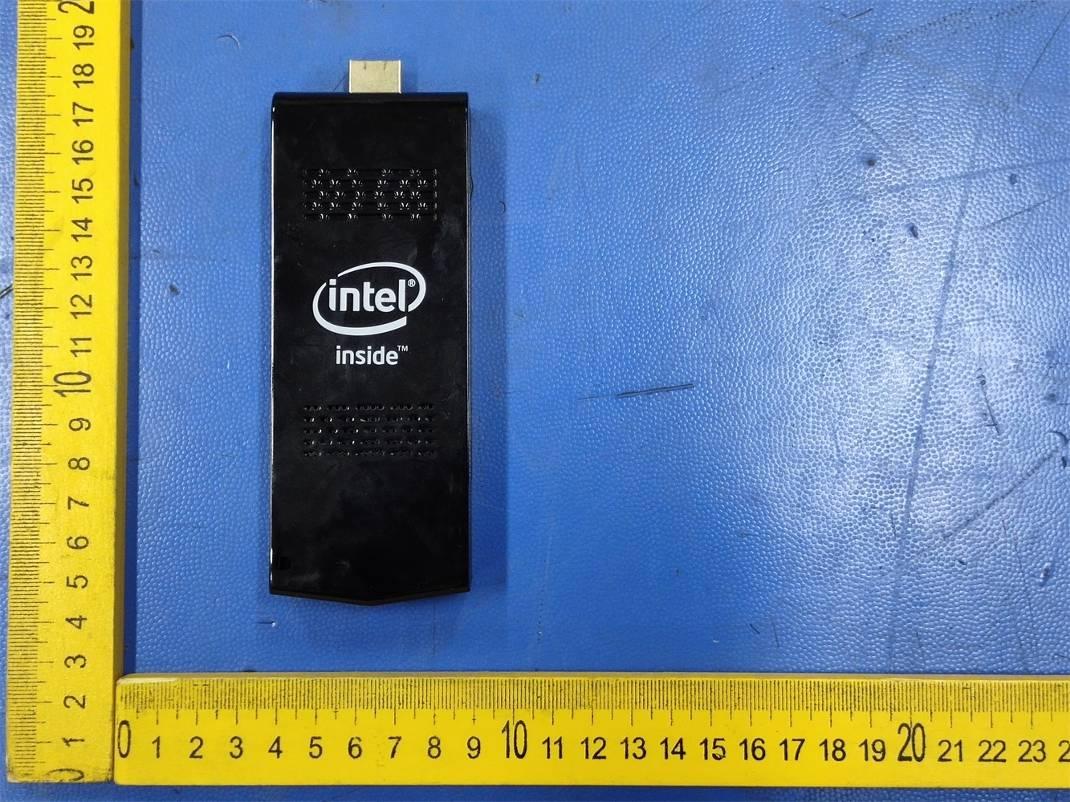

FCC ID: 2A5RP-S7 Fig. 1 Fig. 2 FCC ID: 2A5RP-S7 Fig. 3 Fig. 4 FCC ID: 2A5RP-S7 Fig. 5 Fig. 6 FCC ID: 2A5RP-S7 Fig. 7 Fig. 8

_____________________________________________________________________________________________________ LABEL AND LOCATION (Size: L3.0cm x1.5cm) Label Location MINI PC STICK Model:S7 Input: DC 12.0V FCC ID: 2A5RP-S7

FCC ID: 2A5RP-S7 Fig. 1 Fig. 2 FCC ID: 2A5RP-S7 Fig. 3 Fig. 4 FCC ID: 2A5RP-S7 Fig. 5 Fig. 6 Antennt FCC ID: 2A5RP-S7 Fig. 7 Fig. 8 FCC ID: 2A5RP-S7 Fig. 9 Fig. 10

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong RF Exposure evaluation Report Reference No...................... : FCC ID. ............................................ : GTS20221208007-1-14 2A5RP-S7 Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Jenny Zeng Approved by ( position+printed name+signature) . : Manager Jason Hu Date of issue .................................... : Jan. 11, 2023 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong Applicant’s name ............................ : Shenzhen Borui Zhitong Technology Co., LTD Address ............................................ : Room 501, Building 1, Nanling Science Park, No.7, Jianmin Road, Nanwan Street, Longgang District, Shenzhen, China Test specification ........................... : Standard ........................................... : 47CFR §1.1310 Basis and purpose 47CFR §2.1091 Radiofrequency radiation exposure evaluation: mobile devices KDB447498 D01 General RF Exposure Guidance v06 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : MINI PC STICK Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Borui Zhitong Technology Co., LTD Model/Type reference ...................... : S7 Listed Models ................................. : N/A Hardware Version ........................... : N/A Software Version .............................. : N/A Rating ............................................... : DC 12.0V/2.5A by Adapter Result ............................................... : PASS Report No.: GTS20221208007-1-14 Page 2 of 13 T E S T R E P O R T Test Report No. : GTS20221208007-1-14 Jan. 11, 2023 ______________________________________________________________________________________________ Date of issue Equipment under Test : MINI PC STICK Model /Type : S7 Listed model : N/A Applicant : Shenzhen Borui Zhitong Technology Co., LTD Address : Room 501, Building 1, Nanling Science Park, No.7, Jianmin Road, Nanwan Street, Longgang District, Shenzhen, China Manufacturer : Shenzhen Borui Zhitong Technology Co., LTD Address : Room 501, Building 1, Nanling Science Park, No.7, Jianmin Road, Nanwan Street, Longgang District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20221208007-1-14 Page 3 of 13 Contents 1. SUMMARY ................................................................................................................................................................. 4 1.1 EUT CONFIGURATION ........................................................................................................................................................ 4 1.2 PRODUCT DESCRIPTION ..................................................................................................................................................... 4 2. TEST ENVIRONMENT ................................................................................................................................................. 5 2.1 ADDRESS OF THE TEST LABORATORY ..................................................................................................................................... 5 2.2 TEST FACILITY .................................................................................................................................................................. 5 2.3 ENVIRONMENTAL CONDITIONS ............................................................................................................................................ 5 2.4 STATEMENT OF THE MEASUREMENT UNCERTAINTY .................................................................................................................. 5 3. METHOD OF MEASUREMENT .................................................................................................................................... 6 3.1 APPLICABLE STANDARD ...................................................................................................................................................... 6 3.2 REQUIREMENT ................................................................................................................................................................. 6 3.3 LIMIT ............................................................................................................................................................................. 6 3.4 MPE CALCULATION METHOD ............................................................................................................................................. 7 3.5 ANTENNA INFORMATION ................................................................................................................................................... …

Text truncated - open the document above for the full version.

Case No. : GTS20221208007-1-10 Ambient Condition: 25 °C, 45 %RH, Atmos100.1Kpa, Test Date: 2022.12.29 Test Engineer: Jenny zeng Appendix A.1: 20dB Emission Bandwidth Test Result TestMode Antenna Frequency[MHz] 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH1 Ant1 2402 0.837 2401.571 2402.408 --- --- 2441 0.858 2440.559 2441.417 --- --- 2480 0.792 2479.601 2480.393 --- --- 2DH1 Ant1 2402 1.242 2401.370 2402.612 --- --- 2441 1.248 2440.370 2441.618 --- --- 2480 1.257 2479.373 2480.630 --- --- 3DH1 Ant1 2402 1.224 2401.403 2402.627 --- --- 2441 1.215 2440.406 2441.621 --- --- 2480 1.245 2479.376 2480.621 --- --- Test Graphs DH1_Ant1_2402 DH1_Ant1_2441 DH1_Ant1_2480 2DH1_Ant1_2402 2DH1_Ant1_2441 2DH1_Ant1_2480 3DH1_Ant1_2402 3DH1_Ant1_2441 3DH1_Ant1_2480 Appendix A.2: Occupied Channel Bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH1 Ant1 2402 0.70759 2401.644 2402.352 --- --- 2441 0.71140 2440.636 2441.347 --- --- 2480 0.70976 2479.636 2480.346 --- --- 2DH1 Ant1 2402 1.1416 2401.431 2402.572 --- --- 2441 1.1385 2440.430 2441.569 --- --- 2480 1.1524 2479.423 2480.575 --- --- 3DH1 Ant1 2402 1.1399 2401.440 2402.580 --- --- 2441 1.1308 2440.444 2441.575 --- --- 2480 1.1318 2479.442 2480.574 --- --- Test Graphs DH1_Ant1_2402 DH1_Ant1_2441 DH1_Ant1_2480 2DH1_Ant1_2402 2DH1_Ant1_2441 2DH1_Ant1_2480 3DH1_Ant1_2402 3DH1_Ant1_2441 3DH1_Ant1_2480 Appendix A.3: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency[MHz] Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH1 Ant1 2402 9.49 ≤20.97 PASS 2441 10.19 ≤20.97 PASS 2480 11.07 ≤20.97 PASS 2DH1 Ant1 2402 8.56 ≤20.97 PASS 2441 9.41 ≤20.97 PASS 2480 10.15 ≤20.97 PASS 3DH1 Ant1 2402 8.54 ≤20.97 PASS 2441 9.45 ≤20.97 PASS 2480 10.16 ≤20.97 PASS Appendix A.4: Carrier frequency separation Test Result TestMode Antenna Frequency[MHz] Result[MHz] Limit[MHz] Verdict DH1 Ant1 Hop_2402 0.836 ≥0.572 PASS Hop_2441 0.698 ≥0.572 PASS Hop_2480 1.004 ≥0.572 PASS 2DH1 Ant1 Hop_2402 0.998 ≥0.838 PASS Hop_2441 0.936 ≥0.838 PASS Hop_2480 1.006 ≥0.838 PASS 3DH1 Ant1 Hop_2402 1.01 ≥0.830 PASS Hop_2441 1.138 ≥0.830 PASS Hop_2480 0.982 ≥0.830 PASS Test Graphs DH1_Ant1_Hop_2402 DH1_Ant1_Hop_2441 DH1_Ant1_Hop_2480 2DH1_Ant1_Hop_2402 2DH1_Ant1_Hop_2441 2DH1_Ant1_Hop_2480 3DH1_Ant1_Hop_2402 3DH1_Ant1_Hop_2441 3DH1_Ant1_Hop_2480 Appendix A.5: Time of occupancy Test Result TestMode Antenna Frequency[MHz] BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.37 330 0.122 ≤0.4 PASS DH3 Ant1 Hop 1.62 160 0.259 ≤0.4 PASS DH5 Ant1 Hop 2.87 120 0.345 ≤0.4 PASS 2DH1 Ant1 Hop 0.37 320 0.12 ≤0.4 PASS 2DH3 Ant1 Hop 1.63 170 0.277 ≤0.4 PASS 2DH5 Ant1 Hop 2.88 120 0.345 ≤0.4 PASS 3DH1 Ant1 Hop 0.38 330 0.125 ≤0.4 PASS 3DH3 Ant1 Hop 1.63 160 0.26 ≤0.4 PASS 3DH5 Ant1 Hop 2.88 120 0.346 ≤0.4 PASS Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop DH5_Ant1_Hop 2DH1_Ant1_Hop 2DH3_Ant1_Hop 2DH5_Ant1_Hop 3DH1_Ant1_Hop 3DH3_Ant1_Hop 3DH5_Ant1_Hop Appendix A.6: Number of hopping channels Test Result TestMode Antenna Frequency[MHz] Result[Num] Limit[Num] Verdict DH1 Ant1 Hop 79 ≥15 PASS 2DH1 Ant1 Hop 79 ≥15 PASS 3DH1 Ant1 Hop 79 ≥15 PASS Test Graphs DH1_Ant1_Hop 2DH1_Ant1_Hop 3DH1_Ant1_Hop Appendix A.7: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH1 Ant1 Low 2402 9.28 -49.22 ≤-10.72 PASS High 2480 10.82 -49.16 ≤-9.18 PASS Low Hop_2402 9.00 -49.8 ≤-11 PASS High Hop_2480 10.47 -48.9 ≤-9.53 PASS 2DH1 Ant1 Low 2402 8.26 -48.74 ≤-11.74 PASS High 2480 10.00 -48.66 ≤-10 PASS Low Hop_2402 7.20 -48.99 ≤-12.8 PASS High Hop_2480 9.86 -48.76 ≤-10.14 PASS 3DH1 Ant1 Low 2402 8.29 -45.66 ≤-11.71 PASS High 2480 10.04 -48.04 ≤-9.96 PASS Low Hop_2402 7.01 -49.47 ≤-12.99 PASS High Hop_2480 9.63 -48.4 ≤-10.37 PASS Test Graphs DH1_Ant1_Low_2402 DH1_Ant1_High_2480 DH1_Ant1_Low_Hop_2402 DH1_Ant1_High_Hop_2480 2DH1_Ant1_Low_2402 2DH1_Ant1_High_2480 2DH1_Ant1_Low_Hop_2402 2DH1_Ant1_High_Hop_2480 3DH1_Ant1_Low_2402 3DH1_Ant1_High_2480 3DH1_Ant1_Low_Hop_2402 3DH1_Ant1_High_Hop_2480 Appendix A.8: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH1 Ant1 2402 Reference 8.51 8.51 --- PASS 30~1000 8.51 -60.06 ≤-11.49 PASS 1000~26500 8.51 -47.15 ≤-11.49 PASS 2441 Reference 9.67 9.67 --- PASS 30~1000 9.67 -60.09 ≤-10.33 PASS 1000~26500 9.67 -47.71 ≤-10.33 PASS 2480 Reference 10.37 10.37 --- PASS 30~1000 10.37 -59.16 ≤-9.63 PASS 1000~26500 10.37 -47.61 ≤-9.63 PASS 2DH1 Ant1 2402 Reference 8.07 8.07 --- PASS 30~1000 8.07 -58.77 ≤-11.93 PASS 1000~26500 8.07 -47.78 ≤-11.93 PASS 2441 Reference 8.60 8.60 --- PASS 30~1000 8.60 -59.96 ≤-11.4 PASS 1000~26500 8.60 -47.23 ≤-11.4 PASS 2480 Reference 9.66 9.66 --- PASS 30~1000 9.66 -59.13 ≤-10.34 PASS 1000~26500 9.66 -47.38 ≤-10.34 PASS 3DH1 Ant1 2402 Reference 7.37 7.37 --- PASS 30~1000 7.37 -60.06 ≤-12.63 PASS 1000~26500 7.37 -44.9 ≤-12.63 PASS 2441 Reference 8.86 8.86 --- PASS 30~1000 8.86 -59.84 ≤-11.14 PASS 1000~26500 8.86 -42.66 ≤-11.14 PASS 2480 Reference 9.22 9.22 --- PASS 30~1000 9.22 -60.22 ≤-10.78 PASS 1000~26500 9.22 -47.61 ≤-10.78 PASS Test Graphs DH1_Ant1_2402_0~Reference DH1_Ant1_2402_30~1000 DH1_Ant1_2402_1000~26500 DH1_Ant1_2441_0~Reference DH1_Ant1_2441_30~1000 DH1_Ant1_2441_1000~26500 DH1_Ant1_2480_0~Reference DH1_Ant1_2480_30~1000 DH1_Ant1_2480_1000~26500 2DH1_Ant1_2402_0~Reference 2DH1_Ant1_2402_30~1000 2DH1_Ant1_2402_1000~26500 2DH1_Ant1_2441_0~Reference 2DH1_Ant1_2441_30~1000 2DH1_Ant1_2441_1000~26500 2DH1_Ant1_2480_0~Reference 2DH1_Ant1_2480_30~1000 2DH1_Ant1_2480_1000~26500 3DH1_Ant1_2402_0~Reference 3DH1_Ant1_2402_30~1000 3DH1_Ant1_2402_1000~26500 3DH1_Ant1_2441_0~Reference 3DH1_Ant1_2441_30~1000 3DH1_Ant1_2441_1000~26500 3DH1_Ant1_2480_0~Reference 3DH1_Ant1_2480_30~1000 3DH1_Ant1_2480_1000~26500

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ............................................ : GTS20221208007-1-10 2A5RP-S7 Compiled by ( position+printed name+signature).. : File administrators Peter Xiao Supervised by ( position+printed name+signature).. : Test Engineer Jenny Zeng Approved by ( position+printed name+signature).. : Manager Jason Hu Date of issue ..................................... : Jan. 11, 2023 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong,China Applicant’s name ............................ : Shenzhen Borui Zhitong Technology Co., LTD Address ............................................ : Room 501, Building 1, Nanling Science Park, No.7, Jianmin Road, Nanwan Street, Longgang District, Shenzhen, China Test specification ........................... : Standard ........................................... : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400- 2483.5 MHz and 5725-5850 MHz TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ....................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : MINI PC STICK Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Borui Zhitong Technology Co., LTD Model/Type reference ...................... : S7 List Models ..................................... : N/A Modulation Type ............................... : GFSK,π/4-DQPSK,8DPSK Operation Frequency ........................ : From 2402MHz to 2480MHz Hardware Version ............................ : N/A Software Version .............................. : N/A Rating ............................................... : DC 12.0V/2.5A by Adapter Result ............................................... : PASS Report No.: GTS20221208007-1-10 Page 2 of 38 T E S T R E P O R T Test Report No. : GTS20221208007-1-10 Jan. 11, 2023 ______________________________________________________________________________________________ Date of issue Equipment under Test : MINI PC STICK Model /Type : S7 Listed model : N/A Applicant : Shenzhen Borui Zhitong Technology Co., LTD Address : Room 501, Building 1, Nanling Science Park, No.7, Jianmin Road, Nanwan Street, Longgang District, Shenzhen, China Manufacturer : Shenzhen Borui Zhitong Technology Co., LTD Address : Room 501, Building 1, Nanling Science Park, No.7, Jianmin Road, Nanwan Street, Longgang District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20221208007-1-10 Page 3 of 38 Contents 1. TEST STANDARDS ......................................................................................................................................... 4 2. SUMMARY ....................................................................................................................................................... 5 2.1. General Remarks ................................................................................................................................... 5 2.2. Product Description ................................................................................................................................ 5 2.3. Equipment Under Test ........................................................................................................................... 6 2.4. Short description of the Equipment under Test (EUT) ........................................................................... 6 2.5. EUT operation mode .............................................................................................................................. 6 2.6. Block Diagram of Test Setup ................................................................................................................. 7 2.7. Related Submittal(s) / Grant (s) ............................................................................................................. 7 2.8. EUT Exercise Software .......................................................................................................................... 7 2.9. Special Accessories ............................................................................................................................... 7 2.10. External I/O Cable ................................................................................................................................ 7 2.11. Modifications ........................................................................................................................................ 7 3. TEST ENVIRONMENT ..................................................................................................................................... 8 3.1. Address of the test laboratory ................................................................................................................ 8 3.2. Test…

Text truncated - open the document above for the full version.

Copyright©Suzhou Sonat Communication Eguipment Co.,Ltd ~ 4 ~ SPECIFICATION FOR APPROVAL TECHNICAL DATE 2.4G Antenna Assembly 1. Electrical Specifications 1.1 Frequency Ranges ........................................ 2.4~2.5 GHz &5.15~5.85 GHz 1.2 Impedance .................................................... 50Ω 1.3 VSWR ............................................................. 2.0max 1.4 Return Loss .................................................. ‐10dBmax 2. Physical Properties 2.1 PIFA Type ............................................................DIP 2.2 ANT Metal .........................................................Brass 2.3 Operating Temperature ...................................‐20°C ~ +65°C 2.4 Storage Temperature ........ .............................. ‐30°C ~ +75°C Copyright©Suzhou Sonat Communication Eguipment Co.,Ltd ~ 5 ~ SPECIFICATION FOR APPROVAL 苏州硕天通讯器材有限公司 Suzhou Soant Communication Equipment Co.,Ltd 2.4&5G Antenna 9/23/2017 SOANT COMMUNICATION 王少荣 STPFA175470NNA001 T5 材质：黄铜 厚度0.3mm Copyright©Suzhou Sonat Communication Eguipment Co.,Ltd ~ 6 ~ SPECIFICATION FOR APPROVAL 测试报告 0 10 20 30 40 50 60 70 80 90 2400 2450 25005150 5350 5530 5725 5890 Efficiency(%) 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 2400 2450 25005150 5350 5530 5725 5890 Gain(dBi) Copyright©Suzhou Sonat Communication Eguipment Co.,Ltd ~ 7 ~ SPECIFICATION FOR APPROVAL  Gain（dBi） Frequency = 2400 MHz Copyright©Suzhou Sonat Communication Eguipment Co.,Ltd ~ 8 ~ SPECIFICATION FOR APPROVAL  Gain（dBi Frequency = 2450 MHz Copyright©Suzhou Sonat Communication Eguipment Co.,Ltd ~ 9 ~ SPECIFICATION FOR APPROVAL  Gain（dBi） Frequency = 2500 MHz Copyright©Suzhou Sonat Communication Eguipment Co.,Ltd ~ 10 ~ SPECIFICATION FOR APPROVAL  Gain（dBi） Frequency = 5150 MHz Copyright©Suzhou Sonat Communication Eguipment Co.,Ltd ~ 11 ~ SPECIFICATION FOR APPROVAL  Gain（dBi） Frequency = 5800 MHz

FCC ID: 2A5RP-S7 _______________________________________________________________________________________________ Page 1 of 2 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 FCC ID: 2A5RP-S7 _______________________________________________________________________________________________ Page 2 of 2 1.2Photo of Conducted Emission Measurement Fig. 3
