2A5Z8-GD303Garage Door Remote Control

Shenzhen Jos Technology Co., Ltd.

Click to zoom

Application Details

Equipment Class: DSC - Part 15 Security/Remote Control Transmitter
Date of Grant: Feb 26, 2026
Application Purpose: Original Equipment
Equipment Note: Garage Door Remote Control
Frequency Range: 302.99750000 - 302.99750000
Company: Shenzhen Jos Technology Co., Ltd.
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Instruction Manual 1.Matching code: (Figure 1) Step1.Press and release the required channel corresponding switches (SW1/SW2), and the corresponding LED will long bright. (SW1 corresponds to LED1, SW2 corresponds to LED2) Step2.Press the required button on the remote control within 30 seconds, and the receiver corresponding LED will turn off. Step3.Then when you pressed the learn button(which one has already learned) every time, the receiver corresponding LED will flash 2 times and have relay sounds along with, indicating that the match code is OK. 2.Clearing code: 1).Single channel clear code: Press the receiver SW1/SW2 button for 5 seconds, LED1/LED2 flash 7 times and then turn off. (Figure 2) 2).All channels clear code: Press the receiver SW3 button for 5 seconds, LED1 and LED2 flash 7 times at the same time and then turn off. (Figure 3) Figure 1 Figure 2 Figure 3 x7 x7 FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator and your body.

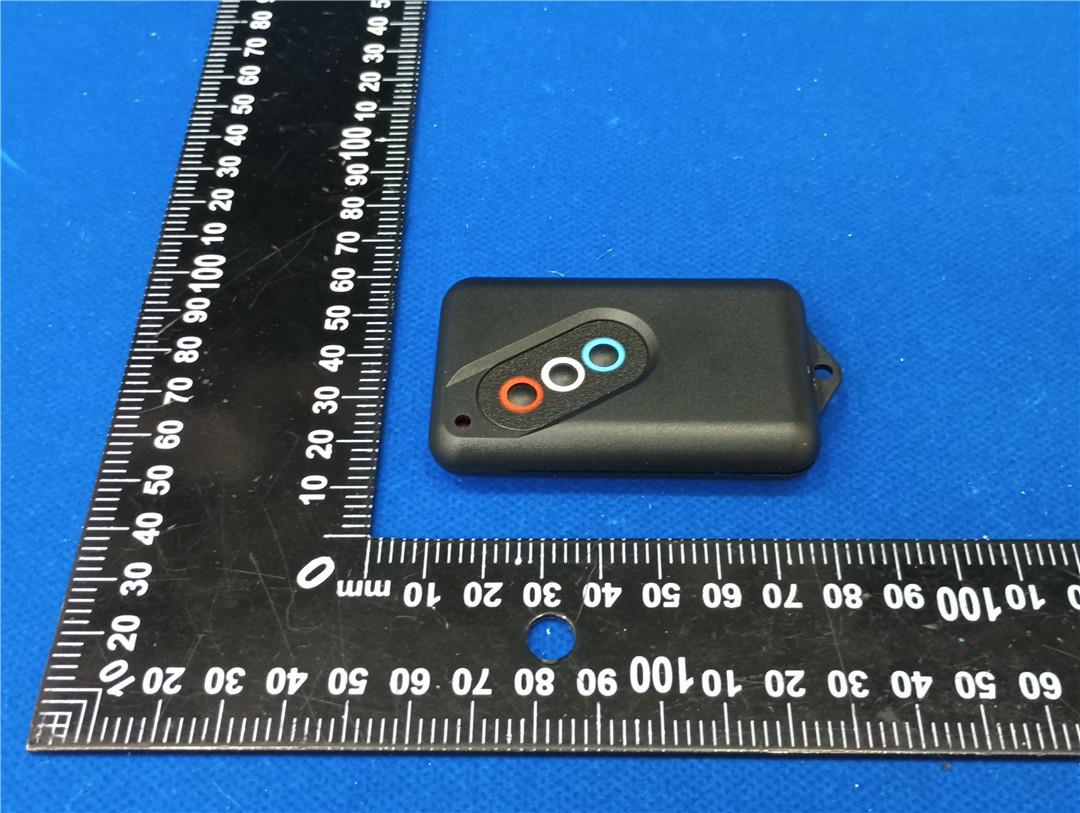

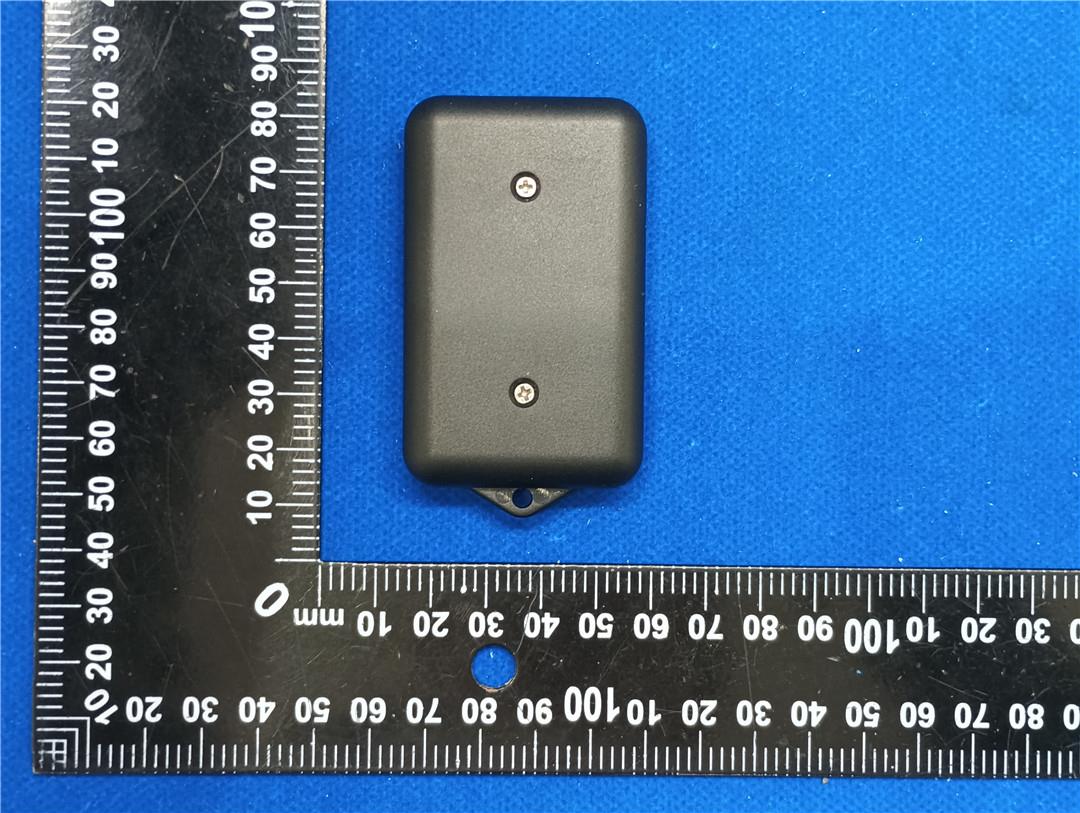

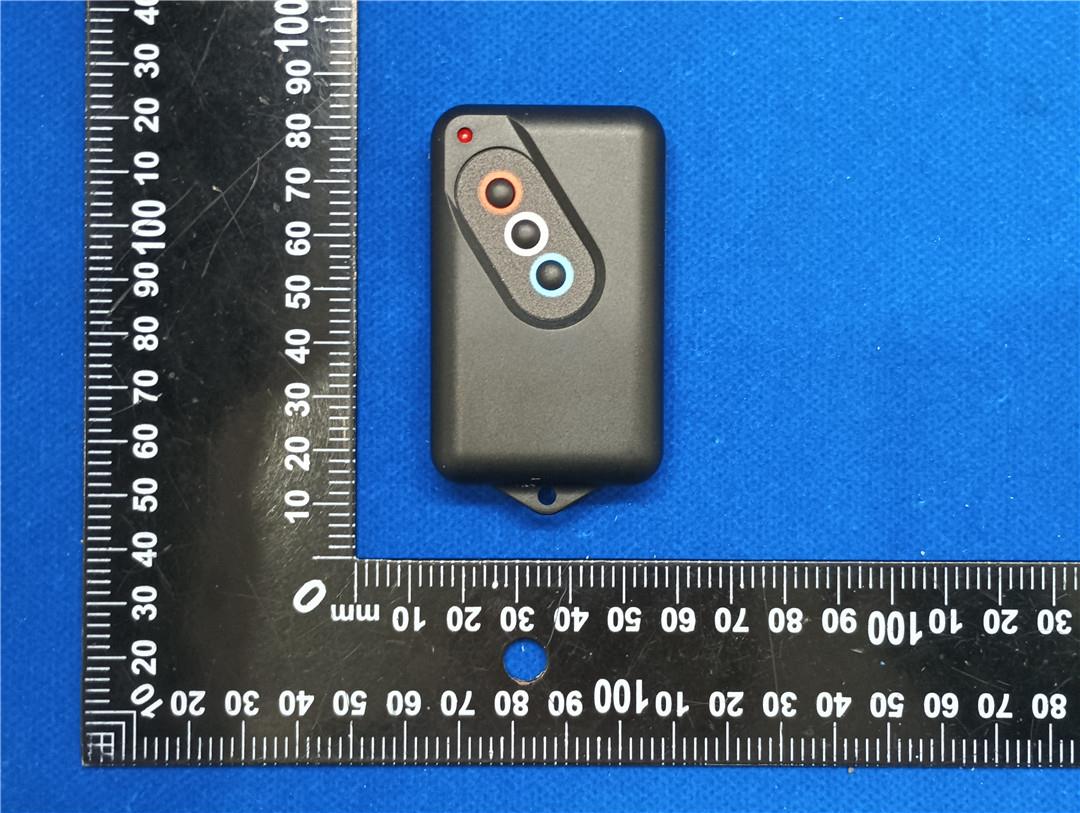

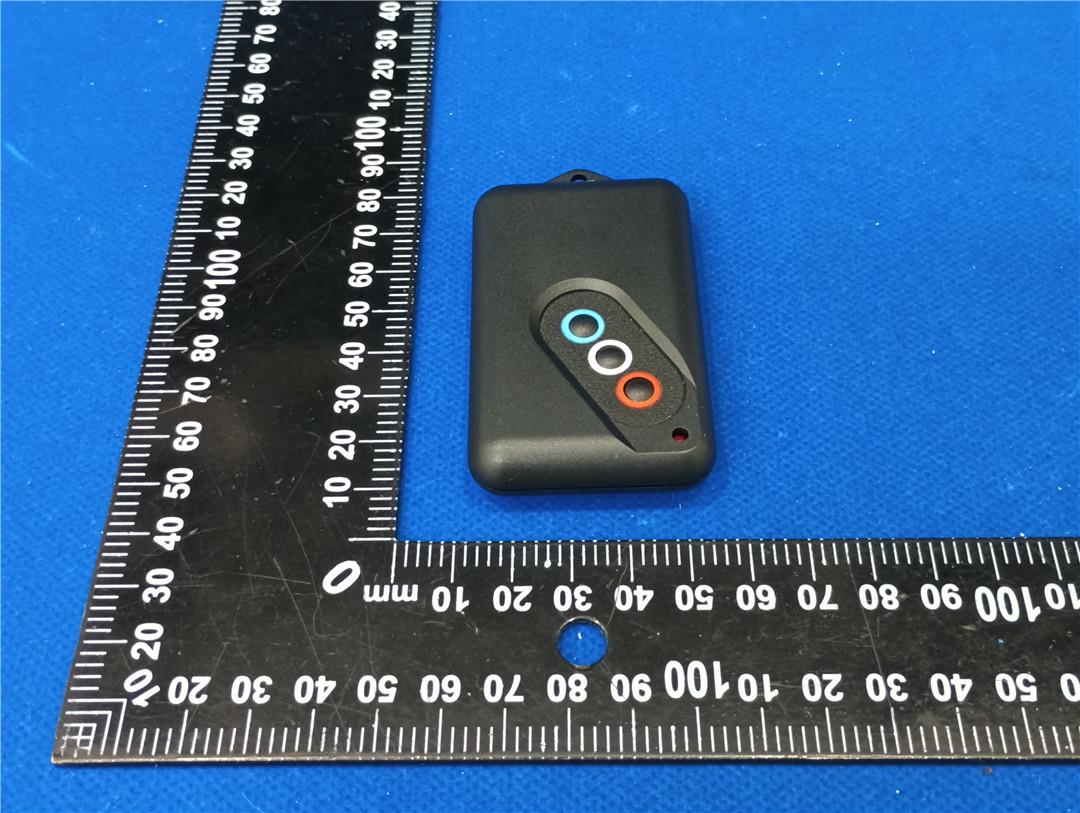

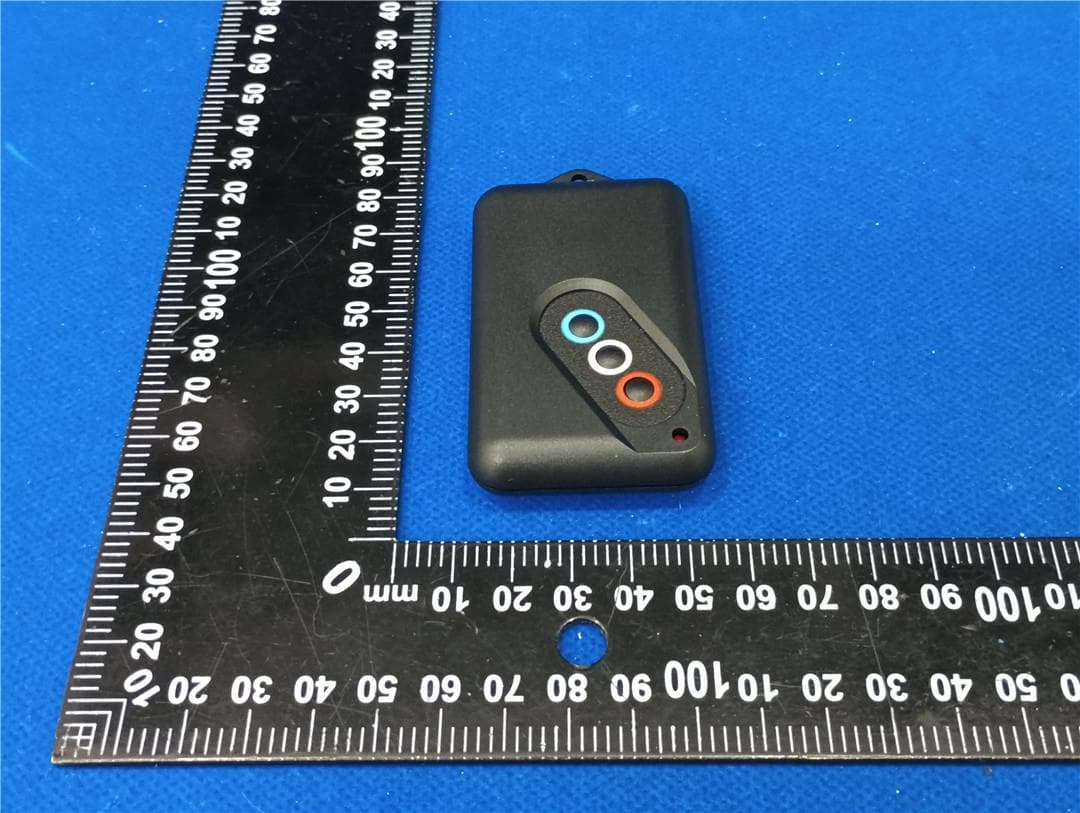

External Photos

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202601720 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 4 Product Name: Garage Door Remote Control Model No.: GD303 EUT Constructional Details External Photo Report No.: HTT202601720 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 4 Report No.: HTT202601720 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 4 Report No.: HTT202601720 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 4 of 4 ------End------

ID Label/Location Info

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2A5Z8-GD303

Internal Photos

RF Exposure Info

Shenzhen HTT Technology Co., Ltd. Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 1 of 8 RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : HTT202601720F02 2A5Z8-GD303 Compiled by ( position+printed name+signature) . : File administrators Supervised by ( position+printed name+signature) . : Project Engineer Approved by ( position+printed name+signature) . : RF Manager Date of issue .................................... : Jan. 29, 2026 Testing Laboratory Name .............. : Shenzhen HTT Technology Co.,Ltd. Address ............................................ : 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ............................ : Shenzhen Jos Technology Co.,Ltd. Address ............................................ : 201,Building B,No.213 Fuyuan Street,Fenghuang Community,Fuyong Street,Bao'an District,Shenzhen,China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Garage Door Remote Control Manufacturer .................................... : Shenzhen Jos Technology Co.,Ltd. Trade Mark ........................................ N/A Model/Type reference ...................... : GD303 Rating ............................................... : DC 12.0V From Battery Result ............................................... : PASS Report No.: HTT202601720F02 Page 2 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 2 of 8 T E S T R E P O R T Equipment under Test : Garage Door Remote Control Model /Type : GD303 Listed Models : GD303-1,GD303-2,GD303-3,GD303-4,GD303-5, GD303-6,GD303-7,GD303-8,GD303-9,GD303-10 Model Declaration : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Shenzhen Jos Technology Co.,Ltd. Address : 201,Building B,No.213 Fuyuan Street,Fenghuang Community, Fuyong Street,Bao'an District,Shenzhen,China Manufacturer : Shenzhen Jos Technology Co.,Ltd. Address : 201,Building B,No.213 Fuyuan Street,Fenghuang Community, Fuyong Street,Bao'an District,Shenzhen,China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT202601720F02 Page 3 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 3 of 8 Contents 1 T E S T S T A N D A R D S ................................................... 4 2 S U M M A R Y .............................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Special Accessories 5 2.4 Modifications 5 3 T E S T E N V I R O N M E N T 6 3.1 Address of the test laboratory 6 3.2 Test Facility 6 3.3 Statement of the measurement uncertainty 6 4 T E S T L I M I T 7 4.1 Requirement 7 4.2 Conducted Power Results 8 4.3 Manufacturing tolerance 8 4.4 Evaluation Result 8 4.5 Simultaneous Transmission for SAR Exclusion 8 5 C O N C L U S I O N 8 Report No.: HTT202601720F02 Page 4 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 4 of 8 1 T E S T S T A N D A R D S The tests were performed according to following standards: ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Device, RF Exposure, Equipment Authorization Procedures. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices Report No.: HTT202601720F02 Page 5 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 5 of 8 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Jan. 23, 2026 Testing commenced on : Jan. 23, 2026 Testing concluded on : Jan. 29, 2026 2.2 Product Description Product Name: Garage Door Remote Control Model/Type reference: GD303 Testing sample ID： HTT202601720-1# (Engineer sample), HTT202601720-2#(Normal sample) Power supply: DC 12.0V From Battery Modulation: ASK Operation frequency: 302.9975MHz, 389.9965MHz Channel number: 2 Antenna type: PCB Antenna Antenna gain: 0 dBi 2.3 Special Accessories The following is the EUT test of the auxiliary equipment provided by the laboratory: Description Manufacturer Model Technical Parameters Certificate Provided by / / / / / / 2.4…

Text truncated - open the document above for the full version.

Test Report

APPlications ※Bluetooth Home RF※ 2.Specification ISM band 315MHz applications 1.Dimensions s numberItemSpecifications 1Working Central Frequency 315MHz 2Band Width 315MHz 3Gain0dBi 4VSWR≤2.0 5Antenna typePCB antenna 6Azimuth Beam widthOmni‐directional 7Impedance 50ohm 8Modulation modeASK ‣Company Name : ‣ Company addres Shenzhen Jos Technology Co.,Ltd. s : 201,Building B,No.213 Fuyuan Street,Fenghuang Community,Fuyong Street,Bao'an District,Shenzhen,China We statement that All measurements were performed radiated and therefore additional antenna gain documentation is not required.

Test Report

Shenzhen HTT Technology Co., Ltd. FCC PART 15 SUBPART C TEST REPORT FCC PART 15.231 Report Reference No. ..................... : FCC ID. ........................................... : HTT202601720F01 2A5Z8-GD303 Compiled by ( position+printed name+signature) .. : File administrators Supervised by ( position+printed name+signature) .. : Project Engineer Approved by ( position+printed name+signature) .. : RF Manager Date of issue ..................................... : Jan. 29, 2026 Testing Laboratory Name .............: Shenzhen HTT Technology Co.,Ltd. Address ............................................ : 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ............................ : Shenzhen Jos Technology Co.,Ltd. Address ............................................ : 201,Building B,No.213 Fuyuan Street,Fenghuang Community,Fuyong Street,Bao'an District,Shenzhen,China Test specification ...........................: Standard ........................................... : FCC Part 15.231 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Garage Door Remote Control Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Jos Technology Co.,Ltd. Model/Type reference....................... : GD303 Listed Models .................................. : GD303-1,GD303-2,GD303-3,GD303-4,GD303-5, GD303-6,GD303-7,GD303-8,GD303-9,GD303-10 Ratings ............................................. : DC 12.0V From Battery Modulation ....................................... : ASK Frequency .......................................... 302.9975MHz, 389.9965MHz Result................................................ : PASS Report No.: HTT202601720F01 Page 2 of 27 T E S T R E P O R T Equipment under Test : Garage Door Remote Control Model /Type : GD303 Listed Models : GD303-1,GD303-2,GD303-3,GD303-4,GD303-5, GD303-6,GD303-7,GD303-8,GD303-9,GD303-10 Model Declaration : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Shenzhen Jos Technology Co.,Ltd. Address : 201,Building B,No.213 Fuyuan Street,Fenghuang Community,Fuyong Street,Bao'an District,Shenzhen,China Manufacturer : Shenzhen Jos Technology Co.,Ltd. Address : 201,Building B,No.213 Fuyuan Street,Fenghuang Community,Fuyong Street,Bao'an District,Shenzhen,China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT202601720F01 Page 3 of 27 Contents 1 T E S T S T A N D A R D S .................................................................. 4 2 S U M M A R Y ............................................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 Block Diagram of Test Setup 5 2.6 Special Accessories 5 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T ............................................................... 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ............................................ 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emission 11 4.3 20dB Bandwidth 22 4.4 Deactivation Time 24 4.5 Antenna Requirement 26 5 T E S T S E T U P P H O T O S O F T H E E U T .......................................... 27 6 P H O T O S O F T H E E U T ............................................................. 27 Report No.: HTT202601720F01 Page 4 of 27 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.231:Periodic operation in the band 40.66-40.70 MHz and above 70 MHz. ANSI C63.10-2020+Cor. 1-2023+C63.10a-2024 + Errata to C63.10a-2024: American National Standard for Testing Unlicensed Wireless Devices Report No.: HTT202601720F01 Page 5 of 27 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Jan. 23, 2026 Testing commenced on : Jan. 23, 2026 Testing concluded on : Jan. 29, 2026 2.2 Product Description Product Name: Garage Door Remote Control Model/Type reference: GD303 Testing sample ID： HTT202601720-1# (Engineer sample), HTT202601720-2#(Normal sample) Power supply: DC 12.0V From Battery Modulation: ASK Operation frequency: 302.9975MHz, 389.9965MHz Channel number: 2 Antenna type: PCB Antenna Antenna gain: 0 dBi 2.3 Equipment Under Test Power supply system utilised Power supply voltage : ○ 230V / 50 Hz ○ 120V / 60Hz ○ 12 V DC ○ 24 V DC ● Other (specified in blank below) DC 12.0V From Battery 2.4 Short description of the Equipment under Test (EUT) This is a Garage Door Remote Control. For more details, refer to the user’s manual of the EUT. 2.5 Block Diagram of Test Setup 2.6 Special Accessories Follow auxiliary equipment(s) test with EUT that provided by the manufacturer or laboratory is listed as follow: Description Manufacturer Model Technical Parameters Certificate Provided by / / / / / / / / / / / / EUT Report No.: HTT202601720F01 Page 6 of 27 2.7 Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for the device f…

Text truncated - open the document above for the full version.

Test Setup Photos
