2A5Z8-GNBX01WIRELESS KEYPAD

WIRELESS KEYPAD Keypad (enter) LED Activate keypad by opening battery compartment and pull protective tab. Reinstall compartment door to begin programming. TAB PRGM SET RADIO SIGNAL LEARN CODE CODE LEARN Receivers EXAMPLES: STEP 1 - FIND SPECIFICATIONS & LEARN/PROGRAM BUTTON 1. the opener/receiver, the instruction manual, the current remote controls for the opener, or the original manufacturer or the opener/receiver. 2. Find the LEARN/PROGRAM button on the device - shape, color or name of this button could vary by brand. For garage door openers, be sure to check under the light covers. For commercial openers, this button may be on the circuit board or the opener. In some cases, this button could also be on an external receiver that is mounted on or nearby the product. Consult the devices manual if needed. It is recommended to complete programming before mounting keypad. IMPORTANT FEATURES OF THIS KEYPAD: • An audible beep will sound with every key pressed. • Keypad will operate up to 3 doors with one PIN number. • A temporary PIN can be set for convenient non user access. • Do not press the LEARN button for longer than the noted 2-3 seconds as it could cause the operational remotes to no longer work. Genie® and Intellicode® are registered trademarks of The Genie Company. All other listed names and trademarks are the property of their respective owners. factory default: 1. Remove activation tab from inside battery compartment. STEP 2 - CLEARING THE KEYPAD 2. Press both the PROGRAM & UP/DOWN keys at the same time and hold for 5 seconds. of any moving door parts. NOTE that programming will not be lost during battery removal. 1. Remove battery cover and batteries. Replace if necessary. 2. Drill a 3/32” pilot hole for the top mounting screw. 3. Install included screw into pilot hole, leaving 1/8” gap between the screw head and wall. 4. Hook the slotted mount on back of keypad over the screw. W all 1/8 " Screw head gap 5. Mark and drill a 3/32” pilot hole for the bottom screw and secure keypad to the wall. (Do not over-tighten). 6. Reinstall batteries. MOUNTING KEYPAD/REPLACING BATTERIES NOTE: Only use standard or alkaline AAA batteries. DO NOT use rechargeable batteries. SETTING A TEMPORARY MAIN PIN: If the keypad is to be used by normally unauthorized personnel (such as a repairman) a temporary PIN can be assigned to that personnel to gain access to the garage. This PIN will remain active until the main PIN is used again. (PRGM = PROGRAM). 1. Enter main PIN. 2. Press PRGM key three times (LED will turn solid indicating keypad is ready for temporary PIN). 3. Enter temporary PIN (3-8 digits). 4. Press PGRM key one time (LED will blink twice and go out indicating a temporary PIN is set). 5. To cancel the temporary PIN, operate the keypad/door with the original main PIN. CHANGE PIN: If the main PIN needs changed, follow these steps. 1. Enter current main PIN. 2. Press PRGM key one time (LED will turn solid indicating keypad is ready for new PIN). 3. Enter new PIN (3-8 digits). 4. Press PGRM key one time (LED will blink twice and go out indicating a new PIN is set). ADDITIONAL PROGRAMMING MULTIPLE OPENERS: Complete steps for Opener #1 above. To program Opener #2 or #3 at any time, follow the steps below. Be ready to reference Chart A and then #3 from above: 1. , press the PROGRAM button 2 times to program a second opener 2. CHART A. 3. Continue with the remaining numbered steps. SINGLE DOOR OPERATION: 1. 2. Enter PIN. 3. Press the UP/DOWN key. 4. Opener will operate. STEP 4 - USING THE KEYPAD TO OPERATE OPENERS MULTI-DOOR OPERATION: 1. 2. Enter PIN. 3. Press the UP/DOWN key. 4. Press number key corresponding with desired door (1, 2, or 3). 5. Desired opener will operate. NOTE: After any successful entry, the keypad remains active for 15 seconds and ANY BUTTON attempting additional keypad entries. 3. The keypad is now ready to be programmed. Start at STEP 3. STEP 3 - PROGRAMMING TO ONE OR MORE OPENERS This keypad can be programmed to up to 3 individual garage door openers in any combination of over at any time, start at STEP 2 - CLEARING THE KEYPAD. PROGRAM OPENER #1 (For all openers with learn botton opener 1. On the keypad, enter a personal PIN (3-8 digits). 2. 3. On the keypad, enter the ID# of the opener from Chart A. 4. 5. On the opener, press the LEARN/PROGRAM button for 2-3 seconds and then release. 6. On the keypad, press the UP/DOWN key once every two seconds until the opener activates. DO NOT press any additional buttons until the opener stops running. 7. WAIT until backlighting is out before attempting additional keypad entries. Programming is complete. WARNING ! MOVING DOOR CAN CAUSE SERIOUS INJURY OR DEATH. • DO NOT install transmitter (keypad) unless the door operator’s safety device works as required by the door operator’s manual. • Keypad must be mounted in sight of door, at least 5 feet • Keep people clear of opening while door is moving. • DO NOT allow children to play with the transmitter or door operator. If safety reverse does not work properly: • Close door then disconnect opener using the manual release handle. • DO NOT use transmitter or door operator. • Refer to Door and Door Opener Owner’s Manuals before attempting any repairs. Keypad Overview Chart A 5 3 2 7 4 6 1 8 10 31 21 32 34 33 22 11 23 24 12 25 9 35 ID# Stanley® Chamberlain® Craftsman® LiftMaster® Genie® Overhead Door® Genie® Overhead Door® Linear® Guardian® Xtreme® brand Overhead Door® Genie® Chamberlain® Chamberlain® Chamberlain® Genie® Marantec® Stanley® Multi Code Linear® Multi Code FAAC Linear® Moore-O-Matic Wayne Dalton® Chamberlain® Brand Name Green Learn Button, Billion Code®, 1993-1995, 390MHz Orange/Red Learn Button, Security+®, 1996-2005,390MHz Purple Learn Button, Security +®, 2006-2014, 315MHz Security code 310MHz 1998-Current Yellow Learn Button, Security + 2.0®, 2011-current 315/390 MHz, Intellicode®II, 1995-current 315/390 MHz, Intellicode® I, 1995-current MegaCode 318MHz 1997-Current 303 MHz, Fixe…

Text truncated - open the document above for the full version.

Shenzhen Jos Technology Co., Ltd. 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – EquipmentType Company name: Shenzhen Jos Technology Co., Ltd. Address: 201, Building B, No. 213 Fuyuan Street, Fenghuang Community, Fuyong Street, Bao'an District, Shenzhen, China Product Name: WIRELESS KEYPAD FCC ID: 2A5Z8-GNBX01 Model(s): J-GNBX01 2.911(d)(5)(i) EquipmentType We, [ Shenzhen Jos Technology Co., Ltd.] (“the applicant”) certify that the equipment for which authorization is sought through certification is not: •P rohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules. •Identified as an equipment type in the “Covered List” NOTE 1 Y ours sincerely, Name: Joshua Zhang Date: 2024-03-29 Ti tle and Company name: Sales Manager/Shenzhen Jos Technology Co., Ltd. NOTE 1 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1)986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) F ederal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Jos Technology Co., Ltd. 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Shenzhen Jos Technology Co., Ltd. Address: 201, Building B, No. 213 Fuyuan Street, Fenghuang Community, Fuyong Street, Bao'an District, Shenzhen, China Product Name: WIRELESS KEYPAD FCC ID: 2A5Z8-GNBX01 Model(s): J-GNBX01 2.911(d)(5)(ii) Applicant filing We, [Shenzhen Jos Tec hnology Co., Ltd.] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 ,established pursuant to §1.50002 of this chapter,as an entity producing coveredcommunications equipment. Yours sincerely, N ame: Joshua Zhang Date: 2024-03-29 Title and Company name: Sales Manager/Shenzhen Jos Technology Co., Ltd. NOTE 1 Delete option not applicable to this application. NOTE 2 “ Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1)986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Jos Technology Co., Ltd. U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Baihetian Innovative Solutions FRN: 0033401605 Contact Name: Kenneth Young Street Address: 6837 Chase Rd City/Province/Zip: Dearborn, MI 48126 Telephone No: 313-395-3113 Email: [email protected] This letter is to confirm that we (“Baihetian Innovative Solutions) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: Apr 1, 2024 Signed by (Printed Name/Title): Kenneth Young/Manager The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: Shenzhen Jos Technology Co., Ltd. Grantee Code: 2A5Z8 FRN: 0032172926 Contact Name: Joshua Zhang Street Address: 201, Building B, No. 213 Fuyuan Street, Fenghuang Community, Fuyong Street, Bao'an District City/Province/Zip: Shenzhen, China Telephone No: 0755-23310483 Email: [email protected] Applicant Signature: Date:2024-03-29 Signed by (Printed Name/Title): Joshua Zhang/ Sales Manager FCC ID: 2A5Z8-GNBX01 Apr 2024

Shenzhen Jos Technology Co., Ltd. 201, Building B, No. 213 Fuyuan Street, Fenghuang Community, Fuyong Street, Bao'an District, Shenzhen, China Agent Authorization Company: Shenzhen Jos Technology Co., Ltd. Address: 201, Building B, No. 213 Fuyuan Street, Fenghuang Community, Fuyong Street, Bao'an District, Shenzhen, China Product Name: WIRELESS KEYPAD Model Number(s): J-GNBX01 P roduct Description: WIRELESS KE YPAD We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2024-03-29 Name: Joshua Zhang Title: Sales Manager Company: Shenzhen Jos Technology Co., Ltd.

Shenzhen Jos Technology Co., Ltd. D ate: 2024-03-29 Office of Engineering Technology Federal Communications Commis sion 7435 Oakland Mills Road Columbia, MD 21046 USA Subject; Request for Long Term Confidentiality FCC ID: 2A5Z8-GNBX01 T o Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure I t is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. S incerely, S ignature: N ame: Joshua Zhang T itle: Sales Manager

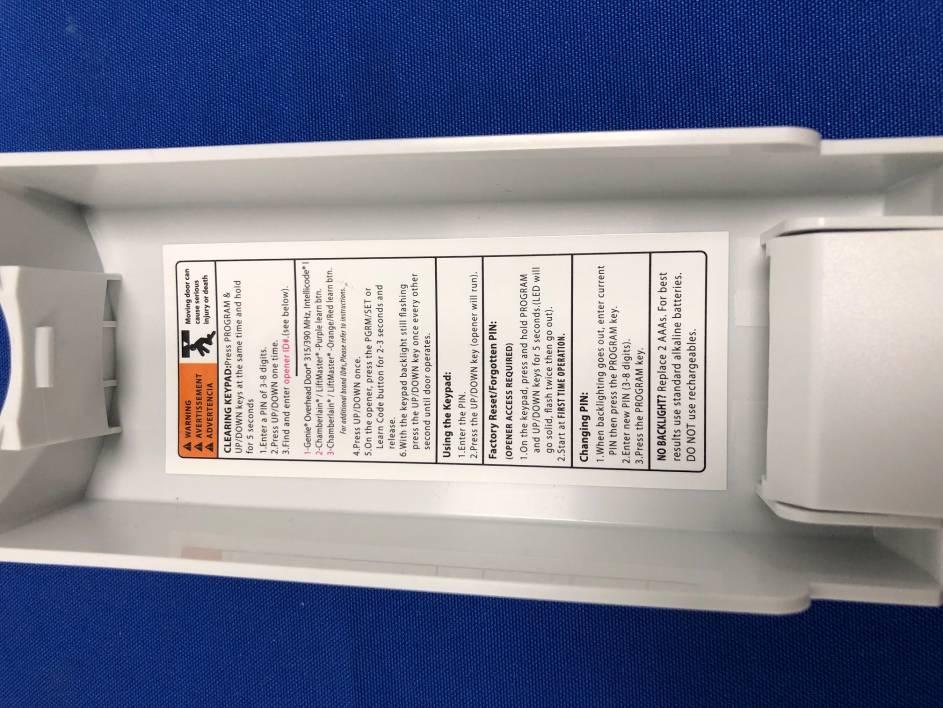

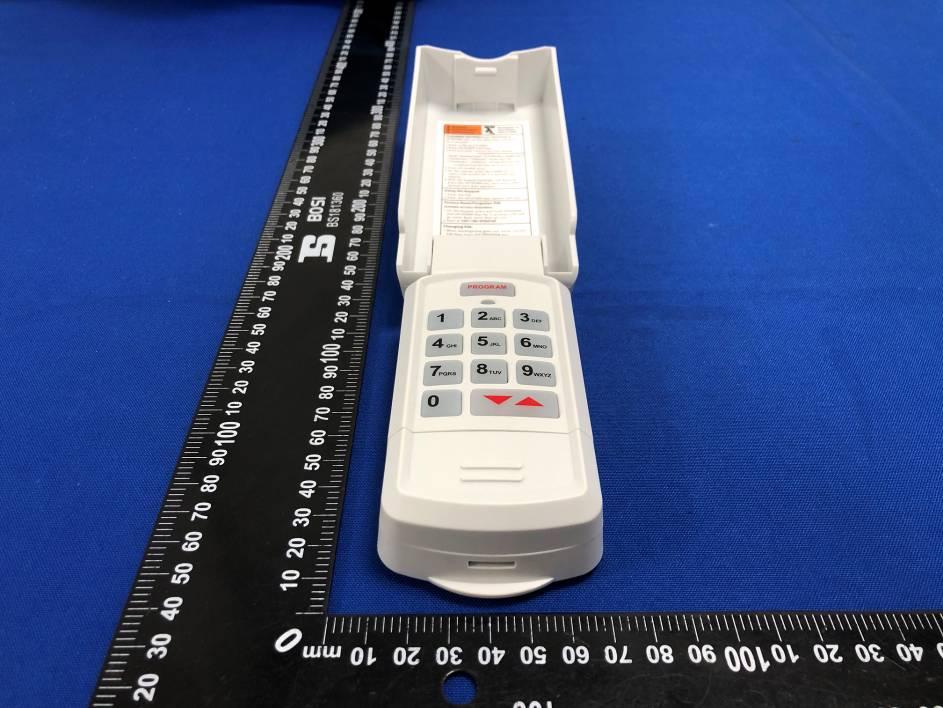

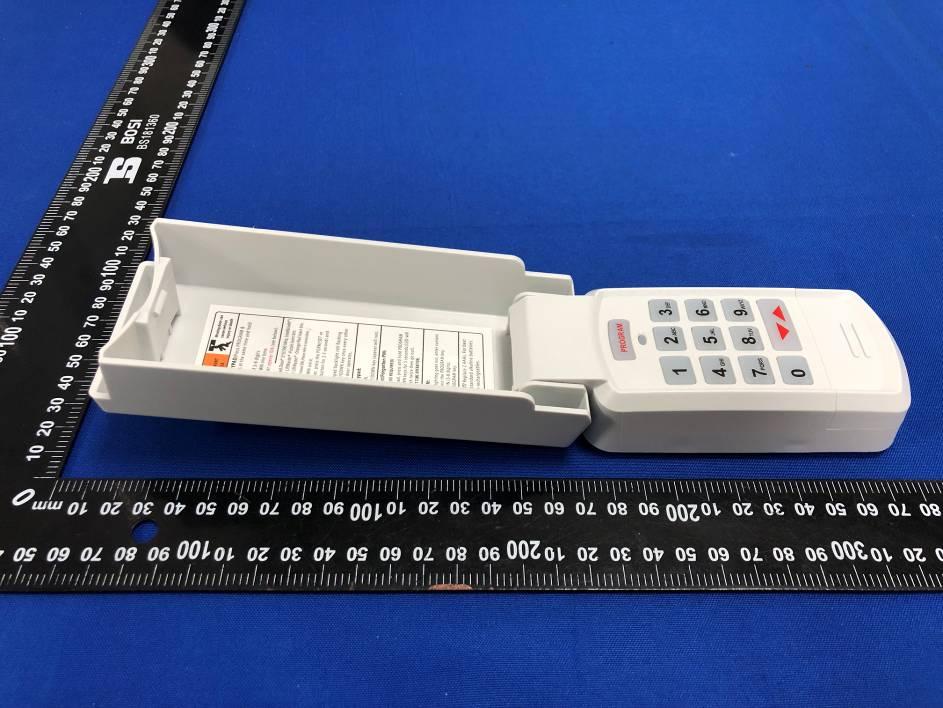

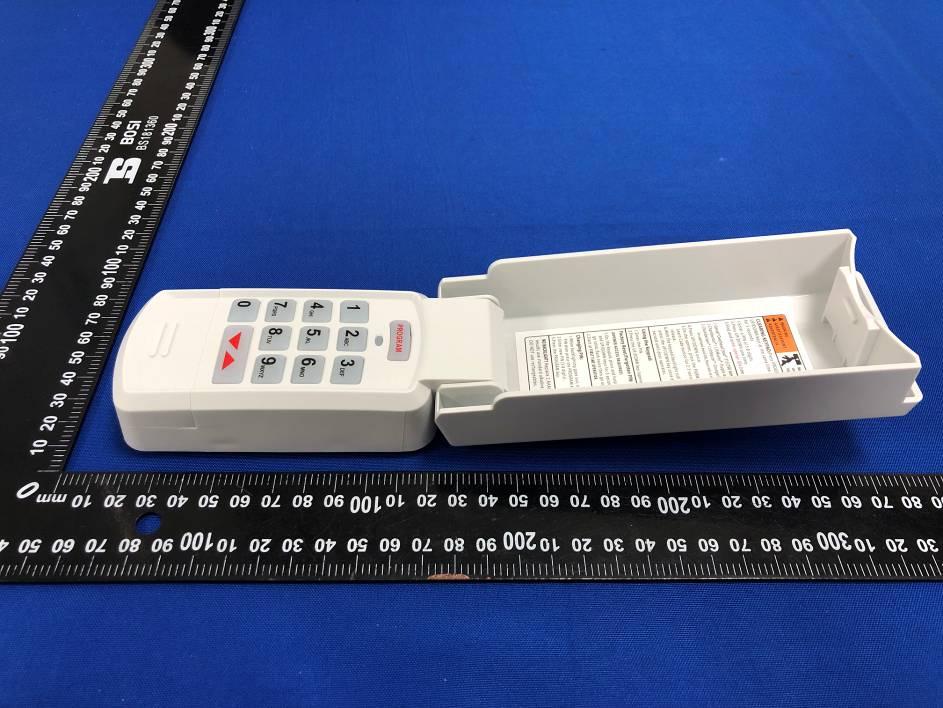

Page 1 of 4 Appendix B: Photographs of EUT Product: WIRELESS KEYPAD Model: J-GNBX01 External Photos Page 2 of 4 Page 3 of 4 Page 4 of 4
