2A5ZM-SRSEBTABLKWireless Earphones

Wireless Earphone This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction

CYDElectronics(Shenzhen)Co.,Ltd 2.911(d)(5)(i)EquipmentTypeAttestationv1.2 Section2.911(d)(5)(i)Certification–EquipmentType Companyname:CYDElectronics(Shenzhen)Co.,Ltd Address:City:Shenzhen,GDState/Province:E'gongling,Pinghutown,Longgangdistrict,Shenzhen, GD,China ProductName:WirelessEarphones FCCID:2A5ZM-SRSEBTABLK Model(s):SR-SEBTA-BLK 2.911(d)(5)(i)EquipmentType We,CYDElectronics(Shenzhen)Co.,Ltd(“theapplicant”)certifythattheequipmentforwhich authorizationissoughtthroughcertificationisnot: Prohibitedfromreceivinganequipmentauthorizationpursuantto§2.903;oftheFCCrules. Identifiedasanequipmenttypeinthe“CoveredList” NOTE1 Yourssincerely, Name:JennyLeeDate:2023.04.26 TitleandCompanyname:GeneralManagerAssistant/CYDElectronics(Shenzhen)Co.,Ltd NOTE1 “CoveredList”;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

CYDElectronics(Shenzhen)Co.,Ltd 2.911(d)(5)(ii)ApplicantAttestationv1.3 Section2.911(d)(5)(ii)Certification–Applicant(CoveredList) Companyname:CYDElectronics(Shenzhen)Co.,Ltd Address:City:Shenzhen,GDState/Province:E'gongling,Pinghutown,Longgangdistrict,Shenzhen, GD,China ProductName:WirelessEarphones FCCID:2A5ZM-SRSEBTABLK Model(s):SR-SEBTA-BLK 2.911(d)(5)(ii)Applicantfiling We,CYDElectronics(Shenzhen)Co.,Ltd(“theapplicant”)certifythat,asofthedateofthefilingof theapplication,theapplicantisnotidentified NOTE1 onthe“CoveredList” NOTE2 ,established pursuantto§1.50002ofthischapter,asanentityproducingcoveredcommunicationsequipment. Yourssincerely, Name:JennyLeeDate:2023.04.26 TitleandCompanyname:GeneralManagerAssistant/CYDElectronics(Shenzhen)Co.,Ltd NOTE1 Deleteoptionnotapplicabletothisapplication. NOTE2 “CoveredList”;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

CYDElectronics(Shenzhen)Co.,Ltd Section2.911(d)(7)USAAgentforServiceofProcess Companyname:CYDElectronics(Shenzhen)Co.,Ltd Address: City:Shenzhen,GDState/Province:E'gongling,Pinghutown,Longgangdistrict,Shenzhen,GD,China ProductName:WirelessEarphones FCCID:2A5ZM-SRSEBTABLK Model(s):SR-SEBTA-BLK 2.911(d)(7)USADesignatedAgentforServiceofProcess We,CYDElectronics(Shenzhen)Co.,Ltd(“theapplicant”)designatePrimeBrandsGroupInc. NOTE1 forthe purposeofacceptingserviceofprocessonbehalfoftheapplicant. Applicantconsent:WeacknowledgeourconsenttoacceptserviceofprocessintheUnitedStatesformatters relatedtotheapplicableequipment,andatthephysicalU.S.addressandemailaddressofthedesignatedagent andacknowledgeouracceptanceofourobligationtomaintainanagentforserviceofprocessintheUnitedStates fornolessthanoneyearaftereitherwethegranteehavepermanentlyterminatedallmarketingandimportationof theapplicableequipmentwithintheU.S.,orattheconclusionofanyCommission-relatedadministrativeorjudicial proceedinginvolvingtheequipment,whicheverislater. Agentobligation:WeacknowledgeourobligationtoacceptserviceofprocessintheUnitedStatesformatters relatedtotheapplicableequipmentatourphysicalU.S.addressandemailaddressfornolessthanoneyearafter eitherthegranteehaspermanentlyterminatedallmarketingandimportationoftheapplicableequipmentwithinthe U.S.,orattheconclusionofanyCommission-relatedadministrativeorjudicialproceedinginvolvingtheequipment, whicheverislater. USAAgent Companyname:PrimeBrandsGroupInc. USAAddress:6835ThSt,Unit38SuiteB634, Brooklyn,NewYork,NY11232,UnitedStates FRNNumber: 0030623201 ContactName:MikeMizrahi TelephoneNo.:(732)876-5350 Email:[email protected] Signature: Title:CEO Date: 2023.04.26 Applicant Companyname:CYDElectronics(Shenzhen)Co.,Ltd Address:City:Shenzhen,GDState/Province:E'gongling, Pinghutown,Longgangdistrict,Shenzhen,GD,China FCCGranteeCode:2A5ZM ContactName:JennyLee TelephoneNo:13538218145 Email:[email protected] Signature: Title:GeneralManagerAssistant Date:2023.04.26 NOTE1:AnapplicantlocatedintheUnitedStatesmaydesignateitselfastheagentforserviceofprocess. Reference;FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats- to-the-communications-supply-chain-through-the 2.911(d)(7)USAAgentv1.4

CYDElectronics(Shenzhen)Co.,Ltd AgentAuthorization Company:CYDElectronics(Shenzhen)Co.,Ltd Address:City:Shenzhen,GDState/Province:E'gongling,Pinghutown,Longgang district,Shenzhen,GD,China ProductName:WirelessEarphones ModelNumber(s):SR-SEBTA-BLK SR-TWETA2-WHT;SR-TWETA2-BLK;NCAA-TWS5;MLB-TWS5 NFL-TWS5;NHL-TWS5 ProductDescription:WirelessEarphones WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2023.04.26 Name:JennyLee Title:GeneralManagerAssistant Company:CYDElectronics(Shenzhen)Co.,Ltd

CYDElectronics(Shenzhen)Co.,Ltd OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2023.04.26 Subject;RequestforConfidentiality FCCID:2A5ZM-SRSEBTABLK ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:JennyLee Title:GeneralManagerAssistant

CYDElectronics(Shenzhen)Co.,Ltd ModelDifference Productdescription:WirelessEarphones Modelname:SR-SEBTA-BLK SR-TWETA2-WHT;SR-TWETA2-BLK;NCAA-TWS5;MLB-TWS5 NFL-TWS5;NHL-TWS5 TradeName:WirelessEarphones AllthemodelarethesamecircuitandRFmodule,onlythemodelnameandappearance colorisdifferent. Regards Sincerely Client’ssignature: Client’sname/title:JennyLee/GeneralManagerAssistant Contactinformation/address:13538218145/City:Shenzhen,GDState/Province: E'gongling,Pinghutown,Longgangdistrict,Shenzhen,GD,China

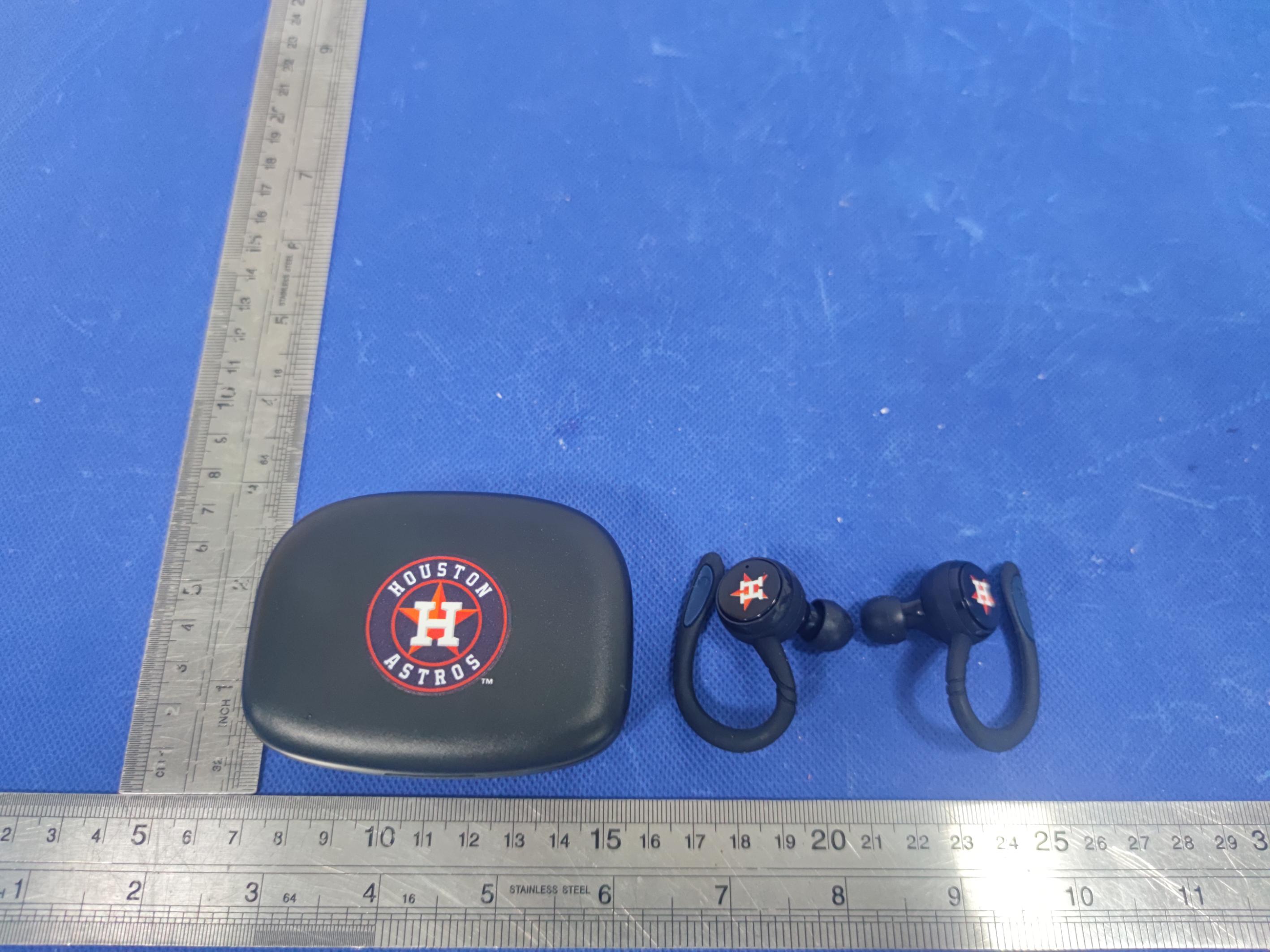

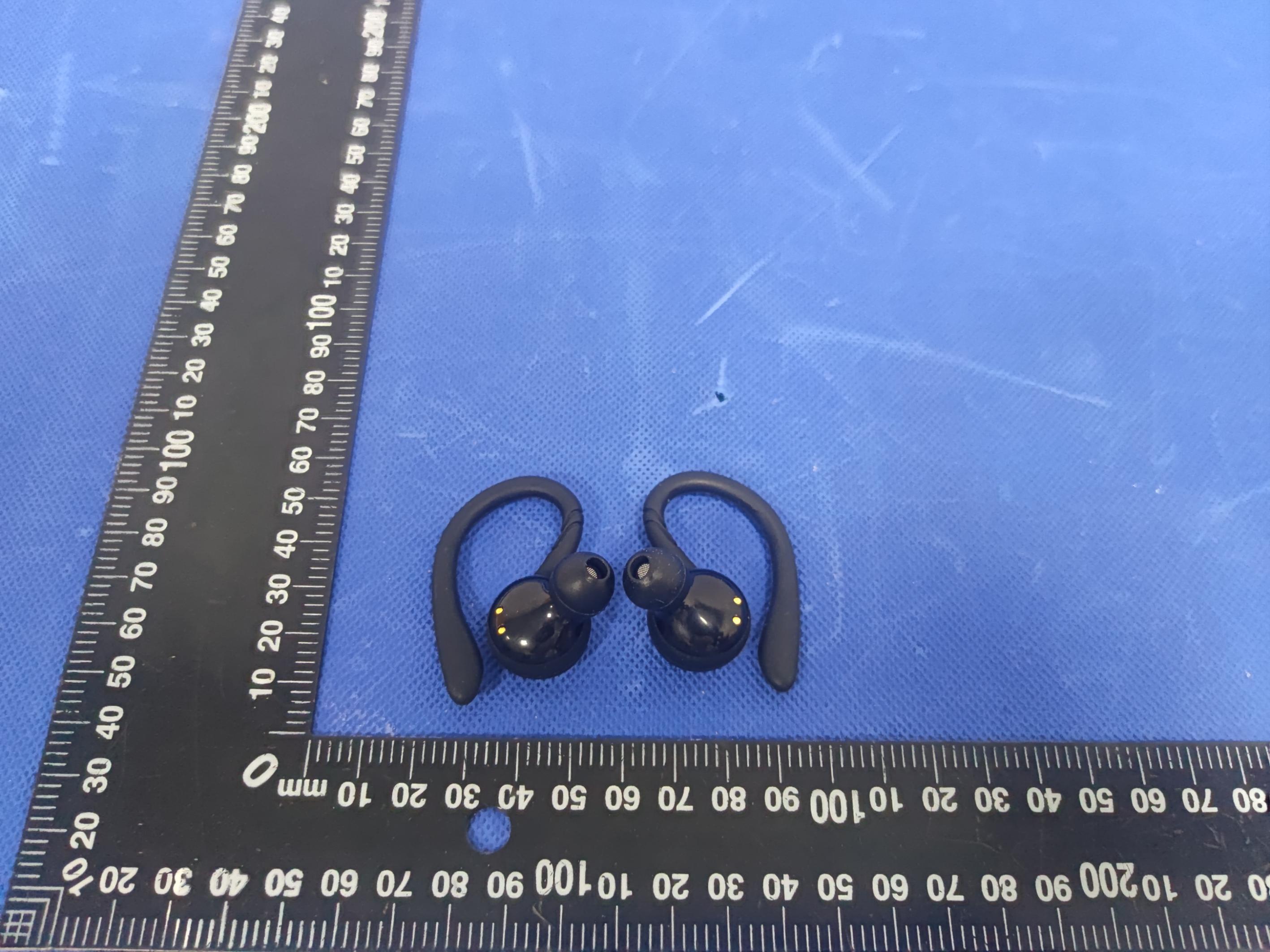

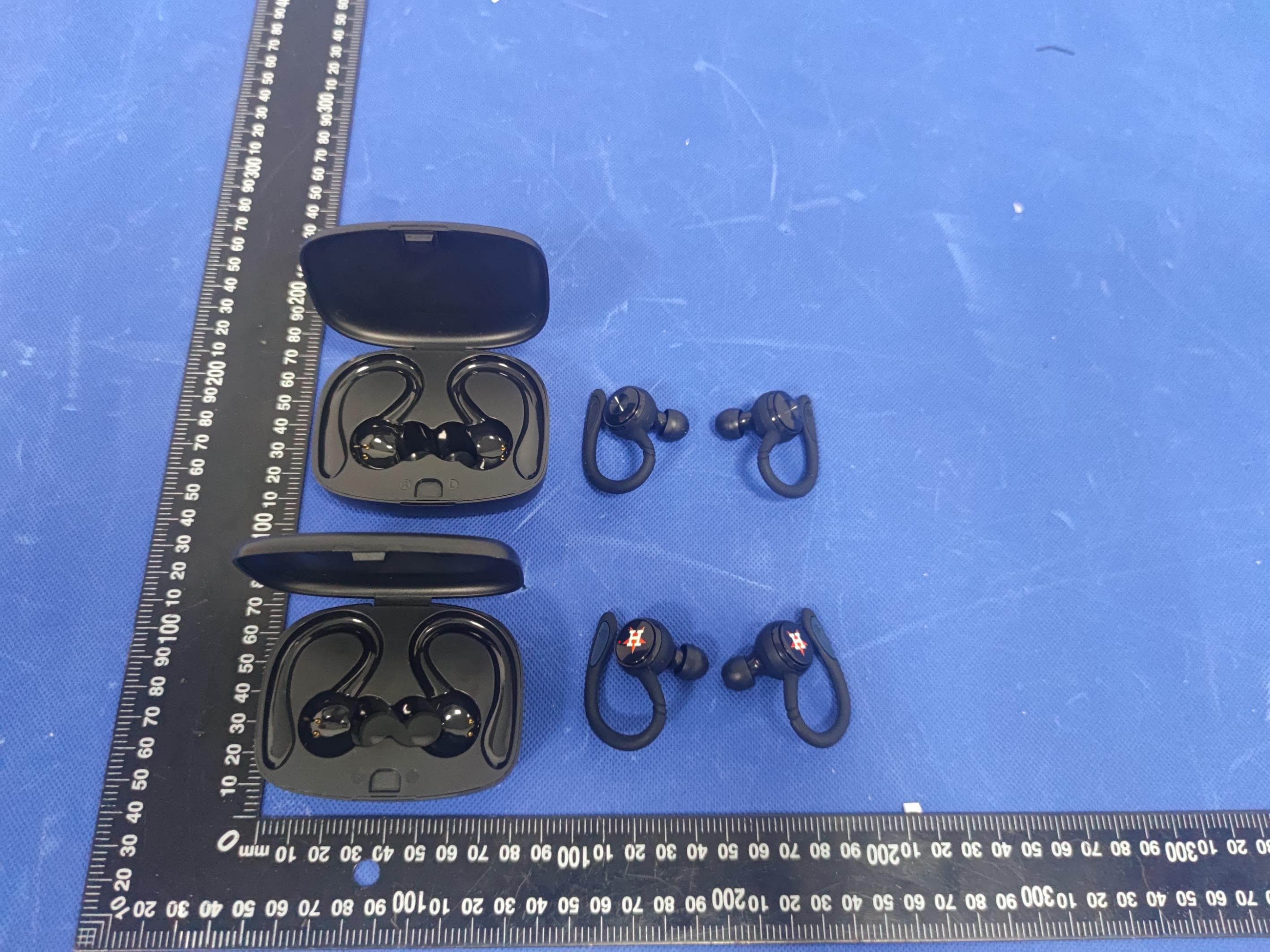

EUTPHOTO(ExternalPhotos) ※※※※※ENDOFREPORT※※※※※

Labelandlabellocation 18mm 8mm FCCID:2A5ZM-SRSEBTABLK

EUTPHOTO(InternalPhotos) ANT ※※※※※ENDOFREPORT※※※※※

FCCID:2A5ZM-SRSEBTABLK RFExposureEvaluation AccordingtoKDB447498D01GeneralRFExposureGuidancev06andpart2.1093 ， UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures,standalone 1-gheadorbodyand10-gextremitySARevaluationforgeneralpopulationexposure conditions,bymeasurementornumericalsimulation,isnotrequiredwhenthe correspondingSARTestExclusionThresholdcondition(s),listedbelow,is(are)satisfied. For100MHzto6GHzandtestseparationdistances≤50mm,the1-gand10-gSARtest exclusionthresholdsaredeterminedbythefollowing: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f (GHz) ]≤3.0for1-gSAR,and≤7.5for10-gextremitySAR,where f (GHz) istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison Here, ForBT ModeMax Power(dBm) Max Power(mW) Frequency(MHz)Min. distance(mm) Calc. thresholds limit GFSK-1.420.72240250.223523.0 π/4-DQPSK-1.1420.77240250.240223.0 8-DPSK-0.7110.85240250.267403.0 SoaSARtestisnotrequired

2.4GHz3216ChipAntenna:RANT3216F245C03 Application: WLAN,802.11b/g,Bluetooth,WLAN,etc... Features SMD,highreliability,ultraImpact,Omni-directional... PartnumberInformation RANT3216F245C03 (A)(B)(C)(D)(E)(F) (A)ProductTypeChipAntenna (B)SizeCode3.2x1.6mm(±0.2mm) (C)MaterialHighKmaterial (D)Frequency2.4~2.5GHz (E)FeedingmodePIFA&SingleFeeding (F)AntennatypeType=03 ElectricalSpecification WorkingFrequencyRange2400~2500MHz Bandwidth120MHz(Min.) PeakGain1.dBi(Typ.) Impedance50Ohm Returnloss10dB(Min) PolarizationLinear AzimuthBeamwidthOmni-directional OperationTemperature(°C)-40~85°C ResistancetoSolderingHeats10sec.(@280°C) TerminationNi/Au(Leadless) ThespecificationisdefinedonEVB. DimensionandTerminalConfiguration Dimension(mm)No.TerminalName L3.20±0.20 1Feeding/GNG W1.60±0.20 T0.45±0.20 2GND/Feeding 咏成國際科技有限公司電話: 13530576606 97 2.4GHz3216ChipAntenna:RANT3216F245C03 EvaluationBoardReference 长条板PCB圆板AntennaLayoutReference 推荐 Dimension Unit:mm ElectricalCharacteristics ReturnLoss&Radiation ReturnLoss Frequency(MHz)S11(dB) 2400-10.50 2450-30.62 2500-11.47 2.4GHz3216ChipAntenna:RANT3216F245C03 Radiation 2400MHz2450MHz2500MHz Z XY 2400MHz2450MHz2500MHz Efficiency82.52%85.26%83.01% PeakGain1.15dBi1.24dBi1.19dBi Directivity1.89dBi1.97dBi1.91dBi 2.4GHz3216ChipAntenna:RANT3216F245C03 TapingSpecifications ReelandTapingSpecification ReelSpecification TYPESIZEABCD 32167”5K/Reel9.0±0.560±213.5±0.5178±2 TappingSpecification PackagingTypeABWEFGHT ψ DP PaperType32161.90±0.2 0 3.50±0.2 0 8.0±0.2 0 1.75±0.1 0 3.5±0.054.0±0.102.0±0.05 0.75±0.1 0 1.50±0.1 0 4.0±0.1 2.4GHz3216ChipAntenna:RANT3216F245C03 ReliabilityTable TestItemProcedure Requirements CeramicType Remark (Reference) Electrical Characterization Fulfilltheelectrical specification UserSpec. Thermal Shock 1.Preconditioning: 50±10°C/1hr,thenkeepfor24±1hrsatroomtemp. 2.Initialmeasure:Spec:referInitialspec. 3.Rapidchangeoftemperaturetest: -30°Cto+85°C;100cycles; 15minutesatLowercategorytemperature; 15minutesatUppercategorytemperature. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 107 Temperature Cycling 1.Initialmeasure:Spec:referInitialspec. 2.100Cycles(-30°Cto+85°C),SoakMode=1(2Cycle/hours). 3.Measurementat24±2Hoursaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. JESD22 JA104 HighTemperature Exposure 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered;500hours@T=+85°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 LowTemperature1.Initialmeasure:Spec:referInitialspec.NoVisibleDamage.MIL-STD-202 Storage2.Unpowered:500hours@T=-30°C. 3.Measurementat24±2hoursaftertest. Fulfilltheelectrical specification. 108 Solderability (SMDBottomSide) Dippingmethod: a.Temperature:235±5°C b.Dippingtime:3±0.5s Thesoldershouldcover over95%ofthecritical areaofbottomside. IEC60384-21/22 4.10 SolderingHeatPreheatingtemperature:150±10°C.NoVisibleDamage.IEC60384-21/22 Resistance (RSH) Preheatingtime:1~2min. Soldertemperature:260±5°C. Dippingtime:5±0.5s 4.10 Vibration5g'sfor20min.,12cycleseachof3orientations Note:Use8"X5"PCB.031"thick7securepointson,onelong sideand2securepointsatcornersofoppositesides.Parts mountedwithin2"fromanysecurepoint.Testfrom10-2000 Hz. NoVisibleDamage.MIL-STD- 202 Method204 Mechanical Shock Threeshocksineachdirectionshallbeappliedalongthethree mutuallyperpendicularaxesofthetestspecimen(18shocks) Peakvalue:1,500g’s Duration:0.5ms Velocitychange:15.4ft/s Waveform:Half-sine NoVisibleDamage.MIL-STD- 202 Method213 Humidity Bias 1.Humidity:85%R.H.,Temperature:85±2°C. 2.Time:500±24hours. NoVisibleDamage. Fulfilltheelectrical MIL-STD-202 Method106 3.Measurementat24±2hrsaftertestcondition.specification. 2.4GHz3216ChipAntenna:RANT3216F245C01 Board Flex 1.Mountingmethod: IR-Reflow.PCBSize(L:100×W:40×T:1.6mm) _ NoVisibleDamage.AEC-Q200 005 (SMD)2.Applytheloadindirectionofthearrowuntilbending reaches 2mm. AdhesionForceof1.8Kgfor60seconds.NoVisibleDamageAEC-Q200 Magnificationof20Xor greatermaybeemployed forinspectionofthe 006 mechanicalintegrityofthe devicebodyterminalsand body/terminaljunction. Physical Dimension Anyapplicablemethodusingx10magnification,micrometers, calipers,gauges,contourprojectors,orothermeasuring equipment,capableofdeterminingtheactualspecimen dimensions. Inaccordancewith specification. JESD22 JB100 RevisionHistory RevisionDateContent 12019/03/01NewDatasheet 22020/02/22Add2Dradiationcharacteristic

ProjectNo.:ZKT-2304032294E Page 1 of 80 FCCTESTREPORT FCCID:2A5ZM-SRSEBTABLK ReportNumber. .................................... :ZKT-2304032294E DateofTest ...................................................... : Apr.04,2023toMay.05,2023 Dateofissue ......................................... : May.05,2023 Totalnumberofpages ......................... 80 TestResult .......................................... : PASS TestingLaboratory...........................: ShenzhenZKTTechnologyCo.,Ltd. Address ............................................... : 1/F,No.101,BuildingB,No.6,TangweiCommunityIndustrial Avenue,FuhaiStreet,Bao'anDistrict,Shenzhen,China Applicant'sname.............................:CYDElectronics(Shenzhen)Co.,Ltd Address ............................................... : City:Shenzhen,GDState/Province:E'gongling,Pinghutown, Longgangdistrict,Shenzhen,GD,China Manufacturer'sname......................:CYDElectronics(Shenzhen)Co.,Ltd Address...............................................: City:Shenzhen,GDState/Province:E'gongling,Pinghutown, Longgangdistrict,Shenzhen,GD,China Testspecification: Standard ................................................ : FCCCFRTitle47Part15SubpartCSection15.247 ANSIC63.10:2013 Testprocedure.....................................: / Non-standardtestmethod ................ :N/A TestReportFormNo........................: TRF-EL-112_V0 TestReportForm(s)Originator.....: ZKTTesting MasterTRF ........................................ : Dated:2021-04-22 ThisdevicedescribedabovehasbeentestedbyZKT,andthetestresultsshowthattheequipmentunder test(EUT)isincompliancewiththeFCCrequirements.Anditisapplicableonlytothetestedsample identifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofZKT,thisdocumentmay bealteredorrevisedbyZKT,personalonly,andshallbenotedintherevisionofthedocument. Productname ..................................... :WirelessEarphones Trademark ........................................... :SOAR,NCAA,NFL, Model/Typereference.........................:SR-SEBTA-BLK SR-TWETA2-WHT;SR-TWETA2-BLK;NCAA-TWS5;MLB-TWS5 NFL-TWS5;NHL-TWS5 Ratings..................................................: Input:DC5V Battery:DC3.7V ProjectNo.:ZKT-2304032294E Page 2 of 80 Testingprocedureandtestinglocation: TestingLaboratory .......................................... :ShenzhenZKTTechnologyCo.,Ltd. Address............................................................:1/F,No.101,BuildingB,No.6,TangweiCommunity IndustrialAvenue,FuhaiStreet,Bao'anDistrict, Shenzhen,China TomZou Testedby(name+signature) ....................... : JacksonFang Reviewer(name+signature) ....................... : LakeXie Approved(name+signature).......................: ProjectNo.:ZKT-2304032294E Page 3 of 80 TableofContents Page 1.VERSION.......................................................................................................................................5 2.TESTSUMMARY........................................................................................................................6 2.1TESTFACILITY..............................................................................................................................7 2.2MEASUREMENTUNCERTAINTY...........................................................................................7 3.GENERALINFORMATION.......................................................................................................8 3.1GENERALDESCRIPTIONOFEUT........................................................................................8 3.2TestSetupConfiguration.............................................................................................................9 3.3SupportEquipment......................................................................................................................10 3.4TestMode.......................................................................................................................................11 3.5EQUIPMENTSLISTFORALLTESTITEMS......................................................................12 4.EMCEMISSIONTEST.............................................................................................................14 4.1Conductedemissions.................................................................................................................14 4.1.1POWERLINECONDUCTEDEMISSIONLimits............................................................14 4.1.2TESTPROCEDURE...............................................................................................................14 4.1.3DEVIATIONFROMTESTSTANDARD............................................................................14 4.1.4TESTSETUP.............................................................................................................................14 4.1.5EUTOPERATINGCONDITIONS.......................................................................................15 4.1.6TestResult.................................................................................................................................16 4.2Radiatedemissions.....................................................................................................................18 4.2.1RadiatedEmissionLimits.......................................................................................................18 4.2.2TESTPROCEDURE...............................................................................................................18 4.2.3DEVIATIONFROMTESTSTANDARD............................................................................19 4.2.4TESTSETUP.............................................................................................................................19 4.2.5EUTOPERATINGCONDITIONS.......................................................................................20 4.2.6TESTRESULTS.................................................................................................…

Text truncated - open the document above for the full version.

ProjectNo.:ZKT-2304032294E Page 55 of 80 8-DPSKLowChannel ProjectNo.:ZKT-2304032294E Page 56 of 80 8-DPSKMiddleChannel 8-DPSKHighChannel ProjectNo.:ZKT-2304032294E Page 57 of 80 8.MaximumPeakOutputPower TestRequirement:FCCPart15CSection15.247(b)(1) TestMethod:ANSIC63.10:2013 Limit:GFSK:30dBm π/4-DQPSK&8-DPSK:20.97dBm 8.1BlockDiagramOfTestSetup 8.2Limit Forfrequencyhoppingsystemsoperatinginthe2400-2483.5MHzbandemployingatleast75 non-overlappinghoppingchannels,andallfrequencyhoppingsystemsinthe5725-5850MHzband:1watt. Forallotherfrequencyhoppingsystemsinthe2400-2483.5MHzband:0.125watts. ForFHSsoperatingintheband2400-2483.5MHz,themaximumpeakconductedoutputpowershallnot exceed1.0Wifthehopsetuses75ormorehoppingchannels;themaximumpeakconductedoutputpower shallnotexceed0.125Wifthehopsetuseslessthan75hoppingchannels.Thee.i.r.p.shallnotexceed4W. 8.3Testprocedure 1.RemovetheantennafromtheEUTandthenconnectalowRFcablefromtheantennaporttothespectrum. 2.Setthespectrumanalyzer:RBW=2MHz.VBW=6MHz.Sweep=auto;DetectorFunction=Peak. 3.KeeptheEUTintransmittingatlowest,mediumandhighestchannelindividually.Recordthemaxvalue. 8.4DEVIATIONFROMSTANDARD Nodeviation. 8.5TestResult ModeTestchannel PeakOutputPower (dBm) FCCLimit (dBm) Result GFSK Lowest-1.42 30.00PassMiddle-1.931 Highest-2.937 π/4-DQPSK Lowest-1.142 21.00PassMiddle-1.564 Highest-2.511 8-DPSK Lowest-0.711 21.00PassMiddle-1.213 Highest-2.198 Testplots ProjectNo.:ZKT-2304032294E Page 58 of 80 GFSKLowChannel GFSKMiddleChannel ProjectNo.:ZKT-2304032294E Page 59 of 80 GFSKHighChannel π/4-DQPSKLowChannel ProjectNo.:ZKT-2304032294E Page 60 of 80 π/4-DQPSKMiddleChannel π/4-DQPSKHighChannel ProjectNo.:ZKT-2304032294E Page 61 of 80 8-DPSKLowChannel 8-DPSKMiddleChannel ProjectNo.:ZKT-2304032294E Page 62 of 80 8-DPSKHighChannel ProjectNo.:ZKT-2304032294E Page 63 of 80 9.HOPPINGCHANNELSEPARATION TestRequirement:FCCPart15CSection15.247(a)(1) TestMethod:ANSIC63.10:2013 Receiversetup: RBW=30KHz,VBW=100KHz,detector=Peak Limit: GFSK:20dBbandwidth π/4-DQPSK&8DSK:0.025MHzor2/3ofthe20dBbandwidth(whichever isgreater) 9.1TestSetup 9.2Testprocedure 1.RemovetheantennafromtheEUTandthenconnectalowRFcablefromtheantennaport tothespectrum. 2.Setthespectrumanalyzer:RBW=30kHz.VBW=100kHz,Span=3.0MHz.Sweep=auto;Detector Function=Peak.Trace=Maxhold. 3.Allowthetracetostabilize.Usethemarker-deltafunctiontodeterminetheseparationbetweenthepeaksof theadjacentchannels.ThelimitisspecifiedinoneofthesubparagraphsofthisSectionSubmitthisplot. 9.3DEVIATIONFROMSTANDARD Nodeviation. ProjectNo.:ZKT-2304032294E Page 64 of 80 9.4TestResult ModulationTestChannelSeparation(MHz)Limit(MHz)Result GFSKLow 1.0410.950 PASS GFSK Middle 1.1370.954 PASS GFSK High 1.1820.950 PASS π/4-DQPSK Low 1.008 0.854PASS π/4-DQPSK Middle 1.161 0.877PASS π/4-DQPSK High 1.017 0.882PASS 8-DPSK Low 0.999 0.867PASS 8-DPSK Middle 0.993 0.872PASS 8-DPSKHigh 1.131 0.871PASS Testplots GFSKLowChannel ProjectNo.:ZKT-2304032294E Page 65 of 80 GFSKMiddleChannel GFSKHighChannel ProjectNo.:ZKT-2304032294E Page 66 of 80 π/4-DQPSKLowChannel π/4-DQPSKMiddleChannel ProjectNo.:ZKT-2304032294E Page 67 of 80 π/4-DQPSKHighChannel 8-DPSKLowChannel ProjectNo.:ZKT-2304032294E Page 68 of 80 8-DPSKMiddleChannel 8-DPSKHighChannel ProjectNo.:ZKT-2304032294E Page 69 of 80 10.NUMBEROFHOPPINGFREQUENCY TestRequirement:FCCPart15CSection15.247(a)(1)(iii) TestMethod:ANSIC63.10:2013 Receiversetup: RBW=100kHz,VBW=300kHz,Frequencyrange=2400MHz-2483.5MHz, Detector=Peak Limit: 15channels 10.1TestSetup 10.2Testprocedure 1.RemovetheantennafromtheEUTandthenconnectalowRFcablefromtheantennaporttothespectrum. 2.Setthespectrumanalyzer:RBW=100kHz.VBW=300kHz.Sweep=auto;DetectorFunction=Peak. Trace=Maxhold. 3.Allowthetracetostabilize.Itmayprovenecessarytobreakthespanuptosections.inordertoclearly showallofthehoppingfrequencies.ThelimitisspecifiedinoneofthesubparagraphsofthisSection. 4.Setthespectrumanalyzer:StartFrequency=2.4GHz,StopFrequency=2.4835GHz.Sweep=auto; 10.3DEVIATIONFROMSTANDARD Nodeviation. ProjectNo.:ZKT-2304032294E Page 70 of 80 10.4TestResult TestPlots: 79Channelsintotal GFSK ProjectNo.:ZKT-2304032294E Page 71 of 80 π/4-DQPSK 8-DPSK ProjectNo.:ZKT-2304032294E Page 72 of 80 11.DWELLTIME TestRequirement:FCCPart15CSection15.247(a)(1)(iii) TestMethod:ANSIC63.10:2013 Receiversetup: RBW=1MHz,VBW=3MHz,Span=0Hz,Detector=Peak Limit: 0.4Second 11.1TestSetup 11.2Testprocedure 1.RemovetheantennafromtheEUTandthenconnectalowRFcablefromtheantennaporttothespectrum. 2.Setspectrumanalyzerspan=0Hz; 3.SetRBW=1MHzandVBW=3MHz.Sweep=asnecessarytocapturetheentiredwelltimeperhopping channel.SettheEUTforDH5,DH3andDH1packettransmitting. 4.Usethemarker-deltafunctiontodeterminethedwelltime.Ifthisvaluevarieswithdifferentmodesof operation(e.g..datarate.modulationformat.etc.).repeatthistestforeachvariation.Thelimitisspecifiedin oneofthesubparagraphsofthisSection.Submitthisplot(s). 11.3DEVIATIONFROMSTANDARD Nodeviation. ProjectNo.:ZKT-2304032294E Page 73 of 80 11.4TestResult GFSKmode: FrequencyPacketDwelltime(ms)Limit(ms)Result 2441MHzDH1 137.92 400Pass 2441MHzDH3 261.12 400Pass 2441MHzDH5 302.08 400Pass Remarks: Thetestperiod:T=0.4Second/Channelx79Channel=31.6s Testchannel:asblow CH:2441MHztimeslot=0.431(ms)*(1600/(2*79))*31.6=137.92ms CH:2441MHztimeslot=1.632(ms)*(1600/(4*79))*31.6=261.12ms CH:2441MHztimeslot=2.832(ms)*(1600/(6*79))*31.6=302.08ms π/4-DQPSKmode: FrequencyPacketDwelltime(ms)Limit(ms)Result 2441MHz2DH1 157.12 400Pass 2441MHz2DH3 262.560 400Pass 2441MHz2DH5 308.053 400Pass Remarks: Thetestperiod:T=0.4Second/Channelx79Channel=31.6s Testchannel:asblow CH:2441MHztimeslot=0.491(ms)*(1600/(2*79))*31.6=157.12ms CH:2441MHztimeslot=1.691(ms)*(1600/(4*79))*31.6=270.56ms CH:2441MHztimeslot=2.892(ms)*(1600/(6*79))*31.6=308.48ms 8-DPSKmode: FrequencyPacketDwelltime(ms)Limit(ms)Result 2441MHz3DH1 124.480 400Pass 2441MHz3DH3 266.400 400Pass 2441MHz3DH5 294.827 400Pass Remarks: Thetestperiod:T=0.4Second/Channelx79Channel=31.6s Testchannel:asblow CH:2441MHztimeslot=0.417(ms)*(1600/(2*79))*31.6=133.…

Text truncated - open the document above for the full version.

EUTTESTPHOTO
