2A5ZM-W05Magnetic Wireless Power Bank

Power bank + wireless charge (W05) user’s manual 一、 Product electrical parameters ： Item parameters Remark Wireless charging output 10W max TYPE-C output 5.0V/2.4A TYPE-C input 5V/3A;9V/2A Wo rk w ith ad ap ter (5V/2A) Battery capacity 755475PH-5000mAh(19Wh) Environment temperature 0°C -- 40°C 二、 Instructions ： 1、 diagram 2、 power switch（power on ,power off ,check the power, shut down）；press the “switch” button to start , (the wireless charge indicator light flashes twice and automatically goes off, and the power lights turn on one by one. After one second, the power lights stabilize to the battery indicator light.) Press the switch for 2 seconds to turn off ; into the sleep standby state. 3、 TYPE-­‐C input/output： a、 TYPE-C output: 5.0V/2.4A；（connect to the mobile phone and start to charge the mobile phone, when fully charged, the mobile phone will automatically stop charging and the power lights will turn off. b、 Placing the mobile phone in the magnetic position to charge the mobile automatically. c、 TYPE-C input: use the quick charge adapter to connect to the wireless charger, which compatible with QC2.0/3.0，PD2.0/3.0 protocol, there are 4 LEDs displaying the battery capacity, after the battery is fully charged, the 4 LEDs will be on. (note: it is recommended that the adapter with fast charging function be used for charging.) 4、LED indicator： a、 Battery power indicator: Power switch Type-C input/output LED1-LED4: white light, power indicator Wireless charging working areas LED: green light, wireless charging indicator Automatic switch induction Power rate LED1 LED2 LED3 LED4 75-100% on on on on 50-75% on on on off 25-50% on on off off 5-25% on off off off 1-­‐5% on off off off 0% off off off off b、 Battery charging indicator 电量比 LED1 LED2 LED3 LED4 100% on on on on 75-99% on on on flashing 50-75% on on flashing off 25-50% on flashing off off 0-25% flashing off off off c、 Wireless charging indicator 1、 flash twice when starting the machine，and then automatically go off. 2、 keep green light on when charging the mobile. 3、 Flashing for 5-10 seconds if an error is detected, and automatically turn off. 4、 wireless charging function: a、the battery power output is 10W (max). As long as the mobile phone is placed in the magnetic wireless charge position., the wireless charge function can be automatically charged to wake up. after the mobile phone is fully charged, it will stop working and the indicator light will automatically go off. b、connect to the quick charge adapter , wireless charging output of 7.5W, also can give the internal battery power charging, wireless charging indicator long on work, power indicator to shine as the battery power inside . after the mobile is fully charged, it will automatically stop working, and wireless charging indicator light turns off , the power indicator light will turn on. 5、 If the power supply is too low, the mobile phone cannot be charged, the indicator light will flash for 5 seconds and then automatically turn off. 6、 Protection function: a、 input and output: overvoltage protection, overload protection, short-circuit protection and over-temperature protection. b、 The battery: over charge protection, over discharge protection, over current protection, short circuit protection. The battery surface gets over temperature(NTC) protection. c、 Wireless charge FOD protection function, placing a one-dollar coin to the center of the coil can trigger the FOD, and the wireless charge indicator light flashes, automatic shutdown after 5-10 seconds. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction

CYDElectronics(Shenzhen)Co.,Ltd ModelDifference Productdescription:MagneticWirelessPowerBank Modelname:W05 CYD-W05,UNICHG22518,IST-09991,CL72104 TradeName:N/A FCCID:2A5ZM-W05 AllthemodelarethesamecircuitandRFmodule,onlyformodelname. Regards Sincerely Client’ssignature: Client’sname/title:JennyLee(N/A) Contactinformation/address:StateE'gongling,Pinghutown,LonggangdistrictShenzhen,China

C5266091_X23_Ed.1 USAGENTLETTEROFATTESTATION USAgent: CompanyName:GSSSERVICEINC ContactName:michouxlogan Address:6547NAcademyBlvd#2266ColoradoSpringsCo80918USA TelephoneNo:001-5157158284 FaxNo:-- Email:[email protected] TO: OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 ThisletteristoconfirmthatwehaveacceptedtheresponsibilitytoactasUSagentrepresentative onbehalfofthe(CYDElectronics(Shenzhen)Co.,Ltd)notedbelowforallfutureFCC certification/registrationsobtainedduringtheperiodofthisagreement,whichendsatthe specifieddatebelow. AsperUSagent,weareawareoftherequirementsinvolvedasoutlinedinFCCEquipment AuthorizationProgramintheirReportandOrderFCC22R84andtheclause§2.911Application requirements. Applicant Companyname:CYDElectronics(Shenzhen)Co.,Ltd Granteecode:2A5ZM FCCID:2A5ZMRW05 ContactName:JennyLee Address:Shenzhen,GDState/Province:E'gongling,Pinghutown,Longgangdistrict TelephoneNo.:13728651747 FaxNo.:+86R755R83987875 Email:[email protected] TheApplicantacknowledgetheacceptanceofitsobligationtomaintainanagentfor serviceofprocessintheUnitedStatesfornolessthanoneyearaftereitherthe granteehaspermanentlyterminatedallmarketingandimportationoftheapplicable equipmentwithintheU.S.,ortheconclusionofanyCommissionUrelated administrativeorjudicialproceedinginvolvingtheequipment,whicheverislater. Date:2023/02/08 Applicant’sName:JennyLeeUSAgent’sName: michouxlogan Title:N/ATitle:manager Signature Signature 1/1

!C5266091_X24_Ed.1! 1/1! ! !“Attestation!Statements”! ! ! TO:!! Office!of!Engineering!Technology!! Federal!Communications!Commission! 7435!Oakland!Mills!Road! Columbia,!MD!21046! ! The! Commission! adopted! rules! that! prohibit! equipment! authorization! for! “covered”! telecommunications!equipment!and!video!surveillance!equipment!produced!by!entities!identified! on!the!Commission’s!Covered!List 1 ,!which!is!periodically!updated.!See!the!Covered!List!for!more! details.!This!Attestation!Statement!is!to!confirm!that!we!follow!the!Section!2.911(d)(5)(i)O(ii)!! ! Applicant! Company!name:CYD!Electronics!(Shenzhen)!Co.,Ltd!!! Grantee!code:2A5ZM! FCC!ID:2A5ZMOW05!! Contact!Name:Jenny!Lee!! Address:Shenzhen,!GD!State/Province:E'gongling,!Pinghu!town,!Longgang!district!! Telephone!No:!13728651747!! Fax!No.:+86O755O83987875!! Email:[email protected]! ! ! i.#[CYD# Electronics# (Shenzhen)# Co.,Ltd]# (“the# applicant”)# certifies# that# the# equipment# for# which# authorization# is# sought# is# not# “covered”# equipment# prohibited# from# receiving# an# equipment# authorization# pursuant# to# section# 2.903#of#the#FCC#rules.#The#applicant#must#sign#this#certification.## ii.#[CYD#Electronics#(Shenzhen)#Co.,Ltd]#(“the#applicant”)#certifies#that,#as#of#the# date# of# the# filing# of# the# application,# the# applicant# [is# not]# identified# on# the# Covered#List#as#an#entity#producing#“covered”#equipment.#The#applicant#must# sign#this#certification.# ! ! ! Date:!2023/02/03! ! Applicant’s!Name:Jenny!Lee! Title:N/A! Signature! ! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! 1 "" !The!Commission’s!Covered!List!is!published!by!the!Public!Safety!and!Homeland!Security!Bureau!and!posted!on!the! Commission’s!website.!This!Covered!List,!which!is!periodically!updated,!identifies!particular!equipment,!produced!by! particular!entities,!that!constitutes!“covered”!equipment.!https://www.fcc.gov/supplychain/coveredlist! !!!

C5266091_X8_Ed.1 1/1 LetterofAuthorization <CYDElectronics(Shenzhen)Co.,Ltd> Company:CYDElectronics(Shenzhen)Co.,Ltd Address:StateE'gongling,Pinghutown,LonggangdistrictShenzhen,China ProductName:MagneticWirelessPowerBank ModelNumber:W05 CYD-W05,UNICHG22518,IST-09991,CL72104 FCCIdentifier:2A5ZM-W05 WeauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdelCarme,s/n, 08193Bellaterra,Spain,toactonourbehalfonallmattersconcerningthe abovenamedequipment. AnyindividualwithinLGAITechnologicalCenterS.A.isauthorizedtoactonour behalfandtakeactionontheapplication. WedeclarethatauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdel Carme,s/n,08193Bellaterra,Spain,isallowedtoforwardallinformation relatedtotheapprovalprojecttotheFederalCommunicationCommissionand todiscussanyissuesconcerningtheapprovalapplication.Anyandallacts carriedoutbyLGAITechnologicalCenterS.A.onourbehalfshallhavethe sameeffectasactsofourown. Name:JennyLeeDate:2022-11-11 Title:N/A Signatureofapplicant:

C5266091_X10_Ed.1 1/1 <CYDElectronics(Shenzhen)Co.,Ltd> OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 Date:2022-11-11 Subject:RequestforConfidentiality FCCID:2A5ZM-W05 ToWhomItMayConcern, PursuanttotheprovisionsofSections0.457and0.459ofCommission'srules (47CFR0.457,0.459),wearerequestingtheCommissiontowithholdthefollowing attachment(s)asconfidentialdocumentfrompublicdisclosure. ExhibitsLong-Term Confidentiality Short-Term Confidentiality IDLabel/LocationNoNo AttestationStatementNoNo ExternalPhotosNo BlockDiagram Schematics TestReportNoNo TestSetupPhotosNo User’sManual InternalPhotos PartsList/TuneUp RFExposureInfo OperationalDescription CoverLetter(s)NoNo SDRSoftware/SecurityInfoNo Abovementioneddocumentcontainsdetailedsystemandequipmentdescriptionare consideredasproprietaryinformationinoperationoftheequipment.Thepublic disclosureofabovedocumentsmightbeharmfultoourcompanyandwouldgive competitoranunfairadvantageinthemarket. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondentduringcertificationreviewprocesscannotbegrantedasconfidential documentsandthoseinformationwillbeavailableforpublicreviewoncethegrantof equipmentauthorizationisissued. Sincerely, Signature: Name:JennyLee Title:N/A

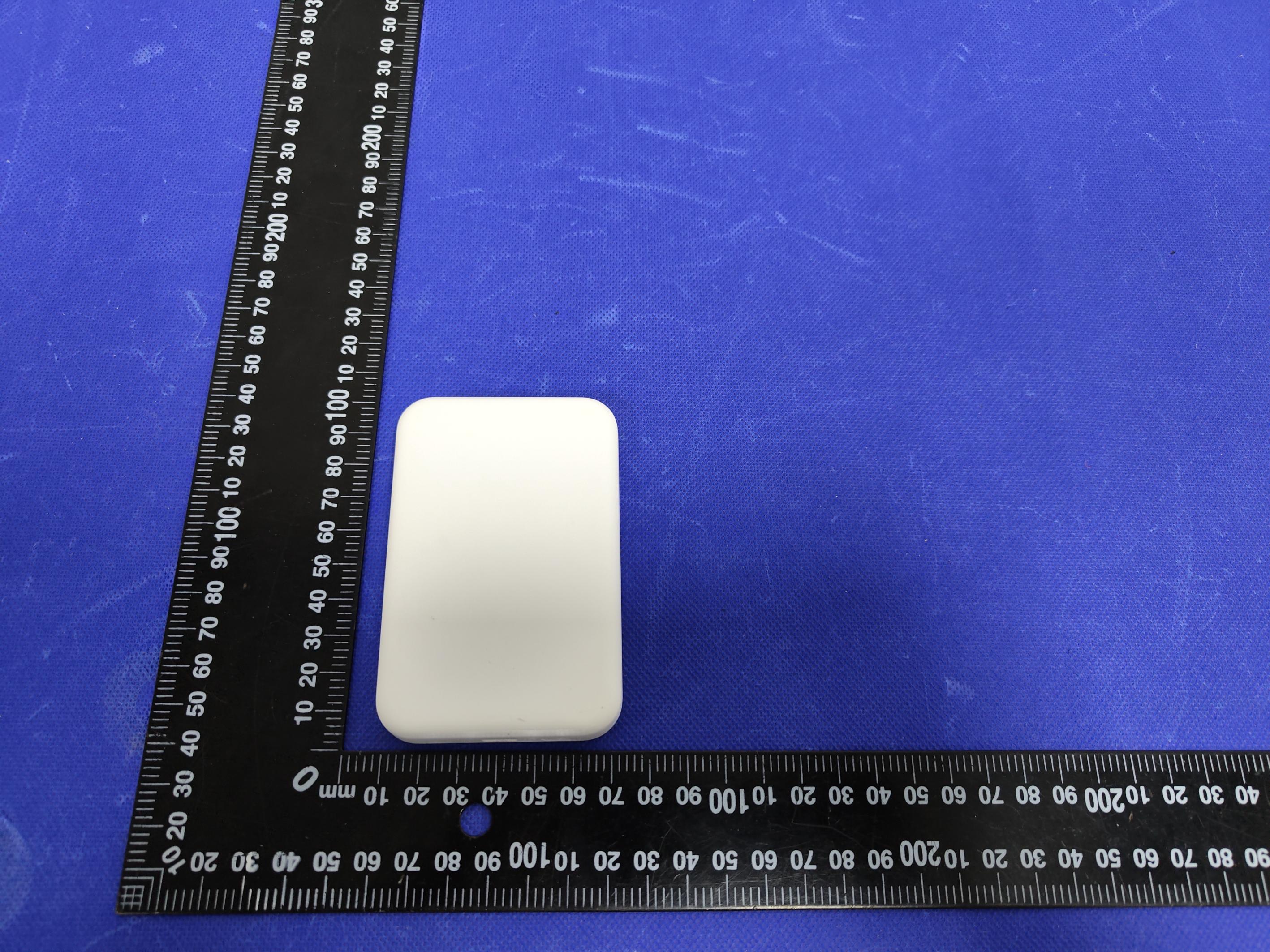

EUTPHOTO(ExternalPhotos)

Labelandlabellocation CYDElectronics(Shenzhen)Co.,Ltd FCCID:2A5ZM-W05

EUTPHOTO(InternalPhotos) Coil1 ※※※※※ENDOFREPORT※※※※※

FCC ID: 2A5ZM-W05 Product Name: Magnetic Wireless Power Bank Product Model No.: W05 CYD-W05,UNICHG22518,IST-09991,CL72104 Test Auxiliary: Phone Auxiliary Model No.: DL01 Transmitting mode Keep the EUT in continuously wireless charging mode Power supply: Input: DC 5V 3A DC 9V 2A Wireless Output: 10W Max Battery Capacity: 3.85V, 5000mAh, 19.25Wh Test Description: Phone Battery>98%, =50%and <1% are tested, and the worst is <1%. Test Modes: Mode 1 AC/DC Adapter (5V/3A) + EUT + iPhone (10W) Mode 2 AC/DC Adapter (5V/3A) + EUT + iPhone (5W) Mode 3 AC/DC Adapter (9V/2A) + EUT + iPhone (10W) Mode 4 AC/DC Adapter (9V/2A) + EUT + iPhone (5W) Mode 5 Battery (3.85V) + EUT + iPhone (10W) Record Mode 6 Battery (3.85V) + EUT + iPhone (5W) Note: 1) All test modes were pre-tested, but we only recorded the worst case in this report. 2) Device transmit under 100% duty cycle condition. Measurement Uncertainty Test Item Uncertainty Magentic fieid meansurements(9kHz~30MHz) ±2.3% Electrice fieid meansurements(9kHz~30MHz) ±2.1% RF Exposure Evaluation 1 Measuring Standard KDB 680106 RF Exposure Wireless Charging Apps v03r01 2022 April TCBC WORKSHOP 4.1 Part 18 & Wireless Power Transfer. 2 Requirements According to the item 5 of KDB 680106 v03r01: Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation. a) Power transfer frequency is less that 1 MHz Yes.The device operates in the frequency115KHz-205KHz b) Output power from each primary coil is less than or equal to 15watts. Yes,The maximum output power of the primary coil is Max 5W≤15W. c) The transfer system includes onle single primary and secondary coils.This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. Yes. The transfer system including a charging system with only single primary coils is to detect and allow only between individual of coils d) Client device is placed directly in contact with the transmitter Yes. Client device is placed directly in contact with the transmitter e) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion) No. The EUT has portable exposure condition. f) The aggregate H-Field strengths at 15 cm surrounding the device and 20 cm above the top surface form all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit No. The EUT ggregate H-Field more than 50% of the MPE limit. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) 3 Test Setup Note: Measurements should be made from all sides and the top of the primary/client pair, with the 20 cm-0cm measured from the center of the top, and 20cm-0cm measured from the center of the rest For mobile exposure conditions: a. The RF exposure test was performed in anechoic chamber b. E and H- field measurements should be made with the center of the probe at a distance of 15 cm surrounding the EUT and 20 cm above the top surface of the primarv/ client pair c. The highest emission level was recorded and compared with limit d. The EUT was measured according to the dictates of KDB680106 v03r01 For portable exposure conditions: a. The RF exposure test was performed in anechoic chamber b. E and H- field measurements should be made with the probe at O cmfor all side of the EUT. c. The highest emission level was recorded and compared with limit. For portable exposure conditions: Perform H- field measurements for each edge/ top surface of the host/ client pair at every 2 cmstartino from as close as possible out to 20cm 4 Test Procedure 1) The RF exposure test was performed on 360 degree turn table in anechoic chamber. 2) Perform H-field/E-field measurements are taken along all three axes the device from 0cm~20cm in 2cm minimum increment for each edge surface of the host/client pair. If the center of the probe sensing element is more than 5mm from the probe outer edge, the field strengths need to be estimated for the positions that are not reachable. 3) The turn table was rotated 360d degree to search of highest strength. 4) The highest emission level was recorded and compared with limit as soon as measurement of each points were completed. 5) The EUT were measured according to the dictates of KDB 680106-v03。 6) According to Calibration information and specification about WP400-3, The Probe WP400-3’s sensitive elements center is located in the probe’s center, and the dimensions is 25x25mm. so the actral 0cm field strengths need to be estimated for the positions that are not reachable. The Extrapolated Value Calculation Method please Refer item 7) . And the result of test distance 2cm~20cm was measured value. 7) Estimated method for portable RF Exposure condition: We use Biot-Savart formula theory to estimate the strength of the magnetic field that the measuring instrument cannot measure. According to Biot-Savart formula: B= 휇휇 0 ∗퐼퐼∗푁푁∗푅푅 2 2∗(푅푅 2 +푥푥 2 ) 3/2 B: means H-field value; μ 0 is space permeability; μ0=4π*10-7; I：A current element passing through a coil； R：means the Radius of coil(According to provided Antenna specification: We can get the minimum R=20/2=10mm=0.1m); x: means the distance. N: Number of turns, According to provided “Antenna specification” files: N=10. For validation purposes: If the value to show a 30% agreement between the mode and the (E- and/or H-field) probe measurements for the two closest points to the device surface, and with 2cm increments. Then this extrapolation method is reasonable. Probe Length Width Radius 2.5cm 2.5cm 1.25cm Note: The percent ratio of agreement is the difference between the estimated and measured values divided by the average of the estimated and measured values. 8) EUT is a loop/coil emitting structure, so E-field not…

Text truncated - open the document above for the full version.

Fine Page 1 of 3 FINE ELECTRONICS INDUSTRIAL (HK) LIMITED 泛亞電子實業(香港)有限公司 TEL：0769-22490287 FAX：0769-22499451 FY-GZ001 承 認 書 SPECIFICATION FOR APPROVAL 客 戶： CUSTOMER: 创盈达 客 戶 料 號： CUST P/N: 泛 亞 料 號： FINE P/N: 産 品 型 號： DESC: Φ20.5x44-10Ts-0.08x105-9mm-50C 日 期： DATE: 2017/12/09 版 本： Version: A.0 擬制 PREPARED BY 審核 CHECKED BY 批准 APPROVED BY 客戶承認 CUSTOMER APPROVE 林增杏 蔡纪雨 倪星 泛亞電子實業（HK）有限公司 FINE ELECTRONICS INDUSTRIAL （HK）LIMITED 工廠地址：東莞市石碣鎮四甲工業區 TEL：0769-22490287 / 22452492 FAX：0769-22499451 E-mail：[email protected] Fine Page 2 of 3 FINE ELECTRONICS INDUSTRIAL (HK) LIMITED 泛亞電子實業(香港)有限公司 TEL：0769-22490287 FAX：0769-22499451 FY-GZ001 版本變更履歷 Version Change History 版本 Rev. 變 更 前 Before Change 變 更 後 After Change 更 改 日 期 Change Date 批 准 Approved By A.0 新发行 ---- 2017/12/09 倪星 Fine Page 3 of 3 FINE ELECTRONICS INDUSTRIAL (HK) LIMITED 泛亞電子實業(香港)有限公司 TEL：0769-22490287 FAX：0769-22499451 FY-GZ001 SPECIFICATION 産 品 型 號： DESC Φ20.5x43-10Ts-0.08x105-9mm-50C 版本 Rev：A.0 客戶CUST: 创盈达 客户料号CUST P/N: 一、尺寸DIMENSION:(mm) 二、原理图SCHEMATIC DIAGRAM: A 44.0±1.5 B 20.5±0.5 C 1.2±0.2 D1 12 ref D2 9±2 E 4-6 F 50±1 G 8.0 ref H 2.8 Max 注： 1.线圈贴磁片，磁片尺寸 50±1mm,厚度为1.0±0.2mm; 2.线圈出线位置缠5mm或 8mm宽度高温胶纸1-2Ts; 3.磁片背面贴带手撕位圆形 直径49mm(ref)双面胶带白色 离型纸; 三、绕线参数Winding Specification: 序号 NO. 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 Winding Direction 1 S F 丝包线0.08*105P 10Ts CCW 四、电气特性ELECTRICAL CHARACTERISTICS: 温度TEMPERATURE:25±10°C, 湿度RELATIVE HUMIDITY:65±20% 序号 NO. 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TEST FREQUENCY 测试仪器 TEST EQUIPMENTS 1 IND. S-F 3.8uH ±20%单独线圈 100KHz/1.0V LCZ METER 1062B 2 IND. S-F 6.5uH ±10%加磁片 100KHz/1.0V LCZ METER 1062B 3 DCR S-F ≤50mΩ LCZ METER 502B 擬制/日期PREPARED BY/DATE 審核/日期CHECKED BY/DATE 林增杏2017/12/09 蔡纪雨2017/12/09

Project No.: ZKT-2210087362E Page 1 of 23 FCC TEST REPORT FCC ID:2A5ZM-W05 Report Number. .............................. : ZKT-2210087362E Date of Test ........................................ Oct. 18, 2022 to Nov. 14, 2022 Date of issue .................................... : Nov. 14, 2022 Total number of pages ...................... 23 Test Result ..................................... : PASS Testing Laboratory. ........................ : Shenzhen ZKT Technology Co., Ltd. Address .......................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Applicant's name ......................... : CYD Electronics (Shenzhen) Co.,Ltd Address .......................................... : State E'gongling, Pinghu town, Longgang district Shenzhen,China Manufacturer's name ................... : CYD Electronics (Shenzhen) Co.,Ltd Address .......................................... : State E'gongling, Pinghu town, Longgang district Shenzhen,China Test specification: Standard ........................................... : FCC CFR Title 47 Part 15 Subpart C Test procedure ................................. : / Non-standard test method ............. : N/A Test Report Form No. .................... : TRF-EL-107_V0 Test Report Form(s) Originator .... : ZKT Testing Master TRF .................................... : Dated: 2020-01-06 This device described above has been tested by ZKT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of ZKT, this document may be altered or revised by ZKT, personal only, and shall be noted in the revision of the document. Product name ................................. : Magnetic Wireless Power Bank Trademark ...................................... : N/A Model/Type reference ...................... : W05 CYD-W05,UNICHG22518,IST-09991,CL72104 Ratings ............................................. : Input: DC 5V 3A DC 9V 2A Wireless Output: 10W Max Battery Capacity: 3.85V, 5000mAh, 19.25Wh Project No.: ZKT-2210087362E Page 2 of 23 Testing procedure and testing location: Testing Laboratory ................................... : Shenzhen ZKT Technology Co., Ltd. Address ...................................................... :1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Tom Zou Tested by (name + signature) .................... : Jackson Fang Reviewer (name + signature) ..................... : Lake Xie Approved (name + signature) .................... : Project No.: ZKT-2210087362E Page 3 of 23 TABLE OF CONTENTS 1. VERSION ....................................................................................................................................... 4 2. TEST SUMMARY ........................................................................................................................ 5 2.1 TEST FACILITY .................................................................................................................................... 6 2.2 MEASUREMENT UNCERTAINTY .................................................................................................... 6 3. GENERAL INFORMATION ...................................................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT ................................................................................................. 7 3.2 Test mode .............................................................................................................................................. 7 3.3 Block Diagram of EUT Configuration ................................................................................................ 8 3.4 Test Conditions ..................................................................................................................................... 8 3.5 Description Of Support Units (Conducted Mode) ............................................................................ 8 3.6 EQUIPMENTS LIST FOR ALL TEST ITEMS .................................................................................. 9 4. CONDUCTED EMISSION TEST ............................................................................................. 11 4.1 CONDUCTED EMISSION MEASUREMENT ................................................................................ 11 4.1.1 POWER LINE CONDUCTED EMISSION Limits........................................................................ 11 4.1.2 TEST PROCEDURE ...................................................................................................................... 11 4.1.3 DEVIATION FROM TEST STANDARD ....................................................................................... 11 4.1.4 TEST SETUP ................................................................................................................................... 12 4.1.5 EUT OPERATING CONDITIONS ................................................................................................. 12 4.1.6 Test Result ....................................................................................................................................... 13 5. RADIATED EMISSION MEASUREMENT ............................................................................ 15 5.1 Radiated Emission Limits .................................................................................................................. 15 5.2 Anechoic Chamber Test Setup Diagram ........................................................................................ 16 5.3 Test Procedure ................................................................................................................................... 16 5.4 DEVIATION FROM TE…

Text truncated - open the document above for the full version.

EUTTESTPHOTO
