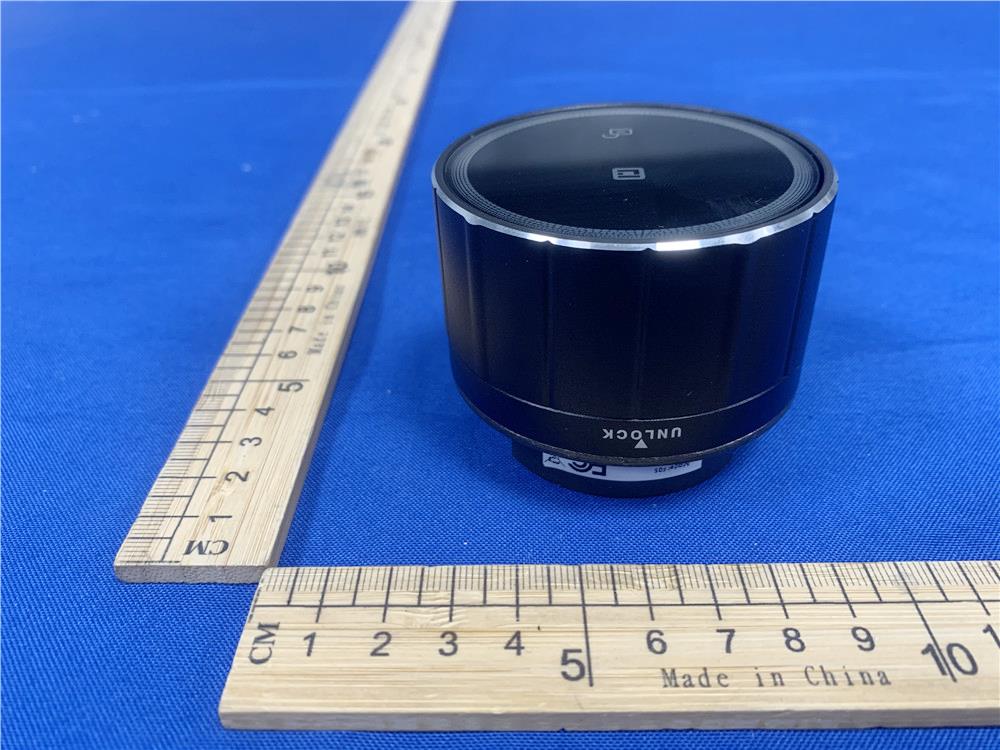

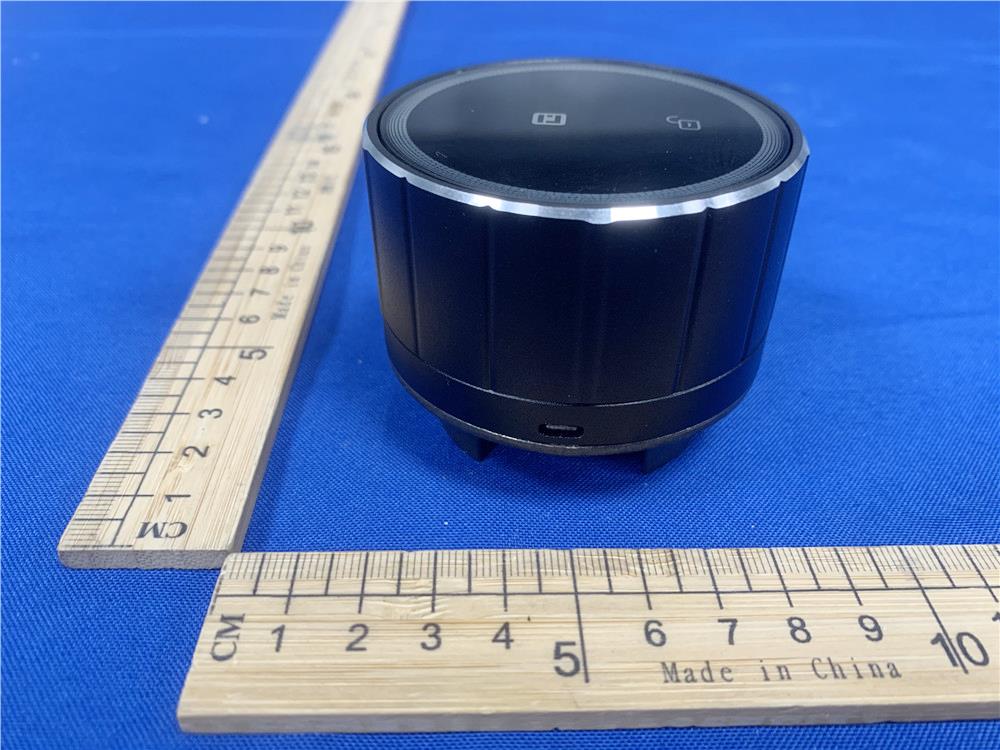

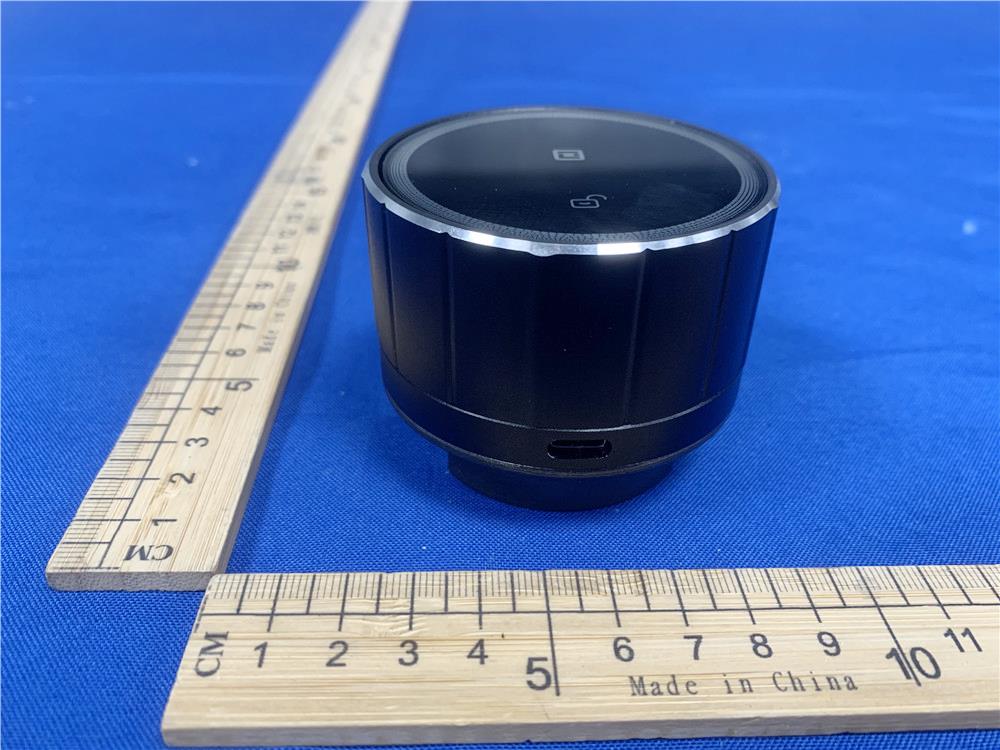

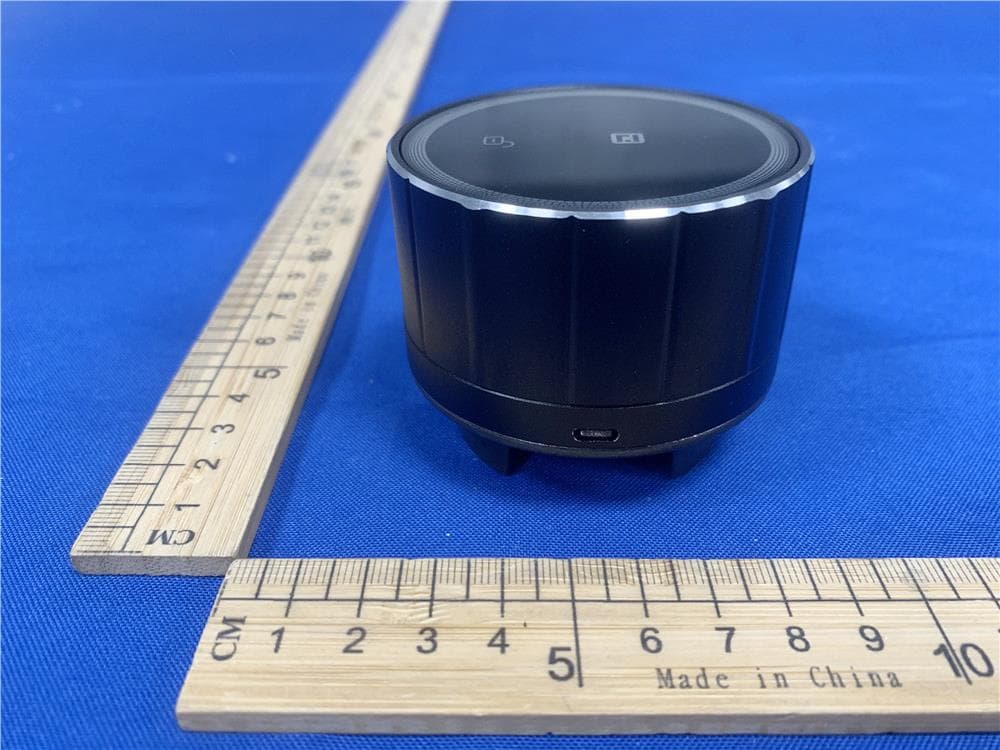

2A5ZQ-F05SERIESsmart lock

When you donít want anybody but you can unl ock , you need to get your lo ck en ter securi ty mode which onl y adminís acc ou nt can unl ock over BL E (or adminís first PKES user ). Two ways to en ter securi ty mode 1. Long press the unl ock button " three second unt il you see the securi ty mode, then release , the securi ty mode is on. 2. Use GEE K APP to en ter securi ty mode as bel ow. 42 PRODUCT INTRODUCTI ON 3 ASS EMBL Y DIAGRAM Deadbolt lat ch Screws B Mount in g plat e Screws A This Key less Entry Smar t lo ck is speciall y designe d for the deadbolt lo ck co mmonl y fou nd in old existing in the Unite d Stat es . It does n ot re qu ire the user to re place the lo ck on their family' s door, and users can still use their existing lock 's mechanical ke y. If necessary, the lo ck body can be re place d in just 5 minut es . GEEK TECHNOLOGY CO., LTD 120 Route 46 West, Parsippany, NJ 07054, Toll Free 1-844-801-8880 IMPORTANTRe ad the instructions carefull y before operating the appliance and keep them for future reference. WELCOME bids you welcome to a world of smart home devices, smart lo cks, and smar t su rveillanc e. We at strive to explore and develop the smart home industry for the good of all. We use cutt in g-e dge tec hnologies to develop products fit and ready for the market. Ple ase visit our web si te www.geektechnol ogy.com Before ins ta lling, ple ase sc an the QR codes to watch our easy step-by- step ins ta ll at ion vi deo. If you have questions regarding the insta ll at ion process, please conta ct us by mail service_lock @geektechnology.com or by phone 1- 844-801-8880. GeekTa le GeekTa le CHECK THE DOORíS DIM ENSIONS Step 1: Measure to confirm that the door is betw een ( 38mm ~55mm) thickness. Step 2: Measure to confirm that the hole in the door is (54mm). Step 3: Measure to confirm that the backset is ei the r-(60-70mm). Step 4: Measure to confirm that the hole in the door edge is 1" ( 25 mm). Note: If you have a ne w door, ple ase drill the holes a cc ording to Drill Templ at e. 1"~ 1 2 / 2" 1 8 / 2" 3 8 / 2 " 3 4 / 2 " 1 8 / 1"~ 1 2 / 2" 1 8 / (38~55mm) 2" 3 4 / (70mm) 2" 3 8 / (60mm) 2" 1 8 / (54mm) " 1 (25mm) or 5 Strike plate 2" 3 4 / (70mm) 2" 3 8 / (60mm) or IN STA LL L AT CH AND STRIKE PLA TE 1. Install latch into the door, make sure l at ch fi ts inside the door opening. 2. I ns ta ll the st rike in to the door frame, make sure the l at ch can go into the strike smoothl y. Screws A 2 " 3 4 / 2 " 3 4 / - 2 " 3 8 / If your door ís ba ckse t is ( 70 mm) , pu ll- out t he f a ce pl at e to ex t en d . 60 O R 7 0M M Angle faces jamb Deadbolt latch IN CLUDED IN THE BOX Screws B 6P CS Fo r L atch & St rike plat e Screws A 4P CS Tape Deadbolt & Strike pl at e & Strike box 1P C 1P C 8P CS 1P C Knob pane lMounting plate 1P C Adapter Pin 1P C Rubber seal 1PC J Fo r sensor Screws C 2P CS St rike plat e Knob pane l Adapter Rubber se al Please remove the knob panel. Use the Pin insert the knob panel hole as shown, pull out the knob panel. Step 1 : Please turn on the knob panel switch. Step 2 : IN ST ALL MOUNTING PLA TE 6 DO NOT CLOSE THE DOOR U NTIL THE DOOR LOCK IS FULLY INSTA LL ED AND KEEP THE ORIGINAL LA TCH O PEN. IMPORTANT NOTE OUR S MART LOCK CAN WORK WIT H YOUR EXISTING SINGLE -C YL IN DER DEA DBOLT ONLY YOU CHOOSE THE RIG HT ONE FROM OUR 8 ADAPTERS . ∑ Choo se one fr om ei ght acc ordin g to the your existin g tail piece sh ape. ∑ Once you've f ou nd the ri ght type, insert it on the mou nt. Important: Conet Marching adapter with tailpiece WHEN YOU FINISH INSTALLATI ON FOR THE MOUNTING PLATE AS BELOW: ① ① ② → → → ② 11 ADDING DEVICE Tap the add buttonî+î. Select t he smar t lo ck . 1 . Addin g ne w door lock by app (N ote : Keep y our phone cl os e by the door duri ng this pr oce ss ). 14 Click member mangement. Contin ue to foll ow the ins truction on the A pp in terf ace . Click me. 12 Select your lock . Af ter addin g the device(as ) , you will see the F05 main page. 19 HOW TO DELETE PHONEíS BL E FROM PKES Tap the PEKS you want to delete. Tap delete. 20 WHAT IS SECURITY MODE? HOW TO ENTER 13 HOW TO A DD YOUR PHONE BL E TO PKES 15 Tap the ì+î. Tap start. 16 Please operate according to instruction in APP page. 18 YOU WILL SEE BL E PASSCODE IN THE OLED SCREEN IN OUR F05 LOCK . Congratulat ionsYou can use your pho ne BL E as PKES to unl ock . 8 Very Important: Please choose and install the right adapter when the deadbolt is retracted. 7 Please tape the original door lock. (Exterior panel) Step 3 : Install mounting plate and rubber seal from the inside of the door. Use the Screws B to secure the mounting plate to the Exterior panel. Step 5 : Rubber seal Mounting plate Screws B → → → → DOWNLOAD THE GEEK SMART APP 1. App Downl oad Ins tructions A. Sc an the QR c ode on the ri ght you can use Android and iOS to downl oad the A PP . B. Android version software can be downloaded in the Google Play sto re . Se arch "GeekSmart". C. iOS version of the software can be downl oaded in the iPhone A pp Sto re . Se arch "GeekSmart". 2. Re gis ter and log in with your E-mail address. 1. Tear whi te tape ,then attach the sensor to the inside of door fr ame. Note: Keep the sensor level with the knob pa nel . IN STA LL SE NSOR 10 → 24 door sensor fr om us. Q : Why t he lo ck s ou nd didi but not unl ock ? A : Check if the lo ck en ter the securi ty mod e, if the lo ck en ter securi ty mod e ,other user not admin come ne ar the door, the lo ck will s ou nd didi but not unl ock . If you want to cancel the securi ty mod e, onl y press the unl ock button on the touch screen of in ternal pane l " ". Q : I go ne ar the door, but the lo ck can not be unl ocked by KPES , why? A : Ple ase make su re that your pho ne has Bl ue tooth en ab le d. If Bl ue tooth is en ab le d, ple ase n ot e the fo ll owin g: A.1 The si gnal of PKES may be weak when your pho ne is in sleep mod e. Simply turn on the screen of your pho ne to open the door with PKES. A.2 If the Bl ue tooth connection is lost, immed…

Text truncated - open the document above for the full version.

GEEK TECHNOLOGY CO.LTD 2024-04-12 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2A5ZQ-F05SERIES ) [GEEK TECHNOLOGY CO.LTD ] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, ACTEUR ZHONG test engineer GEEK TECHNOLOGY CO.LTD 1275Bloomfield Ave. Unit 141, Building16, Fairfield, New Jersey, United States GEEK TECHNOLOGY CO.LTD 2024-04-12 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for(FCC ID: 2A5ZQ-F05SERIES ) [GEEK TECHNOLOGY CO.LTD] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, ACTEUR ZHONG test engineer GEEK TECHNOLOGY CO.LTD 1275Bloomfield Ave. Unit 141, Building16, Fairfield, New Jersey, United States

Attestation Statements (2024/4/15) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (FCC ID:2A5ZQ-F05SERIES) (GEEK TECHNOLOGY CO.LTD), the undersigned, hereby authorize Lucky Cowboy Global Services, LLC to act as our designated U.S. agent for service of process, (GEEK TECHNOLOGY CO.LTD) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Lucky Cowboy Global Services, LLC accepts the responsibility to act as designated U.S. agent for service of process. Applicant Information： Company Name: GEEK TECHNOLOGY CO.LTD Contact Name: ACTEUR ZHONG Address: 1275Bloomfield Ave. Unit 141, Building16, Fairfield, New Jersey, United states FRN: 0032168296 Telephone No: 18124901378 Email: 151723057 @qq.com Signature [ACTEUR ZHONG] U.S. Agent Information: Company Name: Lucky Cowboy Global Services, LLC Address: 2213 S. Braeswood Blvd. #12E Houston, TX 77030 USA FRN: 0033510934 Contact Name: Louie Liu Telephone No: +1 (713) 992-3369 Email: [email protected] Signature [Louie Liu]

External

30 mm 8 mm

Internal Antenna

RF EXPOSURE EVALUATION EUT Specification EUT smart lock Model F05 Series Model F05-P, F05-F, F05-V, F06, F07, F08, F08A, K13 FCC ID 2A5ZQ-F05SERIES Antenna Gain 2.64dBi Operation Frequency 2402 MHz to 2480 MHz Modulation GFSK Ratings DC 3.7V or DC 5V Max. output power -4.28dBm Test Requirement: According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm=20cm Pd the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the nd total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Measurement Result Antenna gain: 2.64dBi BLE: Mode Channel Freq. (MHz) Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain （Numeric） Evaluation result (mW/cm 2 ) Power density Limits (mW/cm 2 ) GFSK 2402 -4.82 -5±1 -4 1.84 0.000146 1 GFSK 2440 -4.44 -4±1 -3 1.84 0.000183 1 GFSK 2480 -4.28 -4±1 -3 1.84 0.000183 1 Signature: Shawn Wen Date: 2024-04-12

Approval sheet 深圳市美迅物联网技术有限公司 Shenzhen Meishun Internet of Things Technology Co., LTD Page 1 of 4 May. 2019 ANPPROVANLSHEET RFECA Series – RoHS Compliance On-board Antenna Halogens Free Product 2.4 GHz ISM Band Working Frequency P/N: MS-ANT-F-S1 *Contents in this sheet are subject to change without prior notice. Approval sheet 深圳市美迅物联网技术有限公司 Shenzhen Meishun Internet of Things Technology Co., LTD Page 2 of 4 May. 2019 FEATURES 1.a small dimension of 11.4 X 5.4 mm2 3.High stability in Temperature / Humidity Change. 4.Superb performance to place on the middle of PCB edge and excellent peak/ average gain observed by field test application. APPLICATIONS 1.ISM Band 2.4GHz applications. 2.Bluetooth.. CONSTRUCTION DIMENSIONS Approval sheet 深圳市美迅物联网技术有限公司 Shenzhen Meishun Internet of Things Technology Co., LTD Page 3 of 4 May. 2019 TYPE 1 ELECTRONIC CHARACTERISTICS Item Specification Working Frequency Range 2.4GHz~2.4835GHz (Note-1) Gain 2.64 dBi (max) VSWR 2.1 max. Polarization Linear Azimuth Beamwidth Omni-directional Impedance 50Ω *Note 1. Central Frequency should be defined after customers’ application approval. Antenna S11 on Test Board -10.62 dB @ 2.40 GHz -19.34 dB @ 2.45 GHz -9.648 dB @ 2.50 GHz Antenna VSWR on Test Board 1.756 @ 2.40 GHz 1.391 @ 2.45 GHz 1.986 @ 2.50 GHz Approval sheet 深圳市美迅物联网技术有限公司 Shenzhen Meishun Internet of Things Technology Co., LTD Page 4 of 4 May. 2019 RADIATION PATTERN Radiation Pattern and Gain were dependent on measurement board design. The specification of MS-ANT-F-S1 antenna was measured based on the PCB size and installation position

1 / 36 Appendix A Duty Cycle Condition Mode Frequency (MHz) Antenna On Time (ms) Period (ms) Duty Cycle (%) Correction Factor (dB) 1/T (kHz) Final settingFor VBW (kHz) NVNT BLE 1M 2402 Ant1 0 0 100 0 0 1 NVNT BLE 1M 2440 Ant1 0 0 100 0 0 1 NVNT BLE 1M 2480 Ant1 0 0 100 0 0 1 2 / 36 Test Graphs Duty Cycle NVNT BLE 1M 2402MHz Ant1 Duty Cycle NVNT BLE 1M 2440MHz Ant1 3 / 36 Duty Cycle NVNT BLE 1M 2480MHz Ant1 4 / 36 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) Limit (dBm) Verdict NVNT BLE 1M 2402 Ant1 -4.82 0 -4.82 30 Pass NVNT BLE 1M 2440 Ant1 -4.44 0 -4.44 30 Pass NVNT BLE 1M 2480 Ant1 -4.28 0 -4.28 30 Pass 5 / 36 Test Graphs Power NVNT BLE 1M 2402MHz Ant1 Power NVNT BLE 1M 2440MHz Ant1 6 / 36 Power NVNT BLE 1M 2480MHz Ant1 7 / 36 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT BLE 1M 2402 Ant1 0.7 0.5 Pass NVNT BLE 1M 2440 Ant1 0.67 0.5 Pass NVNT BLE 1M 2480 Ant1 0.66 0.5 Pass 8 / 36 Test Graphs -6dB Bandwidth NVNT BLE 1M 2402MHz Ant1 -6dB Bandwidth NVNT BLE 1M 2440MHz Ant1 9 / 36 -6dB Bandwidth NVNT BLE 1M 2480MHz Ant1 10 / 36 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT BLE 1M 2402 Ant1 1.042 NVNT BLE 1M 2440 Ant1 1.014 NVNT BLE 1M 2480 Ant1 1.036 11 / 36 Test Graphs OBW NVNT BLE 1M 2402MHz Ant1 OBW NVNT BLE 1M 2440MHz Ant1 12 / 36 OBW NVNT BLE 1M 2480MHz Ant1 13 / 36 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm/3kHz) Duty Factor (dB) Total PSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNT BLE 1M 2402 Ant1 -15.68 0 -15.68 8 Pass NVNT BLE 1M 2440 Ant1 -14.95 0 -14.95 8 Pass NVNT BLE 1M 2480 Ant1 -14.66 0 -14.66 8 Pass 14 / 36 Test Graphs PSD NVNT BLE 1M 2402MHz Ant1 PSD NVNT BLE 1M 2440MHz Ant1 15 / 36 PSD NVNT BLE 1M 2480MHz Ant1 16 / 36 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT BLE 1M 2402 Ant1 -53.74 -20 Pass NVNT BLE 1M 2480 Ant1 -54.1 -20 Pass 17 / 36 Test Graphs Band Edge NVNT BLE 1M 2402MHz Ant1 Ref Band Edge NVNT BLE 1M 2402MHz Ant1 Emission 18 / 36 Band Edge NVNT BLE 1M 2480MHz Ant1 Ref Band Edge NVNT BLE 1M 2480MHz Ant1 Emission 19 / 36 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT BLE 1M 2402 Ant1 -32.74 -20 Pass NVNT BLE 1M 2440 Ant1 -34.62 -20 Pass NVNT BLE 1M 2480 Ant1 -33.51 -20 Pass 20 / 36 Test Graphs Tx. Spurious NVNT BLE 1M 2402MHz Ant1 Ref Tx. Spurious NVNT BLE 1M 2402MHz Ant1 Emission 21 / 36 Tx. Spurious NVNT BLE 1M 2440MHz Ant1 Ref Tx. Spurious NVNT BLE 1M 2440MHz Ant1 Emission 22 / 36 Tx. Spurious NVNT BLE 1M 2480MHz Ant1 Ref Tx. Spurious NVNT BLE 1M 2480MHz Ant1 Emission 23 / 36 RADIATED TEST RESULTS The data of the mode (BLE 2402) are recorded in the following pages. The worst result as bellow: EUT : smart lock MN: F05 Mode: BLE 2402 Power: DC 3.7V TE: Vier Date 2024/01/26 T/A/P 24.1°C/53.3%/101.5Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 38.730 41.38 -19.31 22.07 40.00 17.93 PK+ H 2 95.960 45.57 -24.49 21.08 43.50 22.42 PK+ H 3 224.000 49.10 -20.6 28.50 46.00 17.50 PK+ H 4 278.320 46.79 -19.14 27.65 46.00 18.35 PK+ H 5 549.920 31.15 -9.73 21.42 46.00 24.58 PK+ H 6 949.560 31.26 -3.41 27.85 46.00 18.15 PK+ H Note：[Margin=Limit-Meas.]; [Meas.=Reading+Corr. ] 24 / 36 EUT : smart lock MN: F05 Mode: BLE 2402 Power: DC 3.7V TE: Vier Date 2024/01/26 T/A/P 24.1°C/53.3%/101.5Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 44.550 43.84 -22.24 21.60 40.00 18.40 PK+ V 2 191.990 39.37 -22.57 16.80 43.50 26.70 PK+ V 3 312.270 42.73 -18.34 24.39 46.00 21.61 PK+ V 4 432.550 39.46 -14.15 25.31 46.00 20.69 PK+ V 5 460.680 39.40 -13.65 25.75 46.00 20.25 PK+ V 6 928.220 30.66 -3.09 27.57 46.00 18.43 PK+ V Note：[Margin=Limit-Meas.]; [Meas.=Reading+Corr. ] 25 / 36 Above 1000MHz~10 th Harmonics: EUT : smart lock MN: F05 Mode: BLE 2402 Power: DC 3.7V TE: Vier Date 2024/01/26 T/A/P 24.1°C/53.3%/101.5Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 2596.000 55.17 -8.13 47.04 74.00 26.96 PK+ H 2 3327.000 57.75 -14.43 43.32 74.00 30.68 PK+ H 3 4473.000 54.74 -12.03 42.71 74.00 31.29 PK+ H 4 7206.000 52.01 -8 44.01 74.00 29.99 PK+ H 5 11941.500 50.15 -4.47 45.68 74.00 28.32 PK+ H 6 17710.500 48.54 -0.05 48.49 74.00 25.51 PK+ H 26 / 36 EUT : smart lock MN: F05 Mode: BLE 2402 Power: DC 3.7V TE: Vier Date 2024/01/26 T/A/P 24.1°C/53.3%/101.5Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 4804.500 58.85 -11.34 47.51 74.00 26.49 PK+ V 2 5985.000 54.57 -9.01 45.56 74.00 28.44 PK+ V 3 7207.500 57.43 -7.99 49.44 74.00 24.56 PK+ V 4 11905.500 48.55 -4.38 44.17 74.00 29.83 PK+ V 5 16278.000 48.58 -1.35 47.23 74.00 26.77 PK+ V 6 17707.500 48.64 0.02 48.66 74.00 25.34 PK+ V 27 / 36 EUT : smart lock MN: F05 Mode: BLE 2440 Power: DC 3.7V TE: Vier Date 2024/01/26 T/A/P 24.1°C/53.3%/101.5Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 2934.000 54.79 -7.51 47.28 74.00 26.72 PK+ H 2 4879.500 56.48 -11.14 45.34 74.00 28.66 PK+ H 3 7320.000 52.39 -7.87 44.52 74.00 29.48 PK+ H 4 13483.500 49.39 -4.34 45.05 74.00 28.95 PK+ H 5 16573.500 48.75 -1.5 47.25 74.00 26.75 PK+ H 6 17676.000 48.81 0.31 49.12 74.00 24.88 PK+ H 28 / 36 EUT : smart lock MN: F05 Mode: BLE 2440 Power: DC 3.7V TE: Vier Date 2024/01/26 T/A/P 24.1°C/53.3%/101.5Kpa Critical_Freqs No. Freq. (MHz) Reading (dBμV) Corr. (dB) Meas. (dBμV/m) Limit (dBμV/m) Margin (dB) Det. Pol. 1 2784.000 54.65 -8.43 46.22 74.00 27.78 PK+ V 2 4879.500 58.45 -11.14 47.31 74.00 26.69 PK+ V 3 7318.500 55.51 -7.82 47.69 74.00 26.31 PK+ V 4 8277.000 52.29 -8.01 44.28 74.00 29.72 PK+ V 5 11176.500 4…

Text truncated - open the document above for the full version.

TRF No.: 04-E001-1A TRF Originator: GTG TRF Date: 2023-08-25 Web: www.gtggroup.com E-mail: [email protected] Tel.: 86-400 755 8988 CFR 47 FCC PART 15 SUBPART C TEST REPORT For smart lock MODEL NUMBER: F05, F05-P, F05-F, F05-V, F06, F07, F08, F08A, K13 REPORT NUMBER: E04A24010465F00101 ISSUE DATE: April 12, 2024 FCC ID: 2A5ZQ-F05SERIES Prepared for GEEK TECHNOLOGY CO.LTD 1275Bloomfield Ave. Unit 141, Building16, Fairfield, New Jersey, United States Prepared by Guangdong Global Testing Technology Co., Ltd. Room 101-105, 203-210, Building 1, No.2, Keji 8 Road, Songshan Lake Park, Dongguan city, Guangdong, People’s Republic of China, 523808 This report shall not be reproduced, except in full, without the written approval of Guangdong Global Testing Technology Co., Ltd. REPORT NO.: E04A24010465F00101 Page 2 of 38 TRF No.: 04-E001-1A Global Testing , Great Quality. Revision History Rev. Issue Date Revisions Revised By V0 April 12, 2024 Initial Issue Joson REPORT NO.: E04A24010465F00101 Page 3 of 38 TRF No.: 04-E001-1A Global Testing , Great Quality. Summary of Test Results Test Item Clause Limit/Requirement Result Antenna Requirement N/A FCC Part 15.203/15.247 (c) Pass AC Power Line Conducted Emission ANSI C63.10-2013, Clause 6.2 FCC Part 15.207 Pass Conducted Output Power ANSI C63.10-2013, Clause 11.9.1.3 FCC Part 15.247 (b)(3) Pass 6dB Bandwidth and 99% Occupied Bandwidth ANSI C63.10-2013, Clause 11.8.1 FCC Part 15.247 (a)(2) Pass Power Spectral Density ANSI C63.10-2013, Clause 11.10.2 FCC Part 15.247 (e) Pass Conducted Band edge and spurious emission ANSI C63.10-2013, Clause 11.11 FCC Part 15.247(d) Pass Radiated Band edge and Spurious Emission ANSI C63.10-2013, Clause 11.11 & Clause 11.12 FCC Part 15.205/15.209 Pass Duty Cycle ANSI C63.10-2013, Clause 11.6 None; for reporting purposes only. Pass *This test report is only published to and used by the applicant, and it is not for evidence purpose in China. *The measurement result for the sample received is <Pass> according to <CFR 47 FCC PART 15 SUBPART C> when <Accuracy Method> decision rule is applied. REPORT NO.: E04A24010465F00101 Page 4 of 38 TRF No.: 04-E001-1A Global Testing , Great Quality. CONTENTS 1. ATTESTATION OF TEST RESULTS ..................................................................................... 5 2. TEST METHODOLOGY ......................................................................................................... 6 3. FACILITIES AND ACCREDITATION ..................................................................................... 6 4. CALIBRATION AND UNCERTAINTY ................................................................................... 7 4.1. MEASURING INSTRUMENT CALIBRATION ........................................................... 7 4.2. MEASUREMENT UNCERTAINTY ............................................................................ 7 5. EQUIPMENT UNDER TEST .................................................................................................. 8 5.1. DESCRIPTION OF EUT ........................................................................................... 8 5.2. CHANNEL LIST ........................................................................................................ 9 5.3. Maximum PEAK Output Power ................................................................................. 9 5.4. TEST CHANNEL CONFIGURATION ........................................................................ 9 5.5. THE WORSE CASE POWER SETTING PARAMETER ............................................ 9 5.6. DESCRIPTION OF AVAILABLE ANTENNAS ........................................................... 9 5.7. SUPPORT UNITS FOR SYSTEM TEST ................................................................. 10 5.8. SETUP DIAGRAM .................................................................................................. 10 6. MEASURING EQUIPMENT AND SOFTWARE USED......................................................... 11 7. ANTENNA PORT TEST RESULTS ..................................................................................... 13 7.1. Conducted Output Power ........................................................................................ 13 7.2. 6dB Bandwidth and 99% Occupied Bandwidth ....................................................... 14 7.3. Power Spectral Density ........................................................................................... 16 7.4. Conducted Band edge and spurious emission ........................................................ 17 7.5. Duty Cycle .............................................................................................................. 19 8. RADIATED TEST RESULTS ............................................................................................... 20 9. ANTENNA REQUIREMENT ................................................................................................ 25 10. AC POWER LINE CONDUCTED EMISSION ......................................................... 26 11. TEST DATA ............................................................................................................ 27 12. PHOTOGRAPHS OF TEST CONFIGURATION ..................................................... 28 13. PHOTOGRAPHS OF THE EUT .............................................................................. 30 REPORT NO.: E04A24010465F00101 Page 5 of 38 TRF No.: 04-E001-1A Global Testing , Great Quality. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: GEEK TECHNOLOGY CO.LTD Address: 1275Bloomfield Ave. Unit 141, Building16, Fairfield, New Jersey, United States Manufacturer Information Company Name: GEEK TECHNOLOGY CO.LTD Address: 1275Bloomfield Ave. Unit 141, Building16, Fairfield, New Jersey, United States EUT Information EUT Name: smart lock Model: F05 Series Model: F05-P, F05-F, F05-V, F06, F07, F08, F08A, K13 Brand: / Sample Received Date: January 25, 2024 Sample Status: Normal Sample ID: A24010465 001 Dat…

Text truncated - open the document above for the full version.

AC Power Line Conducted Emission Radiated Emissions Below 1GHz Radiated Emissions Above 1GHz
