2A632-UHRT05CRemote Control Transmitter

Instruction Manual for Remote Transmitter Model No.: UHRT05C (JHT2202B) INSTALLATION AND CHANGE THE BATTERY: Open the battery compartment which on the back of remote control, Install one (1) x 12V (23A) battery in the compartment, make sure the positive and negative electrodes of battery is correct. OPERATION: There are five pairs of buttons on remote control for individual ON and OFF function. Each push of the ON or OFF button on remote controller will turn on or off the corresponding receivers accordingly. TECHNICAL DATA: Transmission Frequency: 433.92MHz Transmitter : DC 12V 23A battery (1pc) Working temperature: -20°C to + 50°C Other Details: The transmitter can be sold separately, but can not be used separately, it will have to be matched corresponding radio receivers to use. The transmitter can only turn ON or OFF the corresponding receivers individually on 70 to 100ft distance. The corresponding receivers such as socket, light bulb socket, switch kit, etc. Troubleshooting: If you find the remote control distance becomes short or the indicator on remote transmitter becomes weak, then please replace the battery with fresh battery asap. Please check if the positive and negative of the battery installation is correct if the remote control is no response or the indicator on remote control is not on when press any one of the key buttons. Regular change fresh battery for best use. FCC Statement Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

QA-FR-170-B Company name: Ningbo Joinus Win Future Electronic Technology Co., Ltd. Address: No.9 Yongxing Road, West Area, Guan Haiwei Industrial Zone, Guan Haiwei, Cixi, Ningbo, Zhejiang, China Tel: +86-13723470498 Fax: +86-13723470498 Email: [email protected] FCC Authorization Date: 2022-09-28 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , Ningbo Joinus Win Future Electronic Technology Co.,Ltd., Hereby authorizes China Certification ICT Co., Ltd (Dongguan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by China Certification ICT Co., Ltd (Dongguan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature: Printed Name: Oliver Lu Title: Certification Manager

QA-FR-171-A Company name: Ningbo Joinus Win Future Electronic Technology Co., Ltd. Address: No.9 Yongxing Road, West Area, Guan Haiwei Industrial Zone, Guan Haiwei, Cixi, Ningbo, Zhejiang, China Tel: +86-13723470498 Fax: +86-13723470498 Email: [email protected] FCC Confidential Authorization Date: 2022-09-28 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2A632-UHRT05C In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, (Ningbo Joinus Win Future Electronic Technology Co., Ltd.) hereby requests long-term confidential treatment of information accompanying this application as outlined below: •Block Diagram •Schematics •Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Printed Name: Oliver Lu Title: Certification Manager

Company Name: Ningbo Joinus Win Future Electronic Technology Co., Ltd. A dd: No.9 Yongxing Road, West Area,Guan Haiwei Industrial Zone, Guan Haiwei, Cixi, Ningbo, Zhejiang,China Tel: +86-13723470498 Fax: +86-13723470498 Email: [email protected] Product Difference Declaration Dat e: 2022-9-28 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road C olumbia, MD 21046 Dear Sir/Madam, We, Ningbo Joinus Win Future Electronic Technology Co., Ltd. , hereby declare that product: Remote Control Transmitter(Model name: UHRT05C,JHT2202B, FCC ID: 2A632-UHRT05C), They are electrically identi cal with the PCB design, components and electromagnetic compatibility characteristics. And UHRT05C has been tested by China Certification ICT Co., Ltd (Dongguan). The differences of them are as follows: The model name We confirm that all information above is true, and we will be responsible for all the consequences. Please contact me if you have any question. Sincerely, Signature, Ol; ver山 Contact person: Oliver Lu Titl e: Certification Manager

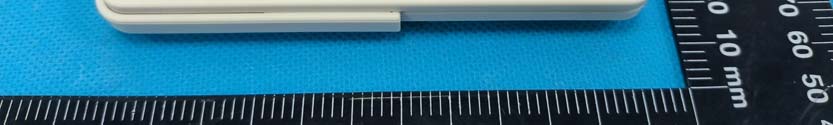

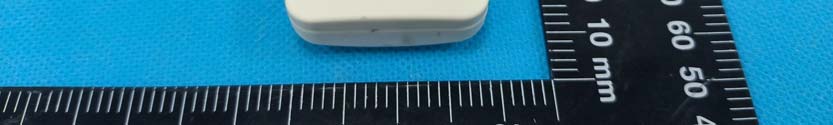

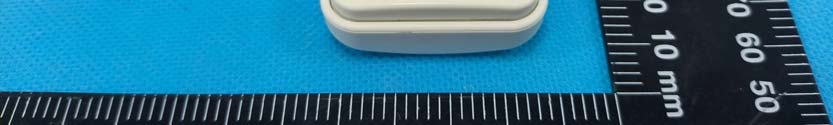

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Antenna

China Certification ICT Co., Ltd (Dongguan) Report No.: CR220942593-00 Page 29 of 29 5. RF EXPOSURE EVALUATION 5.1 Applicable Standard FCC §1.1307(b)(3)(i)(A) a single RF source is exempt RF device (from the requirement to show data demonstrating compliance to RF exposure limits, as previously mentioned) if the available maximum time-averaged power is no more than 1 mW, regardless of separation distance. 5.2 Procedure According to 447498 D04 Interim General RF Exposure Guidance v01, clause 2.1.2- 1-mW Test Exemption: Per §1.1307(b)(3)(i)(A), a single RF source is exempt RF device (from the requirement to show data demonstrating compliance to RF exposure limits, as previously mentioned) if the available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption applies to all operating configurations and exposure conditions, for the frequency range 100 kHz to 100 GHz, regardless of fixed, mobile, or portable device exposure conditions. This is a standalone exemption, and it cannot be applied in conjunction with any other test exemption. 5.3 Measurement Result Frequency (MHz) Maximum EIRP (dBm) Maximum ERP 1-mW Test Exemption dBm mW 433.92 -11.76 -13.91 0.04 Compliant Note: 1. Chose the maximum power to do MPE analysis. 2. This device maximum E-Field level is 83.44 dBμV/m at 3m, so the EIRP power is -11.76dBm. 3. Pout EIRP(dBm)=Field Strength of Fundamental(dBuV/m)-95.2 Result: Compliant. RF Exposure is exemption. ===== END OF REPORT =====

TEST REPORT Applicant: Ningbo Joinus Win Future Electronic Technology Co.,Ltd. Address: No.9 Yongxing Road, West Area, Guan Haiwei Industrial Zone, Guan Haiwei, Cixi, Ningbo, Zhejiang, P.R.China 315315 FCC ID: 2A632-UHRT05C Product Name: Remote Control Transmitter Standard(s): 47 CFR Part 15, Subpart C(15.231) ANSI C63.10-2013 The above equipment has been tested and found compliance with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR220942593-00 Date Of Issue: 2022/11/07 Reviewed By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR220942593-00 Page 2 of 29 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR220942593-00 Page 3 of 29 CONTENTS T EST FACILITY .......................................................................................................................................... 2 DECLARATIONS .......................................................................................................................................... 2 1. GENERAL INFORMATION .................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 5 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 6 1.2.2 Support Equipment List and Details .............................................................................................................. 6 1.2.3 Support Cable List and Details ...................................................................................................................... 6 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 6 1.3 MEASUREMENT UNCERTAINTY .......................................................................................................... 7 2. SUMMARY OF TEST RESULTS ............................................................................................ 8 3. REQUIREMENTS AND TEST PROCEDURES .................................................................... 9 3.1 AC LINE CONDUCTED EMISSIONS ...................................................................................................... 9 3.1.1 Applicable Standard ....................................................................................................................................... 9 3.1.2 EUT Setup.................................................................................................................................................... 10 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 10 3.1.4 Test Procedure ............................................................................................................................................. 11 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 11 3.2 RADIATION SPURIOUS EMISSIONS .................................................................................................... 12 3.2.1 Applicable Standard ..................................................................................................................................... 12 3.2.2 EUT Setup.................................................................................................................................................... 13 3.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 13 3.2.4 Test Procedure ............................................................................................................................................. 14 3.2.5 Corrected Amplitude & Margin Calculation ................................................................................................ 14 3.3 20 DB EMISSION BANDWIDTH: .......................................................................................................... 15 3.3.1 Applicable Standard ..................................................................................................................................... 15 3.3.2 EUT Setup..........................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View
