2A632-UHRT06CRemote Control Transmitter

Instruction Manual for Remote Control Transmitter Model No.: UHRT06C (JHT2203 A) INSTALLATION AND CHANGE THE BATTERY: Open the battery compartment which on the back of remote control, Install one (1) x 3V (CR2032) battery in the compartment, make sure the positive and negative electrodes of battery is correct. OPERATION: There are two buttons on remote control for individual ON and OFF function. TECHNICAL DATA: Transmission Frequency: 433.92MHz Transmitter : DC 3V CR2032 battery (1pc) Working temperature: -20°C to + 50°C Other Details: The transmitter can be sold separately, but can not be used separately, it will have to be matched corresponding radio receivers to use. The transmitter can only turn ON or OFF the corresponding receivers individually on 70 to 100ft distance. The corresponding receivers such as socket, light bulb socket, switch kit, etc. Troubleshooting: If you find the remote control distance becomes short or the indicator on remote transmitter becomes weak, then please replace the battery with fresh battery asap. Please check if the positive and negative of the battery installation is correct if the remote control is no response or the indicator on remote control is not on when press any one of the key buttons. Regular change fresh battery for best use. Federal Communications Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. ISED Warning: Déclaration d'exposition aux radiations L'équipement a été évalué pour répondre aux exigences générales d'exposition aux radiofréquences. L'appareil peut être utilisé dans des conditions d'exposition portables sans restriction. This device complies with Innovation, Science, and Economic Development Canad licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d' Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil nedoit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This equipment complies with FCC/ISED radiation exposure limits set forth for an uncontrolled environment. L'appareil est conforme aux limites d'exposition aux rayonnements spécifiées par la FCC/ISED pour les environnements non contrôlés.

Ningbo Joinus Win Future Electronic Technology Co.,Ltd. No.9 Yongxing Road, West Area, Guan Haiwei Industrial Zone, Guan Haiwei, Cixi, Ningbo, Zhejiang, P.R.China 315315 Tel: +86-13723470498 Fax: +86-13723470498 Email: [email protected] Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023-11-03 FCC ID: 2A632-UHRT06C Ref. #1: Attestation Statements Part 2.911(d)(5)(i) Filing Ningbo Joinus Win Future Electronic Technology Co.,Ltd. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Ref. #2: Attestation Statements Part 2.911(d)(5)(ii) Filing Ningbo Joinus Win Future Electronic Technology Co.,Ltd. certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Applicant: Ningbo Joinus Win Future Electronic Technology Co.,Ltd. Address:No.9 Yongxing Road, West Area, Guan Haiwei Industrial Zone, Guan Haiwei, Cixi, Ningbo, Zhejiang, P.R.China 315315 Contact Person: Oliver Lu, Certification Manager Tel.: +86-13723470498 Email: [email protected] Sincerely, Signature:

U.S. AGENT LETTER OF ATTESTATION Date: 2023-11-03 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID:2A632-UHRT06C Ningbo Joinus Win Future Electronic Technology Co.,Ltd. certifies that, as of the date of the filing of the application, Iconsigh Inc. is our designated U.S. agent for service of process for the above referenced FCC ID. Ningbo Joinus Win Future Electronic Technology Co.,Ltd. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Iconsigh Inc. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company Name: Iconsigh Inc. Address: 2310 Homestead Road, Suite C1, Los Altos, CA, 94024, USA FRN: 0033398652 Tel.: +1 (408) 320-9867 Email: [email protected] Signed by (printed name): Benjamin Kaur Signature: Applicant: Ningbo Joinus Win Future Electronic Technology Co.,Ltd. Address:No.9 Yongxing Road, West Area, Guan Haiwei Industrial Zone, Guan Haiwei, Cixi , Ningbo, Zhejiang, P.R.China 315315 FRN: 0032447286 Tel: +86-13723470498 Email: [email protected] Signed by (printed name): Oliver Lu Signature:

Manufacturer Name: Ningbo Joinus Win Future Electronic Technology Co.,Ltd. Add: No.9 Yongxing Road, West Area, Guan Haiwei Industrial Zone, Guan Haiwei, Cixi, Ningbo, Zhejiang, P.R.China 315315 ) Frequency(MHz): 433.92 Antenna Gain(dBi): 0 Model: 433A Dimension: 66mm*2mm 2mm 66mm

Ningbo Joinus Win Future Electronic Technology Co.,Ltd. No.9 Yongxing Road, West Area, Guan Haiwei Industrial Zone, Guan Haiwei, Cixi, Ningbo, Zhejiang, P.R.China 315315 Tel: +86-13723470498 Fax: +86-13723470498 Email: [email protected] Date：2023-11-03 Product Model Number: JHT2203A, UHRT06C FCC ID：2A632-UHRT06C To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize China Certification ICT Co., Ltd (Dongguan)(address: No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China) to act on our behalf on all matters concerning the above named equipment. This shall include the following: •Testing •Approval applications and procedures We declare that ORGANIZATION. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by ORGANIZATION.on our behalf shall have the same effect as acts of our own. Signature: By: Oliver Lu Contact Listed on FCC Wesbite Title: Certification Manager Email: [email protected] Telephone: +86-13723470498 On behalf of: Ningbo Joinus Win Future Electronic Technology Co.,Ltd.

Ningbo Joinus Win Future Electronic Technology Co.,Ltd. No.9 Yongxing Road, West Area, Guan Haiwei Industrial Zone, Guan Haiwei, Cixi, Ningbo, Zhejiang, P.R.China 315315 Tel: +86-13723470498 Fax: +86-13723470498 Email: [email protected] Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023-11-03 Subject; Request for Confidentiality FCC ID: 2A632-UHRT06C To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Oliver Lu Title: Certification Manager

Ningbo Joinus Win Future Electronic Technology Co.,Ltd. No.9 Yongxing Road, West Area, Guan Haiwei Industrial Zone, Guan Haiwei, Cixi, Ningbo, Zhejian g, P.R.China 315315 Tel: +86-13723470498 Fax: +86-13723470498 Email: [email protected] Product Difference Declaration 2023-11-03 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, We, Ningbo Joinus Win Future Electronic Technology Co.,Ltd., declare that our product Remote Control Transmitter , the models JHT2203A , UHRT06C (FCC ID: 2A632-UHRT06C), all the models are identical in electrically, the difference only lies in the model name. We confirm that all information above is true, and we will be responsible for all the consequences. Please contact me if you have any question. Sincerely, Signature: Oliver Lu Certification Manager

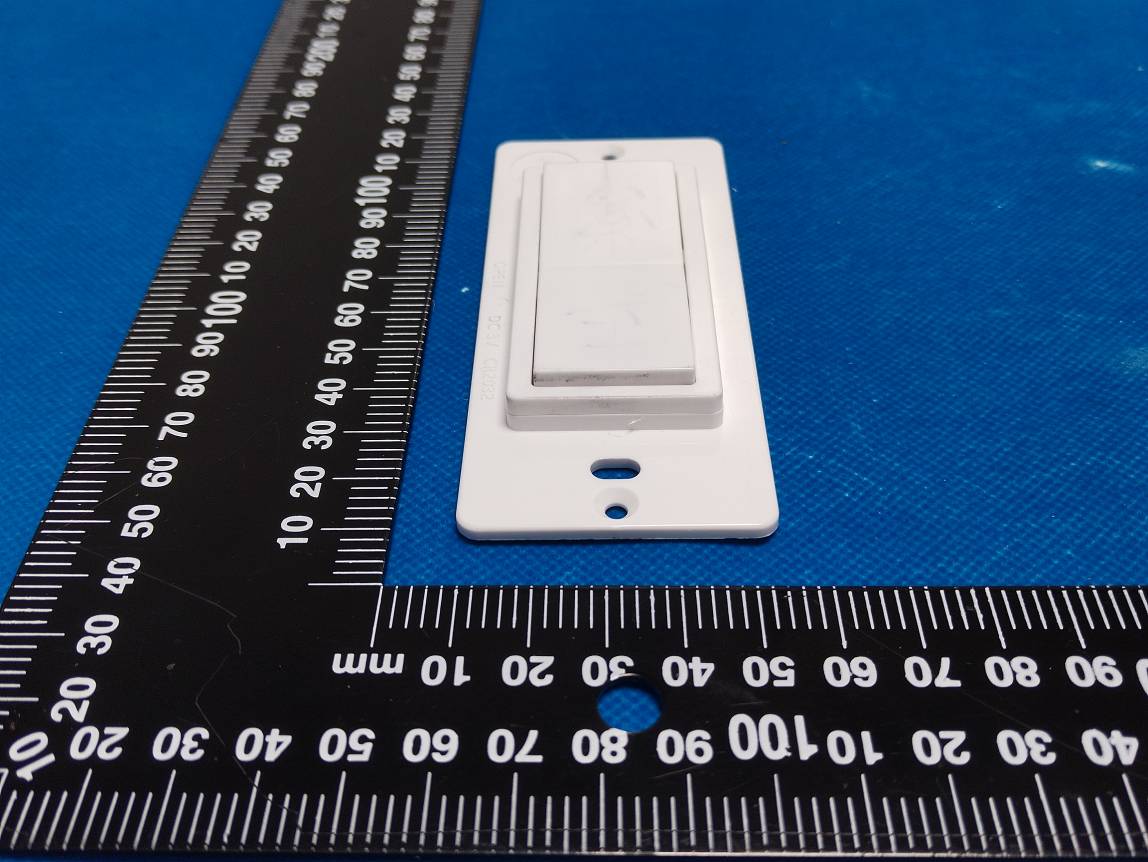

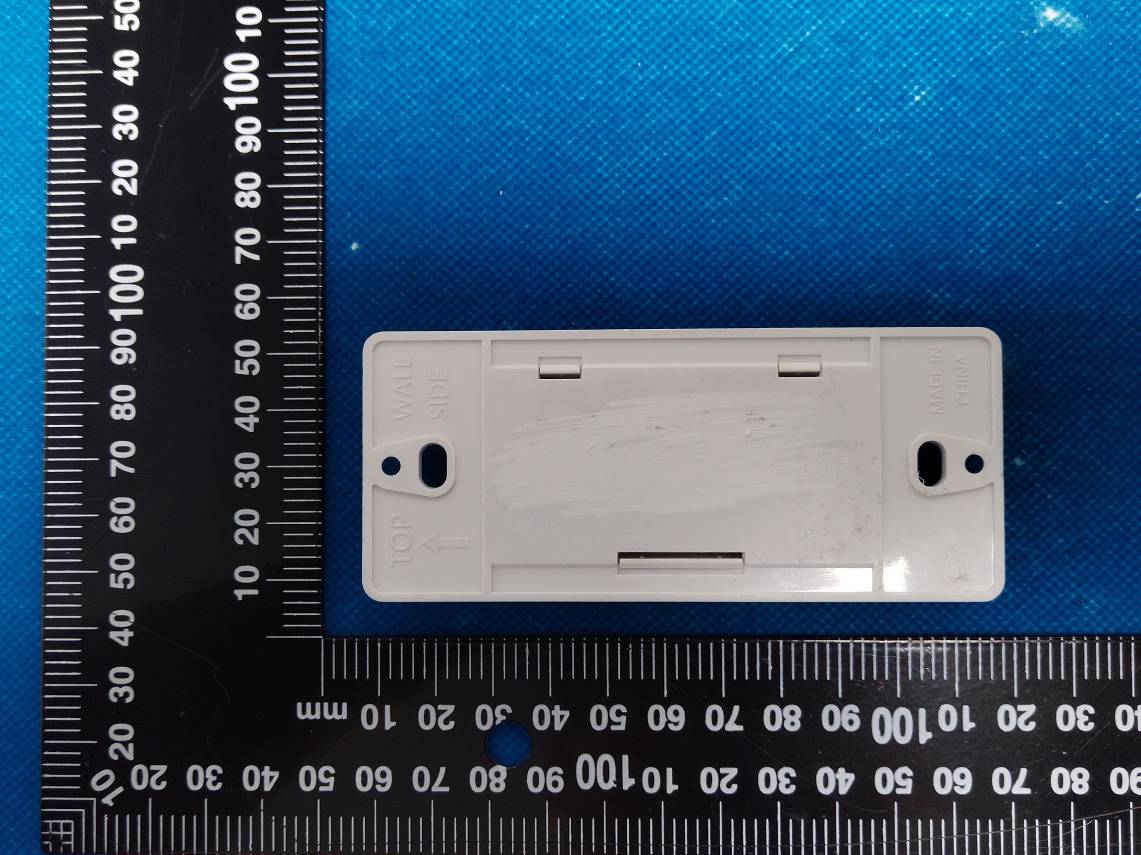

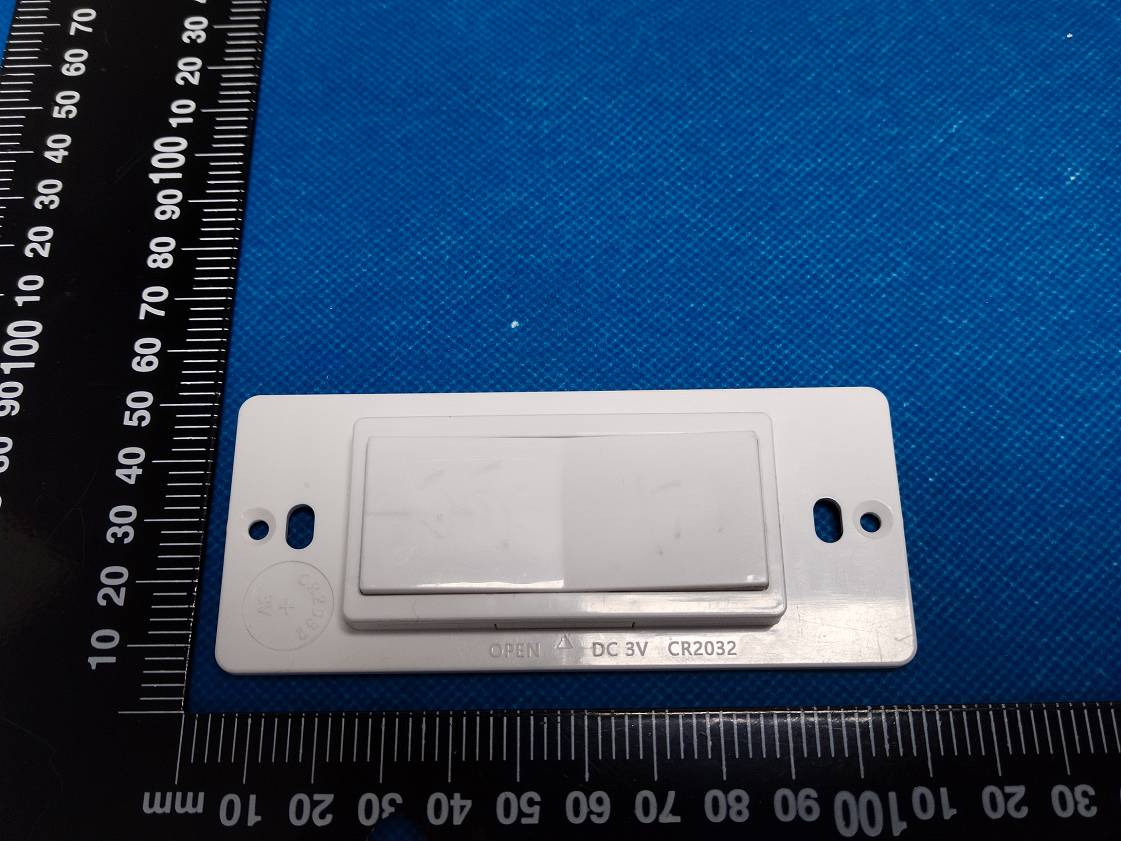

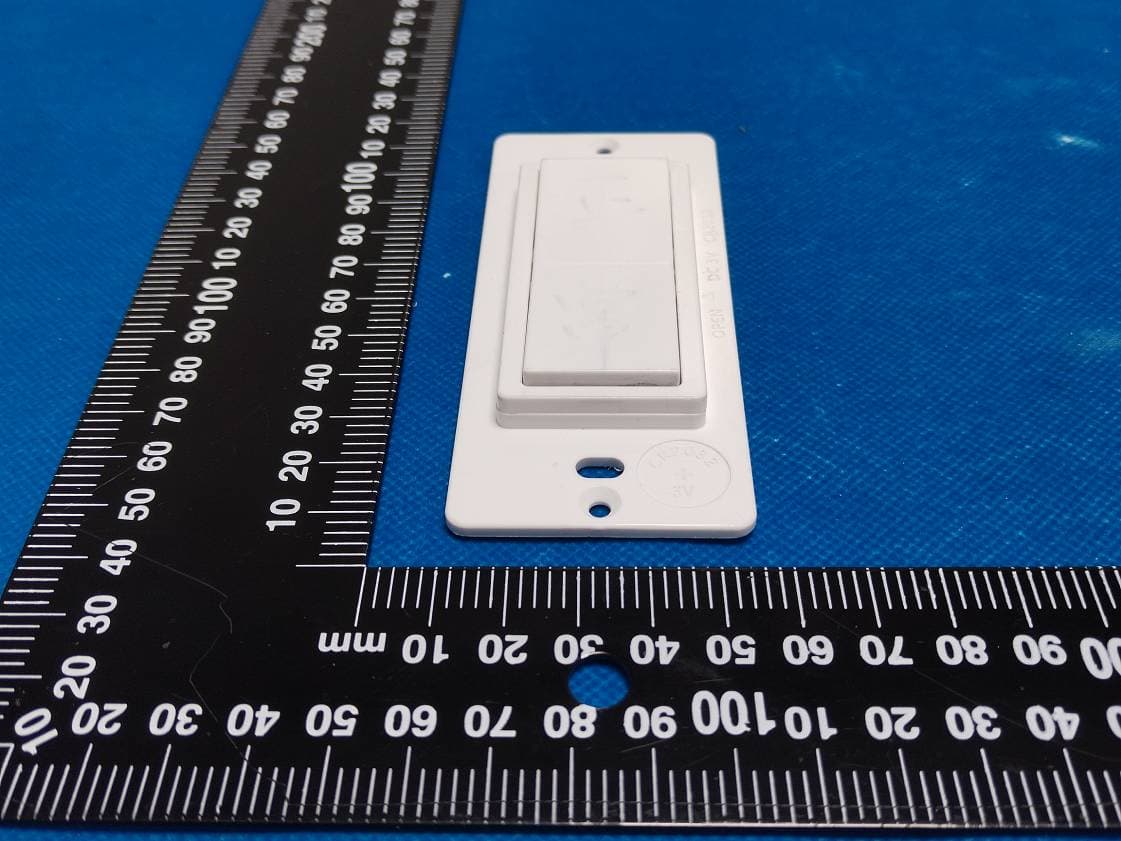

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230954103-EXP Page 1 of 6 EUT EXTERNAL PHOTOGRAPHS Model: JHT2203A Key1 Key2 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230954103-EXP Page 2 of 6 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230954103-EXP Page 3 of 6 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230954103-EXP Page 4 of 6 Model: UHRT06C China Certification ICT Co., Ltd (Dongguan) Report No.: CR230954103-EXP Page 5 of 6 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230954103-EXP Page 6 of 6

Model: JHT2203A Label Label Location Information Model: UHRT06C Label Label Location Information

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230954103-INP Page 1 of 7 EUT INTERNAL PHOTOGRAPHS Model: JHT2203A China Certification ICT Co., Ltd (Dongguan) Report No.: CR230954103-INP Page 2 of 7 ANT China Certification ICT Co., Ltd (Dongguan) Report No.: CR230954103-INP Page 3 of 7 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230954103-INP Page 4 of 7 Model: UHRT06C China Certification ICT Co., Ltd (Dongguan) Report No.: CR230954103-INP Page 5 of 7 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230954103-INP Page 6 of 7 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230954103-INP Page 7 of 7

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230954103-00A Page 31 of 33 5. RF EXPOSURE EVALUATION 5.1 Applicable Standard §1.1307(b)(3)(i) For single RF sources (i.e., any single fixed RF source, mobile device, or portable device, as defined in paragraph (b)(2) of this section): A single RF source is exempt if: (A) The available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption may not be used in conjunction with other exemption criteria other than those in paragraph (b)(3)(ii)(A) of this section. Medical implant devices may only use this exemption and that in paragraph (b)(3)(ii)(A); 5.2 Measurement Result Frequency (MHz) Maximum EIRP (dBm) Antenna Gain (dBi) Maximum Conducted Output Power 1-mW Test Exemption dBm mW 433.92 -6.03 0 -6.03 0.25 Compliant Note: 1. Chose the maximum power to do MPE analysis. 2. This device maximum E-Field level is 89.17 dBμV/m at 3m, so the EIRP power is -6.03 dBm. 3. Pout EIRP(dBm)=Field Strength of Fundamental(dBuV/m)-95.2 , ERP = EIRP – 2.15 dB 4. Conducted Output Power = EIRP - Antenna Gain Result: Compliant. RF Exposure is exemption.

TEST REPORT Applicant: Ningbo Joinus Win Future Electronic Technology Co.,Ltd. Address: No.9 Yongxing Road, West Area, Guan Haiwei Industrial Zone, Guan Haiwei, Cixi, Ningbo, Zhejiang, P.R.China 315315 FCC ID: 2A632-UHRT06C Product Name: Remote Control Transmitter Standard(s): 47 CFR Part 15, Subpart C(15.231) ANSI C63.10-2013 The above device has been tested and found compliance with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR230954103-00A Date Of Issue: 2023/11/8 Reviewed By: Calvin Chen Title: RF Engineer Approved By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230954103-00A Page 2 of 33 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR230954103-00A Page 3 of 33 CONTENTS DOCUMENT REVISION HISTORY .......................................................................................... 5 1. GENERAL INFORMATION .................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 6 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 7 1.2.1 EUT Operation Condition: ............................................................................................................................. 7 1.2.2 Support Equipment List and Details .............................................................................................................. 7 1.2.3 Support Cable List and Details ...................................................................................................................... 7 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 7 1.3 MEASUREMENT UNCERTAINTY .......................................................................................................... 8 2. SUMMARY OF TEST RESULTS ............................................................................................ 9 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 10 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 10 3.1.1 Applicable Standard ..................................................................................................................................... 10 3.1.2 EUT Setup.................................................................................................................................................... 11 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 11 3.1.4 Test Procedure ............................................................................................................................................. 12 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 12 3.2 RADIATION SPURIOUS EMISSIONS .................................................................................................... 13 3.2.1 Applicable Standard ..................................................................................................................................... 13 3.2.2 EUT Setup.................................................................................................................................................... 14 3.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 14 3.2.4 Test Procedure ............................................................................................................................................. 15 3.2.5 Corrected Amplitude & Margin Calculation ................................................................................................ 15 3.3 20 DB EMISSION BANDWIDTH: .......................................................................................................... 16 3.3.1 Applicable Standard ..................................................................................................................................... 16 3.3.2 EUT Setup..................................................................…

Text truncated - open the document above for the full version.

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230954103-00A-TSP TEST SETUP PHOTOGRAPHS Radiated Emission Below 1GHz View Radiated Emission Below 1GHz Parallel China Certification ICT Co., Ltd (Dongguan) Report No.: CR230954103-00A-TSP Radiated Emission Below 1GHz Perpendicular Radiated Emission Below 1GHz Ground-parallel China Certification ICT Co., Ltd (Dongguan) Report No.: CR230954103-00A-TSP Radiated Emission Above 1GHz View
