2A639-AP6575PWIFI Module

SPECIFICATION PRODUCT NAME AP6575P REVISION ：1.3 th Customer APPROVED Company Representative Signature PREPARED REVIEW APPROVED DCC ISSUE PM QA ET 保存期限:最新版本 C-RD-047C DATE Nov 04 , 2020 AP6575P Data Sheet Address: 3F, No.15‐1, Zhonghua Road, Hsinchu Industril Park, Hukou, Hsinchu, Taiwan, 30352 Website: http://www.ampak.com.tw/ Revision Revision Date Description Revised By 0.1 2020/02/19 ‐ Preliminary Jason Shen 0.2 2020/03/09 ‐ Modify RF Specification ‐ Modify Pin‐out Jason Shen 0.3 2020/03/16 ‐ Modify RF Specification Jason Shen 0.4 2020/04/28 ‐ Modify RF Specification Jason Shen 0.5 2020/05/29 ‐ Modify RF Specification Jason Shen 0.6 2020/07/01 ‐ Modify DC Characteristics Jason Shen 0.7 2020/07/06 ‐ Modify Pin outline Jason Shen 0.8 2020/08/12 ‐ Modify RF Specification Jason Shen 0.9 2020/09/09 ‐ Modify Pin‐out Description Jason Shen 1.0 2020/09/15 ‐ Modify Block Diagram Jason Shen 1.1 2020/09/22 ‐ Modify Block Diagram Jason Shen 1.2 2020/10/15 ‐ Modify Pin outline Jason Shen 1.3 2020/11/04 ‐ Modify Module Dimensions Jason Shen 3F, No.15‐1, Zhonghua Road, Hsinchu Industril Park, Hukou, Hsinchu, Taiwan, i http://www.ampak.com.tw AP 12275_M2P Datasheet AMPAK Technology Inc. 30352 Contents 1. Introduction ................................................................................................................ 2 1.1 Overview ..................................................................................................................... 2 1.2 Product Features .......................................................................................................... 3 2. General Specification .................................................................................................. 4 2.1 General Specification ................................................................................................ 4 2.2 DC Characteristics .................................................................................................... 4 2.2.1 Absolute Maximum Ratings ............................................................................. 4 2.2.2 Recommended Operating Rating .................................................................... 5 3. Wi‐Fi RF Specification ................................................................................................. 6 3.1 2.4GHz RF Specification ........................................................................................... 6 3.2 5GHz RF Specification ............................................................................................... 8 4. Bluetooth Specification ............................................................................................. 14 4.1 Bluetooth Specification ........................................................................................... 14 5. Pin Definition ............................................................................................................ 15 5.1 Pin Outline .............................................................................................................. 15 5.2 Pin Assignment ....................................................................................................... 15 6. Reference Design ...................................................................................................... 18 7. Dimensions ............................................................................................................... 19 7.1 Module Dimensions ............................................................................................... 19 8. Host Interface Timing Diagram ................................................................................. 20 8.1 Power‐up Sequence Timing Diagram ...................................................................... 20 8.2 PCIe Interface Description ...................................................................................... 22 9. Package Information .................................................................................................... 25 9.1 Tray box .................................................................................................................. 25 9.2 Carton ...................................................................................................................... 26 3F, No.15‐1, Zhonghua Road, Hsinc 3 h 0 u 3 I 52 nd ustril Park, Hukou, Hsinchu, Taiwan, ii http://www.ampak.com.tw AP 12275_M2P Datasheet AMPAK Technology Inc. 1. Introduction 1.1 Overview The AMPAK Technology® AP6575P is a fully Wi‐Fi and Bluetooth functionalities 2230 M.2 card (KEY E) with seamless roaming capabilities and advance security, also it could interact with different vendors’ 802.11a/b/g/n/ac/ax 2x2 Access Points with MIMO standard and can accomplish up to speed of 1200Mbps with dual stream in 802.11ax to connect the wireless LAN. Furthermore AP6575P included PCIe interface for Wi‐Fi, UART/ PCM interface for Bluetooth In addition, this compact module is a total solution for a combination of W i‐Fi + BT technologies. The module is specifically developed for tablet, OTT box and portable devices. AMPAK Technology Inc. 3F, No.15‐1, Zhonghua Road, Hsinchu Industril Park, Hukou, Hsinchu, Taiwan, 30352 http://www.ampak.com.tw 2 1.2 Product Features IEEE 802.11 Key Feature Lead Free design which is compliant with ROHS requirements. TX and RX low‐density parity check (LDPC) support for improved range and power efficiency. Dual‐stream spatial multiplexing up to 1200 Mbps data rate. 20, 40, 80 MHz channels with optional SGI (1024 QAM modulation) IEEE 802.11ax beam forming. Client MU‐MIMO. Supports 2 antennas with two for shared BT and WLAN port. - Supports PCI express revision 3.0 and power management running at Gen1 speeds. Bluetooth Key Feature BT host digital interface: - HCI UART (up to 4 Mbps) - PCM for audio data Complies with Bluetooth Core Specification Version 5.0 with provisions for supporting future specifications. With Bluetooth Class 1 o…

Text truncated - open the document above for the full version.

AUO Display Plus Corporation * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 4/24/2023 ATTN.: Reviewing Engineer Per section 2.911(d)(7) of the FCC rules, AUO Display Plus Corporation (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. FCC ID: 2A639-AP6575P FRN of applicant: 0032456907 agent* for service of process: Company Name: JOC Australia Inc Physical U.S. Company Address: 18351 Colima Road Ste 585 Rowland Heights,California,91748 United States of America Agent contact name/Title : Benjamin. Smith/Vice President Agent Email Address: [email protected]/[email protected] Tel No.: +1(626) 217 4778 FRN No.: 0033379421 The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Agent Signed (if different to Applicant): Signed: Signed: Printed name: CL.Chang Printed name: Benjamin. Smith Title: Principal Engineer Title: Vice President Company Name: AUO Display Plus Corporation Company Name: JOC Australia Inc Date: 4/24/2023 Date: 4/24/2023

AUO Display Plus Corporation Covered Equipment Certification Attestation Letter DATE Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2A639-AP6575P AUO Display Plus Corporation (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. AUO Display Plus Corporation (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment.

AUO Display Plus Corporation DATE : 2023.3.15 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint EST Technology Co., Ltd. Address: Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with AUO Display Plus Corporation Address: No. 1, Gongye E. 3rd Rd., East Dist., Hsinchu Science Park, Hsinchu City, Taiwan(Applicant Name and address) <Signature> Name: CL. Chang Title: Principal Engineer Company: AUO Display Plus Corporation

AUO Display Plus Corporation DATE : 2023.3.15 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2A639-AP6575P Product Name: WIFI Module Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: CL. Chang Title: Principal Engineer Company: AUO Display Plus Corporation

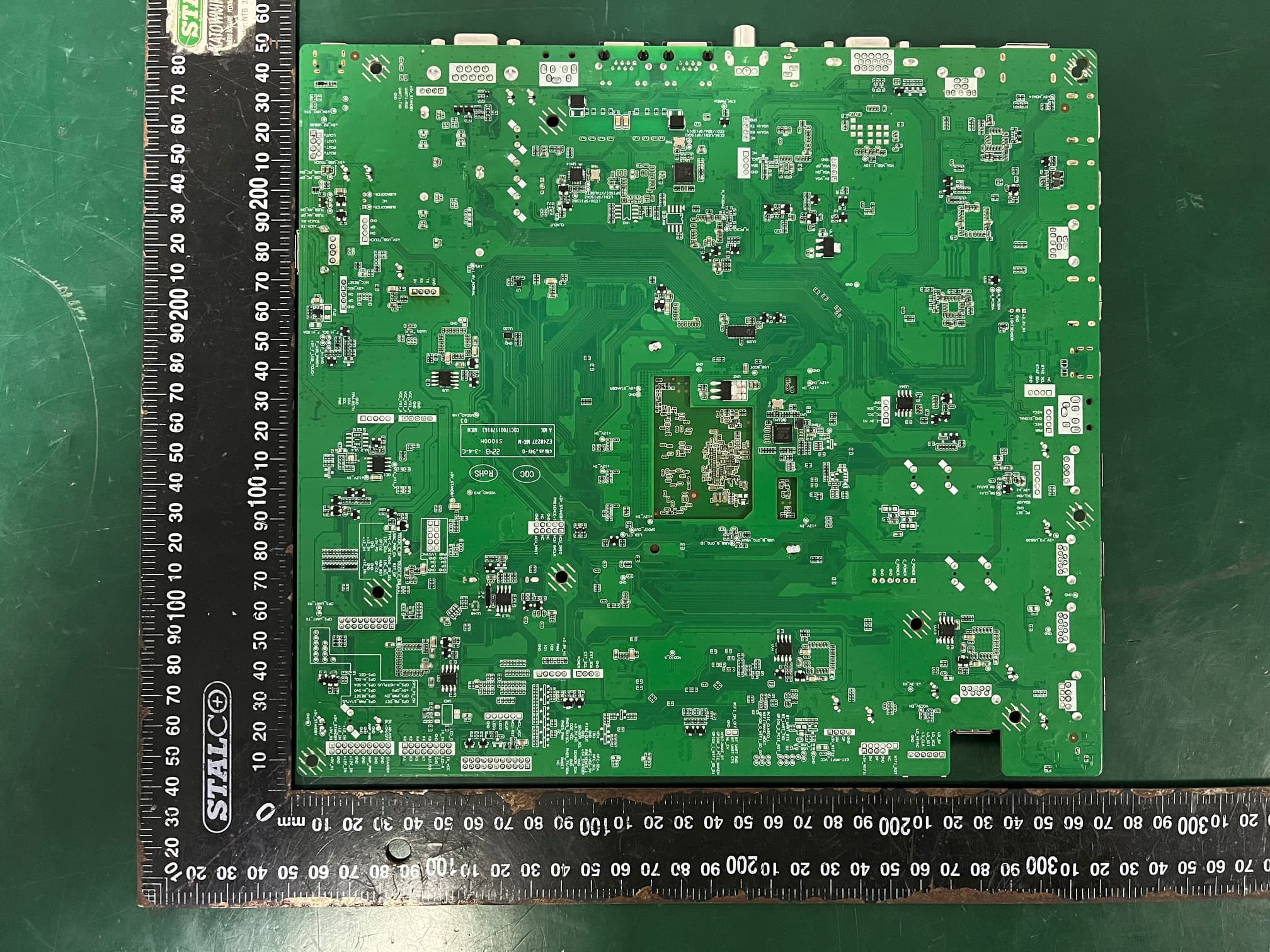

External Photos M/N: AP6575P External Photos M/N: AP6575P External Photos M/N: AP6575P

Internal Photos M/N: AP6575P

FCC ID: 2A639-AP6575P EST Technology Co. ,Ltd Report No. ESTE-R2303083 Page 1 of 12 FCC 47 CFR MPE REPORT AUO Display Plus Corporation WIFI Module Model Number: AP6575P FCC ID: 2A639-AP6575P Applicant: AUO Display Plus Corporation Address: No. 1, Gongye E. 3rd Rd., East Dist., Hsinchu Science Park, Hsinchu City, Taiwan Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2303083 Date of Test: Jan. 06~Mar. 09, 2023 Date of Report: Mar. 11, 2023 FCC ID: 2A639-AP6575P EST Technology Co. ,Ltd Report No. ESTE-R2303083 Page 2 of 12 Maximum Permissible Exposure 1. Applicable Standards Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. 1.1. Limits for Maximum Permissible Exposure (MPE) (a) Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.o 30 Note: f=frequency in MHz; *Plane-wave equivalent power density FCC ID: 2A639-AP6575P EST Technology Co. ,Ltd Report No. ESTE-R2303083 Page 3 of 12 1.2. MPE Calculation Method E (V/m) = d G×P×30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d×377 G×P×30 From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained FCC ID: 2A639-AP6575P EST Technology Co. ,Ltd Report No. ESTE-R2303083 Page 4 of 12 2. Conducted Power Result Mode Frequency (MHz) Antenna Peak output power (dBm) Peak output power (mW) GFSK 2402 ant 1 4.16 2.606 2441 ant 1 4.48 2.805 2480 ant 1 5.29 3.381 π/4-DQPSK 2402 ant 1 5.3 3.388 2441 ant 1 6.15 4.121 2480 ant 1 7 5.012 8-DPSK 2402 ant 1 5.77 3.776 2441 ant 1 6.59 4.560 2480 ant 1 7.51 5.636 BLE 1M 2402 ant 1 6.85 4.842 2440 ant 1 6.61 4.581 2480 ant 1 5.47 3.524 BLE 2M 2402 ant 1 7.1 5.129 2440 ant 1 6.85 4.842 2480 ant 1 5.87 3.864 IEEE 802.11b 2412 ant 1 16.24 42.073 ant 2 17.02 50.350 2437 ant 1 15.87 38.637 ant 2 16.87 48.641 2462 ant 1 15.13 32.584 ant 2 15.57 36.058 IEEE 802.11g 2412 ant 1 15.77 37.757 ant 2 16.04 40.179 2437 ant 1 15.91 38.994 ant 2 15.97 39.537 2462 ant 1 15.75 37.584 ant 2 16.69 46.666 IEEE 802.11n HT20 2412 ant 1 15.32 34.041 ant 2 14.55 28.510 2437 ant 1 16.35 43.152 ant 2 16.53 44.978 FCC ID: 2A639-AP6575P EST Technology Co. ,Ltd Report No. ESTE-R2303083 Page 5 of 12 2462 ant 1 15.88 38.726 ant 2 14.2 26.303 IEEE 802.11ax HE20 2412 ant 1 15.46 35.156 ant 2 16.51 44.771 2437 ant 1 16.07 40.458 ant 2 16.39 43.551 2462 ant 1 16.11 40.832 ant 2 16.86 48.529 IEEE 802.11a 5180 ant 1 13.27 21.232 ant 2 13.28 21.281 5200 ant 1 13.28 21.281 ant 2 13.5 22.387 5240 ant 1 13.44 22.080 ant 2 13.61 22.961 5260 ant 1 13.27 21.232 ant 2 13.05 20.184 5300 ant 1 13.16 20.701 ant 2 12.39 17.338 5320 ant 1 12.77 18.923 ant 2 12.28 16.904 5500 ant 1 14.33 27.102 ant 2 13.21 20.941 5580 ant 1 14.42 27.669 ant 2 13.22 20.989 5700 ant 1 14.63 29.040 ant 2 13.82 24.099 5745 ant 1 14.5 28.184 ant 2 14.85 30.549 5785 ant 1 14.17 26.122 ant 2 14.43 27.733 5825 ant 1 14.17 26.122 ant 2 14.01 25.177 IEEE 802.11n20 5180 ant 1 9.94 9.863 ant 2 9.03 7.998 5200 ant 1 9.87 9.705 ant 2 9.16 8.241 5240 ant 1 9.44 8.790 FCC ID: 2A639-AP6575P EST Technology Co. ,Ltd Report No. ESTE-R2303083 Page 6 of 12 ant 2 9.12 8.166 5260 ant 1 14.77 29.992 ant 2 14.38 27.416 5300 ant 1 14.7 29.512 ant 2 13.76 23.768 5320 ant 1 14.12 25.823 ant 2 13.33 21.528 5500 ant 1 15.26 33.574 ant 2 15.12 32.509 5580 ant 1 15.59 36.224 ant 2 15.05 31.989 5700 ant 1 15.74 37.497 ant 2 15.44 34.995 5745 ant 1 15.82 38.194 ant 2 16.85 48.417 5785 ant 1 15.29 33.806 ant 2 16.64 46.132 5825 ant 1 15.22 33.266 ant 2 16.3 42.658 IEEE 802.11ac VHT20 5180 ant 1 9.74 9.419 ant 2 9.18 8.279 5200 ant 1 9.7 9.333 ant 2 9.27 8.453 5240 ant 1 9.96 9.908 ant 2 9.25 8.414 5260 ant 1 15.07 32.137 ant 2 14.45 27.861 5300 ant 1 15.04 31.915 ant 2 14.08 25.586 5320 ant 1 14.25 26.607 ant 2 13.73 23.605 5500 ant 1 16.08 40.551 ant 2 15.7 37.154 5580 ant 1 16.34 43.053 ant 2 15.49 35.400 5700 ant 1 16.51 44.771 ant 2 16.14 41.115 FCC ID: 2A639-AP6575P EST Technology Co. ,Ltd Report No. ESTE-R2303083 Page 7 of 12 5745 ant 1 16.29 42.560 ant 2 16.42 43.853 5785 ant 1 15.79 37.931 ant 2 15.84 38.371 5825 ant 1 15.95 39.355 ant 2 15.67 36.898 IEEE 802.11ax HE20 5180 ant 1 9.46 8.831 ant 2 8.94 7.834 5200 ant 1 9.46 8.831 ant 2 8.65 7.328 5240 ant 1 9.71 9.354 ant 2 7.85 6.095 5260 ant 1 13.53 22.542 ant 2 13.91 24.604 5300 ant 1 13.89 24.491 ant 2 13.53 22.542 5320 ant 1 13.8 23.988 ant 2 12.82 19.143 5500 ant 1 15.32 34.041 ant 2 14.28 26.792 5580 ant 1 14.67 29.309 ant 2 13.08 20.324 5700 ant 1 15.05 31.989 ant 2 13.47 22.233 5745 ant 1 14.5 28.184 ant 2 15.14 32.659 5785 ant 1 13.67 23.281 ant 2 14.89 30.832 5825 ant 1 13.89 24.491 ant 2 13.67 23.281 IEEE 802.11n HT40 5190 ant 1 9.08 8.091 ant 2 12.61 18.239 5230 ant 1 9.39 8.690 ant 2 8.58 7.211 5270 ant 1 14.14 25.942 ant 2 …

Text truncated - open the document above for the full version.

FCC ID: 2A639-AP6575P EST Technology Co., Ltd Report No.ESTE-R2303081 Page 1 of 410 FCC PART 15E TEST REPORT FOR CERTIFICATION On Behalf of AUO Display Plus Corporation WIFI Module Model Number: AP6575P FCC ID: 2A639-AP6575P Applicant : AUO Display Plus Corporation Address: No. 1, Gongye E. 3rd Rd., East Dist., Hsinchu Science Park, Hsinchu City, Taiwan Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2303081 Date of Test: Jan. 06~Mar. 09, 2023 Date of Report: Mar. 11, 2023 FCC ID: 2A639-AP6575P EST Technology Co., Ltd Report No.ESTE-R2303081 Page 2 of 410 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION......................................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................. 5 1.1. Description of Device (EUT) ........................................................................................................... 5 1.2. The antenna information for EUT .................................................................................................... 7 1.3. Information of RF Cable .................................................................................................................. 7 2. SUMMARY OF TEST ......................................................................................................................... 8 2.1. Summary of test result ...................................................................................................................... 8 2.2. Test Facilities ................................................................................................................................... 9 2.3. Measurement uncertainty for EST Technology Co., Ltd. .............................................................. 10 2.4. Assistant equipment used for test ................................................................................................... 10 2.5. Block Diagram ............................................................................................................................... 10 2.6. Test Mode ....................................................................................................................................... 11 2.7. Channel List ................................................................................................................................... 14 2.8. Power Setting of Test Software ...................................................................................................... 15 2.9. Duty Cycle of Test Signal .............................................................................................................. 17 2.10. Test Equipment List ....................................................................................................................... 18 3. 6DB BANDWIDTH &26DB BANDWIDTH & 99% OCCUPIED BANDWIDTH ...................................... 20 3.1. Limit ............................................................................................................................................... 20 3.2. Test Setup ....................................................................................................................................... 20 3.3. Spectrum Analyzer Setting ............................................................................................................. 20 3.4. Test Procedure ................................................................................................................................ 21 3.5. Test Result ...................................................................................................................................... 21 4. MAXIMUM CONDUCTED OUTPUT POWER ..................................................................................... 22 4.1. Limit ............................................................................................................................................... 22 4.2. Test Setup ....................................................................................................................................... 22 4.3. Spectrum Analyzer Setting ............................................................................................................. 22 4.4. Test Procedure ................................................................................................................................ 22 4.5. Test Result ...................................................................................................................................... 22 5. PEAK POWER SPECTRAL DENSITY ................................................................................................ 23 5.1. Limit ............................................................................................................................................... 23 5.2. Test Setup ....................................................................................................................................... 23 5.3. Spectrum Analyzer Setting ............................................................................................................. 23 5.4. Test Procedure ................................................................................................................................ 23 5.5. Test Result ...................................................................................................................................... 23 6. UNWANTED EMISSIONS AND BAND EDGE ..................................................................................... 24 6.1. Limit ............................................................................................................................................... 24 6.2. Test Setup ................................…

Text truncated - open the document above for the full version.

FCC ID: 2A639-AP6575P EST Technology Co., Ltd Report No.ESTE-R2303081 Page 96 of 410 11AC20MIMO_Ant2_5200 11AC20MIMO_Ant1_5240 11AC20MIMO_Ant2_5240 FCC ID: 2A639-AP6575P EST Technology Co., Ltd Report No.ESTE-R2303081 Page 97 of 410 11AC20MIMO_Ant1_5260 11AC20MIMO_Ant2_5260 11AC20MIMO_Ant1_5300 FCC ID: 2A639-AP6575P EST Technology Co., Ltd Report No.ESTE-R2303081 Page 98 of 410 11AC20MIMO_Ant2_5300 11AC20MIMO_Ant1_5320 11AC20MIMO_Ant2_5320 FCC ID: 2A639-AP6575P EST Technology Co., Ltd Report No.ESTE-R2303081 Page 99 of 410 11AC20MIMO_Ant1_5500 11AC20MIMO_Ant2_5500 11AC20MIMO_Ant1_5580 FCC ID: 2A639-AP6575P EST Technology Co., Ltd Report No.ESTE-R2303081 Page 100 of 410 11AC20MIMO_Ant2_5580 11AC20MIMO_Ant1_5700 11AC20MIMO_Ant2_5700 FCC ID: 2A639-AP6575P EST Technology Co., Ltd Report No.ESTE-R2303081 Page 101 of 410 11AC20MIMO_Ant1_5745 11AC20MIMO_Ant2_5745 11AC20MIMO_Ant1_5785 FCC ID: 2A639-AP6575P EST Technology Co., Ltd Report No.ESTE-R2303081 Page 102 of 410 11AC20MIMO_Ant2_5785 11AC20MIMO_Ant1_5825 11AC20MIMO_Ant2_5825 FCC ID: 2A639-AP6575P EST Technology Co., Ltd Report No.ESTE-R2303081 Page 103 of 410 11AC40MIMO_Ant1_5190 11AC40MIMO_Ant2_5190 11AC40MIMO_Ant1_5230 FCC ID: 2A639-AP6575P EST Technology Co., Ltd Report No.ESTE-R2303081 Page 104 of 410 11AC40MIMO_Ant2_5230 11AC40MIMO_Ant1_5270 11AC40MIMO_Ant2_5270 FCC ID: 2A639-AP6575P EST Technology Co., Ltd Report No.ESTE-R2303081 Page 105 of 410 11AC40MIMO_Ant1_5310 11AC40MIMO_Ant2_5310 11AC40MIMO_Ant1_5510 FCC ID: 2A639-AP6575P EST Technology Co., Ltd Report No.ESTE-R2303081 Page 106 of 410 11AC40MIMO_Ant2_5510 11AC40MIMO_Ant1_5550 11AC40MIMO_Ant2_5550 FCC ID: 2A639-AP6575P EST Technology Co., Ltd Report No.ESTE-R2303081 Page 107 of 410 11AC40MIMO_Ant1_5670 11AC40MIMO_Ant2_5670 11AC40MIMO_Ant1_5755 FCC ID: 2A639-AP6575P EST Technology Co., Ltd Report No.ESTE-R2303081 Page 108 of 410 11AC40MIMO_Ant2_5755 11AC40MIMO_Ant1_5795 11AC40MIMO_Ant2_5795 FCC ID: 2A639-AP6575P EST Technology Co., Ltd Report No.ESTE-R2303081 Page 109 of 410 11AC80MIMO_Ant1_5210 11AC80MIMO_Ant2_5210 11AC80MIMO_Ant1_5290 FCC ID: 2A639-AP6575P EST Technology Co., Ltd Report No.ESTE-R2303081 Page 110 of 410 11AC80MIMO_Ant2_5290 11AC80MIMO_Ant1_5530 11AC80MIMO_Ant2_5530 FCC ID: 2A639-AP6575P EST Technology Co., Ltd Report No.ESTE-R2303081 Page 111 of 410 11AC80MIMO_Ant1_5610 11AC80MIMO_Ant2_5610 11AC80MIMO_Ant1_5775 FCC ID: 2A639-AP6575P EST Technology Co., Ltd Report No.ESTE-R2303081 Page 112 of 410 11AC80MIMO_Ant2_5775 11AX20MIMO_Ant1_5180 11AX20MIMO_Ant2_5180 FCC ID: 2A639-AP6575P EST Technology Co., Ltd Report No.ESTE-R2303081 Page 113 of 410 11AX20MIMO_Ant1_5200 11AX20MIMO_Ant2_5200 11AX20MIMO_Ant1_5240 FCC ID: 2A639-AP6575P EST Technology Co., Ltd Report No.ESTE-R2303081 Page 114 of 410 11AX20MIMO_Ant2_5240 11AX20MIMO_Ant1_5260 11AX20MIMO_Ant2_5260 FCC ID: 2A639-AP6575P EST Technology Co., Ltd Report No.ESTE-R2303081 Page 115 of 410 11AX20MIMO_Ant1_5300 11AX20MIMO_Ant2_5300 11AX20MIMO_Ant1_5320 FCC ID: 2A639-AP6575P EST Technology Co., Ltd Report No.ESTE-R2303081 Page 116 of 410 11AX20MIMO_Ant2_5320 11AX20MIMO_Ant1_5500 11AX20MIMO_Ant2_5500 FCC ID: 2A639-AP6575P EST Technology Co., Ltd Report No.ESTE-R2303081 Page 117 of 410 11AX20MIMO_Ant1_5580 11AX20MIMO_Ant2_5580 11AX20MIMO_Ant1_5700 FCC ID: 2A639-AP6575P EST Technology Co., Ltd Report No.ESTE-R2303081 Page 118 of 410 11AX20MIMO_Ant2_5700 11AX20MIMO_Ant1_5745 11AX20MIMO_Ant2_5745 FCC ID: 2A639-AP6575P EST Technology Co., Ltd Report No.ESTE-R2303081 Page 119 of 410 11AX20MIMO_Ant1_5785 11AX20MIMO_Ant2_5785 11AX20MIMO_Ant1_5825 FCC ID: 2A639-AP6575P EST Technology Co., Ltd Report No.ESTE-R2303081 Page 120 of 410 11AX20MIMO_Ant2_5825 11AX40MIMO_Ant1_5190 11AX40MIMO_Ant2_5190 FCC ID: 2A639-AP6575P EST Technology Co., Ltd Report No.ESTE-R2303081 Page 121 of 410 11AX40MIMO_Ant1_5230 11AX40MIMO_Ant2_5230 11AX40MIMO_Ant1_5270 FCC ID: 2A639-AP6575P EST Technology Co., Ltd Report No.ESTE-R2303081 Page 122 of 410 11AX40MIMO_Ant2_5270 11AX40MIMO_Ant1_5310 11AX40MIMO_Ant2_5310 FCC ID: 2A639-AP6575P EST Technology Co., Ltd Report No.ESTE-R2303081 Page 123 of 410 11AX40MIMO_Ant1_5510 11AX40MIMO_Ant2_5510 11AX40MIMO_Ant1_5550 FCC ID: 2A639-AP6575P EST Technology Co., Ltd Report No.ESTE-R2303081 Page 124 of 410 11AX40MIMO_Ant2_5550 11AX40MIMO_Ant1_5670 11AX40MIMO_Ant2_5670 FCC ID: 2A639-AP6575P EST Technology Co., Ltd Report No.ESTE-R2303081 Page 125 of 410 11AX40MIMO_Ant1_5755 11AX40MIMO_Ant2_5755 11AX40MIMO_Ant1_5795 FCC ID: 2A639-AP6575P EST Technology Co., Ltd Report No.ESTE-R2303081 Page 126 of 410 11AX40MIMO_Ant2_5795 11AX80MIMO_Ant1_5210 11AX80MIMO_Ant2_5210 FCC ID: 2A639-AP6575P EST Technology Co., Ltd Report No.ESTE-R2303081 Page 127 of 410 11AX80MIMO_Ant1_5290 11AX80MIMO_Ant2_5290 11AX80MIMO_Ant1_5530

FCC ID: 2A639-AP6575P EST Technology Co., Ltd Report No.ESTE-R2303081 Page 128 of 410 11AX80MIMO_Ant2_5530 11AX80MIMO_Ant1_5610 11AX80MIMO_Ant2_5610 FCC ID: 2A639-AP6575P EST Technology Co., Ltd Report No.ESTE-R2303081 Page 129 of 410 11AX80MIMO_Ant1_5775 11AX80MIMO_Ant2_5775 FCC ID: 2A639-AP6575P EST Technology Co., Ltd Report No.ESTE-R2303081 Page 130 of 410 Appendix B: Min emission bandwidth T est Result B4 Test Mode Antenna Frequency [MHz] 6db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5745 16.320 5736.840 5753.160 0.5 PASS Ant2 5745 16.400 5736.800 5753.200 0.5 PASS Ant1 5785 16.320 5776.800 5793.120 0.5 PASS Ant2 5785 16.360 5776.840 5793.200 0.5 PASS Ant1 5825 16.320 5816.800 5833.120 0.5 PASS Ant2 5825 16.360 5816.800 5833.160 0.5 PASS 11N20MIMO Ant1 5745 17.640 5736.160 5753.800 0.5 PASS Ant2 5745 17.600 5736.240 5753.840 0.5 PASS Ant1 5785 17.600 5776.200 5793.800 0.5 PASS Ant2 5785 17.680 5776.160 5793.840 0.5 PASS Ant1 5825 17.680 5816.160 5833.840 0.5 PASS Ant2 5825 17.600 5816.160 5833.760 0.5 PASS 11N40MIMO Ant1 5755 36.400 5736.840 5773.240 0.5 PASS Ant2 5755 36.480 5736.760 5773.240 0.5 PASS Ant1 5795 36.320 5776.840 5813.160 0.5 PASS Ant2 5795 36.160 5777.080 5813.240 0.5 PASS 11AC20MIMO Ant1 5745 17.680 5736.160 5753.840 0.5 PASS Ant2 5745 17.640 5736.200 5753.840 0.5 PASS Ant1 5785 17.680 5776.160 5793.840 0.5 PASS Ant2 5785 17.600 5776.200 5793.800 0.5 PASS Ant1 5825 17.640 5816.160 5833.800 0.5 PASS Ant2 5825 17.680 5816.200 5833.880 0.5 PASS 11AC40MIMO Ant1 5755 36.400 5736.840 5773.240 0.5 PASS Ant2 5755 36.320 5736.840 5773.160 0.5 PASS Ant1 5795 36.240 5776.920 5813.160 0.5 PASS Ant2 5795 36.240 5776.920 5813.160 0.5 PASS 11AC80MIMO Ant1 5775 76.160 5736.920 5813.080 0.5 PASS Ant2 5775 75.520 5737.400 5812.920 0.5 PASS 11AX20MIMO Ant1 5745 17.960 5735.840 5753.800 0.5 PASS Ant2 5745 14.960 5737.600 5752.560 0.5 PASS Ant1 5785 18.240 5775.840 5794.080 0.5 PASS Ant2 5785 17.440 5776.720 5794.160 0.5 PASS Ant1 5825 18.400 5815.800 5834.200 0.5 PASS Ant2 5825 14.200 5818.240 5832.440 0.5 PASS 11AX40MIMO Ant1 5755 37.600 5736.200 5773.800 0.5 PASS Ant2 5755 37.360 5736.200 5773.560 0.5 PASS Ant1 5795 37.280 5776.200 5813.480 0.5 PASS Ant2 5795 37.440 5776.280 5813.720 0.5 PASS 11AX80MIMO Ant1 5775 77.280 5736.600 5813.880 0.5 PASS Ant2 5775 77.440 5736.440 5813.880 0.5 PASS FCC ID: 2A639-AP6575P EST Technology Co., Ltd Report No.ESTE-R2303081 Page 131 of 410 Test Graphs B4 11A_Ant1_5745 11A_Ant2_5745 11A_Ant1_5785 FCC ID: 2A639-AP6…
