2A64E-86309001Intelligent battery monitor

1、 Installation instruction The intelligent battery monitor can achieve real-time monitoring of battery current, voltage, temperature, and capacity, and present information to users. Users can monitor battery information through mobile apps. 1.1、Product Interface Introduction Figure 1-1 Head unit top view Head unit rear view Shunt Side View 1.2、Battery negative connection (1) Connect the negative battery terminal to the BATTERY ONLY side of the shunt (2) The shunt is the first and only thing that should be connected to the battery negative RJ12 Buzzer Relay BATTERY ONLY RJ12 B1 B2 LOAD AND CHANGE R Figure 1-2 1.3、System negative connection Connect the negative DC electrical system terminal to the LOAD AND CHARGER side of the shunt Figure 1-3 1.4、Power cable connection (1) Connect one of the power cables to the battery positive (2) Push the other side into the b1 terminal on the shunt Figure 1-4 1.5、Monitor connection Connect the RJ12Utp cable between the shunt RJ12 terminal and the head unit RJ12 terminal Figure 1-5 1.6、Monitoring voltage of a second battery (1) Connect the other power cable between the positive terminal of the second battery and the shunt Ba terminal (2) Connect negative terminal of the second battery to the LOAD AND CHANGER side of the shunt Figure 1-6 1.7、Monitoring battery temperature (1) Connect the temperature sensor to the positive battery terminal (2) Connect the red wire to the B1 terminal (3) Connect the black wire to the B2 terminal Figure 1-7 1.8、BLE Connect (1) For monitoring or changing settings (2) Download the app (3) Connect to the BMV Bluetooth Figure 1-8 1.9、Operation Setting Instructions Set the battery capacity ： (1)Long press the settings button to enter the settings menu bar (2)+- Press the key to select setting options，Select battery capacity setting options (3)use + and – to enter value of first digit (4)Press select to go to next digit (5)Repeat until 4 digits have been entered (6)Press select to store setting Set the auxiliary input function (1)Long press the settings button to enter the settings menu bar (2)+- Press the key to select setting options，Select Aux input setting options (3)Use + and – to choose start temp or mid (4)Press select 2、Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. To maintain compliance with FCC's RF Exposure guidelines, This equipment should be installed and operated with minimum 20cm distance between the radiator and your body: Use only the supplied antenna.

(QI AUTOMOTIVE CO.,LTD.) (December 14, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2A64E-86309001) [QI AUTOMOTIVE CO.,LTD.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Zhe Luo (QI AUTOMOTIVE CO.,LTD.) (December 14, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2A64E-86309001) [QI AUTOMOTIVE CO.,LTD.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Zhe Luo

QI AUTOMOTIVE CO.,LTD. (December 14, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Intelligent battery monitor / 86309001 / FCC ID: 2A64E-86309001) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☒ Internal Photos ☐ NOTE 1 ☒ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Signature: Name: Zhe Luo Title: Legal

QI AUTOMOTIVE CO.,LTD. (December 14, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen CTB Testing Technology Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: Zhe Luo Title: Legal

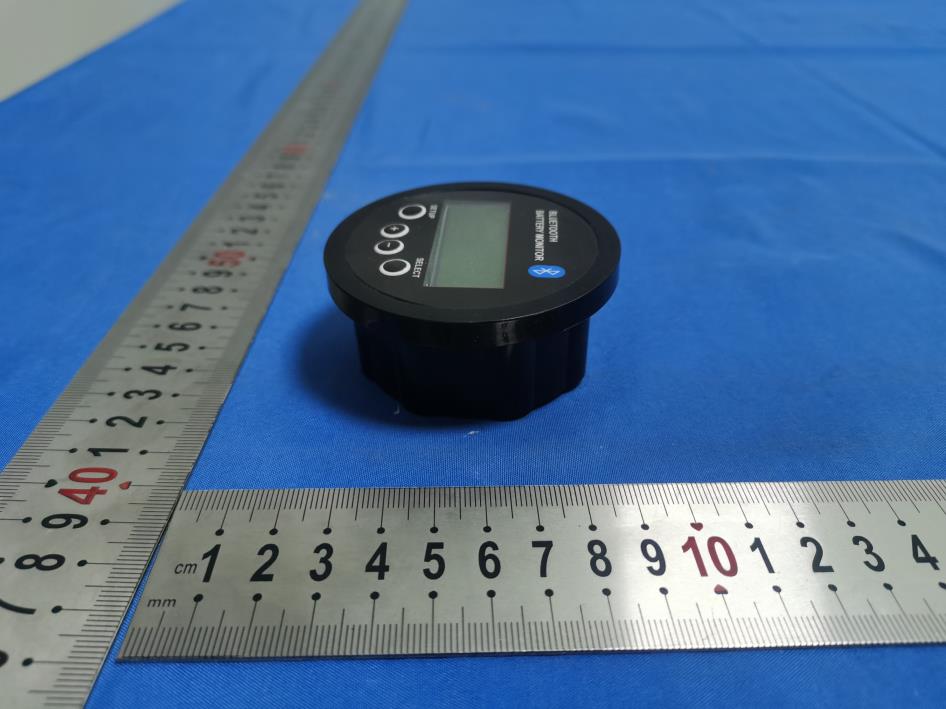

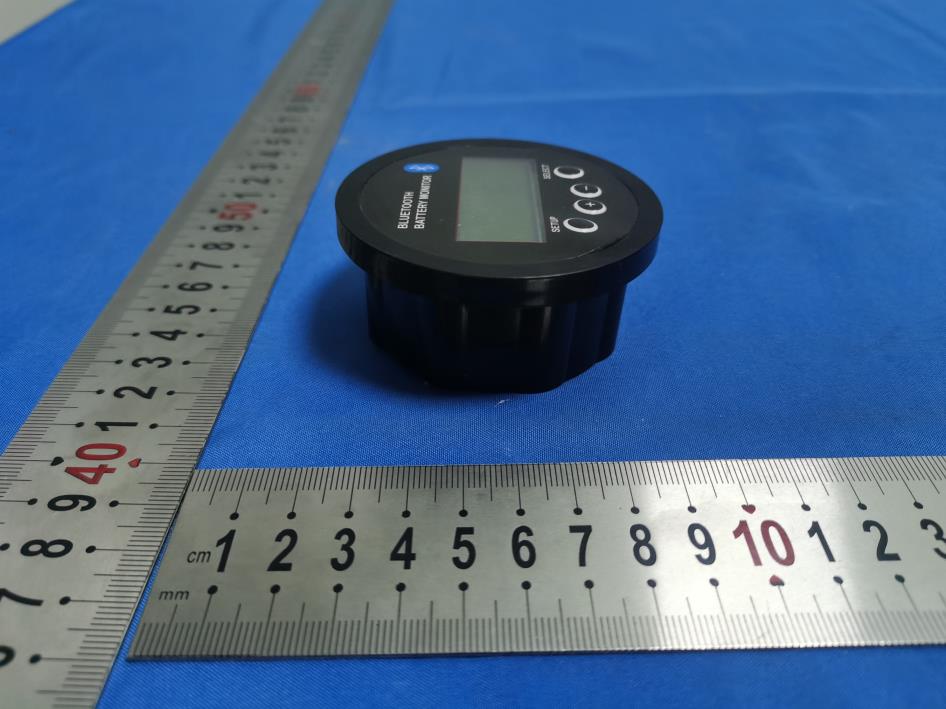

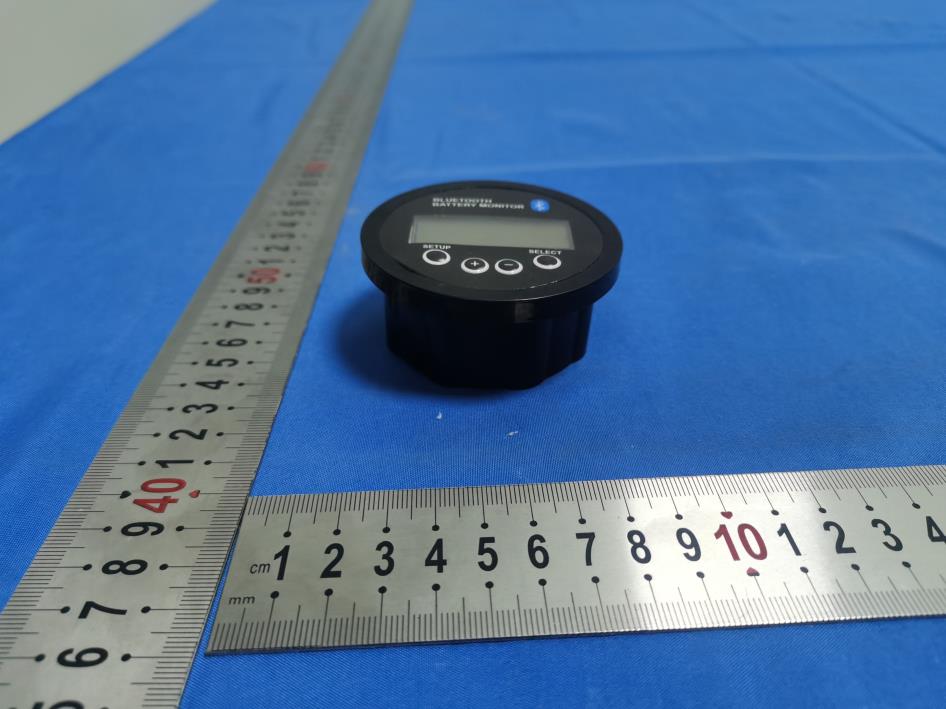

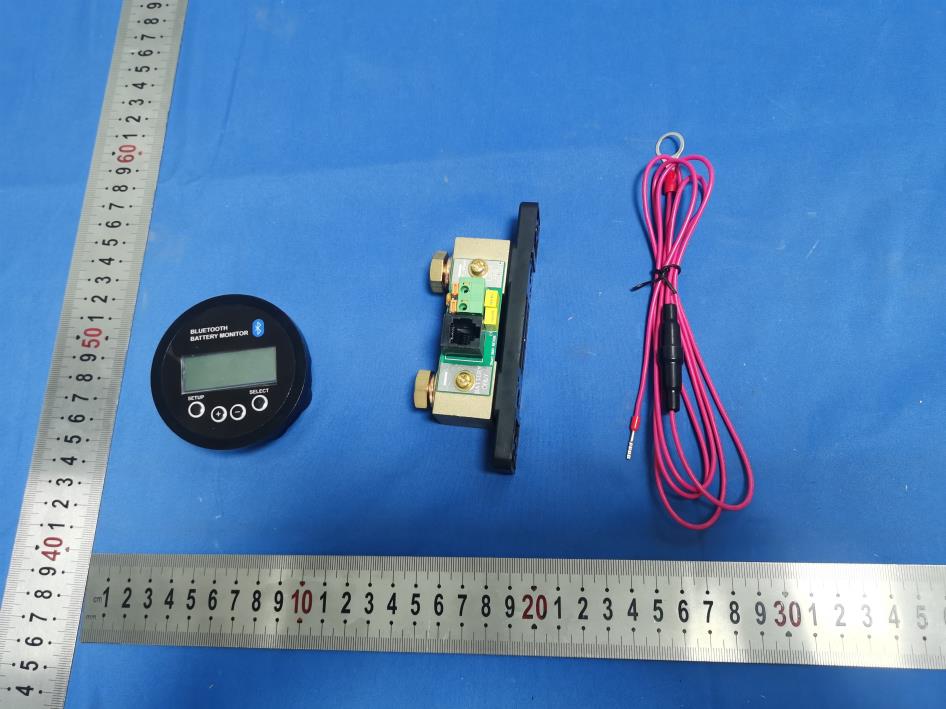

Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 4 Model: 86309001 External Photos Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 4 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 3 of 4 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 4 of 4

FCC ID LABEL: FCC ID: 2A64E-86309001 Model No.: 86309001

Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 5 Model: 86309001 Internal Photos Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 5 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 3 of 5 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 4 of 5 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 5 of 5 ANT

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2A64E-86309001 Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna,R=20cm Test Result of RF Exposure Evaluation Modes& Channel Freq. (MHz) Tune up Produce power Maximu m peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW / cm2 ) Result BLE GFSK&HC H -1±1 0 1 1.7378 (2.4dBi) 0.0003 1 Pass

Antenna Measurement Report for CSM92F25 20210804 目 录 •Antenna Introduction •Specification •Test equipment •S-parameter test results •testing environment •Measurement setting •Gain & Patterns test results 3D patterns •Antenna test data •Antenna Matching •Antenna change Antenna Introduction Part NumberXM100 Frequency2.4GHz~2.5GHz Dimensions 10.5mm*16mm（mm） ManufacturerXinmiao Specification Rough description2.4~2.5GHz 2.5dBi antenna DimensionsL10.5*W16 mm Impedance50Ω Test environment None ApplicationBLEFreq. Range2.4~2.5GHz GainPeak gain 2.4dBi VSWR1.92：1 RadiationPolarizationlinear HPBW / HNoneHPBW / ENone Efficiency50±10%DowntiltNone Connector typeNoneCable typeNone IsolationNoneSpecial requestNone 测试项目 驻波比（回波损耗） 隔离度 测试环境与 设备 矢量网络分析仪 Test equipment S-parameter test results Radiation test results 测试 项目 测 试 对 象 指 标 要 求 测试频点（GHz） 2.42.452.5 VSWRBLE≥1.921.691.271.51 testing environment Gain & Patterns test results Measurement setting Gain & Patterns test results antenna gain Efficiency Test Point ID Freq. (MHz) Gain (dBi) Efficie ncy (%) 12400.0 2.4053.1% 22410.0 2.4055.5% 32420.0 2.4058.9% 42430.0 2.4058.8% 52440.0 2.4061.0% 62450.0 2.4060.4% 72460.0 2.4061.7% 82470.0 2.4059.2% 92480.0 2.4059.9% 102490.0 2.4054.8% 112500.0 2.4055.7% 水平面垂直面3D 2.4G 3D patterns Gain & Patterns test results Antenna RF Module E1 E2 E3 ElementValue E1(0402)0.5PF E2(0402)22PF E3(0402)NC Antenna Matching

TEST REPORT Compiled by: Reviewed by: Approved by: Zhou Kui Arron Liu Bin Mei / Director Note: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. “*” indicates the testing items were fulfilled by subcontracted lab. “#” indicates the items are not in CNAS accreditation scope. Product Name: Intelligent battery monitor FCC ID: 2A64E-86309001 Trademark: N/A Model Number: 86309001 Prepared For: QI AUTOMOTIVE CO.,LTD. Address: No.1 Luanhe Road, Economic and Technological Development Zone, Jiaozhou, QingDao, Shandong, China Manufacturer: QI AUTOMOTIVE CO.,LTD. Address: No.1 Luanhe Road, Economic and Technological Development Zone, Jiaozhou, QingDao, Shandong, China Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: 1&2/F., Building A, No.26, Xinhe Road, Xinqiao, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: Oct. 28, 2023 Sample tested Date: Oct. 28, 2023 to Dec. 05, 2023 Issue Date: Dec. 05, 2023 Report No.: CTB231205013RF Test Standards FCC Part15.247 ANSI C63.10:2013 Test Results PASS Remark: This is Bluetooth radio test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB231205013RF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 34 TABLE OF CONTENT Test Report Declaration Page 1. VERSION ........................................................................................................................................ 3 2. TEST SUMMARY ........................................................................................................................... 4 3. MEASUREMENT UNCERTAINTY ................................................................................................. 5 4. PRODUCT INFORMATION AND TEST SETUP ............................................................................ 6 4.1 Product Information .......................................................................................................................... 6 4.2 Test Setup Configuration .................................................................................................................. 6 4.3 Support Equipment........................................................................................................................... 6 4.4 Channel List ..................................................................................................................................... 7 4.5 Test Mode ........................................................................................................................................ 7 4.6 Test Environment ............................................................................................................................. 7 5. TEST FACILITY AND TEST INSTRUMENT USED ....................................................................... 8 5.1 Test Facility ...................................................................................................................................... 8 5.2 Test Instrument Used ....................................................................................................................... 8 6. AC POWER LINE CONDUCTED EMISSION ................................................................................ 11 6.1 Block Diagram Of Test Setup ......................................................................................................... 11 6.2 Limit ................................................................................................................................................ 11 6.3 Test procedure ............................................................................................................................... 11 6.4 Test Result ..................................................................................................................................... 13 7. RADIATED SPURIOUS EMISSION ............................................................................................. 14 7.1 Block Diagram Of Test Setup ......................................................................................................... 14 7.2 Limit ................................................................................................................................................ 14 7.3 Test procedure ............................................................................................................................... 15 7.4 Test Result ..................................................................................................................................... 16 8. BAND EDGE AND RF COUNDUCTED SPURIOUS EMISSIONS ............................................... 23 8.1 Block Diagram Of Test Setup ......................................................................................................... 23 8.2 Limit ................................................................................................................................................ 23 8.3 Test procedure ............................................................................................................................... 23 8.4 Test Result ..................................................................................................................................... 24 9. COUDUCTED OUTPUT POWER ................................................................................................. 26 9.1 Block Diagram Of Test Setup ......................................................................................................... …

Text truncated - open the document above for the full version.

Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 1 Model: 86309001 Radiated Emission Below 1G Above 1G
