2A69E-RGSSPRBK-01Bluetooth Speaker

RADSOUNDPRO Usermanual Basicspecification Bluetoothversion:BT5.3 Supportprofiles:HFPV1.7,A2DPV1.3,AVRCPV1.6,GAVDPV1.2,AVDTPV1.2,SPPV1.2,AVCTPV1.2 Bluetoothworkingdistance:10M Outputpower:12W*2 Channel:2.0 Frequencyrange:200Hz－20KHz/-10dB SpeakerdriverRatedpower:15W*2 Battery:7.3V/3500mAh Input:5V-12V OperatingTemperaturerange:-5°Cto+60°C StandbyTemperaturerange:-25°Cto+75°C ChargingTemperaturerange:0°Cto+45°C Operationinstruction No . ActionsOperationLCDstatusPrompt 1 PowerOnLongpressthepowerbuttonfor approximately250mswhenintheoff state. Whenpoweredon,thestartuplogo isdisplayedfirst,followedbythe maininterface Yes 2 PowerOffLongpressthepowerbuttonfor approximately1secondwhenintheon state. LCDscreenturnsoff. Yes 3 Enter pairing mode Whenpoweredon,thedevice automaticallyenterspairingmode. Duringthesearchprocess,onlythe RadGolf"R"logoshouldbedisplayed, witha250mspulsingeffecttoindicate thatitissearchingfordevices. N 4 Bluetooth pairing successful Onthemobiledevice,selectthe Bluetoothname“RadSoundPro.”The "R"logowillthenbedisplayed staticallyfor2seconds,followedbythe displayofthe"clockscreen." Yes 5 Disconnect Bluetooth Simultaneouslylongpressthevolume “+”and“-”buttons. /Yes 6 Incoming Call Whenthereisanincomingcallonthe phone. /Yes 7 Answer Call Whenthereisanincomingcall,briefly touchthetopred"R"logobutton. /N 8 RejectCallWhenthereisanincomingcall,briefly touchthetopred"R"logobutton. /N 9 EndCallDuringacall,brieflytouchthered"R" logobutton. /N 10 ReconnectWhenpoweredon,thedevice automaticallyreconnectstothelast connecteddevice. /Yes 11 Volume Increase Brieflypressorholdthevolume increasebutton. Whenthevolumereachesthe maximum,asoundpromptwillbe heard. Yes 12 Volume Decrease Brieflypressorholdthevolume decreasebutton. Whenthevolumereachesthe minimum,asoundpromptwillbe heard. Yes 13 NextTrackOntheLCDplaybackscreen,tapthe "NextTrack"icon. N 14 Previous Track OntheLCDplaybackscreen,tapthe "PreviousTrack"icon. N 15Pause/Play Brieflypresstheplay/pausebuttonor taptheplay/pauseiconontheLCD playbackscreen. /N 16 Volume Memory Thedevicewillrememberthevolume levelfromthelastshutdowneachtime itispoweredon. /N 17 Low Battery Warning Whenthebatteryvoltagedropsbelow 6.6V(10%),thefirstlowbattery warningwillbetriggered. RedLightFlashing Yes 18 ChargingConnecttoacompatiblefast-charging poweradaptertosupportupto20W charging. RedLightConstantlyOnN 19 Charging Complete Thechargingwillautomaticallyfinish whenthebatteryisfullycharged. GreenLightOnN FederalCommunicationsCommission(FCC)Statement.Thisdevicecomplieswithpart15oftheFCC Rules.Operationissubjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference,and (2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesired operation. Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice, pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotection againstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcan radiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,may causeharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterference willnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioor televisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuseris encouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures: •Reorientorrelocatethereceivingantenna. •Increasetheseparationbetweentheequipmentandreceiver. •Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris connected. •Consultthedealeroranexperiencedradio/TVtechnicianforhelp. Warning:ChangesormodificationsmadetothisdevicenotexpresslyapprovedbyRadGolf,Inc.may voidtheFCCauthorizationtooperatethisdevice. Note:ThemanufacturerisnotresponsibleforanyradioorTVinterferencecausedbyunauthorized modificationstothisequipment.Suchmodificationscouldvoidtheuser’sauthoritytooperatethe equipment. RFexposurestatement:ThisdevicecomplieswithFCCRFradiationexposurelimitssetforthforan uncontrolledenvironment.Thedeviceisinstalledandoperatedwithoutrestriction. ISEDStatement Thisdevicecontainslicence-exempttransmitter(s)/receiver(s)thatcomplywithInnovation,Science andEconomicDevelopmentCanada'slicence-exemptRSS(s).Operationissubjecttothefollowing twoconditions: 1.Thisdevicemaynotcauseinterference. 2.Thisdevicemustacceptanyinterference,includinginterferencethatmaycauseundesired operationofthedevice. Déclarationise Cetappareilcontientdesémetteurs/récepteursexemptésdelicencequisontconformesauxRSS exemptésdelicenced’innovation,sciencesetdéveloppementéconomiqueCanada.Le fonctionnementestsoumisauxdeuxconditionssuivantes: 1.Cetappareilnepeutpascauserd’interférences. 2.Cetappareildoitacceptertouteinterférence,ycomprislesinterférencesquipeuventcauserun fonctionnementindésirabledel’appareil. ForReceiver: Thisdevicemeetstheexemptionfromtheroutineevaluationlimitsinsection6.3ofRSS102and compliancewithRSS102RFexposure,userscanobtainCanadianinformationonRFexposureand compliance. Cetappareilsatisfaitàl’exemptiondeslimitesd’évaluationderoutinedelasection6.3duRSS102 etconformitéauRSS102expositionauxRF.Lesutilisateurspeuventobtenirdel’information canadiennesurl’expositionauxRFetlaconformité. ThisequipmentcomplieswithCanadaradiationexposurelimitssetforthforanuncontrolled environment.Thedeviceisinstalledandoperatedwithoutrestriction. CetéquipementestconformeCanadalimitesd'expositionauxradiationsdansunenvironnementnon contrôlé.DieInstallationundderBetriebderAusrüstungsinduneingeschränkt. ForTransmitter: Thisdevicemeetstheexemptionfromtheroutineevaluationlimitsinsection6.3ofRSS102and compliancewithRSS102RFexposure,userscanobtainCanadianinformationonRFexposureand compliance. cetappareilestconformeàl'exemptiondeslimitesd'évaluationcourantedanslasection6.3ducnr- 102etconformitéavecrss102del'expositionauxrf,lesutilisateurspeuventobtenirdesdonnées canadiennessurl'expositionauxchampsrfetlaconformité. Thisequipmen…

Text truncated - open the document above for the full version.

Rev1/26/2023 RadGolf,Inc. FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:December30,2025 Ref:AttestationStatementsPart2.911(d)(5)(i)Filing FCCID:(2A69E-RGSSPRBK-01) [RadGolf,Inc.]certifiesthattheequipmentforwhichauthorizationissoughtisnot“covered” equipmentprohibitedfromreceivinganequipmentauthorizationpursuanttosection2.903oftheFCC rules. [RadGolf,Inc.]certifiesthattheequipmentforwhichauthorizationissoughtdoesnotinclude cybersecurityoranti-virussoftwareproducedorprovidedbyKasperskyLab,Inc.oranyofitssuccessors andassignees,includingequipmentwithintegratedKasperskyLab,Inc.(oranyofitssuccessorsand assignees)cybersecurityoranti-virussoftwarepursuanttoDA-24-886andKDB986446D01Covered EquipmentGuidancesectionB(2a). Deviceisinherentlycompliantbasedonhardwarelimitationsorsoftwarecontrols. or ASoftwareBillofMaterials(SBOM)isprovidedtotheTCBforreview,and Theend-userorthirdpartiescannotinstalladditionalsoftwareonthisdevice. Sincerely, (Applicantsignature) (Applicantprintedname)PeterJohnson Rev1/26/2023 RadGolf,Inc. FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:December30,2025 Ref:AttestationStatementsPart2.911(d)(5)(ii)Filing FCCID:(2A69E-RGSSPRBK-01) [RadGolf,Inc.]certifiesthat,asofthedateofthefilingoftheapplication,theapplicantisnotidentified ontheCoveredList(asaspecificallynamedentityoranyofitssubsidiariesoraffiliates)asanentity producing“covered”equipment. Sincerely, (Applicantsignature) (Applicantprintedname)PeterJohnson

RadGolf,Inc. U.S.AgentDesignationforServiceofProcess (ApplicantandU.S.AgentareSeparateParties) TO:FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 ATTENTION:FCCCertification–Section2.911(d)(7)Information DesignatedU.S.Agent CompanyName:RadGolf,Inc. FRN:0032495640 ContactName:PeterJohnson StreetAddress:4026N.MillerRd.Suite102 City/Province/Zip:Scottsdale,Arizona85251,UnitedStates TelephoneNo:4805864815 Email:[email protected] Thisletteristoconfirmthatwe(“theDesignatedU.S.Agent)haveacceptedtheresponsibilitytoactasthe DesignatedU.S.AgentforServiceofProcessasrequiredbysection47CFR2.911(d)(7)onbehalfofthe Applicantnotedbelow. U.S.AgentSignature: Date:December30,2025 Signedby(PrintedName/Title):PeterJohnson/Co-Founder TheApplicantacknowledgesthattheymustmaintainanagentfornolessthanoneyearafterterminatingall marketingandimportationORtheconclusionofanyCommission-relatedproceedinginvolvingthe equipment.TheapplicantfurtheracknowledgestheirresponsibilitytoinformtheFCCwheneverthe DesignatedU.S.Agentinformationabovechanges. Applicant Companyname:RadGolf,Inc. GranteeCode:2A69E FCCID:2A69E-RGSSPRBK-01 FRN:0032495640 ContactName:PeterJohnson StreetAddress:4026N.MillerRd.Suite102,Scottsdale,Arizona85251,UnitedStates TelephoneNo:4805864815 Email:[email protected] ApplicantSignature: Date:December30,2025 Signedby(PrintedName/Title):PeterJohnson/Co-Founder

RadGolf,Inc. 4026N.MillerRd.Suite102,Scottsdale,Arizona85251,UnitedStates OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:December30,2025 Subject;RequestforConfidentiality FCCID:2A69E-RGSSPRBK-01 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthese documentsmightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantage inthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure SoftwareSecurityRequirementsforUNIIdevices Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:PeterJohnson Title:Co-Founder

RadGolf,Inc. Date：December30,2025 ProductModelNumber:RadSoundPro FCCID:2A69E-RGSSPRBK-01 Towhomitmayconcern, Re:ProductCertificationRepresentativeAuthorizationLetter WeauthorizeQAILaboratoriesLtd.3980NorthFraserWay,BurnabyB.C. CanadaV5J5K5toactonourbehalfonallmattersconcerningtheabove namedequipment. Thisshallincludethefollowing: Testing Approvalapplicationsandprocedures WedeclarethatQAILaboratoriesLtd.isallowedtoforwardallinformation relatedtotheapprovalprojecttotheappliedcertificationbodyandtothe notificationentitiesandtodiscussanyissuesconcerningtheapproval application.AnyandallactscarriedoutbyQAILaboratoriesLtd.onour behalfshallhavethesameeffectasactsofourown. By: ContactListedonFCCWesbite Title:Co-Founder Email:[email protected] Telephone:4805864815 Onbehalfof:RadGolf,Inc.

AntennaDescribe AntennaPCB AntennaGain1.56dBi FrequencyRange2.4Ghz-2.483Ghz ConnectorTypeDirect Companyname SHENZHENSHIXINZHONGXN TECHNOLOGY.CO.,LTD Address Room221,BlockA, HuafengJinyuanBusiness Building,No.300,Xixiang Avenue,XixiangStreet, LaborCommunity,Baoan District,Shenzhen 2：ExternalViewDrawing Pictureofantenna 3：MeasurementResult 3.1ReturnLoss(S11) 3.2SmithChart 3.3Gain

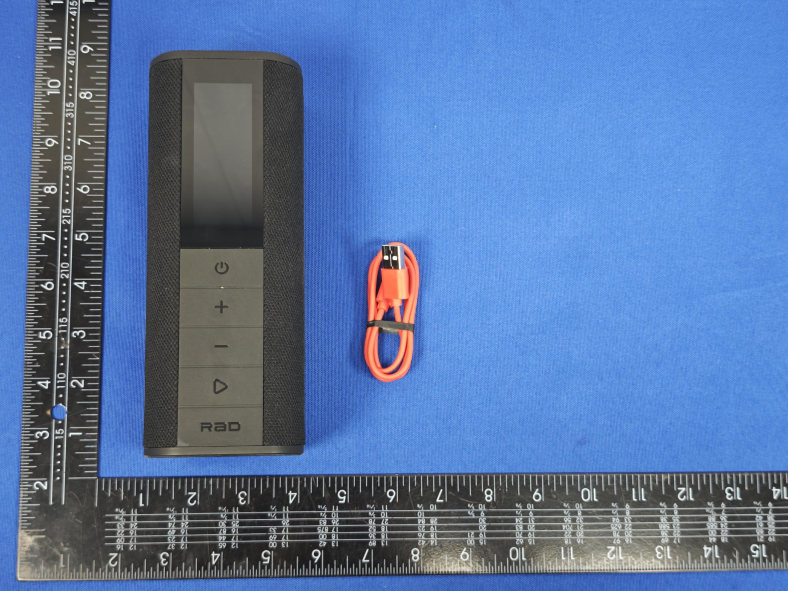

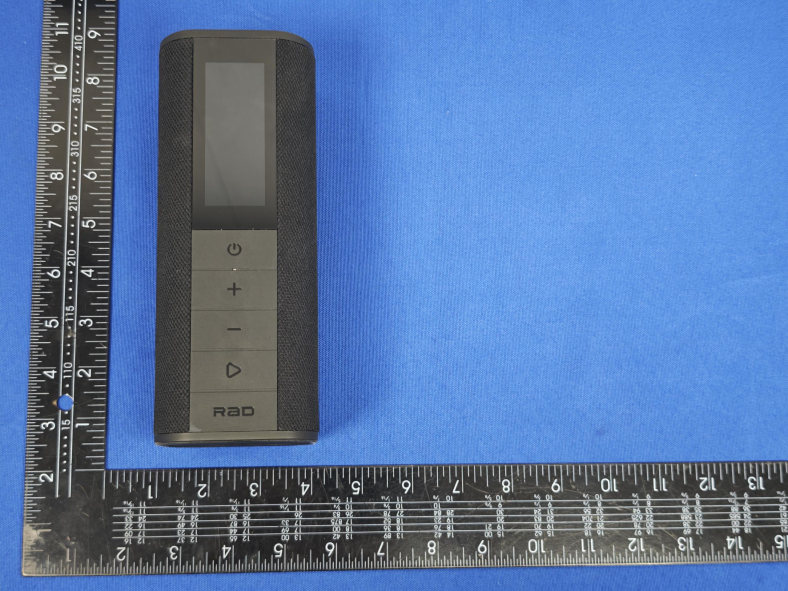

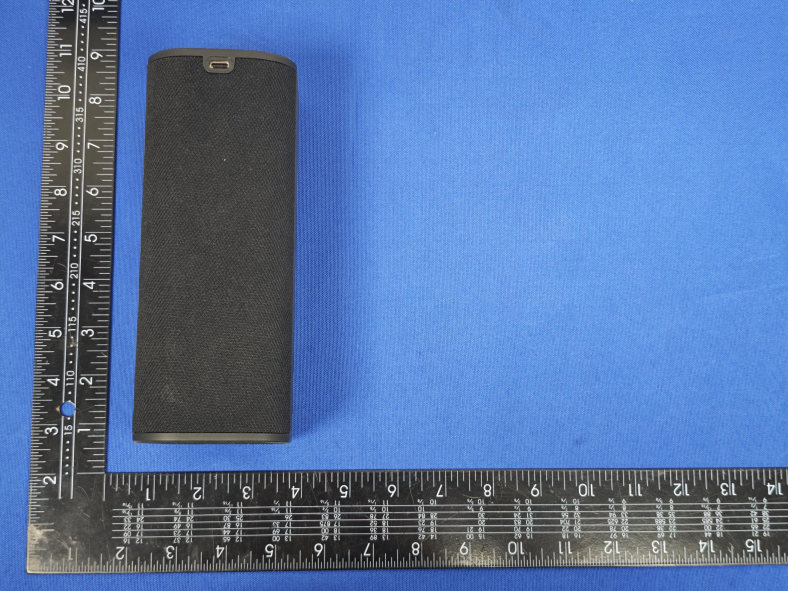

FCCID:2A69E-RGSSPRBK-01IC:28643-RGSSPRBK01 ExternalPhotosofEUT FCCID:2A69E-RGSSPRBK-01IC:28643-RGSSPRBK01 FCCID:2A69E-RGSSPRBK-01IC:28643-RGSSPRBK01 FCCID:2A69E-RGSSPRBK-01IC:28643-RGSSPRBK01

B l u e t o o t h S p e a k e r | M o d e l ( H V I N ) : R a d S o u n d P r o | F C C I D : 2 A 6 9 E - R G S S P R B K - 0 1 | I C : 2 8 6 4 3 - R G S S P R B K 0 1 | M a d e i n C h i n a | T h i s d e v i c e c o m p l i e s w i t h p a r t 1 5 o f t h e F CC Rules. Operation is subject to the following t w o c o n d i t i o n s : ( 1 ) T h i s d e v i c e m a y n o t c a u s e h a r m f u l i n t e r f e r e n c e , a n d ( 2 ) t h i s d e v i c e m u s t a c c e p t a n y i n t e r f e r e n c e r e c e i v e d i n c l u d i n g i n t e r f e r e n c e t h a t m a y c a u s e u n d esired operation.Rad Golf, lnc. | Scottsdale, AZ | 2025.12.25 白洁清 BT249 底壳丝印图 Positioning direction Positioning direction

FCCID:2A69E-RGSSPRBK-01IC:28643-RGSSPRBK01 InternalPhotosofEUT FCCID:2A69E-RGSSPRBK-01IC:28643-RGSSPRBK01 BluetoothAntenna FCCID:2A69E-RGSSPRBK-01IC:28643-RGSSPRBK01 FCCID:2A69E-RGSSPRBK-01IC:28643-RGSSPRBK01

ShenzhenCTLTestingTechnologyCo.,Ltd. Tel:+86-755-89486194E-Mail:[email protected] RFExposureevaluation ReportReferenceNo.....................:CTL2409247021-WFH Compiledby: (position+printedname+signature) HappyGuo (Fileadministrators) Testedby: (position+printedname+signature) JackWang (TestEngineer) Approvedby: (position+printedname+signature) IvanXie (Manager) ProductName ................................. : BluetoothSpeaker Model/Typereference .................... :RadSoundPro ListModel(s) .................................... :N/A TradeMark ....................................... : RAD FCCID...............................................: 2A69E-RGSSPRBK-01 Applicant’sname ........................... : RadGolf,Inc. Addressofapplicant ..................... : 4026N.MillerRd.Suite102,Scottsdale,Arizona85251,United States TestFirm...........................................: ShenzhenCTLTestingTechnologyCo.,Ltd. AddressofTestFirm.....................: Floor1-A,BaishaTechnologyPark,No.3011,ShahexiRoad, NanshanDistrict,Shenzhen,China518055 Testspecification...........................: Standard ............................................ : 47CFR§1.1310 47CFR§2.1093 KDB447498D01GeneralRFExposureGuidancev06 TRFOriginator..................................: ShenzhenCTLTestingTechnologyCo.,Ltd. MasterTRF.......................................:Dated2017-01 Dateofreceiptoftestitem .......... : October15,2025 DateofTest....................................: October15,2025-November15,2025 DateofIssue....................................: November18,2025 Result ................................................ : Pass ShenzhenCTLTestingTechnologyCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenCTLTestingTechnologyCo.,Ltd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenCTLTestingTechnologyCo.,Ltd.takesnoresponsibilityforandwillnotassume liabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. V1.0Page2of10ReportNo.:CTL2409247021-WFH TESTREPORT TestReportNo.:CTL2409247021-WFH November18,2025 Dateofissue ProductName: BluetoothSpeaker SampleNo:CTL2409247021 Model/Type: RadSoundPro ListedModels : N/A Applicant: RadGolf,Inc. Address : 4026N.MillerRd.Suite102,Scottsdale,Arizona85251, UnitedStates Manufacturer: RadGolf,Inc. Address : 4026N.MillerRd.Suite102,Scottsdale,Arizona85251, UnitedStates Thetestresultspresentedinthisreportrelateonlytotheobjecttested. Thisreportshallnotbereproduced,exceptinfull,withoutthewrittenapprovaloftheissuingtesting laboratory. V1.0Page3of10ReportNo.:CTL2409247021-WFH **ModifiedHistory** RevisionDescriptionIssuedDataReportNo.Remark Version1.0InitialTestReportRelease November18, 2025 CTL2409247021-WFHTracyQi V1.0Page4of10ReportNo.:CTL2409247021-WFH Contents 1GENERALINFORMATION..................................................................................................................................................5 1.1ENVIRONMENTALCONDITIONS................................................................................................................................................5 1.2PRODUCTDESCRIPTION.........................................................................................................................................................5 1.3TESTFACILITY.......................................................................................................................................................................6 1.4STATEMENTOFTHEMEASUREMENTUNCERTAINTY......................................................................................................................6 2METHODOFMEASUREMENT...........................................................................................................................................7 2.1APPLICABLESTANDARD..........................................................................................................................................................7 2.2EVALUATIONMETHODANDLIMIT...........................................................................................................................................7 3CONDUCTEDPOWERRESULTS.........................................................................................................................................8 4MANUFACTURINGTOLERANCE........................................................................................................................................9 5EVALUATIONRESULTS.....................................................................................................................................................10 5.1STANDALONEEVALUATION....................................................................................................................................................10 6CONCLUSION..................................................................................................................................................................10 V1.0Page5of10ReportNo.:CTL2409247021-WFH 1GENERALINFORMATION 1.1Environmentalconditions Duringthemeasurementtheenvironmentalconditionswerewithinthelistedranges: NormalTemperature:25°C-35°C RelativeHumidity:35%-55% AirPressure:101KPa 1.2ProductDescription ProductName: BluetoothSpeaker Model/Typereference:RadSoundPro EUTRatedVoltage: DC7.3Vfrombattery(battery:3500mAh) TestVoltage:DC7.3Vfrombattery(battery:3500mAh) Bluetooth: Version:SupportedBR/EDR Modulation:GFSK,π/4DQPSK,8DPSK Operationfrequency:2402MHz~2480MHz Channelnumber:79 Channelseparation:1MHz Antennatype:PCBAntenna Antennagain:1.56dBi BluetoothLowEnergy Supportedtype:BluetoothLowEnergy Modulation:GFSK Operationfrequency: 2402MHzto2480MHz Channelnumber:40 Channelseparation:2MHz Antennatype:PCBAntenna Antennagain:1.56dBi Note1:Formoredetails,refertotheuser’smanualoftheEUT. Note2:Antennagainandcablelossprovidedbytheapplicant. V1.0Page6of10ReportNo.:CTL2409247021-WFH 1.3TestFacility 1.3.1…

Text truncated - open the document above for the full version.

ShenzhenCTLTestingTechnologyCo.,Ltd. Tel:+86-755-89486194E-mail:[email protected] TESTREPORT 47CFRPart15,SubpartC15.247 ReportReferenceNo.....................:CTL2409247021-WF02 Compiledby: (position+printedname+signature) HappyGuo (Fileadministrators) Testedby: (position+printedname+signature) JackWang (TestEngineer) Approvedby: (position+printedname+signature) IvanXie (Manager) ProductName.................................: BluetoothSpeaker Model/Typereference....................:RadSoundPro ListModel(s)(HVIN)......................:N/A TradeMark.......................................: RAD FCCID ............................................... : 2A69E-RGSSPRBK-01 Applicant’sname...........................: RadGolf,Inc. Addressofapplicant.....................: 4026N.MillerRd.Suite102,Scottsdale,Arizona85251,United States TestFirm...........................................: ShenzhenCTLTestingTechnologyCo.,Ltd. AddressofTestFirm.....................: Floor1-A,BaishaTechnologyPark,No.3011,ShahexiRoad, NanshanDistrict,Shenzhen,China518055 Testspecification...........................: Standard ............................................ :47CFRPart15,SubpartC15.247:Operationwithinthebands 902-928MHz,2400-2483.5MHzand5725-5850MHz. TRFOriginator .................................. : ShenzhenCTLTestingTechnologyCo.,Ltd. MasterTRF.......................................:Dated2011-01 Dateofreceiptoftestitem..........: October15,2025 DateofTestDate ............................ : October15,2025-November15,2025 DateofIssue....................................: November18,2025 Result................................................: Pass ShenzhenCTLTestingTechnologyCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenCTLTestingTechnologyCo.,Ltd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenCTLTestingTechnologyCo.,Ltd.takesnoresponsibilityforandwillnotassume liabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. V1.0Page2of29ReportNo.:CTL2409247021-WF02 TESTREPORT TestReportNo.:CTL2409247021-WF02 November18,2025 Dateofissue EquipmentunderTest: BluetoothSpeaker SampleNo:CTL2409247021 Model/Type: RadSoundPro ListedModels : N/A Applicant: RadGolf,Inc. Address : 4026N.MillerRd.Suite102,Scottsdale,Arizona 85251,UnitedStates Manufacturer: RadGolf,Inc. Address : 4026N.MillerRd.Suite102,Scottsdale,Arizona 85251,UnitedStates TestresultPass* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedpage5. Thetestresultspresentedinthisreportrelateonlytotheobjecttested. Thisreportshallnotbereproduced,exceptinfull,withoutthewrittenapprovaloftheissuingtesting laboratory. V1.0Page3of29ReportNo.:CTL2409247021-WF02 **ModifiedHistory** RevisionsDescriptionIssuedDataReportNo.Remark Version1.0InitialTestReportReleaseNovember18,2025CTL2409247021-WF02TracyQi V1.0Page4of29ReportNo.:CTL2409247021-WF02 TableofContentsPage 1.SUMMARY.......................................................................................................................................................................5 1.1.TESTSTANDARDS............................................................................................................................................................5 1.2.TESTDESCRIPTION...............................................................................................................................................................5 1.3.TESTFACILITY.....................................................................................................................................................................6 1.4.STATEMENTOFTHEMEASUREMENTUNCERTAINTY.....................................................................................................................6 1.5.AUXILIARYEQUIPMENTINFORMATION...........................................................................................................................7 2.GENERALINFORMATION.................................................................................................................................................8 2.1.ENVIRONMENTALCONDITIONS...............................................................................................................................................8 2.2.GENERALDESCRIPTIONOFEUT.............................................................................................................................................8 2.3.DESCRIPTIONOFTESTMODESANDTESTFREQUENCY................................................................................................................9 2.4.EQUIPMENTSUSEDDURINGTHETEST..................................................................................................................................10 2.5.RELATEDSUBMITTAL(S)/GRANT(S)....................................................................................................................................10 2.6.MODIFICATIONS................................................................................................................................................................10 3.TESTCONDITIONSANDRESULTS..................................................................................................................................11 3.1.CONDUCTEDEMISSIONSTEST..............................................................................................................................................11 3.2.RADIATEDEMISSIONSANDBANDEDGE.................................................................................................................................14 3.3.MAXIMUMCONDUCTEDOUTPUTPOWER.............................................................................................................................24 3.4.POWERSPECTRALDENSITY.................................................................................................................................................2…

Text truncated - open the document above for the full version.

ShenzhenCTLTestingTechnologyCo.,Ltd. Floor1-A,BaishaTechnologyPark,No.3011,ShahexiRoad,NanshanDistrict,Shenzhen,China518055 Tel:+86-755-89486194E-mail:[email protected] AnnexforBLE TestReportNo.:CTL2409247021-WF02 TABLEOFCONTENTS AnnexforBLE.............................................................................................................................................1 1.DutyCycle...............................................................................................................................................2 2.Bandwidth................................................................................................................................................6 3.MaximumConductedOutputPower.....................................................................................................13 4.MaximumPowerSpectralDensity........................................................................................................17 5.UnwantedEmissionsInNon-restrictedFrequencyBands...................................................................21 AnnexforBLETestReportNo.:CTL2409247021-WF02 FCCID:2A69E-RGSSPRBK-01 Page2/29 1.DutyCycle 1.1TestResult 1.1.1Ant1 Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) DutyCycle (%) DutyCycle CorrectionFactor(dB) Max.DC Variation(%) 1MSISO 24022.1432.23995.710.192.13 24402.1432.23995.710.190.07 24802.1432.23995.710.190.07 2MSISO 24021.0901.18292.220.350.10 24401.0891.18292.130.360.03 24801.0891.18292.130.360.06 AnnexforBLETestReportNo.:CTL2409247021-WF02 FCCID:2A69E-RGSSPRBK-01 Page3/29 1.2TestGraph 1.2.1Ant1 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV AnnexforBLETestReportNo.:CTL2409247021-WF02 FCCID:2A69E-RGSSPRBK-01 Page4/29 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV AnnexforBLETestReportNo.:CTL2409247021-WF02 FCCID:2A69E-RGSSPRBK-01 Page5/29 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV AnnexforBLETestReportNo.:CTL2409247021-WF02 FCCID:2A69E-RGSSPRBK-01 Page6/29 2.Bandwidth 2.1TestResult 2.1.1OBW Mode TX Type Frequency (MHz) ANT 99%OccupiedBandwidth(MHz) Verdict ResultLimit 1MSISO 240211.023/Pass 244011.024/Pass 248011.025/Pass 2MSISO 240211.973/Pass 244011.978/Pass 248011.973/Pass 2.1.26dBBW Mode TX Type Frequency (MHz) ANT 6dBBandwidth(MHz) Verdict ResultLimit 1MSISO 240210.703>=0.5Pass 244010.696>=0.5Pass 248010.698>=0.5Pass 2MSISO 240211.248>=0.5Pass 244011.239>=0.5Pass 248011.254>=0.5Pass AnnexforBLETestReportNo.:CTL2409247021-WF02 FCCID:2A69E-RGSSPRBK-01 Page7/29 2.2TestGraph 2.2.1OBW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV AnnexforBLETestReportNo.:CTL2409247021-WF02 FCCID:2A69E-RGSSPRBK-01 Page8/29 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV AnnexforBLETestReportNo.:CTL2409247021-WF02 FCCID:2A69E-RGSSPRBK-01 Page9/29 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV AnnexforBLETestReportNo.:CTL2409247021-WF02 FCCID:2A69E-RGSSPRBK-01 Page10/29 2.2.26dBBW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV AnnexforBLETestReportNo.:CTL2409247021-WF02 FCCID:2A69E-RGSSPRBK-01 Page11/29 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV AnnexforBLETestReportNo.:CTL2409247021-WF02 FCCID:2A69E-RGSSPRBK-01 Page12/29 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV AnnexforBLETestReportNo.:CTL2409247021-WF02 FCCID:2A69E-RGSSPRBK-01 Page13/29 3.MaximumConductedOutputPower 3.1TestResult 3.1.1Power Mode TX Type Frequency (MHz) MaximumPeakConductedOutputPower(dBm) Verdict ANT1Limit 1MSISO 2402-5.35<=30Pass 2440-5.19<=30Pass 2480-5.02<=30Pass 2MSISO 2402-5.51<=30Pass 2440-5.33<=30Pass 2480-5.15<=30Pass Note1:AntennaGain:Ant1:1.56dBi; AnnexforBLETestReportNo.:CTL2409247021-WF02 FCCID:2A69E-RGSSPRBK-01 Page14/29 3.2TestGraph 3.2.1Power 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV AnnexforBLETestReportNo.:CTL2409247021-WF02 FCCID:2A69E-RGSSPRBK-01 Page15/29 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV AnnexforBLETestReportNo.:CTL2409247021-WF02 FCCID:2A69E-RGSSPRBK-01 Page16/29 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV AnnexforBLETestReportNo.:CTL2409247021-WF02 FCCID:2A69E-RGSSPRBK-01 Page17/29 4.MaximumPowerSpectralDensity 4.1TestResult 4.1.1PSD Mode TX Type Frequency (MHz) MaximumPSD(dBm/3kHz) Verdict ANT1Limit 1MSISO 2402-20.72<=8Pass 2440-20.56<=8Pass 2480-20.27<=8Pass 2MSISO 2402-24.61<=8Pass 2440-24.29<=8Pass 2480-24.04<=8Pass Note1:AntennaGain:Ant1:1.56dBi; AnnexforBLETestReportNo.:CTL2409247021-WF02 FCCID:2A69E-RGSSPRBK-01 Page18/29 4.2TestGraph 4.2.1PSD 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV AnnexforBLETestReportNo.:CTL2409247021-WF02 FCCID:2A69E-RGSSPRBK-01 Page19/29 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV AnnexforBLETestReportNo.:CTL2409247021-WF02 FCCID:2A69E-RGSSPRBK-01 Page20/29 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV AnnexforBLETestReportNo.:CTL2409247021-WF02 FCCID:2A69E-RGSSPRBK-01 Page21/29 5.UnwantedEmissionsInNon-restrictedFrequencyBands 5.1TestResult 5.1.1Ref Mode TX Type Frequency (MHz) ANT LevelofReference (dBm) 1MSISO 24021-6.54 24401-6.38 24801-6.21 2MSISO 24021-7.01 24401-6.88 24801-6.73 Note1:RefertoFCCPart15.247(d)andANSIC63.10-2020,thechannelcontainsthemaximumPSDlevelwasusedto establishthereferencel…

Text truncated - open the document above for the full version.
