2A6IQ-VTL202201METAVERTU 5G digital mobile phone

快速指南 Quick Guide 快速指南 Welcome to use METAVERTU Device Model：VTL-202201 Device Name：METAVERTU 5G Digital Mobile Phone Manufactuer：VERTU INTERNATIONAL CORPORATION LIMITED OVERVIEW About Your METAVERTU The User Guide is designed to show you how to work with main features of METAVERTU. To get premium privileges and benefi ts, such as My Vertu, Vertu Life and Find My Vertu, you need to register Vertu. The images used in the User Guide are only for illustration and may differ from the actual product. Help and Suppor t To learn more about your device: Press use Vertu Life app to contact Vertu. Refer to the User Guide by visiting website: https://www.vertu.com PRODUCT OVERVIEW Second Microphone Front Camera Touch Screen Speaker USB Type-C /Headphone Jack nano-SIM /nano-UIM Card Card slot Fingerprint Sensor Receiver Rear Camera And Flash NFC area Master Microphone Power Key Volume Key Distance and Light The Sensor GET STARTED •Take out the cardholder with the needle and install the nano-SIM card or nano-UIM card, as shown in the figure. •5G WCDMA/GSM SA/NSA are supported. Both card 1 and card 2 support the 5G/4G/3G/2G network of China Unicom and China Telecom, and 5G/4G/2G network of China Mobile. • Attention! •If both cards are issued by China Telecom, the Volte function must be enabled before use of the auxiliary card (non-data card). •Please consult local network operator to learn whether the Volte function is supported. •Whether SA/NSA is supported depends on the deployment of local network operator. • Warning! •Please use standard needle rather than sharp objects. The card may not be taken out if non-standard needle is used. •Please align with the circular center of the cardholder to poke it out to avoid any damage to the phone. • Description: •You may insert or take out the nano-SIM/ nano-UIM card when the mobile phone is on. •When the mobile phone needs to be rebooted in the case of errors, you may attempt to tap and hold the Power Button for more than 10 seconds to reboot the mobile phone. •In the case of low battery level, the mobile phone may not be turned on even when it is in charging state. In that case, please keep charging the mobile phone for 30 minutes to restore the battery level. If the mobile phone still cannot be turned on after being charged for 30 minutes, please contact the After-Sales Service Center of VERTU. •Please use the standard charger and data cable provided by VERTU. Charging with unauthorized charger or data cable may cause battery explosion or damage your phone. •Please use the standard nano-SIM card/ nano-UIM card provided by the operator. Don’t insert cards of other specifications or cut the cards to avoid any damage to the phone. •Don’t insert or take out the card when the phone is connected to external power supply. •Do not attempt to disassemble the rear cover and battery of the mobile phone. To replace battery, please contact the After-Sales Service Center of VERTU. •The tempered film on the curved screen may squeeze out excessive glue on both sides of the left and right radians, and may affect the gesture navigation function, which is not the quality defect the mobile phone. Card 2 Card 1 Overall Protection If METAVERTU mobile phone or any accessory cannot work normally, please contact Vertu dealer. • Please use METAVERTU product as described in the documentation. Improper use may affect the performance. • Don’t try to disassemble METAVERTU mobile phone. You only need to open SIM card slot. Your METAVERTU mobile phone shall be only repaired by service personnel authorized by Vertu. • Don’t use the METAVERTU mobile phone rudely or improperly. • Only use the accessories permitted by Vertu. • The accompanying charger is only used for charging METAVERTU mobile phone. It shall not be used for any other devices, otherwise permanent damage may be caused to the mobile phone, battery or charger. • Please keep your METAVERTU mobile phone and all parts and accessories out of reach of children and pets. • Please don’t make METAVERTU mobile phone, battery or accessories in contact with liquid or moisture and dust and dirt. • Don’t expose your METAVERTU mobile phone to extreme humidity, otherwise this may cause the battery to temporarily stop working. When the temperature is below the freezing point, its performance will be significantly reduced. • Don’t smear paint or other similar substances on your METAVERTU mobile phone. • Clean your METAVERTU mobile phone only using soft and clean cloth. Don’t use chemicals, detergents, abrasives or any liquids. Clean the camera before use. • Don’t insert any sharp object into speaker or data port. PHONE PROTECTION Copyright ©2021 VERTU. All Rights Reserved. Imported Leather Leather Non-precious Metal Leather is natural material, which will result in non-erasable pollution, etc. for all kinds of circumstances in use, therefore: All leathers used by Vertu craftsmen are unique, and the natural stripe on the leather is deemed to be one of individual characteristics of high-quality leather. All leather sheaths are liable to damage, so they should be properly maintained. Vertu’s metal part is manufactured as per high standards, and must be properly maintained to protect its appearance. The following circumstances shall be avoided: • If your mobile phone gets wet accidentally, dry it using absorbent soft cloth as soon as possible. • Exposure to chemicals, such as solvents, alkaline and acid solutions, carbonate beverages and saline water. In case of accidental contact, wipe in time with clean soft cloth. • It shall be avoided to expose in a strong-light and high-temperature humid environment, in order to avoid contact with objects and materials which may pollute or scratch the surface. • Contact with sharp objects. • Exposure to water and humid environment. • Vertu suggests keeping your mobile phone in the mobile phone bag when not in use. The following circumstances shall be avoided: • Falling or hitting against the surface of a hard o…

Text truncated - open the document above for the full version.

FCC Caution § 15.19 Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. § 15.21 Information to user. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. § 15.105 Information to the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between theequipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Body-worn Operation This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 1.0 cm must be maintained between the user’s body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna. IC Caution Operations in the 5.15-5.25GHz band are restricted to indoor usage only. English: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause in terference, and (2) This device must accept any interference, including interference th at may cause undesired operation of the device. French: Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

第1页 P898A12 NFC Antenna Specification 第2页

第1页 BT/WIFI ANT Specification 一．Location and Size ANT Location ANT7 is WiFi2.4G chain1，F7 is ANT7 signal Feeding point，ANT 7 length 15.5mm ANT 8 is WiFi5G chain1/GPS，F8 is ANT8 signal Feeding point，length 27mm ANT 9 is WiFi5G/2.4G chain0/BT, F9 is ANT9 signal Feeding point，length 12mm 二．Antenna Gain and Pattern ANT7 第2页 ANT8 第3页 ANT9

VERTU INTERNATIONAL CORPORATION LIMITED Made in China METAVERTU 5G DIGITAL MOBILE PHONE Model: VTL-202201 FCC ID:2A6IQ-VTL202201 IC:28629-VTL202201 VERTU INTERNATIONAL CORPORATION LIMITED Made in China METAVERTU 5G DIGITAL MOBILE PHONE Model: VTL-202201 FCCID:2A6IQ-VTL202201 IC:28629-VTL202201

Report No. SET2022-07674 CCIC-SET/TRF:ISAR(2021-05-11) 1 / 21 Appendix A: SAR System performance Check Plots Measurement Liquid Frequency Test Date System Check Head 750 2022/05/20 System Check Head 835 2022/05/13 System Check Head 835 2022/05/14 System Check Head 835 2022/05/23 System Check Head 835 2022/07/06 System Check Head 1800 2022/05/17 System Check Head 1800 2022/06/23 System Check Head 1900 2022/05/18 System Check Head 1900 2022/06/22 System Check Head 2450 2022/06/02 System Check Head 2600 2022/05/22 System Check Head 2600 2022/06/14 System Check Head 2600 2022/06/25 System Check Head 2600 2022/07/11 System Check Head 3500 2022/06/13 System Check Head 5200 2022/06/20 System Check Head 5200 2022/06/21 System Check Head 5400 2022/06/21 System Check Head 5600 2022/06/22 System Check Head 5800 2022/06/19 Report No. SET2022-07674 CCIC-SET/TRF:ISAR(2021-05-11) 2 / 21 System Performance Check (750MHz) Type: Validation measurement Date of measurement: 05/20/2022 A. Experimental conditions. E-Field Probe SATIMO SN 41/18 EPGO330 Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Dipole Band 750MHz Channels Middle Signal CW(Crest factor: 1.0) B. SAR Measurement Results Frequency (MHz) 750 Relative permittivity (real part) 41.63 Conductivity (S/m) 0.90 Variation (%) 0.36 Maximum location: X=2.00, Y=-6.00 SAR Peak: 0.11 W/kg SAR 10g (W/Kg) 0.057607 SAR 1g (W/Kg) 0.089119 SURFACE SAR VOLUME SAR Z Axis Scan Report No. SET2022-07674 CCIC-SET/TRF:ISAR(2021-05-11) 3 / 21 System Performance Check (835MHz) Type: Validation measurement Date of measurement: 05/13/2022 A. Experimental conditions. E-Field Probe SATIMO SN 41/18 EPGO330 Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Dipole Band 835MHz Channels Middle Signal CW(Crest factor: 1.0) B. SAR Measurement Results Frequency (MHz) 835 Relative permittivity (real part) 41.24 Conductivity (S/m) 0.91 Variation (%) 0.49 Maximum location: X=-2.00, Y=-1.00 SAR Peak: 0.14 W/kg SAR 10g (W/Kg) 0.062691 SAR 1g (W/Kg) 0.101870 SURFACE SAR VOLUME SAR Z Axis Scan Report No. SET2022-07674 CCIC-SET/TRF:ISAR(2021-05-11) 4 / 21 System Performance Check (835MHz) Type: Validation measurement Date of measurement: 05/14/2022 A. Experimental conditions. E-Field Probe SATIMO SN 41/18 EPGO330 Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Dipole Band 835MHz Channels Middle Signal CW(Crest factor: 1.0) B. SAR Measurement Results Frequency (MHz) 835 Relative permittivity (real part) 41.40 Conductivity (S/m) 0.88 Variation (%) 2.10 Maximum location: X=-1.00, Y=0.00 SAR Peak: 0.13 W/kg SAR 10g (W/Kg) 0.059487 SAR 1g (W/Kg) 0.097950 SURFACE SAR VOLUME SAR Z Axis Scan Report No. SET2022-07674 CCIC-SET/TRF:ISAR(2021-05-11) 5 / 21 System Performance Check (835MHz) Type: Validation measurement Date of measurement: 05/23/2022 A. Experimental conditions. E-Field Probe SATIMO SN 41/18 EPGO330 Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Dipole Band 835MHz Channels Middle Signal CW(Crest factor: 1.0) B. SAR Measurement Results Frequency (MHz) 835 Relative permittivity (real part) 41.16 Conductivity (S/m) 0.89 Variation (%) 2.10 Maximum location: X=-1.00, Y=-8.00 SAR Peak: 0.14 W/kg SAR 10g (W/Kg) 0.064865 SAR 1g (W/Kg) 0.098356 SURFACE SAR VOLUME SAR Z Axis Scan Report No. SET2022-07674 CCIC-SET/TRF:ISAR(2021-05-11) 6 / 21 System Performance Check (835MHz) Type: Validation measurement Date of measurement: 07/06/2022 A. Experimental conditions. E-Field Probe SATIMO SN 41/18 EPGO330 Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Dipole Band 835MHz Channels Middle Signal CW(Crest factor: 1.0) B. SAR Measurement Results Frequency (MHz) 835 Relative permittivity (real part) 41.69 Conductivity (S/m) 0.92 Variation (%) -1.15 Maximum location: X=-1.00, Y=-7.00 SAR Peak: 0.14 W/kg SAR 10g (W/Kg) 0.065313 SAR 1g (W/Kg) 0.099870 SURFACE SAR VOLUME SAR Z Axis Scan Report No. SET2022-07674 CCIC-SET/TRF:ISAR(2021-05-11) 7 / 21 System Performance Check (1800MHz) Type: Validation measurement Date of measurement: 05/17/2022 A. Experimental conditions. E-Field Probe SATIMO SN 41/18 EPGO330 Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Dipole Band 1800MHz Channels Middle Signal CW(Crest factor: 1.0) B. SAR Measurement Results Frequency (MHz) 1800 Relative permittivity (real part) 39.20 Conductivity (S/m) 1.39 Variation (%) -1.15 Maximum location: X=-3.00, Y=19.00 SAR Peak: 0.61 W/kg SAR 10g (W/Kg) 0.207300 SAR 1g (W/Kg) 0.381976 SURFACE SAR VOLUME SAR Z Axis Scan Report No. SET2022-07674 CCIC-SET/TRF:ISAR(2021-05-11) 8 / 21 System Performance Check (1800MHz) Type: Validation measurement Date of measurement: 06/23/2022 A. Experimental conditions. E-Field Probe SATIMO SN 41/18 EPGO330 Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Dipole Band 1800MHz Channels Middle Signal CW(Crest factor: 1.0) B. SAR Measurement Results Frequency (MHz) 1800 Relative permittivity (real part) 39.69 Conductivity (S/m) 1.38 Variation (%) -1.42 Maximum location: X=0.00, Y=8.00 SAR Peak: 0.60 W/kg SAR 10g (W/Kg) 0.199693 SAR 1g (W/Kg) 0.367352 SURFACE SAR VOLUME SAR Z Axis Scan Report No. SET2022-07674 CCIC-SET/TRF:ISAR(2021-05-11) 9 / 21 System Performance Check (1900MHz) Type: Validation measurement Date of measurement: 05/18/2022 A. Experimental conditions. E-Field Probe SATIMO SN 41/18 EPGO330 Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Dipole Band 1900MHz Channels Middle Signal CW(Crest factor: 1.0) B. SAR Measurement Results Frequency (MHz) 1900 Relative permittivity (real part) 40.36 Conductivity (S/m) 1.43 Variation (%) -0.74 Maximum location: X=-7.00, Y=0.00 SAR Peak: 0.62 W/kg SAR 10g (W/…

Text truncated - open the document above for the full version.

Report No. SET2022-07674 CCIC-SET/TRF:ISAR(2021-05-11) 1 / 131 Appendix B: SAR Measurement results Plots Plot Frequency/Mode Testing Position and Channel Test Date 1 GSM850ANT1 Left Cheek Low 2022/05/13 2 GPRS8504TxANT1 Body Front, Low ,10mm 2022/05/13 3 GSM1900 ANT2 Left Cheek Middle 2022/05/18 4 GPRS19004Tx ANT2 Body Front, Low ,10mm 2022/05/18 5 GPRS19004Tx ANT2 Edge C, Low ,10mm 2022/05/18 6 GSM1900ANT4 Left Cheek High 2022/06/22 7 GPRS19004Tx ANT4 Body Front, High ,10mm 2022/06/22 8 GPRS19004Tx ANT4 Edge A, High ,10mm 2022/06/22 9 CDMA BC 0ANT1 Right Cheek Low 2022/07/06 10 CDMA BC 0ANT1 Body Front, Low ,10mm 2022/07/06 11 WCDMA850ANT1 Left Cheek Low 2022/05/13 12 WCDMA850ANT1 Body Front, Low ,10mm 2022/05/13 13 WCDMA1700ANT2 Left Cheek High 2022/05/17 14 WCDMA1700ANT2 Body Front, High ,10mm 2022/05/17 15 WCDMA1700ANT2 Edge C, High ,10mm 2022/05/17 16 WCDMA1700ANT4 Right Cheek ,High 2022/06/23 17 WCDMA1700ANT4 Body Front,High,10mm 2022/06/23 18 WCDMA1700ANT4 Edge A, High,10mm 2022/06/23 19 WCDMA1900ANT2 Left Cheek High 2022/05/18 20 WCDMA1900ANT2 Body Front, High ,10mm 2022/05/18 21 WCDMA1900ANT2 Edge C, High ,10mm 2022/05/18 22 WCDMA1900ANT4 Right Cheek High 2022/06/22 23 WCDMA1900ANT4 Body Front, High ,10mm 2022/06/22 24 WCDMA1900ANT4 Edge A, High ,10mm 2022/06/22 25 LTE Band4ANT2 Left Cheek Low 2022/05/17 26 LTE Band4ANT2 Body Front, Low ,10mm 2022/05/17 27 LTE Band4ANT2 Edge C, Low ,10mm 2022/05/17 28 LTE Band4ANT3 Right Cheek Repeat Middle 2022/06/23 29 LTE Band4ANT3 Body Back,Middle,10mm 2022/06/23 30 LTE Band4ANT3 Edge D, Middle ,10mm 2022/06/23 31 LTE Band7ANT2 Right Cheek High 2022/05/22 32 LTE Band7ANT2 Body Front, High ,10mm 2022/05/22 33 LTE Band7ANT2 Edge C, High ,10mm 2022/05/22 34 LTE Band7ANT3 Right Cheek Repeat Middle 2022/07/12 35 LTE Band7ANT3 Body Back,Middle,10mm 2022/07/12 36 LTE Band7ANT3 Edge D, Middle ,10mm 2022/07/12 37 LTE Band5ANT1 Right Cheek Low 2022/05/14 38 LTE Band5ANT1 Body Front,Low,10mm 2022/05/14 39 LTE Band12ANT1 Right Cheek, Middle 2022/05/20 40 LTE Band12ANT1 Body Front, Middle ,10mm 2022/05/20 41 LTE Band17ANT1 Right Cheek Low 2022/05/20 42 LTE Band17ANT1 Body Front, Low ,10mm 2022/05/20 43 LTE Band41ANT2 Left Cheek Middle 2022/05/22 44 LTE Band41ANT2 Body Front, Middle ,10mm 2022/05/22 45 LTE Band41ANT2 Edge C, Middle ,10mm 2022/05/22 46 LTE Band41ANT5 Right Cheek High 2022/06/25 Report No. SET2022-07674 CCIC-SET/TRF:ISAR(2021-05-11) 2 / 131 47 LTE Band41ANT5 Body Back, High ,10mm 2022/06/25 48 LTE Band41ANT5 Edge A, High ,10mm 2022/06/25 49 NR5ANT1 50%RBRight Cheek, Low 2022/05/23 50 NR5ANT1 50%RBBody Front,Low,10mm 2022/05/23 51 NR41ANT2 Left Cheek Low 2022/06/14 52 NR41ANT2 Body Back,Low,10mm 2022/06/14 53 NR41ANT2 Edge C, Low ,10mm 2022/06/14 54 NR41ANT5 Right Cheek Low 2022/06/25 55 NR41ANT5 Body Back, Low ,10mm 2022/06/25 56 NR41ANT5 Edge D Repeat, Low ,10mm 2022/06/25 57 NR77ANT5 Right Cheek Middle 2022/06/13 58 NR77ANT5 Body Back,Middle,10mm 2022/06/13 59 NR77ANT5 Edge D,Middle,10mm 2022/06/13 60 NR77ANT11 Left Cheek Middle 2022/06/13 61 NR77ANT11 Body Back, Middle ,10mm 2022/06/13 62 NR77ANT11 Edge D, Middle ,10mm 2022/06/13 63 NR78ANT5 Right Cheek Middle 2022/06/13 64 NR78ANT5 Body Back, Middle ,10mm 2022/06/13 65 NR78ANT5 Edge D, Middle ,10mm 2022/06/13 66 NR78ANT11 Left Cheek Middle 2022/06/13 67 NR78ANT11 Body Back,Middle,10mm 2022/06/13 68 NR78ANT11 Edge D, Middle ,10mm 2022/06/13 69 WI-FI 2.4G 802.11bANT7 Right Cheek Middle 2022/06/02 70 WI-FI 2.4G 802.11bANT7 Body Back, Middle ,10mm 2022/06/02 71 WI-FI 2.4G 802.11bANT7 Edge A, Middle ,10mm 2022/06/02 72 WI-FI 2.4G 802.11bANT9 Left Cheek High 2022/06/02 73 WI-FI 2.4G 802.11bANT9 Body Front,High,10mm 2022/06/02 74 WI-FI 2.4G 802.11bANT9 Edge B, High ,10mm 2022/06/02 75 WI-F2.4G802.11n20ANT7+9 Left Cheek High 2022/06/02 76 WI-F2.4G802.11n20ANT7+9 Body Front,High,10mm 2022/06/02 77 WI-F2.4G802.11n20ANT7+9 Edge A, High ,10mm 2022/06/02 5GWIFI Standalone SAR 78 WI-FI U-NII 1802.11aANT8 Left Tilted Low 2022/06/20 79 WI-FI U-NII 1802.11aANT8 Body Front,Low,10mm 2022/06/20 80 WI-FI U-NII 1802.11aANT9 Left Cheek Middle 2022/06/20 81 WI-FI U-NII 1802.11aANT9 Body Back, Middle,10mm 2022/06/20 82 WI-FI U-NII 1 802.11n20ANT8+9 Right Cheek Low 2022/06/20 83 WI-FI U-NII 1 802.11n20ANT8+9 Body Back, Low ,10mm 2022/06/20 84 WI-FI U-NII 2A 802.11a ANT8 Left Tilted Middle 2022/06/21 85 WI-FI U-NII 2A 802.11a ANT8 Body Edge B, Middle, 10mm 2022/06/21 86 WI-FI U-NII 2A 802.11a ANT9 Left Cheek High 2022/06/21 87 WI-FI U-NII 2A 802.11a ANT9 Body Back, High ,10mm 2022/06/21 88 WI-FI U-NII 2A 802.11n20ANT8+9 Left Cheek Low 2022/06/21 89 WI-FI U-NII 2A Body Back, Low ,10mm 2022/06/21 Report No. SET2022-07674 CCIC-SET/TRF:ISAR(2021-05-11) 3 / 131 802.11n20ANT8+9 90 WI-FI U-NII 2C 802.11aANT8 Left Tilted High 2022/06/22 91 WI-FI U-NII 2C 802.11aANT8 Edge A, High ,10mm 2022/06/22 92 WI-FI U-NII 2C 802.11aANT9 Left Cheek Middle 2022/06/22 93 WI-FI U-NII 2C 802.11aANT9 Edge B, Middle ,10mm 2022/06/22 94 WI-FI U-NII 2C 802.11aANT8+9 Left Cheek Middle 2022/06/22 95 WI-FI U-NII 2C 802.11aANT8+9 Body Back, Middle ,10mm 2022/06/22 96 WI-FI U-NII 3 802.11aANT8 Left Tilted Low 2022/06/19 97 WI-FI U-NII 3 802.11aANT8 Edge A, Low ,10mm 2022/06/19 98 WI-FI U-NII 3 802.11aANT9 Left Cheek Low 2022/06/19 99 WI-FI U-NII 3 802.11aANT9 Edge B, Low ,10mm 2022/06/19 100 WI-FI U-NII 3 802.11aANT8+9 Left Cheek Low 2022/06/19 101 WI-FI U-NII 3 802.11aANT8+9 Body Back, Low ,10mm 2022/06/19 5GWIFI Simultaneous Transmissions SAR 102 WI-FI U-NII 1802.11aANT8 Left Tilted Low 2022/06/20 103 WI-FI U-NII 1802.11aANT8 Body Front,Low,10mm 2022/06/20 104 WI-FI U-NII 1802.11aANT9 Left Cheek Low 2022/06/20 105 WI-FI U-NII 1802.11aANT9 Body Back, Low,10mm 2022/06/20 106 WI-FI U-NII 1 802.11n20ANT8+9 Right Cheek High 2022/06/20 107 WI-FI U-NII 1 802.11n20ANT8+9 Body Back, High ,10mm 2022/06/20 108 WI-FI U-NII 2A 802.11a ANT8 Left Tilted Middle 2022/06/21 109 WI-FI U-NII 2A 802.11a ANT8 Body Edge B, Middle, 10mm 2022/06/21 110 WI-FI U-NII 2A 8…

Text truncated - open the document above for the full version.

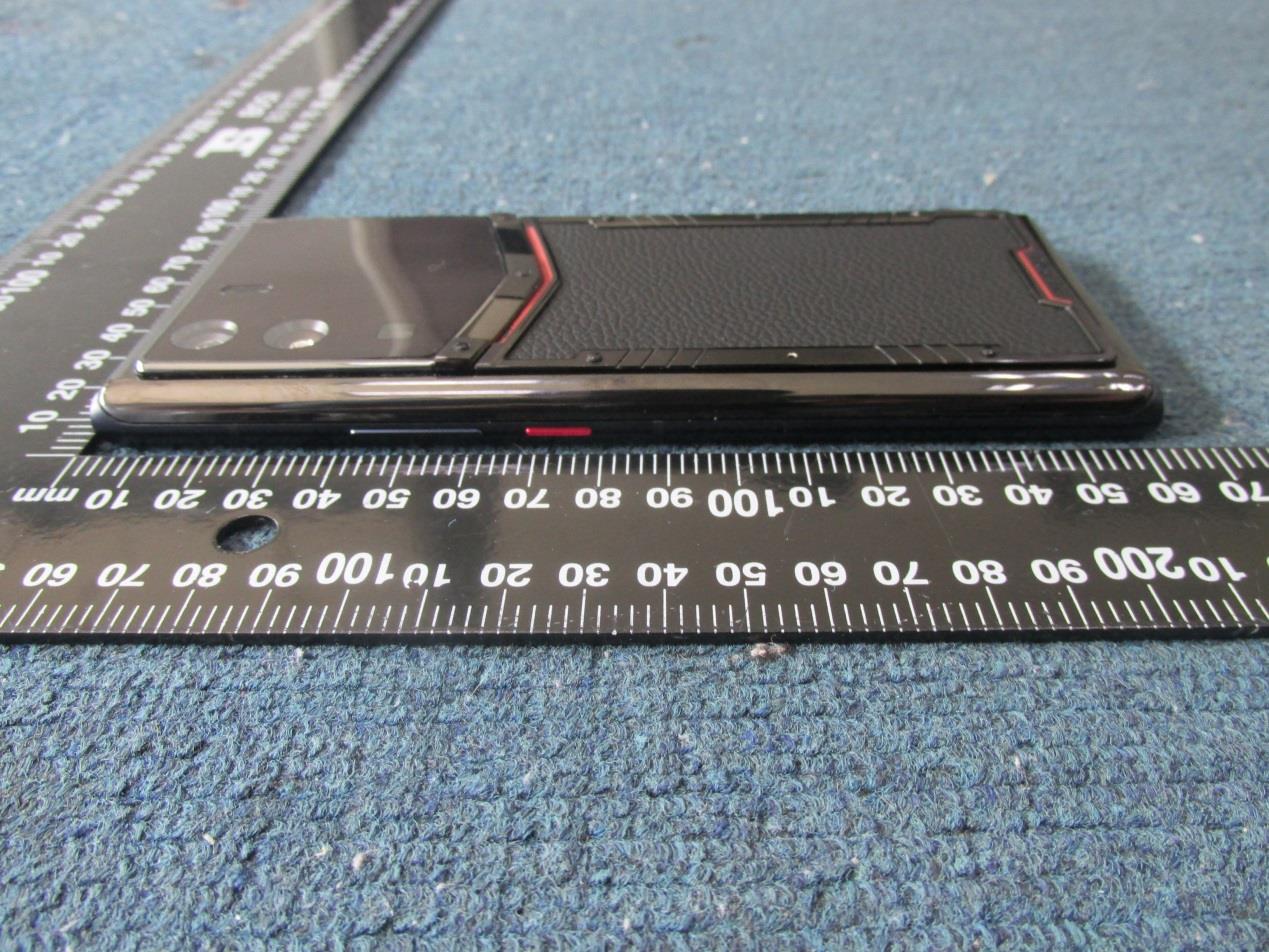

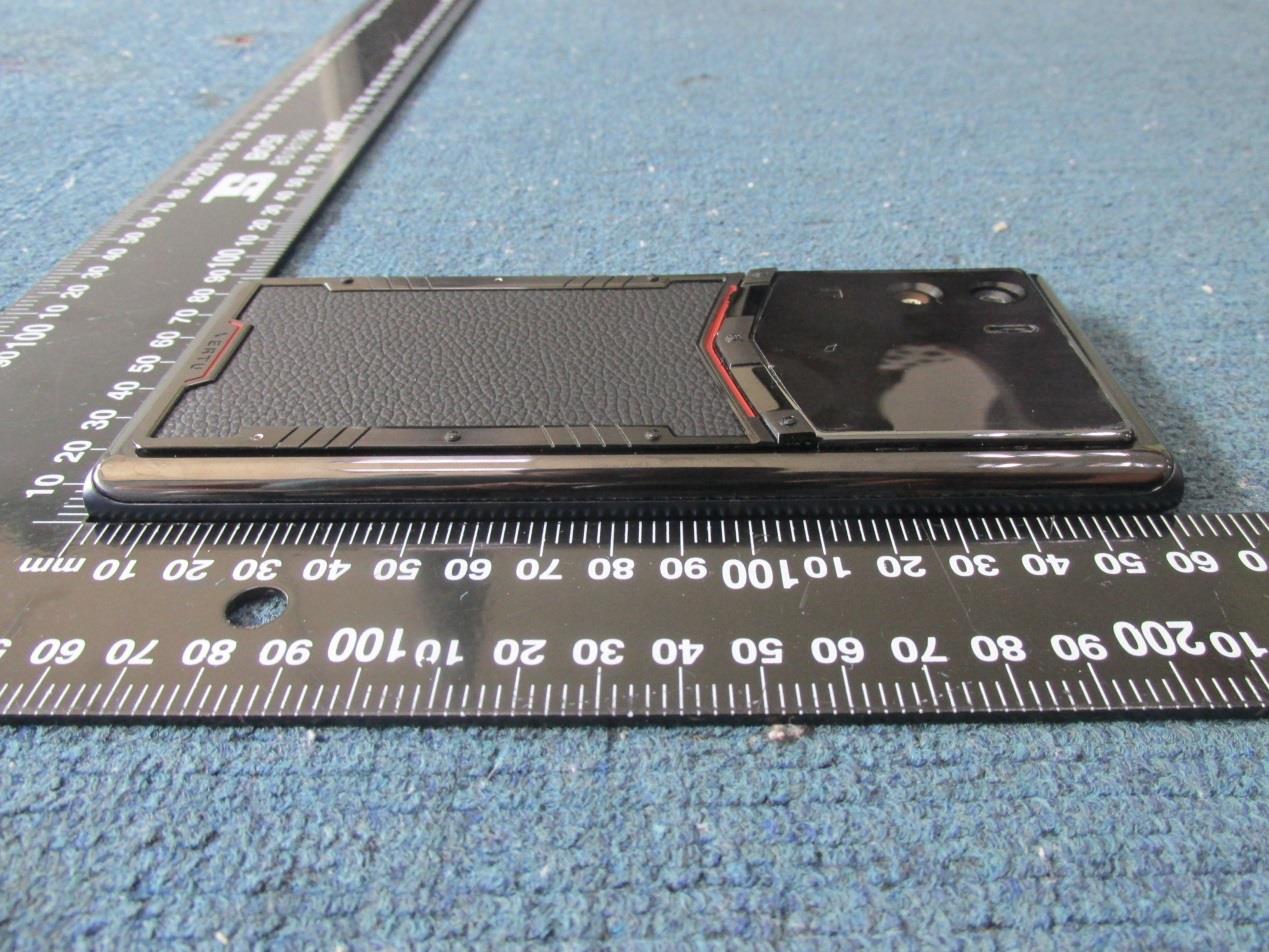

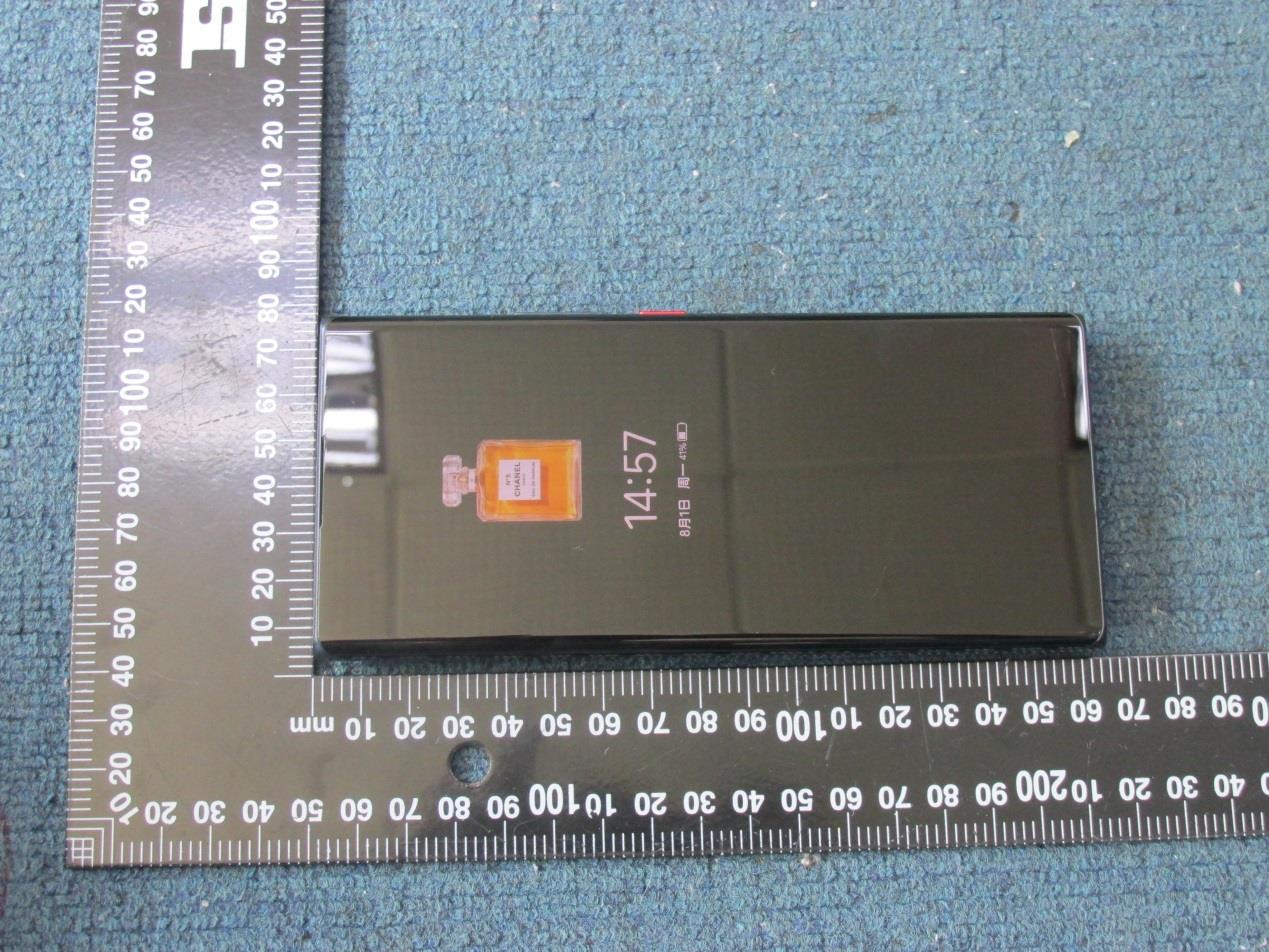

Report No. SET2022-07674 CCIC-SET/TRF:ISAR(2021-05-11) Page 1 of 3 Appendix D: SAR Test Setup Photo 1: Measurement System SATIMO Photo 2: Liquid deep(15cm) Photo 3: Right hand touched Photo 4: Right hand tilted 15° Photo 5: Left hand touched Photo 6: Left hand tilted 15° Report No. SET2022-07674 CCIC-SET/TRF:ISAR(2021-05-11) Page 2 of 3 Photo 7: Front Side 10mm Photo 8: Top ANT Back Side 10mm Photo 9: Bottom ANT Back Side 10mm Photo 10: Edge A 10mm Photo 11: Edge B 10mm Photo 12: Edge C 10mm Report No. SET2022-07674 CCIC-SET/TRF:ISAR(2021-05-11) Page 3 of 3 Photo 13: Edge D 10mm EUT Front View EUT Back View

Report No. SET2022-07674 CCIC-SET/TRF:ISAR(2021-05-11) Page 1 of 201 SAR TEST REPORT Report No.： SET2022-07674 Product Name： METAVERTU 5G digital mobile phone Model Name： VTL-202201 Trade Name： VERTU Brand Name： VERTU FCC ID： 2A6IQ-VTL202201 Applicant： VERTU INTERNATIONAL CORPORATION LIMITED Address： 25 St Thomas Street, Winchester, Hampshire, SO23 9HJ, United Kingdom Test Date： 2022/05/13~2022/07/11 Issued by： CCIC Southern Testing Co., Ltd. Lab Location： Electronic Testing Building, No. 43 Shahe Road Xili Street, Nanshan District，Shenzhen, Guangdong 518055，China Tel： 86 755 26627338 Fax：86 755 26627238 Mail： [email protected] Website：http://www.ccic-set.com This test report consists of 201 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No. SET2022-07674 CCIC-SET/TRF:ISAR(2021-05-11) Page 2 of 201 Test Report Applicant: VERTU INTERNATIONAL CORPORATION LIMITED Applicant Address: 25 St Thomas Street, Winchester, Hampshire, SO23 9HJ, United Kingdom Manufacturer: Chengdu Vertu Business and Service Management Co., Ltd Manufacturer Address: 1601,16th Floor, No. 1577 Middle Section of Tianfu Avenue, Chengdu High tech Zone, China (Sichuan) Pilot Free Trade Zone Test Standards: 47CFR §2.1093- Radiofrequency Radiation Exposure Evaluation: Portable Devices; ANSI C95.1–1992: Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz – 300 GHz.( IEEE Std C95.1-1991) RSS-102: Radio Frequency Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands)(Issue 5 of March 2015) IEEE 1528–2013: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques IEC/IEEE 62209-1528:2020 Measurement procedure for the assessment of specific absorption rate of human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices –Part 1528: Human models, instrumentation, and procedures (Frequency range of 4 MHz to 10 GHz) Test Result: Pass Tested by: Xinyuan Fang, Test Engineer 2022-07-14 Reviewed by: Chris You, Senior Engineer 2022-07-14 Approved by: Shuangwen Zhang , Manager 2022-07-14 Report No. SET2022-07674 CCIC-SET/TRF:ISAR(2021-05-11) Page 3 of 201 Contents Test Report ........................................................................................................................................... 2 1. Administrative Data ................................................................................................................... 4 2. Equipment Under Test (EUT) ................................................................................................... 5 3. SAR Summary ............................................................................................................................ 9 4. Specific Absorption Rate (SAR).............................................................................................. 14 5. Tissue check and recommend Dielectric Parameters ........................................................... 18 6. SAR measurement procedure ................................................................................................. 25 7. Power Reduction Configuration ............................................................................................. 26 8. Conducted RF Output Power ................................................................................................. 36 9. Antenna Location:.................................................................................................................. 100 10. Scaling Factor calculation ..................................................................................................... 102 11. Test Results ............................................................................................................................. 110 12. Simultaneous Transmissions Analysis .................................................................................. 169 13. Measurement Uncertainty ..................................................................................................... 196 14. Equipment List ....................................................................................................................... 200 ANNEX A: Appendix A: SAR System performance Check Plots................................................... 201 ANNEX B: Appendix B: SAR Measurement results Plots.............................................................. 201 ANNEX C: Appendix C: Calibration reports .................................................................................. 201 ANNEX D: Appendix D: SAR Test Setup ....................................................................................... 201 Report No. SET2022-07674 CCIC-SET/TRF:ISAR(2021-05-11) Page 4 of 201 1. Administrative Data 1.1 Testing Laboratory Test Site: CCIC Southern Testing Co., Ltd. Address: Electronic Testing Building, No. 43 Shahe Road Xili Street, Nanshan District，Shenzhen, Guangdong 518055，China A2LA Lab Code: CCIC-SET is a third party testing organization accredited by A2LA according to ISO/IEC 17025:2017. The accreditation certificate number is 5721.01 FCC Registration: CCIC Southern Testing Co., Ltd. EMC Laboratory has been registered and fully described in a report filed with the FCC (Federal Communications Commission). The acceptance letter from the FCC is maintained …
