2A6JE-SEPOX2001SMART DOOR LOCK

USER MANUAL Note 1. This lock is equipped with mechanical keys for manual unlocking. Remove mechanical keys from the package and keep them in a safe place and always have access to them. 2. To power on the lock, 4 x AA Alkaline batteries (included) are required. 3. This lock is used outdoors and indoors. The waterproof rating: IP45 4. Keep your fingers clean when using this lock, and use your whole fingerprint to unlock the door. Please read this manual before operating the smart lock, and keep it for further reference. App Control Door Lock via Bluetooth Specifications Material Door thickness Working Temperature Working Power Consumption Power Supply Unlocking Methods Aluminium Alloy 35mm-55mm -20°C~70°C 250mA 6V (4 x AA Alkaline Batteries) App, FingerprintMechanical Key 50 fingerprint users Front panel Back panel SEPOX 2001 20%~80%RH 60uA Model NO. Working Humidity Static Power Consumption 64 x 92 x 31 mm 72 x 144 x34 mm User Capacity Product Dimension All specifications are subject to change without notice. All rights reserved. This smart lock uses the latest technology to make your life easier. It can be operated via bluetooth using the mobile App, it's suited for Homes, Apartments, Offices, Airbnbs, Motels, Holiday Homes, etc. Three Ways to Access the Lock: App Access, Fingerprint & Mechanical Key. Rugged: Alloy body and strong design prevents forcible entry. Battery Dead Alarm: If the batteries are running low, the door lock will informs you through sound prompts. You can also check battery level on App. Emergency Power Supply: Emergency power supply interface equipped at the bottom of the front panel: to unlock the lock temporarily by connecting with a backup battery connect by USB Type-C cable. Real Time Record: You can check unlock records on your App. - 1 - Product Profile Features - 2 - A Front panel 1 Piece Mounting plate 1 Piece Back panel 1 Piece Deadbolt 1 Piece 1 Piece 1 Piece2 Piece F GH J K L BC DE M4 x 25mm 4 Piece M4 x 30mm (silver color) 2 Piece M4 x 30mm (black color) 1 Piece M4 x 8mm 2 Piece L K J A B H D E F C G Packing List Installation Diagram Back up screws Back up screws If door thickness > 45mm, use these screws. AA Battery 4 Piece - 3 - 26mm 58mm 54mm 60mm 27mm 1. Check door thickness and Door Frame. Installation Template 2. Check door opening direction. Door frame110mm Door thickness: 35~55mm Left open Right open Door frame 1. According to the map drilling holes on the door Note: 1) Check the required backset (60mm or 70mm). 2) Align the template along the vertical center line of the single latch (D) at the desired height,and tape it to the door. 3) Mark the holes first, then start drilling. Door Preparation Installation Instructions - 4 - 2. Install the deadbolt (D) with screws (E). 3. Install front panel (A). 4. Install mounting plate (B) with screws (G) on the door. Cable goes over the deadbolt. 10mm Note: To change deadbolt from 60mm to 70mm, twist the barrel clockwise, pull it out, and then twist anti clockwise to lock into the 70mm position. The deadbolt has Two backset options: 60mm(2.4in) or 70mm (2.8in). DO NOT Push the latch out during installation. Check that the UP mark is facing upwards before inserting the deadbolt into the hole. Keep the spindle vertical. B F Note: The cable goes through the notch on the lower right part of the mounting plate (B). The spindle can be cut if necessary for thinner doors. D A E - 5 - 5. Install back panel (C). 6. Install 4 x AA Alkaline batteries. 7. Mark and drill hole for strike plate(K). J Install 4 x AA Alkaline batteries. After installing batteries, the lock will automatically recognize left or right opening to match your door. Then test the lock by rotating the knob on back panel or using mechanical key to confirm smooth unlocking / locking before using the lock. E KL Use the sucker (Sucker and keys hang together) to remove the cover. G H C Note: Keep the knob VERTICAL when installing back panel(C). Tuck overlong cable into the door. Connect the cable. - 6 - 1. Tuya App Installation and Account Registration 1.1. Download the “Tuya Smart” App from Google play store or Apple store. 1.2. Install Tuya App and register an account with your phone number or email. Note: The App supports Android 4.3 / IOS7.0 version and above. Scan the QR code to download the App You can also add the lock manually: Open App - click “Add device” – “Camera & Lock” under “Electrical” bar – click the icon “Lock(BLE)” – “Next” – App search the device that can be add and automatically add it, and click “Done” 2. Pair the lock with Tuya App 2.1. Turn on the Bluetooth on your phone. 2.2. Open Tuya App. App will automatically search and display device that can be added. When you see the device(named “SEPOX 2001”), click “Add”, the lock is added successfully, you can rename the lock. Finally click “Done”. Note: 1. After successfully pairing, Tuya App on your phone becomes Administrator of the lock. 2. If you do not find the lock on App when pairing, please reset the lock (refer to “Resetting” on page 11, Mothed 2) first. Then you can pair the lock by following the steps above. 3. Once you pair the lock with your App account, the lock will not be able to link to other accounts, unless you remove the lock from your App. p In the initial state, the lock can be unlocked by any fingerprint. Please pair your lock with Tuya App by following below steps before using the lock. Pair the Lock with Tuya App - 7 - 1. Home Management & Member Management After pairing the lock with App, you can find the lock on the home page of App. Click the lock “SEPOX 2001” to enter operation page, tap and hold the icon to unlock. If you set your own fingerprint for unlocking the lock, you can skip “Home Management & Member Management” setting and refer to “Fingerprint Setting” on page 9 to directly set for yourself. If you set unlock permissions for family members or others, you should creat a home and add members at first. 1.1. Home Management The lock is auto-lock fo…

Text truncated - open the document above for the full version.

GUANGZHOU ONLENSE ELECTRONIC SCIENCE & TECHNOLOGY CO., LTD. Unit 201, No. 6, Zhongjiazhuang Xi RD, Dalong,Panyu, Guangzhou, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-8-12 To whom it may concern: We, GUANGZHOU ONLENSE ELECTRONIC SCIENCE & TECHNOLOGY CO., LTD., hereby certify that the equipment for which authorization is sought (FCC ID: 2A6JE-SEPOX2001) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Chen Hong CEO GUANGZHOU ONLENSE ELECTRONIC SCIENCE & TECHNOLOGY CO., LTD. 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

GUANGZHOU ONLENSE ELECTRONIC SCIENCE & TECHNOLOGY CO., LTD. Unit 201, No.6, Zhongjiazhuang Xi RD, Dalong, Panyu, Guangzhou, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024/07/30 U.S. Agent Designation GUANGZHOU ONLENSE ELECTRONIC SCIENCE & TECHNOLOGY CO., LTD. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2A6JE-SEPOX2001): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #2266 Colorado Springs COLORADO 80918 United States FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of GUANGZHOU ONLENSE ELECTRONIC SCIENCE & TECHNOLOGY CO., LTD. GUANGZHOU ONLENSE ELECTRONIC SCIENCE & TECHNOLOGY CO., LTD. with the FRN [0032280695] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Chen Hong Manager GUANGZHOU ONLENSE ELECTRONIC SCIENCE & TECHNOLOGY CO., LTD. Signature Michoux Logan PM GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

GUANGZHOU ONLENSE ELECTRONIC SCIENCE & TECHNOLOGY CO., LTD. Add: Unit 201, No. 6, Zhongjiazhuang Xi RD, Dalong,Panyu, Guangzhou, China Date: 2024-8-12 FCC ID: 2A6JE-SEPOX2001 Dear Sir/Madam, We, GUANGZHOU ONLENSE ELECTRONIC SCIENCE & TECHNOLOGY CO., LTD. Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: SMART DOOR LOCK Model no.: SEPOX 2001, 2308A, 2308ABL-F, 2308A-F, 2404C, 2311A, 2404D, 2404E, 2404F, 2406A, 2406B, 2408A, 2408B, 2408C, 2409A, 2409B, 2409C Sincerely, Name/Title： Chen Hong/CEO Company: GUANGZHOU ONLENSE ELECTRONIC SCIENCE & TECHNOLOGY CO., LTD. Address: Unit 201, No. 6, Zhongjiazhuang Xi RD, Dalong,Panyu, Guangzhou, China Phone: 02087373557 Fax: N/A E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-8-12> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2A6JE-SEPOX2001 SEPOX 2001 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Chen Hong/CEO Company: GUANGZHOU ONLENSE ELECTRONIC SCIENCE & TECHNOLOGY CO., LTD. Address: Unit 201, No. 6, Zhongjiazhuang Xi RD, Dalong,Panyu, Guangzhou, China Phone: 02087373557 Fax: N/A E-Mail: [email protected]

GUANGZHOU ONLENSE ELECTRONIC SCIENCE & TECHNOLOGY CO., LTD. Unit 201, No. 6, Zhongjiazhuang Xi RD, Dalong,Panyu, Guangzhou, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-8-12 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2A6JE-SEPOX2001 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Chen Hong/CEO Company: GUANGZHOU ONLENSE ELECTRONIC SCIENCE & TECHNOLOGY CO., LTD. Address: Unit 201, No. 6, Zhongjiazhuang Xi RD, Dalong,Panyu, Guangzhou, China Phone: 02087373557 Fax: N/A E-Mail: [email protected]

FCC ID: 2A6JE-SEPOX2001 External Photos of the EUT FCC ID: 2A6JE-SEPOX2001 FCC ID: 2A6JE-SEPOX2001

Label and Location Size: L: 2.0cm*W: 0.5cm Label and Location FCC ID : 2A6JE-SEPOX2001

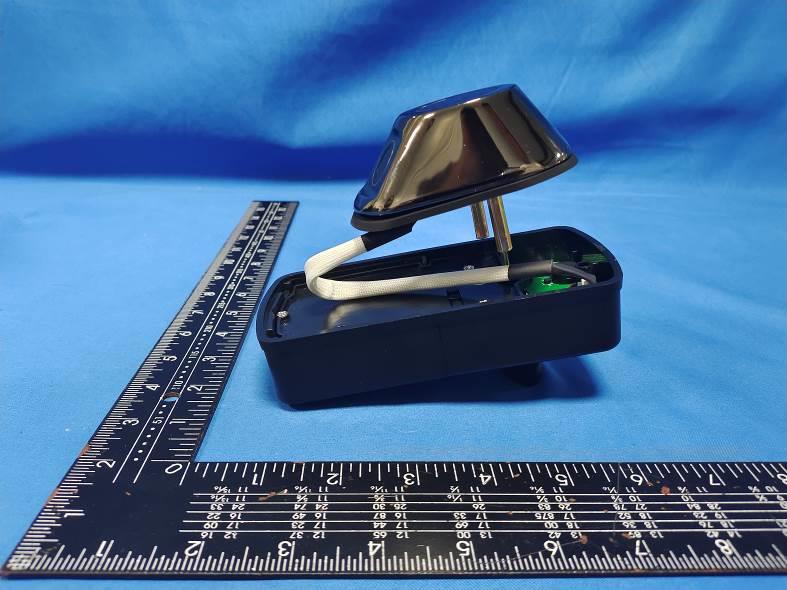

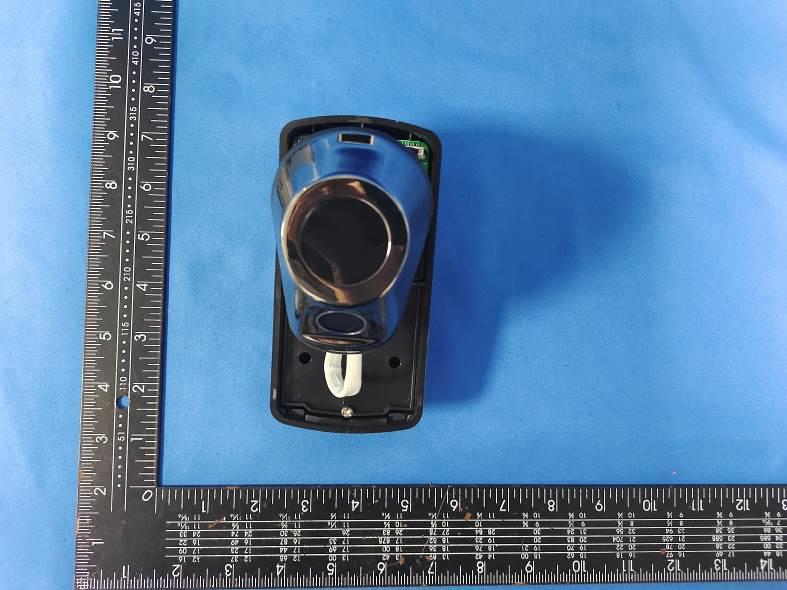

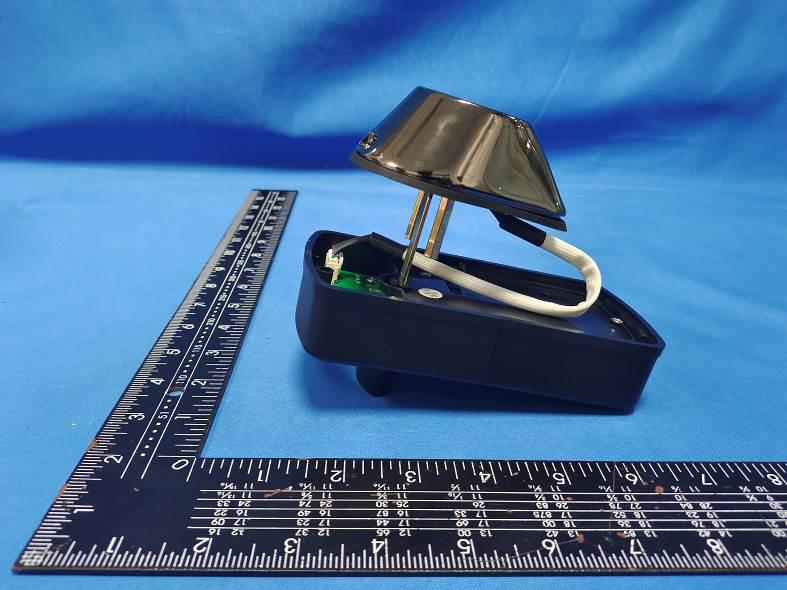

FCC ID: 2A6JE-SEPOX2001 Internal Photos of the EUT FCC ID: 2A6JE-SEPOX2001 FCC ID: 2A6JE-SEPOX2001 FCC ID: 2A6JE-SEPOX2001 ANT

RF Exposure evaluation FCC ID: 2A6JE-SEPOX2001 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) -1.0 -1.0 0.0 Tolerance ±(dB) 1.0 1.0 1.0 Page 2 of 2 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BLE 2.450 5 1.0 1.2589 0.3941<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

深圳市朋伴兴业科技有限公司 UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-1608Specification DOCUMENT NO. 1608 SPECREV. P1 1 产品规格承认书 SPECIFICATIONS 客户: CUSTOMER: 产品名称: DESCRIPTION:双极天线 客户型号: CUSTOMERPARTNO: 产品型号: OURMODELNO:PBX1608MC01 日期: DATE: 确认签字,盖章后请返回承认书一份 PLEASERETURNTOUSONECOPYOF“SPECIFICATIONFORAPPROVAL” WITHYOURAPPROVEDSIGNATURES 核准审核刘飞制作刘小美 客户承认签印 日期 深圳市朋伴兴业科技有限公司 UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-1608Specification DOCUMENT NO. 1608 SPECREV. P1 2 PBX1608MC01Specification 1. Features : ●Stableandreliableinperformances ●Lowprofile，compactsize ●RoHScompliance ●SMTprocessescompatible 2. APPLICATIONS : ●ISM2.4GHzapplications ●ZigBee/BLEapplications ●Bluetoothearphonesystems ●Hand-helddeviceswhenWiFi/Bluetoothfunctionsareneeded，e.g.，Smartphones ●IEEE802.11b/g/n ●WirelessPCMCIAcardsorUSBdongles 3.PartNumberInformation 深圳市朋伴兴业科技有限公司 UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-1608Specification DOCUMENT NO. 1608 SPECREV. P1 3 4.Productdimensions: 1608双极天线 5.ElectricalSpecification: 深圳市朋伴兴业科技有限公司 UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-1608Specification DOCUMENT NO. 1608 SPECREV. P1 4 6.1608双极天线推荐PCB 2 nd EvaluationBoardDimension 深圳市朋伴兴业科技有限公司 UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-1608Specification DOCUMENT NO. 1608 SPECREV. P1 5 深圳市朋伴兴业科技有限公司 UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-1608Specification DOCUMENT NO. 1608 SPECREV. P1 6 7.MeasurementResults ReturnLoss 7.2RadiationPattern 深圳市朋伴兴业科技有限公司 UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-1608Specification DOCUMENT NO. 1608 SPECREV. P1 7 8.RaliabilityandTestCondictions 9.SolderingandMounting 深圳市朋伴兴业科技有限公司 UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-1608Specification DOCUMENT NO. 1608 SPECREV. P1 8 10.天线应用注意事项 11.StorageandTransportationInformation 深圳市朋伴兴业科技有限公司 UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-1608Specification DOCUMENT NO. 1608 SPECREV. P1 9 12.Packing (1)Quantity/Reel：5000pcs/Reel (2)Plastictape：

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ............................................ : CTA24072000301 2A6JE-SEPOX2001 Compiled by ( position+printed name+signature) .. : File administrators Jinghua Xiao Supervised by ( position+printed name+signature) .. : Project Engineer Xudong Zhang Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Jul. 29, 2024 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : GUANGZHOU ONLENSE ELECTRONIC SCIENCE & TECHNOLOGY CO., LTD. Address ............................................ : Unit 201, No.6, Zhongjiazhuang Xi RD, Dalong, Panyu, Guangzhou, China Test specification ...........................: Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: SMART DOOR LOCK Trade Mark ....................................... : N/A Manufacturer .................................... : FOSHAN ONLENSE SCIENCE & TECHNOLOGY CO., LTD. Model/Type reference....................... : SEPOX 2001 Listed Models .................................. : 2308A, 2308ABL-F, 2308A-F, 2404C, 2311A, 2404D, 2404E, 2404F, 2406A, 2406B, 2408A, 2408B, 2408C, 2409A, 2409B, 2409C Modulation ....................................... : GFSK Frequency .......................................... From 2402MHz to 2480MHz Ratings ............................................. : DC 6.0V From battery and DC 5.0V From external circuit Result................................................ : PASS Report No.: CTA24072000301 Page 2 of 37 T E S T R E P O R T Equipment under Test : SMART DOOR LOCK Model /Type : SEPOX 2001 Listed Models : 2308A, 2308ABL-F, 2308A-F, 2404C, 2311A, 2404D, 2404E, 2404F, 2406A, 2406B, 2408A, 2408B, 2408C, 2409A, 2409B, 2409C Applicant : GUANGZHOU ONLENSE ELECTRONIC SCIENCE & TECHNOLOGY CO., LTD. Address : Unit 201, No.6, Zhongjiazhuang Xi RD, Dalong, Panyu, Guangzhou, China Manufacturer : FOSHAN ONLENSE SCIENCE & TECHNOLOGY CO., LTD. Address : Floor 6, Unit 2, Building 24,Huazhi Technology & Creative Center, Beijiao, Shunde, Foshan, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24072000301 Page 3 of 37 Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 11 4.1 AC Power Conducted Emission 11 4.2 Radiated Emissions and Band Edge 14 4.3 Maximum Peak Output Power 20 4.4 Power Spectral Density 21 4.5 6dB Bandwidth 23 4.6 Out-of-band Emissions 25 4.7 Antenna Requirement 29 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 30 6 P H O T O S O F T H E E U T ........................................................... 31 Report No.: CTA24072000301 Page 4 of 37 1 T E S T ST A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 V03r05: Guidance for Performing Compliance Measurements on Digital Transmission Systems (DTS) Operating Under §15.247 Report No.: CTA24072000301 Page 5 of 37 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Jul. 19, 2024 Testing commenced on : Jul. 19, 2024 Testing concluded on : Jul. 29, 2024 2.2 Product Description Product Description: SMART DOOR LOCK Model/Type reference: SEPOX 2001 Power supply: DC 6.0V From battery and DC 5.0V From external circuit Adapter information (Auxiliary test supplied by test Lab) : Model: EP-TA20CBC Input: AC 100-240V 50/60HZ Output: DC 5V 2A Testing sample ID： CTA240720003-1# (Engineer sample), CTA240720003-2# (Normal sample) Bluetooth BLE Supported type: Bluetooth low Energy Modulation: GFSK Operation frequency: 2402MHz to 2480MHz Channel number: 40 Channel separation: 2 MHz Antenna type: Ceramic antenna Antenna gain: 1.66 dBi 2.3 Equipment Under Test Power supply system utilised Power supply voltage : ○ 230V / 50 Hz ○ 120V / 60Hz ○ 12 V DC ○ 24 V DC ● Other (specified in blank below) DC 6.0…
