2A6P9-APID-201Portable Infotainment Display

USER MANUAL Vehicle Portable Multifunction Display Tap on Settings --> tap on Bluetooth to see the device Bluetooth name BLUETOOTH CONNECTION Search the device bluetooth name and connect it, phone will pop up 'Bluetooth Pairing Request', tap 'Pair'to successfully connect HOW TO USE WIRELESS CARPLAY/WIRED CARPLAY Tap on Settings --> Smart Phone --> Apple Device --> set to CarPlay Wireless CarPlay Connection: Connect your iPhone Bluetooth to the device Bluetooth rst, after that phone will pop up 'Use CarPlay'conrmation when pairing for the rst time time, please select pair to achieve wireless CarPlay connection. Wired CarPlay Connection: Connect the Apple charging cable from phone to the USB port of the device. HOW TO USE ANDROID AUTO WIRED ANDROID ATO Tap on Settings --> Smart Phone --> Android Device --> set to Android Auto Wireless Android Auto Connection: Connect your phone Bluetooth to the device Bluetooth rst, after that device will pop up android auto icon with your phone name, tap phone name to achieve wireless android auto connection Wired Android Auto Connection: Connect the android charging cable from phone to the USB port of the device. Note: If your phone doesn't have Android Auto, please go to google play app store to nstall Android Auto. HOW TO USE AIRPLAY Tap on Settings --> Smart Phone --> Apple Device --> set toiOSMirror Wireless Connection: Use your iPhone to connect the unit WiFi and turn on iPhone screen mirroring, tap the device name to start screen mirroring. Wired Connection: Use a cable to connect your iphone to the device and allow the authorization request of the phone. HOW TO USE PHONELINK HOW TO Search for FM Tap on Settings --> Smart Phone --> Android Device --> set to Auto Link Use your android phone to connect the unit by USB data cable, it will start android phone mirroring. Note: Before using this function, please make sure that you have installed the Autolink app on your android phone you can download Autolink ( from google play store). T his unit has built-in speaker, but if you want louder sound, you can transfer it to your car's speakers: 1. By FM radio Receveing- set the same FM radio channel on the unit and your car's radio please avoid using the channel to be ( occupied by the FM station) 100x145MM FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

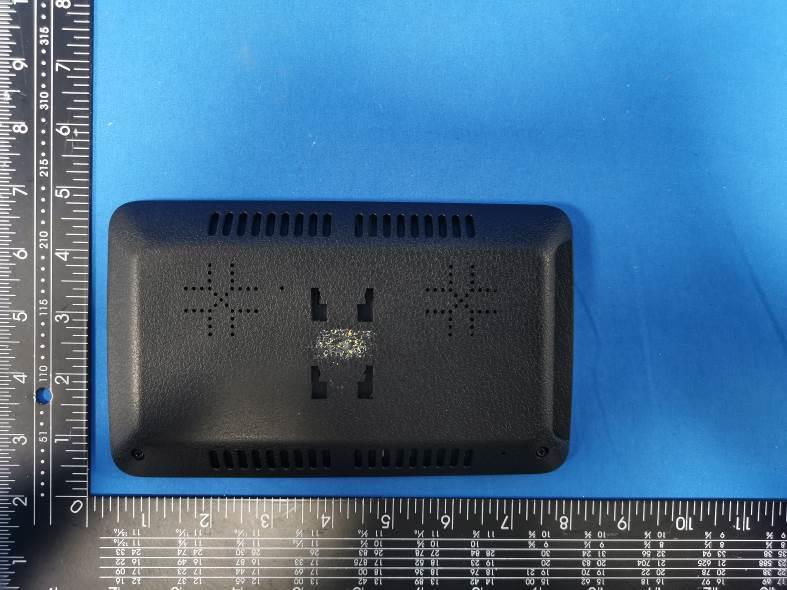

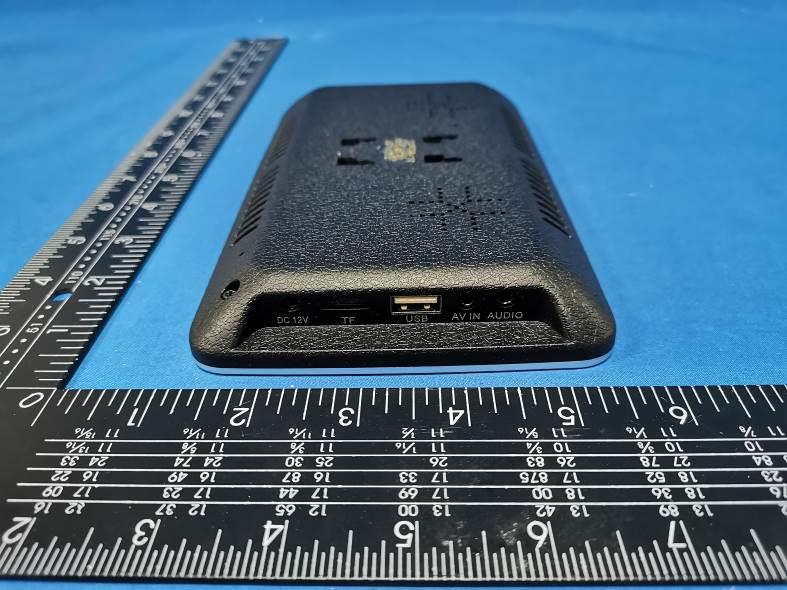

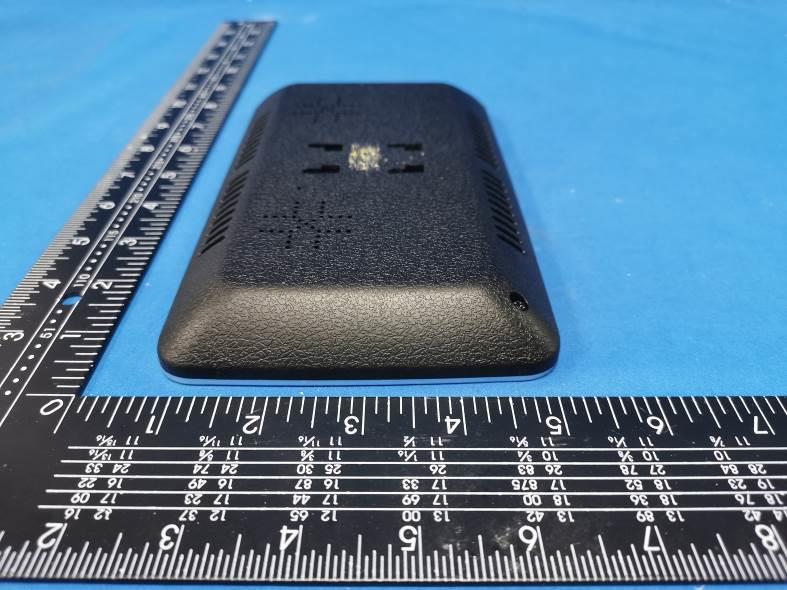

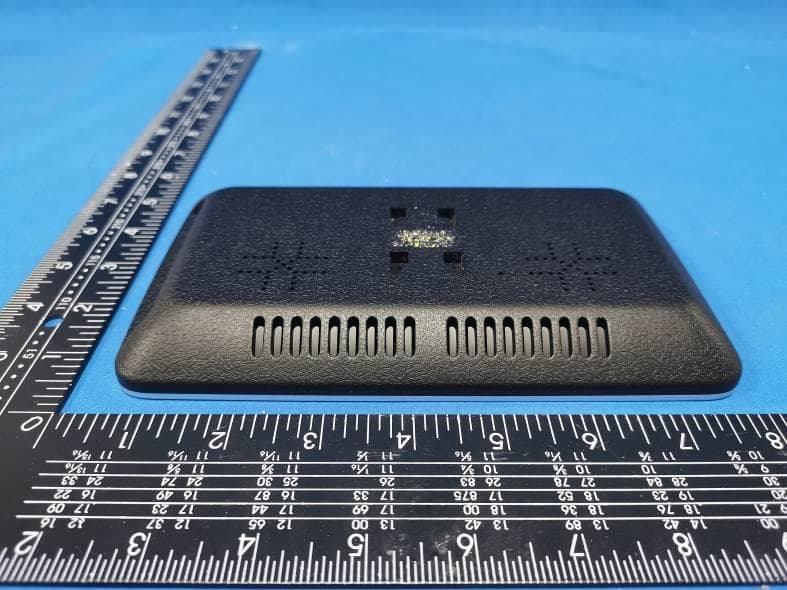

FCC ID: 2A6P9-APID-201 External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2A6P9-APID-201 Photo 4 Photo 5 Photo 6 FCC ID: 2A6P9-APID-201 Photo 7

Label and Location Size: L: 3.0cm*W: 1.5cm Label and Location Model No.: APID-201 FCC ID : 2A6P9-APID-201

FCC ID: 2A6P9-APID-201 Internal Photos of the EUT Photo 1 Photo 2 Photo 3 FM (RX) Antenna FCC ID: 2A6P9-APID-201 Photo 4 Photo 5 Photo 6 BT/BLE (PCB)Antenna 2.4GWIFI/5G WIFI(PCB)A ntenna

RF Exposure evaluation FCC ID: 2A6P9-APID-201 Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information APID-201 can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: BT / PCB antenna 1.49dBi for 2400-2500MHz; 2.4GWIFI / PCB antenna 1.46dBi for 2400-2500MHz 5GWIFI / PCB antenna 2.62dBi for 5000-6000MHz 5. Manufacturing Tolerance BT GFSK(Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) 2.0 2.0 2.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) 2.0 2.0 2.0 Tolerance ±(dB) 1.0 1.0 1.0 8DPSK (Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) 2.0 2.0 2.0 Tolerance ±(dB) 1.0 1.0 1.0 BLE GFSK(Peak) Channel Channel 00 Channel 19 Channel 39 Target (dBm) 0 0 0 Tolerance ±(dB) 1.0 1.0 1.0 WIFI(Peak) ANT1 Frequency (MHz) 11b 2412 2437 2462 Target (dBm) 14.0 14.0 15.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11g 2412 2437 2462 Target (dBm) 14.0 14.0 15.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11n(HT20) 2412 2437 2462 Target (dBm) 14.0 14.0 15.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11n(HT40) 2422 2437 2452 Target (dBm) 14.0 14.0 15.0 Tolerance ± (dB) 1.0 1.0 1.0 [5.2GHz WLAN] ANT 1 IEEE 802.11A (Average) Frequency (MHz) 5180 5220 5240 Target (dBm) 13.0 13.0 13.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11n20 (Average) Frequency (MHz) 5180 5220 5240 Target (dBm) 13.0 13.0 13.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11ac20 (Average) Frequency (MHz) 5180 5220 5240 Target (dBm) 13.0 13.0 13.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11n40 (Average) Frequency (MHz) 5190 / 5230 Target (dBm) 13.0 / 13.0 Tolerance ± (dB) 1.0 / 1.0 IEEE 802.11ac40 (Average) Frequency (MHz) 5190 / 5230 Target (dBm) 13.0 / 13.0 Tolerance ± (dB) 1.0 / 1.0 IEEE 802.11ac80 (Average) Frequency (MHz) / 5210 / Target (dBm) / 13.0 / Tolerance ± (dB) / 1.0 / [5.8GHz WLAN] ANT1 IEEE 802.11A (Average) Frequency (MHz) 5745 5785 5825 Target (dBm) 11.0 11.0 11.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11n20 (Average) Frequency (MHz) 5745 5785 5825 Target (dBm) 11.0 11.0 11.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11ac20 (Average) Frequency (MHz) 5745 5785 5825 Target (dBm) 11.0 11.0 11.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11n40 (Average) Frequency (MHz) 5755 / 5795 Target (dBm) 11.0 / 11.0 Tolerance ± (dB) 1.0 / 1.0 IEEE 802.11ac40 (Average) Frequency (MHz) 5755 / 5795 Target (dBm) 11.0 / 11.0 Tolerance ± (dB) 1.0 / 1.0 IEEE 802.11ac80 (Average) Frequency (MHz) / 5775 / Target (dBm) / 11.0 / Tolerance ± (dB) / 1.0 / 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna refer to section 4, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW BT 3.0 1.9953 1.49 1.4093 0.0006 1.0000 BLE 1.0 1.2589 1.49 1.4093 0.0004 1.0000 2.4GWIFI 16.0 39.8107 1.46 1.3996 0.0111 1.0000 5.2GWIFI 14.0 25.1189 2.62 1.8281 0.0091 1.0000 5.8GWIFI 12.0 15.8489 2.62 1.8281 0.0058 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. simultaneous MPE Result 2.4GWIFI MPE (Ratio) BT MPE (Ratio) simultaneous MPE (Ratio) MPE Limits (Ratio) 0.0111 0.0006 0.0117 1.0000 8. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

1. Antenna Description: Antenna type PCB antenna Model APID-201 Frequency range 5000-5800MHz Manufacturer Huizhou Funnavi Electronics Co., Ltd ANT Peak Gain 2.62 dBi 2. Antenna Photo: 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods Length :20.54mm Width:6.04mm 4．Antenna Radiation Pattern

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15 SUBPART E 15.407 Report Reference No. ..................... : FCC ID............................................. : CTA22123001204 2A6P9-APID-201 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Amy Wen Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jan. 06, 2023 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Promaster Electronic LLC Address ............................................ : 25511 Budde Rd, Suite 1602,The Woodlands, Texas, 77380. USA Test specification ........................... : Standard ........................................... : FCC Part 15 Subpart E 15.407 TRF Originator .................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Portable Infotainment Display Trade Mark ....................................... : Autosky Manufacturer .................................... : Huizhou Funnavi Electronics Co., Ltd Model/Type reference ...................... : APID-201 Listed Models .................................. : N/A Modulation ....................................... : OFDM Frequency ......................................... From 5180MHz-5240MHz, 5745MHz-5825MHz Ratings ............................................. : DC 12.0V From Battery Result ............................................... : PASS Report No.: CTA22123001204 Page 2 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Portable Infotainment Display Model /Type : APID-201 Serial Models : N/A Applicant : Promaster Electronic LLC Address : 25511 Budde Rd, Suite 1602,The Woodlands, Texas, 77380. USA Manufacturer : Huizhou Funnavi Electronics Co., Ltd Address : 3rd floor, No.:25 Xiangda road Xiao Jin kou street, Huicheng district, Huizhou city, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA22123001204 Page 3 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S .................................................................. 4 2 S U M M A R Y ............................................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T ............................................................... 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Test Description 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R ES U L T S ............................................ 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emissions 11 4.3 Maximum Conducted Average Output Power 17 4.4 Power Spectral Density 20 4.5 Emission Bandwidth (26dB Bandwidth) 28 4.6 Minimum Emission Bandwidth (6dB Bandwidth) 32 4.7 Frequency Stability 36 5 T E S T S E T U P P H O T O S O F T H E E U T .......................................... 38 6 P H O T O S O F T H E E U T ............................................................. 38 Report No.: CTA22123001204 Page 4 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T AN D A R D S The tests were performed according to following standards: FCC Rules Part 15 Subpart E—Unlicensed National Information Infrastructure Devices ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB789033 D02: General UNII Test Procedures New Rules v01r02 Report No.: CTA22123001204 Page 5 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Dec. 30, 2022 Testing commenced on : Dec. 30, 2…

Text truncated - open the document above for the full version.

Report No.: CTA22123001204 Page 33 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Test plot as follows: 802.11a 802.11n(HT20) CH149 CH149 CH157 CH157 CH165 CH165 Report No.: CTA22123001204 Page 34 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n(HT40) 802.11ac(HT20) CH151 CH149 CH159 CH157 CH165 Report No.: CTA22123001204 Page 35 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11ac(HT40) 802.11ac(HT80) CH151 CH155 / CH159 / Report No.: CTA22123001204 Page 36 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.7 Frequency Stability LIMIT Manufacturers of U-NII devices are responsible for ensuring frequency stability such that an emission is maintained within the band of operation under all conditions of normal operation as specified in the users manual. TEST CONFIGURATION TEST PROCEDURE Frequency Stability under Temperature Variations: The equipment under test was connected to an external AC or DC power supply and input rated voltage. RF output was connected to a frequency counter or spectrum analyzer via feed through attenuators. The EUT was placed inside the temperature chamber. Set the spectrum analyzer RBW low enough to obtain the desired frequency resolution and measure EUT 20°C operating frequency as reference frequency. Turn EUT off and set the chamber temperature to -30°C. After the temperature stabilized for approximately 30 minutes recorded the frequency. Repeat step measure with 10°C increased per stage until the highest temperature of +50°C reached. Frequency Stability under Voltage Variations: Set chamber temperature to 20°C. Use a variable AC power supply / DC power source to power the EUT and set the voltage to rated voltage. Set the spectrum analyzer RBW low enough to obtain the desired frequency resolution and recorded the frequency. Reduce the input voltage to specify extreme voltage variation (±15%) and endpoint, record the maximum frequency change. TEST RESULTS Record worst case as below: Report No.: CTA22123001204 Page 37 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Reference Frequency: 802.11ac channel=36 frequency=5180MHz Voltage ( V ) Temperature (°C) Frequency error Limit (ppm) Result Hz ppm DC12.0 -30 110.75 0.021380 Within the band of operation Pass -20 174.43 0.033674 -10 145.19 0.028029 0 146.68 0.028317 10 145.92 0.028170 20 99.75 0.019257 30 167.54 0.032344 40 129.30 0.024961 50 130.46 0.025185 DC13.2 25 194.53 0.037554 DC10.8 25 118.27 0.022832 Reference Frequency: 802.11ac channel=149 frequency=5745MHz Voltage ( V ) Temperature (°C) Frequency error Limit (ppm) Result Hz ppm DC12.0 -30 135.89 0.023654 Within the band of operation Pass -20 130.56 0.022726 -10 167.74 0.029198 0 169.28 0.029466 10 137.46 0.023927 20 143.39 0.024959 30 117.85 0.020513 40 169.21 0.029453 50 160.63 0.027960 DC13.2 25 150.94 0.026273 DC10.8 25 130.56 0.022726 Report No.: CTA22123001204 Page 38 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 5 T e s t S e t u p P h o t o s o f t h e E U T 6 P h o t o s o f t h e E U T Reference to the test report No. CTA22123001204 ********************** End of Report **********************

FCC ID: 2A6P9-APID-201 Test Setup Photos of the EUT
