2A6P9-NWCWireless CP adaptor

Promaster Electronic LLC 25511 Budde Rd Suite 1602 The Woodlands Texas United States Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023-12-20 U.S. Agent Designation Promaster Electronic LLC acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2A6P9-NWC): Name and company of U.S. agent: Promaster Electronic LLC Physical U.S. address of agent: 25511 Budde Rd Suite 1602 The Woodlands Texas United States FRN of U.S. agent: 0032356586 Email address of U.S. agent: [email protected] Promaster Electronic LLC acknowledges their obligation to accept service of process on behalf of Promaster Electronic LLC . Promaster Electronic LLC with the FRN [0032356586] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Antonio Lopez Manager Promaster Electronic LLC Signature Antonio Lopez Manager Promaster Electronic LLC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Sincerely, Name/Title： Antonio Lopez/Manager Company: Promaster Electronic LLC Address: 25511 Budde Rd Suite 1602 The Woodlands Texas United States Phone: (832) 813-5123 Fax: N/A E-Mail: [email protected]

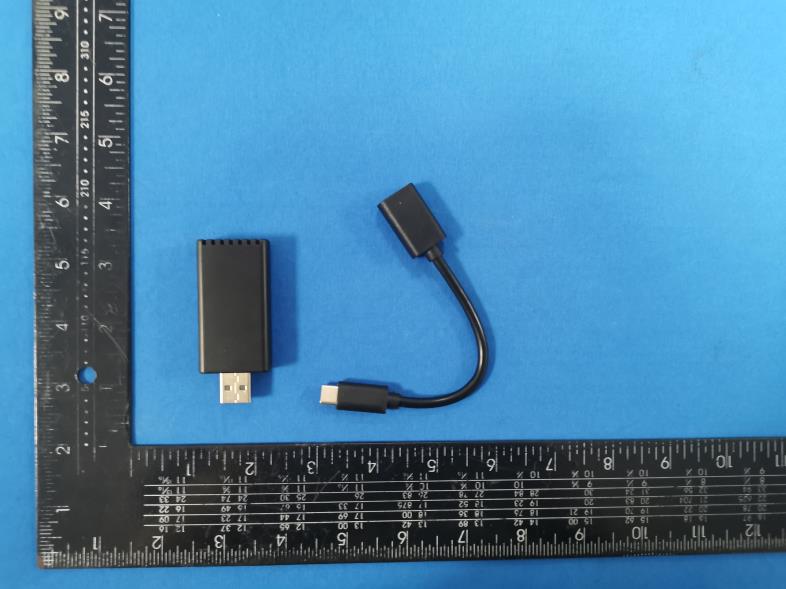

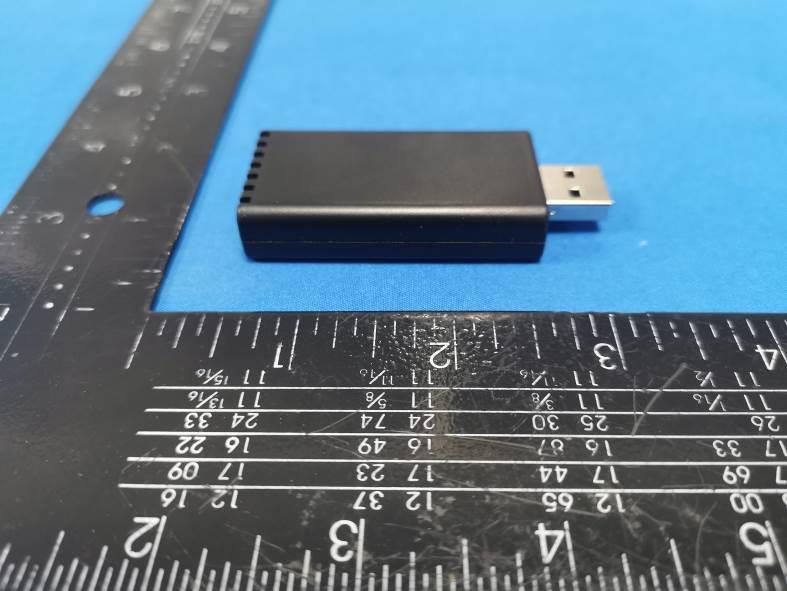

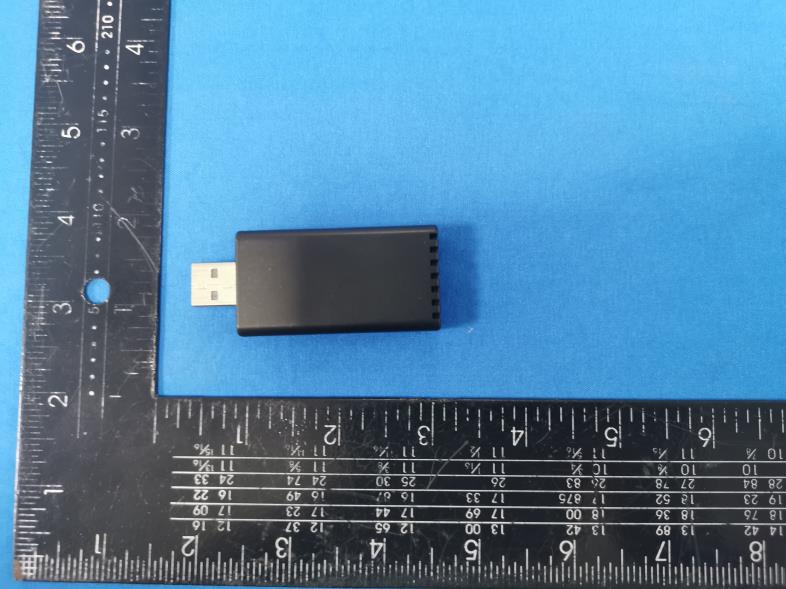

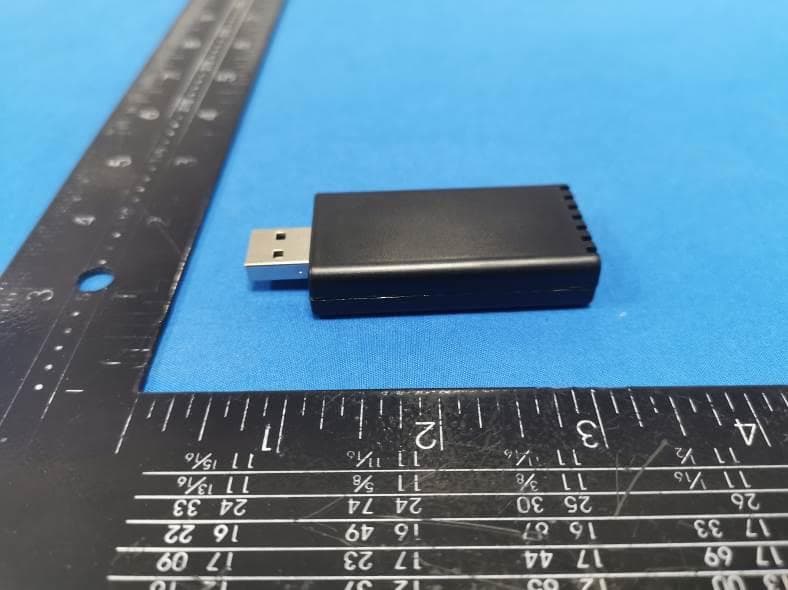

FCC ID: 2A6P9-NWC External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2A6P9-NWC Photo 4 Photo 5 Photo 6 FCC ID: 2A6P9-NWC Photo 7

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location Model No.: WUA-1 FCC ID : 2A6P9-NWC

FCC ID: 2A6P9-NWC Internal Photos of the EUT Photo 1 Photo 2 Photo 3 BT PCB Antenna 2.4GWIFI/5G WIFI PCB Antenna 1 2.4GWIFI/5G WIFI PCB Antenna 2 FCC ID: 2A6P9-NWC Photo 4

RF Exposure evaluation FCC ID: 2A6P9-NWC 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance BT Mode Max. Peak Conducted Output Power (dBm) Max. tune-up Antenna Antenna BT 2.45 3±1 BLE 4.62 4±1 2.4GWIFI Mode Max. Peak Conducted Output Power (dBm) Max. tune-up Antenna0 Antenna1 Antenna0 Antenna1 2.4GWIFI 8.42 8.36 7.5±1 7.5±1 Page 2 of 2 5GWIFI Mode Max. Average Conducted Output Power (dBm) Max. tune-up Antenna0 Antenna1 Antenna0 Antenna1 5.2GWIFI 5.5 5.52 5.0±1 5.0±1 5.8GWIFI 6.43 6.22 5.5±1 5.5±1 2. E v a l u a t i o n R e s u l t Evaluation Results ANT0 Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BT 2.450 5 4.0 2.5119 0.7896<3.0 Yes BLE 2.450 5 5.0 3.1623 0.9899<3.0 Yes AT1 Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW 2.4GWIFI 2.450 5 8.5 7.0795 2.2162<3.0 Yes 5.2GWIFI 5.2 5 6.0 3.9811 1.8156<3.0 Yes 5.8GWIFI 5.8 5 6.5 4.4668 2.1515<3.0 Yes ANT2 Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW 2.4GWIFI 2.450 5 8.5 7.0795 2.2162<3.0 Yes 5.2GWIFI 5.2 5 6.0 3.9811 1.8156<3.0 Yes 5.8GWIFI 5.8 5 6.5 4.4668 2.1515<3.0 Yes Simultaneous Transmission for SAR Exclusion The sample support one BT antenna and two WLAN antennas, need consider simultaneous transmission; ∑ of (the highest measured or estimated SAR BT +SAR WLANant0 +SAR WLANant1 )/1.6 = (0.1333+ 0.2895+ 0.2895)/1.6 = 0.4452 < 1.0; 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

1. Antenna Description: Antenna type PCB antenna Model WUA-1-WIFI Frequency range 5180-5240MHz, 5745-5825MHz Manufacturer Promaster Electronic LLC ANT Peak Gain 0.00 dBi 2. Antenna Photo: 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 5180MHz 5220MHz 5240MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15 SUBPART E 15.407 Report Reference No. ..................... : FCC ID............................................. : CTA23113000204 2A6P9-NWC Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Amy Wen Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Dec. 18, 2023 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Promaster Electronic LLC Address ............................................ : 25511 Budde Rd, Ste 1602. Spring, TX, 77380. USA Test specification ........................... : Standard ........................................... : FCC Part 15 Subpart E 15.407 TRF Originator .................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Wireless CP adaptor Trade Mark ....................................... : Autosky Manufacturer .................................... : Huizhou Funnavi Electronics Co., Ltd Model/Type reference ...................... : WUA-1 Listed Models .................................. : WUA-6, WUA-7, WUA-8 Modulation ....................................... : OFDM Frequency ......................................... From 5180MHz-5240MHz, 5745MHz-5825MHz Ratings ............................................. : DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA23113000204 Page 2 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Wireless CP adaptor Model /Type : WUA-1 Serial Models : WUA-6, WUA-7, WUA-8 Applicant : Promaster Electronic LLC Address : 25511 Budde Rd, Ste 1602. Spring, TX, 77380. USA Manufacturer : Huizhou Funnavi Electronics Co., Ltd Address : 3rd floor, No.:25 Xiangda road Xiao Jin kou street, Huicheng district, Huizhou city, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA23113000204 Page 3 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Test Description 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 8 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 11 4.1 AC Power Conducted Emission 11 4.2 Radiated Emissions 14 4.3 Maximum Conducted Average Output Power 20 4.4 Power Spectral Density 26 4.5 Emission Bandwidth (26dB Bandwidth) 40 4.6 Minimum Emission Bandwidth (6dB Bandwidth) 48 4.7 Frequency Stability 56 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 59 6 P H O T O S O F T H E E U T ........................................................... 60 Report No.: CTA23113000204 Page 4 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15 Subpart E—Unlicensed National Information Infrastructure Devices ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB789033 D02: General UNII Test Procedures New Rules v01r02 Report No.: CTA23113000204 Page 5 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Dec. 18, 2023 Testing commenced on : Dec. 18, 2023 Testing conclu…

Text truncated - open the document above for the full version.

Report No.: CTA23113000204 Page 36 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n(HT20) U-NII 1 U-NII 3 CH36 CH149 CH40 CH157 CH48 CH165 Report No.: CTA23113000204 Page 37 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n(HT40) U-NII 1 U-NII 3 CH38 CH151 CH46 CH159 Report No.: CTA23113000204 Page 38 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11ac(HT20) U-NII 1 U-NII 3 CH36 CH149 CH40 CH157 CH48 CH165 Report No.: CTA23113000204 Page 39 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11ac(HT40) U-NII 1 U-NII 3 CH38 CH151 CH46 CH159 802.11ac(HT80) U-NII 1 U-NII 3 CH42 CH155 Report No.: CTA23113000204 Page 40 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.5 Emission Bandwidth (26dB Bandwidth) Limit N/A Test Procedure 1. Set resolution bandwidth (RBW) = approximately 1 % of the EBW. 2. Set the video bandwidth (VBW) > RBW. 3. Detector = Peak. 4. Trace mode = Max hold. 5. Measure the maximum width of the emission that is 26 dB down from the peak of the emission. Compare this with the RBW setting of the analyzer. Readjust RBW and repeat measurement as needed until the RBW / EBW ratio is approximately 1 %. Test Configuration EUT SPECTRUM ANALYZER Test Results ANT 1 Type Bands Channel 26dB Bandwidth (MHz) Limit (MHz) Result 802.11a U-NII 1 36 19.760 N/A Pass 44 19.480 48 19.720 802.11n(HT20) U-NII 1 36 20.040 44 19.880 48 20.160 802.11n(HT40) U-NII 1 38 40.160 46 40.480 802.11ac(HT20) U-NII 1 36 19.880 44 20.040 48 20.120 802.11ac(HT40) U-NII 1 38 40.240 46 40.000 802.11ac(HT80) U-NII 1 42 80.640 Report No.: CTA23113000204 Page 41 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn ANT 2 Type Bands Channel 26dB Bandwidth (MHz) Limit (MHz) Result 802.11a U-NII 1 36 20.040 N/A Pass 44 19.600 48 19.760 802.11n(HT20) U-NII 1 36 20.320 44 20.080 48 19.920 802.11n(HT40) U-NII 1 38 40.000 46 40.240 802.11ac(HT20) U-NII 1 36 19.960 44 19.960 48 20.040 802.11ac(HT40) U-NII 1 38 40.560 46 39.920 802.11ac(HT80) U-NII 1 42 80.640 Test plot as follows: Report No.: CTA23113000204 Page 42 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn ANT 1 802.11a 802.11n(HT20) CH36 CH36 CH40 CH40 CH48 CH48 Report No.: CTA23113000204 Page 43 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n(HT40) 802.11ac(HT20) CH38 CH36 CH46 CH40 CH48 Report No.: CTA23113000204 Page 44 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11ac(HT40) 802.11ac(HT80) CH38 CH42 CH46 Report No.: CTA23113000204 Page 45 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn ANT 2 802.11a 802.11n(HT20) CH36 CH36 CH40 CH40 CH48 CH48

Report No.: CTA23113000204 Page 46 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n(HT40) 802.11ac(HT20) CH38 CH36 CH46 CH40 CH48 Report No.: CTA23113000204 Page 47 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11ac(HT40) 802.11ac(HT80) CH38 CH42 CH46 Report No.: CTA23113000204 Page 48 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.6 Minimum Emission Bandwidth (6dB Bandwidth) Limit Within the 5.725-5.85 GHz band, the minimum 6 dB bandwidth of U-NII devices shall be at least 500 kHz. Test Procedure 1. Set resolution bandwidth (RBW) = 100 kHz 2. Set the video bandwidth 3 x RBW. 3. Detector = Peak. 4. Trace mode = Max hold. 5. Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower frequencies) that are attenuated by 6 dB relative to the maximum level measured in the fundamental emission. Test Configuration EUT SPECTRUM ANALYZER Test Results ANT 1 Type Bands Channel 6dB Bandwidth (MHz) Limit (KHz) Result 802.11a U-NII 3 149 14.120 ≥500KHz Pass 157 15.120 165 15.120 802.11n(HT20) U-NII 3 149 16.160 157 13.840 165 15.640 802.11n(HT40) U-NII 3 151 35.040 159 35.040 802.11ac(HT20) U-NII 3 149 13.840 157 13.720 165 15.120 802.11ac(HT40) U-NII 3 151 35.120 159 35.040 802.11ac(HT80) U-NII 3 155 75.040 Report No.: CTA23113000204 Page 49 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn ANT 2 Type Bands Channel 6dB Bandwidth (MHz) Limit (KHz) Result 802.11a U-NII 3 149 13.120 ≥500KHz Pass 157 15.120 165 12.920 802.11n(HT20) U-NII 3 149 15.040 157 15.360 165 15.040 802.11n(HT40) U-NII 3 151 35.040 159 35.040 802.11ac(HT20) U-NII 3 149 13.000 157 15.440 165 14.680 802.11ac(HT40) U-NII 3 151 35.040 159 35.120 802.11ac(HT80) U-NII 3 155 72.640 Test plot as follows: Report No.: CTA23113000204 Page 50 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn ANT 1 802.11a 802.11n(HT20) CH149 CH149 CH157 CH157 CH165 CH165 Report No.: CTA23113000204 Page 51 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n(HT40) 802.11ac(HT20) CH151 CH149 CH159 CH157 CH165 Report No.: CTA23113000204 Page 52 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11ac(HT40) 802.11ac(HT80) CH151 CH155 CH159 Report No.: CTA23113000204 Page 53 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn ANT 2 802.11a 802.11n(HT20) CH149 CH149 CH157 CH157 CH165 CH165 Report No.: CTA23113000204 Page 54 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n(HT40) 802.11ac(HT20) CH151 CH149 CH159 CH157 CH165 Report No.: CTA23113000204 Page 55 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11ac(HT40) 802.11ac(HT80) CH151 CH155 CH159 Report No.: CTA23113000204 Page 56 of 60 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.7 Frequency Stability LIMIT Manufacturers of U-NII devices are responsible for ensuring frequency stability such that an emission is maintained within the band of operation under all conditions of normal operation as specified in the users manual. TEST CONFIGURATION TEST PROCEDURE Frequency Stability under Temperature Variations: The equipment under test was connected to an external AC or DC power supply and input rated voltage. RF output was connected to a frequency counter or spectrum analyzer via feed through attenuators. The EUT was placed inside the temperature chamber. Set the spectrum analyzer RBW low enough to obtain the desired frequency resolution and measure EUT 20°C operating frequency as reference frequency. Turn EUT off and set the chamber temperature to -30°C. After the temperature stabilized for approximately 30 minutes recorded the frequency. Repeat step measure with 10°C increased per stage until the highest temperature of +50°C reached. Frequency Stability under Voltage Variations: Set chamber temperature to 20°C. Use a variable AC power supply / DC power source to power the EUT and set the voltage to rated voltage. Set the spectrum analyzer RBW low enough to obtain the desired frequency resolution and rec…

Text truncated - open the document above for the full version.

FCC ID: 2A6P9-NWC Test Setup Photos of the EUT conduction radiation L radiation H
