2A6P9-WCPAA-2Wireless CPAA adaptor

Product function introduction Your AutoSky box is designed to convert wired built-in CarPlay to wireless Carplay or Android Auto. Compatible vehicles & devices Most vehicles with built-in CarPlay. Iphone 6 and later models, smartphones with Android 11 or newer with 5GHz Wi-Fi Frequency Band; Google: Pixel /XL, Pixel 2/2 XL, Pixel 3/3 XL/3a/3a XL, Pixel 4/4 XL/4a, Pixel 5, Pixel 6/6 Pro, Nexus 5X, Nexus 6P; and Samsung: Galaxy S8/S8+, S9/S9+, S20/S20+/S20 Ultra, S21/S21+/S21 Ultra. How to use Wireless Android Auto Before using Android Auto, please make sure you have the latest Android Auto App installed. • Enable “Wireless Android Auto” in Android Auto settings • Turn on Wi-Fi and Bluetooth, search on Bluetooth “AutoSkyBox-xxxxxx” and tap to pair • It will connect wirelessly to Android Auto automatically. How to use Wireless CarPlay • Turn on your iPhone’s WiFi and Bluetooth, then pair to the Bluetooth named “AutoSkyBox-xxxx” • Tap Pair -> Allow -> Use CarPlay on the pop-up windows • It will connect wirelessly to CarPlay automatically. Note! Before paring to a new iPhone / Android smartphone, please disconnect the currently connected phone from WiFi and Bluetooth. Model: WCPAA-2 FCC: 2A6P9-WCPAA-2 General instructions Plug the device into the vehicle’s USB port usually marked with CarPlay or smartphone icon, select the CarPlay in the original car radio system, you will be redirected to the following interface: Product specifications Input Power: USB 5V Connectivity: WiFi & Bluetooth 76.2mm 76.2 mm FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Sincerely, Name/Title： Antonio Lopez/Manager Company: Promaster Electronic LLC Address: 25511 Budde Rd Suite 1602 The Woodlands Texas United States Phone: (832) 813-5123 Fax: N/A E-Mail: [email protected]

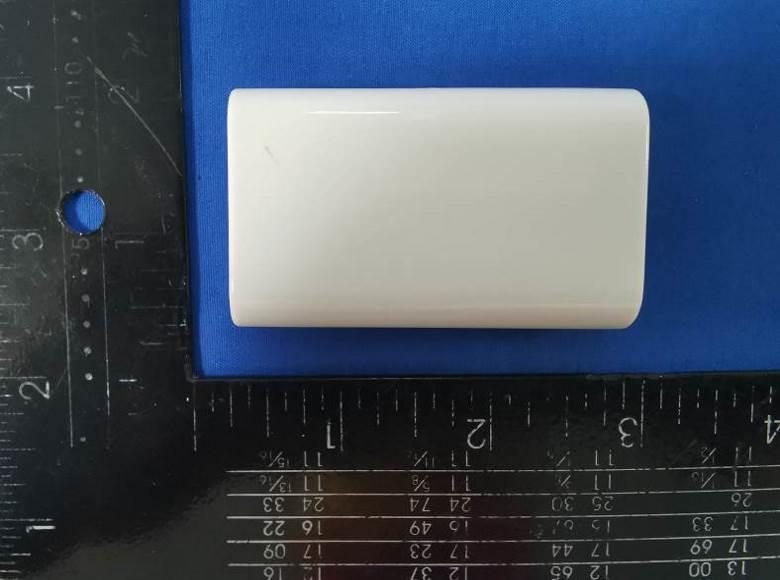

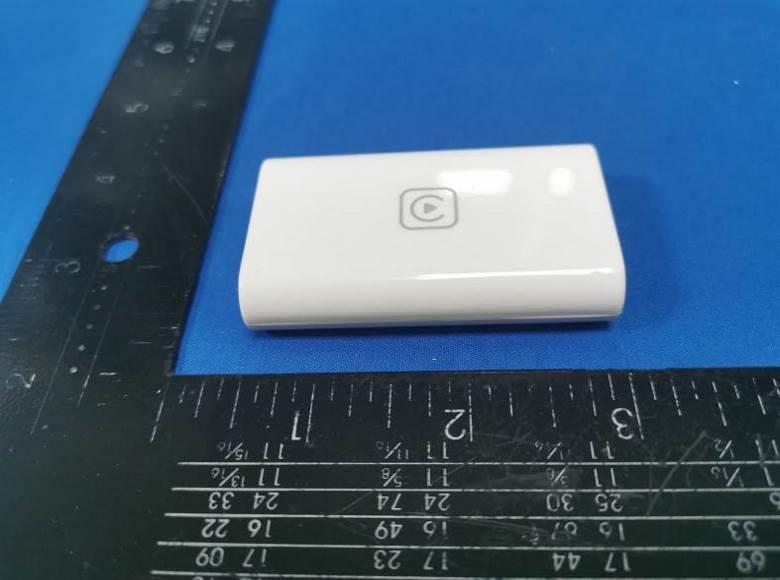

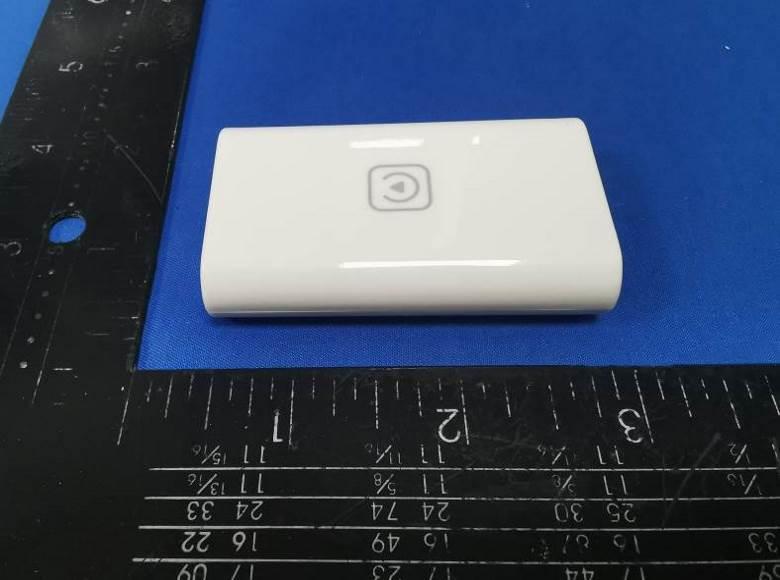

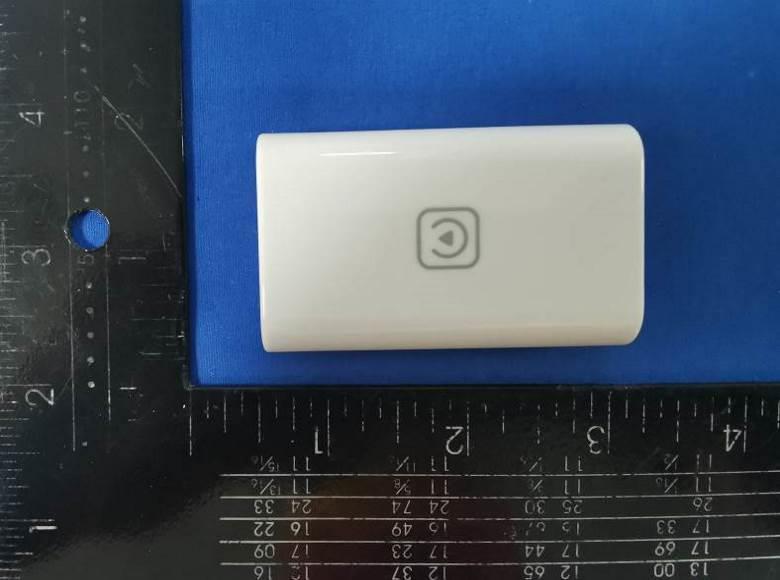

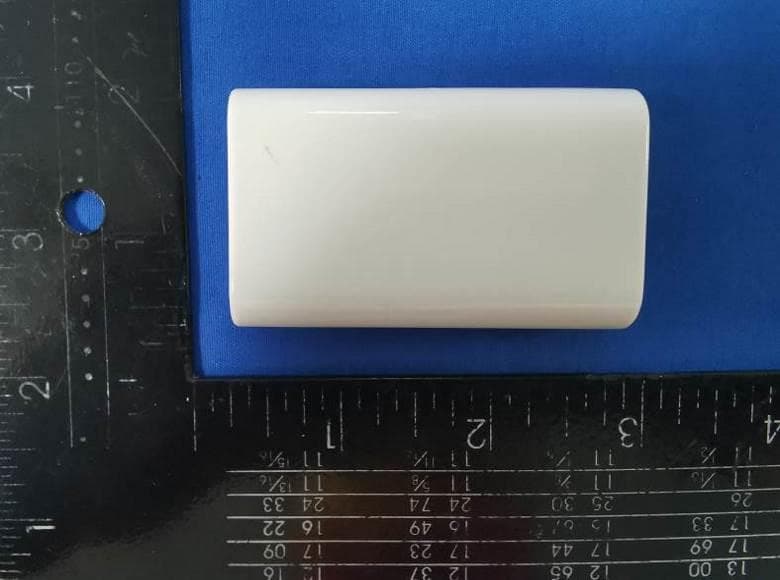

FCC ID: 2A6P9-WCPAA-2 External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2A6P9-WCPAA-2 Photo 4 Photo 5 Photo 6 FCC ID: 2A6P9-WCPAA-2 Photo 7

Label and Location Size: L: 3.0cm*W: 2.0cm Label and Location Model No.: WCPAA-2 FCC ID : 2A6P9-WCPAA-2

FCC ID: 2A6P9-WCPAA-2 Internal Photos of the EUT Photo 1 Photo 2 Photo 3 2.4G WIFI/5G WIFI (PCB) Antenna BT/BLE(PCB) Antenna FCC ID: 2A6P9-WCPAA-2 Photo 4 Photo 5

RF Exposure evaluation FCC ID: 2A6P9-WCPAA-2 Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information WCPAA-2 can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: BT / PCB Antenna 1.96dBi for 2400-2500MHz; 2.4GWIFI / PCB Antenna 1.97dBi for 2400-2500MHz for ANT 1&2 5GWIFI / PCB Antenna 2.62dBi for 5000-6000MHz for ANT 1&2 5. Manufacturing Tolerance BT GFSK(Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) -2.0 -2.0 -2.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK(Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) 0.0 0.0 0.0 Tolerance ±(dB) 1.0 1.0 1.0 8DPSK (Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) 0.0 0.0 0.0 Tolerance ±(dB) 1.0 1.0 1.0 BLE GFSK(Peak) Channel Channel 00 Channel 19 Channel 39 Target (dBm) -2.0 -2.0 -3.0 Tolerance ±(dB) 1.0 1.0 1.0 WIFI(Peak) ANT1 Frequency (MHz) 11b 2412 2437 2462 Target (dBm) 15.0 15.0 15.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11g 2412 2437 2462 Target (dBm) 14.0 14.0 14.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11n(HT20) 2412 2437 2462 Target (dBm) 13.0 13.0 13.0 Tolerance ± (dB) 1.0 1.0 1.0 WIFI(Peak) ANT2 Frequency (MHz) 11b 2412 2437 2462 Target (dBm) 15.0 15.0 15.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11g 2412 2437 2462 Target (dBm) 14.0 14.0 14.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11n(HT20) 2412 2437 2462 Target (dBm) 14.0 14.0 14.0 Tolerance ± (dB) 1.0 1.0 1.0 [5.2GHz WLAN] ANT 1 IEEE 802.11A (Average) Frequency (MHz) 5180 5200 5240 Target (dBm) 13.0 13.0 13.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11n20 (Average) Frequency (MHz) 5180 5200 5240 Target (dBm) 12.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11ac20 (Average) Frequency (MHz) 5180 5200 5240 Target (dBm) 12.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11n40 (Average) Frequency (MHz) 5190 / 5230 Target (dBm) 12.0 / 12.0 Tolerance ± (dB) 1.0 / 1.0 IEEE 802.11ac40 (Average) Frequency (MHz) 5190 / 5230 Target (dBm) 12.0 / 12.0 Tolerance ± (dB) 1.0 / 1.0 IEEE 802.11ac80 (Average) Frequency (MHz) / 5210 / Target (dBm) / 12.0 / Tolerance ± (dB) / 1.0 / [5.2GHz WLAN] ANT 2 IEEE 802.11A (Average) Frequency (MHz) 5180 5200 5240 Target (dBm) 12.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11n20 (Average) Frequency (MHz) 5180 5200 5240 Target (dBm) 12.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11ac20 (Average) Frequency (MHz) 5180 5200 5240 Target (dBm) 12.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11n40 (Average) Frequency (MHz) 5190 / 5230 Target (dBm) 12.0 / 12.0 Tolerance ± (dB) 1.0 / 1.0 IEEE 802.11ac40 (Average) Frequency (MHz) 5190 / 5230 Target (dBm) 12.0 / 12.0 Tolerance ± (dB) 1.0 / 1.0 IEEE 802.11ac80 (Average) Frequency (MHz) / 5210 / Target (dBm) / 12.0 / Tolerance ± (dB) / 1.0 / [5.8GHz WLAN] ANT1 IEEE 802.11A (Average) Frequency (MHz) 5745 5785 5825 Target (dBm) 13.0 13.0 13.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11n20 (Average) Frequency (MHz) 5745 5785 5825 Target (dBm) 12.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11ac20 (Average) Frequency (MHz) 5745 5785 5825 Target (dBm) 12.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11n40 (Average) Frequency (MHz) 5755 / 5795 Target (dBm) 12.0 / 12.0 Tolerance ± (dB) 1.0 / 1.0 IEEE 802.11ac40 (Average) Frequency (MHz) 5755 / 5795 Target (dBm) 12.0 / 12.0 Tolerance ± (dB) 1.0 / 1.0 IEEE 802.11ac80 (Average) Frequency (MHz) / 5775 / Target (dBm) / 12.0 / Tolerance ± (dB) / 1.0 / [5.8GHz WLAN] ANT2 IEEE 802.11A (Average) Frequency (MHz) 5745 5785 5825 Target (dBm) 13.0 13.0 13.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11n20 (Average) Frequency (MHz) 5745 5785 5825 Target (dBm) 13.0 13.0 13.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11ac20 (Average) Frequency (MHz) 5745 5785 5825 Target (dBm) 12.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11n40 (Average) Frequency (MHz) 5755 / 5795 Target (dBm) 12.0 / 12.0 Tolerance ± (dB) 1.0 / 1.0 IEEE 802.11ac40 (Average) Frequency (MHz) 5755 / 5795 Target (dBm) 13.0 / 13.0 Tolerance ± (dB) 1.0 / 1.0 IEEE 802.11ac80 (Average) Frequency (MHz) / 5775 / Target (dBm) / 13.0 / Tolerance ± (dB) / 1.0 / 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum …

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type PCB antenna Model WCPAA-2 Frequency range 2402-2480MHz Manufacturer Huizhou Funnavi Electronics Co., Ltd ANT Peak Gain 1.96 dBi 2. Antenna Photo: 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to Length :14.62mm Width:5.88mm a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2402MHz 2440MHz 2480MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ............................................ : CTA22102100202 2A6P9-WCPAA-2 Compiled by ( position+printed name+signature) .. : File administrators Zoey Cao Supervised by ( position+printed name+signature) .. : Project Engineer Amy Wen Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Oct. 28, 2022 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Promaster Electronic LLC Address ............................................ : 25511 Budde Rd Suite 1602 The Woodlands Texas United States 77380 Test specification ...........................: Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Wireless CPAA adaptor Trade Mark ....................................... : Autosky Manufacturer .................................... : Huizhou Funnavi Electronics Co., Ltd Model/Type reference....................... : WCPAA-2 Listed Models .................................. : N/A Modulation ....................................... : GFSK, Π/4DQPSK, 8DPSK Frequency .......................................... From 2402MHz to 2480MHz Rating ............................................... : DC 5V From external circuit Result................................................ : PASS Report No.: CTA22102100202 Page 2 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Wireless CPAA adaptor Model /Type : WCPAA-2 Listed Models : N/A Applicant : Promaster Electronic LLC Address : 25511 Budde Rd Suite 1602 The Woodlands Texas United States 77380 Manufacturer : Huizhou Funnavi Electronics Co., Ltd Address : 3rd floor, No.:25 Xiangda road Xiao Jin kou street, Huicheng district, Huizhou city, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA22102100202 Page 3 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emission 13 4.3 Maximum Peak Output Power 19 4.4 20dB Bandwidth 20 4.5 Frequency Separation 24 4.6 Number of hopping frequency 26 4.7 Time of Occupancy (Dwell Time) 28 4.8 Out-of-band Emissions 32 4.9 Pseudorandom Frequency Hopping Sequence 41 4.10 Antenna Requirement 42 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 43 6 P H O T O S O F T H E E U T ........................................................... 44 Report No.: CTA22102100202 Page 4 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A ND A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices Report No.: CTA22102100202 Page 5 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Oct. 21, 2022 Testing commenced on : Oct. 21, 2022 Testin…

Text truncated - open the document above for the full version.

Report No.: CTA22102100202 Page 35 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn π/4DQPSK (CH39) π/4DQPSK (CH78) reference reference 30MHz-1G 30MHz-1G 1G-25G 1G-25G Report No.: CTA22102100202 Page 36 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 8DPSK (CH00) 8DPSK (CH39) reference reference 30MHz-1G 30MHz-1G 1G-25G 1G-25G Report No.: CTA22102100202 Page 37 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 8DPSK (CH78) reference 30MHz-1G 3G-25G Report No.: CTA22102100202 Page 38 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Band-edge Measurements for RF Conducted Emissions: GFSK Left Band edge hoping off Right Band edge hoping off Left Band edge hoping on Right Band edge hoping on Report No.: CTA22102100202 Page 39 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn π/4DQPSK Left Band edge hoping off Right Band edge hoping off Left Band edge hoping on Right Band edge hoping on Report No.: CTA22102100202 Page 40 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 8DPSK Left Band edge hoping off Right Band edge hoping off Left Band edge hoping on Right Band edge hoping on Report No.: CTA22102100202 Page 41 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.9 Pseudorandom Frequency Hopping Sequence TEST APPLICABLE For 47 CFR Part 15C section 15.247 (a) (1) requirement: Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hop-ping channel, whichever is greater. Alternatively, frequency hopping systems operating in the 2400–2483.5 MHz band may have hopping channel carrier frequencies that are separated by 25 kHz or two-thirds of the 20 dB bandwidth of the hopping channel, whichever is greater, provided the systems operate with an output power no greater than 125 mW. The system shall hop to channel frequencies that are selected at the system hopping rate from a pseudo randomly ordered list of hopping frequencies. Each frequency must be used equally on the average by each transmitter. The system receivers shall have input bandwidths that match the hop-ping channel bandwidths of their corresponding transmitters and shall shift frequencies in synchronization with the transmitted signals. EUT Pseudorandom Frequency Hopping Sequence Requirement The pseudorandom frequency hopping sequence may be generated in a nice-stage shift register whose 5 th and 9 th stage outputs are added in a modulo-two addition stage. And the result is fed back to the input of the first stage. The sequence begins with the first one of 9 consecutive ones, for example: the shift register is initialized with nine ones. ● Number of shift register stages:9 ● Length of pseudo-random sequence:29-1=511 bits ● Longest sequence of zeros:8(non-inverted signal) An example of pseudorandom frequency hopping sequence as follows: Each frequency used equally one the average by each transmitter. The system receiver have input bandwidths that match the hopping channel bandwidths of their corresponding transmitter and shift frequencies in synchronization with the transmitted signals. Report No.: CTA22102100202 Page 42 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.10 Antenna Requirement Standard Applicable For intentional device, according to FCC 47 CFR Section 15.203, an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. And according to FCC 47 CFR Section 15.247 (c), if transmitting antennas of directional gain greater than 6dBi are used, the power shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6dBi. Refer to statement below for compliance The manufacturer may design the unit so that the user can replace a broken antenna, but the use of a standard antenna jack or electrical connector is prohibited. Further, this requirement does not apply to intentional radiators that must be professionally installed. Antenna Connected Construction The maximum gain of antenna was 1.96 dBi. Remark:The antenna gain is provided by the customer , if the data provided by the customer is not accurate, Shenzhen CTA Testing Technology Co., Ltd. does not assume any responsibility. Report No.: CTA22102100202 Page 43 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 5 T e s t S e t u p P h o t o s o f t h e E U T Repor…

Text truncated - open the document above for the full version.

FCC ID: 2A6P9-WCPAA-2 Test Setup Photos of the EUT conduction radiation L radiation H
