2A6PA-CR010AElectric baby bouncer chair

Instruction Model No:CR010A Standard:EN12790:2009/EN16232:2013+A1:2018/EN71-1&-2&-3 Company name:Zhongshan City Cironbaby Co.,Ltd. Add:No.6,Yongxing North Road,Yongxing Industrial Zone,Henglan Town,Zhongshan City,Guangdong,China Tel:+86 760 87768016 Fax:+86 760 87766225 IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE Please read the instruction of the swing carefully before using. If the swing is not operated according to the instructions, it may cause injury to the baby. Product summary 1、Home page 1 2、Introduction 2 3、Function Parts List 3 Install 4 7 ～ Panel 8 Remote 8 4、 Cleaning and maintenance 10 1 General 2 MP3 9 Bluetooth 9 5、Attention 11 General： Introduction Name Model No. Input voltage Out voltage Max. load capacity Standard Production date Electric baby bouncer chair 100-240V～ CR010A-1 50/60Hz 0.3A DC5V/1A 9Kg See the package or product label WARNING 1）Power supply terminal must not short-circuit. 2）Never use the adapter provided not by the manufacturer， input voltage of adapter:100-240V ～50/60Hz/0.3A MAX,Output voltage: DC5.8V/1A. 3）When using the adapter, the adapter should be kept away from children. 4）Transformers used with the infant swing are to be regularly examined for damage to the cord, plug, enclosure and other parts, and in the event of such damage, they shall not be used. 5)The infant swing shall only be used with the recommended transformer. 2 EN12790:2009/EN16232:2013+A1:2018 EN71-1/EN71-2/EN71-3 3 Introduction Parts List： Number A B C Name Seat Mainframe base Qty 1set 1set 1set Accessories:Instruction*1pc,Adapter*1pc, Remote controller*1pc。 B C A Canopy 4 Introudction Install details： 1）Insert the seat into mainframe base. 2）Fasten the toy bar to the seat. Push the sheet metal in and lift the seat up. Disassembly the seat： Seat installation details： 1）Keep the same direction of seat D hole and mainframe base D iron shaft,then insert the seat into mainframe base,then rotate the seat left and right slightly,then press down the seat after alignment,then finish the seat installation. 2） WARNING: After completing the installation of the seat, please pull up the seat to ensure that it is well locked before using it. Seat D hole and mainframe base D iron shaft keep the same direction Shoulder belt installation： 1）Buckle the belt well on the seat backrest,then adjust the belt length according the pictures below. Top grid Bo�om gridBelt goes through from top grid Belt goes through from bo�om grid Tighten the belt 5 Introduction 6 Introduction Put baby in the seat,then fasten the seat belt,then cover the buckle bag well。 Power supply： 1) DC plug can insert into the DC power of 100~240V,50/60Hz, 0.3A. 2) DC interface can be connected by power bank. 3) Output voltage:5.8V,electric current:1A.Never use the adapter of other specifications. 4) Never use the adapter provided not by the manufacturer. 5) Transformers used with the infant swing are to be regularly examined for damage to the cord, plug, enclosure and other parts, and in the event of such damage, they shall not be used. AC plug DC socekt DC interface 7 Introduction Battery assembly and disassembly: 1Use a Phillips screwdriver to open the battery cover 2Load 4 x AAA alkaline dry batteries in the correct polarity 3) Fasten the battery cover with screws 4) non-rechargeable batteries are not to be recharged; 5) different types of batteries or new and used batteries are not to be mixed; 6) exhausted batteries are to be removed from the infant swing. Seat angle adjustment: 1. Press the adjustment buttons on both sides of the joint to adjust the seat angle downwards. 2. To adjust the seat angle upwards, simply lift the rear end of the seat to adjust it automatically. 3. The seat angle is adjustable in three positions. Function introduction Panel func�on： 15 30 8 Power switch Speeds adjustment Music play/pause Next tune/ volume adjustment Timing bu�on Remote func�on： Power switch Timing Switch inside music/Mp3 Volume up Volum down Music play/pause Last music Next music Sleep mode Stop SLEEP STOP VOL+ Timer VOL- 1 2 35 speeds op�on Remote receiver TimerMUSIC VOL+VOL- USB Music SLEEP STOP 12 3 45 USB Music 45 8 9 Function introduction MP3 func�on： USB interface 1）Insert USB device into USB interface,then can play the music inside the USB device。 2）Pull out USB device then will play the music from the product when turn on the music bu�on。 Bluetooth func�on： 1）Turn on the bluetooth in the mobile phone to search the name of swing chair,the product will play the music inside the mobile phone a�er connect this bluetooth device. Bluetooth Turn on bluetooth Mobile phone name Search bluetooth device Paired device swing chair 10 Cleaning and maintenance The accessories of this product: toy bar, pillow, seat cloth can be cleaned with a damp cloth moistened with a flexible cleaning agent and left to air dry in a cool place 1.Never leave the child unattended. 2.Do not use this product once your child can sit up unaided or weighs more than 9 kg. 3.This product is not intended for prolonged periods of sleeping. 4.Never use this product on an elevated surface (e.g. a table). 5.Always use the restraint system. 6.Never use the toy bar to carry the reclined cradle. 7.To avoid injury ensure that children are kept away when unfolding and folding this product 8.Do not let children play with this product. 9.Do not move or lift this product with the baby inside it. 10.Maximum weight for this product: 9KG. 11.Attention to suffocation hazard: do not use on soft objects to prevent suffocation caused by overturned (e.g. bed, sofa, etc.) 12.No toys other than the two toys provided with this product may be placed on the toy bar！ 13.This product can be used for a long time. 14.This product can only be assembled or cleaned by adults. 15.This product does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable cot or bed. 16Do not use the product if any components are broken or missing. 17.Do not use acc…

Text truncated - open the document above for the full version.

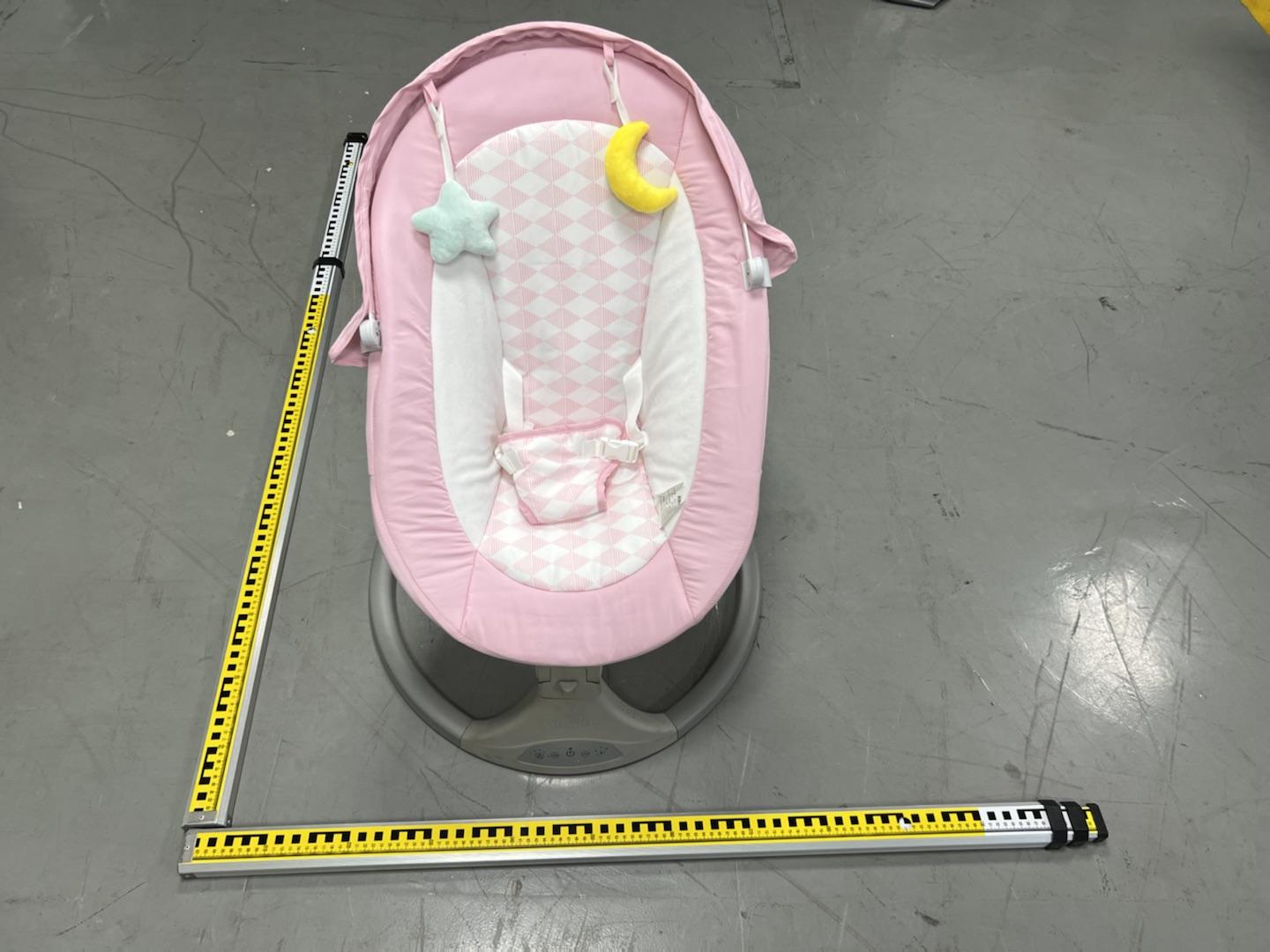

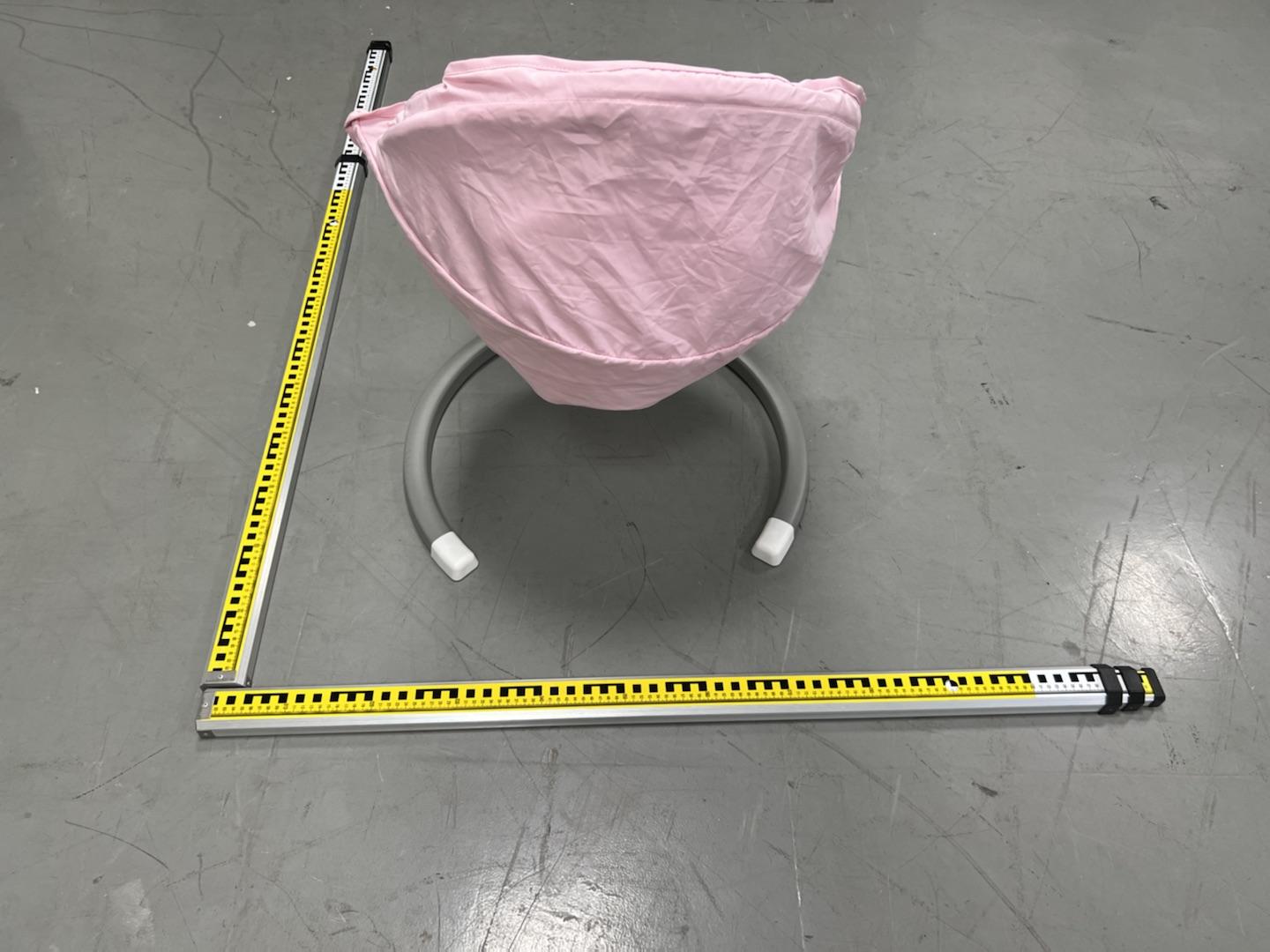

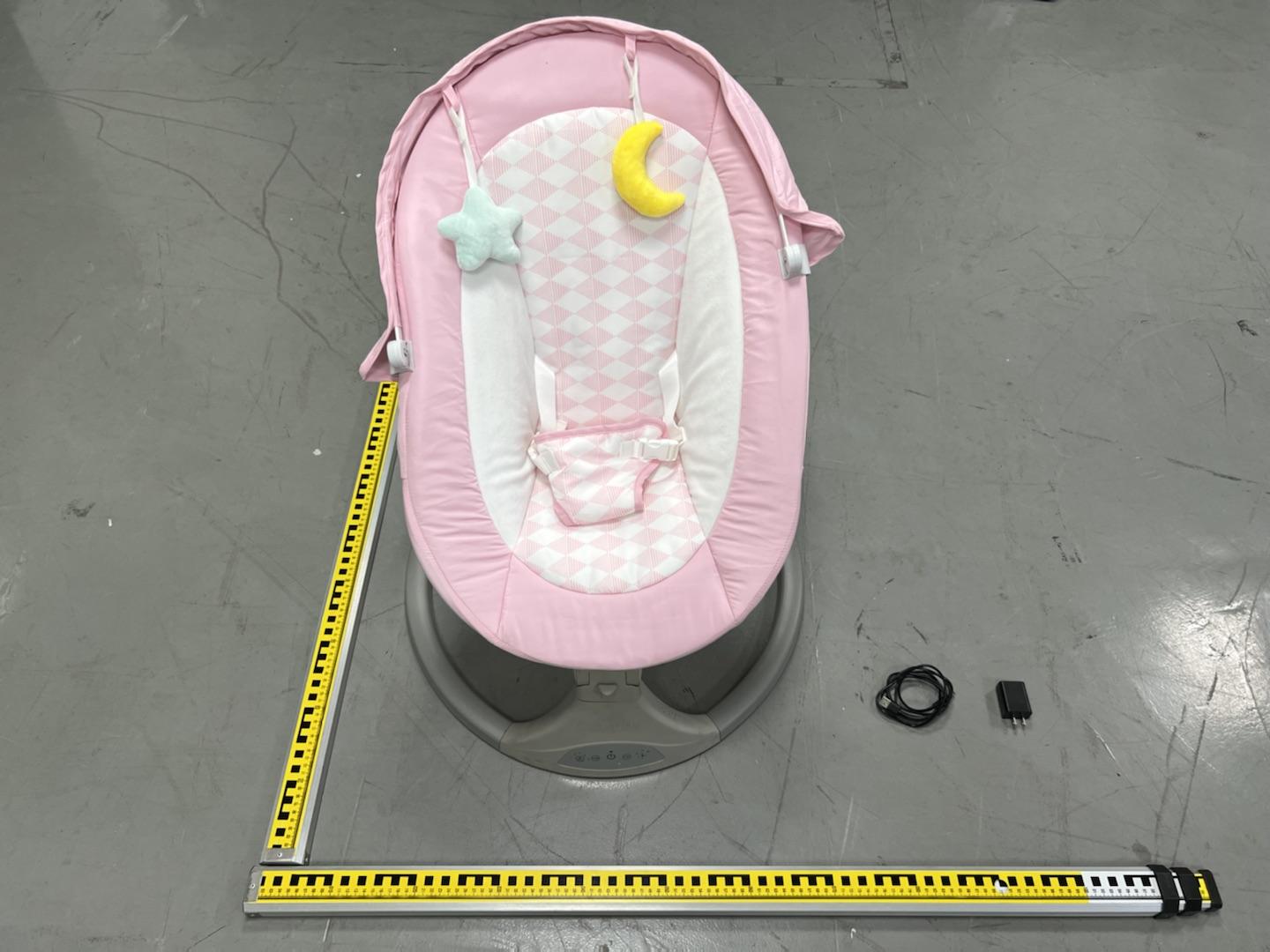

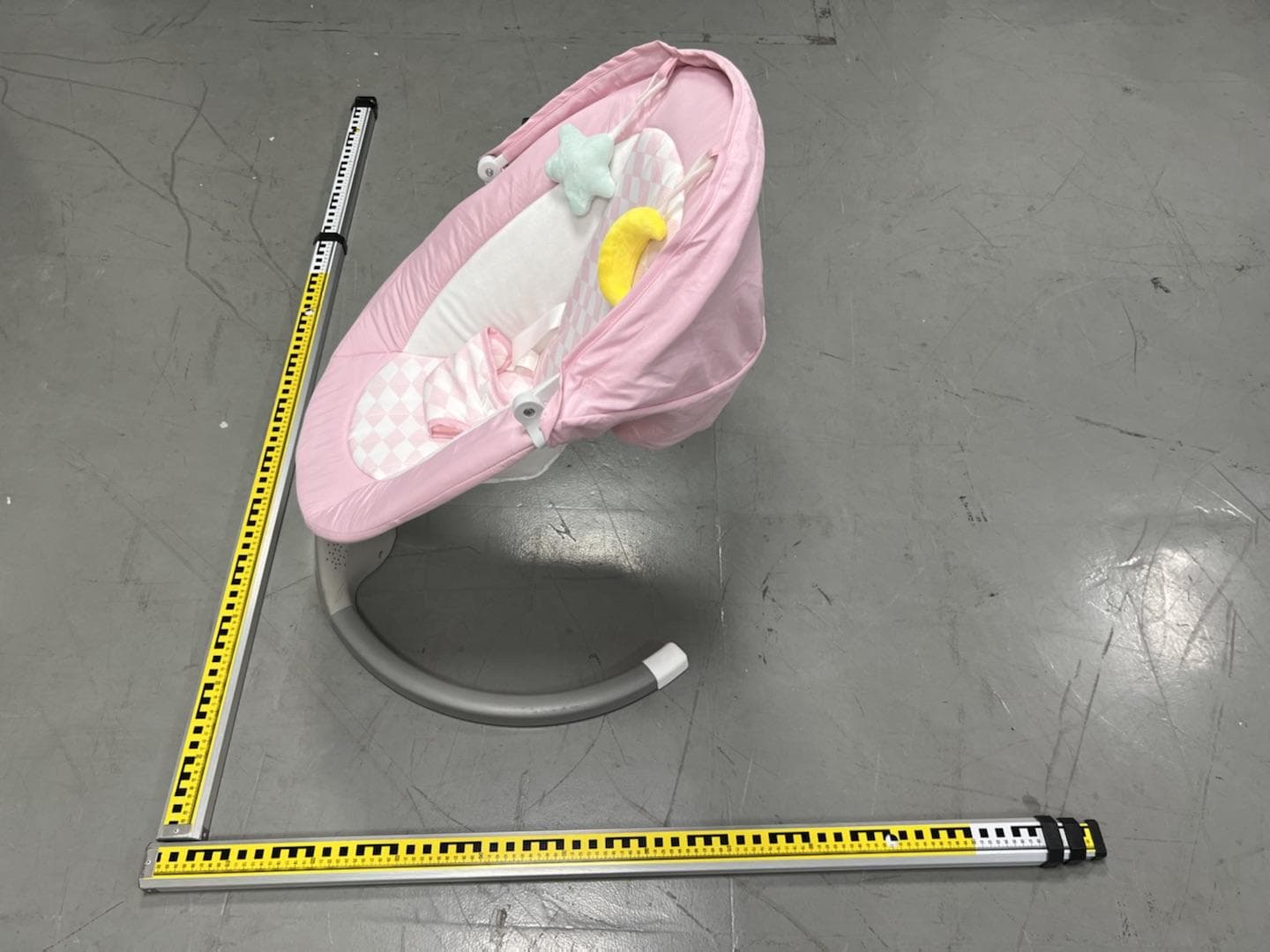

Externalphotos

Size:30mm*20mm Model : CR010A-1 FCC ID:2A6PA-CR010A

Internalphotos

ShenzhenHuaxiaTestingTechnologyCo.,Ltd. 1F.,BlockAofTongshengTechnologyBuilding,HuahuiRoad,DalangStreet,LonghuaDistrict, Shenzhen,China Telephone:+86-755-26648640 Fax:+86-755-26648637 Website:www.cqa-cert.com ReportTemplateVersion:V05 ReportTemplateRevisionDate:2021-11-03 RFExposureEvaluationReport Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,Theresult(s)showninthisreportreferonlyto thesample(s)tested.WithoutwrittenapprovalofCQA,thisreportcan’tbereproducedexceptinfull. ReportNo.:CQASZ20220801314E-02 Applicant: ZhongshanCityCironbabyCo.,Ltd. AddressofApplicant: No.6,YongxingNorthRoad,YongxingIndustrialZone,HenglanTown, ZhongshanCity,Guangdong,China EquipmentUnderTest(EUT): EUTName:Electricbabybouncerchair ModelNo.:CR010A-1 TestModelNo.:CR010A-1 BrandName:N/A FCCID:2A6PA-CR010A Standards: 47CFRPart1.1307 47CFRPart1.1310 447498D04InterimGeneralRFExposureGuidancev01 DateofReceipt:2022-08-01 DateofTest: 2022-08-01to2022-08-19 DateofIssue:2022-9-8 TestResult:PASS* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedabove TestedBy: (LewisZhou) ReviewedBy: (TimoLei) ApprovedBy: (JackAi) ShenzhenHuaxiaTestingTechnologyCo.,Ltd ReportNo.:CQASZ20220801314E-02 Page:2of6 1Version RevisionHistoryOfReport ReportNo.Version Description IssueDate CQASZ20220801314E-02Rev.01 Initialreport 2022-9-8 ShenzhenHuaxiaTestingTechnologyCo.,Ltd ReportNo.:CQASZ20220801314E-02 Page:3of6 2Contents Page 1VERSION............................................................................................................................................................................2 2CONTENTS........................................................................................................................................................................3 3GENERALINFORMATION..............................................................................................................................................4 3.1CLIENTINFORMATION...................................................................................................................................................4 3.2GENERALDESCRIPTIONOFEUT...................................................................................................................................4 3.3GENERALDESCRIPTIONOFBTCLASSIC.......................................................................................................................4 4MPEEVALUATION...........................................................................................................................................................5 4.1RFEXPOSURECOMPLIANCEREQUIREMENT.................................................................................................................5 4.1.1Limits....................................................................................................................................................................5 4.1.2TestProcedure...................................................................................................................................................5 4.1.3EUTRFExposure..............................................................................................................................................6 ShenzhenHuaxiaTestingTechnologyCo.,Ltd ReportNo.:CQASZ20220801314E-02 Page:4of6 3GeneralInformation 3.1ClientInformation Applicant: ZhongshanCityCironbabyCo.,Ltd. AddressofApplicant: No.6,YongxingNorthRoad,YongxingIndustrialZone,HenglanTown, ZhongshanCity,Guangdong,China Manufacturer: ZhongshanCityCironbabyCo.,Ltd. AddressofManufacturer: No.6,YongxingNorthRoad,YongxingIndustrialZone,HenglanTown, ZhongshanCity,Guangdong,China Factory: ZhongshanCityCironbabyCo.,Ltd. AddressofFactory: No.6,YongxingNorthRoad,YongxingIndustrialZone,HenglanTown, ZhongshanCity,Guangdong,China 3.2GeneralDescriptionofEUT ProductName: Electricbabybouncerchair ModelNo.: CR010A-1 TestModelNo.: CR010A-1 TradeMark: N/A SoftwareVersion: V1.0 HardwareVersion: V1.0 EUTPowerSupply: PowerbyDC5VforAdapter 3.3GeneralDescriptionofBTClassic OperationFrequency: 2402MHz~2480MHz BluetoothVersion: BluetoothSpec5.0 ModulationTechnique: FrequencyHoppingSpreadSpectrum(FHSS) ModulationType: GFSK,π/4DQPSK,8DPSK NumberofChannel: 79 TransferRate:1Mbps/2Mbps/3Mbps HoppingChannelType: AdaptiveFrequencyHoppingsystems SampleType: MobilePortableFixLocation AntennaType: FCC_assist AntennaGain:PCBantenna Cableloss:-0.58dBi Note： Theaboveparameterswilldirectlyaffectthetestresults.Theinformationisprovidedbytheapplicant. ShenzhenHuaxiaTestingTechnologyCo.,Ltd ReportNo.:CQASZ20220801314E-02 Page:5of6 4MPEEvaluation 4.1RFExposureComplianceRequirement 4.1.1Limits ThetableappliestoanyRFsource(i.e.,singlefixed,mobile,andportabletransmitters)andspecifiespower anddistancecriteriaforeachofthefivefrequencyrangesusedfortheMPElimits.Thesecriteriaapplyat separationdistancesfromanypartoftheradiatingstructureofatleastλ/2π.Thethresholdsarebasedonthe generalpopulationMPElimitswithasingleperfectreflection,outsideofthereactivenear-field,andinthemain beamoftheradiator.FormobiledevicesthatarenotexemptperTableB.1[Table1of§1.1307(b)(1)(i)(C)]at distancesfrom20cmto40cmandin0.3GHzto6GHz,evaluationofcompliancewiththeexposurelimitsin §1.1310isnecessaryiftheERPofthedeviceisgreaterthanERP20cminFormula(B.1)[repeatedfrom§ 2.1091(c)(1)and§1.1307(b)(1)(i)(B)]. IftheERPisnoteasilyobtained,thentheavailablemaximumtime-averagedpowermaybeused(i.e.,without considerationofERPonlyifthephysicaldimensionsoftheradiatingstructure(s)donotexceedtheelectrical lengthofλ/4oriftheantennagainislessthanthatofahalf-waveDipole. SAR-basedexemptionsareconstantatseparationdistancesbetween20cmand40cmtoavoid discontinuitiesinthethresholdwhentransitioningbetweenSAR-basedandMPE-basedexemptioncriteriaat 40cm,consideringtheimportanceofreflections. 4.1.2TestProcedure SoftwareprovidedbyclientenabledtheEUTtotransmitandreceivedataatlowest,middleand highestchannelindividually. ShenzhenHuaxiaTestingTechnologyCo.,Ltd Repor…

Text truncated - open the document above for the full version.

ShenzhenHuaxiaTestingTechnologyCo.,Ltd. 1F.,BlockAofTongshengTechnologyBuilding,HuahuiRoad,DalangStreet,LonghuaDistrict, Shenzhen,China Telephone:+86-755-26648640 Fax:+86-755-26648637 Website:www.cqa-cert.com ReportTemplateVersion:V05 ReportTemplateRevisionDate:2021-11-03 TestReport Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,Theresult(s)showninthisreportreferonlyto thesample(s)tested.WithoutwrittenapprovalofCQA,thisreportcan’tbereproducedexceptinfull. ReportNo.:CQASZ20220801314E-01 Applicant: ZhongshanCityCironbabyCo.,Ltd. AddressofApplicant: No.6,YongxingNorthRoad,YongxingIndustrialZone,HenglanTown, ZhongshanCity,Guangdong,China EquipmentUnderTest(EUT): Product: Electricbabybouncerchair ModelNo.: CR010A-1 TestModelNo.:CR010A-1 BrandName: N/A FCCID: 2A6PA-CR010A Standards:47CFRPart15,SubpartC DateofReceipt:2022-08-01 DateofTest: 2022-08-01to2022-08-19 DateofIssue:2022-9-8 TestResult:PASS* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedabove. TestedBy: (LewisZhou) ReviewedBy: (TimoLei) ApprovedBy: (JackAi) ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220801314E-01 Page:2of89 Version RevisionHistoryOfReport ReportNo.Version Description IssueDate CQASZ20220801314E-01Rev.01 Initialreport 2022-9-8 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220801314E-01 Page:3of89 1TestSummary TestItemTestRequirementTestmethodResult AntennaRequirement 47CFRPart15,SubpartCSection 15.203/15.247(c) ANSIC63.10(2013)PASS ACPowerLineConducted Emission 47CFRPart15,SubpartCSection 15.207 ANSIC63.10(2013)PASS ConductedPeakOutput Power 47CFRPart15,SubpartCSection 15.247(b)(1) ANSIC63.10(2013)PASS 20dBOccupiedBandwidth 47CFRPart15,SubpartCSection 15.247(a)(1) ANSIC63.10(2013)PASS CarrierFrequencies Separation 47CFRPart15,SubpartCSection 15.247(a)(1) ANSIC63.10(2013)PASS HoppingChannelNumber 47CFRPart15,SubpartCSection 15.247(a)(1) ANSIC63.10(2013)PASS DwellTime 47CFRPart15,SubpartCSection 15.247(a)(1) ANSIC63.10(2013)PASS PseudorandomFrequency HoppingSequence 47CFRPart15,SubpartCSection 15.247(b)(4) ANSIC63.10(2013)PASS Band-edgeforRF ConductedEmissions 47CFRPart15,SubpartCSection 15.247(d) ANSIC63.10(2013)PASS RFConductedSpurious Emissions 47CFRPart15,SubpartCSection 15.247(d) ANSIC63.10(2013)PASS RadiatedSpurious emissions 47CFRPart15,SubpartCSection 15.205/15.209 ANSIC63.10(2013)PASS Restrictedbandsaround fundamentalfrequency (RadiatedEmission) 47CFRPart15,SubpartCSection 15.205/15.209 ANSIC63.10(2013)PASS ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220801314E-01 Page:4of89 2Contents Page 1VERSION..........................................................................................................................................................................2 2TESTSUMMARY............................................................................................................................................................3 3CONTENTS......................................................................................................................................................................4 4GENERALINFORMATION...........................................................................................................................................5 4.1CLIENTINFORMATION.................................................................................................................................................5 4.2GENERALDESCRIPTIONOFEUT.................................................................................................................................5 4.3ADDITIONALINSTRUCTIONS........................................................................................................................................7 4.4TESTENVIRONMENT...................................................................................................................................................8 4.5DESCRIPTIONOFSUPPORTUNITS...............................................................................................................................8 4.6STATEMENTOFTHEMEASUREMENTUNCERTAINTY....................................................................................................9 4.7TESTLOCATION........................................................................................................................................................10 4.8TESTFACILITY..........................................................................................................................................................10 4.9ABNORMALITIESFROMSTANDARDCONDITIONS......................................................................................................10 4.10OTHERINFORMATIONREQUESTEDBYTHECUSTOMER..........................................................................................10 4.11EQUIPMENTLIST.....................................................................................................................................................11 5TESTRESULTSANDMEASUREMENTDATA.....................................................................................................12 5.1ANTENNAREQUIREMENT..........................................................................................................................................12 5.2CONDUCTEDEMISSIONS............................................................................................................................................13 5.3CONDUCTEDPEAKOUTPUTPOWER.........................................................................................................................17 5.420DBOCCUPYBANDWIDTH......................................................................................................................................24 5.5CARRIERFREQUENCIESSEPARATION........................................................................................................................30 5.6HOPPINGCHANNELNUMBER..........................................…

Text truncated - open the document above for the full version.

Inverted F Antenna Specification Summary ITEM ANT SPEC Model Name 2.4G ANT Horizontal Vertical 2400MHz 2450MHz2500MHz2400MHz2450MHz 2500MHz Center Frequency -1.26 -0.76 -0.58 -5.25 -2.46 -1.86 MAX. Gain -0.58dB Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

1Photographs-EUTTestSetup 1.1RadiatedEmission 9KHz~30MHz: 30MHz~1GHz: Above1GHz: 1.2ConductedEmission
