2A77G-VRP3080arpara AIO controller

User Guide 说明书 說明書 매뉴얼 English Version 04-28 繁体中文版 52-75 简体中文版29-51 日本語版 76-98 한국어�버전 99-121 01 arpara VR 助手 中国大陆地区 China Mainland 安卓 https://www.arpara.net/supports/downloads iOS Regions and countries outside China Mainland arpara VR Assistant 02 关注公众号 @arpara Global 用户可以到官网查询产品操作指南以及产品教学视频: www.arpara.net (China Mainland) Users may go to Official Websites for detailed instruction guide and tutorial video: www.arparaland.com (Regions and Countries Outside China Mainland) 03 User Guide 04 arpara AIO 5K VR Headset *1arpara AIO Controller * 2 User Manual * 1 User Manual arpara AIO 5K Carrying Case * 1 Notes: 1. Users need to purchase four 1.5V AA batteries 2. A power adapter is provided for free 3. A charging cable ( USB Type-C 3.2) is provided for free Package Content 05 Power Button USB-C 3.0 Port Camera * 4 06 Instruction of VR Headset Buttons and Light Indicator Light Indicator The Meaning of Light Indicator: White Solid： Screen is on, >20% remaining Red Solid: Screen is on, <20% remaining White Blinking: Turning on, >20% remaining Red Blinking: Turning on, <20% remaining No light: Hibernated, Turned off Yellow Blinking : Battery is charging, < 20% remaining Green Blinking : Battery is charging, >20% remaining Green Solid : Battery is charged Notes: The standard of power adapter: 1. Standard of power adapter: Input: AC100-240V 50/60Hz 0.6 Output: 5V-3A, 9V-2.22A-1.67A(MAX) Total Output: 20W (MAX) 2. Users who live in Mainland China, or whose Electricity Voltage (AC100-240V) is the same as Mainland China do not need to pur- chase an extra outlet plug adapter. 3. arpara does not sell or provide outlet plug adapters to users 07 Volume Button Top Strap Slot Directional Speakers Noise-canceling Mic Noise-canceling Mic 3.5 mm Audio Jack Instruction of VR Headset Buttons and Light Indicator arpara AIO 5K Facial Foam (Non-removable) Heat Vent IPD Adjustment Wheel arpara AIO 5K Elite Mask (Removable) 08 ProximitySensor Diopter Knob Top Strap Hole arpara AIO 5K Elite Strap built-in Battery (Non- removable) Support Foam Top Strap Optical Lens Instruction of VR Headset Buttons and Light Indicator arpara AIO 5K Elite Strap Knob 09 1 2 3 4 8 5 9 10 6 7 X/Y Button 2 Menu Button 3 A/B Button 4 Grip Button 5 Battery cover 6 Home Button 7 Wrist Strap 8 Trigger 9 Light Indicator 10 Left Controller Right Controller Tracking Aura Instruction of Controllers and Light Indi- cator 1 Thumbtick 10 Quick Start 1. Install batteries 11 Quick Start 2. Press and hold [Power Button] for 2s to turn the power on. The light turns white. Power Button 12 Quick Start 3. Diopter Adjustment The range of diopter adjustment: -5D~1D. Rotate [Diopter Knob] clockwise or counterclockwise for each eye until you see clear images. 1 0 1 2 3 4 5 1 0 1 2 3 4 5 1 0 1 2 3 4 5 1 0 1 2 3 4 5 13 Quick Start 4.Wear the Headset Adjust [arpara AIO 5K Elite Strap Knob] clockwise or counterclockwise to your head circumference to make sure the VR headset fits comfortably. Then fix the sticker on [Top Strap]. (It is recommended to tilt [arpara AIO 5K Elite Strap ] to 15°） 15° Turn the knob 14 5.IPD Adjustment Adjust your interpupillary distance by sliding [IPD Adjustment Wheel] on top of the headset. Quick Start 15 Maintenance 16 Please use a soft cloth to clean the lens. Do not use any liquid or chemical cleaner to clean the lens. (Do not use alcohol to clean the lens, as it will cause lens aging.) Use a disinfectant wet towel or microfiber dry cloth dipped in small amount of 75% alcohol to gently wipe [arpara AIO 5K Elite Mask] and dry it naturally. (Avoid direct exposure to sunlight.) Use a disinfectant wet towel or microfiber dry cloth dipped in small amount of 75% alcohol to gently wipe the product surface and dry it naturally. Avoid water ingress when cleaning it To avoid damage to screens, do not expose the lens to direct sunlight Do not direct the lens with laser or external light source Please keep controllers' [Battery Cover] locked. Please keep the batteries out of the reach of children Avoid extreme temperature or contact with water, liquids, excessive moisture and naked fire Store the headset in arpara AIO 5K Carrying Case when not in use to reduce accidental damage or exposure to extreme environmental conditions 17 Handle with care to prevent falling. Do not scratch the lens with sharp objects Only use hardware, accessories, software and content recommended by arpara Operating temperature: 0-45°C /32-113°F, minimum humidity: 5%, maximum humidity: relative humidity of 95% (non-condensing.) Non-operating temperature (storage): -20-45°C / -4-113°F, relative humidity of 85% 18 Cautions 19 Before using arpara AIO 5K, verify the safety of your surroundings to avoid injury. 1. Define and set-up a safe play area 2. We recommend indoor use only for safety purposes 3. Clear a safe play area before wearing arpara AIO 5K to avoid tripping or bumping injuries. Play Area Set-up 20 Health and Safety Warnings Please read and follow this manual along with product settings and instructions provided on the official website Read and follow arpara AIO 5K hardware and software recommendations. Failing to use the recommended hardware and software may increase the risk of physical discomfort Do not use any unrecognized hardware or software. The use of unrecognized hardware or software may cause harm to you and lead to equipment or system operation problems Please ensure that you are physically comfortable when using arpara AIO 5K. Do not use arpara AIO 5K after drinking or taking medicines, feel tired or sleep-deprived, under emotional pressure, after hangover or digestive problem, suffer from cold, headache or earache. Otherwise, you may feel discomfort *arpara will update product Health and Safety Warnings on regular basis to ensure accuracy and completeness. Please carefully read all the following warnings to reduce personal injury, discomfort or property loss. Warnings before Use 21 Convulsive symptoms are more common among children and people under 20 …

Text truncated - open the document above for the full version.

昆山科睿谛电子科技有限公司 规 格 书 SPECIFICATION FOR APPROVAL 客户名称 Customer: 产品名称 Product Name: 规格描述 Description: 客户料号 CUSTP/N: 料号 P/N: 发出日期 Approval Date: 核准 Approved 审核 Checked By 制作 Made By 杜晓艳 客户承认 Customer Approve 核准 Approved 审核 Checked By 承办 Undertake By 地 址：江苏省昆山市张浦镇俱进路8号 电 话：+86 512-55178611 传 真：+86 512-55178611 E-MAIL: [email protected] 网 址：http://www.credit-krd.com 0.81黑色线，IPEX 四代，FPC,L=80mm 2022年03月28日 VR手柄 郭姝洁 KRDC-VR00001 ~ 2 ~ 目录 No. 承认书内容 页面 备注 1 封面 1-1 2 目录 2-2 3 承认书变更履历表 3-3 4 CABLE SPEC& CONNECTOR SPEC 4-5 5 工程图 6-6 6 测试报告 7-8 ~ 3 ~ 承认书变更履历表 No. 原版 变更日期 变更内容 变更项目描述 1 A 2022-03-28 新增 --------------- ~ 4 ~ 线材端子规格书 ~ 5 ~ ~ 6 ~ 工程图 ~ 7 ~ Frequency (GHz) Gain (dBi) 2400 2.15 2410 2.08 2420 2.01 2430 1.89 2440 1.71 2450 1.69 2460 1.60 2470 1.56 2480 1.49 2490 1.45 2500 1.43 ~ 8 ~ 测试报告

arpara Technology Co.,Ltd Room 109 1/F Building 36, Nantaihu Dongyuan Business BuildingHigh-tech Zone, Wuxing District, Huzhou, China DATE : 2022/09/07 arpara Technology Co.,Ltd Room 109 1/F Building 36, Nantaihu Dongyuan Business BuildingHigh-tech Zone, Wuxing District, Huzhou, China Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint below company and person: Name Damon Hu Position Manager Company Name Dongguan Dongdian Testing Service Co.,Ltd. Address 17, Zongbu Road 2, Songshan Lake Sci&Tech, Industry Park, Dongguan City, Guangdong Province, China, 523808 Tel / Fax Tel: +86-0769-38826678-850 E-Mail [email protected] to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by CETECOM GmbH, still resides with: Applicant name arpara Technology Co.,Ltd Address Room 109 1/F Building 36, Nantaihu Dongyuan Business BuildingHigh-tech Zone, Wuxing District, Huzhou, China Yours sincerely, Name Andrey Liu Position Quality Director Company Name arpara Technology Co.,Ltd Address Room 109 1/F Building 36, Nantaihu Dongyuan Business BuildingHigh-tech Zone, Wuxing District, Huzhou, China Tel / Fax 0572-2076367 E-Mail [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 <09/07/2022> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b) (4) of the Freedom of Information Act, we request confidentiality for the following products: FCC ID: 2A77G-VRP3080 Model name: VRP 3080 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos 180 days Internal Photos 180 days Block Diagram Schematics Test Setup Photos 180 days User’s Manual 180 days Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (Signed) Name: Andrey Liu Company: arpara Technology Co.,Ltd Address: Room 109 1/F Building 36, Nantaihu Dongyuan Business BuildingHigh-tech Zone, Wuxing District, Huzhou, China Phone: 0572-2076367 E-Mail: [email protected]

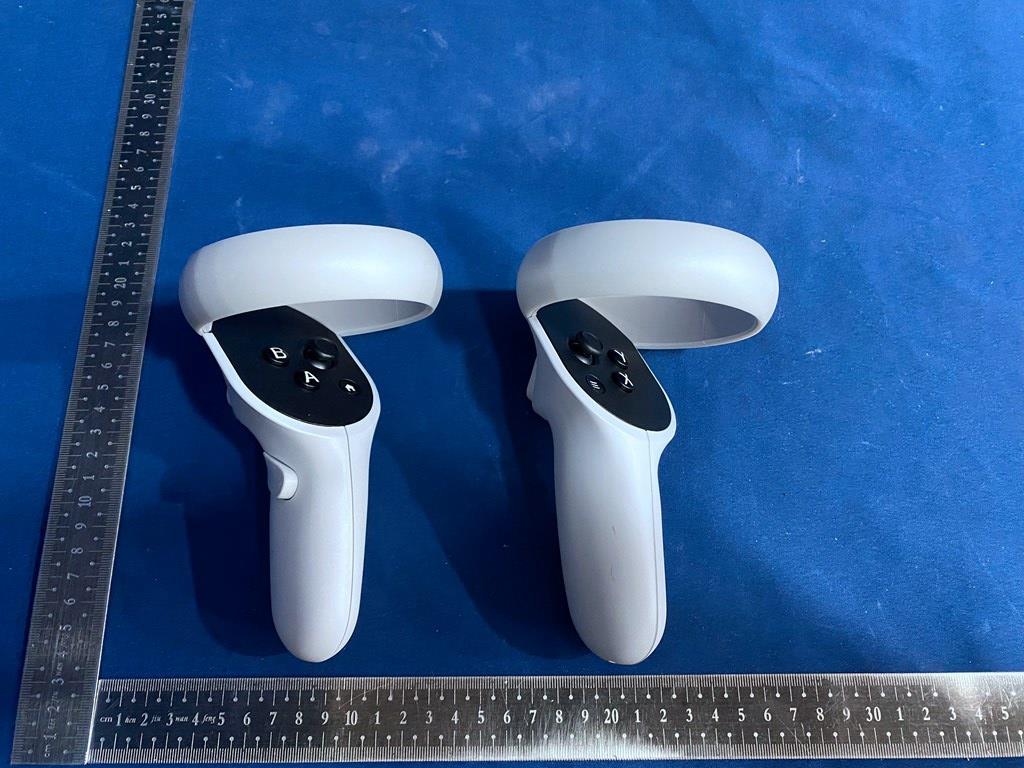

Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R22041329-2E14 Page 57 of 65 14. Photos of the EUT Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R22041329-2E14 Page 58 of 65 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R22041329-2E14 Page 59 of 65

arpara AIO Controller Model:VRP3080 Input:1.5V 100mA Made In Chine arpara Technology Co.,Ltd. FCC ID:2A77G-VRP3080 arpara AIO Controller Model:VRP3080 Input:1.5V 100mA Made In Chine arpara Technology Co.,Ltd. 018-220420 FCC ID:2A77G-VRP3080 R 018-220420 R

Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R22041329-2E14 Page 59 of 65 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R22041329-2E14 Page 60 of 65 SRD ANT. Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R22041329-2E14 Page 61 of 65 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R22041329-2E14 Page 62 of 65 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R22041329-2E14 Page 63 of 65 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R22041329-2E14 Page 64 of 65 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R22041329-2E14 Page 65 of 65 END OF REPORT

Dongguan Dongdian Testing Service Co., Ltd. Report No.:DDT-R22041329-2E18 Page 1 of 6 RF EXPOSURE REPORT FOR Issued By: Dongguan Dongdian Testing Service Co., Ltd. Add.: No. 17, Zongbu Road 2, Songshan Lake Sci&Tech, Industry Park, Dongguan City, Guangdong Province, China, 523808 Tel.: +86-0769-38826678, E-mail: [email protected], http://www.dgddt.com Applicant : arpara Technology Co.,Ltd. Address : Room 109 1/F Building 36, Nantaihu Dongyuan Business Building High-tech Zone, Wuxing District, Huzhou City, Zhejiang Province China Equipment under Test : arpara AIO controller Model No. : VRP 3080 Trade Mark : FCC ID : 2A77G-VRP3080 Manufacturer : arpara Technology Co.,Ltd. Address : Room 109 1/F Building 36, Nantaihu Dongyuan Business Building High-tech Zone, Wuxing District, Huzhou City, Zhejiang Province China Report No.: DDT-R22041329-2E18 Issued Date: Oct. 12, 2022 Dongguan Dongdian Testing Service Co., Ltd. Report No.:DDT-R22041329-2E18 Page 2 of 6 Table of Contents Test report declares........................................................................................................3 1. General Information ....................................................................................................... 5 1.1. Description of equipment ............................................................................................... 5 1.2. Assess laboratory ........................................................................................................... 5 2. RF Exposure evaluation for FCC ................................................................................... 6 Dongguan Dongdian Testing Service Co., Ltd. Report No.:DDT-R22041329-2E18 Page 3 of 6 Test Report Declare Standard Used: KDB447498 D01 General RF Exposure Guidance v06 We Declare: The equipment described above is assessed by Dongguan Dongdian Testing Service Co., Ltd. and in the configuration assessed the equipment complied with the standards specified above. The assessed results are contained in this report and Dongguan Dongdian Testing Service Co., Ltd. is assumed of full responsibility for the accuracy and completeness of these assess. After evaluation, our opinion is that the equipment In Accordance with above standard. Report No: DDT-R22041329-2E18 Date of Receipt: Sep. 01, 2022 Date of Test: Sep. 01, 2022 ~ Oct. 12, 2022 Prepared By: Approved By: _____________________ _____________________ Johnny Wang/Engineer Damon Hu/EMC Manager Note: This report applies to above tested sample only. This report shall not be reproduced in parts without written approval of Dongguan Dongdian Testing Service Co., Ltd. Applicant : arpara Technology Co.,Ltd. Address : Room 109 1/F Building 36, Nantaihu Dongyuan Business Building High-tech Zone, Wuxing District, Huzhou City, Zhejiang Province China Equipment under Test : arpara AIO controller Model No. : VRP 3080 Trade mark : Manufacturer : arpara Technology Co.,Ltd. Address : Room 109 1/F Building 36, Nantaihu Dongyuan Business Building High-tech Zone, Wuxing District, Huzhou City, Zhejiang Province China E S T T I N N A I G D S G E N R O V D I C E N A C U O G . , G L N T O D D . Dongguan Dongdian Testing Service Co., Ltd. Report No.:DDT-R22041329-2E18 Page 4 of 6 Revision History Rev. Revisions Issue Date Revised By --- Initial issue Oct. 12, 2022 Dongguan Dongdian Testing Service Co., Ltd. Report No.:DDT-R22041329-2E18 Page 5 of 6 1. General Information 1.1. Description of equipment 1.2. Assess laboratory Dongguan Dongdian Testing Service Co., Ltd. Add.: No. 17, Zongbu Road 2, Songshan Lake Sci&Tech, Industry Park, Dongguan City, Guangdong Province, China, 523808. Tel.: +86-0769-38826678, http://www.dgddt.com, Email: [email protected]. CNAS Accreditation No. L6451; A2LA Accreditation Number: 3870.01 FCC Designation Number: CN1182, Test Firm Registration Number: 540522 Innovation, Science and Economic Development Canada Site Registration Number: 10288A Conformity Assessment Body identifier: CN0048 VCCI facility registration number: C-20087, T-20088, R-20123, R-20155, G-20118 EUT* Name : arpara AIO controller Model Number : VRP 3080 EUT Function Description : Please reference user manual of this device Power Supply : DC 1.5V from battery(AA) Radio Specification : SRD Operation Frequency : 2412 MHz - 2478 MHz Modulation : GFSK Data Rate : 1 Mbps Antenna Gain : FPC antenna, maximum PK gain: 2.15 dBi Sample Type : Series production Sample Number : S22041329-01 for conductive S22041329-02 for radiation Dongguan Dongdian Testing Service Co., Ltd. Report No.:DDT-R22041329-2E18 Page 6 of 6 2. RF Exposure evaluation for FCC According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Manufacturing Tolerance GFSK (Peak) Channel Channel 1 Channel 34 Channel 67 Target (dBm) -2 -2 -3 Tolerance ±(dB) 1 1 1 Estimtion Result Worse case is as below: [2412 MHz, -1 dBm, (0.7943 mW) output power] (0.7943 /5) ·[√2.412(GHz)] = 0.25 < 3.0 for 1-g SAR Then SAR evaluation is not required. END OF REPORT

Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R22041329-2E14 Page 1 of 65 FCC CERTIFICATION TEST REPORT FOR Issued By: Dongguan Dongdian Testing Service Co., Ltd. Add.: No. 17, Zongbu Road 2, Songshan Lake Sci&Tech, Industry Park, Dongguan City, Guangdong Province, China, 523808 Tel.: +86-0769-38826678, E-mail: [email protected], http://www.dgddt.com Applicant : arpara Technology Co.,Ltd. Address : Room 109 1/F Building 36, Nantaihu Dongyuan Business Building High-tech Zone, Wuxing District, Huzhou City, Zhejiang Province China Equipment under Test : arpara AIO controller Model No. : VRP 3080 Trade Mark : FCC ID : 2A77G-VRP3080 Manufacturer : arpara Technology Co.,Ltd. Address : Room 109 1/F Building 36, Nantaihu Dongyuan Business Building High-tech Zone, Wuxing District, Huzhou City, Zhejiang Province China Report No.:DDT-R22041329-2E14 Issued Date: Oct. 12, 2022 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R22041329-2E14 Page 2 of 65 Table of Contents Test report declares.......................................................................................................4 1. Summary of Test Results ............................................................................................... 6 2. General Test Information ............................................................................................... 7 2.1. Description of EUT ......................................................................................................... 7 2.2. Accessories of EUT ........................................................................................................ 8 2.3. Assistant equipment used for test .................................................................................. 8 2.4. Block diagram of EUT configuration for test .................................................................. 8 2.5. Test environment conditions .......................................................................................... 8 2.6. Deviations of test standard............................................................................................. 8 2.7. Test laboratory ............................................................................................................... 9 2.8. Measurement uncertainty ............................................................................................... 9 3. Equipment Used During Test ....................................................................................... 10 4. 6 dB Bandwidth and 99% Bandwidth ........................................................................... 11 4.1. Block diagram of test setup .......................................................................................... 11 4.2. Limits ............................................................................................................................ 11 4.3. Test procedure ............................................................................................................. 11 4.4. Test result ..................................................................................................................... 12 4.5. Original test data .......................................................................................................... 12 5. Maximum Peak Output Power ..................................................................................... 15 5.1. Block diagram of test setup .......................................................................................... 15 5.2. Limits ............................................................................................................................ 15 5.3. Test procedure ............................................................................................................. 15 5.4. Test result ..................................................................................................................... 16 5.5. Original test data .......................................................................................................... 16 6. Power Spectral Density ................................................................................................ 18 6.1. Block diagram of test setup .......................................................................................... 18 6.2. Limits ............................................................................................................................ 18 6.3. Test procedure ............................................................................................................. 18 6.4. Test result ..................................................................................................................... 19 6.5. Original test data .......................................................................................................... 19 7. Band Edge Compliance (Conducted Method) ............................................................. 21 7.1. Block diagram of test setup .......................................................................................... 21 7.2. Limits ............................................................................................................................ 21 7.3. Test procedure ............................................................................................................. 21 7.4. Test result ..................................................................................................................... 21 7.5. Original test data .......................................................................................................... 22 8. Radiated Emission ....................................................................................................... 23 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R22041329-2E14 Page 3 of 65 8.1. Block diagram of test setup .....................................................................................…

Text truncated - open the document above for the full version.

Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R22041329-2E14 Page 55 of 65 13. Test Setup Photograph Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R22041329-2E14 Page 56 of 65
