2A7BZ-N1280IP Camera

SmartWiFiCamera UserManual 1 What’sintheBox •SmartCamera×1 •USBCable×1 •UserManual×1 •Screwbag×1 •MountingBracket×1 ★Differentproductshavedifferentaccessories, Pleaserefertotheactualpackinglist. 2 GetStarted •MakesuretoturnonBluetoothonphonesettings •Connectphonetothe2.4GHzWiFi(5GHzWiFiis notworking) 1DownloadtheWiseEyerapp ScantheQRcodetodownloadtheapponApp Store(IOS)orGooglePlay(Android) 3 2RegisteranAccount Step1: •Clickregisterand enteremailaddress. Step2: •Entertheverification codeandcreatea password. 4 3AddDevice Method1:AddcameraviaBluetooth ClickaddmydeviceandtheWiseEyerAppwill promptwindowtotellyoutoturnonBluetoothand allowtheapptofindandconnecttodevicesonlocal network. • OpenWiseEyerApp, andclick+,waitfor Bluetoothtosearchthe device. • Theappwill automaticallyfind nearbydevice. Thenclick“+” 5 • CheckWiFiinfo, pleasemakesure theWiFiis2.4GHz andclickNext. •Waitforthedevice tofinishconnecting, andmakeanameto completetheprocess. 6 Method2:AddDeviceManually •Plugthecameratooutlet,andyouwillhearthe promptvoice“waitingfornetworkconfiguration information” •Ifthereisnopromptvoice,pleaseholdthereset buttonfor3secondstoresetcamera. •On Apphomepage,Click “+”andManuallyAdd devicethenselectthe camera, 7 •Followtheinstructionto resetcamera,checkmark” Followedthesteps”and click“Camerahasbeen reset” • CheckWiFiinfo, pleasemakesurethe WiFiis2.4GHzandclick nextstep. 8 •ShowtheQRCodein frontofcamerauntilyou hearthepromptvoice “Receivenetwork configurationinfo”,Then clickHeardtheprompt voice. •Waituntilyouheard thepromptvoice “networkconnection successful” •Andthenmakea nametocomplete. 9 FrequentlyAskedQuestions Q1What’stherequirementforSDcard? WerecommendaMicroSDcard,8GB-128GBare supported(SDcardmustbeformattedasFAT32) Q2.Howmanycamerascanbeaddontheapp? Youcanaddanunlimitedcamerasontheapp,your routermayhavealimitofhowmanydevicescanbe connectedtoonerouter. Q3.Howtosharethecameratomyfamily. DownloadingthesameAppandcreateanew accountonthetheshareddevice,andonthemain phone,clickdeviceshare,youcansharethedevice byscanningQRcodeorenteraccountname. Q4.MycamerashowsofflineontheApp. •Makesurecamerahavepower,andgetstrong andstableWiFi. •IfWiFiisnormal,anditstilloffline,plsreboot routerandrefreshontheapptocheckthestatus. 10 FCCStatement ThisdevicecomplieswithPart15oftheFCC Rules.Operationissubjecttothefollowingtwo conditions:(1)thisdevicemaynotcauseharmful interference,and(2)thisdevicemustacceptany interferencereceived,includinginterferencethat maycauseundesiredoperation. Warning:Changesormodificationsnotexpressly approvedbythe partyresponsibleforcompliancecouldvoidthe user'sauthorityto operatetheequipment.Note:Thisequipmenthas beentestedand foundtocomplywiththelimitsforaClassBdigital device,pursuanttoPart15oftheFCCRules.These limitsaredesignedtoprovide reasonableprotectionagainstharmfulinterference inaresidentialinstallation. Thisequipmentgeneratesusesandcanradiate radiofrequency energyand,ifnotinstaledandusedinaccordance 11 withtheinstruc-tions,maycauseharmful interferencetoradiocommunications. However,thereisnoguaranteethatinterference willnotoccurinaparticularinstallation.Ifthis equipmentdoescauseharmfulinterfer-enceto radioortelevisionreception,whichcanbe determinedbyturningtheequipmentoffandon,the userisencour-agedtotrytocorrecttheinterference byoneormoreofthefollowingmeasures:(1) Reorentorrelocatethereceiving antenna.(2)Increasetheseparation betweentheequipmentandreceiver.(3)Connectthe equipmentinto anoutletonacircuitdifferentfromthattowhichthe receiveris FCCRadioFrequencyExposureStatement ThedevicehasbeenevaluatedtomeetgeneralRF exposurerequire-ments. Thedevicecanbeusedinfixed/mobileexposure condition.Theminseparationdistanceis20cm. 12 CustomerService •Warranty 12monthlimitedwarranty(Theactualwarranty periodshallbeimplementedaccordingtothe requirementsoflocallawsandregulations) •Emailus CustomerSupport:[email protected] •LiveChatonApp Click“Service”onApp,youcanchatwithCustomer servicerepresentative. •Callus UnitedStates:+1800-601-7094Mon-Fri9am-6pmEST FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Shenzhen HMY Technology Co., Ltd . 301, No.158-4, Guanping Road, Xintian Community, Guanhu Street, Longhua District, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2025/11/19 U.S. Agent Designation Shenzhen HMY Technology Co., Ltd . acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2A7BZ-N1280): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Shenzhen HMY Technology Co., Ltd . Shenzhen HMY Technology Co., Ltd . with the FRN [0032517880] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission- related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature JIAJUN PAN Manager Shenzhen HMY Technology Co., Ltd . Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

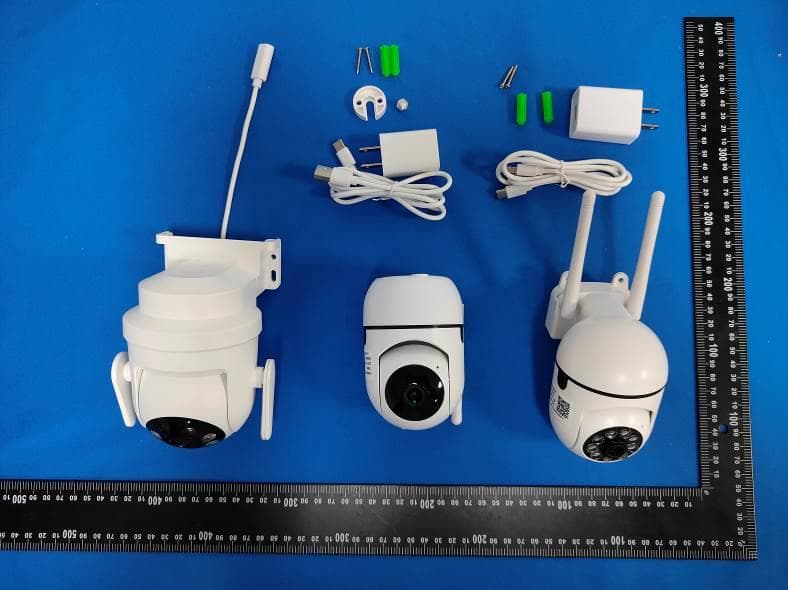

Shenzhen HMY Technology Co., Ltd . Add: 301, No.158-4, Guanping Road, Xintian Community, Guanhu Street, Longhua District, Shenzhen, China Date: 2025-11-25 FCC ID: 2A7BZ-N1280 Dear Sir/Madam, We, Shenzhen HMY Technology Co., Ltd . Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number and shell and camera LED light panel are different for these model: Product name: IP Camera Model no.: N1280, N1290, N1330, N1340, N1350, N1360, N1370, N1380, N1390, N1400, N1410, N1420, N1430, N1440, N1450, N1460, N1470, N1480 Refer to following photos: Model number Shell LED light panel N1280, N1340, N1350, N1360, N1370, N1380, N1390, N1400 Shenzhen HMY Technology Co., Ltd . Add: 301, No.158-4, Guanping Road, Xintian Community, Guanhu Street, Longhua District, Shenzhen, China N1290, N1410, N1420, N1430, N1440, N1450 N1330, N1460, N1470, N1480 Sincerely, Name/Title： JIAJUN PAN/vice-general manager Company: Shenzhen HMY Technology Co., Ltd . Address: 301, No.158-4, Guanping Road, Xintian Community, Guanhu Street, Longhua District, Shenzhen, China Phone: 13538218145 Fax: E-Mail: [email protected]

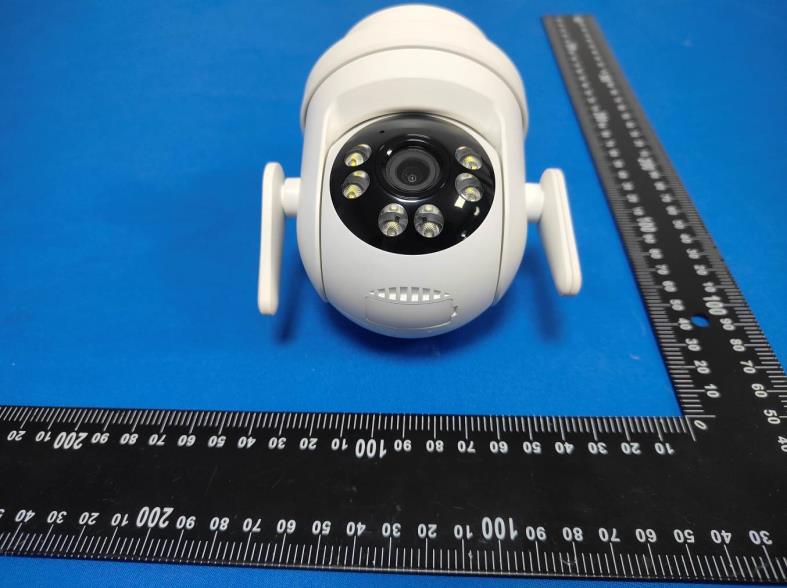

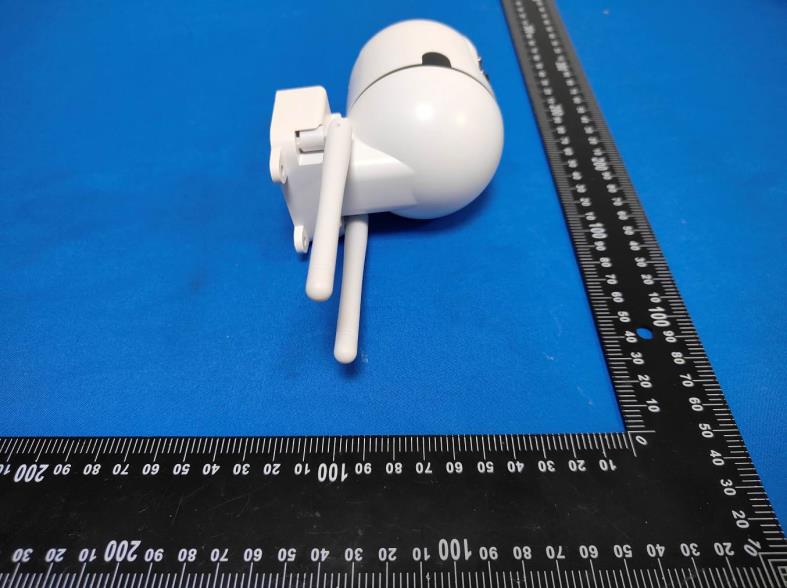

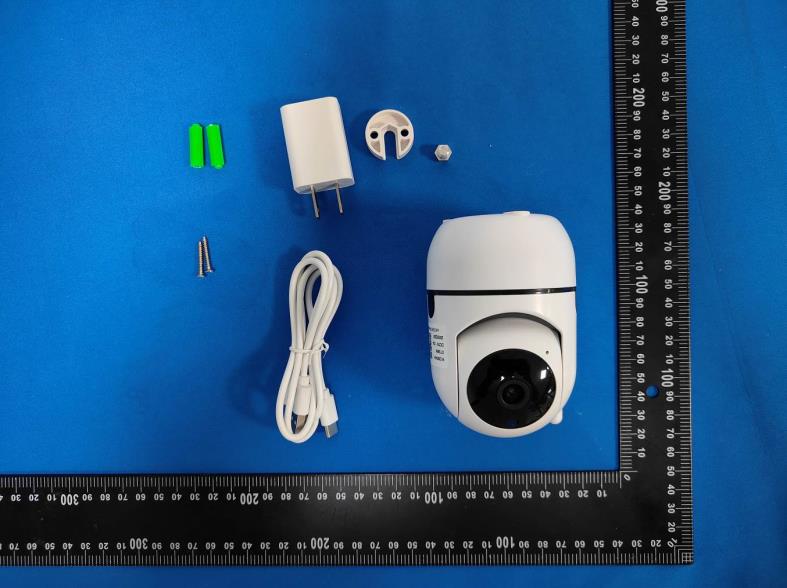

FCC ID: 2A7BZ-N1280 External Photos of the EUT N1280, N1340, N1350, N1360, N1370, N1380, N1390, N1400 FCC ID: 2A7BZ-N1280 FCC ID: 2A7BZ-N1280 N1290, N1410, N1420, N1430, N1440, N1450 FCC ID: 2A7BZ-N1280 FCC ID: 2A7BZ-N1280 FCC ID: 2A7BZ-N1280 N1330, N1460, N1470, N1480 FCC ID: 2A7BZ-N1280 FCC ID: 2A7BZ-N1280

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2A7BZ-N1280

FCC ID: 2A7BZ-N1280 Internal Photos of the EUT N1280, N1340, N1350, N1360, N1370, N1380, N1390, N1400 FCC ID: 2A7BZ-N1280 FCC ID: 2A7BZ-N1280 ANT FCC ID: 2A7BZ-N1280 FCC ID: 2A7BZ-N1280 FCC ID: 2A7BZ-N1280 N1290, N1410, N1420, N1430, N1440, N1450 FCC ID: 2A7BZ-N1280 FCC ID: 2A7BZ-N1280 FCC ID: 2A7BZ-N1280 FCC ID: 2A7BZ-N1280 FCC ID: 2A7BZ-N1280 N1330, N1460, N1470, N1480 FCC ID: 2A7BZ-N1280 FCC ID: 2A7BZ-N1280 FCC ID: 2A7BZ-N1280 FCC ID: 2A7BZ-N1280

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure MPE Report Reference No. ..................... : FCC ID. ........................................... : CTA25102801502 2A7BZ-N1280 Compiled by ( position+printed name+signature) .. : File administrators Zoey Cao Supervised by ( position+printed name+signature) .. : Project Engineer Ace Chai Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Nov. 03, 2025 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Shenzhen HMY Technology Co., Ltd . Address ............................................ : 301, No.158-4, Guanping Road, Xintian Community, Guanhu Street, Longhua District, Shenzhen, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : IP Camera Trade Mark ........................................ N/A Manufacturer .................................... : Shenzhen HMY Technology Co., Ltd . Model/Type reference ....................... : N1280 Listed Models ................................... : Refer to page 2 Rating ............................................... : DC 5.0V From external circuit Result ................................................ : PASS Report No.: CTA25102801502 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : IP Camera Model /Type : N1280 Listed Models : N1290, N1330, N1340, N1350, N1360, N1370, N1380, N1390, N1400, N1410, N1420, N1430, N1440, N1450, N1460, N1470, N1480 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and shell and camera LED light panel are different for these model. Applicant : Shenzhen HMY Technology Co., Ltd . Address : 301, No.158-4, Guanping Road, Xintian Community, Guanhu Street, Longhua District, Shenzhen, China Manufacturer : Shenzhen HMY Technology Co., Ltd . Address : 301, No.158-4, Guanping Road, Xintian Community, Guanhu Street, Longhua District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25102801502 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 MPE Calculation Method ......................................................................................... 7 4.3 Conducted Power Results ....................................................................................... 8 4.4 Manufacturing tolerance .......................................................................................... 8 4.5 Standalone MPE Result ........................................................................................... 8 4.6 Simultaneous Transmission for MPE Result ........................................................... 8 5 Conclusion ...........................................................…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type External antenna Model N1280 Frequency range 2400-2500MHz Manufacturer Shenzhen HMY Technology Co., Ltd . Address 301, No.158-4, Guanping Road, Xintian Community, Guanhu Street, Longhua District, Shenzhen, China ANT Peak Gain 2.0 dBi 2. Antenna Photo: 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : CTA25102801501 2A7BZ-N1280 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Nov. 03, 2025 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Shenzhen HMY Technology Co., Ltd . Address ............................................ : 301, No.158-4, Guanping Road, Xintian Community, Guanhu Street, Longhua District, Shenzhen, China Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : IP Camera Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen HMY Technology Co., Ltd . Model/Type reference ...................... : N1280 Listed Models ................................... : Refer to page 2 Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA25102801501 Page 2 of 58 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : IP Camera Model /Type : N1280 Listed Models : N1290, N1330, N1340, N1350, N1360, N1370, N1380, N1390, N1400, N1410, N1420, N1430, N1440, N1450, N1460, N1470, N1480 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and shell and camera LED light panel are different for these model. Applicant : Shenzhen HMY Technology Co., Ltd . Address : 301, No.158-4, Guanping Road, Xintian Community, Guanhu Street, Longhua District, Shenzhen, China Manufacturer : Shenzhen HMY Technology Co., Ltd . Address : 301, No.158-4, Guanping Road, Xintian Community, Guanhu Street, Longhua District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25102801501 Page 3 of 58 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test…

Text truncated - open the document above for the full version.

Report No.: CTA25102801501 Page 49 of 58 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA25102801501 Page 50 of 58 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA25102801501 Page 51 of 58 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA25102801501 Page 52 of 58 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn N1330, N1460, N1470, N1480 Report No.: CTA25102801501 Page 53 of 58 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA25102801501 Page 54 of 58 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA25102801501 Page 55 of 58 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA25102801501 Page 56 of 58 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA25102801501 Page 57 of 58 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA25102801501 Page 58 of 58 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn ********************** End of Report **********************

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2A7BZ-N1280 Company : Shenzhen HMY Technology Co., Ltd . EUT : IP Camera Model Number : N1280 Report No. : CTA25102801501 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 8.800 2407.560 2416.360 0.5 PASS 2437 9.120 2432.480 2441.600 0.5 PASS 2462 8.640 2457.560 2466.200 0.5 PASS 11G Ant1 2412 16.320 2403.880 2420.200 0.5 PASS 2437 16.280 2428.920 2445.200 0.5 PASS 2462 16.360 2453.880 2470.240 0.5 PASS 11N20SISO Ant1 2412 17.400 2403.320 2420.720 0.5 PASS 2437 17.280 2428.400 2445.680 0.5 PASS 2462 17.240 2453.440 2470.680 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 7 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.039 2405.5074 2418.5464 --- --- 2437 12.980 2430.5218 2443.5018 --- --- 2462 12.985 2455.5088 2468.4938 --- --- 11G Ant1 2412 16.595 2403.7379 2420.3329 --- --- 2437 16.597 2428.7269 2445.3239 --- --- 2462 16.576 2453.7291 2470.3051 --- --- 11N20SISO Ant1 2412 17.443 2403.3190 2420.7620 --- --- 2437 17.457 2428.3071 2445.7641 --- --- 2462 17.445 2453.3082 2470.7532 --- --- 8 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 9 11G_Ant1_2412 11G_Ant1_2437 10 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11 11N20SISO_Ant1_2462 12 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency[MHz] Peak power [dBm] Limit [dBm] Verdict 11B Ant1 2412 14.67 ≤30.00 PASS 2437 15.01 ≤30.00 PASS 2462 14.55 ≤30.00 PASS 11G Ant1 2412 12.82 ≤30.00 PASS 2437 13.32 ≤30.00 PASS 2462 13.12 ≤30.00 PASS 11N20SISO Ant1 2412 12.97 ≤30.00 PASS 2437 13.51 ≤30.00 PASS 2462 13.28 ≤30.00 PASS 13 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -14.52 ≤8.00 PASS 2437 -13.92 ≤8.00 PASS 2462 -14.03 ≤8.00 PASS 11G Ant1 2412 -21.75 ≤8.00 PASS 2437 -21.07 ≤8.00 PASS 2462 -21.37 ≤8.00 PASS 11N20SISO Ant1 2412 -21.67 ≤8.00 PASS 2437 -21.02 ≤8.00 PASS 2462 -21.11 ≤8.00 PASS 14 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 15 11G_Ant1_2412 11G_Ant1_2437 16 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 17 11N20SISO_Ant1_2462 18 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 -0.43 -51.34 ≤-20.43 PASS High 2462 0.83 -56.1 ≤-19.17 PASS 11G Ant1 Low 2412 -7.52 -45.76 ≤-27.52 PASS High 2462 -7.55 -52.35 ≤-27.55 PASS 11N20SIS O Ant1 Low 2412 -7.89 -47.97 ≤-27.89 PASS High 2462 -7.28 -54.47 ≤-27.28 PASS 19 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 20 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 21 11N20SISO_Ant1_High_2462 22 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference -0.23 -0.23 --- PASS 30~1000 -0.23 -55.36 ≤-20.23 PASS 1000~26500 -0.23 -44.66 ≤-20.23 PASS 2437 Reference -0.36 -0.36 --- PASS 30~1000 -0.36 -56.35 ≤-20.36 PASS 1000~26500 -0.36 -45.09 ≤-20.36 PASS 2462 Reference -1.30 -1.30 --- PASS 30~1000 -1.30 -55.6 ≤-21.3 PASS 1000~26500 -1.30 -45.66 ≤-21.3 PASS 11G Ant1 2412 Reference -8.44 -8.44 --- PASS 30~1000 -8.44 -60.2 ≤-28.44 PASS 1000~26500 -8.44 -44.33 ≤-28.44 PASS 2437 Reference -7.30 -7.30 --- PASS 30~1000 -7.30 -56.68 ≤-27.3 PASS 1000~26500 -7.30 -44.86 ≤-27.3 PASS 2462 Reference -7.81 -7.81 --- PASS 30~1000 -7.81 -59.6 ≤-27.81 PASS 1000~26500 -7.81 -45.4 ≤-27.81 PASS 11N20SISO Ant1 2412 Reference -8.21 -8.21 --- PASS 30~1000 -8.21 -59.39 ≤-28.21 PASS 1000~26500 -8.21 -44.35 ≤-28.21 PASS 2437 Reference -7.34 -7.34 --- PASS 30~1000 -7.34 -60.12 ≤-27.34 PASS 1000~26500 -7.34 -44.91 ≤-27.34 PASS 2462 Reference -7.86 -7.86 --- PASS 30~1000 -7.86 -59.44 ≤-27.86 PASS 1000~26500 -7.86 -45.32 ≤-27.86 PASS 23 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 24 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 25 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 26 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 27 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 28 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 29 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 30 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 31 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 32 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 33 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 34 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration […
