2A7EH-BT02Remote control

BT02BluetoothRemoteControlManual 1.ProductIntroduction TheBluetoothremotecontrolisdesignedspecificallyforVantruedashcamsand supportswirelesscontrolofthedashcam'scorefunctions.ThroughaBluetooth connection,userscaneasilycapturephotos,lockrecordings,andtogglethe microphoneonandoff,enhancingbothsafetyandconveniencewhiledriving. 2.ProductAccessories .BluetoothRemoteControl×1 .Battery(pre-installed)×1 .UserManual×1 .SpareAdhesivePad×1 3.FunctionDescription .CapturePhotos:Pressthephotobuttonontheremotecontroltoimmediatelycapture keymomentsduringyourdrive. .LockRecording:Pressthelockbuttontoquicklylockthecurrentvideosegmentto preventitfrombeingoverwritten. .MicrophoneOn/Off:Pressthemicrophonebuttontoturntherecordingonoroffatany time. .DisplaySwitch:Forcertainmodels,long-pressaspecifiedbuttontoswitchbetween differentcameraviews. 4.ConnectionInstructions 1. TurnonBluetooth:EnsuretheBluetoothfunctiononthedashcamisenabled. 2. PairtheRemoteControl: oEnterthedashcam'sBluetoothsettingsmenuandselect"BluetoothRemote Control." oPressanybuttonontheremotecontrol,andthedashcamwillautomatically searchforandpairwiththedevice. oOncepaired,thedashcamwilldisplay"Bluetoothconnectionsuccessful"onthe screen. 5.InstallationSteps 1.Selectasuitablepositiontoinstalltheremotecontrol,suchasnexttothesteeringwheel orontheinsideofthecardoor,ensuringitiseasytooperate. 2. Usetheincludedadhesivepadtofirmlyattachtheremotecontroltothedesired location. 6.BatteryReplacement 1. Iftheremotecontrolstopsresponding,itmaybetimetoreplacethebattery. 2.Openthebatterycoveronthebackoftheremotecontrol,removetheoldbattery,and installanewone. 3.Ensurethecorrectpolarityofthebatteryandclosethebatterycover. 7.CommonIssues .UnabletoconnectBluetooth: oCheckiftheBluetoothonthedashcamisturnedon. oEnsuretheremotecontrolisfunctioningwithsufficientbatterypower. oIftheissuepersists,restartthedashcamandre-pairthedevice. .Buttonsarenotresponding: oCheckiftheremotecontrolissuccessfullypairedwiththedashcam. oReplacethebatteryintheremotecontrol. 8.Precautions .Donotplacetheremotecontrolinhigh-temperatureorhumidenvironments. .Theremotecontroliswaterproof,butavoidprolongedexposuretowater. .Toensuresafedriving,itisrecommendedtooperateadvancedfeaturesoftheremote controlonlywhenthevehicleisparked. 9.TechnicalSpecifications .OperatingFrequency:2.4GHz(Bluetooth) .EffectiveRange:10meters .BatteryType:CR2032ButtonBattery .OperatingTemperature:-20°C~60°C 10.WarrantyInformation ThisBluetoothremotecontrolcomeswithaone-yearwarranty.Foranyquality issues,pleasecontactVantrueofficialcustomerserviceoranauthorizeddealerfor after-salesservice. FCCStatement ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothe followingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference. (2)Thisdevicemustacceptanyinterferencereceived,including nterferencethatmaycauseundesiredoperation. Caution:Anychangesormodificationsnotexpresslyapprovedbytheparty responsibleforcompliancecouldvoidtheuser'sauthorityto operatetheequipment. Note:Thisequipmenthasbeentestedandfoundtocomplywiththelimitsfora ClassBdigitaldeviceunderPart15oftheFCCRules.Theselimitsaredesignedto protectreasonablyagainstharmfulinterferenceinaresidentialinstallation.This equipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnot installedandusedbytheinstructions,maycauseharmfulinterferencetoradio communications.However,thereisnoguaranteethatinterferencewillnotoccurin aparticularinstallation.Supposethisequipmentdoescauseharmfulinterferenceto radioortelevisionreception,whichcanbedeterminedbyturningtheequipment offandon.Inthatcase,theuserisencouragedtotrytocorrecttheinterference byoneormoreofthefollowingmeasures: (1)Reorientorrelocatethereceivingantenna. (2)Increasetheseparationbetweentheequipmentandreceiver. (3)Connecttheequipmenttoanoutletonacircuitdifferentfromthereceivers. (4)Consultthedealeroranexperiencedradio/TVtechnicianforhelp. ISEDStatement -English:ThisdevicecomplieswithIndustryCanadalicense- exemptRSSstandard(s).Operationissubjecttothefollowing twoconditions:(1)Thisdevicemaynotcause interference,and(2)Thisdevicemustacceptanyinterference,including interferencethatmaycauseundesiredoperationofthedevice. ThedigitalapparatuscomplieswithCanadianCANICES-3(B)/NMB-3(B). -French:LeprésentappareilestconformeauxCNRd'Industrie Canadaapplicablesauxappareilsradioexemptsdelicence.L' exploitationestautoriséeauxdeuxconditionssuivantes:(1)l' appareilnedoitpasproduiredebrouillage,et(2)l'utilisateurdel'appareildoit acceptertoutbrouillageradioélectriquesubi,mêmesilebrouillageestsusceptible d'encompromettrele fonctionnement.l'appareilnumériqueduciemconformecanadien peut-3(b)/nmb-3(b). Thisdevicemeetstheexemptionfromtheroutineevaluation limitsinsection2.5ofRSS102andcompliancewithRSS102RFexposure,userscan obtainCanadian informationonRFexposureandcompliance. cetappareilestconformeàl'exemptiondeslimitesd'évaluationcourantedansla section2.5ducnr-102etconformitéavec rss102del'expositionauxrf,lesutilisateurspeuventobtenirdesdonnées canadiennessurl'expositionauxchampsrfetla conformité. ThisequipmentcomplieswithCanadaradiationexposurelimits setforthforanuncontrolledenvironment. Cetéquipementestconformeauxlimitesd'expositionaux rayonnementsduCanadaétabliespourunenvironnementnon contrôlé. Thisequipmentshouldbeinstalledandoperatedwithminimumdistance20cm betweentheradiator&yourbody. Cetéquipementdoitêtreinstalléetutiliséàunedistanceminimalede20cmentrele radiateuretvotrecorps.

(ShenzhenSanjiangLechuangTechnologyCo.,Ltd.) (8/29/2024) EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(i)requestfor(2A7EH-BT02) [ShenzhenSanjiangLechuangTechnologyCo.,Ltd.](“theapplicant”)certifiesthatthe equipmentforwhichauthorizationissoughtisnot“covered”equipmentprohibited fromreceivinganequipmentauthorizationpursuanttosection2.903oftheFCCrules. Sincerely, (Applicantsignature) (AdaLiang) (ShenzhenSanjiangLechuangTechnologyCo.,Ltd.) (8/29/2024) EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(ii)requestfor(2A7EH-BT02) [ShenzhenSanjiangLechuangTechnologyCo.,Ltd.](“theapplicant”)certifiesthat,asofthe dateofthefilingoftheapplication,theapplicantisnotidentifiedontheCoveredListas anentityproducing“covered”equipment. Sincerely, (Applicantsignature) ((AdaLiang)

AttestationStatements (8/29/2024) TO:FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046,USA RE:AttestationStatementsPart2.911(d)(7)requestfor(2A7EH-BT02) (ShenzhenSanjiangLechuangTechnologyCo.,Ltd.),theundersigned,herebyauthorize(WeFa SelectionTradeTechnologyCo.,LTD)toactasourdesignatedU.S.agentforserviceof process,(ShenzhenSanjiangLechuangTechnologyCo.,Ltd.)acceptstomaintainanagentforno lessthanoneyearafterthegranteehasterminatedallmarketingandimportationor theconclusionofanyCommission-relatedproceedinginvolvingtheequipment. (WeFaSelectionTradeTechnologyCo.,LTD)acceptstheresponsibilitytoactas designatedU.S.agentforserviceofprocess. ApplicantInformation： Companyname:ShenzhenSanjiangLechuangTechnologyCo.,Ltd. FRN: 0032751653 ContactName:AdaLiang Address:Area401B,4thFloor,BuildingA7,No.416,XuegangNorthRoad,QinghuCommunity,Longhua Street,LonghuaDistrict,Shenzhen,Guangdong,China TelephoneNo:0755-23573094 Email:[email protected] Signature [AdaLiang] U.S.AgentInformation: CompanyName:WeFaSelectionTradeTechnologyCo.,LTD Address:30N.GOULDST.STENSHERIDANWY,SHERIDAN,WY82801,UnitedStates FRN:0033767856 ContactName:JosonYe TelephoneNo:3023719847 Email:[email protected] Signature [JosonYe]

ShenzhenSanjiangLechuangTechnologyCo.,Ltd. (8/29/2024) EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:CONFIDENTIALITYREQUESTFOR(Wirelessmicrophone,MIC-30) ToWhomItMayConcern: Thisletterservesasanofficialrequestforconfidentialityundersections0.457and0.459 ofCFR47.Wehaverequestedthatthe(Blockdiagram,circuitdiagram,operational description,BOM,PCBlayout)requiredtobesubmittedwiththisapplicationbe permanentlywithheldfrompublicreview. SPECIFYREASONFORREQUEST(i.e.theabovedocumentsarecompany proprietaryinformationthatcouldnevergetintothepossessionofyour competition). Pleasecontactmeifthereisanyinformationyoumayneed. Sincerely,

ShenzhenSanjiangLechuangTechnologyCo.,Ltd. (8/29/2024) EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:LETTEROFAGENTAUTHORIZATION ToWhomItMayConcern: We,theundersigned,herebyauthorize(ShenzhenGUORENCertificationTechnologyServiceCo., Ltd.)toactonourbehalfinallmattersrelatingtoapplicationforequipmentauthorization, includingthesigningofalldocumentsrelatingtothesematters. Wealsoherebycertifythatnopartytotheapplicationauthorizedhereunderissubjecttothe denialofbenefits,includingFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuseAct of1988,21U.S.C.853(a). Thisagreementexpiresoneyearfromthecurrentdate. Sincerely,

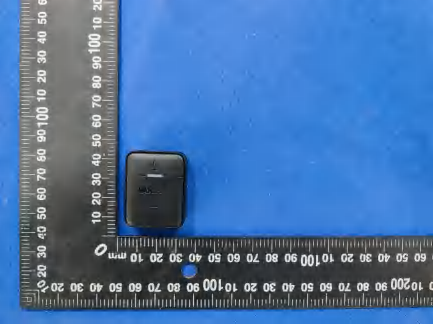

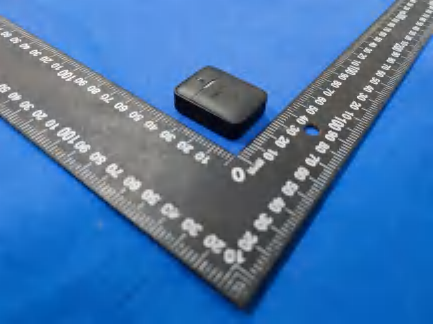

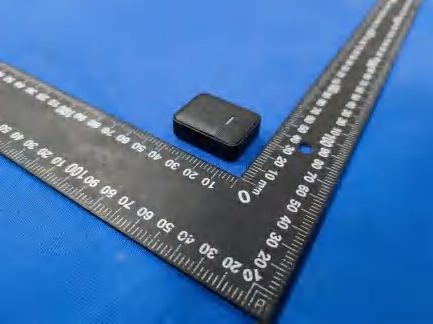

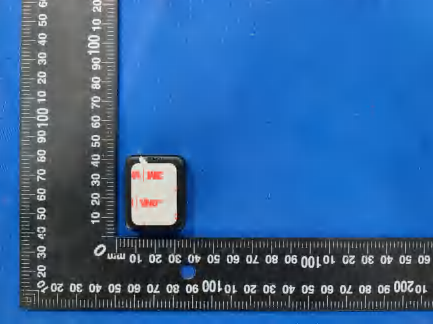

FCCID:2A7EH-BT02 ExternalPhoto FCCID:2A7EH-BT02 FCCID:2A7EH-BT02

VANTRUE Description：Bluetoothremotecontrol Model(HVIN):BT02 Input：5V FCCID:2A7EH-BT02 *LabelpositiononthesideoftheRemoteControl.ThesizeoftheMIClogois 3mm*3mm. LabelandLocation

FCCID:2A7EH-BT02 InternalPhoto FCCID:2A7EH-BT02

Page 1 of 2 RFExposureevaluation FCCID:2A7EH-BT02 1.1.ApplicableStandard Accordingto§1.1307(b)(1),systemsoperatingundertheprovisionsofthissectionshallbeoperatedina mannerthatensuresthatthepublicisnotexposedtoradiofrequencyenergylevelinexcessofthe Commission’sguidelines. Accordingto§1.1310and§2.1093RFexposurerequirement KDB447498v06:MobileandPortableDevicesRFExposureProceduresandEquipmentAuthorization Policies 1.2.Requirement AccordingtoKDB447498D01GeneralRFExposureGuidancev06Section4.3.1StandaloneSARtest exclusionconsiderations:“UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures, standalone1-gheadorbodyand10-gextremitySARevaluationforgeneralpopulationexposureconditions, bymeasurementornumericalsimulation,isnotrequiredwhenthecorrespondingSARTestExclusion Thresholdcondition,listedbelow,issatisfied.Thesetestexclusionconditionsarebasedonsource-based time-averagedmaximumconductedoutputpoweroftheRFchannelrequiringevaluation,adjustedfortune-up tolerance,andtheminimumtestseparationdistancerequiredfortheexposureconditions.22Theminimum testseparationdistanceisdeterminedbythesmallestdistancefromtheantennaandradiatingstructuresor outersurfaceofthedevice,accordingtothehostformfactor,exposureconditionsandplatformrequirements, toanypartofthebodyorextremityofauserorbystander(see5)ofsection4.1).ToqualifyforSARtest exclusion,thetestseparationdistancesappliedmustbefullyexplainedandjustifiedbytheoperating configurationsandexposureconditionsofthetransmitterandapplicablehostplatformrequirements,typically intheSARmeasurementorSARanalysisreport,accordingtotherequiredpublishedRFexposureKDB procedures.WhennootherRFexposuretestingorreportingisrequired,astatementofjustificationand compliancemustbeincludedintheequipmentapproval,inlieuoftheSARreport,toqualifyfortheSARtest exclusion.Whenrequired,thedevicespecificconditionsdescribedintheotherpublishedRFexposureKDB proceduresmustbesatisfiedbeforeapplyingtheseSARtestexclusionprovisions;forexample,handheldPTT two-wayradios,handsets,laptops&tabletsetc.23“ [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance,mm)] · [√f(GHz)] ≤3.0for1-gSARand≤7.5for10-gextremitySAR,where: •f(GHz)istheRFchanneltransmitfrequencyinGHz • PoweranddistanceareroundedtothenearestmWandmmbeforecalculation • Theresultisroundedtoonedecimalplaceforcomparison •3.0and7.5arereferredtoasthenumericthresholdsinthestep2below Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤50mmandfor transmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtestseparationdistanceis<5 mm,adistanceof5mmaccordingto5)insection4.1isappliedtodetermineSARtestexclusion. 1.3.Manufacturingtolerance 2.4GGFSK(Peak) ChannelChannel00Channel19Channel39 Target(dBm)-4.0-4.0-4.0 Tolerance±(dB)1.01.01.0 2.EvaluationResult EvaluationResults Band/Modef(GHz) Antenna Distance (mm) RFoutputpower (includingtune-up tolerance) SARTest Exclusion Threshold SARTest Exclusion dBmmW BLE2.4805-3.00.50120.16<3.0Yes Page 2 of 2 3.Conclusion ThemeasurementresultscomplywiththeFCCLimitper47CFR2.1093fortheuncontrolledRFExposure andSARExclusionThresholdperKDB447498v06. .....................EndofReport.........................
