2A7EH-F1VANTRUE Falcon 1 4K+1080P Dual Dashcam

English/Deutsch/Français/Polski www.vantrue.net [email protected] Made in China VANTRUE Falcon 1 4K+1080P Dual Dashcam User Guide Model No.: F1 Falcon 1 Hey, find us here: www.vantrue.net/contact facebook.com/vantrue.live 1.Installation Guide 2.Structure Diagram 3.Basic Operation 4.Troubleshooting 5.Specification 6.After-sales service CONTENTS 1 7 8 21 23 25 Please read this User Manual carefully before using the camera. This product is a motorcycle-specific recorder and is limited to connecting to a 12V battery. Please turn off the power of the motorcycle before installation, and turn on the power after installation is completed. The Wi-Fi name is F1_VANTRUE_XXXX and the initial Wi-Fi password is 12345678. It is strictly forbidden to use high-pressure water gun to flush the machine to avoid water in the body. This product supports up to 512GB SD card storage. To ensure normal video recording, please use Class 10/U3 and above standard high-speed cards. The F1 front and rear cameras are fully sealed and waterproof, but you still need to avoid using solvents such as grease, alcohol and tar cleaner to contact the lens to avoid damaging the waterproof layer. Note: For normal storage of video files, please format the SD card regularly. Warm tips: 1. 2. 3. 4. 5. 6. 7. - 1 - 1.1 Inserting a Memory Card (Recommended: Vantrue U3 high-speed microSD card). 1. Installation Guide After inserting the SD card for the first time, please press and hold the remote control record button for 10 seconds to start formatting the card. Note: After removing the cover of the SD card slot, put the screw in place to avoid losing it. Use the matching screwdriver to remove the slot sealing cover Insert an Memory Card 1.2 Installing the Dash Cam Main Unit Please install the main unit a location without metal cover, such as under the seat, determine the location and tear off the 3M adhesive to fix it. Note: <1>The Wi-Fi signal transmitting part is on the front - 2 - of the main unit. Please do not install it facing down when installing the logo side of the main unit or under the metal parts of the motorcycle. <2>. F1 dash cam main unit needs to be fixed with 3M adhesive (shipped as standard). Please fix the 3M adhesive in the recess of the F1 main body protective case and then paste it to the motorcy- cle. <3>. In order to improve the cooling efficiency of F1 mainframe, you can remove the protective case before installation. <4>. If installed on the curved surface, we recommend using cable ties for fixing. - 3 - 1.3 Installing the remote control You can choose a suitable installation position according to your own usage habits and install the remote control on the handlebars, the front part of the car, the side of the fuel tank, etc. Note : <1>. When installing the motorcycle dash camera, you need to face up the button side to avoid affecting the GPS signal reception. <2>. Please do not use 3M adhesive to cover the speaker hole on the back of the remote control in order to increase the stability of the remote control. Speaker hole <3>. The side is the microphone receiving hole, please do not put the receiving hole directly in front to avoid serious wind noise. REMINDER: - 4 - 1.4 Installing the Power Cord Connect the power cord to the fuse box as follows. Step 1: the red power cable is connected to the positive terminal of the battery. Step 2: the ACC signal wire (yellow wire) is connected to the ACC power fuse of the battery. Step 3: The black ground wire is connected to the negative terminal of the battery or the override position. Step 4: start the motorcycle power supply and wait for the device to start. Step 5: After confirming that the power supply is properly installed, use the cable ties to organize the storage lines and secure them to the motorcycle. Note: <1>. Before installation and wiring, you need to turn off the motorcycle and turn off the motorcycle power to avoid short circuit during the operation. <2>. For driving safety, please avoid leaving too long power cables exposed. If necessary, please use insulating tape to wrap and fix them. Select the location in the fuse box where the fuse can be accessed. - 5 - 1.5 Installing the Front and Rear camera The front and rear cameras can be loosened by the hexagonal screw to adjust the lens recording angle, as well as the recording direction. Lens orientation correction line Camera holder 3M adhesive for camera holder Camera mount holder head cap screws: loosened, you can adjust the camera angle up and down, can be inverted, side-mounted rotation to adjust the direction of the camera recording. Multifunctional camera holder: fixing screw holes Multifunctional camera holder: can be mounted on motorcycle handlebars and other locations Note: <1>. If the front camera is mounted on the handlebar position, you need to fix the front camera to the multifunctional camera holder first, and then fix the holder on the motorcycle handlebar. <2>. The front/rear cameras comes with 3M adhesive, just stick it in the front/rear of the motorcycle after choosing the right position. EN - 6 - (We recommend mounting the front and rear cameras on the motorcycle body instead of the handlebars to reduce camera shake and improve the stability of the video) <3>. The line of the camera is a high frequency data line. Please do not bend the cable 180 degrees backwards, as it may cause damage to the cable. We recommend using a circular way to tie the wire fixed. <4>. Due to different installation positions, the front/rear lens may appear backwards, you can adjust the lens according to the direction of the lens correction line. <5>. When adjusting the direction of the camera recording, you can use the App real-time preview function to accurately adjust to the appropriate recording effect. - 7 - After the lens is installed, you can enter the VANTRUE App real-time preview to correct the lens orientation. After entering the live preview, click on the word 田 calibration line at the bottom left of…

Text truncated - open the document above for the full version.

-ShenzhenSanjiangLechuangTechnologyCo.,Ltd- TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB986446D01. Anexpirationdateforthisletterdoesnotexist.IncasetheU.S.agentchanges,thegranteeisobligatedtonotifytheFCC. FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 2/23/23 U.S.AgentDesignation [ShenzhenSanjiangLechuangTechnologyCo.,Ltd]acknowledgestheirconsentforthefollowingcontact locatedintheUnitedStatestoactastheiragentforserviceofprocessfortheequipmentforwhich authorizationissought(FCCID: 2A7EH-F1 ): NameandcompanyofU.S.agent:GSSSERVICEINC PhysicalU.S.addressofagent:6547NAcademyBlvd#2266ColoradoSpringsCo80918USA FRNofU.S.agent:0033402082 EmailaddressofU.S.agent:[email protected] [GSSSERVICEINC]acknowledgestheirobligationtoacceptserviceofprocessonbehalfof [ShenzhenSanjiangLechuangTechnologyCo.,Ltd]. [ShenzhenSanjiangLechuangTechnologyCo.,Ltd]acceptsitsobligationtomaintainanagentforservice ofprocessintheUnitedStatesfornolessthanoneyearaftereitherthegranteehaspermanently terminatedallmarketingandimportationoftheapplicableequipmentwithintheU.S.,ortheconclusion ofanyCommission-relatedadministrativeorjudicialproceedinginvolvingtheequipment,whicheveris later. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirements listedunder§2.911(d)(7). Sincerely, Signature [Ada.liang] [Director] [ShenzhenSanjiangLechuangTechnologyCo.,Ltd] Signature [NameofU.S.agent]:michouxlogan [TitleofU.S.agent]:manager [CompanyofU.S.agent]:GSSSERVICEINC 4 8 _ [ m o d e l ] U S _ A g e n t _ 2 . 9 1 1 ( d ) ( 7 ) - U , V 0 3

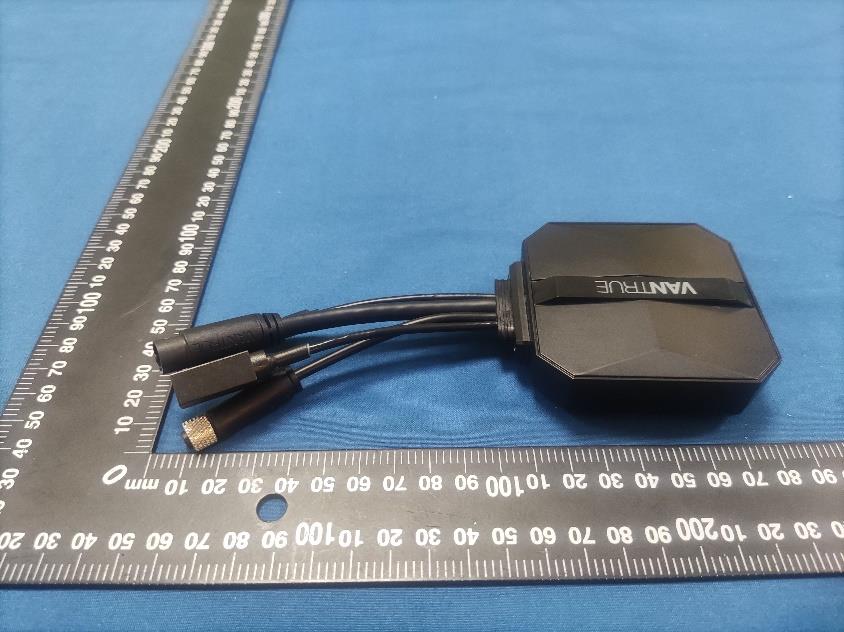

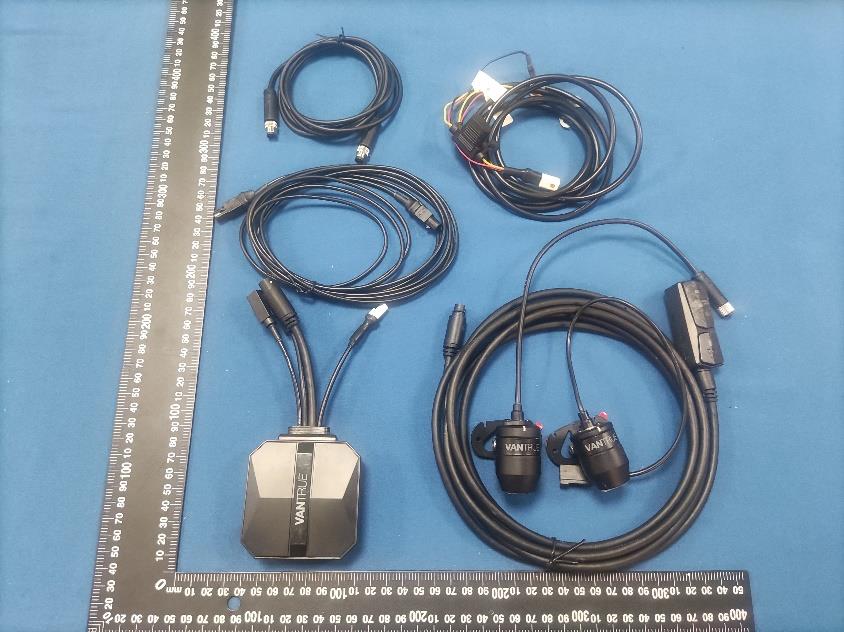

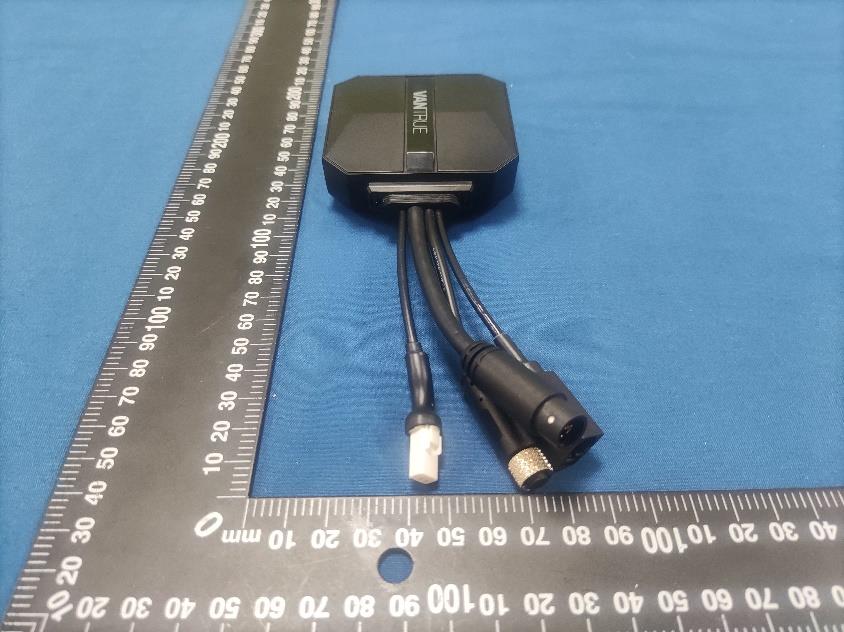

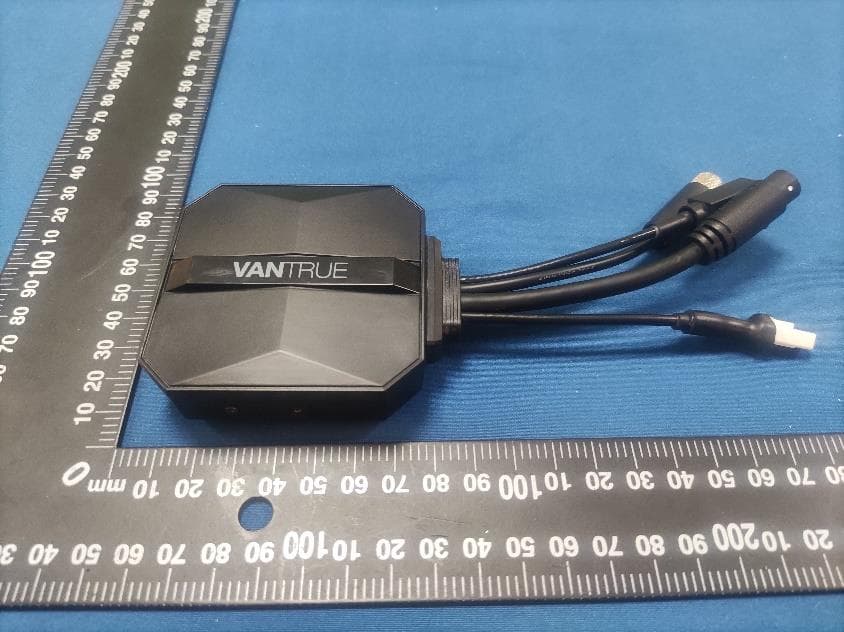

FCC ID: 2A7EH-F1 External Photos FCC ID: 2A7EH-F1 FCC ID: 2A7EH-F1

VANTRUE Description：VANTRUE Falcon 1 4K+1080PDual Dashcam Model(HVIN):F1 Lite Input：12V2A FCC ID: 2A7EH-F1 IC :28650-F1 電波法により5.2 GHz帯は屋内使用に限ります 5.2GHz band is restricted to indoor use due to the Radio Law VANTRUE Description：VANTRUE Falcon 1 4K+1080PDual Dashcam Model(HVIN): F1 Input：12V2A FCC ID: 2A7EH-F1 IC :28650-F1 電波法により5.2 GHz帯は屋内使用に限ります 5.2GHz band is restricted to indoor use due to the Radio Law VANTRUE Description：VANTRUE Falcon 1 4K+1080PDual Dashcam Model(HVIN): F2 Input：12V2A FCC ID: 2A7EH-F1 IC :28650-F1 電波法により5.2 GHz帯は屋内使用に限ります 5.2GHz band is restricted to indoor use due to the Radio Law *Label position on the side of the dash cam.The size of the MIC logo is 5mm*5mm.

FCC ID: 2A7EH-F1 Internal Photos Wifi Antenna FCC ID: 2A7EH-F1

RFExposureevaluation FCCID:2A7EH-F1 1.Reference Accordingto§1.1307(b)(1),systemsoperatingundertheprovisionsofthissection shallbeoperatedinamannerthatensuresthatthepublicisnotexposedtoradio frequencyenergylevelinexcessoftheCommission’sguidelines. Accordingto§1.1310and§2.1091RFexposureiscalculated. KDB447498D01:MobileandPortableDevicesRFExposureProceduresand EquipmentAuthorizationPolicies 2.Limit LimitsforMaximumPermissibleExposure(MPE)/ControlledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) Averaging Time (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500– 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100)* (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 LimitsforMaximumPermissibleExposure(MPE)/UncontrolledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) Averaging Time (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500– 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100)* (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequencyinMHz *=Plane-waveequivalentpowerdensity 3.MPECalculationMethod PredicationofMPElimitatagivendistance Equationfrompage18ofOETBulletin65,Edition97-01 S=PG/4πR² Where:S=powerdensity P=powerinputtoantenna G=powergainoftheantennainthedirectionofinterestrelativetoanisotropic radiator R=distancetothecenterofradiationoftheantenna 4.AntennaInformation F1canonlyuseantennascertificatedasfollowsprovidedbymanufacturer; AntennaNo. ModelNo. ofantenna: Typeofantenna: Gainoftheantenna (Max.) Frequencyrange: 2.4GWIFI/FPCANT3.54dBifor2400-2500MHz 5GWIFI/FPCANT 3.43dBifor5150-5250MHz 2.98dBifor5725-5875MHz 5.ManufacturingTolerance 2.4GHzWIFI(Peak) Frequency (MHz) 11b 241224372462 Target(dBm)15.015.015.0 Tolerance±(dB)1.01.01.0 Frequency (MHz) 11g 241224372462 Target(dBm)11.011.011.0 Tolerance±(dB)1.01.01.0 Frequency (MHz) 11n(HT20) 241224372462 Target(dBm)11.011.011.0 Tolerance±(dB)1.01.01.0 Frequency (MHz) 11n(HT40) 242224372452 Target(dBm)11.011.011.0 Tolerance±(dB)1.01.01.0 5GHzWLANBand1 IEEE802.11a(Average) Frequency(MHz)518052005240 Target(dBm)8.08.08.0 Tolerance±(dB)1.01.01.0 IEEE802.11nHT20(Average) Frequency(MHz)518052005240 Target(dBm)8.08.08.0 Tolerance±(dB)1.01.01.0 IEEE802.11nHT40(Average) Frequency(MHz)51905230 Target(dBm)8.08.0 Tolerance±(dB)1.01.0 IEEE802.11acVHT20(Average) Frequency(MHz)518052005240 Target(dBm)8.08.08.0 Tolerance±(dB)1.01.01.0 IEEE802.11acVHT40(Average) Frequency(MHz)51905230 Target(dBm)8.08.0 Tolerance±(dB)1.01.0 IEEE802.11acVHT80(Average) Frequency(MHz)5210 Target(dBm)8.0 Tolerance±(dB)1.0 5GHzWLANBand3 IEEE802.11a(Average) Frequency(MHz)518052005240 Target(dBm)11.011.011.0 Tolerance±(dB)1.01.01.0 IEEE802.11nHT20(Average) Frequency(MHz)574557855825 Target(dBm)11.011.011.0 Tolerance±(dB)1.01.01.0 IEEE802.11nHT40(Average) Frequency(MHz)57555795 Target(dBm)11.011.0 Tolerance±(dB)1.01.0 IEEE802.11acVHT20(Average) Frequency(MHz)574557855825 Target(dBm)11.011.011.0 Tolerance±(dB)1.01.01.0 IEEE802.11acVHT40(Average) Frequency(MHz)57555795 Target(dBm)11.011.0 Tolerance±(dB)1.01.0 IEEE802.11acVHT80(Average) Frequency(MHz)5775 Target(dBm)11.0 Tolerance±(dB)1.0 6.StandaloneMPEResult AsdeclaredbytheApplicant,theEUTisawirelessdeviceusedinafixapplication,at least20cmfromanybodypartoftheuserornearbypersons;fromthemaximumEUT RFoutputpower,theminimumseparationdistance,r=20cm,aswellasthegainofthe usedantennarefertoantennainformation,theRFpowerdensitycanbeobtained. ModulationType OutputpowerAntenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBmmW 2.4GWIFI16.039.81073.542.25940.01791.0000 5GWIFI12.015.84892.981.98610.00631.0000 Remark: 1.Outputpower(Peak)includingturn-uptolerance; 2.MPEevaluatedistanceis20cmfromusermanualprovidebymanufacturer. 7.Conclusion ThemeasurementresultscomplywiththeFCCLimitper47CFR2.1091forthe uncontrolledRFExposureofmobiledevice. ----------------THEENDOFREPORT---------------

东莞市安特通信有限公司 天线测试报告 客户三匠项目行车记录仪 频段2.4G-5.8G版本 天线工程师吴惠琴日期2022-09-17 Dongguan Ante Communication Co., Ltd. Antenna test report Fre range Antenna engineer client Item Dashcam Ver. Date sanjiang Model:RT395-10004-A 1.Test Equipment 矢量网络分析仪Agilent E5071B 暗室 OTA-500 人 员 刘云海 Vector network analyzer Shielded room 测 试 Testers 2.Matching circuit E3 ANT GND E1空位 E20欧姆 E3空位 E40欧姆 E5空位 E2 E1 GND E4 E5 GND RF CONNECT 3.Antenna placement 4.R-LOSS, VSWR, 5.Passive test data Frequency2.4GHz2.41GHz2.42GHz2.43GHz2.44GHz2.45GHz2.46GHz2.47GHz2.48GHz2.49GHz2.5GHz Efficiency (%)52.3652.7252.4853.8353.4653.8352.652.8453.752.7252.12 Gain (dBi)3.53.543.493.453.353.533.473.413.463.463.52 Frequency5.15GHz5.2GHz5.25GHz5.3GHz5.35GHz5.4GHz5.45GHz5.5GHz5.55GHz5.6GHz5.65GHz5.7GHz5.75GHz5.8GHz5.85GHz Efficiency (%)45.646.2446.9944.5747.4248.5348.6449.3248.3145.1945.645.644.6743.9544.77 Gain (dBi)3.363.353.433.343.543.43.844.043.793.62.842.932.952.982.82 6.Directional diagram-3D(2.45G) Directional diagram-2D(2.45G) Directional diagram-3D(5.15G) Directional diagram-2D(5.15G) Directional diagram-3D(5.5G) Directional diagram-2D(5.5G) Directional diagram-3D(5.85G) Directional diagram-2D(5.85G) ---End of Report---

ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd. 101#,BuildingK&BuildingT,TheSecondIndustrialZone,JiazitangCommunity, FenghuangStreet,GuangmingDistrict,Shenzhen,China FCCPART15SUBPARTCTESTREPORT FCCPART15SUBPARTE15.407 ReportReferenceNo. ....................... : FCCID. ................................................ : GRCTR221202015-02 2A7EH-F1 Compiledby (position+printedname+signature)..: TestingEngineerJimmyWang Supervisedby (position+printedname+signature) .. : ProjectEngineerKelleyZhang Approvedby (position+printedname+signature) .. : ManagerSamWang Dateofissue ......................................... :Feb.10,2023 TestingLaboratoryName ................ :ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd. Address.................................................: 101#,BuildingK&BuildingT,TheSecondIndustrialZone, JiazitangCommunity,FenghuangStreet,GuangmingDistrict, Shenzhen,China Applicant’sname...............................:ShenzhenSanjiangLechuangTechnologyCo.,Ltd. Address ................................................. : Area401B,4thFloor,BuildingA7,No.416,XuegangNorthRoad, QinghuCommunity,LonghuaStreet,LonghuaDistrict,Shenzhen, Guangdong,China Testspecification..............................: Standard ................................................ :FCCPart15SubpartE15.407 ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd.isacknowledgedascopyrightownerand sourceofthematerial.ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd.takesno responsibilityforandwillnotassumeliabilityfordamagesresultingfromthereader'sinterpretationofthe reproducedmaterialduetoitsplacementandcontext. Testitemdescription........................:VANTRUEFalcon14K+1080PDualDashcam TradeMark............................................: / Manufacturer ......................................... : ShenzhenSanjiangLechuangTechnologyCo.,Ltd. Model/Typereference ......................... : F1 ListedModels ...................................... : F1Lite,F2 Modulation...........................................:OFDM Frequency..............................................From5180MHz-5240MHz,5745MHz-5825MHz Ratings...................................................:DC12V Result ..................................................... :PASS ReportNo.:GRCTR221202015-02Page 2 of 38 TESTREPORT EquipmentunderTest:VANTRUEFalcon14K+1080PDualDashcam Model/Type:F1 ListedModels:F1Lite,F2 Applicant:ShenzhenSanjiangLechuangTechnologyCo.,Ltd. Address: Area401B,4thFloor,BuildingA7,No.416,XuegangNorth Road,QinghuCommunity,LonghuaStreet,LonghuaDistrict, Shenzhen,Guangdong,China Manufacturer:ShenzhenSanjiangLechuangTechnologyCo.,Ltd. Address : Area401B,4thFloor,BuildingA7,No.416,XuegangNorth Road,QinghuCommunity,LonghuaStreet,LonghuaDistrict, Shenzhen,Guangdong,China TestResult : PASS Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetest laboratory. ReportNo.:GRCTR221202015-02Page 3 of 38 Contents 1TESTSTANDARDS..............................................................................................................................4 2SUMMARY.................................................................................................................................................5 2.1GeneralRemarks..........................................................................................................................................5 2.2ProductDescription.....................................................................................................................................5 2.3ShortdescriptionoftheEquipmentunderTest(EUT).............................................................................5 2.4EUToperationmode.....................................................................................................................................6 2.5BlockDiagramofTestSetup.......................................................................................................................6 2.6RelatedSubmittal(s)/Grant(s)...................................................................................................................6 2.7Modifications.................................................................................................................................................6 3TESTENVIRONMENT........................................................................................................................7 3.1Addressofthetestlaboratory....................................................................................................................7 3.2TestFacility...................................................................................................................................................7 3.3Environmentalconditions............................................................................................................................7 3.4TestDescription............................................................................................................................................8 3.5Statementofthemeasurementuncertainty..............................................................................................8 3.6EquipmentsUsedduringtheTest..............................................................................................................9 4TESTCONDITIONSANDRESULTS.......................................................................................10 4.1ACPowerConductedEmission................................................................................................................10 4.2RadiatedEmissions....................................................................................................................................11 4.3MaximumConductedAverageOutputPower............................…

Text truncated - open the document above for the full version.

ReportNo.:GRCTR221202015-02Page 30 of 38 802.11n(HT40)802.11ac(HT20) CH38CH36 CH46CH40 CH48 ReportNo.:GRCTR221202015-02Page 31 of 38 802.11ac(HT40)802.11ac(HT80) CH38CH42 CH46 ReportNo.:GRCTR221202015-02Page 32 of 38 4.6MinimumEmissionBandwidth(6dBBandwidth) Limit Withinthe5.725-5.85GHzband,theminimum6dBbandwidthofU-NIIdevicesshallbeatleast500kHz. TestProcedure 1.Setresolutionbandwidth(RBW)=100kHz 2.Setthevideobandwidth3xRBW. 3.Detector=Peak. 4.Tracemode=Maxhold. 5.Measurethemaximumwidthoftheemissionthatisconstrainedbythefrequenciesassociatedwiththe twooutermostamplitudepoints(upperandlowerfrequencies)thatareattenuatedby6dBrelativetothe maximumlevelmeasuredinthefundamentalemission. TestConfiguration EUT SPECTRUM ANALYZER TestResults TypeBandsChannel 6dBBandwidth (MHz) Limit (KHz) Result 802.11aU-NII3 14916.31 ≥500KHzPass 15716.35 16516.32 802.11n(HT20)U-NII3 14917.54 15717.48 16517.55 802.11n(HT40)U-NII3 15136.03 15936.02 802.11ac(HT20)U-NII3 14917.61 15717.45 16517.42 802.11ac(HT40)U-NII3 15135.45 15936.25 802.11ac(HT80)U-NII315575.26 ReportNo.:GRCTR221202015-02Page 33 of 38 Testplotasfollows: 802.11a802.11n(HT20) CH149CH149 CH157CH157 CH165CH165 ReportNo.:GRCTR221202015-02Page 34 of 38 802.11n(HT40)802.11ac(HT20) CH151CH149 CH159CH157 CH165 ReportNo.:GRCTR221202015-02Page 35 of 38 802.11ac(HT40)802.11ac(HT80) CH151CH155 CH159 ReportNo.:GRCTR221202015-02Page 36 of 38 4.7FrequencyStability LIMIT ManufacturersofU-NIIdevicesareresponsibleforensuringfrequencystabilitysuchthatanemissionis maintainedwithinthebandofoperationunderallconditionsofnormaloperationasspecifiedintheusers manual. TESTCONFIGURATION TESTPROCEDURE FrequencyStabilityunderTemperatureVariations: TheequipmentundertestwasconnectedtoanexternalACorDCpowersupplyandinputratedvoltage.RF outputwasconnectedtoafrequencycounterorspectrumanalyzerviafeedthroughattenuators.TheEUT wasplacedinsidethetemperaturechamber.SetthespectrumanalyzerRBWlowenoughtoobtainthe desiredfrequencyresolutionandmeasureEUT20°Coperatingfrequencyasreferencefrequency.TurnEUT offandsetthechambertemperatureto-30°C.Afterthetemperaturestabilizedforapproximately30minutes recordedthefrequency.Repeatstepmeasurewith10°Cincreasedperstageuntilthehighesttemperatureof +50°Creached. FrequencyStabilityunderVoltageVariations: Setchambertemperatureto20°C.UseavariableACpowersupply/DCpowersourcetopowertheEUTand setthevoltagetoratedvoltage.SetthespectrumanalyzerRBWlowenoughtoobtainthedesiredfrequency resolutionandrecordedthefrequency. Reducetheinputvoltagetospecifyextremevoltagevariation(±15%)andendpoint,recordthemaximum frequencychange. TESTRESULTS Recordworstcaseasbelow: ReportNo.:GRCTR221202015-02Page 37 of 38 ReferenceFrequency:802.11acchannel=36frequency=5180MHz Voltage(V) Temperature(°C) Frequencyerror Limit(ppm)Result Hzppm 12.00 -30152.840.02951 Withinthe bandof operation Pass -20137.520.02655 -10 130.17 0.02513 0 129.46 0.02499 10 120.28 0.02322 20 146.43 0.02827 30 135.64 0.02619 40 129.15 0.02493 50 130.48 0.02519 13.225 144.55 0.02791 10.825 126.39 0.02440 ReferenceFrequency:802.11acchannel=149frequency=5745MHz Voltage(V) Temperature(°C) Frequencyerror Limit(ppm)Result Hzppm 12.00 -30141.650.02466 Withinthe bandof operation Pass -20126.430.02201 -10 137.55 0.02394 0 140.38 0.02444 10 131.47 0.02288 20 129.54 0.02255 30 125.41 0.02183 40 135.81 0.02364 50 130.72 0.02275 13.225 143.17 0.02492 10.825 137.45 0.02393 ReportNo.:GRCTR221202015-02Page 38 of 38 5TestSetupPhotosoftheEUT 6PhotosoftheEUT ReferencetothetestreportNo.GRCTR221202015-01. **********************EndofReport**********************

FCC ID: 2A7EH-F1 IC: 28650-F1 Test Setup Photos of the EUT
