2A7EI-EAX1805WiFi 6 Range Extender

User manual WiFi 6 Range Extender -- EAX1805 21.Configuration wizard ................................................................................................................. 3 1.1 Setup Wizard Page .............................................................................................................. 3 1.2 Select extended WiFi ....................................................................................................... 4 1.3 Enter the password to relay WiFi .................................................................................. 5 1.4 WiFi Settings ..................................................................................................................... 6 1.5 Device Admin Password ...................................................................................................... 6 1.6 Summary ............................................................................................................................. 7 2.Login ............................................................................................................................................. 8 2.1 Login APP ............................................................................................................................. 8 3 .Home Page ................................................................................................................................. 9 3.1 device Information Display Page ....................................................................................... 10 3.2 Logout Button ................................................................................................................... 11 4 .Device Page ............................................................................................................................. 11 4.1 Connected Clients List ....................................................................................................... 11 4.2 Device details Page ............................................................................................................ 12 4.3 Blacklist Page ..................................................................................................................... 12 5 .Basic Configuration.................................................................................................................. 13 5.1 Administrator Password Settings ...................................................................................... 13 5.2 Root Router Connection .................................................................................................... 14 5.3 WIFI Settings ..................................................................................................................... 14 5.3.1 Advanced Setup .................................................................................................. 15 5.3.2 Smart Connect .................................................................................................... 15 6 .Advanced Configuration .......................................................................................................... 17 6.1 WiFi Advanced Settings ..................................................................................................... 17 6.2 Online Upgrade ................................................................................................................. 17 7. System Settings ....................................................................................................................... 18 7.1 FAQ .................................................................................................................................... 18 7.2 About Us ............................................................................................................................ 18 7.3 Cache clear ........................................................................................................................ 19 21.Configuration wizard 1.1 Setup Wizard Page Connect to WiFi and log in to app , automatically jump to the configuration wizard page （NO password in default） Note:The device needs to be restored to factory Figure 1-1 1.2 Select extended WiFi Please choose relay WiFi Figure 1-2 1.3 Enter the password to relay WiFi Figure 1-3 Click Confirm, repeater needs to be connected to the root router to verify the password Figure 1-4 Figure 1-5 1.4 WiFi Settings Configure your extended WiFi network. Note :The sync WiFi switch is turned on by default, and you can customize WiFi Settings after you turn it off Figure 1-6 1.5 Device Admin Password Note:Synchronize administrator password switch is turned on by default. You can customize administrator password after turning it off Figure 1-7 1.6 Summary Check the information, and then click “Finish” to save the configuration. Figure 1-8 2.Login 2.1 Login APP After completing the configuration wizard, please reconnect to the WiFi and log in to app again. Admin Password：The Device administrator Password you set in Wizard Page. Figure 2-1 3 .Home Page Home page information is displayed below, including signal strength, internet connection status, device information and logout button. Figure 3-1 3.1 device Information Display Page Home>>Info It shows basic information of router,including device name,FW version and Hardware version of router. Figure 3-2 3.2 Logout Button Home>>Logout Click “Logout” to exit the current login and jump to the login page. 4 .Device Page 4.1 Connected Clients List It shows all Connected Clients information,including device name,mac address,ip address and connection method. Figure 4-1 4.2 Device details Page Device>>Device details page The device details page shows details information of connected device. You can set the remark of connected device. Click the “add to blacklist” button to add the device to blacklist. Figure 4-2 4.3 Blacklist Page Device>>Blacklist The blacklist page shows all the devices added to blackl…

Text truncated - open the document above for the full version.

HUIZHOUMTNWEIYETECHNOLOGYDEVELOPMENTCO.,LTD. NO.2HuitaiRoad,HuinanHigh-techIndustrialPark,HuiaoAvenue,HuizhouCity,GuangdongProvince 516025,China --------------------------------------------------------------------------------------------------------------------- Date:2022-06-22 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 FCCID:2A7EI-EAX1805 ConfidentialityRequest Towhomitmayconcern, PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequestconfidential treatmentoftheinformationaccompanyingthisapplicationasoutlinedbelow: ☒BlockDiagram☐Tune-UpInformation ☒OperationalDescription☒SecurityInformation ☒ Schematics ☐ SoftwareDefinedRadio(SDR)Information ☐ PartsList Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovide unjustifiedbenefitstoitscompetitors. TheapplicantunderstandsthatpursuanttoSection0.457oftheRules,disclosureofthis applicationandallaccompanyingdocumentationwillnotbemadebeforethedateoftheGrantfor thisapplication. Sincerely, HUIZHOUMTNWEIYETECHNOLOGYDEVELOPMENTCO.,LTD. WeiLi ------------------------------- (WeiLi) (CertifiedEngineer)

HUIZHOUMTNWEIYETECHNOLOGYDEVELOPMENTCO.,LTD. NO.2HuitaiRoad,HuinanHigh-techIndustrialPark,HuiaoAvenue,Huizhou City,GuangdongProvince516025,China -------------------------------------------------------------------------------- (FCCID：2A7EI-EAX1805) POWEROFATTORNEY DATE:2022-06-22 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 ToWhomItMayConcern: We,theundersigned,herebyauthorizeWaltekTestingGroup(Shenzhen)Co.,Ltd. JandySoonourbehalf,toapplytotheFederalCommunicationsCommissiononour equipment.AnyandallactscarriedoutbyWaltekTestingGroup(Shenzhen)Co., Ltd.JandySoonourbehalfshallhavethesameeffectasactsofourown. ThisistoadvisethatweareinfullcompliancewiththeAnti-DrugAbuseAct. We,HUIZHOUMTNWEIYETECHNOLOGYDEVELOPMENTCO.,LTD.arenotsubjecttoa denialoffederalbenefitspursuanttoSection5301oftheAnti-DrugActof1988, 21USC853a,andnopartytotheapplicationissubjecttoadenialoffederal benefitspursuanttothatsection. Sincerely, HUIZHOUMTNWEIYETECHNOLOGYDEVELOPMENTCO.,LTD. WeiLi ------------------------------- (WeiLi) (CertifiedEngineer)

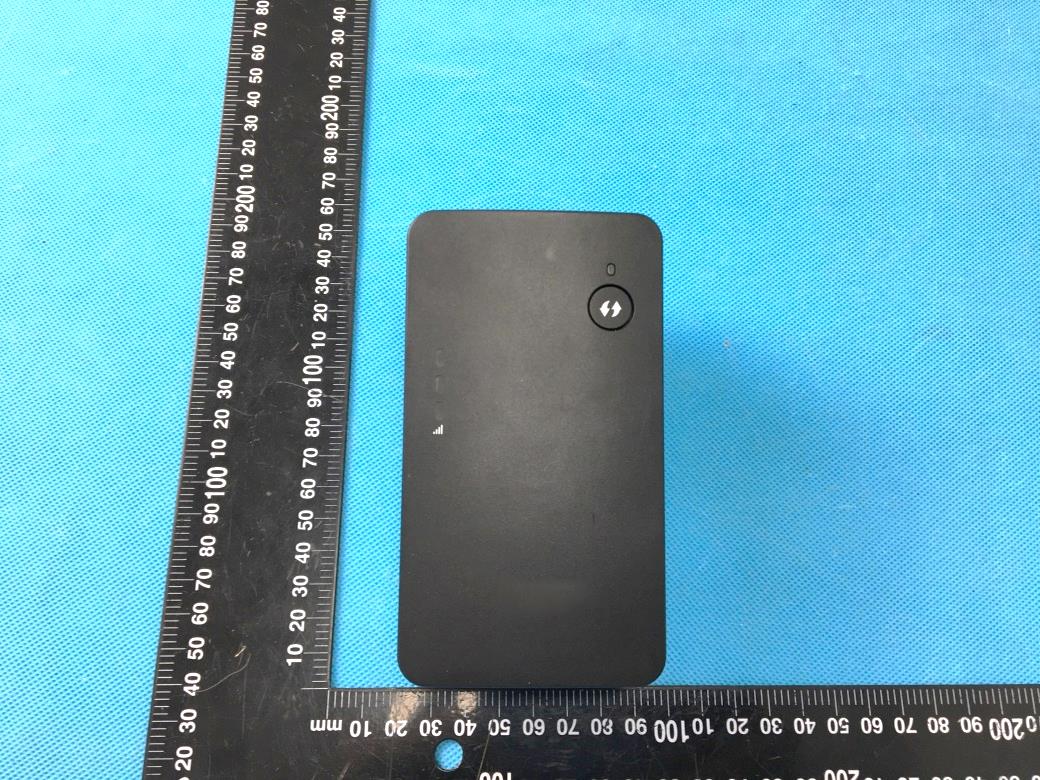

Reference No.: WTH21X09102605W Page 2 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Reference No.: WTH21X09102605W Page 3 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 3 EUT View 4 Reference No.: WTH21X09102605W Page 4 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 5 EUT View 6

Reference No.: WTH21X09102605W Page 1 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn ANNEX EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format Specifications: The label shall be securely affixed to a permanently attached part of the device, in a location where it is visible or easily accessible to the user, and shall not be readily detachable. The label shall be sufficiently durable to remain fully legible and intact on the device in all normal conditions of use throughout the device’s expected lifetime. Proposed Label Location on EUT FCC ID Label Location

Reference No.: WTH21X09102605W Page 5 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 Reference No.: WTH21X09102605W Page 6 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 1 Solder Board-Component View 2 Reference No.: WTH21X09102605W Page 7 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 3 Solder Board-Component View 4 Reference No.: WTH21X09102605W Page 8 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Thermal slug-Component View 5 Antenna View

1. MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 General Information Client Information Applicant: HUIZHOU MTN WEIYE TECHNOLOGY DEVELOPMENT CO.,LTD Address of applicant: NO.2 Huitai Road,Huinan High-tech Industrial Park,Huiao Avenue, Huizhou City,Guangdong Province,China Manufacturer: HUIZHOU MTN WEIYE TECHNOLOGY DEVELOPMENT CO.,LTD Address of manufacturer: NO.2 Huitai Road,Huinan High-tech Industrial Park,Huiao Avenue, Huizhou City,Guangdong Province,China General Description of EUT: Product Name: WiFi 6 Range Extender Trade Name: MTN Model No.: EAX1805 Adding Model(s): / Rated Voltage: AC120V/60Hz Power Adapter Model: / FCC ID: 2A7EI-EAX1805 Technical Characteristics of EUT: Wi-Fi (2.4G) Support Standards: 802.11b, 802.11g, 802.11n, 802.11ax Frequency Range: 2412-2462MHz for 802.11b/g/n(HT20) 2412-2462MHz for 802.11ax(HE20) 2422-2452MHz for 802.11n(HT40) 2422-2452MHz for 802.11ax(HE40) RF Output Power: Antenna 1: 18.36dBm (Conducted) Antenna 2: 18.65dBm (Conducted) Type of Modulation: CCK, OFDM, QPSK, BPSK, 16QAM, 64QAM, 256QAM, 1024QAM Quantity of Channels: 11 for 802.11b/g/n(HT20);11 for 802.11ax(HE20); 7 for 802.11n(HT40); 7 for 802.11ax(HE40); Channel Separation: 5MHz Type of Antenna: External Antenna Antenna Gain: 3dBi Support Standards: 802.11b, 802.11g, 802.11n, 802.11ax Wi-Fi (5G) Support Standards: 802.11a, 802.11n(HT20), 802.11n-HT40, 802.11ax-HE20, 802.11ax-HE40, 802.11ac-VHT80, 802.11ax-HE80 Frequency Range: 5150-5250MHz, 5725-5850MHz RF Output Power: 5150-5250MHz: Antenna 1: 17.69dBm (Conducted) Antenna 2: 17.57dBm (Conducted) 5725-5850MHz: Antenna 1: 17.09dBm (Conducted) Antenna 2: 17.54dBm (Conducted) Type of Modulation: QPSK, 16QAM, 64QAM, 256QAM, 1024QAM Type of Antenna: External Antenna Antenna Gain: 3dBi Support Standards: 802.11a, 802.11n(HT20), 802.11n-HT40, 802.11ax-HE20, 802.11ax-HE40, 802.11ac-VHT80, 802.11ax-HE80 1.2 Standard Applicable According to §1.1307(b)(1) and KDB 447498 D01 General RF Exposure Guidance v06, system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. (a) Limits for Occupational / Controlled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times | E | 2 , | H | 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 / / F/300 6 1500-100000 / / 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times | E | 2 , | H | 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-100000 / / 1 30 Note: f = frequency in MHz: * = Plane-wave equivalents power density 1.3 MPE Calculation Method S = (30*P*G) / (377*R 2 ) S = power density (in appropriate units, e.g., mw/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mw) G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor is normally numeric gain. R = distance to the center of radiation of the antenna (in appropriate units, e.g., cm) 1.4 MPE Calculation Result For Wi-Fi (2.4G): Maximum Tune-Up output power: 19.0(dBm) Maximum peak output power at antenna input terminal: 79.43 (mW) Prediction distance: >20(cm) Prediction frequency: 2412 (MHz) Antenna gain:3.0(dBi) Directional gain (numeric gain): 2.00 The worst case is power density at prediction frequency at 20cm: 0.0315(mw/cm 2 ) MPE limit for general population exposure at prediction frequency: 1 (mw/cm 2 ) For Wi-Fi (5G): Maximum Tune-Up output power: 19.5(dBm) Maximum peak output power at antenna input terminal: 89.13(mW) Prediction distance: >20(cm) Prediction frequency: 5180 (MHz) Antenna gain: 3.0(dBi) Directional gain (numeric gain): 2.00 The worst case is power density at prediction frequency at 20cm: 0.0354 (mw/cm 2 ) MPE limit for general population exposure at prediction frequency: 1 (mw/cm 2 ) Mode for Simultaneous Multi-band Transmission Wi-Fi (2.4G) + Wi-Fi (5G) The worst case is power density at prediction frequency at 20cm: 0.0315+0.0354 =0.0669(mw/cm 2 ) MPE limit for general population exposure at prediction frequency: 1 (mw/cm 2 ) Result: Pass

Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 1 of 145 TEST REPORT Reference No. ....................: WTH21X09102605W001 FCC ID ............................... .: 2A7EI-EAX1805 Applicant .......................... .: HUIZHOU MTN WEIYE TECHNOLOGY DEVELOPMENT CO.,LTD Address ............................ .: NO.2 Huitai Road,Huinan High-tech Industrial Park,Huiao Avenue,Huizhou City,Guangdong Province,China Manufacturer .................... .: HUIZHOU MTN WEIYE TECHNOLOGY DEVELOPMENT CO.,LTD. Address ............................ .: NO.2 Huitai Road,Huinan High-tech Industrial Park,Huiao Avenue,Huizhou City,Guangdong Province,China Product Name .................. .: WiFi 6 Range Extender Model No. .......................... .: EAX1805 Standards ......................... .: FCC Part 15.407 Date of Receipt sample ... .: 2021-09-26 Date of Test....................... .: 2021-09-26 to 2022-05-25 Date of Issue .................... .: 2022-05-25 Test Report Form No. ...... . : WTX_Part 15_407W Test Result ........................ .: Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Email: [email protected] Tested by: Approved by: Mike Shi Silin Chen Reference No.: WTH21X09102605W001 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 2 of 145 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................... 5 1.2 TEST STANDARDS ................................................................................................................................................... 6 1.3 TEST METHODOLOGY ............................................................................................................................................. 6 1.4 TABLE FOR PARAMETERS OF TEST SOFTWARE SETTING ......................................................................................... 6 1.5 EUT OPERATING DURING TEST .............................................................................................................................. 8 1.6 TEST FACILITY ....................................................................................................................................................... 8 1.7 EUT SETUP AND TEST MODE ................................................................................................................................. 9 1.8 MEASUREMENT UNCERTAINTY ............................................................................................................................ 10 1.9 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 11 2. SUMMARY OF TEST RESULTS ......................................................................................................................... 14 3. ANTENNA REQUIREMENT ................................................................................................................................ 15 3.1 STANDARD APPLICABLE ....................................................................................................................................... 15 3.2 EVALUATION INFORMATION ................................................................................................................................ 15 4. AUTOMATICALLY DISCONTINUE TRANSMISSION .................................................................................. 16 4.1 STANDARD APPLICABLE ....................................................................................................................................... 16 4.2 SUMMARY OF TEST RESULTS ............................................................................................................................... 16 5. POWER SPECTRAL DENSITY ........................................................................................................................... 17 5.1 STANDARD APPLICABLE ....................................................................................................................................... 17 5.2 TEST PROCEDURE ................................................................................................................................................. 17 5.3 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 18 6. EMISSION BANDWIDTH AND OCCUPIED BANDWIDTH ........................................................................... 19 6.1 STANDARD APPLICABLE ....................................................................................................................................... 19 6.2 TEST PROCEDURE ................................................................................................................................................. 19 6.3 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 21 7. MAXIMUM CONDUCTED OUTPUT POWER .................................................................................................. 22 7.1 STANDARD APPLICABLE ....................................................................................................................................... 22 7.2 TEST …

Text truncated - open the document above for the full version.

Reference No.: WTH21X09102605W Page 9 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission Test Setup (Below 30MHz) Reference No.: WTH21X09102605W Page 10 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (1GHz to 18GHz) Reference No.: WTH21X09102605W Page 11 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Radiation Emission Test Setup (Above 18GHz) ***** END OF REPORT *****
