2A7EI-RAX1501Wireless Router

R MANUAL 1. ᡆ૷ተሮφ 215*145mm ᐤޢθ f 1mm. 2. ᶆ䍞φ 105g 䬒⡾㓮 3. দ࡭㾷≸φ഑㢨দ࡭ 4. 㻻䇘㾷≸φ 僇傢䪿θ㠩ቇњ䪿θ 24p 5. ৕ᶆᯏ਀੄༺⨼ᐛ㢰ൽ㜳┗䏩 ROHS2.0 θ HF ਀ WEEE Ⲻ㾷≸ . DATE: 2022-04-07 1:1 N/A // A0 DRAW CHECKAPPD 1/1 PART NO.: MODEL: SHEETSCALE FINISHUNIT Ć S MAT Ć L mm VER: TITLE: CUSTOMER: ␧൩ᐸ䗾㞴⭫ᆆᴿ䲆ޢਮSHENZHEN MTN ELECTRONICS CO.,LTD зឝ᱄䛢㄁ᒩ HNK MTO-WR1500AX User manual ሷ䶘 Wireless Router — HNK RAX1501 ᶗ⸷ṲᕅѰ CODE128 θ޻ᇯѰᇂ᮪ᯏਭθተሮ㓜 35*5mm ᒬ൞сᯯᱴ示ᇂ᮪ᯏਭθᆍ։ Arial 6pt ᯏਭфሯᓊבᓊ୼㾷ж㠪 17.P6.XXXXXXXXX User manual Wireless Router — HNK RAX1501 17.P6.XXXXXXXXX Figure 1-1Figure 1-2 1.Appearance Reset LAN Ports WAN Port WPS Button/WiFI Button Power LED WPS LED5G LED2.4G LED DC in Internet LED LAN LED 2.Packing List HNK wifi router h 1 Power adapter h 1 Ethernet cable h 1 Quick Installation Guide h 1 User manual h 1 Figure 3-1 ='4 Modem Internet or 3.Connect the Router 1. Before you start, please turn off your modem if any, an d remove the backup battery if it has one. 2. Connect the modem to the router Ć s WAN port with an Ethernet cable. 3. Turn on the modem, and then wait about 2 minutes for it to restart. 4. Connect the power adapter to the router. 5. Verify the power LED on the top panel is solid on (gree n) . 6. Connect your computer or smartphone to the wifi named HNK-RAX15 00 or HNK-RAX1500-5Ghz. Note: If your internet c onnection is through an Ethernet cable directly from the wall instead of through a DSL / Cable /Satellite modem, connect the Ethernet cable to the router's WAN port, and then connect the power adapter to the ro uter and turn on the router. 4.Wizard Page 4.1 Wizard Page Browser Type 192.168.0.1 , automatically jump to the configuration wizard pa ge δ NO password in default ε Figure 4-1Figure 4-2 4.2 WAN Connection Settings There are several c onnection types to choose: Static IP, DHCP and PPPoE. If you ar e unsure of your connection method, please contact your Internet Service Provider. Note: If using the PPPoE option, you will need to remove or disable any PPPoE clie nt software on your computers. 4.2.1 DHCP Settings 4.2.2 PPPoE Settings Figure 4-3Figure 4-4 4.4 Admin Password Settings After configuring the wifi, click ć Next Ĉ to set the user (Admin) password, and then click ć Next Ĉ to save the configuration. 4.2.3 Static IP Settings Figure 4-5Figure 4-6 4.3 Wireless SSID and Password Settings After conf iguring the static IP access method, please click ć Next Ĉ to complete the wireless SSID configuration and wireless password settings. Figure 4-7Figure 4-8 Figure 4-9 5.Web Management Landing Page 5.1 Management Page Login After completing the conf iguration wizard, please enter 192.168.0.1 in the browser to log in to the router management page. Admin Password φ The Device admin Password you set on Wizard Page. Figure 5-1 6.Home Page Home page information is displayed. Figure 6-0 6.1 Internet Information Display Page Internet connection status and connection information. Figure 6-1 6.2 WiFi Information Display Page 6.2.1 Router Mode Home>>RAX1500 Display Extender IPv4 mac address and wireless SSID. Figure 6-2 6.2.2 Repeater Mode Display the Extender IPv4 mac address and the uplink r outer Ć s wireless SSID. Figure 6-3 6.3 Connected Clients Information Display Page Connected Clients information display page: It shows Conne cted Clients information. Figure 6-4 Click on Se ttings >> Wireless. Tur n off the status but ton of Smart Connect. Then you can configure the router 2.4G or 5G WIFI SSID and password.Click on Settings >> Wireless. Turn off the status button of Smart Connect. Then you can configure the router 2.4G or 5G WIFI SSID and password. 7.Function Configuration 7.1 WIFI Setting Use this section to conf igure the wireless settings for your Router. Please note that settings made in this section may also need to be synchronized on your Wireless Client. Figure 7-1 7.1.1 WIFI 2.4G Setting and 5G Setting Configure the router 2.4G or 5G WIFI SSID and password. Figure 7-2 Com plete 2.4G advanced configuration, such as channel, security mo de, 802.11 mode. Figure 7-3 Complete 5G advanced conf iguration, such as channel, security mode, 802.11 mode. Figure 7-4 7.1.2 Smart Connect After the smart connection is closed, the ext ender 2.4G WIFI and the 5G WIFI can be searched on the terminal wireless device respectively, and t here are two wireless bands to be displayed on the page. Figure 7-5 When Smart Connect feature is on, your wireless device can find one wireless SSID, and it will automatically match the 2.4G or 5G band WIFI accord ing to the connection signal strength. Figure 7-6 7.1.3 Guest Zone This feature lets you e nable and configure a Wi-Fi Guest Zone. It allows you to create a separate network for your guests to secure the main network. Figure 7-7 7.2 Internet Function Configuration Use this section to conf igure your Internet Connection type. There are several connec- tion types to choose: Static IP, DHCP and PPPoE. If you are uns ure of your connection method, please contact your Internet Service Provider. Note: If using the PPPoE option, you will need to remove or disable any PPPoE clie nt software on your computers. Figure 7-8 7.2.1 IPV4 Settings Use this section to configure your Internet Connection type. There are several connec- tion types to choose: Static IP, DHCP, PPPoE. If you are unsure of your connection method, please contact your Internet service provider. Note: If using the PPPoE option, you will need to remove or disable any PPPoE clie nt software on your computers. Figure 7-9 7.2.2 IPV6 Settings All of your IPv6 Internet and network connection detai ls are displayed on this page. Figure 7-10 7.2.3 Host Name Set Internet connection type as dhcp. Figure 7-11 Advanced settings. Figure 7-12 Figure 7-13 Browser Type http://rax1501/ Login to the router administration page. 7.3 Network Function Configuration Use this sect ion to configure the network settings for your devices. You can enter a name for your device in the management link field and use the l ink to access web UI in a web browser. …

Text truncated - open the document above for the full version.

HUIZHOUMTNWEIYETECHNOLOGYDEVELOPMENTCO.,LTD. Date:2022-7-6 To:FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD FCCID:2A7EI-RAX1501 ToWhomItMayConcern: ThisletteristoascertainthatHUIZHOUMTNWEIYETECHNOLOGYDEVELOPMENT CO.,LTD. EUT：WirelessRouter MODELNo.:RAX1501 HasbeentheunitsusedforconductingFCCcompliancetesting,theSDoCparthasbeen testedbyEMTEK(SHENZHEN)CO.,LTD. Ifyouhaveanyquestionorconcerns,pls.contactus. Sincerely, Client’ssignature ： weili Client’sname/title：WeiLi Contactinformation/address:HUIZHOUMTNWEIYETECHNOLOGYDEVELOPMENT CO.,LTD./AddressNO.2HuitaiRoad,HuinanHigh-techIndustrialPark,HuiaoAvenue,Huizhou City,GuangdongProvince,China

Rev11/20/07 HUIZHOUMTNWEIYETECHNOLOGYDEVELOPMENTCO.,LTD. FederalCommunicationsCommission AuthorizationandEvaluationDivision ConfidentialityRequestregardingapplicationforcertificationof FCCID:2A7EI-RAX1501 PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequestconfidential treatmentofinformationaccompanyingthisapplicationasoutlinedbelow: ExhibitTypeFileName BlockDiagram,Schematics,Operational Description, BlockDiagram OperationDescription schematicdiagram Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovide unjustifiedbenefitstoitscompetitors. Sincerely, WeiLiweili HUIZHOUMTNWEIYETECHNOLOGYDEVELOPMENTCO.,LTD.

HUIZHOUMTNWEIYETECHNOLOGYDEVELOPMENTCO.,LTD. CompanyAddress:AddressNO.2HuitaiRoad,HuinanHigh-techIndustrialPark,Huiao Avenue,HuizhouCity,GuangdongProvince,China Date:2022-7-6 DTS-UNIIDeviceDeclarationLetter Towhomitmayconcern: WehavedeclaredbelowfeaturedforFCCequipmentauthorization, DeviceFCCID: 2A7EI-RAX1501 (1)DFSDevice--Master,ClientwithRadardetectioncapability, Clientwithoutradardetectioncapability,other (2)Active/PassiveScanning,adhocmodeaccesspointcapability FrequencyBand (MHz) ActiveScanning (thedevicecantransmit aprobe(beacon)) passivescanning (wherethedeviceiscan listenonlywithno probes) AdHocModeor WIFIDirect capability Accesspoint capability 5180-5240Yes,NoYes,NoYes,NoYes,No 5745-5825Yes,NoYes,NoYes,NoYes,No 5190-5230Yes,NoYes,NoYes,NoYes,No 5755-5795Yes,NoYes,NoYes,NoYes,No 5210-5210Yes,NoYes,NoYes,NoYes,No 5290-5290Yes,NoYes,NoYes,NoYes,No 5775-5775Yes,NoYes,NoYes,NoYes,No (3)Countrycodeselectionability-Yes,No Ifyes,plsexplainhowitwasimplemented:(plsalsohelptoprovidedetailofoptionsforeachcountryselection) (4)Meet15.202requirement-Yes,No, plscheckbelow: Amasterdeviceisdefinedasadeviceoperatinginamodeinwhichithasthecapabilitytotransmitwithoutreceivinganenablingsignal.In thismodeitisabletoselectachannelandinitiateanetworkbysendingenablingsignalstootherdevices Aclientdeviceisdefinedasadeviceoperatinginamodeinwhichthetransmissionsofthedeviceareundercontrolofthemaster.Adevice inclientmodeisnotabletoinitiateanetwork. (5)Forclientdevicesthathavesoftwareconfigurationcontroltooperateindifferentmodes(activescanninginsomeandpassive scanninginothers)indifferentbands(deviceswithmultipleequipmentclassesorthosethatoperateonnon-DFSfrequencies)ormodular deviceswhichconfigurethemodesofoperationsthroughsoftware,theapplicationmustprovidesoftwareandoperationsdescriptiononhow thesoftwareand/orhardwareisimplementedtoensurethatproperoperationsmodescannotbemodifiedbyenduseroraninstaller. Apply,NoApply, (Ifapply,plshelptoprovideexplanationonitwasimplement,andhowsoftwarewascontrolled) Signature: weili Client’sname/title：WeiLi/CertifiedEngineer Contactinformation/address:HUIZHOUMTNWEIYETECHNOLOGYDEVELOPMENTCO.,LTD./ AddressNO.2HuitaiRoad,HuinanHigh-techIndustrialPark,HuiaoAvenue,Huizhou City,GuangdongProvince,China

HUIZHOUMTNWEIYETECHNOLOGYDEVELOPMENTCO.,LTD. FederalCommunicationsCommission AuthorizationandEvaluationDivision 1435OaklandMillsRoad Columbia,MD21046 Date:2022-7-6 SUBJECT:FCCApplicationforFCCID:2A7EI-RAX1501 ToWhomItMayConcern: We,theundersigned,herebyauthorizeLisaWangatEMTEK(SHENZHEN)CO.,LTD.on ourbehalf,toapplytotheFederalCommunicationsCommissiononourequipment.Any andallactscarriedoutbyEMTEK(SHENZHEN)CO.,LTD.onourbehalfshallhavethe sameeffectasactsofourown. ThisistoadvisethatweareinfullcompliancewiththeAnti-DrugAbuseAct.We,the applicant,arenotsubjecttoadenialoffederalbenefitspursuanttoSection5301ofthe Anti-DrugActof1988,21USC853a,andnopartytotheapplicationissubjecttoadenial offederalbenefitspursuanttothatsection. Regards, WeiLiweili HUIZHOUMTNWEIYETECHNOLOGYDEVELOPMENTCO.,LTD.

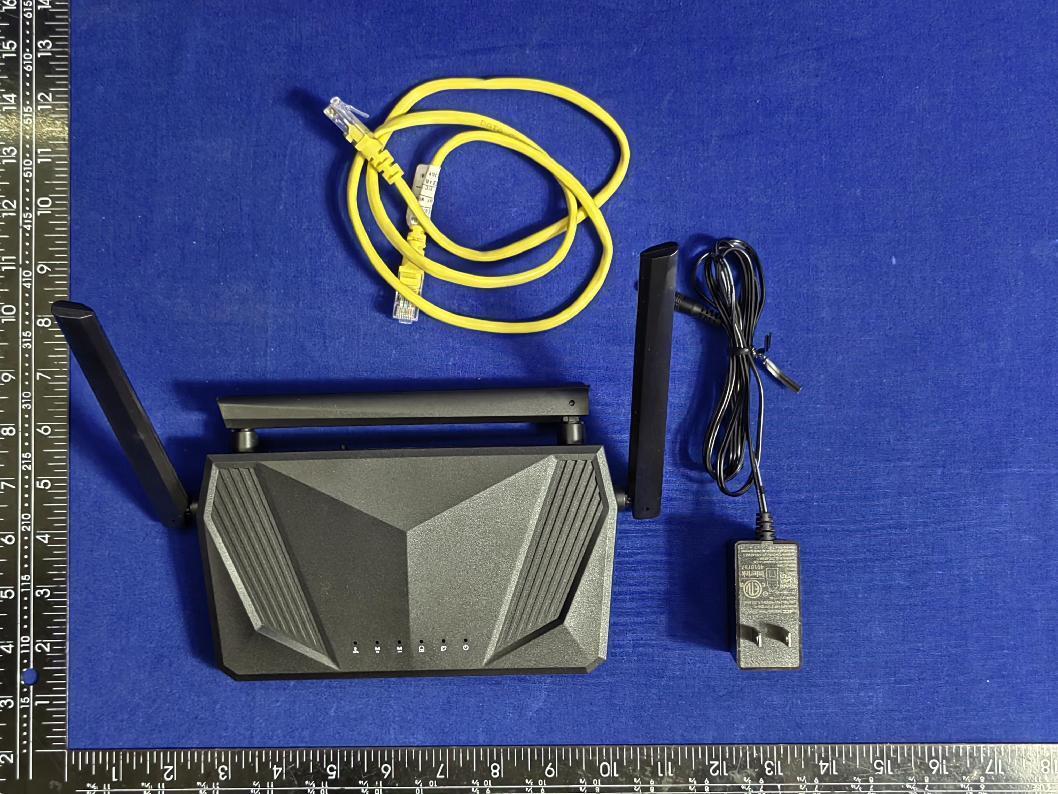

EUTEXTERNALPHOTOGRAPHS ----------------Theend----------------

Page1of3 EUTINTERNALPHOTOGRAPHS sparecoolingplate Page2of3 Page3of3 ----------------Theend----------------

FCCID:2A7EI-RAX1501 RFEXPOSUREEVALUATION AccordingtoFCC1.1310:Thecriterialistedinthefollowingtableshallbeusedtoevaluate theenvironmentimpactofhumanexposuretoradiofrequency(RF)Radiationasspecifiedin §1.1307(b) LimitsforMaximumPermissibleExposure(MPE) Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) Power Density(mW/cm 2 ) AverageTime (A)LimitsforOccupational/ControlExposures 300-1500----F/3006 1500-100000----56 (B)LimitsforGeneralPopulation/UncontrolExposures 300-1500----F/15006 1500-100000----130 1.1Friistransmissionformula:Pd=(Pout*G)\(4*pi*R 2 ) Where Pd=PowerdensityinmW/cm 2 Pout=outputpowertoantennainmW G=Numericgainoftheantennarelativetoisotropicantenna Pi=3.1416 R=distancebetweenobservationpointandcenteroftheradiatorin20cm PdthelimitofMPE,1mW/cm 2 .Ifweknowthemaximumgainofthendtotalpowerinputto theantenna,throughthecalculation,wewillknowthedistancewheretheMPElimitis reached. 1.2MeasurementResult Mode Max Measured power (dBm) Max tune-up power (dBm) Antenna gain Antenna Gain Numeric Evaluation result (mW/cm2) Powerdensity Limits (mW/cm2) 2.4GWIFI17.10 19 53.160.05001 5GWIFI23.3 25 53.160.19891 MAXRFEXPOSUREEVALUATION 2.4GWIFI5GWIFI Summationof Evaluationresult (mW/cm2) PowerdensityLimits (mW/cm2) 0.05000.19890.2489<1 ----------------THEENDOFREPORT---------------

Report No. ENS2206100171W00201RPage 1 of 116 Ver.1.0 TEST REPORT Product Name：Wireless Router Model Number：RAX1501 FCC ID：2A7EI-RAX1501 Prepared for: HUIZHOU MTN WEIYE TECHNOLOGY DEVELOPMENT CO., LTD. Address: NO.2 Huitai Road, HuinanHigh-tech Industrial Park, Huiao Avenue, Huizhou City, Guangdong Province, China Prepared by: EMTEK (SHENZHEN) CO., LTD. Address: Building 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number : ENS2206100171W00201R Date(s) of Tests : June 10, 2022 to July 03, 2022 Date of issue : July 5, 2022 $二维码$ Report No. ENS2206100171W00201RPage 2 of 116 Ver.1.0 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION......................................................................................................................................3 2 EUTTECHNICALDESCRIPTION....................................................................................................................................4 3 SUMMARYOFTEST RESULT.......................................................................................................................................... 5 4 TEST METHODOLOGY..................................................................................................................................................... 6 4.1 GENERALDESCRIPTION OFAPPLIED STANDARDS.............................................................................................6 4.2 MEASUREMENT EQUIPMENT USED.........................................................................................................................6 4.3 DESCRIPTION OF TEST MODES.................................................................................................................................8 5 FACILITIESANDACCREDITATIONS............................................................................................................................ 9 5.1 FACILITIES.....................................................................................................................................................................9 5.2 EQUIPMENT...................................................................................................................................................................9 5.3 LABORATORYACCREDITATIONSAND LISTINGS.................................................................................................9 6 TEST SYSTEM UNCERTAINTY......................................................................................................................................10 7 SETUPOFEQUIPMENT UNDER TEST.........................................................................................................................11 7.1 RADIO FREQUENCYTEST SETUP1.........................................................................................................................11 7.2 RADIO FREQUENCYTEST SETUP2.........................................................................................................................11 7.3 CONDUCTED EMISSION TEST SETUP....................................................................................................................12 7.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM....................................................................................13 7.5 SUPPORTEQUIPMENT...............................................................................................................................................13 8 TEST REQUIREMENTS................................................................................................................................................... 14 8.1 DTS(6DB)BANDWIDTH..............................................................................................................................................14 8.2 MAXIMUM PEAK CONDUCTED OUTPUT POWER...............................................................................................28 8.3 MAXIMUM POWER SPECTRALDENSITY..............................................................................................................42 8.4 UNWANTED EMISSIONS IN NON-RESTRICTED FREQUENCYBANDS............................................................52 8.5 RADIATED SPURIOUS EMISSION..........................................................................................................................100 8.6 CONDUCTED EMISSIONS TEST.............................................................................................................................112 8.7ANTENNAAPPLICATION.........................................................................................................................................115 Report No. ENS2206100171W00201RPage 3 of 116 Ver.1.0 1 TEST RESULT CERTIFICATION Applicant: HUIZHOU MTN WEIYE TECHNOLOGY DEVELOPMENT CO., LTD. Address: NO.2 Huitai Road, Huinan High-tech Industrial Park, Huiao Avenue, Huizhou City, Guangdong Province, China Manufacturer: HUIZHOU MTN WEIYETECHNOLOGY DEVELOPMENT CO., LTD. Address: NO.2 Huitai Road, Huinan High-tech Industrial Park, Huiao Avenue, Huizhou City, Guangdong Province, China EUT: Wireless Router Model Name: RAX1501 Trademark: MTN Measurement Procedure Used: APPLICABLE STANDARDS STANDARDTEST RESULT FCC 47 CFR Part 2 , Subpart J FCC 47 CFR Part 15 , Subpart C PASS The above equipment was tested by EMTEK (SHENZHEN) CO., LTD. The test data,data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.247 The test results of this report relate only to the tested sample identifiedin this report. Date of Test :June 10, 2022 to July 03, 2022 Prepared by : Una Yu /Editor Reviewer : Joe Xia / Supervisor Approve &Authorized Signer : Lisa Wang / Manager Report No. ENS220…

Text truncated - open the document above for the full version.

Report No. ENS2206100171W00201RPage 37 of 116 Ver.1.0 11N40SISO_Ant2_2437 11N40SISO_Ant1_2452 11N40SISO_Ant2_2452 Report No. ENS2206100171W00201RPage 38 of 116 Ver.1.0 11N20MIMO_Ant1_2412 11N20MIMO_Ant2_2412 11N20MIMO_Ant1_2437 Report No. ENS2206100171W00201RPage 39 of 116 Ver.1.0 11N20MIMO_Ant2_2437 11N20MIMO_Ant1_2462 11N20MIMO_Ant2_2462 Report No. ENS2206100171W00201RPage 40 of 116 Ver.1.0 11N40MIMO_Ant1_2422 11N40MIMO_Ant2_2422 11N40MIMO_Ant1_2437 Report No. ENS2206100171W00201RPage 41 of 116 Ver.1.0 11N40MIMO_Ant2_2437 11N40MIMO_Ant1_2452 11N40MIMO_Ant2_2452 Report No. ENS2206100171W00201RPage 42 of 116 Ver.1.0 8.3 MAXIMUM POWER SPECTRAL DENSITY 8.3.1 Applicable Standard According to FCC Part15.247(e) and KDB 558074 D01 15.247 Meas Guidance v05r02 8.3.2 Conformance Limit The transmitter power spectral density conducted from the transmitter tothe antenna shall not be greater than 8 dBm in any 3 kHz band during any time interval of continuous transmission. 8.3.3 Test Configuration Test according to clause 7.1 radio frequency test setup 1 8.3.4 Test Procedure This procedure shall be used if maximum peak conducted output power was usedtodemonstratecompliance The transmitter output (antenna port) was connected to the spectrum analyzer Set analyzer center frequency to DTS channel center frequency. Set the span to 1.5 times the DTS bandwidth. SettheRBWto:3kHz Set the VBW to:10 kHz. Set Detector = peak. Set Sweep time = auto couple. Set Trace mode = max hold. Allow trace to fully stabilize. Use the peak marker function to determine the maximum amplitude level within the RBW. 8.3.5 Test Results Temperature: 25  C Relative Humidity: 45  ATM Pressure:1011 mbar Report No. ENS2206100171W00201RPage 43 of 116 Ver.1.0 TestModeAntennaFrequency[MHz]Result[dBm/3kHz]Limit[dBm/3kHz]Verdict 11B Ant12412-15.15≤8.00PASS Ant22412-18.78≤8.00PASS Ant12437-16.87≤8.00PASS Ant22437-19.5≤8.00PASS Ant12462-17.09≤8.00PASS Ant22462-18.66≤8.00PASS 11G Ant12412-13.42≤8.00PASS Ant22412-20.07≤8.00PASS Ant12437-18.4≤8.00PASS Ant22437-18.74≤8.00PASS Ant12462-18.28≤8.00PASS Ant22462-19.79≤8.00PASS 11N20SISO Ant12412-18.54≤8.00PASS Ant22412-19.02≤8.00PASS Ant12437-18.83≤8.00PASS Ant22437-18.47≤8.00PASS Ant12462-17.88≤8.00PASS Ant22462-18.41≤8.00PASS 11N40SISO Ant12422-21.52≤8.00PASS Ant22422-21.52≤8.00PASS Ant12437-21.35≤8.00PASS Ant22437-21.28≤8.00PASS Ant12452-20.88≤8.00PASS Ant22452-20.19≤8.00PASS 11N20MIMO 2412-15.76≤8.00PASS 2437-15.64≤8.00PASS 2462-15.13≤8.00PASS 11N40MIMO 2422-18.51≤8.00PASS 2437-18.30≤8.00PASS 2452-17.51≤8.00PASS Report No. ENS2206100171W00201RPage 44 of 116 Ver.1.0 11B_Ant1_2412 11B_Ant2_2412 11B_Ant1_2437 Report No. ENS2206100171W00201RPage 45 of 116 Ver.1.0 11B_Ant2_2437 11B_Ant1_2462 11B_Ant2_2462 Report No. ENS2206100171W00201RPage 46 of 116 Ver.1.0 11G_Ant1_2412 11G_Ant2_2412 11G_Ant1_2437 Report No. ENS2206100171W00201RPage 47 of 116 Ver.1.0 11G_Ant2_2437 11G_Ant1_2462 11G_Ant2_2462 Report No. ENS2206100171W00201RPage 48 of 116 Ver.1.0 11N20SISO_Ant1_2412 11N20SISO_Ant2_2412 11N20SISO_Ant1_2437 Report No. ENS2206100171W00201RPage 49 of 116 Ver.1.0 11N20SISO_Ant2_2437 11N20SISO_Ant1_2462 11N20SISO_Ant2_2462 Report No. ENS2206100171W00201RPage 50 of 116 Ver.1.0 11N40SISO_Ant1_2422 11N40SISO_Ant2_2422 11N40SISO_Ant1_2437 Report No. ENS2206100171W00201RPage 51 of 116 Ver.1.0 11N40SISO_Ant2_2437 11N40SISO_Ant1_2452 11N40SISO_Ant2_2452 Report No. ENS2206100171W00201RPage 52 of 116 Ver.1.0 8.4 UNWANTED EMISSIONS IN NON-RESTRICTED FREQUENCY BANDS 8.4.1 Applicable Standard According to FCC Part15.247(d) and KDB 558074 D01 15.247 Meas Guidance v05r02 8.4.2 Conformance Limit According to FCC Part 15.247(d): In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that containsthe highest level of the desired power, based on either an RF conducted or a radiated measurement, providedthe transmitter demonstrates compliance with the peak conducted power limits. If the transmitter complies with the conducted power limits based on the use of RMS averaging over a time interval, as permitted under paragraph (b)(3) of this section, the attenuation required under this paragraph shall be 30 dB instead of 20 dB. 8.4.3 Test Configuration Test according to clause 7.1 radio frequency test setup 1 8.4.4 Test Procedure The transmitter output (antenna port) was connected to the spectrum analyzer Reference level measurement Establish a reference level by using the following procedure: Set instrument center frequency to DTS channel center frequency. Set the span to ≥ 1.5 times the DTS bandwidth. SettheRBW=100kHz. Set the VBW ≥ 3 x RBW. Set Detector = peak. Set Sweep time = auto couple. Set Trace mode = max hold. Allow trace to fully stabilize. Use the peak marker function to determine the maximum PSD level. Note that the channel found to contain the maximum PSD level can be used to establish the reference level. Emission level measurement Set the center frequency and span to encompass frequency range to be measured. SettheRBW=100kHz. Set the VBW =300 kHz. Set Detector = peak Sweep time = auto couple. Trace mode = max hold. Allow trace to fully stabilize. Use the peak marker function to determine the maximum amplitude level. Ensure that the amplitude of all unwanted emissions outside of the authorized frequency band (excluding restricted frequency bands) are attenuated by at least the minimum requirements . Report the three highest emissions relative to the limit. 8.4.5 Test Results Report No. ENS2206100171W00201RPage 53 of 116 Ver.1.0 TestModeAntennaFrequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant12412 Reference6.886.88---PASS 30~10006.88-55.75≤-23.12PASS 1000~265006.88-40.37≤-23.12PASS Ant22412 Reference5.405.40---PASS 30~10005.40-45.15≤-24.6PASS 1000~2650…

Text truncated - open the document above for the full version.

Report No. ENS2206100171W00201RPage 67 of 116 Ver.1.0 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 11N20SISO_Ant1_2412_1000~26500 Report No. ENS2206100171W00201RPage 68 of 116 Ver.1.0 11N20SISO_Ant2_2412_0~Reference 11N20SISO_Ant2_2412_30~1000 11N20SISO_Ant2_2412_1000~26500 Report No. ENS2206100171W00201RPage 69 of 116 Ver.1.0 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 11N20SISO_Ant1_2437_1000~26500 Report No. ENS2206100171W00201RPage 70 of 116 Ver.1.0 11N20SISO_Ant2_2437_0~Reference 11N20SISO_Ant2_2437_30~1000 11N20SISO_Ant2_2437_1000~26500 Report No. ENS2206100171W00201RPage 71 of 116 Ver.1.0 11N20SISO_Ant1_2462_0~Reference 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 Report No. ENS2206100171W00201RPage 72 of 116 Ver.1.0 11N20SISO_Ant2_2462_0~Reference 11N20SISO_Ant2_2462_30~1000 11N20SISO_Ant2_2462_1000~26500 Report No. ENS2206100171W00201RPage 73 of 116 Ver.1.0 11N40SISO_Ant1_2422_0~Reference 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 Report No. ENS2206100171W00201RPage 74 of 116 Ver.1.0 11N40SISO_Ant2_2422_0~Reference 11N40SISO_Ant2_2422_30~1000 11N40SISO_Ant2_2422_1000~26500 Report No. ENS2206100171W00201RPage 75 of 116 Ver.1.0 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 Report No. ENS2206100171W00201RPage 76 of 116 Ver.1.0 11N40SISO_Ant2_2437_0~Reference 11N40SISO_Ant2_2437_30~1000 11N40SISO_Ant2_2437_1000~26500 Report No. ENS2206100171W00201RPage 77 of 116 Ver.1.0 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 11N40SISO_Ant1_2452_1000~26500 Report No. ENS2206100171W00201RPage 78 of 116 Ver.1.0 11N40SISO_Ant2_2452_0~Reference 11N40SISO_Ant2_2452_30~1000 11N40SISO_Ant2_2452_1000~26500 Report No. ENS2206100171W00201RPage 79 of 116 Ver.1.0 11N20MIMO_Ant1_2412_0~Reference 11N20MIMO_Ant1_2412_30~1000 11N20MIMO_Ant1_2412_1000~26500 Report No. ENS2206100171W00201RPage 80 of 116 Ver.1.0 11N20MIMO_Ant2_2412_0~Reference 11N20MIMO_Ant2_2412_30~1000 11N20MIMO_Ant2_2412_1000~26500 Report No. ENS2206100171W00201RPage 81 of 116 Ver.1.0 11N20MIMO_Ant1_2437_0~Reference 11N20MIMO_Ant1_2437_30~1000 11N20MIMO_Ant1_2437_1000~26500 Report No. ENS2206100171W00201RPage 82 of 116 Ver.1.0 11N20MIMO_Ant2_2437_0~Reference 11N20MIMO_Ant2_2437_30~1000 11N20MIMO_Ant2_2437_1000~26500 Report No. ENS2206100171W00201RPage 83 of 116 Ver.1.0 11N20MIMO_Ant1_2462_0~Reference 11N20MIMO_Ant1_2462_30~1000 11N20MIMO_Ant1_2462_1000~26500 Report No. ENS2206100171W00201RPage 84 of 116 Ver.1.0 11N20MIMO_Ant2_2462_0~Reference 11N20MIMO_Ant2_2462_30~1000 11N20MIMO_Ant2_2462_1000~26500 Report No. ENS2206100171W00201RPage 85 of 116 Ver.1.0 11N40MIMO_Ant1_2422_0~Reference 11N40MIMO_Ant1_2422_30~1000 11N40MIMO_Ant1_2422_1000~26500 Report No. ENS2206100171W00201RPage 86 of 116 Ver.1.0 11N40MIMO_Ant2_2422_0~Reference 11N40MIMO_Ant2_2422_30~1000 11N40MIMO_Ant2_2422_1000~26500 Report No. ENS2206100171W00201RPage 87 of 116 Ver.1.0 11N40MIMO_Ant1_2437_0~Reference 11N40MIMO_Ant1_2437_30~1000 11N40MIMO_Ant1_2437_1000~26500 Report No. ENS2206100171W00201RPage 88 of 116 Ver.1.0 11N40MIMO_Ant2_2437_0~Reference 11N40MIMO_Ant2_2437_30~1000 11N40MIMO_Ant2_2437_1000~26500 Report No. ENS2206100171W00201RPage 89 of 116 Ver.1.0 11N40MIMO_Ant1_2452_0~Reference 11N40MIMO_Ant1_2452_30~1000 11N40MIMO_Ant1_2452_1000~26500 Report No. ENS2206100171W00201RPage 90 of 116 Ver.1.0 11N40MIMO_Ant2_2452_0~Reference 11N40MIMO_Ant2_2452_30~1000 11N40MIMO_Ant2_2452_1000~26500 Report No. ENS2206100171W00201RPage 91 of 116 Ver.1.0 TestModeAntennaChNameFrequency[MHz]RefLevel[dBm]Result[dBm]Limit[dBm]Verdict 11B Ant1Low24126.82-35.23≤-23.18PASS Ant2Low24125.17-36.53≤-24.83PASS Ant1High24627.10-35.89≤-22.9PASS Ant2Hi gh24625.63-35.95≤-24.37PASS 11G Ant1Low24125.89-25.58≤-24.11PASS Ant2Low24124.39-32.02≤-25.61PASS Ant1High24626.90-34.03≤-13.1PASS Ant2High24624.53-35.71≤-25.47PASS 11N20SISO Ant1Low24125.19-26.77≤-24.81PASS Ant2Low24122.81-31.71≤-27.19PASS Ant1High24625.83-33.8≤-24.17PASS Ant2High24624.18-34.93≤-25.82PASS 11N40SISO Ant1Low24222.86-28.79≤-27.14PASS Ant2Low24220.62-34.09≤-29.38PASS Ant1High24523.41-30.52≤-26.59PASS Ant2Hi gh24522.92-32.58≤-27.08PASS 11N20MIMO Ant1Low24122.34-31.01≤-27.66PASS Ant2Low24121.64-32.79≤-28.36PASS Ant1High24623.05-35.86≤-26.95PASS Ant2High24623.03-35.97≤-26.97PASS 11N40MIMO Ant1Low24220.40-35.23≤-29.6PASS Ant2Low2422-0.55-35.94≤-30.55PASS Ant1High24520.63-34.62≤-29.37PASS Ant2High24520.76-35.56≤-29.24PASS Report No. ENS2206100171W00201RPage 92 of 116 Ver.1.0 11B_Ant1_Low_2412 11B_Ant2_Low_2412 11B_Ant1_High_2462 Report No. ENS2206100171W00201RPage 93 of 116 Ver.1.0 11B_Ant2_High_2462 11G_Ant1_Low_2412 11G_Ant2_Low_2412 Report No. ENS2206100171W00201RPage 94 of 116 Ver.1.0 11G_Ant1_High_2462 11G_Ant2_High_2462 11N20SISO_Ant1_Low_2412 Report No. ENS2206100171W00201RPage 95 of 116 Ver.1.0 11N20SISO_Ant2_Low_2412 11N20SISO_Ant1_High_2462 11N20SISO_Ant2_High_2462

Report No. ENS2206100171W00201RPage 96 of 116 Ver.1.0 11N40SISO_Ant1_Low_2422 11N40SISO_Ant2_Low_2422 11N40SISO_Ant1_High_2452 Report No. ENS2206100171W00201RPage 97 of 116 Ver.1.0 11N40SISO_Ant2_High_2452 11N20MIMO_Ant1_Low_2412 11N20MIMO_Ant2_Low_2412 Report No. ENS2206100171W00201RPage 98 of 116 Ver.1.0 11N20MIMO_Ant1_High_2462 11N20MIMO_Ant2_High_2462 11N40MIMO_Ant1_Low_2422 Report No. ENS2206100171W00201RPage 99 of 116 Ver.1.0 11N40MIMO_Ant2_Low_2422 11N40MIMO_Ant1_High_2452 11N40MIMO_Ant2_High_2452 Report No. ENS2206100171W00201RPage 100 of 116 Ver.1.0 8.5 RADIATED SPURIOUS EMISSION 8.5.1 Applicable Standard According to FCC Part 15.247(d) and 15.209 and KDB 558074 D01 15.247 Meas Guidance v05r02 8.5.2 Conformance Limit According to FCC Part 15.247(d): radiated emissions which fall in the restricted bands, as defined in §15.205(a), must also comply with the radiated emission limits specified in §15.209(a) (see §15.205(c)). According to FCC Part15.205, Restricted bands MHzMHzMHzGHz 0.090-0.11016.42-16.423399.9-4104.5-5.15 10.495-0.50516.69475-16.69525608-6145.35-5.46 2.1735-2.190516.80425-16.80475960-12407.25-7.75 4.125-4.12825.5-25.671300…
