2A7OT-H6Wireless Charging Station

MagneticMobilePhone (15W) iwatch (3W) Airpods (5W) Apple iWatch Indicator Apple Phone Indicator Airpods Indicator Model:H6 Wireless Charging Station User manual Product parameters:Name : Wireless Charging Station Interface :USB-CInput :5V/2A, 9V/2A, 12V/2A Output phone :5W/7.5W/10W/15WOutput earphone: 5WOutput watch :3WSize :255*75*7.5mm Material : ABS+silica gel Color : white, black parts : wireless charging, data cable, manual Compatibility : support mobile phones, earphones and watchesconforming to Qi standard Operation Instruction: To use the wireless charger, connect it to a power supply using the included charging cable. When charging a mobile phone, place it flat in the charging area to start charging and remove it once fully charged. Ifyou need to stop charging during the process, simply remove the phone.To charge an Apple Watch or Airpods, place them flat in their respectivecharging areas and remove them once fully charged. If you need to stopcharging during the process, just remove the device.Special instructions: 1. When charging the watch position, it is recommended to use horizontal and vertical 90 degree charging. Do not select 30 degrees, this angle may not be able to charge 2. It is recommended to use the supplied charging cable for power supply, but not the original iphonel data cable Product Support : Your satisfaction is always our top priority, Please feel free to contact us through the following steps: 1) Log in to your Amazon account, 2) Open your purchased order, 3) Click the store name next to “Sold by”, 4) Click “Ask a question” Packaging accessories: 3-in-1 wireless charging* 1 USB-C charging cable * 1Instructions * 1Packing box * 1The contents of this manual and the product specifications are subject to change without notice Please Note:This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver.-- Connect the equipment into an outlet on a circuit differentfrom that to which the receiver is connected.-- Consult the dealer or an experienced radio/TV technician for help.FCC Radiation Exposure StatementThe device has been evaluated to meet general RF exposure requirement. FAQ Q1: How do wireless charging speeds compare to a traditional wiredcharger? A1: It depends on your device, adapter, and wireless charger. It is recommended to use the 18-40W adapter for the product. Once the wireless charger's input is lower than 5V/3A 9V/2A, the charging speedwill be lower. Q2: Does the wireless charger hold a charge when unplugged, like an AirPod charger? A2: NO! The wireless charger doesn't contain an inside battery to store power.Q3: How do I know whether my device can use it? A3: Please read the compatible sheet before purchasing. Q4: Can I use the wireless charger in another country while traveling? A4: The package contains an 18Wadapter that can be used on the 100-240V power source. Q5: Will the wireless charger still charge with a protective case on the back? A5: Please take off the cellphone or earbuds cases before charging. Q6: Why would the charging speed for iphone get slower when it reaches80% of the power? A6: Please check if the cellphone is in trickle charge status. Then, try thefollowing to improve the charging speed:Open [Settings] - [Battery] - [Battery Health]- [Turn off battery optimization]. Indicator Instruction:1:When use the cable to charge the wireless charger, all three white indicator light will be on and go off automatically after 5 seconds. 2:When use the wireless charger to charge your apple devices, thecorresponding white indicator light will be on and go off automatically after 15 seconds. FCC ID :2A7OT-H6

Shenzhen View lighting Technology Co., Ltd Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023-4-12 FCC ID: 2A7OT-H6 Ref. #1: Attestation Statements Part 2.911(d)(5)(i) Filing Shenzhen View lighting Technology Co., Ltd certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Ref. #2: Attestation Statements Part 2.911(d)(5)(ii) Filing Shenzhen View lighting Technology Co., Ltd certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Applicant: Shenzhen View lighting Technology Co., Ltd Address: 301, Building d, Xinwei Third Industrial Zone, Xinshi Community, Dalang Street, Longhua District, Shenzhen City Contact Person: Rusheng Shen Tel.: +86 13798500216 Email: [email protected] Sincerely, Signature:

Shenzhen View lighting Technology Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: April 12, 2023 Subject; Request for Confidentiality FCC ID: 2A7OT-H6 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Rusheng Shen Title: Manager

Model difference statement Mar. 27,2023 We Shenzhen View lighting Technology Co.,Ltd Of 301, Building d, Xinwei Third Industrial Zone, Xinshi Community, Dalang Street, Longhua District, Shenzhen City Declare under our sole responsibility that the product Product: Wireless Charging Station Model Number: H6-1, H6-2, L3, H8 Except for the model and appearance, all models have the same circuit and module Sincerely, Rusheng Shen /Manager E-mail: : [email protected] Phone: +86 13798500216 Fax: +86 13798500216 Address : 301, Building d, Xinwei Third Industrial Zone, Xinshi Community, Dalang Street, Longhua District, Shenzhen City

Effective Date: April 2, 2020 QSF 7.6.4-8 – Agent Authorization Letter Template Page 1 of 1 Revision Date: Revision: 0 Shenzhen View lighting Technology Co., Ltd Date：Apr. 12, 2023 Product Model Number: H6 FCC ID：2A7OT-H6 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following:  Testing  Approval applications and procedures We declare that ORGANIZATION. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by ORGANIZATION. on our behalf shall have the same effect as acts of our own. By: Contact Listed on FCC Wesbite Title: Manager Email: [email protected] Telephone: +86 13798500216 On behalf of: Shenzhen View lighting Technology Co., Ltd

第 1 页 PRODUCT SPECIFICATION FOR APPROVAL Gaoyu Wei A11 coil CUSTOMERP RODUCT NAME PART No. PRODUCT SPEC Sensitivity specifications：6.3±10% Magnetic disc specifications：43.5*5.3*1 Double groove Wire specifications：0.08*105*10Ts/outlet45mm Stick back adhesive April 12, 2023 DATE VERSION REV 1.0 RevisionModified ContentPrincipleDateNote REV 1.0 First release Xue Lei 2023-04-12 1 PREPARED BY CHECKED BY APPROVED BY Authorized signature & company chop Shenzhen Chenxing Electronic Technology Co,Ltd. 第 2 页 SPECIFICATION 一、Product size Disk diameter A 43.5±0.5mm Coil outer diameter B 41.5±1mm Coil inner diameter C 20.5±0.5mm Product thickness D <2.5mm Outlet length E 45mm±3mm Solder length F 3±1mm Magnetic disc opening diameter G 5±0.3mm Magnetic disc thickness 1±0.1mm Disk shape Circular double groove Adhesive thickness Ordinary double-sided adhesive Anti crushing black film No Antenna Gain 0dBi Shenzhen Chenxing Electronic Technology Co,Ltd. 第 3 页 二、schematic diagram 三、Winding parameters TERMINALWIRETurnsWinding Direction SF silk covered wire 0.08*105P 10TsCCW 四、Electrical characteristics: TEMPERATURE:25±10°C, RELATIVE HUMIDITY:65±20% ITEMTERMINALSPECIFICATIONTEST FREQUENCYTEST EQUIPMENTS IND.S-F 6.3uH±10% 100KHz/1.0VLCZ METER 1062B 五、Product image Shenzhen Chenxing Electronic Technology Co,Ltd. 第 4 页 六、Packaging instructions: The size of pearl cotton is 35 * 24.5 * 6.2cm, and each pearl cotton has a total of 40 compartments. Each compartment contains 6 pieces of products, with a total of 240 pieces of products packed in three layers of pearl cotton per box; The size of the cardboard box is 36.5 * 25.5 * 21 CM, with each box containing 720 PCS of products. Shenzhen Chenxing Electronic Technology Co,Ltd.

Shenzhen Chenxing Electronic Technology Co,Ltd. 第 1 页 PRODUCT SPECIFICATION FOR APPROVAL Gaoyu Wei Power Transmitter for Apple Watch CUSTOMER PRODUCT NAME PART No. PRODUCT SPEC Inductance Spec: 7.7uH±10% Shielding spec: KP24.5*2.6mm soft shielding with rubber Silk covered wire spec: 2 UEW/155 0.08*24*13Ts Segment Length: 9mm Double side Type: 3M 9448A Magnet Spec: 7.8*2mm Electroplating with Zinc April 12, 2023 DATE VERSION REV1.0 RevisionModified ContentPrincipleDateNote REV 1.0 First releaseXue Lei 2023-04-12 PREPARED BY CHECKED BY PPROVED BY Authorized signature & company chop Shenzhen Chenxing Electronic Technology Co,Ltd. 第 2 页 SPECIFICATION 一、Product size Shielding Outer Diameter Max ( A) 25±0.5mm Shielding Thickness (B) 2.6±0.2mm Shielding Outer Diameter Min (C) 23.7±0.4mm Shielding Inner Diameter(D) 21±0.5mm Inner Hole Outer Diameter(E) 13.5±0.2mm Shielding Cylinder Height (F) 2.3±0.25mm Inner Hole Inner Diameter (H) 7.7±0.4mm Pin Length (I)3.0±0.2mm Segment Length (J)9mm±2mm Magnet Spec7.8*2.0±0.1mm Adhesive Tape3M 9448A Antenna Gain 0dBi Shenzhen Chenxing Electronic Technology Co,Ltd. 第 3 页 二、schematic diagram 三、Winding parameters TERMINALWIRETurnsWinding Direction SF silk wire 0.08*24P 13TsCCW 四、Electrical characteristics: TEMPERATURE:25±10°C, RELATIVE HUMIDITY:65±20% ITEMTERMINALSPECIFICATIONTEST FREQUENCYTEST EQUIPMENTS IND.S-F 7.7uH±10% 100KHz/1.0VLCZ METER 1062B

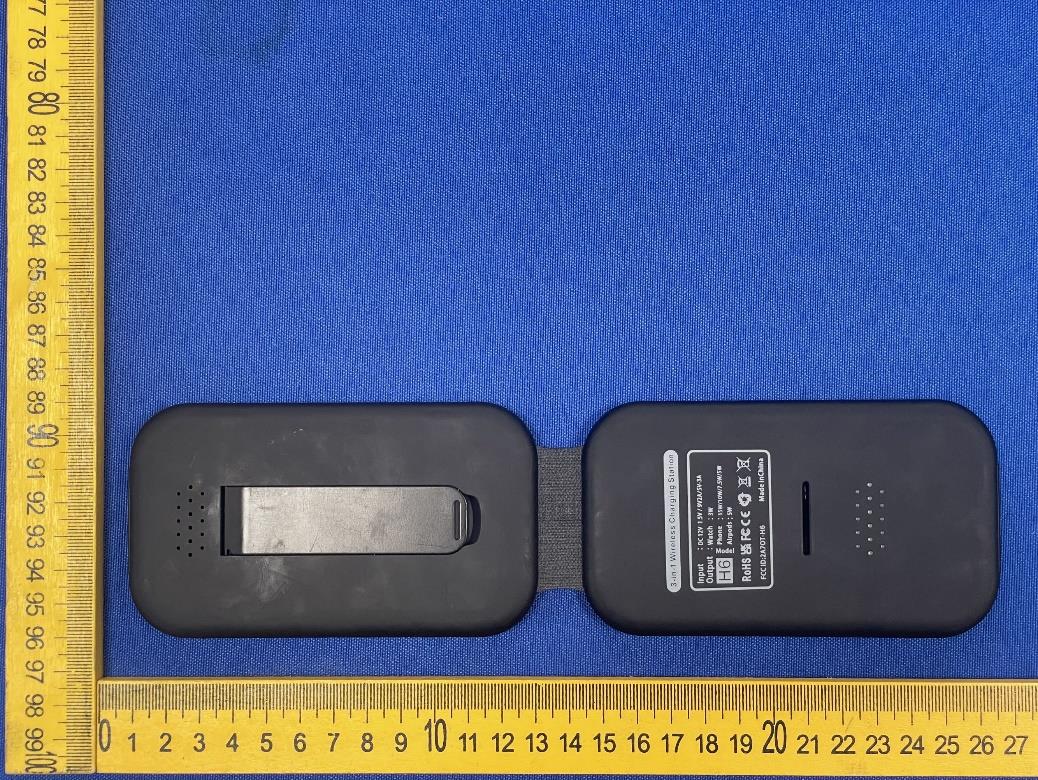

Ext Photos Photo 1（For model H6） Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7

Label and Label Location Label: Label and Label Location: 2.5cm 5cm

Int Photos Photo 1（For model H6） Photo 2 Phone : ANT Photo 3 Photo 4 Earphone : ANT Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 Watch : ANT Photo 11

RF Exposure Evaluation FCC ID: 2A7OT-H6 1 General Information Product Name: Wireless Charging Station Product Model No.: H6 Test Auxiliary: iPhone 12 pro, Earphone, Adapter, Watch Model No.: N/A Transmitting mode Keep the EUT in continuously wireless charging mode Power supply: Input: DC 5V/2A, 9V/2A, 12V2A Wireless Output: transmitter 1(Phone): 5W/7.5W/10W/15W transmitter 2(Earphone): 5W transmitter 3(Watch)：3W Test description: Phone Battery>98%, =50%and <1% are tested, and the worst is <1%. Earphone Battery>98%, =50%and <1% are tested, and the worst is <1%. Watch Battery>98%, =50%and <1% are tested, and the worst is <1%. Test Auxiliary A1 Adapter / / / Auxiliary A2 Earphone Apple lnc. / / Auxiliary A3 iPhone 12 pro Apple lnc. / / Auxiliary A4 Watch Apple lnc. / / Auxiliary Transmitting mode Keep the EUT in continuously wireless charging mode 2 Test Modes Test Modes Mode 1 Wireless Output (Earphone:5W) Record Mode 2 Wireless Output (Watch:3W) Record Mode 3 Wireless Output (Phone:5W) Record Mode 4 Wireless Output (Phone:7.5W) Record Mode 5 Wireless Output (Phone:10W) Record Mode 6 Wireless Output (Phone:15W) Record Mode 7 Wireless Output (Phone:5W+Earphone:5W) Record Mode 8 Wireless Output (Phone:7.5W+Earphone:5W) Record Mode 9 Wireless Output (Phone:10W+Earphone:5W) Record Mode 10 Wireless Output (Phone:15W+Earphone:5W) Record Mode 11 Wireless Output (Phone:5W+Watch:3W) Record Mode 12 Wireless Output (Phone:7.5W+Watch:3W) Record Mode 13 Wireless Output (Phone:10W+Watch:3W) Record Mode 14 Wireless Output (Phone:15W+Watch:3W) Record Mode 15 Wireless Output (Earphone:5W+Watch:3W) Record Mode 16 Wireless Output (Phone:15W+Watch:3W+Earphone:5W) Record Note: 1.The appearance of others models listed in the report is different from main-test model H6, but the circuit and the electronic construction do not change, declared by the manufacturer. Note: 2.The detailed difference about the appearance is that the H6 has a bracket on the back, so the H6 supports two setup: standing and plane. By the pre-scanning of two different setup for the model H6, the plane setup is the worst-case of H6. The report only reflects the worst-case data. Note: 3.All test modes of the equipment have been evaluated and tested, and the report only reflects the data of the worst mode. 3 Measuring Standard KDB 680106 RF Exposure Wireless Charging Apps v03r01 4 Requirements According to the item 5 of KDB 680106 v03r01: Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation. (1) Power transfer frequency is less than 1MHz. (2) Output power from each primary coil is less than or equal to 15 watts. (3) The system may consist of more than one source primary coils, charging one or more clients. If more than one primary coil is present, the coil pairs may be powered on at the same time. (4) Client device is placed directly in contact with the transmitter. (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). (6) The aggregate H-field strengths anywhere at or beyond 15 cm surrounding the device, and 20 cm away from the surface from all coils that by design can simultaneously transmit, and while those coils are simultaneously energized, are demonstrated to be less than 50% of the applicable MPE limit. Remark: Meet all the above requirements. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) 5 Test Setup 6 Test Procedure E and H-field measurements should be made with the center of the probe at a distance of 15 cm surrounding the device and 20 cm above the top surface of the primary/client pair. These measurements should be repeated for three different client battery levels, 1%, 50%, and 99%. Record the test results. KDB 680106 D01 RF Exposure Wireless Charging Apps v03r01: (1) Power transfer frequency is less than 1 MHz (2) Output power from each primary coil is less than or equal to 15 watts. (3) The system may consist of more than one source primary coils, charging one or more clients. If more than one primary coil is present, the coil pairs may be powered on at the same time. (4) Client device is placed directly in contact with the transmitter. (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). (6) The aggregate H-field strengths anywhere at or beyond 15 cm surrounding the device, and 20 cm away from the surface from all coils that by design can simultaneously transmit, and while those coils are simultaneously energized, are demonstrated to be less than 50% of the applicable MPE limit. Note: The device is in compliance with KDB 680106 D01 RF Exposure Wireless Charging Apps v03r01 6 conditions. 7 Test Instruments list Test Equipment Manufacturer Model No. SN. Cal.Date (mm-dd-yy) Cal.Due date (mm-dd-yy) Electric and Magnetic Field Analyzer Narda EHP-200A 180ZX11013 May. 26 2022 May. 25 2023 E UT 15 cm 15 cm 15 cm 15 cm 20 cm Z axis Right EHP 200A Probe Left Front Rear 8 Test Result Test condition 1: Mode 16 operating mode with client device (1 % battery status of client device) Maximum permissible Exposure Battery levels Test sides Test distance(cm) E –field(V/m) H–field(A/m) <1% Top 20 0.9799 0.0598 <1% Left 15 0.5044 0.0474 <1% Right 15 0.8306 0.0550 <1% Front 15 5.6942 0.0489 <1% Back 15 3.1184 0.0489 Limit 614 1.63 Margin Limit (%) 0.93% 3.67% Test condition 2: Mode 16 operating mode with client device (50% battery status of client device) Maximum permissible Exposure Battery levels Test sides Test distance(cm) E –field(V/m) H–field(A/m) <50% Top 20 0.9632 0.0517 <50% Left 15 0.5021 0.0488 <50% Right 15 0.8287 0.0479 <50% Front 15 5.6835 0.0486 <50% Back 15 3.1121 0.0472 Limit 614 1.63 Margin Limit (%) 0.93% 3.17% Test condition 3: Mode 16 operating mode with client device…

Text truncated - open the document above for the full version.

Project No.: ZKT-230411L2592E Page 1 of 23 FCC TEST REPORT FCC ID: 2A7OT-H6 Report Number. .............................. : ZKT-230411L2592E Date of Test ................................................. : Mar. 27, 2023 to Apr. 11, 2023 Date of issue .................................... : Apr. 11, 2023 Total number of pages ...................... 23 Test Result ..................................... : PASS Testing Laboratory. ........................ : Shenzhen ZKT Technology Co., Ltd. Address .......................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Applicant's name ......................... : Shenzhen View lighting Technology Co., Ltd Address .......................................... : 301, Building d, Xinwei Third Industrial Zone, Xinshi Community, Dalang Street, Longhua District, Shenzhen City Manufacturer's name ................... : Shenzhen View lighting Technology Co., Ltd Address .......................................... : 301, Building d, Xinwei Third Industrial Zone, Xinshi Community, Dalang Street, Longhua District, Shenzhen City Test specification: Standard ........................................... : FCC CFR Title 47 Part 15 Subpart C Test procedure ................................. : / Non-standard test method ............. : N/A Test Report Form No. .................... : TRF-EL-107_V0 Test Report Form(s) Originator .... : ZKT Testing Master TRF .................................... : Dated: 2023-4-11 This device described above has been tested by ZKT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of ZKT, this document may be altered or revised by ZKT, personal only, and shall be noted in the revision of the document. Product name ................................. : Wireless Charging Station Trademark ...................................... : N/A Model/Type reference ...................... : H6 H6-1, H6-2, L3, L3-1, H8 Ratings ............................................. : Input: DC 5V/2A, 9V/2A, 12V2A Wireless Output: Phone(Phone): 5W/7.5W/10W/15W Earphone(Earphone): 5W Watch(Watch)：3W Project No.: ZKT-230411L2592E Page 2 of 23 Testing procedure and testing location: Testing Laboratory ................................... : Shenzhen ZKT Technology Co., Ltd. Address ...................................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Jim Liu Tested by (name + signature) .................... : Jackson Fang Reviewer (name + signature) ..................... : Lake Xie Approved (name + signature) .................... : Project No.: ZKT-230411L2592E Page 3 of 23 TABLE OF CONTENTS 1. VERSION ....................................................................................................................................... 4 2. TEST SUMMARY ........................................................................................................................ 5 2.1 TEST FACILITY .................................................................................................................................... 6 2.2 MEASUREMENT UNCERTAINTY .................................................................................................... 6 3. GENERAL INFORMATION ....................................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT ................................................................................................. 7 3.2 Test mode .............................................................................................................................................. 7 3.3 Block Diagram of EUT Configuration ................................................................................................ 7 3.5 Description Of Support Units (Conducted Mode) ............................................................................ 8 3.6 EQUIPMENTS LIST FOR ALL TEST ITEMS .................................................................................. 9 4. CONDUCTED EMISSION TEST ............................................................................................. 10 4.1 CONDUCTED EMISSION MEASUREMENT ................................................................................ 10 4.1.1 POWER LINE CONDUCTED EMISSION Limits........................................................................ 10 4.1.2 TEST PROCEDURE ...................................................................................................................... 10 4.1.3 DEVIATION FROM TEST STANDARD ....................................................................................... 10 4.1.4 TEST SETUP ................................................................................................................................... 11 4.1.5 EUT OPERATING CONDITIONS ................................................................................................. 11 4.1.6 Test Result ....................................................................................................................................... 11 5. RADIATED EMISSION MEASUREMENT ............................................................................ 14 5.1 Radiated Emission Limits .................................................................................................................. 14 5.2 Anechoic Chamber Test Setup Diagram ........................................................................................ 15 5.3 Test Procedure ................................................................................................................................... 15 5.4 Deviation From Test Standard .........…

Text truncated - open the document above for the full version.

- Page 1 of 2 - Appendix I - Test Setup Photos Radiated emissions-Below 1GHz Radiated emissions- Below 30MHz - Page 2 of 2 - Conducted emissions MPE
