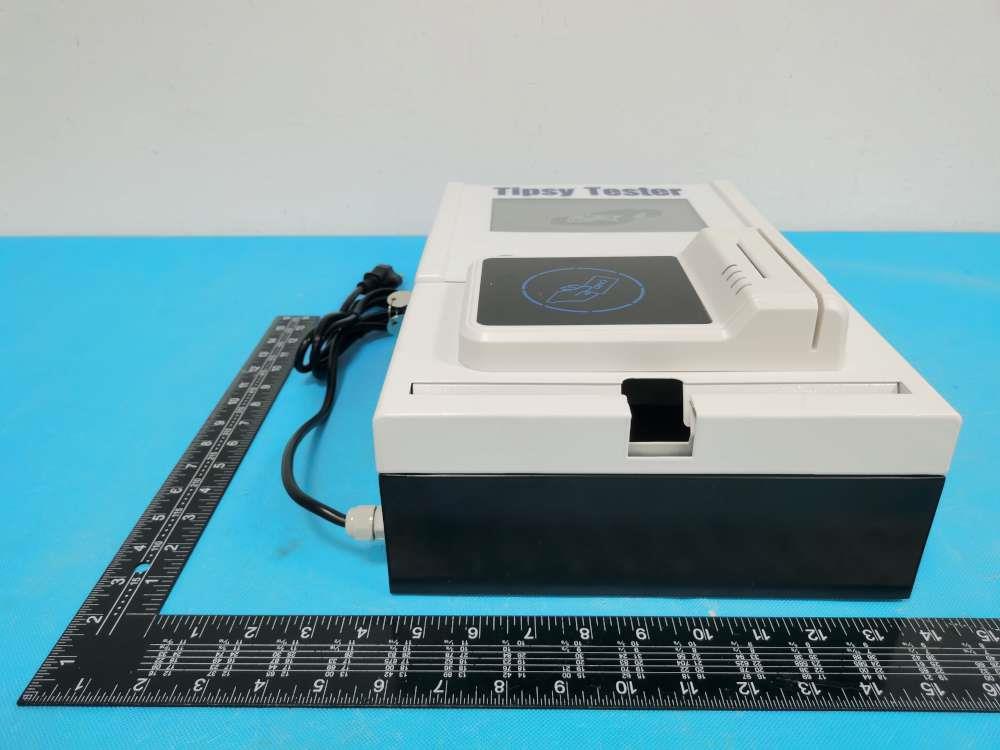

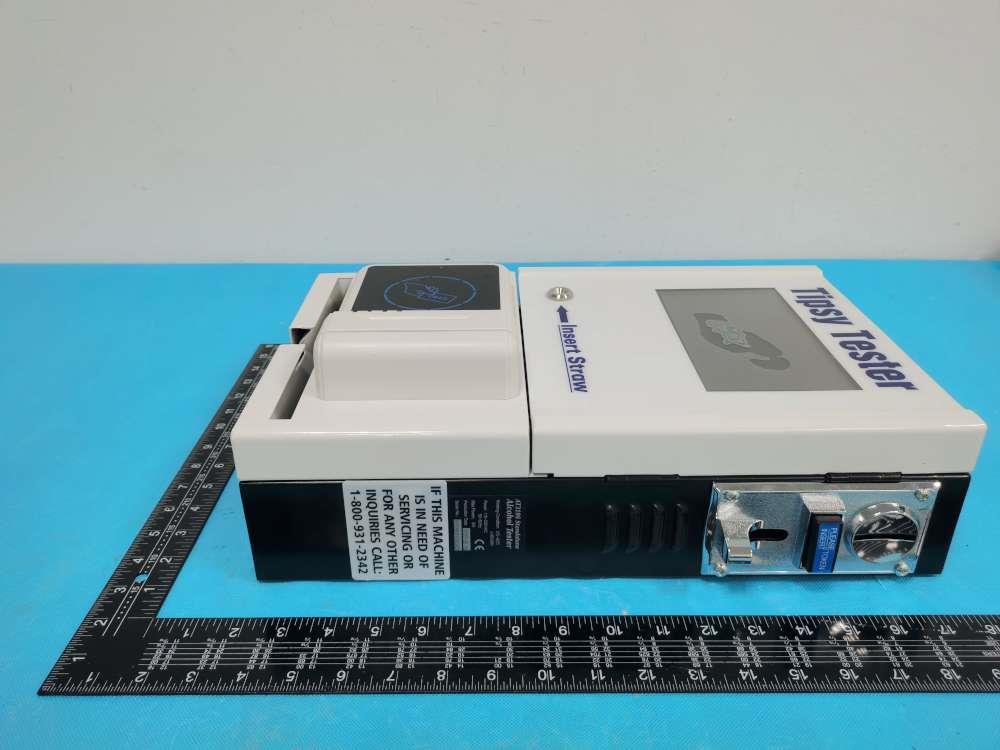

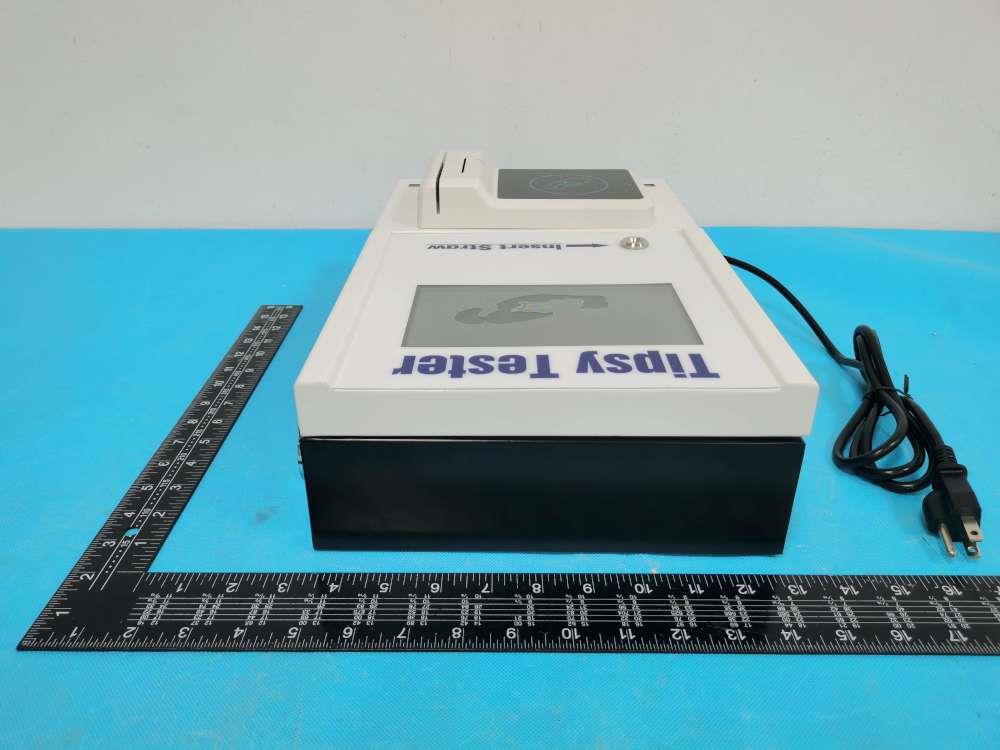

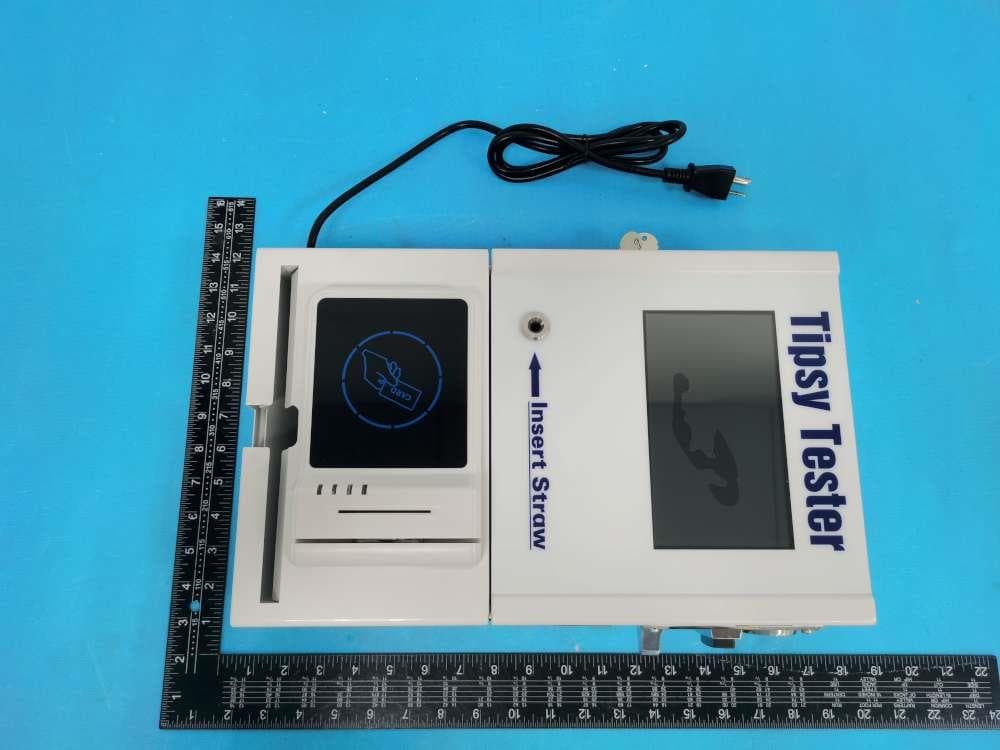

AT319S Standalone Multi-Payment Alcohol Tester Operation Manual Cautions ➢ To have accurate indication of blood alcohol concentration, please test at least 15 minutes later after drinking. ➢ Do not put smoke into the tube, which can damage the sensor. ➢ Do not clean surface by Ethanol. Please use soft wet cloth and neutral detergent. ➢ Do not use inappropriate charger, otherwise it may cause AT319S damaged or malfunction. ➢ Do not use it beyond -10°C-50°C. ➢ Avoid any fall or strong shock. Summary AT319S is a standalone multi-payment alcohol tester with start of the art design, which adopts advanced changeable fuel cell sensor module that presents professional grade accuracy, superb repeatability and high sensitivity. It supports 2 options of payment which are coin, and Credit Card Swipe operated on a 7 inch touch screen by connecting Wi-Fi or 4G to realize the payment and upload data to server on which owner can monitor transaction records, configure parameters, and insert photos of screen saver that could be regarded as merchant advertisements. For every new firmware updated, the machine will update it automatically when it’s connecting WiFi or 4G. Main Technical Parameters Sensor Advanced Fuel Cell Sensor Life 2 Years Test Range 0.000～0.400%BAC Resolution 0.001%BAC Payment Options Coin, Debit Card, Credit Card, Apple Pay Internet 4G, WiFi Warm-up Time ≤30s Working Condition Temperature：0°C～50°C Humidity：≤95％RH No Condensing Display 7”（1024*600）Touch Screen Working Voltage Adapter Input：AC110V～AC240V，50/60Hz； Output：DC12V/1.5A Unit %BAC, mg/l, g/l Accuracy ±0.005%BAC (0-0.800%BAC) ± 8% (0.800-0.200%BAC) ±20% (0.200-0.400%BAC) Coin Diameter 15mm～29mm Coin Thickness 1.8mm～3.0mm Quantity of Full Coin Tray 200 Capacity of Nozzle 200 Dimension 250mm×100mm×400mm Weight About 4.8kg Structures How to set up the model coin Power on the tester and open the gate, you will see there’s a coin accepter(see photo below) and LED indicator⑦ lighting continuously. Press set button⑤ 2 seconds then release, the left top LED indicator⑦ turns from red to green. Press the set button⑤ 2 seconds again and release, the LED⑦ turns from green to red and flashes, now it enters into coin setting state, please put model coins into the coin slot 20 times(Recommend to put into coins of different years with different versions, coins can be fast or slow speed so as to simulate the normal use) until the coin slot does not accept coin anymore. When it’s finished, the indicator lamp remain constantly lighting and the model coin setting is success. 1. Case Locker 2. Mounting Hole 3. Coin Accepter 4. Main Board 5. Sensor Module 6. Payment Module 7. Nozzle Hole Name Function ① 3 segment jiggle switch Distinguish accuracy: exact, normal, loose ② 4 pin Jack ③ 2 segment jiggle switch Distinguish NO and NC ④ 3 segment jiggle switch COIN single transmission speed: fast, middle and slow ⑤ Set button Set ⑥ 2 pin Jack Electromagnetic strobe ⑦ LED Indicator Showing to set the coin ⑧ Coin entrance Coin Entrance ⑨ Coin return button Press this button to get the coin which blocked in the coin entrance ⑩ Coin returned exit Coin returned exit Payment Options AC power on, the machine will start initialization. Touch screen then it will show 2 options of payment method which are Coin, and Credit Card Swipe. Choose one of the options to continue the payment. Please note: if you select the option other than coin, make sure the machine connects to WiFi or 4G. Coin: After set model coin, choose coin payment option and insert the coin to continue payment. Credit Card Swipe: Choose Swipe payment option, it will show “please swing card”. Swing card as the display indicated, the screen will show card information and fees to pay, then click pay. System Setup Top left indicates date and time; Top right shows in sequence as WiFi signal; 4G signal; status of machine working normally or not; coin tray is full or not; due for sensor recalibration or replace; system setup. Click, to enter system setup interface on which user can register a username and sign in, alternative the user can complete registration by visiting https://alcohol.sq361.com/hanwei ：View revenue on daily or monthly basis. ：Set test price for single blow; Set quantity that indicated as coin tray is full. ：Automatically check each module if it’s working normally. ：To swipe magnetic card to check if it works normally. Click it, there’s a message: please swing magnetic card. Swipe card, then the machine will identify the card information indicating it’s under normal condition, otherwise, it’s faulty. Please note: there’s another pop-up message after 15s without any operation: Magnetic device may be fault. ：To cast one coin to check if coin accepter works. ：To complete one test to check if sensor works. ：The number in top right indicates the past times of blowing.When it reaches 2000, the icon turns red reminding it’s time to replace a new sensor or do recalibration. ：The number in top right indicates the quantity of coins in coin tray. When coin tray is full, the icon turns red. Please note: every time owner collects up all coins, please click the icon, the number will disappear. ：Change password. ：Set display brightness, etc. ：Set WiFi connection. ：System setting. Wall-mounted Alcohol Test Management System Register an Account Click, to enter system setup interface on which owner can register a username and sign in, alternative the user can complete registration by visiting https://alcohol.sq361.com/hanwei Device Bind Click “device information” ,“Device bind” and input ID number, then click “Active device” to complete adding new device. Pleae note the device will be automatically added if the username is registered on the machine itself. 图6 Device Configuration After new device is added, it can do some configuration by clicking “device config”. Device Unbind Click “device unbind” to remove binding. Payment Account Bind Click “Merchant information” to input merchant information. Click “User…

Text truncated - open the document above for the full version.

HANWEI ELECTRONICS GROUP CORPORATION 1/1 Letter of Authorization Company: HANWEI ELECTRONICS GROUP CORPORATION Address: No.169, Xue Song Road National Hi-Tech Zone, Zhengzhou, 450001, China Product Name: ALCOHOL TESTER Model Number: AT319S FCC Identifier: 2A7RP-AT319S We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Dior Tan Date: 2022-07-19 Title: Manager Signature of applicant:

HANWEI ELECTRONICS GROUP CORPORATION 1/1 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2022-07-19 Subject: Request for Confidentiality FCC ID: 2A7RP-AT319S To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual No ☐ Internal Photos No ☐ Parts List / Tune Up ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Dior Tan Title: Manager ☒

Size: 26*20mm M/N: AT319S FCC ID: 2A7RP-AT319S Label location

WIFI ANT LTE ANT

FCC ID: 2A7RP-AT319S RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Test Result of RF Exposure Evaluation Channel Output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 802.11b 16.44 44.0555 0.01103 1.0 PASS 802.11g 16.40 43.6516 0.01093 1.0 PASS 802.11n HT20 18.08 64.2688 0.01610 1.0 PASS 802.11n HT40 17.89 61.5177 0.01541 1.0 PASS Channel Output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result LTE Band 2 23.0dBm ±1.0 251.1886 0.06291 1.0 PASS LTE Band 4 23.0dBm ±1.0 251.1886 0.06291 1.0 PASS LTE Band 12 23.0dBm ±1.0 251.1886 0.06291 0.466 PASS Remark: antenna gain=1dBi For Simultaneous transmitting, 1): The sum of the ratios of the spatially averaged results to the applicable frequency dependent MPE limits = 0.01610/1 + 0.06291/0.466 = 0.1511< 1 Since the sum of the MPE ratios for all simultaneously transmitting antennas incorporated in the device is ≤ 1.0, the EUT is considered to satisfy MPE compliance for simultaneous transmission operations.

Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20220708026E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 1 of 51 FCC Part 15C Test Report FCC ID: 2A7RP-AT319S Applicant: HANWEI ELECTRONICS GROUP CORPORATION Address: No.169, Xue Song Road National Hi-Tech Zone, Zhengzhou, 450001, China Manufacturer: HANWEI ELECTRONICS GROUP CORPORATION Address: No.169, Xue Song Road National Hi-Tech Zone, Zhengzhou, 450001, China EUT: ALCOHOL TESTER Trade Mark: N/A Model Number: AT319S Date of Receipt: Jun. 09, 2022 Test Date: Jun. 09, 2022 – Jul. 08, 2022 Date of Report: Jul. 08, 2022 Prepared By: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Building C, Shuanghuan, No.8, Baoqing Road, Baolong Industrial Zone, Baolong Street, Longgang District, Shenzhen, Guangdong, China Applicable Standards: FCC PART 15 C 15.247 ANSI C63.10:2013 Test Result: Pass Report Number: DL-20220708026E Prepared (Test Engineer): Pxing Huang Reviewer (Supervisor): Jack Bu Approved (Manager): Jade Yang This test report is based on a single evaluation of one sample of above mentioned products. It is not permitted to be duplicated in extracts without written approval of Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20220708026E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 2 of 51 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 MEASUREMENT UNCERTAINTY 4 2 . GENERAL INFORMATION 5 2.1 GENERAL DESCRIPTION OF EUT 5 2.2 DESCRIPTION OF TEST MODES 6 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 7 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 7 2.5 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 7 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 8 3 . EMC EMISSION TEST 9 3.1 CONDUCTED EMISSION MEASUREMENT 9 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 9 3.1.2 TEST PROCEDURE 9 3.1.3 DEVIATION FROM TEST STANDARD 9 3.1.4 TEST SETUP 10 3.1.5 EUT OPERATING CONDITIONS 10 3.1.6 TEST RESULTS 10 3.2 RADIATED EMISSION MEASUREMENT 13 3.2.1 RADIATED EMISSION LIMITS 13 3.2.2 TEST PROCEDURE 14 3.2.3 DEVIATION FROM TEST STANDARD 14 3.2.4 TEST SETUP 14 3.2.5 EUT OPERATING CONDITIONS 15 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 16 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 17 3.2.8 TEST RESULTS (1GHZ~25GHZ) 19 3.3 RADIATED BAND EMISSION MEASUREMENT 23 3.3.1 TEST REQUIREMENT: 23 3.3.2 TEST PROCEDURE 23 3.3.3 DEVIATION FROM TEST STANDARD 23 3.3.4 TEST SETUP 24 3.3.5 EUT OPERATING CONDITIONS 24 3.4 CONDUCTED BAND EDGE EMISSION&CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 29 3.4.1 APPLICABLE STANDARD 29 3.4.2 TEST PROCEDURE 29 3.4.3 DEVIATION FROM STANDARD 29 3.4.4 TEST SETUP 29 Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20220708026E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 3 of 51 Table of Contents Page 3.4.5 EUT OPERATION CONDITIONS 29 3.4.6 TEST RESULTS 29 4 . AVERAGE OUTPUT POWER 33 4.1 APPLIED PROCEDURES / LIMIT 33 4.1.1 TEST PROCEDURE 33 4.1.2 DEVIATION FROM STANDARD 33 4.1.3 TEST SETUP 33 4.1.4 EUT OPERATION CONDITIONS 33 4.1.5 TEST RESULTS 34 5 . POWER SPECTRAL DENSITY TEST 37 5.1 APPLIED PROCEDURES / LIMIT 37 5.1.1 TEST PROCEDURE 37 5.1.2 DEVIATION FROM STANDARD 37 5.1.3 TEST SETUP 37 5.1.4 EUT OPERATION CONDITIONS 37 5.1.5 TEST RESULTS 38 6 . 6DB BANDWIDTH TEST 41 6.1 APPLIED PROCEDURES / LIMIT 41 6.1.1 TEST PROCEDURE 41 6.1.2 DEVIATION FROM STANDARD 41 6.1.3 TEST SETUP 41 6.1.4 EUT OPERATION CONDITIONS 41 6.1.5 TEST RESULTS 42 7 . ANTENNA REQUIREMENT 45 7.1 STANDARD REQUIREMENT 45 7.2 EUT ANTENNA 45 8 . TEST SEUUP PHOTO 46 9 . EUT PHOTO 48 Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20220708026E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 4 of 51 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.205, 15.209, 15.247(d) Radiated Spurious Emission PASS 15.205, 15.247(d) Band Edge Emission& Conducted Spurious Emissions PASS 15.247(b) Average Output Power PASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(e) Power Spectral Density PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report 1.1 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±2.56dB 2 RF power,conducted ±0.42dB 3 Spurious emissions,conducted ±2.76dB 4 All emissions,radiated(<1G) ±3.65dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20220708026E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 5 of 51 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Product Name: ALCOHOL TESTER Trademark N/A Model No.: AT319S Model Difference N/A Operation Frequency: 2412~2462 MHz for 802.11b/g/nHT20 2422~2452 MHz for 802.11nHT40 Channel numbers: 11 Channels for 802.11b/g/n(HT20) 7 channels for 802.11nHT40 Channel separation: 5MHz Modulation technology: 802.11b: DSSS (CCK, DQPSK, DBPSK) 802.11g/n(20): DSSS (CCK, DQPSK,DBPSK)+OFDM (QPSK, BPSK, 16-QAM, 64-QAM) Rate of Transmitter 802.11b: 11/5.5/2/1Mbps 802.11g: 54/48/36/24/18/12/9/6Mbps 802.11n: up to 150Mbps Antenna Type: Internal Antenna Antenna gain: 1dBi Power supply: AC 110-240V 50/60Hz Note: 1.For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. 2.The EUT’s all information provided by client. Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20220708026E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 6 of 51 2. Channel List(802.11b/g/nHT20) Channel Frequency (GHz) Channel Frequency (G…
