2A7RP-AT800ALCOHOL TESTER

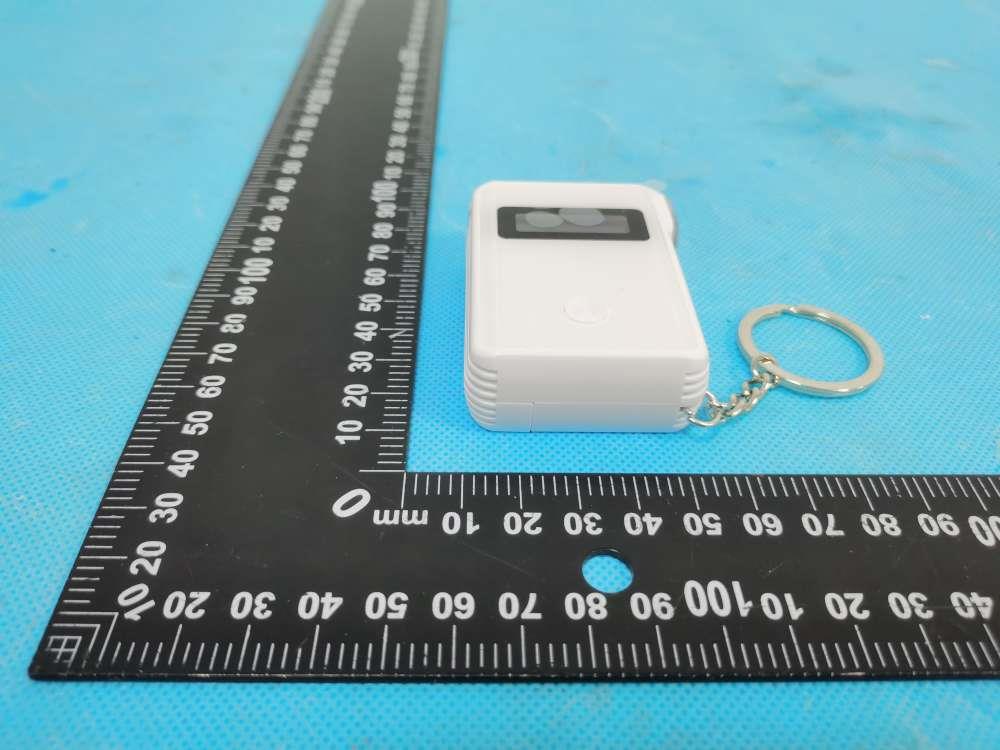

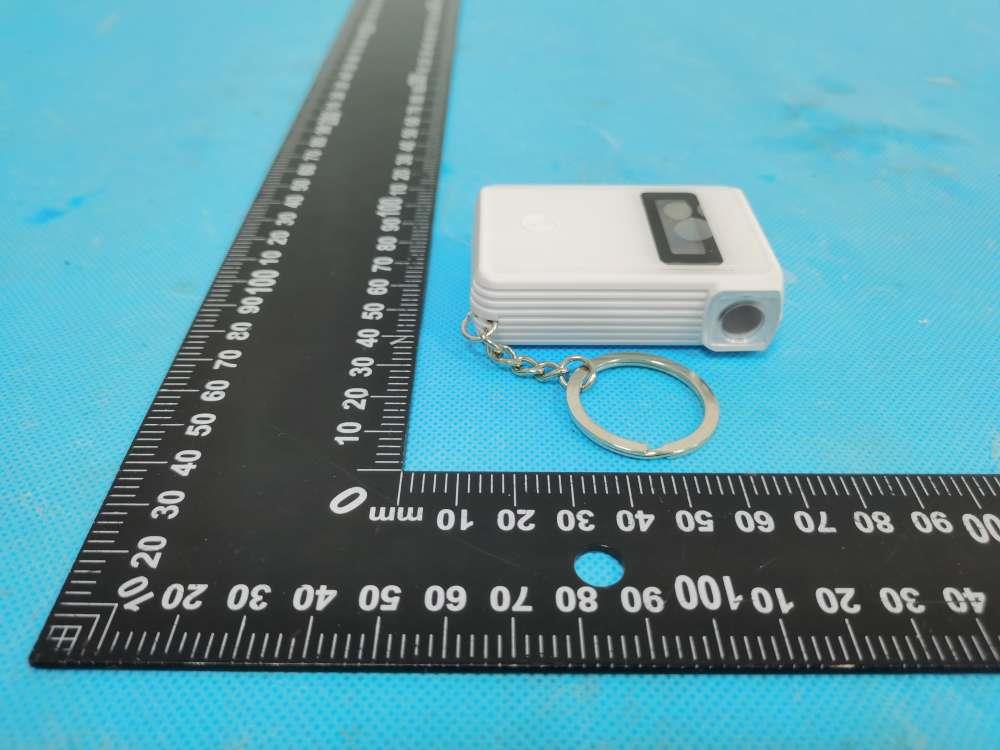

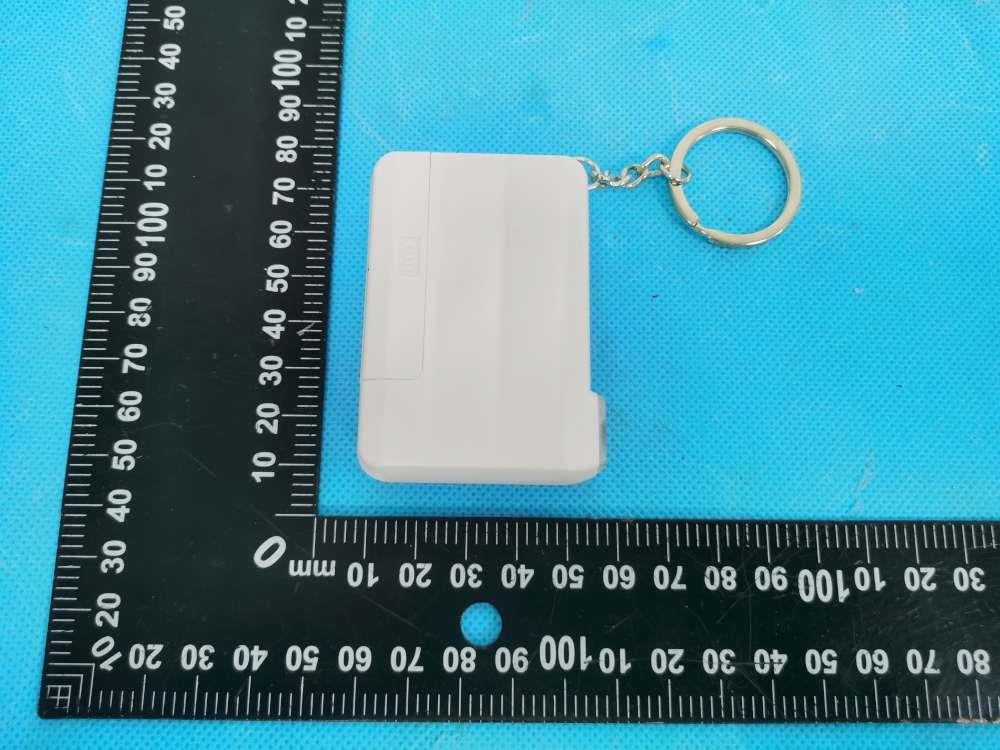

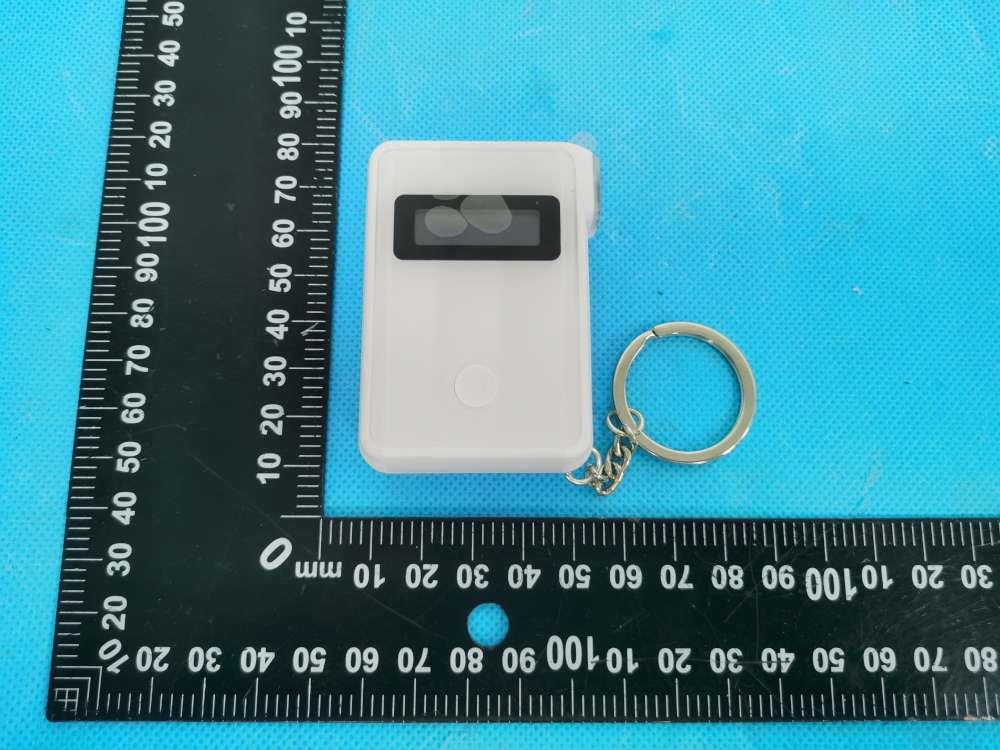

ALCOHOL TESTER AT800 Cautions To have accurate indication of blood alcohol concentration, please test at least 15 minutes later after drinking. Make sure to attach a mouthpiece during testing, otherwise, the result is not accurate. Not recommend to use it beyond -10 0 C-50 0 C. The reading may not be accurate. To keep accuracy of alcohol tester, it's highly recommended to be recalibrated in every 6 months. Please calibrate the sensor once the tester is due for recalibration. Do not block breath sample inlet, otherwise, the sample could be stay inside of tester, which will impact following tests. Do not clean surface by Ethanol. Recommend to use soft wet cloth and neutral detergent. Do not let smoke go into the mouthpiece and tester, which may damage the sensor. Avoid any fall or strong shock which may damage the tester. General Information AT800 is a key chain breathalyzer which is convenient to carry and use at all times.lt adopts fuel cell sensor which provides superb accuracy and repeatability; OLED shows results with 3 decimals; Preset alarm threshold; Low voltage indication,etc. Specification Accuracy Model AT800 Warm Up Time Less than 5s Sensor Fuel Cell Operation Condition Temperature: -1 o o c-50 0 C Humidity: 95% Test Range 0-2.00mg/L 0—0.400 %BAC 0-4.00g/L 0—440mg/100mL Resolution 0.001%BAC Battery Dimension .5VAAA Display OLED at Weight 0.050%BAC 35g Appearance 1 Breath Sam le Outlet 4 Indicative Light 2 Display 5 Breath Sample inlet 3 Button 6 Battery Cover Display 1 1 .Battery Capacity 32 2.Measurement Unit 3.Test Result Meaning of Display Contents 0.055 Breath Test Result BLOW Please Blow CALC Calculation 4 digits after starting on, e.g. 1988 Residual Testing Times Before Next Recalibration LOW POWER Battery Low LOW POWER Auto Power Off Battery Low and Power off WARM Warming Up APP MODE APP Working Mode CALIB Calibration Constant Conversion Vaule between BrAC and BAC. Menu Press and hold power button until there's "CALIB", then click the button once at each time, there will be displaying "UNIT", "ALM", "MODE", and "EXIT". "CALIB" is for calibration. "UNIT" is for measurement unit change. Long press button under interface "UNIT", it will enable to select unit from %BAC, %OBAC, g/L, mg/L, mg/lOOmL by clicking once at each time, then long press to store. "ALM" is for alarm threshold change. Long press button under interface "ALM", it will enable to change alarm point by stopping at "+" and - click once at each time to modify the value, and long press to store. "K" is constant value between BrAC and BAC. "CLEAN" is for deleting records. "MODE" is for switchable among three working mode, "STANDARD" for normal working mode, "ECO" for battery save mode, and "DEMO" for demonstration only. Long press to store one of three working mode. "EXIT" is for back to original interface. Operation Without App 1)Take off battery cover, install 1 piece AAA 1.5V battery. Please be aware of the polarity. 2)Insert Mouthpiece. 3)Press and hold power button until starting on, the following signs will turn up in sequence, an immediate beeping, display lights up, indicator lights take turns with red, green and blue, display shows residual blow times before next recalibration,and warming up counting down. Please note it will stay at APP MODE if it's connected with App. 4) When warm up ends, there will be displaying BLOW. Please blow smoothly until you hear "di", results will be coming up in seconds. If there's failure, it will indicate by red light. When the result is below pre-set alarming threshold, the light will indicate by green, if above, it will be red light with beeping alarm. Press and hold power button more than 3 seconds, it will turn off. If there's no any operation within a period of time, it will turn off automatically. Operation With App First, please search "AlcoTest" in Google Play, or "Alc Test" in Apple Store to download App. Enable smart phone bluetooth, and open the App for AT800. Then, turn on the breathalyzer, the App and device will be automatically matched. Cick BLOW in App, and please start blowing on device. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.

HANWEI ELECTRONICS GROUP CORPORATION Agent Authorization Company: HANWEI ELECTRONICS GROUP CORPORATION Address: No.169, Xue Song Road National Hi-Tech Zone, Zhengzhou, 450001, China Product Name: ALCOHOL TESTER Model Number(s): AT800 Product Description: ALCOHOL TESTER FCC ID: 2A7RP-AT800 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022-07-11 Name: Dior Tan Title: Manager Company: HANWEI ELECTRONICS GROUP CORPORATION

HANWEI ELECTRONICS GROUP CORPORATION Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022-07-11 Subject; Request for Confidentiality FCC ID: 2A7RP-AT800 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Dior Tan Title: Manager

Size:12*8mm M/N: AT800 FCC ID: 2A7RP-AT800 Label location

Antenna location

Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20220711010E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 1 of 30 FCC Part 15C Test Report FCC ID: 2A7RP-AT800 Applicant: HANWEI ELECTRONICS GROUP CORPORATION Address: No.169, Xue Song Road National Hi-Tech Zone, Zhengzhou, 450001, China Manufacturer: HANWEI ELECTRONICS GROUP CORPORATION Address: No.169, Xue Song Road National Hi-Tech Zone, Zhengzhou, 450001, China EUT: ALCOHOL TESTER Trade Mark: N/A Model Number: AT800 Date of Receipt: Jun. 30, 2022 Test Date: Jun. 30, 2022 – Jul. 08, 2022 Date of Report: Jul. 08, 2022 Prepared By: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Building C, Shuanghuan, No.8, Baoqing Road, Baolong Industrial Zone, Baolong Street, Longgang District, Shenzhen, Guangdong, China Applicable Standards: FCC PART 15 C 15.249 ANSI C63.10:2013 Test Result: Pass Report Number: DL-20220711010E Prepared (Test Engineer): Pxing Huang Reviewer (Supervisor): Jack Bu Approved (Manager): Jade Yang This test report is based on a single evaluation of one sample of above mentioned products. It is not permitted to be duplicated in extracts without written approval of Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20220711010E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 2 of 30 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 MEASUREMENT UNCERTAINTY 4 2 . GENERAL INFORMATION 5 2.1 GENERAL DESCRIPTION OF EUT 5 2.2 DESCRIPTION OF TEST MODES 6 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 7 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 7 2.5 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 7 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 8 3 . EMC EMISSION TEST 9 3.1 CONDUCTED EMISSION MEASUREMENT 9 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 9 3.1.2 TEST PROCEDURE 9 3.1.3 DEVIATION FROM TEST STANDARD 9 3.1.4 TEST SETUP 10 3.1.5 EUT OPERATING CONDITIONS 10 3.1.6 TEST RESULTS 10 3.2 RADIATED EMISSION MEASUREMENT 11 3.2.1 RADIATED EMISSION LIMITS 11 3.2.2 TEST PROCEDURE 12 3.2.3 DEVIATION FROM TEST STANDARD 12 3.2.4 TEST SETUP 12 3.2.5 EUT OPERATING CONDITIONS 13 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 14 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 15 3.2.8 TEST RESULTS (1GHZ~25GHZ) 17 3.3 RADIATED BAND EMISSION MEASUREMENT 18 3.3.1 TEST REQUIREMENT: 18 3.3.2 TEST PROCEDURE 18 3.3.3 DEVIATION FROM TEST STANDARD 18 3.3.4 TEST SETUP 19 3.3.5 EUT OPERATING CONDITIONS 19 4 . BANDWIDTH TEST 21 4.1 APPLIED PROCEDURES / LIMIT 21 4.1.1 TEST PROCEDURE 21 4.1.2 DEVIATION FROM STANDARD 21 4.1.3 TEST SETUP 21 Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20220711010E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 3 of 30 Table of Contents Page 4.1.4 EUT OPERATION CONDITIONS 21 4.1.5 TEST RESULTS 22 5 . ANTENNA REQUIREMENT 23 5.1 STANDARD REQUIREMENT 23 5.2 EUT ANTENNA 23 6 . TEST SEUUP PHOTO 24 7 . EUT PHOTO 25 Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20220711010E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 4 of 30 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.249) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A 15.205(a), 15.209(a) 15.249(a), 15.249(c) Fundamental &Radiated Spurious Emission Measurement PASS 15.249(d) Band Edge Emission PASS 15.215(c) 20dB Bandwidth PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report 1.1 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2,providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 Conducted Emission Test ±2.56dB 2 RF power,conducted ±0.42dB 3 Spurious emissions,conducted ±2.76dB 4 All emissions,radiated(<1G) ±3.65dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20220711010E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 5 of 30 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Product Name: ALCOHOL TESTER Trademark N/A Model No.: AT800 Model Difference N/A Operation Frequency: 2402~2480MHz Channel numbers: 40 Channels Channel separation: 2M Modulation technology: GFSK Antenna Type: Internal Antenna Antenna gain: 0dBi Power supply: DC 1.5V Note: 1.For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. 2.The EUT’s all information provided by client. Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20220711010E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 6 of 30 3. Channel List Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 00 2402 14 2430 27 2456 01 2404 15 2432 28 2458 02 2406 16 2434 29 2460 03 2408 17 2436 30 2462 04 2410 18 2438 31 2464 05 2412 19 2440 32 2466 06 2414 20 2442 33 2468 07 2416 21 2444 34 2470 08 2418 22 2446 35 2472 09 2420 23 2448 36 2474 10 2422 24 2450 37 2476 11 2424 25 2452 38 2478 12 2426 26 2454 39 2480 13 2428 / / / / 2.2 DESCRIPTION OF TEST MODES Note: (1) The measurements are performed at the highest, middle, lowest available channels. To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. Pretest Mode Description Mode 1 CH00 GFSK Mode 2 CH19 Mode 3 CH39 Mode 4 Link Mode For Conducted & Radiated Emission Final Test Mode Description Mode 1 CH00 GFSK Mode 2 CH19 Mode 3 CH39 Mode 4 Link Mode Shenzhen D…
