ReinkstoneR1 UsingGuide www.reinkstone.com HardwareIntroduction ①Power Presstoturnthedeviceonandoff Presstolockandunlockthescreen Longpress15stoforcerestart ②Type-Cport ConnectthePCanddevicebyusingadatacabletotransmitdata,orchargethecolore-Paper SupportType-Cdigitalheadphone SupportOTG ③Indicator Batterychargeindicator ④MIC Record ⑤Speaker Playaudio ⑥Recovery Recoverthesystem 1.QuickStart 1.1.Poweronandtheinitialsettings Holdthepowerbuttonontherightsideofdevice,untilthestartupscreenappears. Ifcannotturnedon,thedevicemightneedtobecharged Afterfirstpoweron,pleasefollowtheinstructionstocompleteinitialsettings： Systemlanguages:English,Japanese,SimplifiedChineseandComplexChinese. Wi-Fisettings PreferredSetting 1.2.Chargingdevice UsetheUSB-CcablefromtheR1boxtochargeyourR1. PlugtheUSB-CcableendtotheUSB-CchargingportandtheUSBendtoaUSBpowerplug,orto yourcomputer. TherearetwowaysofcheckingwhetheryourR1ischargingwhenturnedon: TheBatteryindicatoronthehomescreenwillchangefromabatteryicontoachargingicon. Thechargingindicatorlightsupred. 1.3.Updatingtothelatestversion ClickonSettings-SoftwareUpdate. MakesureyouareconnectedtoWi-Fi. InDevicesettings,tapCheckforupdatestoseeifthereareanynewupdatesavailable. TapDownloadversiontoupdatetoanewversion. Whenthedownloadisfinished,clickRestartdevicetocompletetheupdate. 2.UsingGestures Swipedownonthetopofthescreen:Activatethestatusbar Single-clickwithsinglefingeronscreen:Hidethestatusbar Swipeleftonthescreen:Gotonextpage Swiperightonthescreen:Gotopreviouspage Single-clickintheleftpartofscreen:Gotopreviouspage Single-clickonrightpartofscreen:Gotonextpage 3.BasicSettings Userscanclicktheimageofthedeviceforanonlineusermanualandfurthermanagesettingsof thewholedevicebyclickingthebelowspecificarea. 3.1.Languagesettings Userscansetsystemlanguage,keyboardandinputmethodandTTSonthispage; Userscansetthelanguagesofthesystemandvirtuekeyboard.ThesystemhasanAndroid keyboardbydefault. 3.2.Date&Time Userscanchooseeitherautosettingormanualsettingfordateandtime. Whenthedeviceisconnectedwithinternet,itwillautomaticallysetdateandtimeaccordingto localtimezone.Manualsettingrequirestosettimezone,dateandtime,anduserscanselect theirpreferredtimeanddatedisplayformat. 3.3.Wi-FiSettings SlideWi-FiOn,thenavailablenetworkswillbelisted.Userscanchooseanetwork,theninput passwordtoconnectwithinternet. AfterWi-Fiisconnectedsuccessfullyatthefirsttime,thedevicewillsaveWi-Fiinformation automatically.UsersonlyneedtoturnonWi-FionnotificationbarifusingthesameWIFInext time. Clickthe“+”buttonatthetoprightoftheWi-Fipage,userscouldmanuallyconnecttoother networkwhichisnotlisted,suchas802.1xEAP. 3.4.BluetoothSettings TurnonBluetooth,youcansearchfornearbyBluetoothdevicesandthensendconnection requests.Bluetoothneedstobepairedbeforeuse. 3.5.FirmwareUpdate UserscangettheModelnumber,Androidversion,Buildnumberandupdatecheck.Upgrade checksthelocalpackagefirstthenonlinepackagewithanetworkconnection.Upgradepause andbreakpointdownloadareallowed.Pleaseensurethedevicehasmorethan30%powerand sufficientcapacitybeforetheupdate. 4.Bookshelf TapanyE-bookcovertoopenanE-book.Full-screenreadingwithoutshowingstatusbarissetby default. Topulldownfromthetopofthescreencancalloutthestatusbar. Totaponthecenterofthescreencancalloutthemenubarforswitchamongdifferent documentsorotherfunctions. 4.1.TOC Thecurrentlayerisunderlined.Jumptothecorrespondingpagewhentappinganyofthe layers.TaponanypositionoutoftheTOCtoexit. 4.2.Bookmarks Withoutcallingoutthemenu,bookmarkthereadingpagebysimplytappingatagonthetop rightcornerofthescreen.Tapitagaintoun-bookmarkthepage.Thebookmarkscanbechecked underthepathofDoc-Bookmark,whereuserscandeletebookmarks.Jumptothecorresponding pagebytappinganyofthebookmarks. 4.3.Scribble AllscribbleandsidenotecanbeviewedunderthepageofDoc-scribbleforfurthersearchingand deleting.Jumptothecorrespondingpagebytappinganyofthepages. 4.4.Display Orientation:Switchtolandscapeorportrait.. Crop:Auto-cropaccordingtothemarginsetbyusers. Margin:Theemptyspaceatthesidesofbookcontentforautocrop. Zoom:Zoomin,zoomout,andpartialzoomaresupported. 4.5.Contrast Sharpen,ImageContrast,TextContrast,andEmboldenareincluded.Certainfunctionsarejust availableforscanneddocuments. 4.6.Reflow ReflowisonlyavailableforPDF/DJVU/CBR/CBZdocuments.Reflowallowsuserstofurther customizethelayoutofdocumentsincluding:LineSpacing,Margin,TextDirection,FontSize, Columns,andSkewCorrection(foritalicdocuments). 5.Notes 5.1.Folder Foldershelpsyouorganizeyournotebooks,documentsandebooks.Defineyourownfile structurewithfoldersandsubfoldersinNotes. 5.1.1.Createfolder ClickCreate-NewFolder.Namethenewfolder. 5.1.2.Movenotes Tapthecontextualmenuontheitemyouwanttomove.TapMoveinthetopmenu.Chooseyour destinationfolder.TapMoveheretoconfirmtheaction.TappingtheMoveiconinanotebook willallowyoutoeithermovepageswithinanotebook,orfromonenotebooktoanother. 5.1.3.Duplicate Files(notebooks,documentsandebooks)canbeduplicatedwithoutanychangesbeingmadeto theoriginalfile.Tapthethree-dotmenuonthefileyouwanttocopy.TapDuplicateinthetop menu.Thenewfilewillbenamedwiththeending“copy”. 5.1.4.Delete Tapthecontextualmenu(threedots)onthefileorfolderyouwanttodelete.TaptheDeleteicon ontheabovetoolbar.TapUndoifyouwanttokeepyourfile. 5.2.ScribbleInterface 5.2.1.Layers Thissupportstemplatelayer,5customlayers,hidingandadjustinglayerorder. Hiddenlayerswillnotbedisplayedduringexportandrecognition;Templatescanonlybeadded atthetemplatelayer,andthetemplatelayercannotbedeleted;Youcanadd5customlayersto theinsertedimages. 5.2.2.Template Itincludesbuilt-intemplates,andlocaltemplates（PDF\PNGformat）.Thebuilt-intemplateswill beusedifthelocaltemplatearedeleted. 5.2.3.WriteandErase Clickonthebrushiconsforthewritinganderasingfunctions. Double-clickthemtoexpandthesub-menu. Inthestateofstrokeerasing,youneedtoswitchtothebrushfirstandthenwrite. Forthe“eraseall”,youdonotneedtoswitchbacktothebrush. 5.2.4.Lasso IntheLassomode,circleanareaonthescreen,thenuserscanzoom,move,duplicateand removetheselectedarea. 5.2.5.InsertImage Use…

Text truncated - open the document above for the full version.

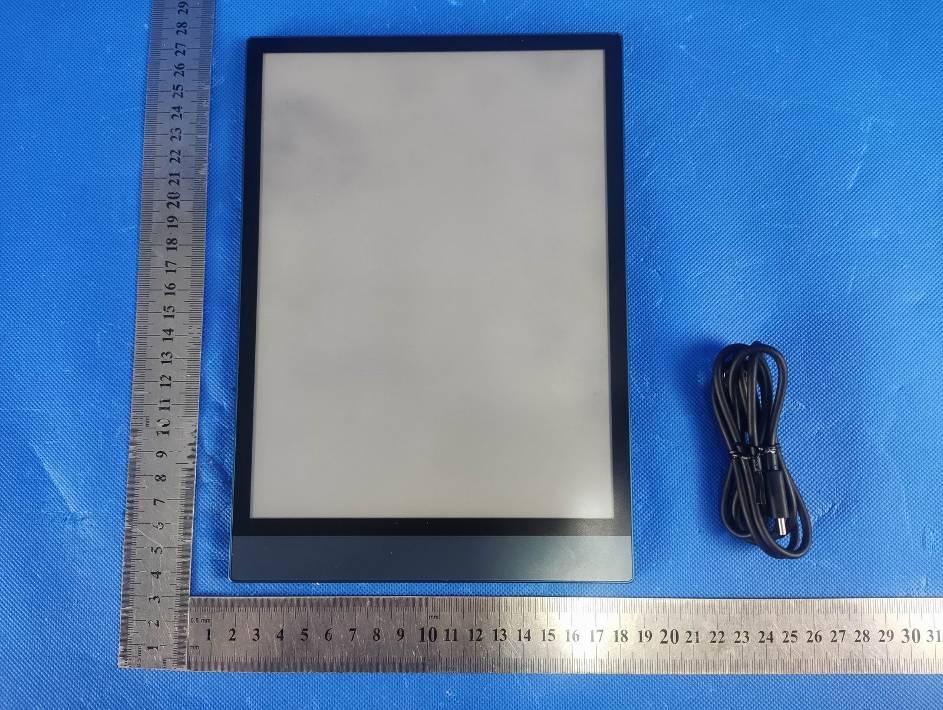

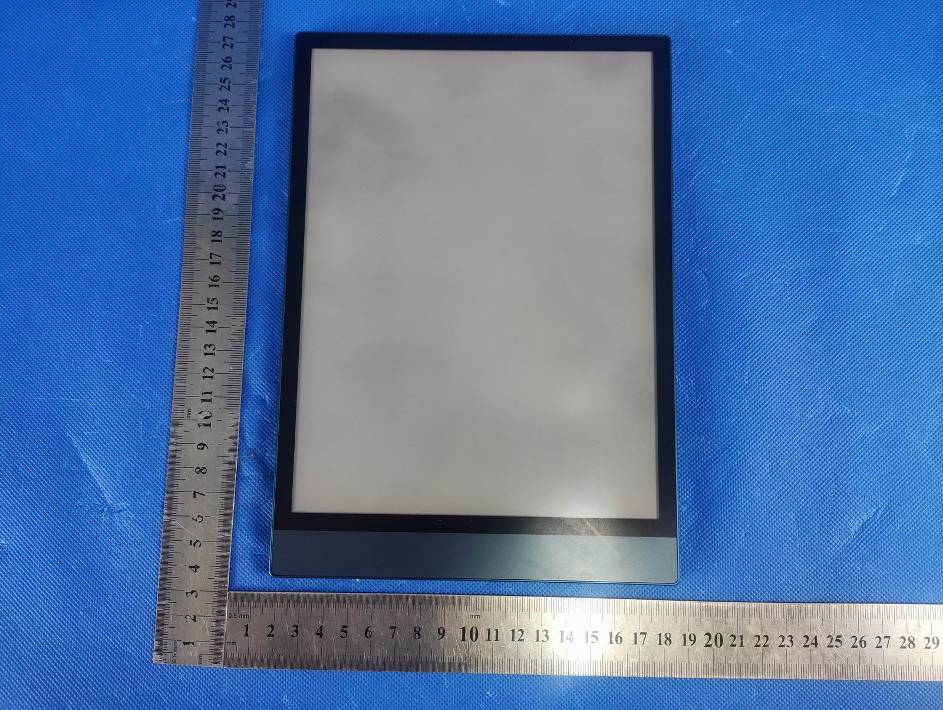

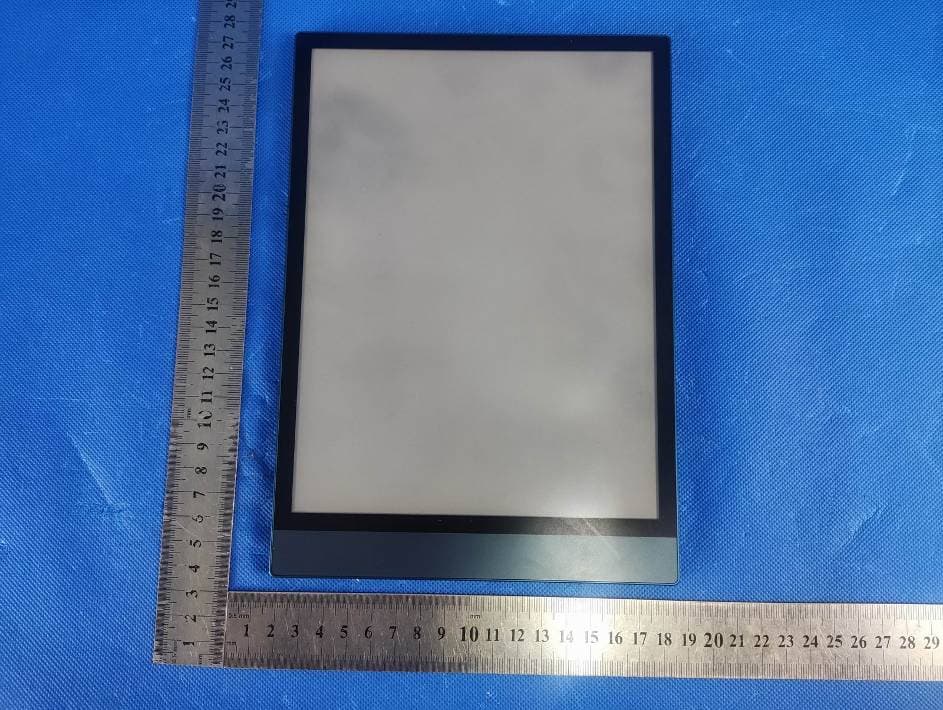

FCC ID: 2A7UK-REINK100 Page 1 of 4 IC: 28785-REINK100 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. External Photos Photo 1 Photo 2 FCC ID: 2A7UK-REINK100 Page 2 of 4 IC: 28785-REINK100 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 3 Photo 4 FCC ID: 2A7UK-REINK100 Page 3 of 4 IC: 28785-REINK100 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 5 Photo 6 FCC ID: 2A7UK-REINK100 Page 4 of 4 IC: 28785-REINK100 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 7 Photo 8 ------End------
