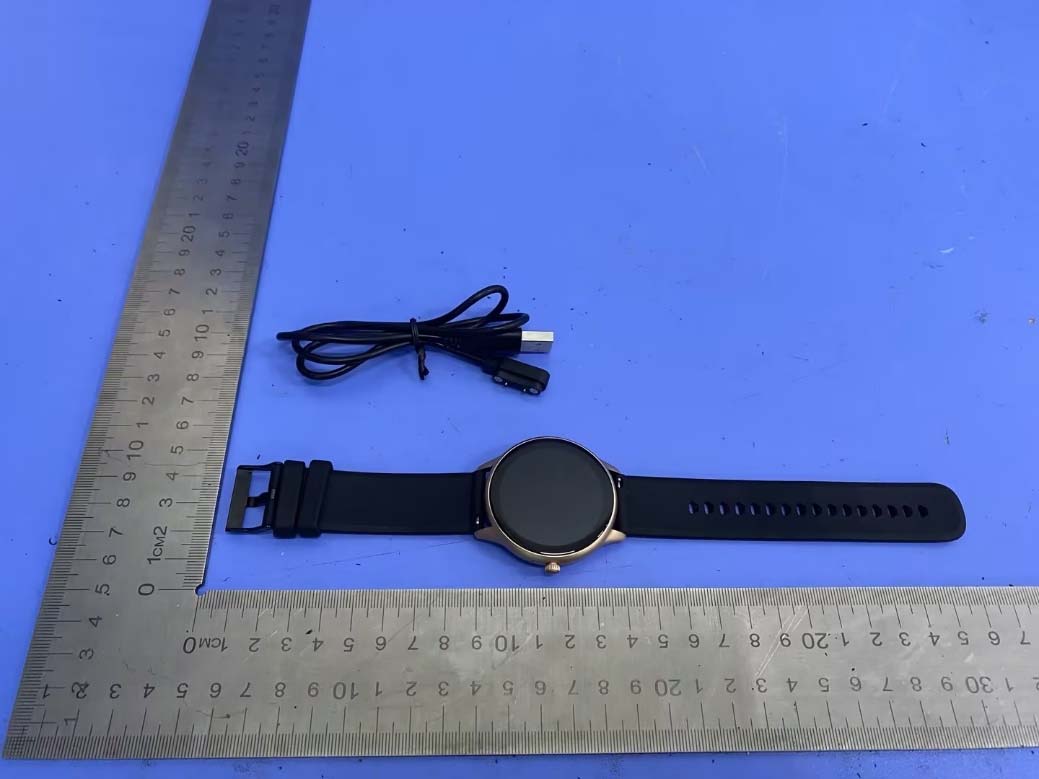

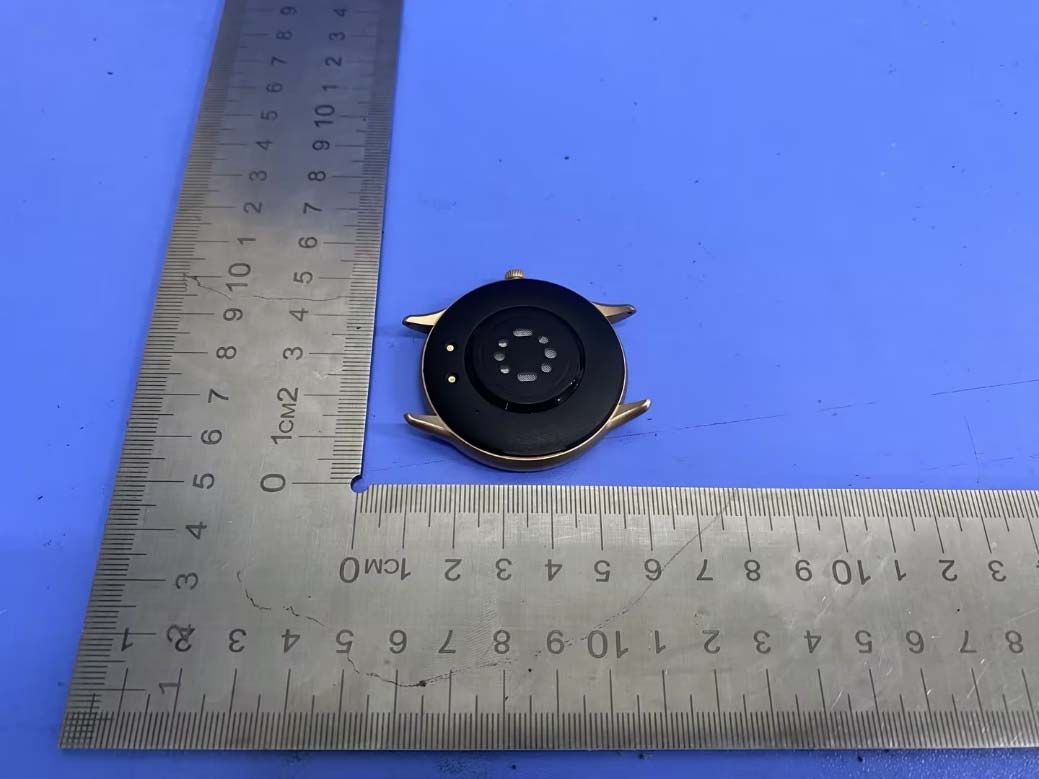

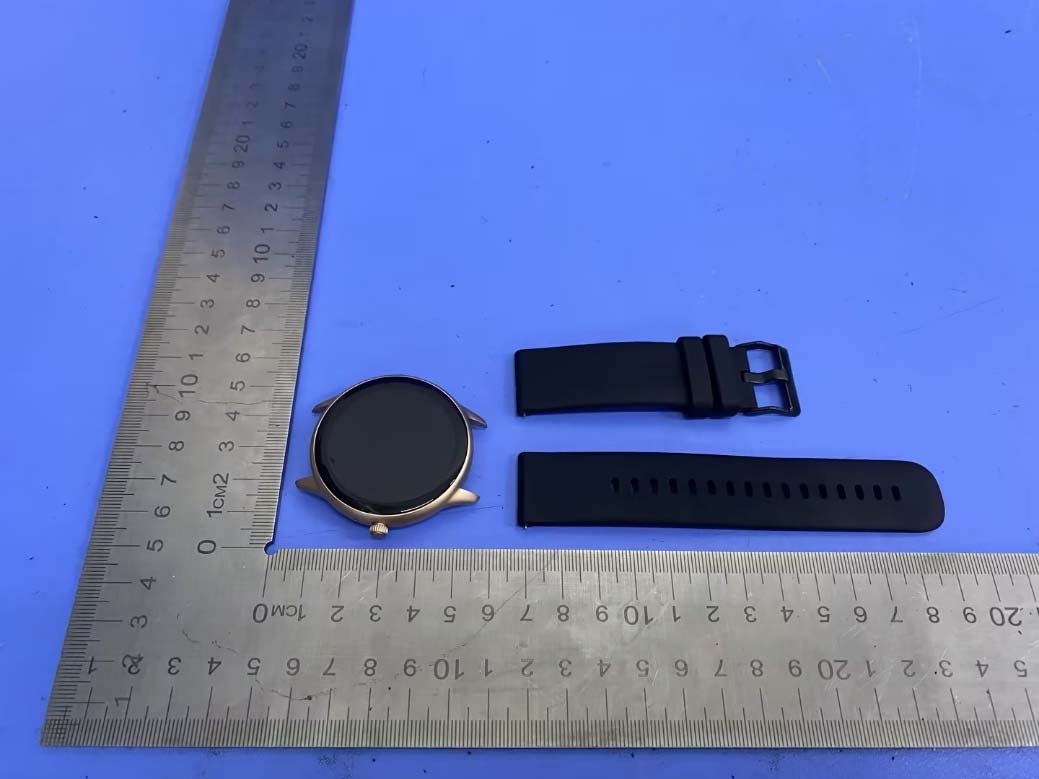

FCC ID: 2A7YB-FT10M TB-RF-074-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT FCC ID: 2A7YB-FT10M TB-RF-074-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT

FCC ID: 2A7YB-FT10M TB-RF-074-1.0 AppendixI Label Appendix II Label Location FCC ID: 2A7YB-FT10M Model: FT10M

FCC ID: 2A7YB-FT10M TB-RF-074-1.0 Appendix IV EUT Internal Photographs Photo 5 Internal of EUT Photo 6 Internal of EUT FCC ID: 2A7YB-FT10M TB-RF-074-1.0 Photo 7 Internal of EUT Photo 8 Internal of EUT FCC ID: 2A7YB-FT10M TB-RF-074-1.0 Photo 9 Appearance of PCB Photo 10 Appearance of PCB Antenna FCC ID: 2A7YB-FT10M TB-RF-074-1.0 Photo 11 Appearance of PCB

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202307-0235-6 Page: 1 of 3 TB-RF-074-1.0 1 A/F., Building.6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao’an, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 RF Exposure Evaluation FCC ID: 2A7YB-FT10M 1. Client Information Applicant : Shenzhen Parsonver Trading Co., Ltd Address : Room 602, No. 228, Hekan North Road, Wuhe Community, Bantian Street, Longgang District, Shenzhen, China. Manufacturer : Shenzhen Parsonver Trading Co., Ltd Address : Room 602, No. 228, Hekan North Road, Wuhe Community, Bantian Street, Longgang District, Shenzhen, China. 2. General Description of EUT EUT Name : Smart watch Model(s) No. : FT10M, FT10P, FT10S, FT10Z Model Difference : All these models are identical in the same PCB, layout and electrical circuit, the only difference is the model names. Product Description : Operation Frequency: Bluetooth 5.2: 2402MHz~2480MHz Bluetooth 5.2(BLE): 2402MHz~2480MHz Number of Channel: Bluetooth 5.2: 79 channels Bluetooth 5.2(BLE):40 channels Antenna Gain: -1dBi wire Antenna Modulation Type: GFSK, Pi/4-DQPSK, 8-DPSK(3Mbps) Bluetooth LE:1Mbps Bit Rate of Transmitter: 1/2/3Mbps Power Rating : Input: DC 5V, 180mA, 0.9W Li-ion Polymer Battery : DC 3.8V by 270mAh Rechargeable Li-ion battery Software Version : 001 Hardware Version : M81023.01 Remark: The antenna gain provided by the applicant, the adapter and verified for the RF conduction test and adapter provided by TOBY test lab. Note: More test information about the EUT please refer the RF Test Report. Report No.: TBR-C-202307-0235-6 Page: 2 of 3 TB-RF-074-1.0 SAR Test Exclusion Calculations 1. FCC: According to KDB 447498 D01 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies v06. (1) Clause 4.3: General SAR test reduction and exclusion guidance Sub clause 4.31: Standalone SAR test exclusion considerations 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6GHz at test separation distance≤5 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤3.0 for 1-g SAR [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤7.5.0 for 10-g SAR 2. Summary simultaneous transmission for SAR Exclusion The SAR exemption limits outlined in clause 4.3.2(b) of KDB 447498 have been derived based on an approximate SAR value of 0.4 W/kg using half-wave dipole antennas Footnote 1. As such, when simultaneous transmitter SAR evaluations include transmitters that have been exempt from routine SAR evaluation, the SAR must be estimating based on the ratio between the maximum tune-up tolerance limit of the transmitter that has been exempt and the exemption limit at the specific distance and frequency for that transmitter. This ratio must be multiplied by 0.4 W/kg(2.0 W/kg for controlled use and 1.0 W/kg for limb worn devices) in order to calculate the estimated SAR level. The estimate SAR value is calculated based the following equation: (maximum power level including tune-up tolerance for transmitter A / maximum power level of exemption at the same frequency and distance) * 0.4W/kg The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. Report No.: TBR-C-202307-0235-6 Page: 3 of 3 TB-RF-074-1.0 3. Calculation: Test separation: 5mm Bluetooth Mode (GFSK) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (dBm) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 6.72 6±1 7 5.012 1.554 3.0 2.441 6.08 6±1 7 5.012 1.566 3.0 2.480 6.14 6±1 7 5.012 1.579 3.0 Bluetooth Mode (Pi/4-DQPSK) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (dBm) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 5.01 5±1 6 3.981 1.234 3.0 2.441 4.29 5±1 6 3.981 1.244 3.0 2.480 4.13 5±1 6 3.981 1.254 3.0 Bluetooth Mode (8-DPSK) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (dBm) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 4.81 5±1 6 3.981 1.234 3.0 2.441 4.43 5±1 6 3.981 1.244 3.0 2.480 4.35 5±1 6 3.981 1.254 3.0 Bluetooth LE Mode(1Mbps) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (dBm) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 6.69 6±1 7 5.012 1.554 3.0 2.440 6.19 6±1 7 5.012 1.566 3.0 2.480 6.18 6±1 7 5.012 1.579 3.0 Conclusion: The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06. -----END OF REPORT-----

Part Approval Sheet Version： V1.0 Customer： Project： Bluetooth antenna Part Name： Conducting wire Part Color： Part Number： Sample Delivery Date： October 15, 2022 Sample Quantity： 3PCS Sample type： Built-in Bluetooth wire Reason for Sample Delivery： ○New tooling ○New supplier ○Tooling change ○Engineering change ○Other: Remark： Supplier sample production confirmation: (stamp required) Formulate Confirm Approve Quality Stamp Customer approval: Project confirmation Project approval Quality confirmation Quality approval Confirmation date Page 1 Confidential documents 机 密 文 件 1.Graphic for reference Figure 2 0.5*25mmBT 2.OTA(Free Space) Channel TRP（dBm） TIS（dBm） 0 6.3 -91.1 39 6.5 -91.3 78 6.6 -91.2 Name ANTENNA Model LT13 Frequency 2.45Ghz Input impedance 50Ω Allowed power 5W Working temp. -25 ~ +65 °C Storage temp. -40 ~ +85 °C Weight 0.25g Antenna gain天线 增益 -1dBi Page 2 Confidential documents 机 密 文 件 3.Field 4. BT Test Test term Environment Max pairing distance BT Call distance BT Office 10-12m Page 3 Confidential documents 机 密 文 件 5.Blueprint

Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202307-0235-8 Page: 1 of 21 FCC ID: 2A7YB-FT10M TB-RF-074-1.0 RF Test Data for Bluetooth LE (Conducted Measurements) General Description of EUT Product Name: Smart watch Test Model: FT10M Sample ID: HC-C-202307-0235-01-03-2# Environmental Conditions Temperature: 23.6°C Relative Humidity: 46% Test Voltage: DC 3.8V Test Engineer: Beryl.zhang Note: For a more detailed features description, please refer to the report TBR-C-202307-0235-8. Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202307-0235-8 Page: 2 of 21 FCC ID: 2A7YB-FT10M TB-RF-074-1.0 Contents 1. DTS Bandwidth ............................................................................................................................................... 3 1.1.Test Result ......................................................................................................................................... 3 1.2.Test Graphs ....................................................................................................................................... 4 2. Occupied Channel Bandwidth........................................................................................................................ 5 2.1.Test Result ......................................................................................................................................... 5 2.2.Test Graphs ....................................................................................................................................... 6 3. Maximum conducted output power .............................................................................................................. 7 3.1.Test Result ......................................................................................................................................... 7 3.2.Test Graphs ....................................................................................................................................... 8 4. Maximum power spectral density ................................................................................................................. 9 4.1.Test Result ......................................................................................................................................... 9 4.2.Test Graphs ..................................................................................................................................... 10 5. Band edge measurements ........................................................................................................................... 11 5.1.Test Result ....................................................................................................................................... 11 5.2.Test Graphs ..................................................................................................................................... 12 6. Conducted Spurious Emission ...................................................................................................................... 13 6.1.Test Result ....................................................................................................................................... 13 6.2.Test Graphs ..................................................................................................................................... 14 7. Duty Cycle .................................................................................................................................................... 17 7.1.Test Result ....................................................................................................................................... 17 7.2.Test Graphs ..................................................................................................................................... 18 8. Emissions in Restricted Bands ...................................................................................................................... 19 8.1.Test Result ....................................................................................................................................... 19 8.2.Test Graphs ..................................................................................................................................... 20 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202307-0235-8 Page: 3 of 21 FCC ID: 2A7YB-FT10M TB-RF-074-1.0 1. DTS Bandwidth 1.1.Test Result Test Mode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.63 2401.70 2402.33 0.5 PASS 2440 0.64 2439.69 2440.33 0.5 PASS 2480 0.66 2479.69 2480.36 0.5 PASS Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202307-0235-8 Page: 4 of 21 FCC ID: 2A7YB-FT10M TB-RF-074-1.0 1.2.Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202307-0235-8 Page: 5 of 21 FCC ID: 2A7YB-FT10M TB-RF-074-1.0 2. Occupied Channel Bandwidth 2.1.Test Result Test Mode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.031 2401.5125 2402.5435 --- --- 2440 1.035 2439.5085 2440.5435 --- --- 2480 1.027 2479.5165 2480.5435 --- --- Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longz…

Text truncated - open the document above for the full version.

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202307-0235-8 Page: 1 of 33 TB-RF-074-1.0 1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 Radio Test Report FCC ID: 2A7YB-FT10M Report No. : TBR-C-202307-0235-8 Applicant : Shenzhen Parsonver Trading Co., Ltd Equipment Under Test (EUT) EUT Name : Smart watch Model No. : FT10M Series Model No. : FT10P, FT10S, FT10Z Brand Name : AGPTEK Sample ID : HC-C-202307-0235-01-03-1# & HC-C-202307-0235-01-03-2# Receipt Date : 2023-07-25 Test Date : 2023-07-25 to 2023-08-10 Issue Date : 2023-08-10 Standards : FCC Part 15 Subpart C 15.247 Test Method : ANSI C63.10: 2013 KDB 558074 D01 15.247 Meas Guidance v05r02 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above. Witness Engineer : Seven Wu Engineer Supervisor : Ivan Su Engineer Manager : Ray Lai This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TBR-C-202307-0235-8 Page: 2 of 33 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 5 1.1 Client Information ................................................................................................................. 5 1.2 General Description of EUT (Equipment Under Test) ................................................... 5 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 7 1.4 Description of Support Units .............................................................................................. 8 1.5 Description of Test Mode .................................................................................................... 8 1.6 Description of Test Software Setting ................................................................................ 9 1.7 Measurement Uncertainty .................................................................................................. 9 1.8 Test Facility ......................................................................................................................... 10 2. TEST SUMMARY ..................................................................................................................... 11 3. TEST SOFTWARE ................................................................................................................... 11 4. TEST EQUIPMENT .................................................................................................................. 12 5. CONDUCTED EMISSION ....................................................................................................... 13 5.1 Test Standard and Limit .................................................................................................... 13 5.2 Test Setup ........................................................................................................................... 13 5.3 Test Procedure ................................................................................................................... 13 5.4 Deviation From Test Standard ......................................................................................... 14 5.5 EUT Operating Mode ........................................................................................................ 14 5.6 Test Data ............................................................................................................................. 14 6. RADIATED AND CONDUCTED UNWANTED EMISSIONS ............................................ 15 6.1 Test Standard and Limit .................................................................................................... 15 6.2 Test Setup ........................................................................................................................... 16 6.3 Test Procedure ................................................................................................................... 17 6.4 Deviation From Test Standard ......................................................................................... 18 6.5 EUT Operating Mode ........................................................................................................ 18 6.6 Test Data ............................................................................................................................. 18 7. RESTRICTED BANDS REQUIREMENT ............................................................................. 19 7.1 Test Standard and Limit .................................................................................................... 19 7.2 Test Setup ........................................................................................................................... 19 7.3 Test Procedure ................................................................................................................... 20 7.4 Deviation From Test Standard ......................................................................................... 21 Report No.: TBR-C-202307-0235-8 Page: 3 of 33 TB-RF-074-1.0 7.5 EUT Operating Mode ........................................................................................................ 21 7.6 Test Data ............................................................................................................................. 21 8. BANDWIDTH TEST ................................................................................................................. 22 8.1 Test Standard and Limit ....…

Text truncated - open the document above for the full version.

FCC ID: 2A7YB-FT10M TB-RF-074-1.0 Appendix V EUT Test Photographs Photo of Setup for Radiated Emission (30MHz~1GHz) Photo of Setup for Radiated Emission (Above 1 GHz) FCC ID: 2A7YB-FT10M TB-RF-074-1.0 Photo of Setup for Radiated Emission (Above 1 GHz) Photo of Setup for Conducted Emission -----END OF REPORT-----
