2A7Z4-KRYWireless CarPlay Adapter

Ningbo Fulman Communication Technology Co., Ltd 2026-02-27 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2A7Z4-KRY) [Ningbo Fulman Communication Technology Co., Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, Lingyun Shen General manager Ningbo Fulman Communication Technology Co., Ltd No.98, Yuanzhong Road, Economic Development Zone, Xiang shan County, Zhejiang, China Ningbo Fulman Communication Technology Co., Ltd 2026-02-27 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2A7Z4-KRY) [Ningbo Fulman Communication Technology Co., Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Lingyun Shen General manager Ningbo Fulman Communication Technology Co., Ltd No.98, Yuanzhong Road, Economic Development Zone, Xiang shan County, Zhejiang, China

Attestation Statements (2026-02-27) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (FCC ID: 2A7Z4-KRY) (Ningbo Fulman Communication Technology Co., Ltd), the undersigned, hereby authorize (VENTION Tech Inc) to act as our designated U.S. agent for service of process,( Ningbo Fulman Communication Technology Co., Ltd) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. (VENTION Tech Inc) accepts the responsibility to act as designated U.S. agent for service of process. Applicant Information ： Company name: Ningbo Fulman Communication Technology Co., Ltd Contact Name: Lingyun Shen Address: No.98, Yuanzhong Road, Economic Development Zone, Xiang shan County, Zhejiang, China FRN: 0032681140 Telephone No: 0574-88121853 Email: [email protected] Signature [Lingyun Shen] U.S. Agent Information: Company Name: VENTION Tech Inc Address: 100 NHOWARD ST STE R,SPOKANE, WA,99201,UNITED STATES FRN: 0033631284 Contact Name: SONGZHI HUANG Telephone No: 626-361-3045 Email: [email protected] Signature [SONGZHI HUANG]

Ningbo Fulman Communication Technology Co., Ltd Declaration on model difference We the undersigned hereby confirm that these models are identical, and all models have the same RF module and antenna, PCB layout, schematics and component. Only the models name are different. Product name Trademark FCC ID Model no. Wireless CarPlay Adapter VENTION 2A7Z4-KRY KRY, KRYH0 Sincerely, Lingyun Shen General manager Ningbo Fulman Communication Technology Co., Ltd No.98, Yuanzhong Road, Economic Development Zone, Xiang shan County, Zhejiang, China

Ningbo Fulman Communication Technology Co., Ltd 2026-02-27 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Guangdong Global Testing Technology Co., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Lingyun Shen General manager Ningbo Fulman Communication Technology Co., Ltd No.98, Yuanzhong Road, Economic Development Zone, Xiang shan County, Zhejiang, China

Ningbo Fulman Communication Technology Co., Ltd 2026-02-27 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (EUT Name: Wireless CarPlay Adapter /Model: KRY, KRYH0 /FCC ID: 2A7Z4-KRY) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (Block Diagram, Operational Description, Schematics, FCC SW SECURITY DESCRIPTION) required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Lingyun Shen General manager Ningbo Fulman Communication Technology Co., Ltd No.98, Yuanzhong Road, Economic Development Zone, Xiang shan County, Zhejiang, China

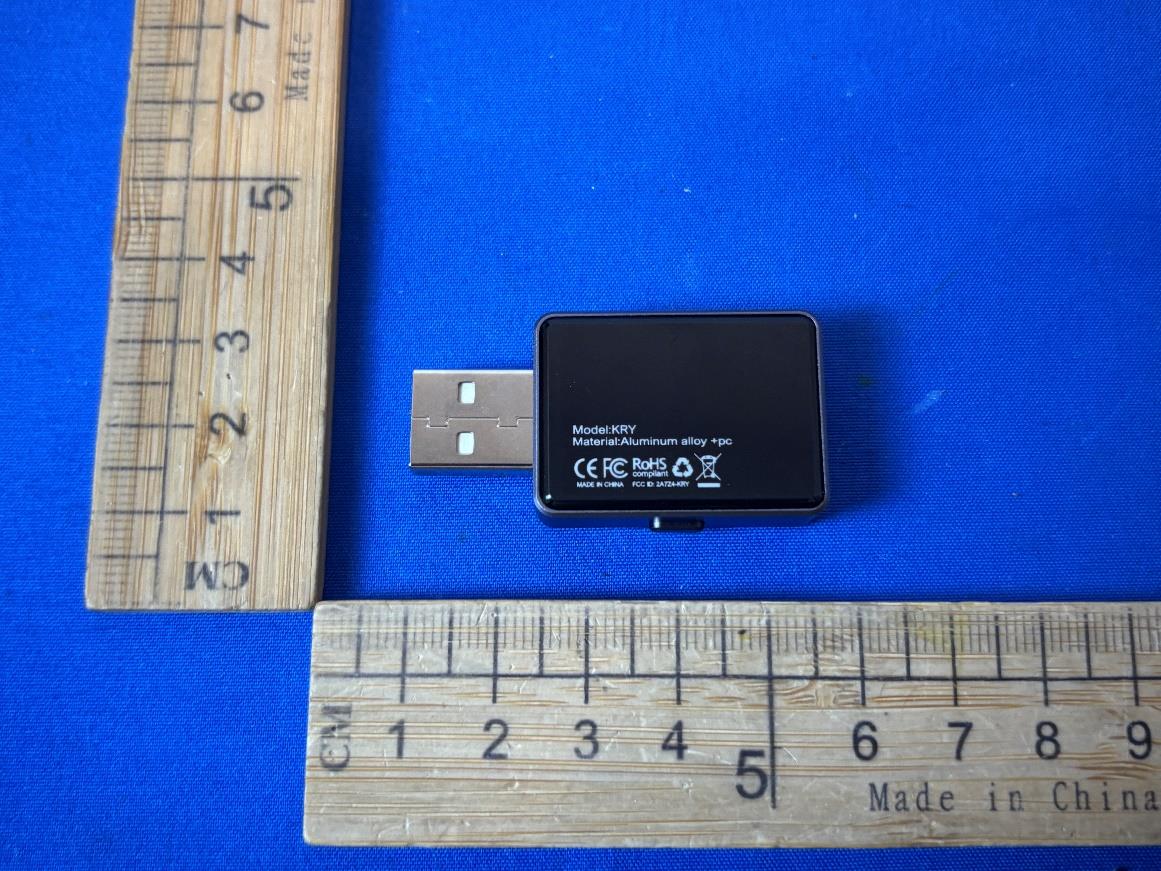

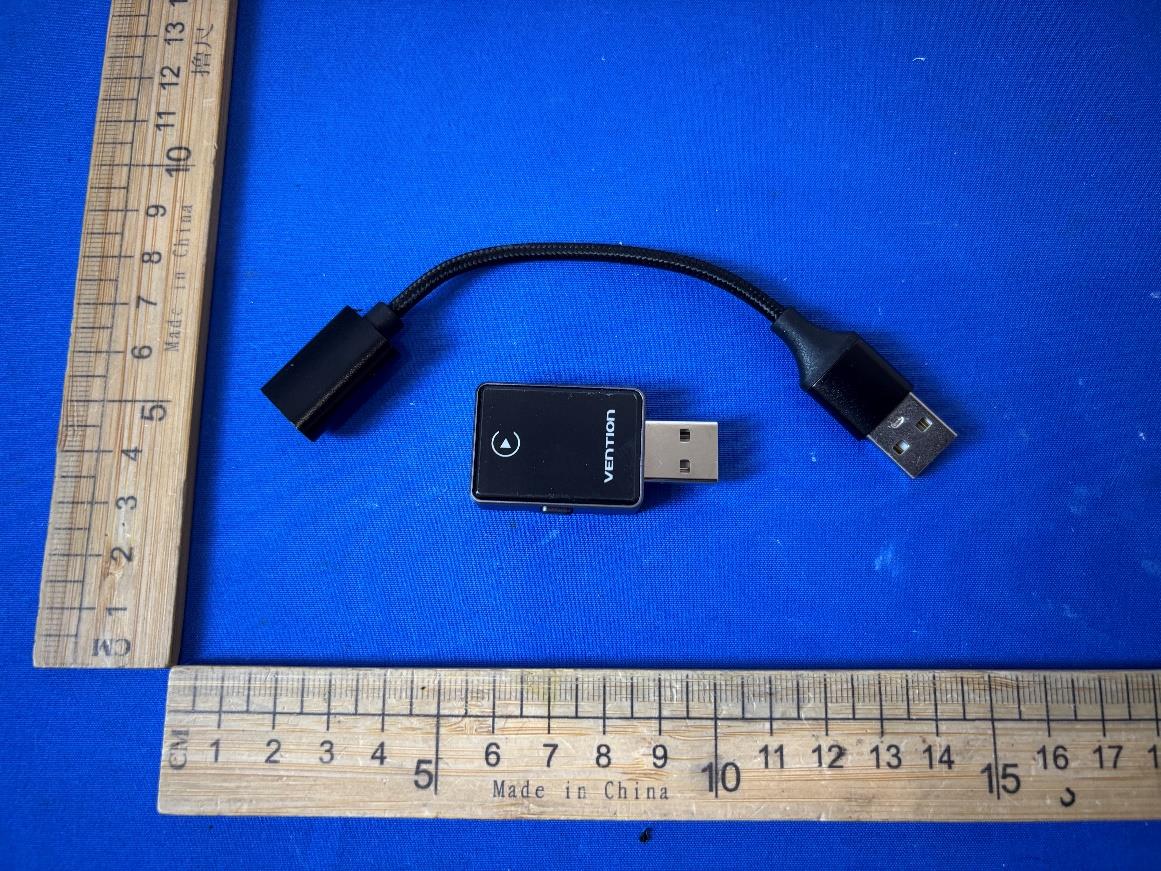

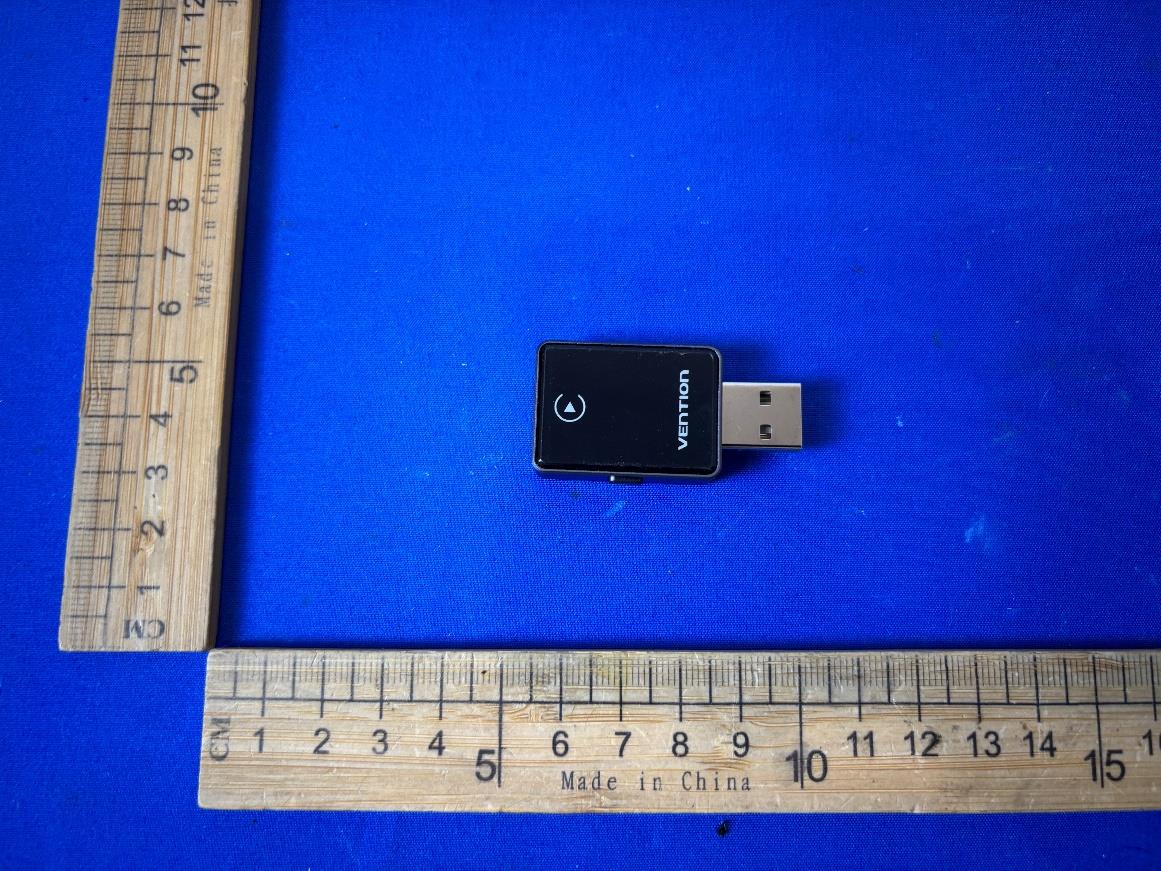

External Photographs View of EUT-1 View of EUT-2 Page 2 of 4 View of EUT-3 View of EUT-4 Page 3 of 4 View of EUT-5 View of EUT-6 Page 4 of 4 View of EUT-7

Internal Photographs Internal View of EUT-1 Internal View of EUT-2 Page 2 of 3 Internal View of EUT-3 Internal View of EUT-4 Page 3 of 3 Internal View of EUT-5 Antenna

RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in ß1.1307(b) FCC ID: 2A7Z4-KRY EUT Specification EUT Smart Projector Frequency band (Operating) BT: 2.402GHz ~ 2.480GHz WIFI: 5.180GHz ~ 5.240GHz WIFI: 5.745GHz ~ 5.825GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power BT: 4.86 dBm 5G WIFI U-NII-1 IEEE 802.11a: 15.17 dBm IEEE 802.11n HT20: 14.07 dBm IEEE 802.11n HT40: 13.32 dBm U-NII-3 IEEE 802.11a: 14.87 dBm IEEE 802.11n HT20: 13.87 dBm IEEE 802.11n HT40: 13.1 dBm Antenna gain (Max) BT: 0.35 dBi 5G WIFI: 5150-5250: 0.68dBi 5725-5850: 0.68dBi Evaluation applied MPE Evaluation SAR Evaluation Limits for Maximum Permissible Exposure(MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 Friis transmission formula: P d =(P out *G)\(4*pi*R 2 ) Where P d = Power density in mW/cm 2 , P out =output power to antenna in mW. G= gain of antenna in linear scale, Pi=3.1416 R= distance between observation point and center of the radiator in cm=20cm P d the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. For multiple RF sources: Multiple RF sources are exempt if: in the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation Evaluated k : the maximum reported SAR or MPE of fixed, mobile, or portable RF source k either in the device or at the transmitter site from an existing evaluation at the location of exposure. Exposure Limit k : either the general population/uncontrolled maximum permissible exposure (MPE) or specific Absorption rate (SAR) limit for each fixed, mobile, or portable RF source k. Measurement Result BT: Mode Max Measured Power (dBm) Tune up tolerance (dBm) Max tune up conducted power(dBm) Output Peak power (mW) Ant. Gain (dBi) Ant. Gain (numeric) Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/ cm 2 ) 1-DH5 3.08 3±1 4 2.512 0.35 1.083 0.000541 1 2-DH5 4.3 4±1 5 3.162 0.35 1.083 0.000681 1 3-DH5 4.86 4±1 5 3.162 0.35 1.083 0.000681 1 5G WIFI: U-NII-1 Mode Max Measured Power (dBm) Tune up tolerance (dBm) Max tune up conducted power(dBm) Output Peak power (mW) Ant. Gain (dBi) Ant. Gain (numeric) Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/ cm 2 ) 802.11a 15.17 15±1 16 39.810 0.68 1.169 0.009259 1 802.11n HT20 14.07 14±1 15 31.622 0.68 1.169 0.007354 1 802.11n HT40 13.32 13±1 14 25.119 0.68 1.169 0.005842 1 U-NII-3 Mode Max Measured Power (dBm) Tune up tolerance (dBm) Max tune up conducted power(dBm) Output Peak power (mW) Ant. Gain (dBi) Ant. Gain (numeric) Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/ cm 2 ) 802.11a 14.87 14±1 15 31.622 0.68 1.169 0.007354 1 802.11n HT20 13.87 13±1 14 25.119 0.68 1.169 0.005842 1 802.11n HT40 13.1 13±1 14 25.119 0.68 1.169 0.005842 1 Maximum Simultaneous transmission MPE Ratio for BT & 5G WIFI Maximum MPE ratio (Bluetooth) Maximum MPE ratio (5G WIFI) ∑ MPE ratios Limit Results 0.000681 0.009259 0.00994 1.000 Pass Signature: Shawn Wen Date: 2026-2-25

Antenna Zhuhai LongyuTechnology Co.,Ltd. 1 SCOPE This specification shall cover the characteristics of the on-board antenna with the type 2 PART NO. PART NUMBER CUSTOMER PART NO SPECIFICATION NO PIFA-5G-2.5G 3 OUTLINE DRAWING AND DIMENSIONS 3.1 Appearance: No visible damage and dirt. 3.2 The products conform to the RoHS directive and national environment protection law. 3.2 Dimensions 4 Features 4.1 Stable and reliable in performances 4.2 Low temperature coefficient of frequency 4.3 Low profile, compact size 4.4 RoHS compliance 5 Applications 5.1 Carplay systems 5.2 Hand-held devices when Bluetooth functions are needed, e.g., Smart phone. 5.3 IEEE802.11 b/g/n 5.4 ZigBee 5.5 Wireless PCMCIA cards or USB dongle 6 ELECTRICAL SPECIFICATIONS 6.1 Performance Characteristics (17.6*7.45*1.0mm 2 ground plane) Antenna Zhuhai LongyuTechnology Co.,Ltd. Items Content Outline Dimensions 17.6*7.45*1.0mm Working Frequency 2400~2500 MHz 5200~5800 MHz VSWR 2 Max Impedance 50Ω Antenna Gain 2.4G：0.35dBi 5G：0.68dBi Operating Temperature -40 to 85 °C 6.2 Characteristic Return Loss VSWR Antenna on Test Board Antenna Zhuhai LongyuTechnology Co.,Ltd. 7 TEST 2.4G Antenna Zhuhai LongyuTechnology Co.,Ltd. 5G 5G

Report Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT a 5180 Ant1 96.45 0.16 0.74 NVNT a 5200 Ant1 96.45 0.16 0.74 NVNT a 5240 Ant1 96.48 0.16 0.73 NVNT a 5745 Ant1 95.77 0.19 0.74 NVNT a 5785 Ant1 96.48 0.16 0.73 NVNT a 5825 Ant1 96.45 0.16 0.74 NVNT n20 5180 Ant1 96.24 0.17 0.78 NVNT n20 5200 Ant1 96.24 0.17 0.78 NVNT n20 5240 Ant1 95.49 0.2 0.79 NVNT n20 5745 Ant1 96.21 0.17 0.79 NVNT n20 5785 Ant1 96.21 0.17 0.79 NVNT n20 5825 Ant1 96.21 0.17 0.79 NVNT n40 5190 Ant1 92.75 0.33 1.56 NVNT n40 5230 Ant1 92.65 0.33 1.59 NVNT n40 5755 Ant1 92.65 0.33 1.59 NVNT n40 5795 Ant1 92.75 0.33 1.56 Report Duty Cycle NVNT a 5180MHz Ant1 Duty Cycle NVNT a 5200MHz Ant1 Report Duty Cycle NVNT a 5240MHz Ant1 Duty Cycle NVNT a 5745MHz Ant1 Report Duty Cycle NVNT a 5785MHz Ant1 Duty Cycle NVNT a 5825MHz Ant1 Report Duty Cycle NVNT n20 5180MHz Ant1 Duty Cycle NVNT n20 5200MHz Ant1 Report Duty Cycle NVNT n20 5240MHz Ant1 Duty Cycle NVNT n20 5745MHz Ant1 Report Duty Cycle NVNT n20 5785MHz Ant1 Duty Cycle NVNT n20 5825MHz Ant1 Report Duty Cycle NVNT n40 5190MHz Ant1 Duty Cycle NVNT n40 5230MHz Ant1 Report Duty Cycle NVNT n40 5755MHz Ant1 Duty Cycle NVNT n40 5795MHz Ant1 Report Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Total Conducted Power (dBm) Total Conducted Power (W) Limit Conducted(dBm) Verdict NVNT a 5180 Ant1 14.88 0.03076 24 Pass NVNT a 5200 Ant1 15.01 0.0317 24 Pass NVNT a 5240 Ant1 15.17 0.03289 24 Pass NVNT a 5745 Ant1 14.16 0.02606 30 Pass NVNT a 5785 Ant1 14.87 0.03069 30 Pass NVNT a 5825 Ant1 14.71 0.02958 30 Pass NVNT n20 5180 Ant1 13.86 0.02432 24 Pass NVNT n20 5200 Ant1 13.88 0.02443 24 Pass NVNT n20 5240 Ant1 14.07 0.02553 24 Pass NVNT n20 5745 Ant1 13.08 0.02032 30 Pass NVNT n20 5785 Ant1 13.87 0.02438 30 Pass NVNT n20 5825 Ant1 13.73 0.0236 30 Pass NVNT n40 5190 Ant1 13.08 0.02032 24 Pass NVNT n40 5230 Ant1 13.32 0.02148 24 Pass NVNT n40 5755 Ant1 12.53 0.01791 30 Pass NVNT n40 5795 Ant1 13.1 0.02042 30 Pass Report -26dB Bandwidth Condition Mode Frequency (MHz) Antenna -26 dB Bandwidth (MHz) NVNT a 5180 Ant1 17.286 NVNT a 5200 Ant1 17.355 NVNT a 5240 Ant1 17.379 NVNT n20 5180 Ant1 18.804 NVNT n20 5200 Ant1 18.798 NVNT n20 5240 Ant1 18.813 NVNT n40 5190 Ant1 38.43 NVNT n40 5230 Ant1 38.466 Report -26dB Bandwidth NVNT a 5180MHz Ant1 -26dB Bandwidth NVNT a 5200MHz Ant1 Report -26dB Bandwidth NVNT a 5240MHz Ant1 -26dB Bandwidth NVNT n20 5180MHz Ant1 Report -26dB Bandwidth NVNT n20 5200MHz Ant1 -26dB Bandwidth NVNT n20 5240MHz Ant1 Report -26dB Bandwidth NVNT n40 5190MHz Ant1 -26dB Bandwidth NVNT n40 5230MHz Ant1 Report Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT a 5180 Ant1 16.204 NVNT a 5200 Ant1 16.336 NVNT a 5240 Ant1 16.249 NVNT a 5745 Ant1 16.252 NVNT a 5785 Ant1 16.213 NVNT a 5825 Ant1 16.183 NVNT n20 5180 Ant1 17.416 NVNT n20 5200 Ant1 17.266 NVNT n20 5240 Ant1 17.335 NVNT n20 5745 Ant1 17.344 NVNT n20 5785 Ant1 17.434 NVNT n20 5825 Ant1 17.362 NVNT n40 5190 Ant1 35.27 NVNT n40 5230 Ant1 35.342 NVNT n40 5755 Ant1 35.312 NVNT n40 5795 Ant1 35.276 Report OBW NVNT a 5180MHz Ant1 OBW NVNT a 5200MHz Ant1 Report OBW NVNT a 5240MHz Ant1 OBW NVNT a 5745MHz Ant1 Report OBW NVNT a 5785MHz Ant1 OBW NVNT a 5825MHz Ant1 Report OBW NVNT n20 5180MHz Ant1 OBW NVNT n20 5200MHz Ant1 Report OBW NVNT n20 5240MHz Ant1 OBW NVNT n20 5745MHz Ant1 Report OBW NVNT n20 5785MHz Ant1 OBW NVNT n20 5825MHz Ant1 Report OBW NVNT n40 5190MHz Ant1 OBW NVNT n40 5230MHz Ant1 Report OBW NVNT n40 5755MHz Ant1 OBW NVNT n40 5795MHz Ant1 Report Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm) Duty Factor (dB) Total Conducted PSD (dBm) Limit Conducted(dBm) Verdict NVNT a 5180 Ant1 2.29 0.16 2.45 11 Pass NVNT a 5200 Ant1 2.17 0.16 2.33 11 Pass NVNT a 5240 Ant1 2.5 0.16 2.66 11 Pass NVNT a 5745 Ant1 1.94 0.19 2.13 30 Pass NVNT a 5785 Ant1 1.96 0.16 2.12 30 Pass NVNT a 5825 Ant1 2.67 0.16 2.83 30 Pass NVNT n20 5180 Ant1 0.88 0.17 1.05 11 Pass NVNT n20 5200 Ant1 1 0.17 1.17 11 Pass NVNT n20 5240 Ant1 1.3 0.2 1.5 11 Pass NVNT n20 5745 Ant1 0.94 0.17 1.11 30 Pass NVNT n20 5785 Ant1 1.22 0.17 1.39 30 Pass NVNT n20 5825 Ant1 1.84 0.17 2.01 30 Pass NVNT n40 5190 Ant1 -1.71 0.33 -1.38 11 Pass NVNT n40 5230 Ant1 -1.85 0.33 -1.52 11 Pass NVNT n40 5755 Ant1 -2.42 0.33 -2.09 30 Pass NVNT n40 5795 Ant1 -1.85 0.33 -1.52 30 Pass Report PSD NVNT a 5180MHz Ant1 PSD NVNT a 5200MHz Ant1 Report PSD NVNT a 5240MHz Ant1 PSD NVNT a 5745MHz Ant1 Report PSD NVNT a 5785MHz Ant1 PSD NVNT a 5825MHz Ant1 Report PSD NVNT n20 5180MHz Ant1 PSD NVNT n20 5200MHz Ant1 Report PSD NVNT n20 5240MHz Ant1 PSD NVNT n20 5745MHz Ant1 Report PSD NVNT n20 5785MHz Ant1 PSD NVNT n20 5825MHz Ant1 Report PSD NVNT n40 5190MHz Ant1 PSD NVNT n40 5230MHz Ant1 Report PSD NVNT n40 5755MHz Ant1 PSD NVNT n40 5795MHz Ant1 Report Frequency Stability Condition Mode Frequency (MHz) Antenna Measured Frequency (MHz) Frequency Error (Hz) Deviation (ppm) Limit (ppm) Verdict 20C 4.5V a 5180 Ant1 5179.96 -40000 -7.72 25 Pass 20C 5V a 5180 Ant1 5179.96 -40000 -7.72 25 Pass 20C 5.5V a 5180 Ant1 5179.96 -40000 -7.72 25 Pass -30C 5V a 5180 Ant1 5179.94 -60000 -11.58 25 Pass -20C 5V a 5180 Ant1 5179.94 -60000 -11.58 25 Pass -10C 5V a 5180 Ant1 5179.96 -40000 -7.72 25 Pass 0C 5V a 5180 Ant1 5179.96 -40000 -7.72 25 Pass 10C 5V a 5180 Ant1 5179.96 -40000 -7.72 25 Pass 30C 5V a 5180 Ant1 5179.94 -60000 -11.58 25 Pass 40C 5V a 5180 Ant1 5179.98 -20000 -3.86 25 Pass 50C 5V a 5180 Ant1 5179.98 -20000 -3.86 25 Pass 20C 4.5V a 5200 Ant1 5199.94 -60000 -11.54 25 Pass 20C 5V a 5200 Ant1 5199.96 -40000 -7.69 25 Pass 20C 5.5V a 5200 Ant1 5199.96 -40000 -7.69 25 Pass -30C 5V a 5200 Ant1 5199.94 -60000 -11.54 25 Pass -20C 5V a 5200 Ant1 5199.96 -40000 -7.69 25 Pass -10C 5V a 5200 Ant1 5199.94 -60000 -11.54 25 Pass 0C 5V a 5200 Ant1 5199.96 -40000 -7.69 25 Pass 10C 5V a 5200 Ant1 5199.94 -60000 -11.54 25 Pass 30C 5V a 5200 Ant1 5199.94 -60000 -11.…

Text truncated - open the document above for the full version.

TRF No.: 04-E001-0B TRF Originator: GTG TRF Date: 2023-12-13 Web: www.gtggroup.com E-mail: [email protected] Tel.: 86-400 755 8988 CFR 47 FCC PART 15 SUBPART E TEST REPORT For Wireless CarPlay Adapter MODEL NUMBER: KRY, KRYH0 REPORT NUMBER: E04A26010177F00502 ISSUE DATE: February 25, 2026 FCC ID:2A7Z4-KRY Prepared for Ningbo Fulman Communication Technology Co., Ltd No.98, Yuanzhong Road, Economic Development Zone, Xiang shan County, Zhejiang, China Prepared by Guangdong Global Testing Technology Co., Ltd. Room 101-105, 203-210, Building 1, No.2, Keji 8 Road, Songshan Lake Park, Dongguan city, Guangdong, People’s Republic of China, 523808 This report is based on a single evaluation of the submitted sample(s) of the above mentioned product, it does not imply an assessment of the production of the products. This report shall not be reproduced, except in full, without the written approval of Guangdong Global Testing Technology Co., Ltd. REPORT NO.: E04A26010177F00502 Page 2 of 50 TRF No.: 04-E001-0B Global Testing , Great Quality. Revision History Rev. Issue Date Revisions Revised By V0 February 25, 2026 Initial Issue REPORT NO.: E04A26010177F00502 Page 3 of 50 TRF No.: 04-E001-0B Global Testing , Great Quality. Summary of Test Results Test Item Clause Limit/Requirement Result ON TIME AND DUTY CYCLE ANSI C63.10-2020, Clause 12.2 None; for reporting purposes only. Pass 6dB AND 26dB EMISSION BANDWIDTH AND 99% OCCUPIED BANDWIDTH KDB 789033 D02 v02r01 Section C.1 FCC Part 15.407 (a)(2)(5) Pass CONDUCTED OUTPUT POWER KDB 789033 D02 v02r01 Section E.3.a (Method PM) FCC Part 15.407 (a)(1)(2)(3) Pass POWER SPECTRAL DENSITY KDB 789033 D02 v02r01 Section F FCC Part 15.407 (a)(1)(2)(3) Pass AC POWER LINE CONDUCTION EMISSION ANSI C63.10-2020, Clause 6.2. FCC 15.207, RSS-GEN Clause 8.8 N/A (NOTE 1, 2) RADIATED EMISSIONS AND BAND EDGE MEASUREMENT KDB 789033 D02 v02r01 Section G.3, G.4, G.5, and G.6 FCC Part 15.407 (b)(1)(2)(3)(4)(6), FCC Part 15.209/205 Pass FREQUENCY STABILITY FCC 15.407 (g) Pass DYNAMIC FREQUENCY SELECTION (SLAVE) KDB 905462 D03 Client Without DFS New Rules v01r02 FCC Part 15.407 (h) N/A DYNAMIC FREQUENCY SELECTION (MASTER) KDB 905462 D02 UNII DFS Compliance Procedures New Rules v02 FCC Part 15.407 (h) N/A ANTENNA REQUIREMENT N/A FCC Part 15.203, FCC Part 15.407(a)(1) (2) Pass Note: 1. N/A: In this whole report not applicable. 2. This test is only applicable for devices which can be charged or powered by AC power cable. *This test report is only published to and used by the applicant, and it is not for evidence purpose in China. *The measurement result for the sample received is <Pass> according to <CFR 47 FCC PART 15 SUBPART E> when <Accuracy Method> decision rule is applied. REPORT NO.: E04A26010177F00502 Page 4 of 50 TRF No.: 04-E001-0B Global Testing , Great Quality. CONTENTS 1. ATTESTATION OF TEST RESULTS ..................................................................................... 5 2. TEST METHODOLOGY ......................................................................................................... 6 3. FACILITIES AND ACCREDITATION ..................................................................................... 6 4. CALIBRATION AND UNCERTAINTY ................................................................................... 7 4.1. MEASURING INSTRUMENT CALIBRATION ........................................................... 7 4.2. MEASUREMENT UNCERTAINTY ............................................................................ 7 5. EQUIPMENT UNDER TEST .................................................................................................. 8 5.1. DESCRIPTION OF EUT ........................................................................................... 8 5.2. CHANNEL LIST ........................................................................................................ 9 5.3. Maximum Conducted Power ..................................................................................... 9 5.4. THE WORSE CASE POWER SETTING PARAMETER ............................................ 9 5.5. DESCRIPTION OF AVAILABLE ANTENNAS ......................................................... 10 5.6. EUT ACCESSORY ................................................................................................. 11 5.7. SUPPORT UNITS FOR SYSTEM TEST ................................................................. 11 5.8. SETUP DIAGRAM .................................................................................................. 11 6. MEASURING EQUIPMENT AND SOFTWARE USED......................................................... 12 7. ANTENNA PORT TEST RESULTS ..................................................................................... 14 7.1. ON TIME AND DUTY CYCLE ................................................................................. 14 7.2. 6dB AND 26dB EMISSION BANDWIDTH ............................................................... 15 7.3. CONDUCTED OUTPUT POWER ........................................................................... 17 7.4. POWER SPECTRAL DENSITY .............................................................................. 19 7.5. FREQUENCY STABILITY ....................................................................................... 21 8. RADIATED TEST RESULTS ............................................................................................... 23 8.1. RADIATED EMISSIONS AND BAND EDGE MEASUREMENT .............................. 29 9. ANTENNA REQUIREMENT ................................................................................................ 49 10. TEST DATA - Appendix B ..................................................................................... 50 REPORT NO.: E04A26010177F00502 Page 5 of 50 TRF No.: 04-E001-0B Global Testing , Great Quality. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Ningbo Fulman Communication Technology Co.. Ltd Address: No.98, Yuanzhong Ro…

Text truncated - open the document above for the full version.

Setup Photographs AC POWER LINE CONDUCTION EMISSION Page 2 of 3 RADIATED EMISSIONS AND BAND EDGE MEASUREMENT Page 3 of 3
