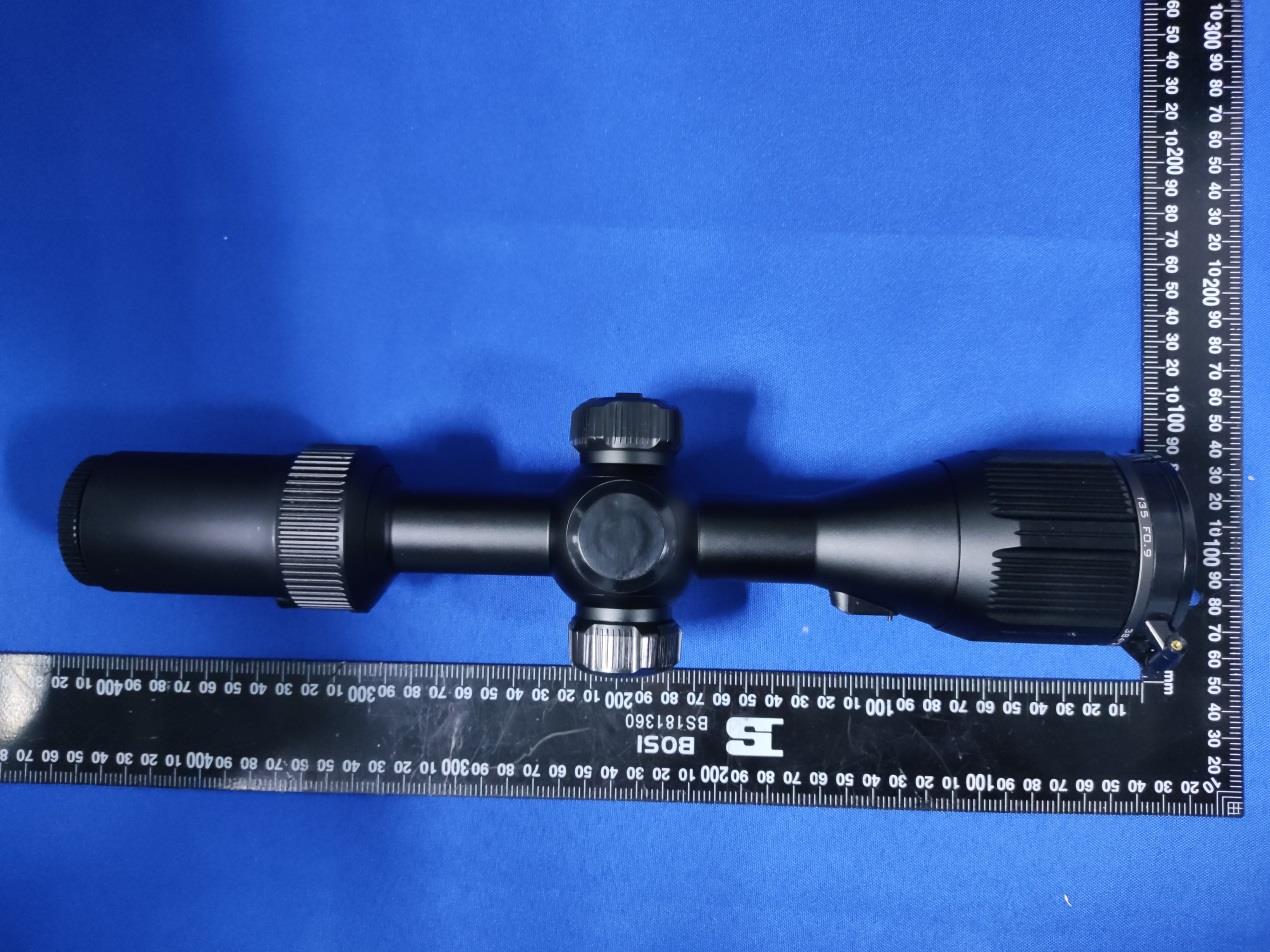

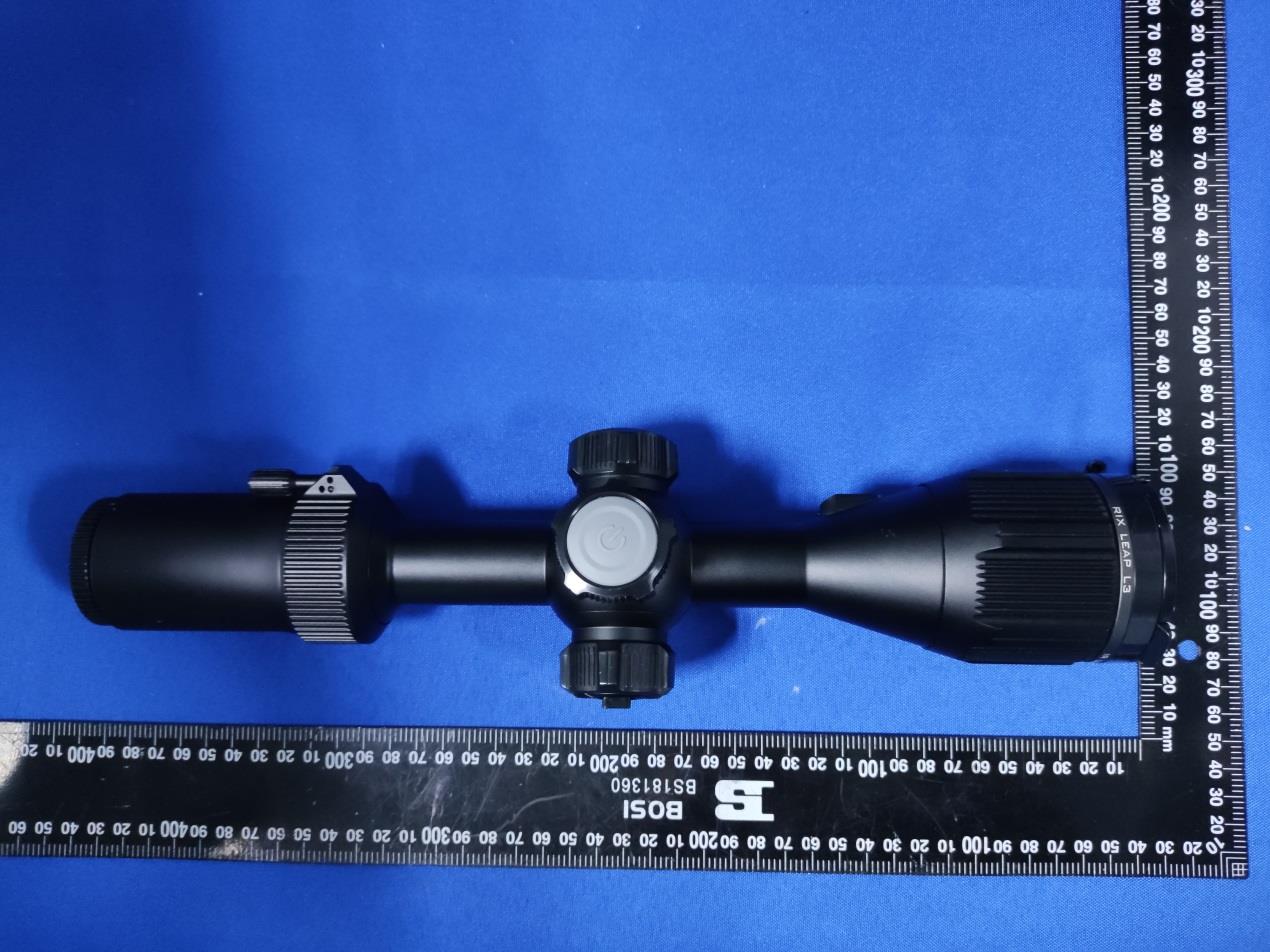

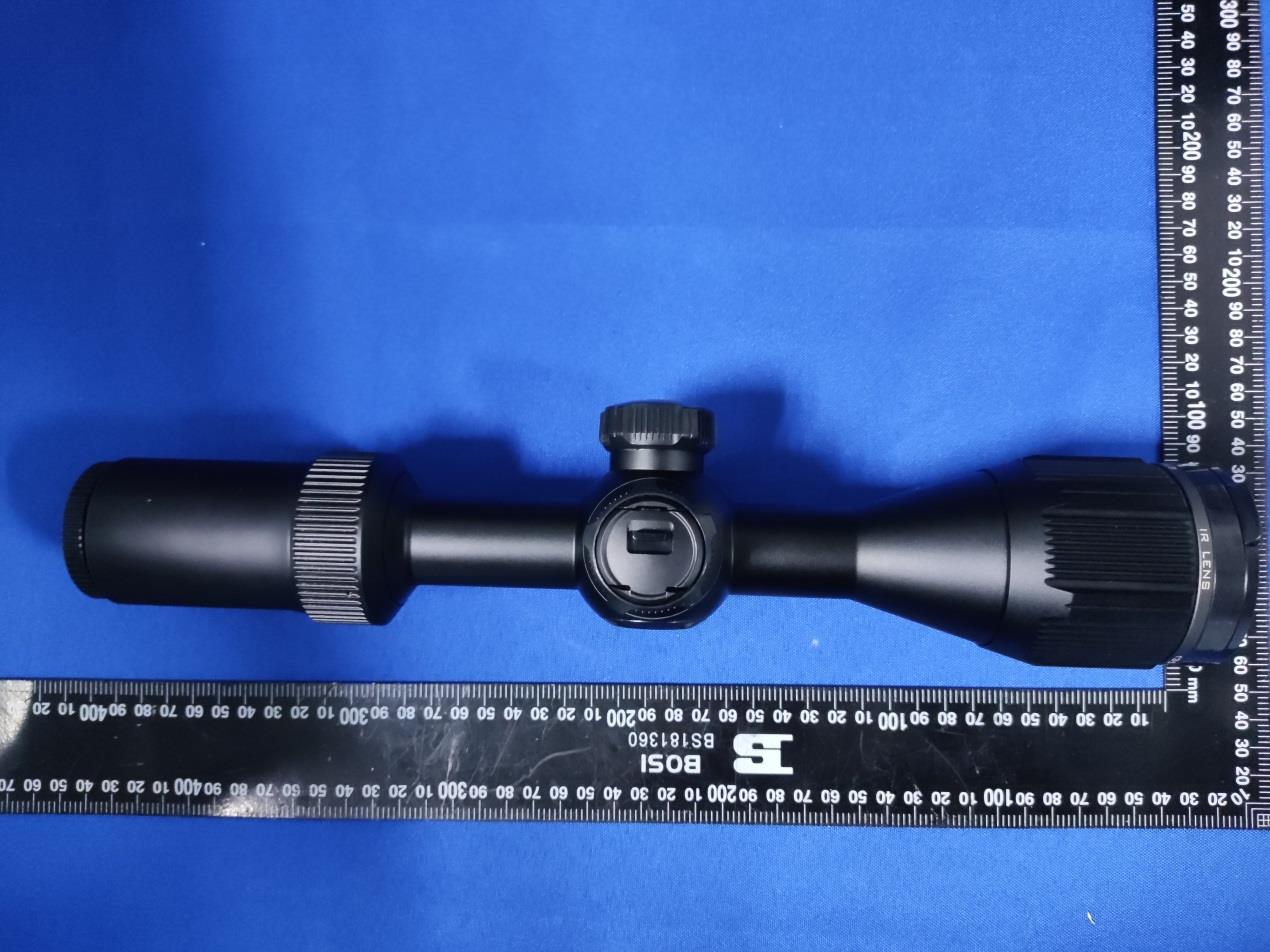

2A7ZZ-4D-00LEAP Series Thermal Imaging Scope

LEAP Series Thermal Imaging Scope Visir Inc. User Manual v1.0 (510)988-5580 [email protected] （FCC ID：2A7ZZ-2G-00） CONTENTS ◀ 01 03 03 In the Box Description 04 Product Features 04 Product Appearance 05 Device Preparation 05 Device Power Supply 07 Power-on and Settings 05 Device Installation 07 08 Status Bar Shortcut Functions 09 Function Menu 12 Setting Menu 15 Product Update and Description of App 16 Product Maintenance 16 Troubleshooting VOx Uncooled <25 ModelLEAP L3LEAP L6 Sensor Optics Range Performance Detection range,y Display Video Recorder Type Resolution, pixels Pixel pitch, μm NETD, mK Frame rate, Hz Objective lens Optic zoom, x Field of view (HxV), degrees / m @ 100 m Digital zoom, x Eye relief, mm Diopter Adjustment, D Type Resolution, pixels Video / photo resolution, pixel 02 ▶ 384×216 12 35mm F0.9 3.2-9.6 640×360 12 50 50mm F/0.9 2.8-7.6 1 - 4 50 -5 ‒ +5 AMOLED 1920×1080 18002800 960×720 7.5/13.28.8/15.4 ModelLEAP L3LEAP L6 18650 3300 5V (Type C USB) Weight & Size 14.2×3.5×3 2.4 14.6×3.5×3 2.6 -4 ‒ +122 98 Environmen- tal Charac- teristics Wi-Fi IP67 Video / photo format Built-in memory, GB Wireless Protocol Frequency, GHz Degree of protection, IP code Operating temperature range, °F Battery type Capacity, mAh Operating time on battery pack (at t=22°C), h * External power supply, V Dimensions, inch Weight, oz .mp4 / .jpg 32 Wi-Fi 2.4GHz In the Box 01 ● LEAP series thermal imaging scope ● Mounting clamp ● Portable bag ● Eyeshade ● Type-C data cable ● Lens cloth PDescription 02 Introducing the LEAP series, featuring advanced thermal imaging technology and high-sensitivity infrared detectors for exceptional outdoor hunting and night vision capabilities. With the ability to observe targets hidden behind obstacles and perform in adverse weather conditions, such as rain, snow, fog, and haze, the LEAP series is perfect for night hunting, observa- tion, and geographical positioning. Equipped with a 30mm standard pipe diameter, it offers a range of functions including photo taking, video recording, automatic shooting video recording, optical eyepiece magnification, digital zoom, PIP, and multiple reticle options. ◀ 03 04 ▶ Product Appearance 04 Product Features 03 ●High resolution 1920×1080 display● ●Zoom eyepiece, super-large basic visual magnification●PIP function Digital zoom: 1×/2×/3×/4× ● ● High image quality● Built-in Wi-Fi module, supporting app connection Replaceable 18650 battery, long battery life●"Rain and Fog Mode" ● Built-in 32G storage space, photo taking and video recording available Left button (video/photo taking button) Lef t knob Up button (Power button) Upper knob Right kno b Lens capFocus r ing Type-C interface Zoom l ever Eyepi ece Eyepiece diopter adjustment ring Eyes hade Battery compartment cover Picat inny r ai l Mount Device Preparation 05 ◀ 05 ● Open the packaging box and take out the scope; ● Check and confirm that the accessories in the package are complete; ● Check the scope body, lens surface, eyepiece, buttons, and knobs to confirm that there is no damage; ● Make sure the surface of the optical lens is clean before use; Device Installation 06 There are two Picatinny mounting brackets in the accessories in the package. Please follow the schematic diagram below for installation. Device Power Supply 07 The LEAP series is powered by a replaceable 18650 battery. A single battery can provide up to 8 hours of continuous opera- tion. Safety Precautions • Please remove the battery if the device is not in use for a long time; • Do not power the device with a modified or damaged battery; • Do not expose the device to high temperatures or open flame; • Please Note: The decrease in battery pack capacity under sub-zero temperatures is a normal occurrence and not a factory defect； • Do not use the battery at a temperature above 50°C, as it may reduce the service life of the battery. 06 ▶ ● Push the switch to open the battery compartment cover; ● Put the 18650 battery into the battery compartment. Pay attention to the direction of the positive and negative poles, with the positive pole inward, and the negative pole outward; ● After putting the battery in, press the battery compartment cover firmly, and the switch will automatically pop up and lock. The status bar, located at the top of the display, provides a visual representation of the scope's current operational status. The display content from the left to the right is as follows: 1. Zeroing Options 2. Visual Magnification 3. Shutter Mode: Automatic Shutter A/Manual Shutter M 4. Wi-Fi: On/Off 5. Time 6. Battery Level Status Bar 09 ◀ 07 • Remove the lens cap, and press and hold the Power button to power on the device. Then, the home screen is displayed after several seconds; • Rotate the eyepiece diopter adjustment ring until the display icon can be seen clearly; • Adjust the focus ring of the objective lens to achieve a clear focus on the observed object ； • For the image mode, display brightness, image contrast, and other functions, please refer to the shortcut menu functions in this manual; • After use, press and hold the Power button to display the shutdown progress bar. When the progress bar is at the shutdown position, release the button to turn off the thermal imager. Power-on and Settings 08 ● Digital Zoom The LEAP series features a digital zoom function, allowing for quick and convenient image magnification. On the home screen, simply rotate the right knob to seamlessly zoom in and out on the image. The status bar provides a real-time display of the corresponding magnification level as you adjust it. ● Image Mode Switching The LEAP series offers the flexibility to switch between various image modes, for different observation scenarios. On the home screen, toggle the image mode by rotating the upper knob. The available options include white hot (default), black hot, red hot, rainbow, single red, and single green. ● Photo Taking/Video Mode • Photo Taking: On the home screen, press and hold the left button to…

Text truncated - open the document above for the full version.

Rev 1/26/2023 Visir Inc. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Company name: Visir Inc. Address: 39899 Balentine Drive STE 200, Newark, California 94560, United States Product Name: LEAP Series Thermal Imaging Scope FCC ID: 2A7ZZ-4D-00 Model(s): LEAP L3; LEAP L6 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing We, [ Visir Inc.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Yours Sincerely, Name: Tao Huang Date: 2023-08-29 Title: CEO Signature of applicant:

Rev 1/26/2023 Visir Inc. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023-08-29 Ref: Attestation Statements Part 2.911(d) (7) Filing We, [Visir Inc. ] (“the applicant”) certifies that, as of the date of the filing of the application, designate our self as U.S. agent for service of process. Designated U.S. Agent Information: Name: Visir Inc. Address: 39899 Balentine Drive STE 200, Newark, California 94560, United States Contact Person: Tao Huang Tel.: (510) 988-5580 500 Email: [email protected] FRN: 0032684243 Sincerely, Applicant signature: Applicant printed name: Tao Huang Company Name: Visir Inc. Address: 39899 Balentine Drive STE 200, Newark, California 94560, United States Email: [email protected]

Rev 1/26/2023 Visir Inc. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Company name: Visir Inc. Address: 39899 Balentine Drive STE 200, Newark, California 94560, United States Product Name: LEAP Series Thermal Imaging Scope FCC ID: 2A7ZZ-4D-00 Model(s): LEAP L3; LEAP L6 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing We, [Visir Inc. ] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Yours Sincerely, Date: 2023-08-29Name: Tao Huang Title: CEO Signature of applicant:

Visir Inc. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2023/08/29 Subject; Request for Confidentiality FCC ID: 2A7ZZ-4D-00 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Tao Huang

Model Declaration Letter Dear Sir， For our business issue and marketing requirement, we would like to list different model numbers on the certificates and reports, as following: Model No.: LEAP L3; LEAP L6 We declare that the difference of these is listed as below: They both have the same technical construction including circuit diagram, PCB Layout, components and component layout, all electrical construction and mechanical construction. The only difference lies in the lens size. Thank you! Signature: Contact Person: Tao Huang Title: CEO Company name: Visir Inc. Tel: (510) 988-5580 500 E-Mail: [email protected] Address: 39899 Balentine Drive STE 200, Newark, California 94560, United States Date: 2023-08-29

Visir Inc. Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2023/08/29 SUBJECT: FCC Application for (FCC ID: 2A7ZZ-4D-00) To Whom It May Concern: We, the undersigned, hereby authorize _ CCIC Southern Testing Co., Ltd._ (Chris You)__ at _ Electronic Testing Building, No. 43 Shahe Road, Xili Street, Nanshan District, Shenzhen, Guangdong, China _ on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by __Chris You__ on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Signature： Contact Person: Tao Huang Title: CEO Company: Visir Inc. Address: 39899 Balentine Drive STE 200, Newark, California 94560, United States Tel: (510) 988-5580 500 E-Mail: [email protected]

WIFI ANT

Report No. 20230717G07866X-W3 CCIC-SET/TRF:ISAR(2021-05-11) Page 1 of 1 Tune up procedure shall be over the power range or at specific operating power levels. The maximum gains of each individual device are adjusted until the target value met. Band Mode Target Power and Tolerance (dBm) WLAN 2.4GHz Full Power 802.11b 13.00±1.0 802.11g 12.50±1.0 802.11n HT20 11.50±1.0 Then these appropriate gain settings are stored in each device individually. The user has no possibility to change these settings later on, and during manufacturing each device will be individual calibrated. The measurement is done in fully calibrated setup, which is based on the base station simulator. Furthermore, the highest power level is verified afterwards in a call measurement on three channels (low, middle and high).

Report No. 20230717G07866X-W3 CCIC-SET/TRF:ISAR(2021-05-11) Page 1 of 24 SAR TEST REPORT Report No.： 20230717G07865X-W3 Product Name： LEAP Series Thermal Imaging Scope Model Name： LEAP L3,LEAP L6 Trade Name： RIX Brand Name： RIX FCC ID： 2A7ZZ-4D-00 Applicant： Visir Inc. Address： 39899 Balentine Drive Suite 200 Newark,CA 94560 Test Date： 2023/08/03~2023/08/03 Issued by： CCIC Southern Testing Co., Ltd. Lab Location： Electronic Testing Building, No. 43 Shahe Road Xili Street, Nanshan District，Shenzhen, Guangdong 518055，China Tel： 86 755 26627338 Fax：86 755 26627238 Mail： [email protected] Website：http://www.ccic-set.com This test report consists of 24 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No. 20230717G07866X-W3 CCIC-SET/TRF:ISAR(2021-05-11) Page 2 of 24 Test Report Applicant: Visir Inc. Applicant Address: 39899 Balentine Drive Suite 200 Newark,CA 94560 Manufacturer: Visir Inc. Manufacturer Address: 39899 Balentine Drive Suite 200 Newark,CA 94560 Test Standards: 47CFR §2.1093- Radiofrequency Radiation Exposure Evaluation: Portable Devices; ANSI C95.1–1992: Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz – 300 GHz.( IEEE Std C95.1-1991) IEEE 1528–2013: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques Test Result: Pass [盖章] Tested by: Carl Wei, Test Engineer 2023-09-12 Reviewed by: Chris You, Senior Engineer 2023-09-12 Approved by: Yang Fan, Manager 2023-09-12 Report No. 20230717G07866X-W3 CCIC-SET/TRF:ISAR(2021-05-11) Page 3 of 24 Contents Test Report ........................................................................................................................................... 2 1. Administrative Data ................................................................................................................... 4 2. Equipment Under Test (EUT) ................................................................................................... 5 3. SAR Summary ............................................................................................................................ 6 4. Specific Absorption Rate (SAR)................................................................................................ 6 5. Tissue check and recommend Dielectric Parameters ........................................................... 10 6. SAR measurement procedure ................................................................................................. 15 7. Conducted RF Output Power ................................................................................................. 16 8. Antenna Location:.................................................................................................................... 17 9. Scaling Factor calculation ....................................................................................................... 18 10. Test Results ............................................................................................................................... 18 11. Measurement Uncertainty ....................................................................................................... 19 12. Equipment List ......................................................................................................................... 23 ANNEX A: Appendix A: SAR System performance Check Plots..................................................... 24 ANNEX B: Appendix B: SAR Measurement results Plots................................................................ 24 ANNEX C: Appendix C: Calibration reports .................................................................................... 24 ANNEX D: Appendix D: SAR Test Setup ......................................................................................... 24 Report No. 20230717G07866X-W3 CCIC-SET/TRF:ISAR(2021-05-11) Page 4 of 24 1. Administrative Data 1.1 Testing Laboratory Test Site: CCIC Southern Testing Co., Ltd. Address: Electronic Testing Building, No. 43 Shahe Road Xili Street, Nanshan District，Shenzhen, Guangdong 518055，China A2LA Lab Code: CCIC-SET is a third party testing organization accredited by A2LA according to ISO/IEC 17025:2017. The accreditation certificate number is 5721.01 FCC Registration: CCIC Southern Testing Co., Ltd. EMC Laboratory has been registered and fully described in a report filed with the FCC (Federal Communications Commission). The acceptance letter from the FCC is maintained in our files. Designation Number: CN1283, valid time is until April 19th, 2023. ISED Registration: CCIC Southern Testing Co., Ltd. EMC Laboratory has been registered by Certification and Engineering Bureau of Industry Canada for the performance of radiated measurements with Registration No. 11185A-1 on Aug. 04, 2016, valid time is until June 30th, 2023. Test Environment Condition: Temperature (°C): 18°C ~25°C Relative Humidity (%): 35%~75% RH Atmospheric Pressure (kPa): 86KPa-106KPa Report No. 20230717G07866X-W3 CCIC-SET/TRF:ISAR(2021-05-11) Page 5 of 24 2. Equipment Under Test (EUT) Identification of the Equipment under Test Device type : portable device Exposure category: uncontrolled environment / general population Product Name: LEAP Series Thermal Imaging Scope Brand Name: RIX Model Name: LEAP L3,LEAP L6 Operating Band(s): WIFI2.4G Test Band(s): WIFI2.4G T…

Text truncated - open the document above for the full version.

Report No. 20230717G07866X-W3 CCIC-SET/TRF:ISAR(2021-05-11) 1 / 2 Appendix A: SAR System performance Check Plots Measurement Liquid Frequency Test Date System Check Head 2450 2023/08/03 Report No. 20230717G07866X-W3 CCIC-SET/TRF:ISAR(2021-05-11) 2 / 2 System Performance Check (2450MHz) Type: Validation measurement Date of measurement: 08/03/2023 A. Experimental conditions. E-Field Probe SATIMO 0523-EPGO-403 Area Scan dx=8mm dy=8mm Zoom Scan 7x7x7,dx=5mm dy=5mm dz=5mm Phantom Validation plane Device Position Dipole Band 2450MHz Channels Middle Signal CW(Crest factor: 1.0) B. SAR Measurement Results Frequency (MHz) 2450 Relative permittivity (real part) 38.74 Conductivity (S/m) 1.85 Variation (%) 0.31 Maximum location: X=1.00, Y=-7.00 SAR Peak: 0.89 W/kg SAR 10g (W/Kg) 0.224505 SAR 1g (W/Kg) 0.498120 SURFACE SAR VOLUME SAR Z Axis Scan

Report No. 20230717G07866X-W3 CCIC-SET/TRF:ISAR(2021-05-11) 1 / 2 Appendix B: SAR Measurement results Plots Plot Frequency/Mode Testing Position and Channel Test Date 1 WI-FI 2.4G 802.11b Body Back, Middle ,5mm 2023/08/03 Report No. 20230717G07866X-W3 CCIC-SET/TRF:ISAR(2021-05-11) 2 / 2 Testing result (WI-FI 2.4G 802.11b, Back, Middle, 5mm) Type: phone measurement Date of measurement: 08/03/2023 A. Experimental conditions. E-Field Probe SATIMO 0523-EPGO-403 Area Scan dx=12mm dy=12mm Zoom Scan 7x7x7,dx=5mm dy=5mm dz=5mm Phantom Validation plane Device Position Body Band WI-FI 802.11b Channels Middle Signal DSSS(Crest factor: 1.0) B. SAR Measurement Results Frequency (MHz) 2437.0 Relative permittivity (real part) 38.78 Conductivity (S/m) 1.84 Variation (%) -0.25 Maximum location: X=7.00, Y=3.00 SAR Peak: 0.18 W/kg SAR 10g (W/Kg) 0.122458 SAR 1g (W/Kg) 0.146540 SURFACE SAR VOLUME SAR Z Axis Scan

Report No. 20230717G07866X-W3 CCIC-SET/TRF:ISAR(2021-05-11) Page 1 of 19 ANNEX C: Calibration Reports 0523-EPGO-403 Probe Calibration Report SID2450 Dipole Calibration Report Report No. 20230717G07866X-W3 CCIC-SET/TRF:ISAR(2021-05-11) Page 2 of 19 EPGO403 Probe Calibration Report Report No. 20230717G07866X-W3 CCIC-SET/TRF:ISAR(2021-05-11) Page 3 of 19 Report No. 20230717G07866X-W3 CCIC-SET/TRF:ISAR(2021-05-11) Page 4 of 19 Report No. 20230717G07866X-W3 CCIC-SET/TRF:ISAR(2021-05-11) Page 5 of 19 Report No. 20230717G07866X-W3 CCIC-SET/TRF:ISAR(2021-05-11) Page 6 of 19 Report No. 20230717G07866X-W3 CCIC-SET/TRF:ISAR(2021-05-11) Page 7 of 19 Report No. 20230717G07866X-W3 CCIC-SET/TRF:ISAR(2021-05-11) Page 8 of 19 Report No. 20230717G07866X-W3 CCIC-SET/TRF:ISAR(2021-05-11) Page 9 of 19 Report No. 20230717G07866X-W3 CCIC-SET/TRF:ISAR(2021-05-11) Page 10 of 19 Report No. 20230717G07866X-W3 CCIC-SET/TRF:ISAR(2021-05-11) Page 11 of 19 Report No. 20230717G07866X-W3 CCIC-SET/TRF:ISAR(2021-05-11) Page 12 of 19 SID2450 Dipole Calibration Report Report No. 20230717G07866X-W3 CCIC-SET/TRF:ISAR(2021-05-11) Page 13 of 19 Report No. 20230717G07866X-W3 CCIC-SET/TRF:ISAR(2021-05-11) Page 14 of 19 Report No. 20230717G07866X-W3 CCIC-SET/TRF:ISAR(2021-05-11) Page 15 of 19 Report No. 20230717G07866X-W3 CCIC-SET/TRF:ISAR(2021-05-11) Page 16 of 19 Report No. 20230717G07866X-W3 CCIC-SET/TRF:ISAR(2021-05-11) Page 17 of 19 Report No. 20230717G07866X-W3 CCIC-SET/TRF:ISAR(2021-05-11) Page 18 of 19 Report No. 20230717G07866X-W3 CCIC-SET/TRF:ISAR(2021-05-11) Page 19 of 19

ReportNo.:20230717G07866X-W2 CCIC-SET/TRF:IRF(2019-05-23)Page1of51 RFTESTREPORT ReportNo.:20230717G07866X-W2 ProductName:LEAPSeriesThermalImagingScope ModelNo.:LEAPL3;LEAPL6 FCCID:2A7ZZ-4D-00 Applicant:VisirInc. Address:39899BalentineDriveSuite200Newark,CA94560 DatesofTesting:07/11/2023-07/31/2023 Issuedby:CCICSouthernTestingCo.,Ltd. LabLocation: ElectronicTestingBuilding,No.43ShaheRoad,XiliStreet, NanshanDistrict,Shenzhen,Guangdong,China. Tel：8675526627338Fax：8675526627238 Thistestreportconsistsof51pagesintotal.Itmaybeduplicatedcompletelyforlegaluse withtheapprovaloftheapplicant.Itshouldnotbereproducedexceptinfull,withoutthe writtenapprovalofourlaboratory.Theclientshouldnotuseittoclaimproductendorsement byCCIC-SET.Thetestresultsinthereportonlyapplytothetestedsample.Thetestreport shallbeinvalidwithoutallthesignaturesoftestingengineers,reviewerandapprover.Any objectionsmustberaisedtoCCIC-SETwithin15dayssincethedatewhenthereportis received.Itwillnotbetakenintoconsiderationbeyondthislimit. ReportNo.:20230717G07866X-W2 CCIC-SET/TRF:IRF(2019-05-23)Page2of51 TestReport Product......................................:LEAPSeriesThermalImagingScope BrandName ............................. :RIX TradeName ............................ :RIX Applicant...................................:VisirInc. ApplicantAddress..................:39899BalentineDriveSuite200Newark,CA94560 Manufacturer ............................ :VisirInc. ManufacturerAddress ........... :39899BalentineDriveSuite200Newark,CA94560 TestStandards........................: 47CFRPart15SubpartC15.247 ANSIC63.10-2013 TestResult................................:Pass Testedby ................................. : 2023.08.03 ChuiwangZhang,TestEngineer Reviewedby.............................: 2023.08.03 ChrisYou,SeniorEngineer Approvedby............................: 2023.08.03 YangFan,Manager ReportNo.:20230717G07866X-W2 CCIC-SET/TRF:IRF(2019-05-23)Page3of51 TableofContents 1.GENERALINFORMATION......................................................................................................5 1.1.EUTDescription..........................................................................................................................5 1.2.TestStandardsandResults..........................................................................................................6 1.3.ChannelList................................................................................................................................7 1.4.Testenvironmentandmode.........................................................................................................7 1.5.TableforSupportingUnits..........................................................................................................7 1.6.EUTOperationTestSetup...........................................................................................................7 1.7.LaboratoryFacilities....................................................................................................................8 1.TESTREQUIREMENTS............................................................................................................9 1.1.Antennarequirement...................................................................................................................9 1.2.MaximumConductedOutputPower.........................................................................................10 1.3.6dBand99%Bandwidth...........................................................................................................12 1.4.Powerspectraldensity(PSD)....................................................................................................14 1.5.ConductedBandEdgesandSpuriousEmissions......................................................................16 1.6.RadiatedBandEdgeandSpuriousEmission............................................................................18 1.7.ACPowerLineConductedEmission........................................................................................30 2.LISTOFMEASURINGEQUIPMENT...................................................................................34 3.UNCERTAINTYOFEVALUATION.......................................................................................35 APPENDIXA..................................................................................................................................36 ReportNo.:20230717G07866X-W2 CCIC-SET/TRF:IRF(2019-05-23)Page4of51 ChangeHistory IssueDateReasonforchange 1.02023.08.03Firstedition ReportNo.:20230717G07866X-W2 CCIC-SET/TRF:IRF(2019-05-23)Page5of51 1.GENERALINFORMATION 1.1.EUTDescription ProductName LEAPSeriesThermalImagingScope HardwareVersionV1.0 SoftwareVersionV1.0 EUTsupportsRadios application WLAN2.4GHz802.11b/g/n(HT20) FrequencyRange802.11b/g/n-20MHz:2.412GHz-2.462GHz ChannelNumber802.11b/g/n-20MHz:11 TransferRate 802.11b:11/5.5/2/1Mbps 802.11g:54/48/36/24/18/12/9/6Mbps 802.11n:upto72.2Mbps ModulationTypeDSSS(802.11b),OFDM(802.11g/n) AntennaTypeInternalAntenna AntennaGain3.23dBi PowerSupplyRechargeable18650Li-ionBatteryDC3.7V/3300mAh Note1:Foramoredetaileddescription,pleaserefertoSpecificationorUser’sManualsuppliedby theapplicantand/ormanufacturer. Note2:TheEUTwasprogrammedtobeincontinuouslytransmittingmodeandthetransmitduty cycleisnotlessthan98%. Note3:TheantennagainandRFadapter/cableinsertlossprovidedbymanufacture. ReportNo.:20230717G07866X-W2 CCIC-SET/TRF:IRF(2019-05-23)Page6of51 1.2.TestStandardsandResults ThepurposeofthereportistoconducttestingaccordingtothefollowingFCCcertification standards: No.IdentityDocumentTitle 1 47CFRPart15 SubpartC RadioFrequencyDevices 2 KDB558074D01 15.247MeasGuidance v05r02 CuidanceforComplianceMeasurementonDigital TransmissionSystems,FrequencyHoppingSpreadSpectrum Systems,andHybridSystemDevicesOperatingunderSection 15.247oftheFCCRules 4ANSIC63.10-2013 AmericanNationalStandardforTestingUnlicensedWireless Devices Testdetaileditems/sectionrequiredbyFCCrulesandresultsareasbe…

Text truncated - open the document above for the full version.

ReportNo.:20230717G07866X-W2 CCIC-SET/TRF:IRF(2019-05-23)Page48of51 ,Plot1,ReferenceLevel-802.11g ,2412MHz,Ant0 ,Plot1,ReferenceLevel-802.11g ,2437MHz,Ant0 ,Plot1,ReferenceLevel-802.11g ,2462MHz,Ant0 ,Plot2,BandEdge-802.11g,2412MHz ,Ant0 ,Plot2,BandEdge-802.11g,2437MHz ,Ant0 ,Plot2,BandEdge-802.11g,2462MHz ,Ant0 ReportNo.:20230717G07866X-W2 CCIC-SET/TRF:IRF(2019-05-23)Page49of51 ,Plot3,30MHz~2400MHz-802.11g,2412MHz ,Ant0 ,Plot3,30MHz~2400MHz-802.11g,2437MHz ,Ant0 ,Plot3,30MHz~2400MHz-802.11g,2462MHz ,Ant0 ,Plot4,2483.5MHz~25000MHz-802.11g ,2412MHz,Ant0 ,Plot4,2483.5MHz~25000MHz-802.11g ,2437MHz,Ant0 ,Plot4,2483.5MHz~25000MHz-802.11g ,2462MHz,Ant0 ReportNo.:20230717G07866X-W2 CCIC-SET/TRF:IRF(2019-05-23)Page50of51 ,Plot1,ReferenceLevel-802.11n(HT20) ,2412MHz,Ant0 ,Plot1,ReferenceLevel-802.11n(HT20) ,2437MHz,Ant0 ,Plot1,ReferenceLevel-802.11n(HT20) ,2462MHz,Ant0 ,Plot2,BandEdge-802.11n(HT20) ,2412MHz,Ant0 ,Plot2,BandEdge-802.11n(HT20) ,2437MHz,Ant0 ,Plot2,BandEdge-802.11n(HT20) ,2462MHz,Ant0 ReportNo.:20230717G07866X-W2 CCIC-SET/TRF:IRF(2019-05-23)Page51of51 ,Plot3,30MHz~2400MHz-802.11n(HT20) ,2412MHz,Ant0 ,Plot3,30MHz~2400MHz-802.11n(HT20) ,2437MHz,Ant0 ,Plot3,30MHz~2400MHz-802.11n(HT20) ,2462MHz,Ant0 ,Plot4,2483.5MHz~25000MHz-802.11n(HT 20),2412MHz,Ant0 ,Plot4,2483.5MHz~25000MHz-802.11n(HT 20),2437MHz,Ant0 ,Plot4,2483.5MHz~25000MHz-802.11n(HT 20),2462MHz,Ant0 **ENDOFREPORT**

公司地址：深圳市龙岗区宝龙街道沙背坜鸿永利工业区H栋 TEL:0755-289063500755-28220572 FAX：0755-28483275 第1页共3页 Specification Client Name： Client No.：3090700103 Project No.： Description：2.4G small size soft built-in/0.81 line L=180MM (4th generation terminal) Date： 公司地址：深圳市龙岗区宝龙街道沙背坜鸿永利工业区H栋 TEL:0755-289063500755-28220572 FAX：0755-28483275 第2页共3页 1.Product Photo： 2．Electrical performance test report： VSWR ： 公司地址：深圳市龙岗区宝龙街道沙背坜鸿永利工业区H栋 TEL:0755-289063500755-28220572 FAX：0755-28483275 第3页共3页 3． Product performance parameters： 电性能指标ElectricalSpecifications 频率范围FrequencyRange(MHz)2400-2500 输入阻抗InputImpendence(Ω)50 电压驻波比V.S.W.R≤3.5（未匹配设备，仅供参考） 增益Gain(dBi) 3. 23 极化形式PolarizationType垂直Vertical 最大功率 Maximumpower(W) 10W 垂直面波瓣角度VerticallobeAngle（E）45~60° 水平面波瓣角度WaterplanelobeAng…

Text truncated - open the document above for the full version.
