2A8C3-BT52Bluetooth Module

E104-BT52 User Manual DA14531 BLE5.0 Low Power SMD Bluetooth Module Chengdu Ebyte Electronic Technology Co.,Ltd E104-BT52 User Manual Copyright ©2012–2020，Chengdu Ebyte Electronic Technology Co.,Ltd CONTENTS 1. Overview ................................................................................................................................................................. 1 1.1 Introduction ................................................................................................................................................... 1 1.2 Feature ........................................................................................................................................................... 2 1.3 Applications ................................................................................................................................................... 2 2 Specification and Parameter ..................................................................................................................................... 3 2.1 Limit parameter ............................................................................................................................................. 3 2.2 Operating parameter ...................................................................................................................................... 3 3 Size and Pin Definition ............................................................................................................................................. 4 4 Function Description ................................................................................................................................................ 6 4.1 Role description ............................................................................................................................................. 6 4.1.1 Master .................................................................................................................................................................. 6 4.1.2 Slave ..................................................................................................................................................................... 6 4.1.3 Observer .............................................................................................................................................................. 7 4.2 Power supply mode........................................................................................................................................ 7 4.2.1 Low power consumption mode ............................................................................................................................. 7 4.2.2 Wake-up mode ...................................................................................................................................................... 7 4.3 Data transmission mode ................................................................................................................................. 7 4.3.1 Data transparent transmission ............................................................................................................................. 7 4.3.2 Format transmission ............................................................................................................................................ 8 4.4 MAC address bonding ................................................................................................................................... 8 4.5 Advertising..................................................................................................................................................... 8 4.5.1 Common advertising info. .................................................................................................................................... 8 4.6 Configuration ................................................................................................................................................. 9 4.7 Data indication ............................................................................................................................................... 9 4.8 UUID description .......................................................................................................................................... 9 4.9 Status or event printing .................................................................................................................................. 9 5 AT command ........................................................................................................................................................... 11 5.1 Command description .................................................................................................................................. 11 5.2 Error code .................................................................................................................................................... 11 5.3 Status printing .............................................................................................................................................. 11 5.4 Command sets .............................................................................................................................................. 11 5.4.1 AT test command ................................................................................................................................................ 11 5.4.2 +++ enter AT command mode ........................................................................................................................... 12 5.4.3 AT+EXIT exit AT command mode ...................................................................................................................... 12 5.4.4 AT+RESET reset command .............................................................................................................…

Text truncated - open the document above for the full version.

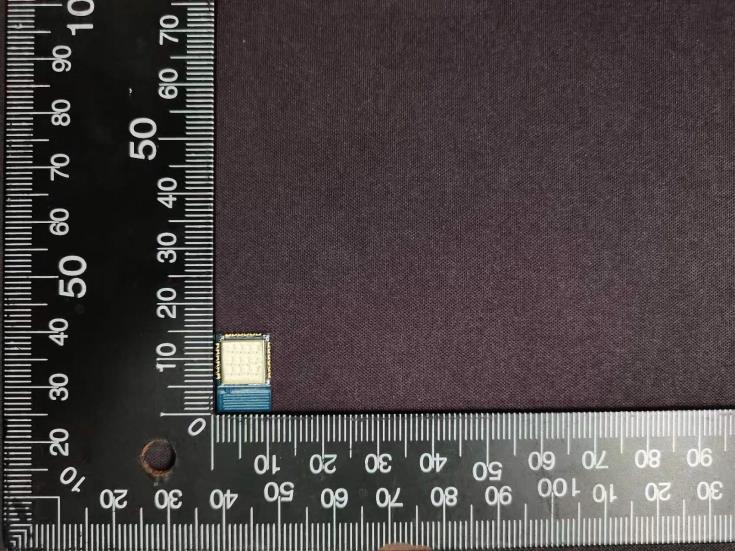

External Photos

Label location

Internal Photos

FCC ID: 2A8C3-BT52 RF Exposure Evaluation REQUIREMENT KDB447498 D01 General RF Exposure Guidance v06, Clause 4.3.1(a) [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 Where -f(GHz) is the RF channel transmit frequency in GHz -Power and distance are rounded to the nearest mW and mm before calculation -The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm, and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 4.1 f) is applied to determine SAR test exclusion. TEST RESULT Passed Not Applicable Type Channel(MHz) Conducted Power (dBm) Maximum Tune-up (dBm) Calculating data Limit Result BT BLE 00 0.83 1.00 0.3902 3.00 Pass Note: 1) The maximum antenna gain is -1dBi 2) The exposure evaluation safety distance is 5mm.

ANT-004-2G4 1、 Abstract ANT-004-2G4 is a PCB antenna for 2.4GHz portable devices such as Bluetooth and WiFi. 2、 Outline 3、 Frequency 2402-2480MHz 4、 Performance Parameter Size Parameter Frequency SW R 2402MHz <1.7 2460MHz <1.7 2480MHz <1.7 Smith chart Frequency Gain(max ) 2400MHz -2dBi 2460MHz -1dBi 2525MHz -1dBi SWR Chart XOY Planar antenna gain diagram Frequency Gain(max) 2400MHz -1dBi 2440MHz -1dBi 2525MHz -1dBi XOZ antenna gain diagram YOZ antenna gain diagram 5、 Notes The antenna is sensitive to the size of the PCB RF ground layer and the plastic shell of the product. The antenna can be modeled as an LC resonator whose resonant frequency decreases when L(inductance) or C(capacitance) is increased. Larger radio frequency layers and plastic enclosures increase the effective capacitance, reducing the resonant frequency. Adjust the matching parameters according to the actual installation situation. Frequency Gain(max ) 2400MHz -2dBi 2460MHz -2dBi 2525MHz -2dBi

Page: 1 of 30 TEST REPORT For Bluetooth-LE Report No. ...................................... : CHTEW22100006 Report Verification: Project No.................................： SHT2209001101EW FCC ID ............................................. : 2A8C3-BT52 Applicant’s name ........................... : Chengdu Ebyte Electronic Technology Co.,Ltd Address ............................................. : Building B5, Mould Industrial Park, 199# Xiqu Ave,611731,Chengdu,China Product Name ................................ : Bluetooth Module Trade Mark ....................................... : EBYTE Model No. ......................................... : E104-BT52 Listed Model(s) ................................. : - Standard ......................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of receipt of test sample..........: Sep.20, 2022 Date of testing.............................: Sep.20, 2022- Oct.08, 2022 Date of issue...............................: Oct.09, 2022 Result .................. ........................: PASS Compiled by ( Position+Printed name+Signature): File administrator Echo Wei Supervised by (Position+Printed name+Signature): Project Engineer Kiki Kong Approved by (Position+Printed name+Signature): RF Manager Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW22100006 Page: 2 of 30 Date of issue: 2022-10-09 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01) Contents 1. TEST S T AN D AR D S A N D R E P O R T V E R S I O N 3 1.1. Test Standards 3 1.2. Report version 3 2. TEST DESCRIPTION 4 3. SUMMARY 5 3.1. Client Information 5 3.2. Product Description 5 3.3. Radio Specification Description 5 3.4. Testing Laboratory Information 6 4. TEST CONFIGURATION 7 4.1. Test frequency list 7 4.2. Descriptions of Test mode 7 4.3. Test sample information 7 4.4. Support unit used in test configuration and system 8 4.5. Testing environmental condition 8 4.6. Statement of the measurement uncertainty 8 4.7. Equipment Used during the Test 9 5. TEST CONDITIONS AND RESULTS 11 5.1. Antenna Requirement 11 5.2. AC Conducted Emission 12 5.3. Peak Output Power 14 5.4. Power Spectral Density 15 5.5. 6dB bandwidth 16 5.6. 99% Occupied Bandwidth 17 5.7. Duty Cycle 18 5.8. Conducted Band edge and Spurious Emission 19 5.9. Radiated Band edge Emission 20 5.10. Radiated Spurious Emission 22 6. TEST SETUP PHOTOS 27 7. EXTERNAL AND INTERNAL PHOTOS 29 8. APPENDIX REPORT 30 Report No.: CHTEW22100006 Page: 3 of 30 Date of issue: 2022-10-09 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01) 1. TEST STAND ARDS AND REPORT VERSION 1.1. Test Standards The tests were performed according to following standards: ‒ FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz ‒ ANSI C63.10:2013: American National Standard for Testing Unlicensed Wireless Devices ‒ KDB 558074 D01 15.247 Meas Guidance v05r02: Guidance for Compliance Measurements on Digital Transmission System, Frequency Hopping Spread Spectrum System, and Hybrid System Devices Operating under Section 15.247 of The FCC Rules 1.2. Report version Revision No. Date of issue Description N/A 2022-10-09 Original Report No.: CHTEW22100006 Page: 4 of 30 Date of issue: 2022-10-09 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01) 2. TEST DESCRIPTION Report clause Test Items Standard Requirement Result Test Engineer 5.1 Antenna Requirement 15.203/15.247(c) PASS Xiaoxiao Li 5.2 AC Conducted Emission 15.207 PASS Junman Wang 5.3 Peak Output Power 15.247(b)(3) PASS Xiaoxiao Li 5.4 Power Spectral Density 15.247(e) PASS Xiaoxiao Li 5.5 6dB Bandwidth 15.247(a)(2) PASS Xiaoxiao Li 5.6 99% Occupied Bandwidth - PASS *1 Xiaoxiao Li 5.7 Duty cycle - PASS *1 Xiaoxiao Li 5.8 Conducted Band Edge and Spurious Emission 15.247(d)/15.205 PASS Xiaoxiao Li 5.9 Radiated Band Edge Emission 15.205/15.209 PASS Xiaoxiao Li 5.10 Radiated Spurious Emission 15.247(d)/15.205/15.209 PASS Dongyang Wu Note: ‒ The measurement uncertainty is not included in the test result. ‒ *1: No requirement on standard, only report these test data. Report No.: CHTEW22100006 Page: 5 of 30 Date of issue: 2022-10-09 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01) 3. SUMMARY 3.1. Client Information Applicant: Chengdu Ebyte Electronic Technology Co.,Ltd Address: Building B5, Mould Industrial Park, 199# Xiqu Ave,611731,Chengdu,China Manufacturer: Chengdu Ebyte Electronic Technology Co.,Ltd Address: Building B5, Mould Industrial Park, 199# Xiqu Ave,611731,Chengdu,China Factory: Chengdu Ebyte Electronic Technology Co.,Ltd. Address: Building B2 2nd floor, Mould Industrial Park, 199# Xiqu Ave, West High- tech Zone, Chengdu 3.2. Product Description Main unit information: Product Name: Bluetooth Module Trade Mark: EBYTE Model No.: E104-BT52 Listed Model(s): - Power supply: Test fixture with USB 3.3V power supply Hardware version: 1.0 Software version: 7212-1-13 3.3. Radio Specification Description Bluetooth version: V5.0 Support function …

Text truncated - open the document above for the full version.

Project No.: SHT2209001101EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 1 of 14 APPENDIX REPORT Project No. SHT2209001101EW Radio Specification Bluetooth BLE Test sample No. YPHT22090011003 Model No. E104-BT52 Start test date 2022-09-23 Finish date 2022-09-23 Temperature 26.3°C Humidity 31% Test Engineer Xiaoxiao Li Auditor Appendix clause Test item Result A Peak Output Power PASS B Power Spectral Density PASS C 6 dB Bandwidth PASS D 99% Occupied Bandwidth PASS E Duty cycle PASS F Band edge and Spurious Emissions (conducted) PASS Project No.: SHT2209001101EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 2 of 14 Appendix A：Peak Output Power Type Channel Peak Output power (dBm) Average Output power (dBm) Limit (dBm) Result BT-BLE 00 0.84 0.83 ≤ 30.00 Pass 19 0.81 0.79 39 0.79 0.76 Project No.: SHT2209001101EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 3 of 14 CH00 Date: 23.SEP.2022 09:22:19 CH19 Date: 23.SEP.2022 09:26:01 CH39 Date: 23.SEP.2022 09:28:02 Project No.: SHT2209001101EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 4 of 14 Appendix B：Power Spectral Density Type Channel Power Spectral Density(dBm/3KHz) Limit (dBm/3KHz) Result BT-BLE 00 -13.70 ≤8.00 Pass 19 -13.69 39 -13.57 Project No.: SHT2209001101EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 5 of 14 CH00 Date: 23.SEP.2022 09:23:09 CH19 Date: 23.SEP.2022 09:26:16 CH39 Date: 23.SEP.2022 09:28:37 Project No.: SHT2209001101EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 6 of 14 Appendix C：6dB bandwidth Type Channel 6dB Bandwidth(kHz) Limit (kHz) Result BT-BLE 00 768.00 ≥500 Pass 19 762.00 39 778.00 Project No.: SHT2209001101EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 7 of 14 CH00 Date: 23.SEP.2022 09:21:57 CH19 Date: 23.SEP.2022 09:25:44 CH39 Date: 23.SEP.2022 09:27:45 Project No.: SHT2209001101EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 8 of 14 Appendix D：99% Occupied Bandwidth Type Channel 99% Occupied Bandwidth(MHz) Limit (kHz) Result BT-BLE 00 1.05 - Pass 19 1.06 39 1.06 Project No.: SHT2209001101EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 9 of 14 CH00 Date: 23.SEP.2022 09:22:10 CH19 Date: 23.SEP.2022 09:25:52 CH39 Date: 23.SEP.2022 09:27:53 Project No.: SHT2209001101EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 10 of 14 Appendix E：Duty cycle Test Frequency （MHz） T on time for single burst (ms) T period (ms) Duty cycle 1/T on time (kHz) 2440 0.42 0.62 67.7% 2.4 Date: 23.SEP.2022 09:25:30 Project No.: SHT2209001101EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 11 of 14 Appendix F：Band edge and Spurious Emissions (conducted) Test Item: Band edge CH00 Date: 23.SEP.2022 09:23:19 CH39 Date: 23.SEP.2022 09:28:46 Project No.: SHT2209001101EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 12 of 14 Test Item: SE CH00 Reference level Date: 23.SEP.2022 09:23:27 CH00 30MHz~1000MHz Date: 23.SEP.2022 09:23:43 CH00 1GHz~26GHz Date: 23.SEP.2022 09:24:04 Project No.: SHT2209001101EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 13 of 14 CH19 Reference level Date: 23.SEP.2022 09:26:22 CH19 30MHz~1000MHz Date: 23.SEP.2022 09:26:38 CH19 1GHz~26GHz Date: 23.SEP.2022 09:26:54 Project No.: SHT2209001101EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 14 of 14 CH39 Reference level Date: 23.SEP.2022 09:28:53 CH39 30MHz~1000MHz Date: 23.SEP.2022 09:29:08 CH39 1GHz~26GHz Date: 23.SEP.2022 09:29:24 --------End of Report--------

TEST SETUP PHOTOS Radiated Emission AC Conducted Emission
