2A8DL-KEILER2LRFThermal Imaging camera

LUCHS -1 · Bedienungsanleitung 09 / 2021 – 3 D E INHALT 2 01. TECHNISCHE DATEN 4 02. SICHERHEITSHINWEISE 5 03. LIEFERUMFANG 6 04. KOMPONENTEN UND BEDIENELEMENTE 6 05. GRUNDLEGENDE FUNKTIONSWEISE 7 06. EINGABEMODI 10 STANDARDMODUS 10 BASISMODUS 10 BENUTZERDEFINIERTER MODUS 11 0 7. VORÜBERGEHENDE 2X ZOOMFUNKTION 11 08. MENÜFUNKTIONEN 12 HELLIGKEIT 12 BILDMODUS 12 FARBMODUS 13 BEDIENMODUS 13 KALIBRIERUNGSMODUS 14 WIFI 15 TREFFPUNKT JUSTIEREN 15 ERWEITERTE EINSTELLUNGEN 17 0 9. FOTO- UND VIDEOAUFNAHME 18 10. INTERNER SPEICHER 18 11. WIFI-VERBINDUNG 19 12. LADEVORGANG UND AKKU-WARNANZEIGE 19 13. INSTANDHALTUNG 19 14. STÖRUNGSBESEITIGUNG 20 01. TECHNISCHE DATEN* MODELL LUCHS -1 Detektor und Optik Auflösung und Typ 640×512 Mikrobolometer, VOx ungekühlt Pitch-Detektor12 μm Pixel-Sichtfeld0,34 mrad Detektions- reichweite 175 0 m Spektralbereich8 –14 μm Bildwiederholrate50 Hz NETD50 mK Objektivlinse35 mm/F1.0 Sichtfeld 22x17,6 m/100 m – 12.5°×10.0° Optische Vergrößerung 1x Nahbereich 2 m Verstellung pro Klick 2,76 cm/100 m / 0,95 MOA Verstellung (gesamt) +/− 82,8 cm/100 m / +/− 28 MOA Display1024×768 OLED Funktionen und Medien Digitaler Zoom Vorübergehende 2x Zoomfunktion Farbmodi White Hot, Black Hot, Extra Dunkel, Red Hot, Regenbogen WiFi-Frequenz- bereich 2400 MHz bis 2483,5 MHz MODELL LUCHS -1 WiFi-Übertra- gungsleistung ≤20 dBm WiFi-Signal- reichweite 5 m Interne Speicher- kapazität 32 GB Format der Foto-/ Videodateien JPG/MP4 Stromversorgung Akku Eingebauter aufladbarer Lithium-Ionen-Akku, 4800 mAh Externe Strom- versorgung USB-C Akkulebensdauer6,5 h bis 9 h* Physische Merkmale und Umweltmerkmale Gewicht580 g Größe161x64x65 mm AdaptergewindeM43x0.75 WasserdichtIP67 Betriebs-/ Aufbewahrungs- temperatur −20 °C bis +50 °C/ −40 °C bis +60 °C * in Abhängigkeit von den Umweltbedingungen, Einstellungen und Medienfunktionen. Das Design, die Software und die technischen Parameter des Produkts können Änderungen unterliegen, ohne dass im Vorfeld eine entspre- chende Benachrichtigung erfolgt. LUCHS -1 · Bedienungsanleitung 09 / 2021 – 5 D E 02. SICHERHEITSHINWEISE Es wird nicht empfohlen, die Wärmebildkamera für längere Zeit in einer Umgebung mit hohen Temperaturen zu verwenden. Wenn die Temperatur zu hoch ist, geht die Wärme- bildkamera in den Hochtemperatur-Schutzstatus über und schaltet sich automatisch ab. Die empfohlene Betriebstemperatur liegt bei −10 °C bis +50 °C. >Stellen Sie sicher, dass die Abdeckung des USB-Anschlusses an der Seite der Wärme- bildkamera bei der Verwendung in feuchten Umgebungen, z. B. an Regentagen, fest verschlossen ist. Entsorgung von Elektro-Altgeräten und Akkus Elektro-Altgeräte und Akkus dürfen nicht im Hausmüll entsorgt werden. Bitte geben Sie sie bei Ihrer lokalen Recycling-Annahmestelle ab. Akkus sollten bei der Entsorgung vollständig entladen sein. CE-Kennzeichnung: Die Geräte sind konform mit den EU-Richtlinien: EMV-Richtlinie 2014/35/EU RED-Richtlinie 2014/53/EU RoHS-Richtlinie 2011/65/EU Die Angaben zur EU-Konformitätserklärung finden Sie auf der Produkt-Homepage auf der Website von Liemke. VORSICHT! Das Objektiv des Geräts darf nicht auf intensive Energiequellen gerichtet werden, wozu beispielsweise Lasergeräte und die Sonne gehören. Ansonsten besteht ein Risiko für eine Beschädigung der elektronischen Komponenten des Geräts. Ein Schaden, der infolge einer Nichtbeachtung der Bedienungs- anweisungen entsteht, fällt nicht unter die Gewährleistungsansprüche. 4 010203 04 03. LIEFERUMFANG • LUCHS -1 Clip-on-Wärmebildkamera • Klappcover (montiert) • Gewindeschutz mit gummierter Augenmuschel (montiert) • USB-C-Kabel • USB-Ladegerät • Gewindeadapter M43x0,75 bis M52x0,75 mit Arretierring • Linsenreinigungstuch • Bedienungsanleitung 04. KOMPONENTEN UND BEDIENELEMENTE 01. Objektivlinse mit Fokusring 02. Tastenfeld mit drei Tasten (UP/MENU/DOWN) 03. Kollimator mit Gewindeschutzring 04. Drei-Positionen-Schalter (ON/Standby/OFF) 05. Montageschnittstelle am Boden des Geräts 06. USB-C Port mit Gummiabdeckung zum Laden und zur Datenübertra- gung 0506 LUCHS -1 · Bedienungsanleitung 09 / 2021 – 7 D E 05. GRUNDLEGENDE FUNKTIONSWEISE Vor der Verwendung Vor der Inbetriebnahme des Geräts wird eine technische Überprüfung empfohlen. >Prüfen Sie dabei den äußeren Zustand des Geräts: Das Gehäuse darf keine Risse aufweisen. >Prüfen Sie den Zustand des Objektivs und des Okulars: Sie sollten sauber und unbe- schädigt sein. >Prüfen Sie den Zustand des Akkus: Dieser sollte falls nötig geladen werden. >Prüfen Sie den USB-Anschluss und den Gummistecker: Die Kontakte sollten sauber sein und keine oxidierten Stellen aufweisen. Der Gummistecker sollte fest verschlossen sein, um den Schutz vor Feuchtigkeit sicherzustellen, bevor das Gerät verwendet wird. Objektiv-Fokusring >Stellen Sie den Fokus der Objektivlinse auf verschiedene Distanzen ein, indem Sie den Fokusring drehen, bis das Bild scharf ist. Objektivschutzdeckel Am Gerät ist ein schützender Klappdeckel angebracht. >Öffnen Sie den Deckel, indem Sie auf die Hebel gegenüber des Scharniers drücken. Der Klappdeckel springt in die vorgesehene Position, während sich das Scharnier komplett öffnet und beinahe bündig am Gehäuse anliegt. Der Klappdeckel kann gedreht werden, damit er sich zur linken oder rechten Seite oder nach oben öffnet. Der Deckel kann von dem Gerät entfernt werden, indem man den geschlossenen Deckel an der Rückseite des Scharniers anfasst und vom Gerät abzieht. Der Deckel kann wieder befestigt werden, indem er auf den Randabschluss des Objektivs gedrückt wird, bis er einrastet. Adaptergewinde und Gewindeabdeckung An der Rückseite des Geräts befindet sich ein Gewinde (M43x0,75) zum Befestigen eines Clip-on-Adapters. Das Gerät wird mit einer schützenden Gewindeabdeckung geliefert, die über eine gummierte Augenmuschel verfügt. 6 Wenn Sie das Gerät als Vorsatz-Gerät nutzen, muss diese Gewindeabdeckung entfernt werden. Dazu wird sie entgegen dem Uhrzeigersinn gedreht. Drei-Positionen-Schalthebel >Bewegen Sie den Hebel in die gewünscht…

Text truncated - open the document above for the full version.

Blaser Group GmbH Ziegelstadel 1, 88316 Isny Germany Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-8-22 To whom it may concern: We, Blaser Group GmbH, hereby certify that the equipment for which authorization is sought (FCC ID: 2A8DL-KEILER2LRF) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Daniela koemm Purchaser Blaser Group GmbH 62_[model] CoveredEqu_2.911(d)(5 )(i) and (ii) - U, V03

Blaser Group GmbH Ziegelstadel 1, 88316 Isny Germany Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024/08/21 U.S. Agent Designation Blaser Group GmbH acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2A8DL-KEILER2LRF): Name and company of U.S. agent: REP America LLC Physical U.S. address of agent: REP America LLC,1942 Broadway St. STE 314C Boulder, CO 80302 United States FRN of U.S. agent: 0034192500 Email address of U.S. agent: [email protected] REP America LLC acknowledges their obligation to accept service of process on behalf of Blaser Group GmbH Blaser Group GmbH with the FRN [0032774770] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Daniela koemm Purchaser Blaser Group GmbH Signature Ben Xu Manager REP America LLC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-8-22> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2A8DL-KEILER2LRF Keiler-2 LRF For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Daniela koemm/Purchaser Company: Blaser Group GmbH Address: Ziegelstadel 1, 88316 Isny Germany Phone: +49 6441 566 91 644 Fax: N/A E-Mail: [email protected]

Blaser Group GmbH Ziegelstadel 1, 88316 Isny Germany Date: 2024-8-22 FCC ID: 2A8DL-KEILER2LRF Model Number: Keiler-2 LRF To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Blaser Group GmbH, declare that this EUT (FCC ID: 2A8DL-KEILER2LRF) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name/Title： Daniela koemm/Purchaser Company: Blaser Group GmbH Address: Ziegelstadel 1, 88316 Isny Germany Phone: +49 6441 566 91 644 Fax: N/A E-Mail: [email protected]

Blaser Group GmbH Ziegelstadel 1, 88316 Isny Germany Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-8-22 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2A8DL-KEILER2LRF including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Daniela koemm/Purchaser Company: Blaser Group GmbH Address: Ziegelstadel 1, 88316 Isny Germany Phone: +49 6441 566 91 644 Fax: N/A E-Mail: [email protected]

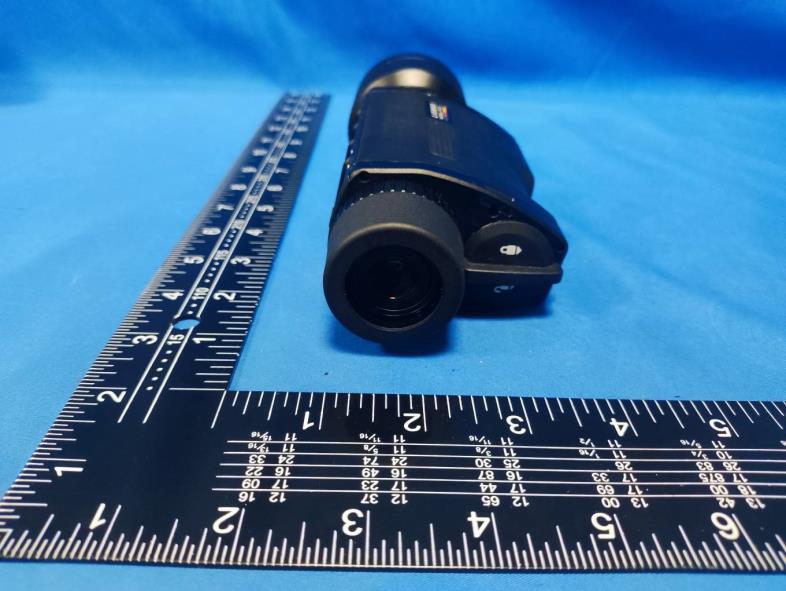

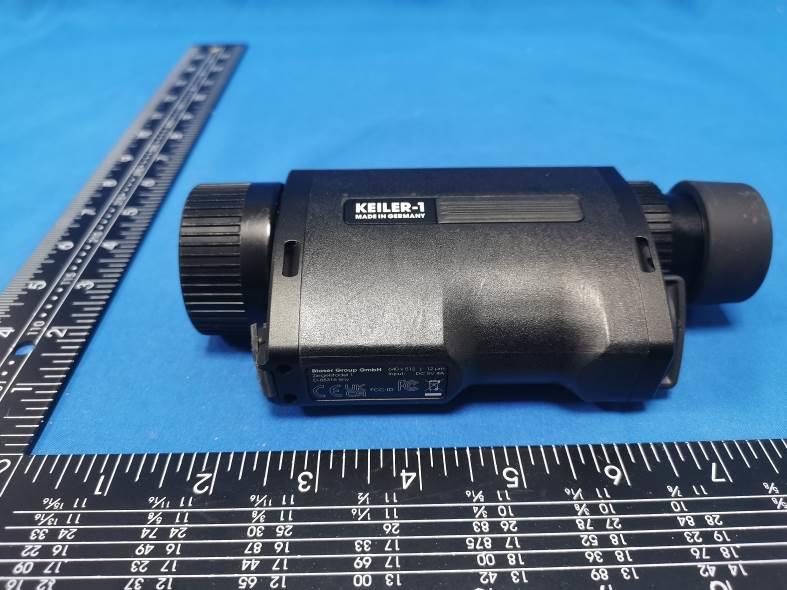

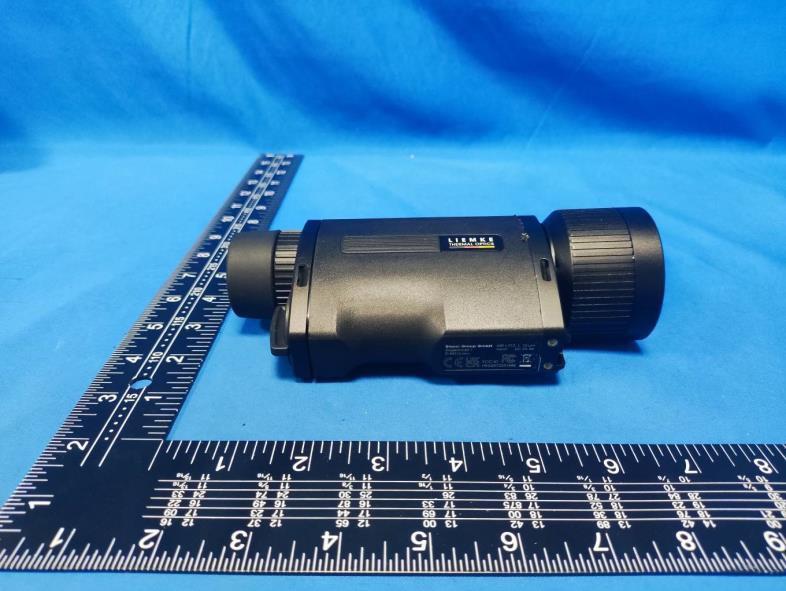

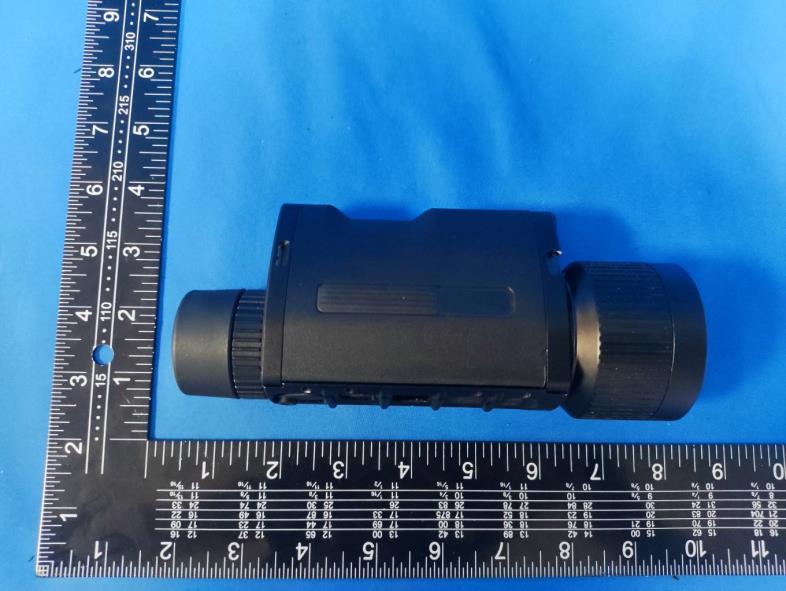

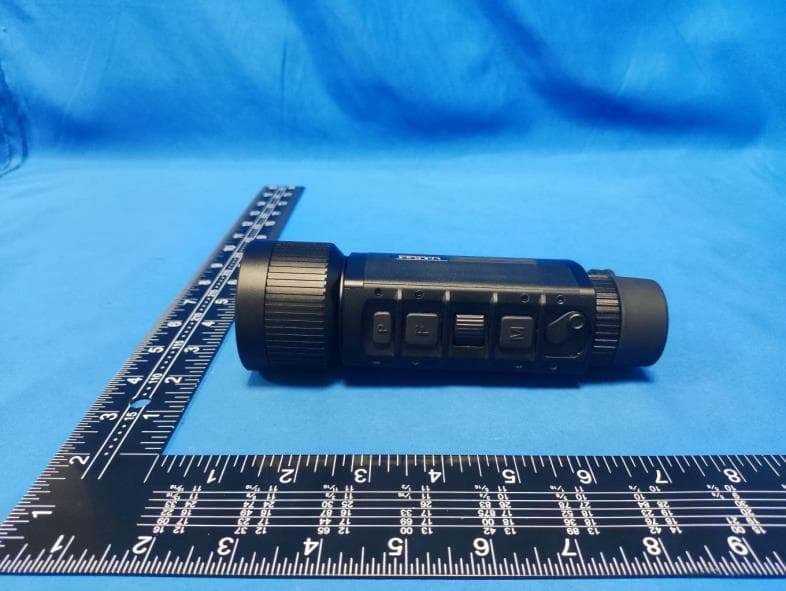

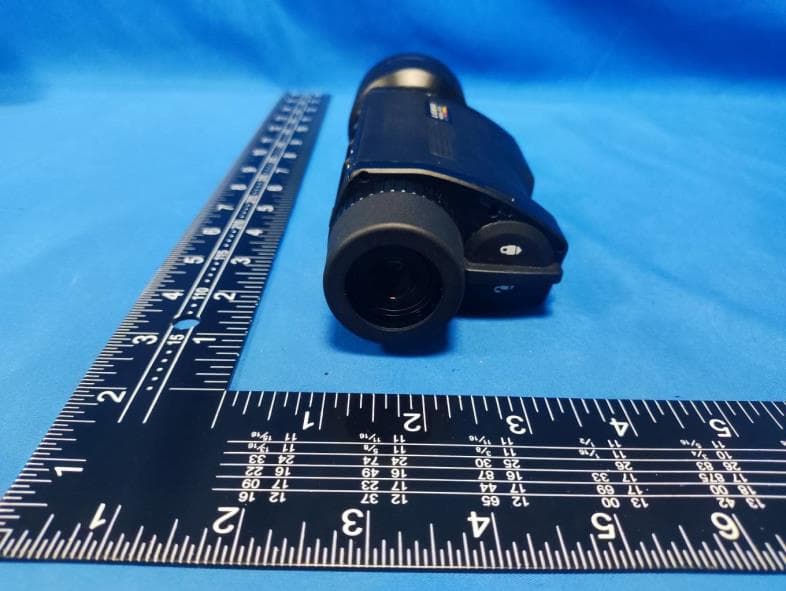

FCC ID: 2A8DL-KEILER2LRF External Photos of the EUT FCC ID: 2A8DL-KEILER2LRF

Label and Location Size: L: 3.0cm*W: 2.0cm Label and Location FCC ID : 2A8DL-KEILER2LRF

FCC ID: 2A8DL-KEILER2LRF Internal Photos of the EUT FCC ID: 2A8DL-KEILER2LRF FCC ID: 2A8DL-KEILER2LRF FCC ID: 2A8DL-KEILER2LRF FCC ID: 2A8DL-KEILER2LRF FCC ID: 2A8DL-KEILER2LRF FCC ID: 2A8DL-KEILER2LRF FCC ID: 2A8DL-KEILER2LRF ANT FCC ID: 2A8DL-KEILER2LRF FCC ID: 2A8DL-KEILER2LRF FCC ID: 2A8DL-KEILER2LRF FCC ID: 2A8DL-KEILER2LRF FCC ID: 2A8DL-KEILER2LRF FCC ID: 2A8DL-KEILER2LRF

RF Exposure evaluation FCC ID: 2A8DL-KEILER2LRF 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance 802.11b (Peak) Channel Channel 01 Channel 06 Channel 11 Target (dBm) 7.0 7.0 6.0 Tolerance ±(dB) 1.0 1.0 1.0 802.11g (Peak) Channel Channel 01 Channel 06 Channel 11 Target (dBm) 7.0 6.0 5.0 Tolerance ±(dB) 1.0 1.0 1.0 802.11n(H20) (Peak) Channel Channel 01 Channel 06 Channel 11 Target (dBm) 6.0 6.0 5.0 Tolerance ±(dB) 1.0 1.0 1.0 Page 2 of 2 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW 2.4GWiFi 2.450 5 8.0 6.3096 1.9752<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

1. Antenna Description: Antenna type PIFA antenna Model Keiler-2 LRF Frequency range 2400-2500MHz Manufacturer Wuhan Cono Technology Co.,Ltd. ANT Peak Gain 0.75 dBi 2. Antenna Photo: Length: 25.07mm Width: 9.33mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID............................................. : CTA24080900201 2A8DL-KEILER2LRF Compiled by ( position+printed name+signature) . : File administrators Jinghua Xiao Supervised by ( position+printed name+signature) . : Project Engineer Xudong Zhang Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Aug. 14, 2024 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Blaser Group GmbH Address ............................................ : Ziegelstadel 1, 88316 Isny Germany Test specification ........................... : Standard ........................................... : FCC Part 15.247 TRF Originator .................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Thermal Imaging camera Trade Mark ....................................... : LIEMKE Manufacturer .................................... : Wuhan Cono Technology Co.,Ltd. Model/Type reference ...................... : Keiler-2 LRF Listed Models .................................. : N/A Modulation Type ............................... : CCK/DSSS/OFDM Operation Frequency ........................ : From 2412 - 2462MHz Rating ............................................... : DC 3.7V From battery and DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA24080900201 Page 2 of 51 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Thermal Imaging camera Model /Type : Keiler-2 LRF Listed Models : N/A Applicant : Blaser Group GmbH Address : Ziegelstadel 1, 88316 Isny Germany Manufacturer : Wuhan Cono Technology Co.,Ltd. Address : Room 210-218, Building 7 WISCO High-tech Industrial No.5 Maodianshan Middle Road, Wuhan City (Free Trade Zone,Wuhan Area), China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24080900201 Page 3 of 51 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N DA R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Test Description 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 11 4.1 AC Power Conducted Emission 11 4.2 Radiated Emission 14 4.3 Maximum Peak Conducted Output Power 20 4.4 Power Spectral Density 21 4.5 6dB Bandwidth 24 4.6 Out-of-band Emissions 27 4.7 Antenna Requirement 34 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 35 6 P H O T O S O F T H E E U T ........................................................... 36 Report No.: CTA24080900201 Page 4 of 51 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 v05r02: Guidance for Compliance Measurements on Digital Transmission Systems (DTS) ,Frequency Hopping Spread Spectrum System(HFSS), and Hybrid System Devices Operating Under §15.247 of The FCC rules. Report No.: CTA24080900201 Page 5 of 51 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:cta@cta-te…

Text truncated - open the document above for the full version.

Report No.: CTA24080900201 Page 29 of 51 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11b 802.11g Reference Reference CH011 CH01 30MHz-3GHz 30MHz-3GHz 1GHz -25GHz 1GHz -25GHz Report No.: CTA24080900201 Page 30 of 51 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11g Reference Reference CH06 CH11 30MHz-3GHz 30MHz-3GHz 1GHz -25GHz 1GHz -25GHz Report No.: CTA24080900201 Page 31 of 51 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n20 Reference Reference CH01 CH06 30MHz-3GHz 30MHz-3GHz 1GHz -25GHz 1GHz -25GHz Report No.: CTA24080900201 Page 32 of 51 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n20 Reference CH11 30MHz-3GHz 1GHz -25GHz Report No.: CTA24080900201 Page 33 of 51 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Band-edge Measurements for RF Conducted Emissions: 802.11b Left bandedge Right bandedge 802.11g Left bandedge Right bandedge 802.11n(HT20) Left bandedge Right bandedge Report No.: CTA24080900201 Page 34 of 51 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.7 Antenna Requirement Standard Applicable For intentional device, according to FCC 47 CFR Section 15.203: An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator, the manufacturer may design the unit so that a broken antenna can be replaced by the user, but the use of a standard antenna jack or electrical connector is prohibited FCC CFR Title 47 Part 15 Subpart C Section 15.247(c) (1) (I): (i) Systems operating in the 2400-2483.5 MHz band that is used exclusively for fixed. Point-to-point operations may employ transmitting antennas with directional gain greater than 6dBi provided the maximum conducted output power of the intentional radiator is reduced by 1 dB for every 3 dB that the directional gain of the antenna exceeds 6dBi. Test Result: The maximum gain of antenna was 0.75 dBi. Remark:The antenna gain is provided by the customer , if the data provided by the customer is not accurate, Shenzhen CTA Testing Technology Co., Ltd. does not assume any responsibility. Report No.: CTA24080900201 Page 35 of 51 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 5 T e s t S e t u p P h o t o s o f t h e E U T Report No.: CTA24080900201 Page 36 of 51 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 6 P h o t o s o f t h e E U T Report No.: CTA24080900201 Page 37 of 51 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA24080900201 Page 38 of 51 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA24080900201 Page 39 of 51 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA24080900201 Page 40 of 51 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn

Report No.: CTA24080900201 Page 41 of 51 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA24080900201 Page 42 of 51 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA24080900201 Page 43 of 51 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA24080900201 Page 44 of 51 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA24080900201 Page 45 of 51 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA24080900201 Page 46 of 51 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA24080900201 Page 47 of 51 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 58…
