Shenzhen FreeYond Technology Co Ltd 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – EquipmentType Company name: Shenzhen FreeYond Technology Co Ltd Address: Unit 203, Block A,Tengfei Industrial Building, No.6 Taohua Road, Futian Bonded Area, Shenzhen, Guangdong, China Product Name: Tablet FCC ID: 2A8FE-P6 Model(s): P6 2.911(d)(5)(i) EquipmentType We, [Shenzhen FreeYond Technology Co Ltd] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Jianjun Xue Date: 2023/10/31 Title and Company name: Vice President / Shenzhen FreeYond Technology Co Ltd NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen FreeYond Technology Co Ltd 2.911 (d)(5)(ii) Applicant Attestation v1.2 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Shenzhen FreeYond Technology Co Ltd Address: Unit 203, Block A,Tengfei Industrial Building, No.6 Taohua Road, Futian Bonded Area, Shenzhen, Guangdong, China Product Name: Tablet FCC ID: 2A8FE-P6 Model(s): P6 2.911(d)(5)(ii) Applicant filing We, [Shenzhen FreeYond Technology Co Ltd] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 ,established pursuant to §1.50002 of this chapter,as an entity producing coveredcommunications equipment. Yours sincerely, Name: Jianjun Xue Date: 2023/10/31 Title and Company name: Vice President / Shenzhen FreeYond Technology Co Ltd Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen FreeYond Technology Co Ltd 2023.10.31 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR Product Name: Tablet FCC ID: 2A8FE-P6 Model(s): P6 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description - PCB LAYOUT & PCB PART PLACEMENT - Part list - Tune UP Required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Jianjun Xue / Vice President Contact information / address: Shenzhen FreeYond Technology Co Ltd / Unit 203, Block A,Tengfei Industrial Building, No.6 Taohua Road, Futian Bonded Area, Shenzhen, Guangdong, China

Shenzhen FreeYond Technology Co Ltd 2023/10/31 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION Product Name: Tablet FCC ID: 2A8FE-P6 Model(s): P6 To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Jianjun Xue / Vice President Contact information / address: Shenzhen FreeYond Technology Co Ltd / Unit 203, Block A,Tengfei Industrial Building, No.6 Taohua Road, Futian Bonded Area, Shenzhen, Guangdong, China

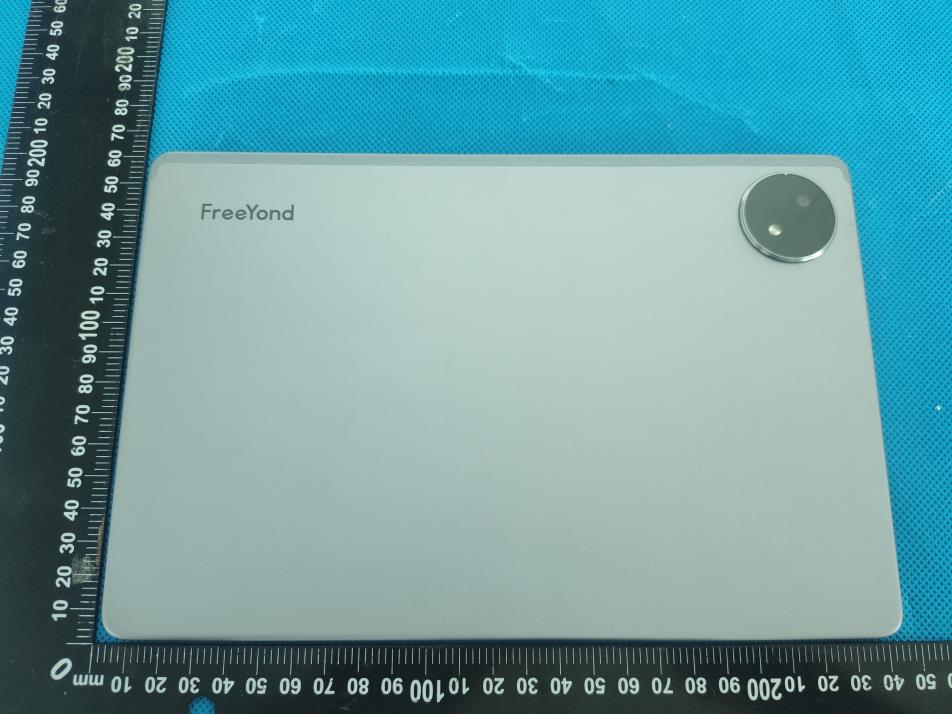

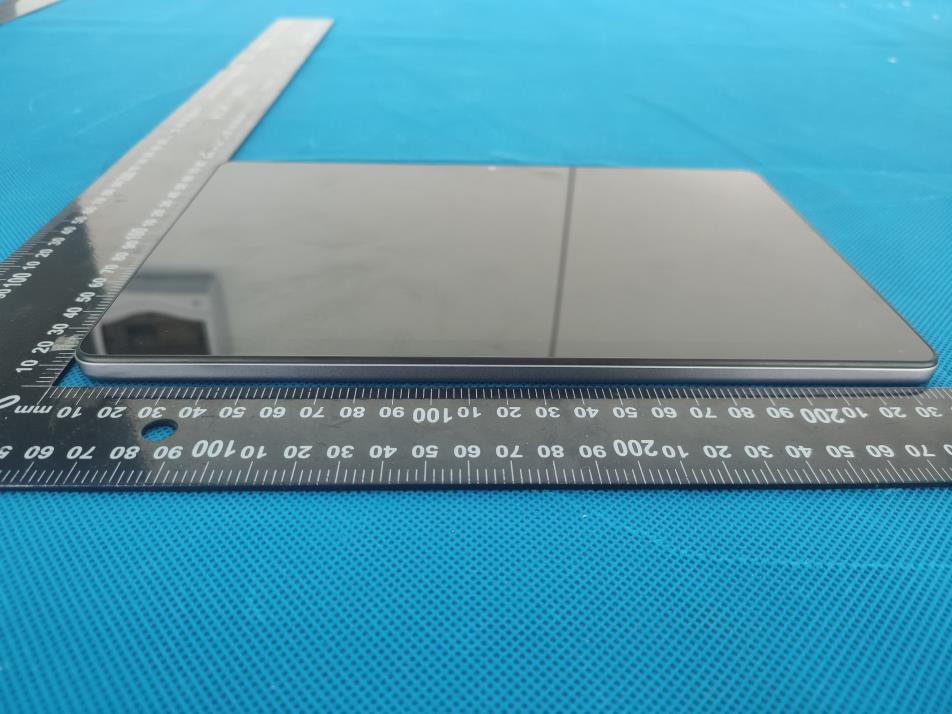

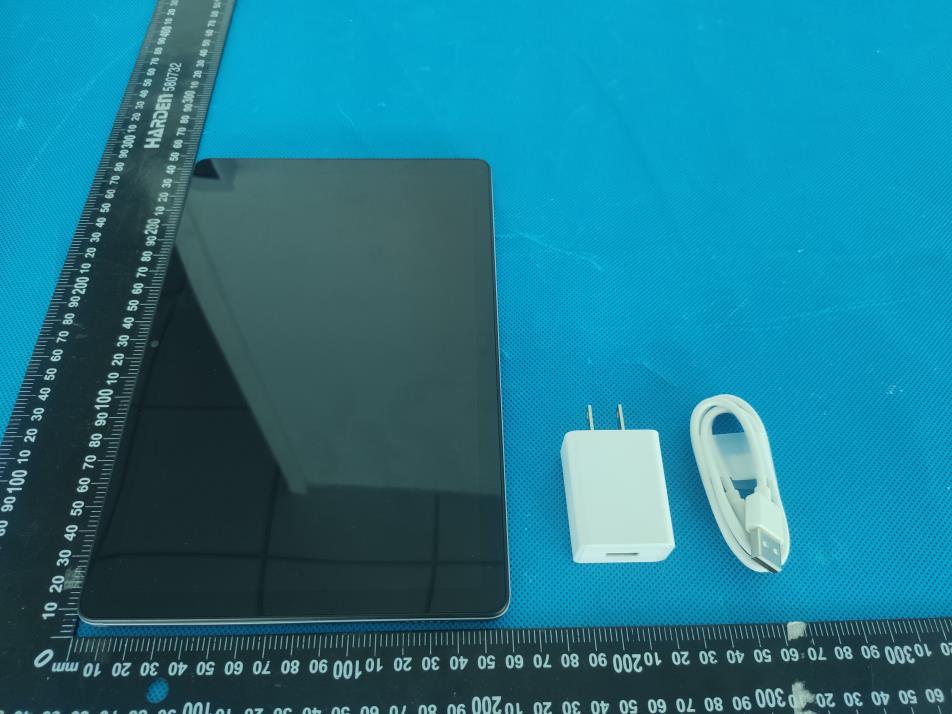

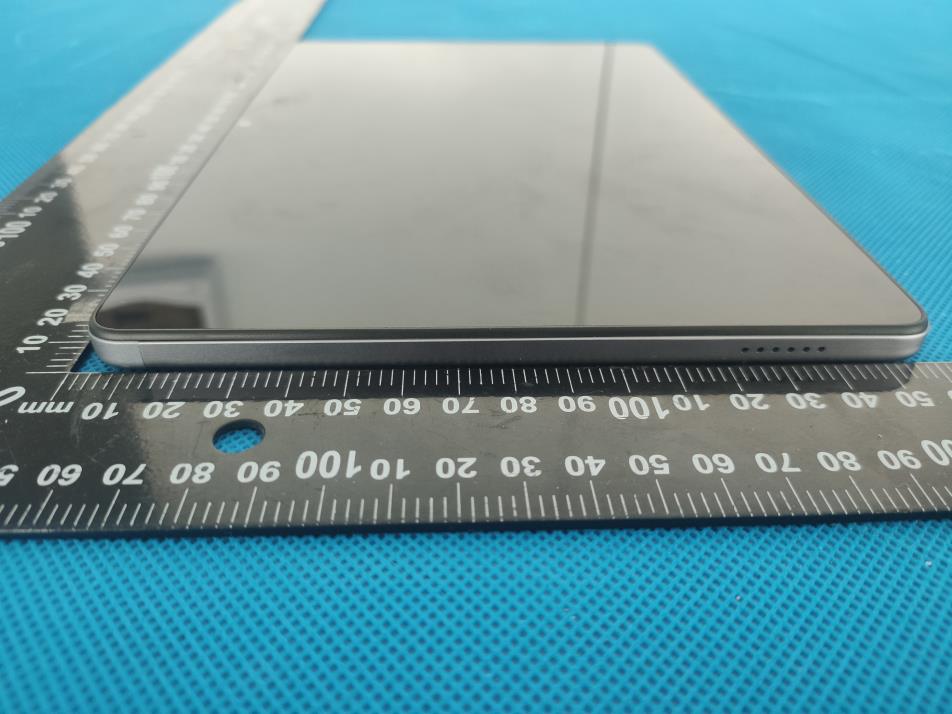

EUT EXTERNAL PHOTOGRAPHS EUT Photo 1 EUT Photo 2 EUT Photo 3 EUT Photo 4 EUT Photo 5 EUT Photo 6 EUT Photo 7 EUT Photo 8 ----------------The end----------------

Length * width：50MM*30MM Product Name: Tablet Model: P6 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: 2A8FE-P6

EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 EUT Housing and Board View 3 EUT Housing and Board View 4 EUT Housing and Board View 5 EUT Housing and Board View 6 EUT Housing and Board View 7 EUT Housing and Board View 8 EUT Housing and Board View 9 EUT Housing and Board View 10 EUT Housing and Board View 11 EUT Housing and Board View 12 WIFI/BT Antenna EUT Housing and Board View 13 EUT Housing and Board View 14 ----------------The end---------------- GSM/WCDMA/L TE Ant. LTE RX.Ant

No.：BCTC/RF-EMC-005 Page 1 of 219 Edition：B.0 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2309208793-7E Applicant: Shenzhen FreeYond Technology Co Ltd Product Name: Tablet Model/Type reference: P6 Tested Date: 2023-11-01 to 2023-11-03 Issued Date: 2023-11-14 Report No：BCTC2309208793-7E No.：BCTC/RF-EMC-005 Page 2 of 219 Edition：B.0 FCC ID: 2A8FE-P6 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Tablet Trademark: N/A Model/Type Ref.: P6 Applicant: Shenzhen FreeYond Technology Co Ltd Address: Unit 203,Block A,Tengfei Industrial Building , No.6 Taohua Road ,Futian Bonded Area ,Shenzhen ,Guangdong, China Manufacturer: Shenzhen FreeYond Technology Co Ltd Address: Unit 203,Block A,Tengfei Industrial Building , No.6 Taohua Road ,Futian Bonded Area ,Shenzhen ,Guangdong, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhanche ng , Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2023-10-27 Sample tested Date: 2023-11-01 to 2023-11-03 Issue Date: 2023-11-14 SAR Max. Values is： 1.218 W/kg (1g) for Body Test Standards: IEEE Std C95.1, 2019/ IEEE Std 1528™-2013/FCC Part 2.1093 Test Results: PASS Remark: This is SAR test report Tested by: Approved by: Min Zhi Cheng/ Project Handler Zero Zhou/ Reviewer Report No：BCTC2309208793-7E No.：BCTC/RF-EMC-005 Page 3 of 219 Edition：B.0 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Standards ...................................................................................................... 6 3. Test Summary ....................................................................................................... 7 4. SAR Limits............................................................................................................. 8 5. Measurement Uncertainty ..................................................................................... 9 6. Product Information and Test Setup .................................................................... 10 6.1 Product Information ............................................................................................... 10 6.2 Test Setup Configuration ....................................................................................... 13 6.3 Support Equipment ................................................................................................ 13 6.4 Test Environment .................................................................................................. 13 7. Test Facility and Test Instrument Used ............................................................... 14 7.1 Test Facility ........................................................................................................... 14 7.2 Test Instrument Used ............................................................................................ 15 8. Specific Absorption Rate (SAR) .......................................................................... 17 8.1 Introduction ............................................................................................................ 17 8.2 SAR Definition ....................................................................................................... 17 9. SAR Measurement System ................................................................................. 18 9.1 The Measurement System ..................................................................................... 18 9.2 Probe ..................................................................................................................... 18 9.3 Probe Calibration Process ..................................................................................... 20 9.4 Phantom ................................................................................................................ 21 9.5 Device Holder ........................................................................................................ 21 10. Tissue Simulating Liquids .................................................................................... 22 10.1 Composition of Tissue Simulating Liquid ............................................................. 22 10.2 Limit ..................................................................................................................... 23 10.3 Tissue Calibration Result ..................................................................................... 24 11. System Check ..................................................................................................... 25 11.1 Purpose of System Performance Check .............................................................. 25 11.2 System Setup ...................................................................................................... 25 11.3 Validation Results ................................................................................................ 26 12. EUT Testing Position ........................................................................................... 27 13. SAR Measurement Procedures ........................................................................... 28 13.1 Measurement Procedures ................................................................................... 28 13.2 Spatial Peak SAR Evaluation .............................................................................. 28 13.3 Area & Zoom Scan Procedures ........................................................................... 29 13.4 Volume Scan Procedures ..............…

Text truncated - open the document above for the full version.

Report No：BCTC2309208793-7E No.：BCTC/RF-EMC-005 Page 51 of 219 Edition：B.0 Band Bandwidth (MHz) UL Channel RB Size RB Position Modulation Power (dBm) Band66 1.4 131979 1 #0 QPSK 23.17 Band66 1.4 131979 1 #Mid QPSK 23.13 Band66 1.4 131979 1 #Max QPSK 23.10 Band66 1.4 131979 3 #0 QPSK 22.92 Band66 1.4 131979 3 #Mid QPSK 22.96 Band66 1.4 131979 3 #Max QPSK 23.02 Band66 1.4 131979 6 #0 QPSK 21.97 Band66 1.4 131979 1 #0 16QAM 23.07 Band66 1.4 131979 1 #Mid 16QAM 23.12 Band66 1.4 131979 1 #Max 16QAM 23.08 Band66 1.4 131979 3 #0 16QAM 22.31 Band66 1.4 131979 3 #Mid 16QAM 22.34 Band66 1.4 131979 3 #Max 16QAM 22.29 Band66 1.4 131979 6 #0 16QAM 21.29 Band66 1.4 132322 1 #0 QPSK 22.95 Band66 1.4 132322 1 #Mid QPSK 23.10 Band66 1.4 132322 1 #Max QPSK 22.99 Band66 1.4 132322 3 #0 QPSK 23.00 Band66 1.4 132322 3 #Mid QPSK 22.95 Band66 1.4 132322 3 #Max QPSK 23.03 Band66 1.4 132322 6 #0 QPSK 22.08 Band66 1.4 132322 1 #0 16QAM 22.20 Band66 1.4 132322 1 #Mid 16QAM 22.10 Band66 1.4 132322 1 #Max 16QAM 22.24 Band66 1.4 132322 3 #0 16QAM 21.88 Band66 1.4 132322 3 #Mid 16QAM 21.93 Band66 1.4 132322 3 #Max 16QAM 21.91 Band66 1.4 132322 6 #0 16QAM 21.32 Band66 1.4 132665 1 #0 QPSK 23.04 Band66 1.4 132665 1 #Mid QPSK 23.08 Band66 1.4 132665 1 #Max QPSK 23.04 Band66 1.4 132665 3 #0 QPSK 22.92 Band66 1.4 132665 3 #Mid QPSK 22.98 Band66 1.4 132665 3 #Max QPSK 22.99 Band66 1.4 132665 6 #0 QPSK 22.06 Band66 1.4 132665 1 #0 16QAM 21.98 Band66 1.4 132665 1 #Mid 16QAM 21.98 Band66 1.4 132665 1 #Max 16QAM 22.08 Band66 1.4 132665 3 #0 16QAM 22.03 Band66 1.4 132665 3 #Mid 16QAM 22.02 Band66 1.4 132665 3 #Max 16QAM 21.98 Band66 1.4 132665 6 #0 16QAM 21.14 Band66 3 131987 1 #0 QPSK 22.97 Band66 3 131987 1 #Mid QPSK 23.05 Band66 3 131987 1 #Max QPSK 23.00 Band66 3 131987 8 #0 QPSK 21.94 Band66 3 131987 8 #Mid QPSK 21.95 Band66 3 131987 8 #Max QPSK 22.01 Band66 3 131987 15 #0 QPSK 22.10 Band66 3 131987 1 #0 16QAM 23.23 Band66 3 131987 1 #Mid 16QAM 23.19 Band66 3 131987 1 #Max 16QAM 23.28 Band66 3 131987 8 #0 16QAM 21.09 Band66 3 131987 8 #Mid 16QAM 21.05 Band66 3 131987 8 #Max 16QAM 21.07 Report No：BCTC2309208793-7E No.：BCTC/RF-EMC-005 Page 52 of 219 Edition：B.0 Band66 3 131987 15 #0 16QAM 21.21 Band66 3 132322 1 #0 QPSK 23.02 Band66 3 132322 1 #Mid QPSK 23.03 Band66 3 132322 1 #Max QPSK 23.00 Band66 3 132322 8 #0 QPSK 22.02 Band66 3 132322 8 #Mid QPSK 22.13 Band66 3 132322 8 #Max QPSK 22.06 Band66 3 132322 15 #0 QPSK 22.11 Band66 3 132322 1 #0 16QAM 22.17 Band66 3 132322 1 #Mid 16QAM 22.14 Band66 3 132322 1 #Max 16QAM 22.16 Band66 3 132322 8 #0 16QAM 21.28 Band66 3 132322 8 #Mid 16QAM 21.32 Band66 3 132322 8 #Max 16QAM 21.36 Band66 3 132322 15 #0 16QAM 21.26 Band66 3 132657 1 #0 QPSK 23.04 Band66 3 132657 1 #Mid QPSK 23.06 Band66 3 132657 1 #Max QPSK 23.03 Band66 3 132657 8 #0 QPSK 21.95 Band66 3 132657 8 #Mid QPSK 21.94 Band66 3 132657 8 #Max QPSK 21.97 Band66 3 132657 15 #0 QPSK 22.04 Band66 3 132657 1 #0 16QAM 22.03 Band66 3 132657 1 #Mid 16QAM 22.00 Band66 3 132657 1 #Max 16QAM 21.99 Band66 3 132657 8 #0 16QAM 21.04 Band66 3 132657 8 #Mid 16QAM 21.05 Band66 3 132657 8 #Max 16QAM 21.06 Band66 3 132657 15 #0 16QAM 21.19 Band66 5 131997 1 #0 QPSK 22.96 Band66 5 131997 1 #Mid QPSK 23.01 Band66 5 131997 1 #Max QPSK 23.12 Band66 5 131997 12 #0 QPSK 22.06 Band66 5 131997 12 #Mid QPSK 22.15 Band66 5 131997 12 #Max QPSK 22.00 Band66 5 131997 25 #0 QPSK 22.05 Band66 5 131997 1 #0 16QAM 22.08 Band66 5 131997 1 #Mid 16QAM 22.16 Band66 5 131997 1 #Max 16QAM 22.21 Band66 5 131997 12 #0 16QAM 21.10 Band66 5 131997 12 #Mid 16QAM 21.06 Band66 5 131997 12 #Max 16QAM 21.15 Band66 5 131997 25 #0 16QAM 21.29 Band66 5 132322 1 #0 QPSK 23.09 Band66 5 132322 1 #Mid QPSK 23.14 Band66 5 132322 1 #Max QPSK 23.21 Band66 5 132322 12 #0 QPSK 22.02 Band66 5 132322 12 #Mid QPSK 22.13 Band66 5 132322 12 #Max QPSK 22.13 Band66 5 132322 25 #0 QPSK 22.03 Band66 5 132322 1 #0 16QAM 22.18 Band66 5 132322 1 #Mid 16QAM 22.19 Band66 5 132322 1 #Max 16QAM 22.23 Band66 5 132322 12 #0 16QAM 21.02 Band66 5 132322 12 #Mid 16QAM 21.04 Band66 5 132322 12 #Max 16QAM 20.96 Band66 5 132322 25 #0 16QAM 21.22 Report No：BCTC2309208793-7E No.：BCTC/RF-EMC-005 Page 53 of 219 Edition：B.0 Band66 5 132647 1 #0 QPSK 22.82 Band66 5 132647 1 #Mid QPSK 22.76 Band66 5 132647 1 #Max QPSK 22.84 Band66 5 132647 12 #0 QPSK 21.98 Band66 5 132647 12 #Mid QPSK 22.04 Band66 5 132647 12 #Max QPSK 21.99 Band66 5 132647 25 #0 QPSK 22.04 Band66 5 132647 1 #0 16QAM 22.58 Band66 5 132647 1 #Mid 16QAM 22.52 Band66 5 132647 1 #Max 16QAM 22.61 Band66 5 132647 12 #0 16QAM 21.08 Band66 5 132647 12 #Mid 16QAM 21.04 Band66 5 132647 12 #Max 16QAM 21.06 Band66 5 132647 25 #0 16QAM 21.22 Band66 10 132022 1 #0 QPSK 22.93 Band66 10 132022 1 #Mid QPSK 23.07 Band66 10 132022 1 #Max QPSK 23.10 Band66 10 132022 25 #0 QPSK 21.97 Band66 10 132022 25 #Mid QPSK 22.00 Band66 10 132022 25 #Max QPSK 22.27 Band66 10 132022 50 #0 QPSK 22.05 Band66 10 132022 1 #0 16QAM 23.17 Band66 10 132022 1 #Mid 16QAM 23.24 Band66 10 132022 1 #Max 16QAM 23.33 Band66 10 132022 25 #0 16QAM 21.23 Band66 10 132022 25 #Mid 16QAM 21.18 Band66 10 132022 25 #Max 16QAM 21.33 Band66 10 132022 50 #0 16QAM 21.23 Band66 10 132322 1 #0 QPSK 23.07 Band66 10 132322 1 #Mid QPSK 23.06 Band66 10 132322 1 #Max QPSK 23.06 Band66 10 132322 25 #0 QPSK 22.05 Band66 10 132322 25 #Mid QPSK 22.17 Band66 10 132322 25 #Max QPSK 22.16 Band66 10 132322 50 #0 QPSK 22.15 Band66 10 132322 1 #0 16QAM 22.76 Band66 10 132322 1 #Mid 16QAM 22.69 Band66 10 132322 1 #Max 16QAM 22.75 Band66 10 132322 25 #0 16QAM 21.19 Band66 10 132322 25 #Mid 16QAM 21.22 Band66 10 132322 25 #Max 16QAM 21.22 Band66 10 132322 50 #0 16QAM 21.28 Band66 10 132622 1 #0 QPSK 23.07 Band66 10 132622 1 #Mid QPSK 23.02 Band66 10 132622 1 #Max QPSK 23.10 Band66 10 132622 25 #0 QPSK 22.01 Band66 10 132622 25 #Mid QPSK 21.97 Band66 10 132622 25 #Max QPSK 21.96 Band66 10 132622 50 #0 QPSK 22.05 Band66 10 132622 1 #0 16QAM 22.24 Band66 10 132622 1 #Mid 16QAM 22.39 Band66 10 132622 1 #Max 16QAM 22.39 Band66 10 13…

Text truncated - open the document above for the full version.

Report No：BCTC2309208793-7E No.：BCTC/RF-EMC-005 Page 101 of 219 Edition：B.0 F. 3D Image 3D screen shot Hot spot position Report No：BCTC2309208793-7E No.：BCTC/RF-EMC-005 Page 102 of 219 Edition：B.0 Plot 9 A. Experimental conditions. Probe SN 26/23 EPGO420 ConvF 1.03 Area Scan surf_sam_plan.txt Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Body Band LTE band 41 Channels 41140 Signal LTE (Crest factor: 1.0) B. Permitivity Frequency (MHz) 2645.000 2645.000 Relative permitivity (real part) 40.129 37.649 Relative permitivity (imaginary part) 13.746 13.746 Conductivity (S/m) 1.908 1.911 C. SAR Surface and Volume SURFACE SAR VOLUME SAR Maximum location: X=-16.00, Y=2.00 ; SAR Peak: 2.47 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 0.462 SAR 1g (W/Kg) 1.088 Variation (%) 4.700 Horizontal validation criteria: minimum distance (mm) 0.000000 Vertical validation criteria: SAR ratio M2/M1 (%) 0.000000 E. Z Axis Scan Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 2.404 1.169 0.428 0.174 0.117 Report No：BCTC2309208793-7E No.：BCTC/RF-EMC-005 Page 103 of 219 Edition：B.0 F. 3D Image 3D screen shot Hot spot position Report No：BCTC2309208793-7E No.：BCTC/RF-EMC-005 Page 104 of 219 Edition：B.0 Plot 10 A. Experimental conditions. Probe SN 26/23 EPGO420 ConvF 0.96 Area Scan surf_sam_plan.txt Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Body Band LTE_Band_66 Channels 132072 Signal Custom (Crest factor: 1.0) B. Permitivity Frequency (MHz) 1720.000 1720.000 Relative permitivity (real part) 41.035 40.743 Relative permitivity (imaginary part) 14.054 14.054 Conductivity (S/m) 1.378 1.401 C. SAR Surface and Volume SURFACE SAR VOLUME SAR Maximum location: X=-2.00, Y=22.00 ; SAR Peak: 1.66 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 0.406 SAR 1g (W/Kg) 0.824 Variation (%) 2.610 Horizontal validation criteria: minimum distance (mm) 0.000000 Vertical validation criteria: SAR ratio M2/M1 (%) 0.000000 E. Z Axis Scan Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 1.657 0.879 0.380 0.187 0.134 Report No：BCTC2309208793-7E No.：BCTC/RF-EMC-005 Page 105 of 219 Edition：B.0 F. 3D Image 3D screen shot Hot spot position Report No：BCTC2309208793-7E No.：BCTC/RF-EMC-005 Page 106 of 219 Edition：B.0 Plot 11 A. Experimental conditions. Probe SN 26/23 EPGO420 ConvF 1.11 Area Scan surf_sam_plan.txt Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Body Band IEEE 802.11b ISM Channels 12 Signal IEEE802.b (Crest factor: 1.0) B. Permitivity Frequency (MHz) 2462.000 2462.000 Relative permitivity (real part) 37.690 40.440 Relative permitivity (imaginary part) 13.212 13.212 Conductivity (S/m) 1.750 1.867 C. SAR Surface and Volume SURFACE SAR VOLUME SAR Maximum location: X=-2.00, Y=24.00 ; SAR Peak: 0.67 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 0.152 SAR 1g (W/Kg) 0.208 Variation (%) -0.950 Horizontal validation criteria: minimum distance (mm) 0.000000 Vertical validation criteria: SAR ratio M2/M1 (%) 0.000000 E. Z Axis Scan Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.633 0.304 0.117 0.071 0.092 Report No：BCTC2309208793-7E No.：BCTC/RF-EMC-005 Page 107 of 219 Edition：B.0 F. 3D Image 3D screen shot Hot spot position Report No：BCTC2309208793-7E No.：BCTC/RF-EMC-005 Page 108 of 219 Edition：B.0 Plot 12 A. Experimental conditions. Probe SN 26/23 EPGO420 ConvF 1.18 Area Scan surf_sam_plan.txt Zoom Scan 7x7x12,dx=4mm dy=4mm dz=5mm Phantom Validation plane Device Position Body Band 5200 Channels Middle (1) Signal Custom (Crest factor: 1.0) B. Permitivity Frequency (MHz) 5200.000 5200.000 Relative permitivity (real part) 35.871 35.871 Relative permitivity (imaginary part) 16.130 16.130 Conductivity (S/m) 4.890 4.890 C. SAR Surface and Volume SURFACE SAR VOLUME SAR Maximum location: X=-27.00, Y=-49.00 ; SAR Peak: 0.47 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 0.103 SAR 1g (W/Kg) 0.199 Variation (%) 3.640 Horizontal validation criteria: minimum distance (mm) 0.000000 Vertical validation criteria: SAR ratio M2/M1 (%) 0.000000 E. Z Axis Scan Z (mm) 0.00 4.00 6.00 8.00 10.00 12.00 14.00 16.00 18.00 SAR (W/Kg) 1.021 0.229 0.005 0.436 0.482 0.286 0.324 0.249 0.129 Report No：BCTC2309208793-7E No.：BCTC/RF-EMC-005 Page 109 of 219 Edition：B.0 F. 3D Image 3D screen shot Hot spot position Report No：BCTC2309208793-7E No.：BCTC/RF-EMC-005 Page 110 of 219 Edition：B.0 Plot 13 A. Experimental conditions. Probe SN 26/23 EPGO420 ConvF 1.15 Area Scan surf_sam_plan.txt Zoom Scan 7x7x12,dx=4mm dy=4mm dz=5mm Phantom Validation plane Device Position Body Band 5800 Channels Lower (0) Signal Custom (Crest factor: 1.0) B. Permitivity Frequency (MHz) 5745.000 5745.000 Relative permitivity (real part) 36.074 35.130 Relative permitivity (imaginary part) 16.344 16.344 Conductivity (S/m) 5.251 5.193 C. SAR Surface and Volume SURFACE SAR VOLUME SAR Maximum location: X=-5.00, Y=22.00 ; SAR Peak: 0.98 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 0.156 SAR 1g (W/Kg) 0.218 Variation (%) -2.780 Horizontal validation criteria: minimum distance (mm) 0.000000 Vertical validation criteria: SAR ratio M2/M1 (%) 0.000000 E. Z Axis Scan Z (mm) 0.00 4.00 6.00 8.00 10.00 12.00 14.00 16.00 18.00 SAR (W/Kg) 1.529 0.481 0.193 0.158 0.043 0.104 0.063 0.164 0.230 Report No：BCTC2309208793-7E No.：BCTC/RF-EMC-005 Page 111 of 219 Edition：B.0 F. 3D Image 3D screen shot Hot spot position Report No：BCTC2309208793-7E No.：BCTC/RF-EMC-005 Page 112 of 219 Edition：B.0 16. CALIBRATION CERTIFICATES Probe-EPGO420 Calibration Certificate SID750Dipole Calibration Ceriticate SID8350Dipole Calibration Ceriticate SID1800Dipole Calibration Ceriticate SID1900Dipole Calibration Ceriticate SID2450Dipole Calibration Ceriticate SID2600Dipole Calibration Ceriticate SID5000Dipole Calibration Ceriticate Report No：BCTC2309208793-7E No.：BCTC/RF-EMC-005 Page 113 of 219 Edition：B.0 Report No：BCTC2309208793-7E No.：BCTC/RF-EMC-005 Page 114 of 219 Edition：B.0 Report No：BCTC2309208793-7E No.：BCTC/RF-EMC-005 Page 115 of 219 Edition：B.0 Report No：BCTC2309208793-7E No.：BCTC/RF-EMC-005 Page 116 of 219…

Text truncated - open the document above for the full version.

Report No：BCTC2309208793-7E No.：BCTC/RF-EMC-005 Page 126 of 219 Edition：B.0 Repor…
