2A8FE2308005MSmart Phone

Attention For instructions or questions pertaining to phone usage, please click on the FreeYond page by visiting the following address: www.ifreeyond.com Safety Information Please carefully read the terms below: Use Safely Do not use the phone in situations where it might cause danger. Transportation Safety Please observe all transportation laws and regulations. Please drive with both hands on the wheel. Hospital Safety Please follow hospital rules and limitations. Please turn off your mobile phone when near medical instruments. Airport Safety Remember to follow all airport and flight safety regulations. Please do not use your phone during flight. Chemical Warning Do not use your mobile phone around fuels or chemicals. PLEASE DRIVE RESPONSIBLY - DO NOT TEXT AND DRIVE Temperature Warning Do not subject your phone to extreme temperature conditions. Water Hazard Your phone is not waterproof. Keep your phone away from water or liquid to avoid damage. Emergency Calls Make sure your mobile phone is switched on and in a service area. In home screen, tap the phone key and dial the emergency number. Accessories and Batteries Use only FreeYond authorized batteries and accessories. Information Backup Remember to keep a written record of all important information. Battery Safety and Precautions - For better performance and longer battery life, it is recommended that you charge the battery fully before using the mobile phone for the first time. - The optimum performance of a new battery is typically achieved after two or three complete charge cycles. Note: Keep in mind that continuous overcharging will affect long term battery life. - While charging, keep the mobile phone out the reach of children. - Store the battery in a cool and dry place away from direct sunlight and water. - Do not expose batteries to extreme temperatures (below -8°C (18°F) or above 43°C (110°F). - Immediately stop using the battery if it produces an odor, cracks and leaks, overheats, distorts or has any other type of physical damage. - Avoid using the charger near or around liquids. If the charger comes in contact with water or any liquids, immediately unplug it from the outlet to reduce the risk of overheating, charger malfunction, electric shock or fire. Warning: Please be careful with the disposal of used batteries. Do not throw away batteries with daily waste. Please follow local environmental laws and guidelines for proper waste disposal. Cleaning and Maintenance - Avoid using the handset and accessories in excessively moist areas to avoid malfunction. - Use a soft, dry cloth to clean the handset, battery and charger. - Do not use alcohol, thinner, benzene or any other solvent to clean the handset. IMEI Information - To check your IMEI, press *#06#. FCC Regulations This mobile phone complies with part 15 of the FCC Rules.Operation is subject to the following two conditions:(1)This device may not cause harmful interference,and (2)this device must accept any interference received, including interference that may cause undesired operation.This mobile phone has been tested and found to comply with the limits for a Class B digital device,pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,may cause harmful interference to radio communications. However,there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on,the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. RF Exposure Information(SAR) This device meets the government's requirements for exposure to radio waves.This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency(RF) energy.The exposure standard for wireless devices employs a unit of measurement known as Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/Kg.For body-worn operation,this device has been tested and meets the FCC RF exposure guidelines for use with an accessory that contains no metal and positions the device a minimum of 1.0 cm from the body.RF exposure compliance with any body-worn accessory that contains metal was not tested and certified,and use of such body-worn accessory should be avoided. Any accessory used with this device for body-worn operation must keep the device a minimum of 1.0 cm away from the body. FCC Note Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Appearance and Key Function Front Camera Volume Home MenuBack Power On / Off Fingerprint Sensor Rear Camera (Main) Flash Mic Headset Port USB Port Speaker Rear Camera (Macro) Rear Camera (Ultra-Wide Angle) Used to power on/off the device and to lock the screen. Power On / Off » Long press the power button to power on » While the phone is powered on, long press to access the power off menu or click to lock the screen Volume Adjusts the ringer volume, call volume, and multimedia volume. Home The home button pauses any current action and returns to the home screen. Menu Opens a list of recently opened applications that allows you to switch conveniently between them. This option can also close any open applications by swiping to the side. Back Returns to the previous screen; Closes the keyboard, any open program, or any menu option. USB Port Charges the device…

Text truncated - open the document above for the full version.

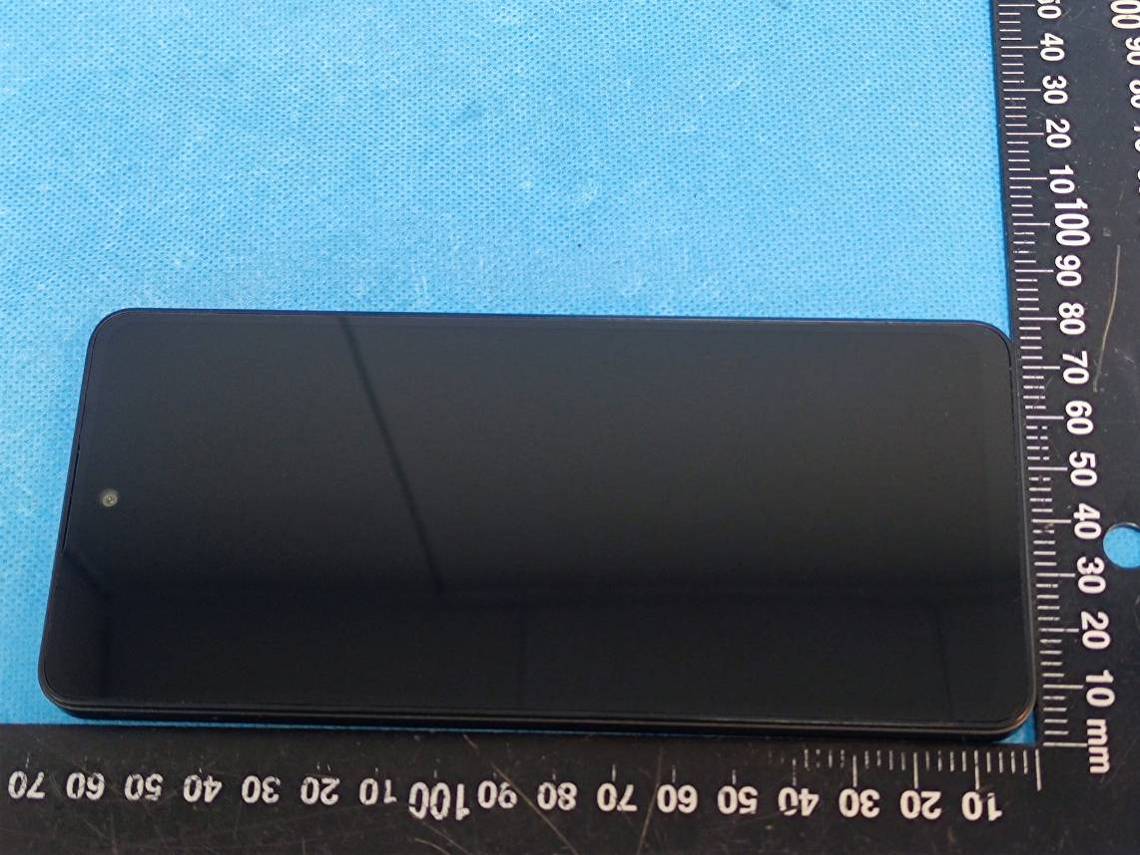

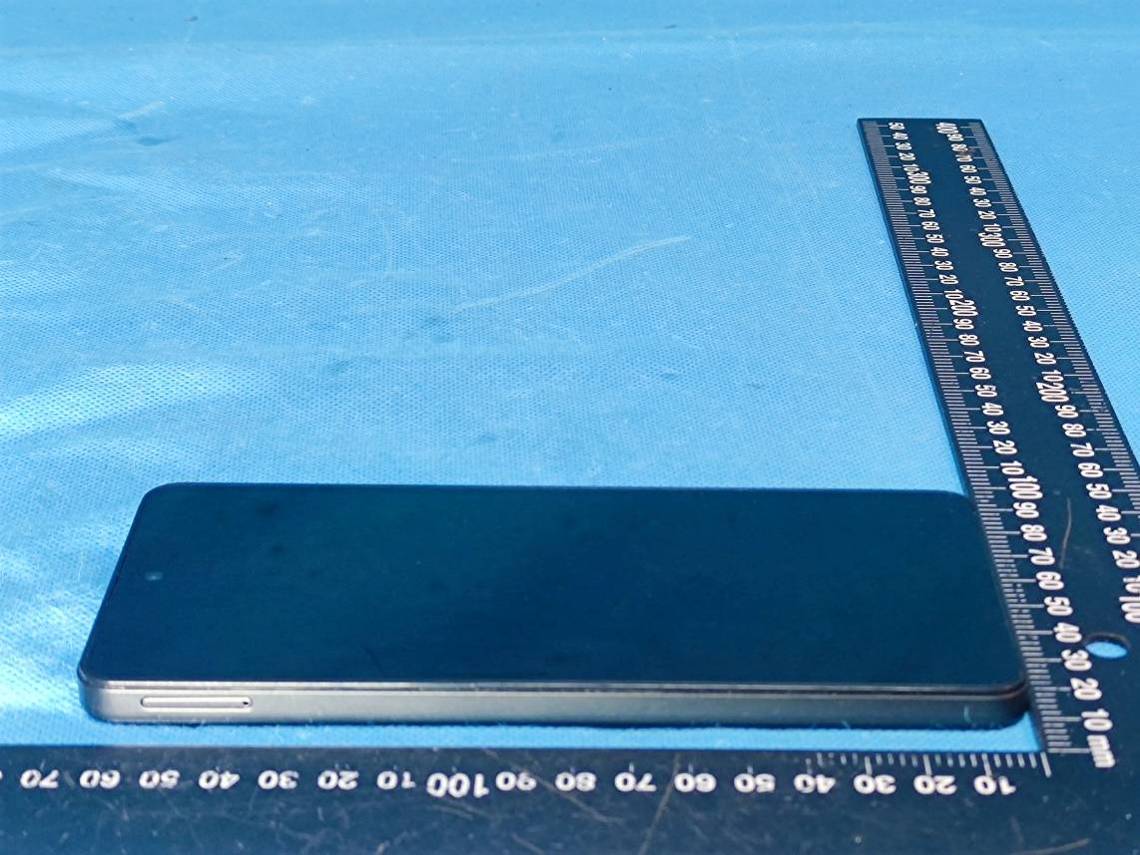

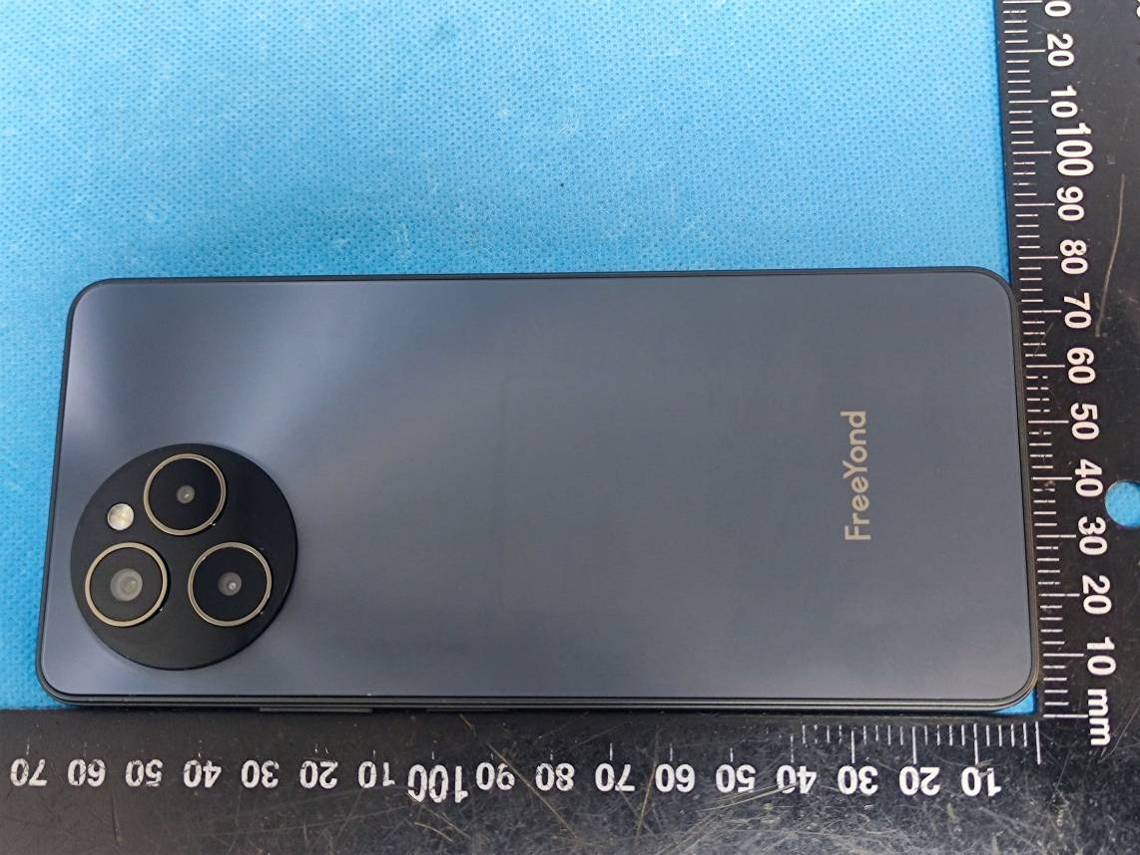

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230738751-EXP Page 1 of 5 EUT EXTERNAL PHOTOGRAPHS China Certification ICT Co., Ltd (Dongguan) Report No.: CR230738751-EXP Page 2 of 5 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230738751-EXP Page 3 of 5 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230738751-EXP Page 4 of 5 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230738751-EXP Page 5 of 5

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230738751-INP Page 1 of 12 EUT INTERNAL PHOTOGRAPHS China Certification ICT Co., Ltd (Dongguan) Report No.: CR230738751-INP Page 2 of 12 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230738751-INP Page 3 of 12 WWAN Main Antenna(GSM850/WCDMA B5/LTE B5) WWAN DIV Antenna(PCS1900/WCDMA B2/LTE B2/4/7/66) China Certification ICT Co., Ltd (Dongguan) Report No.: CR230738751-INP Page 4 of 12 Buletooth& WIFI &GPS Antenna NFC Antenna China Certification ICT Co., Ltd (Dongguan) Report No.: CR230738751-INP Page 5 of 12 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230738751-INP Page 6 of 12 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230738751-INP Page 7 of 12 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230738751-INP Page 8 of 12 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230738751-INP Page 9 of 12 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230738751-INP Page 10 of 12 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230738751-INP Page 11 of 12 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230738751-INP Page 12 of 12

Report No.: CR230738751-SA Page 1 of 6 APPENDIX B EUT TEST POSITION PHOTOS Liquid depth ≥ 15cm Phantom Twin SAM; Type: Twin SAM V5.0; Serial: TP:1470 Report No.: CR230738751-SA Page 2 of 6 Head Left Cheek Setup Photo (0mm) Head Left Tilt Setup Photo (0mm) Report No.: CR230738751-SA Page 3 of 6 Head Right Cheek Setup Photo (0mm) Head Right Tilt Setup Photo (0mm) Report No.: CR230738751-SA Page 4 of 6 Body (Wron)Front Setup Photo (10mm) Body (Wron)Back Setup Photo (10mm) 10mm 10mm Report No.: CR230738751-SA Page 5 of 6 Body Left Setup Photo (10mm) Body Right Setup Photo (10mm) 10mm 10mm Report No.: CR230738751-SA Page 6 of 6 Body Top Setup Photo (10mm) Body Bottom Setup Photo (10mm) 10mm 10mm

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: CR230738751-SA Page 1 of 153 Plot 1#: GSM 850_ Head Left Cheek_ Middle DUT: Smart Phone; Type: M6; Serial: 27W7-2 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.877 S/m; ε r = 43.193; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(9.9, 9.9, 9.9) @ 836.6 MHz; Calibrated: 2023/5/29  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493; Calibrated: 2023/3/17  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1470  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0677 W/kg Zoom Scan (5x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.203 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 0.0820 W/kg SAR(1 g) = 0.058 W/kg; SAR(10 g) = 0.046 W/kg Maximum value of SAR (measured) = 0.0692 W/kg 0 dB = 0.0692 W/kg = -11.60 dBW/kg Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: CR230738751-SA Page 2 of 153 Plot 2#: GSM 850_ Head Left Tilt_ Middle DUT: Smart Phone; Type: M6; Serial: 27W7-2 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.877 S/m; ε r = 43.193; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(9.9, 9.9, 9.9) @ 836.6 MHz; Calibrated: 2023/5/29  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493; Calibrated: 2023/3/17  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1470  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0464 W/kg Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.085 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 0.0560 W/kg SAR(1 g) = 0.043 W/kg; SAR(10 g) = 0.035 W/kg Maximum value of SAR (measured) = 0.0499 W/kg 0 dB = 0.0499 W/kg = -13.02 dBW/kg Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: CR230738751-SA Page 3 of 153 Plot 3#: GSM 850_ Head Right Cheek_ Middle DUT: Smart Phone; Type: M6; Serial: 27W7-2 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.877 S/m; ε r = 43.193; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(9.9, 9.9, 9.9) @ 836.6 MHz; Calibrated: 2023/5/29  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493; Calibrated: 2023/3/17  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1470  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0437 W/kg Zoom Scan (6x7x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.179 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.0670 W/kg SAR(1 g) = 0.046 W/kg; SAR(10 g) = 0.036 W/kg Maximum value of SAR (measured) = 0.0562 W/kg 0 dB = 0.0562 W/kg = -12.50 dBW/kg Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: CR230738751-SA Page 4 of 153 Plot 4#: GSM 850_ Head Right Tilt_ Middle DUT: Smart Phone; Type: M6; Serial: 27W7-2 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.877 S/m; ε r = 43.193; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(9.9, 9.9, 9.9) @ 836.6 MHz; Calibrated: 2023/5/29  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493; Calibrated: 2023/3/17  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1470  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0375 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.426 V/m; Power Drift = 0.14 dB Peak SAR (extrapolated) = 0.0430 W/kg SAR(1 g) = 0.034 W/kg; SAR(10 g) = 0.028 W/kg Maximum value of SAR (measured) = 0.0399 W/kg 0 dB = 0.0399 W/kg = -13.99 dBW/kg Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: CR230738751-SA Page 5 of 153 Plot 5#: GSM 850_ Body Worn Front_ Middle DUT: Smart Phone; Type: M6; Serial: 27W7-2 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.877 S/m; ε r = 43.193; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(9.9, 9.9, 9.9) @ 836.6 MHz; Calibrated: 2023/5/29  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493; Calibrated: 2023/3/17  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1470  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (8x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0762 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.516 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 0.105 W/kg SAR(1 g) = 0.058 W/kg; SAR(10 g) = 0.039 W/kg Maximum value of SAR (measured) = 0.0830 W/kg 0 dB = 0.0830 W/kg = -10.81 dBW/kg Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: CR230738751-SA Page 6 of 153 Plot 6#: GSM 850_ Body Worn Back_ Middle DUT: Smart Phone; Type: M6; Serial: 27W7-2 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.877 S/m; ε r = 43.193; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(9.9, 9.9, 9.9) @ 836.6 MHz; Calibrated: 2023/5/29  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493; Calib…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: CR230738751-SA Page 44 of 153 Plot44#: LTE Band 2_Head Right Cheek_1RB_Middle DUT: Smart Phone; Type: M6; Serial: 27W7-2; Communication System: FDD-LTE; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.345 S/m; ε r = 41.224; ρ = 1000 kg/m 3 ; Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(7.94, 7.94, 7.94) @1880 MHz; Calibrated: 2023/5/29;  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493;Calibrated: 2023/3/17  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1470  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (7x10x1):Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.15 W/kg Zoom Scan (6x6x7)/Cube 0:Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.00 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 1.53 W/kg SAR(1 g) = 0.911 W/kg; SAR(10 g) = 0.535 W/kg Maximum value of SAR (measured) = 1.25 W/kg 0 dB = 1.25 W/kg = 0.97 dB dBW/kg Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: CR230738751-SA Page 45 of 153 Plot45#: LTE Band 2_Head Right Cheek_1RB_High DUT: Smart Phone; Type: M6; Serial: 27W7-2; Communication System: FDD-LTE; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f =1900 MHz; σ = 1.353 S/m; ε r = 41.206; ρ = 1000 kg/m 3 ; Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(7.94, 7.94, 7.94) @1900 MHz; Calibrated: 2023/5/29;  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493;Calibrated: 2023/3/17  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1470  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (7x10x1):Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.25 W/kg Zoom Scan (6x6x7)/Cube 0:Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.52 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 1.65 W/kg SAR(1 g) = 0.976 W/kg; SAR(10 g) = 0.575 W/kg Maximum value of SAR (measured) = 1.35 W/kg 0 dB = 1.35 W/kg = 1.30 dB dBW/kg Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: CR230738751-SA Page 46 of 153 Plot46#: LTE Band 2_Head Right Cheek_50%RB_Low DUT: Smart Phone; Type: M6; Serial: 27W7-2; Communication System: FDD-LTE; Frequency: 1860 MHz;Duty Cycle: 1:1 Medium parameters used: f =1860 MHz; σ = 1.336 S/m; ε r = 41.241; ρ = 1000 kg/m 3 ; Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(7.94, 7.94, 7.94) @1860 MHz; Calibrated: 2023/5/29;  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493;Calibrated: 2023/3/17  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1470  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (7x10x1):Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.739 W/kg Zoom Scan (6x6x7)/Cube 0:Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.94 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.918 W/kg SAR(1 g) = 0.549 W/kg; SAR(10 g) = 0.326 W/kg Maximum value of SAR (measured) = 0.768 W/kg 0 dB = 0.768 W/kg = -1.15 dB dBW/kg Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: CR230738751-SA Page 47 of 153 Plot47#: LTE Band 2_Head Right Cheek_50%RB_Middle DUT: Smart Phone; Type: M6; Serial: 27W7-2; Communication System: FDD-LTE; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.345 S/m; ε r = 41.224; ρ = 1000 kg/m 3 ; Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(7.94, 7.94, 7.94) @1880 MHz; Calibrated: 2023/5/29;  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493;Calibrated: 2023/3/17  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1470  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (7x10x1):Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.18 W/kg Zoom Scan (6x6x7)/Cube 0:Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.21 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 1.55 W/kg SAR(1 g) = 0.926 W/kg; SAR(10 g) = 0.546 W/kg Maximum value of SAR (measured) = 1.28 W/kg 0 dB = 1.28 W/kg = 1.07 dB dBW/kg Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: CR230738751-SA Page 48 of 153 Plot 48#: LTE Band 2_Head Right Cheek_50%RB_High DUT: Smart Phone; Type: M6; Serial: 27W7-2 Communication System: Generic FDD-LTE; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.353 S/m; ε r = 41.206; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(7.94, 7.94, 7.94) @ 1900 MHz; Calibrated: 2023/5/29  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493;Calibrated: 2023/3/17  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1470  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.07 W/kg Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.58 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 1.39 W/kg SAR(1 g) = 0.753 W/kg; SAR(10 g) = 0.425 W/kg Maximum value of SAR (measured) = 1.05 W/kg 0 dB = 1.05 W/kg = 0.21 dBW/kg Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: CR230738751-SA Page 49 of 153 Plot 49#: LTE Band 2_Head Right Cheek_100%RB_Mid DUT: Smart Phone; Type: M6; Serial: 27W7-2 Communication System: Generic FDD-LTE; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.345 S/m; ε r = 41.224; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(7.94, 7.94, 7.94) @ 1880 MHz; Calibrated: 2023/5/29  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493;C…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: CR230738751-SA Page 86 of 153 Plot86#: LTE Band 7_Head Right Cheek_50%RB_Middle DUT: Smart Phone; Type: M6; Serial: 27W7-2; Communication System: FDD-LTE; Frequency: 2535 MHz;Duty Cycle: 1:1 Medium parameters used: f =2535 MHz; σ = 1.904 S/m; ε r = 39.526; ρ = 1000 kg/m 3 ; Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(7.42, 7.42, 7.42) @2535 MHz; Calibrated: 2023/5/29;  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493;Calibrated: 2023/3/17  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1470  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (9x13x1):Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 1.38 W/kg Zoom Scan (6x6x7)/Cube 0:Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.663 V/m; Power Drift = 0.1 dB Peak SAR (extrapolated) = 1.81 W/kg SAR(1 g) = 1.01 W/kg; SAR(10 g) = 0.556 W/kg Maximum value of SAR (measured) = 1.48 W/kg 0 dB = 1.48 W/kg = 1.70 dB dBW/kg Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: CR230738751-SA Page 87 of 153 Plot87#: LTE Band 7_Head Right Cheek_50%RB_High DUT: Smart Phone; Type: M6; Serial: 27W7-2; Communication System: FDD-LTE; Frequency: 2560 MHz;Duty Cycle: 1:1 Medium parameters used: f =2560 MHz; σ = 1.947 S/m; ε r = 39.324; ρ = 1000 kg/m 3 ; Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(7.23, 7.23, 7.23) @2560 MHz; Calibrated: 2023/5/29;  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493;Calibrated: 2023/3/17  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1470  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (9x13x1):Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 1.17 W/kg Zoom Scan (6x6x7)/Cube 0:Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.241 V/m; Power Drift = 0.13 dB Peak SAR (extrapolated) = 1.54 W/kg SAR(1 g) = 0.838 W/kg; SAR(10 g) = 0.460 W/kg Maximum value of SAR (measured) = 1.26 W/kg 0 dB = 1.26 W/kg = 1.00 dB dBW/kg Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: CR230738751-SA Page 88 of 153 Plot88#: LTE Band 7_Head Right Cheek_100%RB_Middle DUT: Smart Phone; Type: M6; Serial: 27W7-2; Communication System: FDD-LTE; Frequency: 2535 MHz;Duty Cycle: 1:1 Medium parameters used: f =2535 MHz; σ = 1.904 S/m; ε r = 39.526; ρ = 1000 kg/m 3 ; Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(7.42, 7.42, 7.42) @2535 MHz; Calibrated: 2023/5/29;  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493;Calibrated: 2023/3/17  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1470  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (9x13x1):Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 1.18 W/kg Zoom Scan (6x6x7)/Cube 0:Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.164 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 1.56 W/kg SAR(1 g) = 0.839 W/kg; SAR(10 g) = 0.463 W/kg Maximum value of SAR (measured) = 1.26 W/kg 0 dB = 1.26 W/kg = 1.00 dB dBW/kg Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: CR230738751-SA Page 89 of 153 Plot89#: LTE Band 7_Head Right Tilt_1RB_Low DUT: Smart Phone; Type: M6; Serial: 27W7-2; Communication System: FDD-LTE; Frequency: 2510 MHz;Duty Cycle: 1:1 Medium parameters used: f =2510 MHz; σ = 1.862 S/m; ε r = 39.723; ρ = 1000 kg/m 3 ; Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(7.42, 7.42, 7.42) @2510 MHz; Calibrated: 2023/5/29;  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493;Calibrated: 2023/3/17  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1470  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (9x13x1):Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 1.26 W/kg Zoom Scan (6x6x7)/Cube 0:Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.30 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 2.11 W/kg SAR(1 g) = 0.900 W/kg; SAR(10 g) = 0.441 W/kg Maximum value of SAR (measured) = 1.59 W/kg 0 dB = 1.59 W/kg = 2.01 dB dBW/kg Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: CR230738751-SA Page 90 of 153 Plot90#: LTE Band 7_Head Right Tilt_1RB_Middle DUT: Smart Phone; Type: M6; Serial: 27W7-2; Communication System: FDD-LTE; Frequency: 2535 MHz;Duty Cycle: 1:1 Medium parameters used: f =2535 MHz; σ = 1.904 S/m; ε r = 39.526; ρ = 1000 kg/m 3 ; Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(7.42, 7.42, 7.42) @2535 MHz; Calibrated: 2023/5/29;  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493;Calibrated: 2023/3/17  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1470  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (9x13x1):Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 1.29 W/kg Zoom Scan (6x6x7)/Cube 0:Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.04 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 1.93 W/kg SAR(1 g) = 0.860 W/kg; SAR(10 g) = 0.427 W/kg Maximum value of SAR (measured) = 1.45 W/kg 0 dB = 1.45 W/kg = 1.61 dB dBW/kg Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: CR230738751-SA Page 91 of 153 Plot91#: LTE Band 7_Head Right Tilt_1RB_High DUT: Smart Phone; Type: M6; Serial: 27W7-2; Communication System: FDD-LTE; Frequency: 2560 MHz;Duty Cycle: 1:1 Medium parameters used: f =2560 MHz; σ = 1.947 S/m; ε r = 39.324; ρ = 1000 kg/m 3 ; Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(7.23, 7.23, 7.23) @2560 MHz; Calibrated: 2023/5/29;  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493;Calibrated: 2023/3/17  Ph…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: CR230738751-SA Page 131 of 153 Plot 131#: 5.2G WIFI_ Head Left Cheek_ Mid DUT: Smart Phone; Type: M6; Serial: 27W7-2 Communication System: 802.11 a; Frequency: 5200 MHz;Duty Cycle: 1:1.129 Medium parameters used: f = 5200 MHz; σ = 4.804 S/m; ε r = 34.705; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(5.36, 5.36, 5.36) @ 5200 MHz; Calibrated: 2023/5/29  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493;Calibrated: 2023/3/17  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1470  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (10x12x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 1.40 W/kg Zoom Scan (9x9x6)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 5.771 V/m; Power Drift = 0.18 dB Peak SAR (extrapolated) = 3.14 W/kg SAR(1 g) = 0.780 W/kg; SAR(10 g) = 0.249 W/kg Maximum value of SAR (measured) = 1.87 W/kg 0 dB = 1.87 W/kg = 2.72 dBW/kg Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: CR230738751-SA Page 132 of 153 Plot 132#: 5.2G WIFI_ Head Left Cheek_ High DUT: Smart Phone; Type: M6; Serial: 27W7-2 Communication System: 802.11 a; Frequency: 5240 MHz; Duty Cycle: 1:1.129 Medium parameters used: f = 5240 MHz; σ = 4.827 S/m; ε r = 34.684; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(5.36, 5.36, 5.36) @ 5240 MHz; Calibrated: 2023/5/29  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493;Calibrated: 2023/3/17  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1470  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (10x12x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.956 W/kg Zoom Scan (9x9x6)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 5.143 V/m; Power Drift = -0.17 dB Peak SAR (extrapolated) = 2.47 W/kg SAR(1 g) = 0.605 W/kg; SAR(10 g) = 0.206 W/kg Maximum value of SAR (measured) = 1.45 W/kg 0 dB = 1.45 W/kg = 1.61 dBW/kg Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: CR230738751-SA Page 133 of 153 Plot 133#: 5.2G WIFI_ Head Left Tilt_ Low DUT: Smart Phone; Type: M6; Serial: 27W7-2 Communication System: 802.11 a; Frequency: 5180 MHz; Duty Cycle: 1:1.129 Medium parameters used: f = 5180 MHz; σ = 4.793 S/m; ε r = 34.718; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(5.36, 5.36, 5.36) @ 5180 MHz; Calibrated: 2023/5/29  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493;Calibrated: 2023/3/17  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1470  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (10x12x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 1.69 W/kg Zoom Scan (9x9x6)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 5.509 V/m; Power Drift = -0.18 dB Peak SAR (extrapolated) = 3.48 W/kg SAR(1 g) = 0.857 W/kg; SAR(10 g) = 0.261 W/kg Maximum value of SAR (measured) = 2.15 W/kg 0 dB = 2.15 W/kg = 3.32 dBW/kg Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: CR230738751-SA Page 134 of 153 Plot 133#: 5.2G WIFI_ Head Left Tilt_ Mid DUT: Smart Phone; Type: M6; Serial: 27W7-2 Communication System: 802.11 a; Frequency: 5200 MHz;Duty Cycle: 1:1.129 Medium parameters used: f = 5200 MHz; σ = 4.804 S/m; ε r = 34.705; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(5.36, 5.…
