2A8H7-LB300-3500Solid medication / supplement dispenser

User Guide Medesto Dispenser Version 1.0.3 2021 © Perigon Health 360 • Plymouth, MI 48170 Table of Contents Dispensing & Reminders 20 Scheduling Doses 20 Skipping a Scheduled Dose 21 Dispense on Demand 21 Manual Dispensing 21 Managing Pods 22 Connect with Other Devices 24 Fitbit 24 Garmin 25 Alexa 26 Warranty 27 Technical Specifications 28 Account & Security 30 Disclaimers 31 Support & Contact Us 32 Warnings & Intended Use 4 Introduction 6 What’s in the Box 7 Setup & Use 8 How does the dispenser work 9 Reading the Dispenser 10 Download the Medesto App 12 Connect Dispenser to App 13 Loading Medication 14 Accessing Medication Information 15 Unlock Yellow Lock Out 16 App Account & Security 17 Setting Up Notifications 18 App Reports 19 4 Warnings & Intended Use !!PLEASE READ BEFORE OPERATING DEVICE - IMPORTANT SAFETY INFORMATION!! The Medesto Dispenser is a device that dispenses pills of solid medication or supplements and may provide alerts to users or caregivers on medication regimens. This device is registered as a Class I medical device, per 21 CFR Sec. 890.5050 as a daily assist device, due to potential human error and/or mechanical and software discrepancies. Perigon Health 360 & the Medesto Dispenser cannot guarantee full accuracy of medication dispenses. This device is intended for a single user. It may be used once daily or in some cases multiple times daily, depending on the users therapeutic regimen, set by a healthcare professional. User is responsible for always verifying each dose, that the type of pill(s) and number of pills dispensed match the prescribed dosage. User agrees to visually count the medication dose in the pod and cup for accuracy. In the event that the end user is incapable of verifying proper dispensing, accuracy should be verified by person(s) trusted by the end user, i.e. a caregiver, healthcare aide, and/or a healthcare professional. The Medesto Dispenser dispenses most solid pills loaded into the device. Cases involving high dosage sensitivity, acute condition treatment, or life-threatening events should be reviewed and assessed with a healthcare professional. Partial pills, liquid medications, and medications 5 that require refrigeration cannot be used in the Me- desto Dispenser. • The mention of Pill(s) referenced in this user guide may be used for tablet/capsule/solid medication/etc. Perigon Health 360 and Medesto hardware and soft- ware products, services, and features do not: • Serve as a replacement for guidance or services from healthcare professionals and are not intended to replace an attentive caregiver, should one be required by the user. • Permit a healthcare professional to remotely schedule the patient’s prescribed medications. • Aid healthcare professionals in managing therapeutic regimens for patients in the home or clinic. The Medesto Dispenser is not to be used as a remote medication management system. e.g. Healthcare professionals or any third-party individuals other than the user cannot edit app medication informa- tion, schedules, or anything pertaining to the user’s app account. If a users home router or associated mobile phones are out of audio range or if the WiFi connection is not functioning properly, alerts & notifications may not occur correctly to support reminders. Always check the pharmacy packaged date of your medication before loading the Perigon Pharmacy 360 Pod into the Medesto Dispenser. Only use medication indicated and packaged by Perigon Pharmacy 360. Some medication or pods may not work with the dispenser. Keep medication details shared by the pharmacy or the original prescription label for reference after loading into the Medesto Dispenser. For any questions regarding the Medesto Dispenser, Medesto App, Perigon Pharmacy 360 Medication Pods, Prescriptions or Refills, etc., please contact our Customer Care Team Experts immediately before use. perigonhealth.org/FAQ [email protected] 844.698.2533 OTHER KEY SAFETY INFORMATION • Do not place device outside. Device intended for indoor areas only. • Device should be placed on a hard-flat surface. • Device must be placed out of reach of children. • Do not plug device into a standard electrical wall outlet controlled by a switch to avoid deactivation. • Do not let the power supply cord touch hot, wet, or damp surfaces. • Do not place the device near gas or electric heaters. • The use of accessory equipment not recommended by the manufacturer may cause unsafe conditions and void product warranty. • Do not tamper with the device or use for other than the intended purpose. • All servicing and repairs should be performed by quali- fied service personnel. • Device is not intended to diagnose, mitigate or treat any disease. • Device is not intended to be a life saving device. • Device should always be plugged into a power outlet. There is no back up battery. • The dispenser cup is dishwasher safe. • Do not wash the device with cleaning solutions. Use a dry microfiber cloth or a dry or damp paper towel. • Do not overload power outlets. Plug the device into the appropriate voltage outlet. • Do not plug or unplug the power cord into the electrical outlet with wet hands. • Do not disassemble the device in any way besides inserting or removing the pill pod. 6 Introduction Welcome! Thank you for choosing Medesto. Our goal is to empower individuals with health goals or chronic conditions to live better and healthier lives. Adherence: the extent to which patients take medi- cation as prescribed by their doctors. Non-Adherence: the intentional or unwitting failure to take medications as prescribed. Many patients struggle with or do not comply to their medication adherence regimen. This non-adherence can have varying impact on a patient’s health. That’s where we come in. Our innovative ecosystem includes the Medesto Dispenser, Perigon Pharmacy 360 Medication Pods, and the Medesto App, which work as a connected system to improve adherence and instill peace of mind in patients and caregiver…

Text truncated - open the document above for the full version.

ComponentCompanyDescriptionPart numberSpecsLink / Document PCBA 3.0Medesto Controls the power to the components using custom written firmware LB100-3000-0ANA• Schematics & BOM uploaded Wall TransformerAdaptor Tech Allows connection of external power supply to provide power to the dispenser LB7800-014-0A (ATS036T- W240U) • Voltage Type: DC • Operating Voltage: 24V • Amp: 1.5A http://www.adaptertech.com.tw/30-Watt- ATS030-Series.html?CID=2_1 • Spec sheet uploaded. LTE AntennaTE ConnectivityAntenna for cellular communicationLB5000-944-0A10W• Spec sheet uploaded SpeakerSheng JiaN/ALB5000-146-0A8Ω/ 2W• Spec sheet uploaded LED –CupTONGJIA5MM RGB Round LEDLB5000-945-0ACommon Anode / 5V• Spec sheet uploaded Optical Sensor –Cup Reading Everlight ITR20001/T Infrared emitting diode and NPN silicon phototransistor LB5000-140-0A5V• Spec sheet uploaded Stepper Motor –Pod TrayMotionKing Used to turn gear assembly to rotate and vibrate the pod in the pod tray LB100-0007 (25PM48L05) 24V stepper -part number 25PM48L05 MotionKing http://www.motionking.com/Products/PM_Step per_Motors/25PM_Stepper_Motor.htm • Spec sheet uploaded Optical Sensor –Flag Reading TT ElectronicsInfrared SensorLB7800-027-0AReference spec sheet• Spec sheet uploaded Optical Sensor –Cell Reading TT ElectronicsInfrared SensorLB7800-027-0AReference spec sheet• Spec sheet uploaded NFC CoilMolexReads NFC tags on podLB5000-936-0A13.56MHz• Spec sheet uploaded Solenoid –Arm GrabTDS12V solenoid LB100-0010-0F (TDS-06U) 12V• Spec sheet uploaded Solenoid -PiercingTDS6V solenoid LB100-0009-0E (TDS-10L) 6V • Spec sheet uploaded Rechargeable BatteryDTP Battery used to power PCBA when there is no power supply LB5000-940-0A3.7V / 3000mAh• Spec sheet uploaded PCBA Wall Transformer ASSY, CLAMPING SOLENOID ASSY, PIERCING SOLENOID OPTICAL SENSOR WITH HARNESS -FLAG OPTICAL SENSOR WITH HARNESS -CELL POD ASSY, STEPPER MOTOR LED CUP SPEAKER CUP ASSY, STEPPER MOTOR OPTICAL SENSOR WITH HARNESS -CUP NFC Coil Button Trigger LTE Antenna Rechargeable Battery

MedestoPill Dispenser –MET Label June 7 th , 2022 MedestoPill Dispenser -MET Label and Location A Precision Digital Pharmacy2 View A View A FCC ID: 2A8H7-LB300-3500 CONTAINS FCC ID: 2AC72-ESPWROOM32 AND XMR2020BG95M1 FCC TESTING WAS CONDUCTED AFTER ASSEMBLY

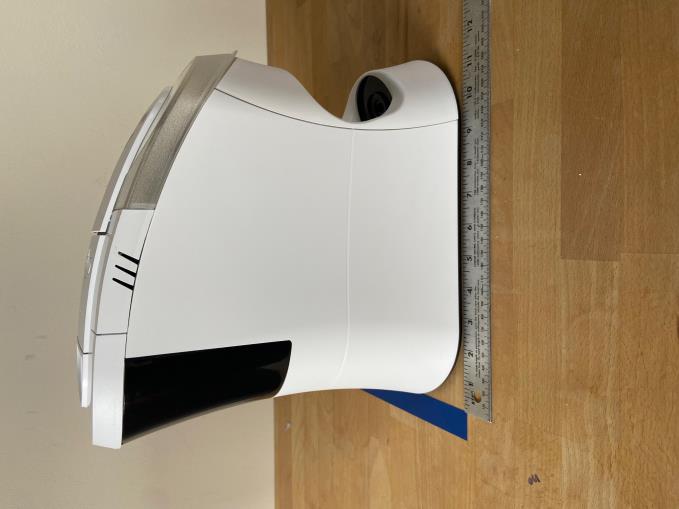

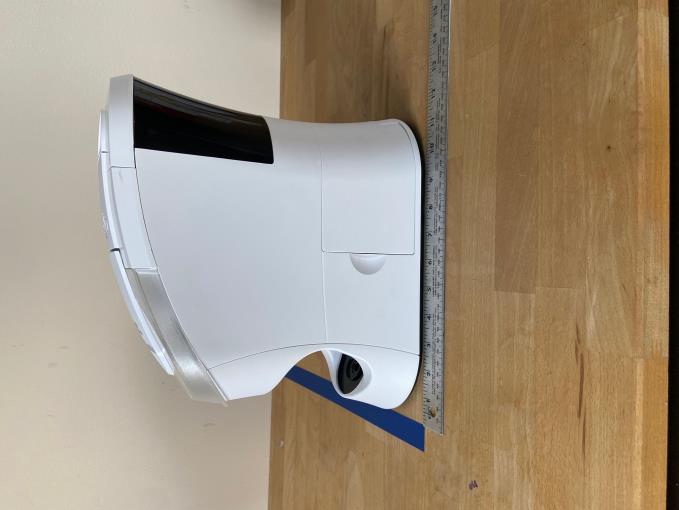

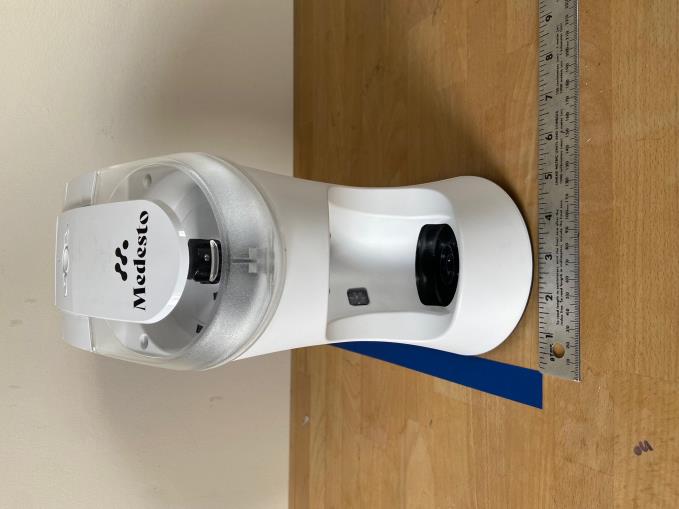

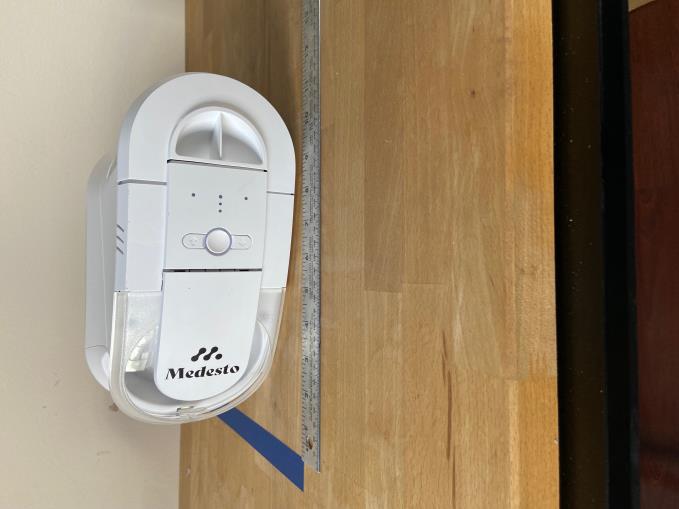

[Type here] Pill Dispenser Description The Medesto Pill Dispenser is an FDA Class 1 medical device capable of dispensing solid medication pills and supplements from the Medesto Medication Pod. The Pill Dispenser provides audible alerts and reminders for pre- determined medication dosing schedules. The Medesto Pill Dispenser identifies the Pod inserted through an NFC tag located on top of the Pod. The Pill Dispenser can interact with IoT devices via Bluetooth to help record a patient’s scheduled activities and usages. The Connect also communicates via Wi-Fi (802.11 bgn) and LTE (Cat M1) to help track and record a patient’s schedule and activities. This device has been tested and found to comply with Part 15 Class B of the FCC Rules. Overview Parameter Min Typ Max Units Certification / Standard Dimensions 12 x 11 x 5 in Power Supply 24 V UL E225703 / RoHS R33154 1.5 A LTE 698-960 1710-2700 MHz FCC ID: XMR2020BG95M1 -2.0 4.0 dBi Wi-Fi (2.4GHz) / Bluetooth (V4.2) 2402 2480 MHz FCC ID: 2AC7Z-ESP32WROOM32E Speaker 8 Ω IEC-60268-5 2 W NFC 13.56 MHz FCC ID: TBD Rechargeable Battery 3.7 V UN38.3 UL62133 3000 mAh

1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 FF EE DD CC BB AA Medesto-PCBA3.0-V3.3 PCB1 FD2FD3FD4 FD5 Notes (unless otherwise s pecified): 1. All resistors are 1%. 2. Board operating temperature is 0°C to 50°C. 3. Capacitors and resistors are 0603 unless noted (termination resistors and BGA capacitors are 0402). 4. Text in italic placed on a wire doesn't correspond to net name. It just helps to identify rapidly MCU IO related to this wire. 5. 10 mil PCB Layout clearance for Critical circuit section. Medesto-PCBA3.0-V3.0 FD6 1. Title 2. Block Diagram 3. Power Management 4. Battery Charger 5. MCU 6. Stepper Motor Driver 7. Solenoid Driver 8. Sensor 9.UserInterface 10. SD Card 11. WiFi 12. NFC 13. Audio 14. LTE CAT M1 15. Extension Connector V1.1 Change logs: 1. Change the size of MH5 to D3.81mm for the bracket. 2. Change the C10 to a smaller size capacitor - UCL1V221MNL1GS 3. Change the L2 to a smaller size inductor - NS10155T6R8NNA. 4. Change CN2 to a vertical connector. 5. Change CN17 to a SMD connector. 6. Correct 3.3V Power rail on LTE Page. 7. Change CN9, CN10 to smaller size connector - B4B-PH-K-S(LF)(SN) 8. Change CN13, CN14 to smaller size connector - B2B-PH-K-S(LF)(SN) 9. Removed Testing points from TP40 to TP51, merge the signals into CN17 and change CN17 to 20 PINs connector - 0878325922 10. Change CN18 to smaller size connector - B7B-PH-K-S(LF)(SN) 11. Swap signals on U6 and CN17 for better PCB routing V1.2 Change logs: 1. Change Mounting holes to Non-plated and remove the GND 2. Swapp PIN1 and PIN2 on CN1 3. Change R2 to R3 in design note of U1 V2 Change logs: 1. Change CN13 to Molex 5055680271 2. Correct SCI5 and SCI8 naming. 3. Change U6 to R7FA6M3AH3CFP#AA0 V2.1 Change logs: 1. Change F1 to 0685T2000-01 2. Change U8 to ESP32-WROOM-32E(8MB) 3. DNP U9 4. Change the connector to match serial port (follow ESP-PROG pinout) 5. Remove Jtag test points 6. Add CLI passthrough Tx/Rx test points 7. Add SCI2 tx and rx test points V2.6 Change logs: 1. Changed title bock 2. Updated Silk screen V3.0 Change logs: 1. The programming ports are on bottom 2. Battery connector is flipped 180 V3.2 Change logs: 1. Changes solder mask bridge and Layer Stack as per Fabricator's requirement 2. Update pannel placement and Gerber file V3.3 Change logs: 1. IR sensor current limiting resistor reduced 2. IR sensor collector resistor reduced 3. Cell sensor current limiting resistor reduced 4. Cell sensor collector resistor reduced 3.20 mm MH1 Mounting_Hole_NPTH 3.20 mm MH2 Mounting_Hole_NPTH 3.20 mm MH3 Mounting_Hole_NPTH 3.20 mm MH4 Mounting_Hole_NPTH 3.81 mm MH5 Mounting_Hole_NPTH FD1 G3.5 DispenserLB100-3000-0A - PCBA 3.0ANSI A Perigon Health 360 340 N Main Street Plymouth, MI 48170 This drawing is pro perty of Perigon Health 360 LLC, any distibution or transmission of this do cument requires written permission from Perigon Health 360. Title: Medesto-PCBA3.0-V3.3 Project:Size:Perigon #: Date: 6/21/202212:19:35 PM Page: 115 of Designed By:Approved By: AU , JWJG Four holes (MH1 - 4) for #3 machine screws and washers COFD1 COFD2 COFD3 COFD4 COFD5 COFD6 PIMH101 COMH1 PIMH201 COMH2 PIMH301 COMH3 PIMH401 COMH4 PIMH501 COMH5 COPCB1 PIMH101 PIMH201 PIMH301 PIMH401 PIMH501 1 1 2 2 3 3 4 4 5 5 6 6 DD CC BB AA Perigon Health 360 340 N Main Street Plymouth, MI 48170 This drawing is pro perty of Perigon Health 360 LLC, any distibution or transmission of this do cument requires written permission from Perigon Health 360. Title: Medesto-PCBA3.0-V3.3 Project:Size:Perigon #: Date: 6/21/202212:19:35 PM Page: 215 of Designed By:Approved By: AU , JWJG G3.5 DispenserLB100-3000-0A - PCBA 3.0ANSI A 1 1 2 2 3 3 4 4 5 5 6 6 DD CC BB AA GNDGNDGND 10uF 50V 1210 C1 GNDGND 24V_IN5V_SYS GND 10uF 50V 1210 C2 1uF 50V 1206 C3 GNDGND 24V 100k R4 10k R6 GND Monitor24v 5V 100k R5 GND Monitor5v 100k R7 5V 10uF 16V 0805 C12 GNDGNDGNDGNDGND 3.3V 24V 5V3.3V TP1 Max Current 3A Max Current 1.5A GND TP3TP4 TP6 5V GNDGNDGNDGNDGND LTE_3.3VMax Current 1.5A IN 1 G N D 4 OUT 3 AP7363-33D-13U3 LTE_3.3V TP2 100pF 50V C6 158k R1 GND 22uF 25V 1206 C8 FB 1 EN 2 VIN 3 G N D 4 SW 5 BST 6 AP63301WU-7U1 24V 0.1uF 50V C4 22uF 25V 1206 C9 Jig Test Points VBAT TP5 12 SS210-LTPD1 0.1uF 50V C5 0.1uF 50V C7 0.1uF 50V C14 10uF 16V 0805 C15 10uF 16V 0805 C16 0.1uF 50V C18 10uF 16V 0805 C19 0.1uF 50V C20 0.1uF 50V C21 0.1uF 50V C13 0.1uF 50V C17 i Clearance 742792040 L3 742792040 L4 Monitor24vMonitor5v 30k R3 2.2R R2 1uF 50V C11 S M A J 2 4 C A - 1 3 - F D2 24VDC IN Max Current 1.5A TP53 TP52 6.8uH 4.98A L223 41 ACP3225-501-2P-T000 L1 220uF 35V C10 1 2 B2B-XH-A(LF)(SN) CN1 0685T2000-01 F1 Perigon Health 360 340 N Main Street Plymouth, MI 48170 This drawing is pro perty of Perigon Health 360 LLC, any distibution or transmission of this do cument requires written permission from Perigon Health 360. Title: Power Project:Size:Perigon #: Date: 6/21/202212:19:35 PM Page: 315 of Designed By:Approved By: AU , JWJG G3.5 DispenserLB100-3000-0A - PCBA 3.0ANSI A IN 1 G N D 4 OUT 3 AP7363-33D-13U2 Switching Frequency: 500kHz Vout = 0.8 x (R1/R3 + 1) = 5.013V PIC101 PIC102 COC1 PIC201 PIC202 COC2 PIC301 PIC302 COC3 PIC401 PIC402 COC4 PIC501 PIC502 COC5 PIC601 PIC602 COC6 PIC701 PIC702 COC7 PIC801 PIC802 COC8 PIC901 PIC902 COC9 PIC1001 PIC1002 COC10 PIC1101 PIC1102 COC11 PIC1201 PIC1202 COC12 PIC1301 PIC1302 COC13 PIC1401 PIC1402 COC14 PIC1501 PIC1502 COC15 PIC1601 PIC1602 COC16 PIC1701 PIC1702 COC17 PIC1801 PIC1802 COC18 PIC1901 PIC1902 COC19 PIC2001 PIC2002 COC20 PIC2101 PIC2102 COC21 PICN101 PICN102 COCN1 PID101 PID102 COD1 PID201 PID202 COD2 PIF101 PIF102 COF1 PIL101 PIL102 PIL103 PIL104 COL1 PIL201 PIL202 COL2 PIL301 PIL302 COL3 PIL401 PIL402 COL4 PIR101 PIR102 COR1 PIR201 PIR202 COR2 PIR301 PIR302 COR3 PIR401 PIR402 COR4 PIR501 PIR502 COR5 PIR601 PIR602 COR6 PIR701 PIR702 COR7 PITP101 COTP1 PITP201 COTP2 PITP301 COTP3 PITP401 COTP4 PITP501 COTP5 PITP601 COTP6 PITP5201 COTP52 PITP5301 COTP53 PIU101 PIU102 PIU103 PIU104 PIU105 PIU106 COU1 PIU201 PIU203 PIU204 COU2 PIU301 PIU303 PIU304 COU3…

Text truncated - open the document above for the full version.

HEADQUARTERS: 914 WEST PATAPSCO AVENUE • BALTIMORE, MARYLAND 21230 • PHONE (410) 354-3300 • FAX (410) 354-3313 Maryland | California | Texas | China | Korea | Taiwan www.metlabs.com July 15, 2022 Perigon Health 360, LLC 340 N. Main St., Ste. 300 Plymouth, MI 48170 Dear Justin Gauvin, Enclosed is the EMC test report for compliance testing of the Perigon Health 360, LLC, Medesto Pill Dispenser, tested to the requirements of: • Title 47 of the CFR, Part 15.225, Subpart C for Certification as an Intentional Radiator. • RSS-210: Issue 10, License-Exempt Radio Apparatus: Category 1 Equipment Thank you for using the services of Eurofins E&E North America. If you have any questions regarding these results or if we can be of further service to you, please feel free to contact me. Sincerely, Nancy LaBrecque Documentation Department Eurofins Electrical and Electronic Testing NA, Inc. Reference: WIRA118651-FCC225-RSS210 – Medesto Pill Dispenser Certificates and reports shall not be reproduced except in full, without the written permission of Eurofins E&E North America While use of the A2LA logo in this report reflects Eurofins accreditation under these programs, the report must not be used by the client to claim product certification, approval, or endorsement by A2LA or any agency of the Federal Government. This letter of transmittal is not a part of the attached report. Eurofins MET Laboratories Inc. (Eurofins E&E North America) is part of the Eurofins Electrical & Electronics (E&E) global compliance network. Electromagnetic Compatibility Perigon Health 360, LLC Cover Page Medesto Pill Dispenser CFR Title 47, Part 15.225 and RSS-210 Issue 10 Report: WIRA118651-FCC225-RSS210 – © 2022, Eurofins E&E North America Page 2 of 41 Medesto Pill Dispenser DOC-EMC702 6/18/2009 Electromagnetic Compatibility Criteria Test Report for the Perigon Health 360, LLC Medesto Pill Dispenser Tested under the FCC Certification Rules contained in 15.225 Subpart C and RSS-210: Issue 10 for Intentional Radiators Report: WIRA118651-FCC225-RSS210 – Medesto Pill Dispenser July 15, 2022 Prepared For: Perigon Health 360, LLC 340 N. Main St., Ste. 300 Plymouth, MI 48170 Prepared By: Eurofins E&E North America 13501 McCallen Pass, Austin, TX 78753 Electromagnetic Compatibility Perigon Health 360, LLC Cover Page Medesto Pill Dispenser CFR Title 47, Part 15.225 and RSS-210 Issue 10 Report: WIRA118651-FCC225-RSS210 – © 2022, Eurofins E&E North America Page 3 of 41 Medesto Pill Dispenser DOC-EMC702 6/18/2009 Electromagnetic Compatibility Criteria Test Report for the Perigon Health 360, LLC Medesto Pill Dispenser Tested under the FCC Certification Rules contained in 15.225 Subpart C and RSS-210: Issue 10 for Intentional Radiators Sergio Gutierrez, EMC Test Engineer Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC Rules Part 15.225 and RSS-210 Issue 10 under normal use and maintenance. Electromagnetic Compatibility Perigon Health 360, LLC Report Status Medesto Pill Dispenser CFR Title 47, Part 15.225 and RSS-210 Issue 10 Report: WIRA118651-FCC225-RSS210 – © 2022, Eurofins E&E North America Page 4 of 41 Medesto Pill Dispenser DOC-EMC702 6/18/2009 Report Status Sheet Revision Report Date Reason for Revision  July 15, 2022 Initial Issue. Electromagnetic Compatibility Perigon Health 360, LLC Table of Contents Medesto Pill Dispenser CFR Title 47, Part 15.225 and RSS-210 Issue 10 Report: WIRA118651-FCC225-RSS210 – © 2022, Eurofins E&E North America Page 5 of 41 Medesto Pill Dispenser DOC-EMC702 6/18/2009 Table of Contents I. Executive Summary .................................................................................................................................................8 A. Purpose of Test ...................................................................................................................................................8 B. Executive Summary ............................................................................................................................................8 II. Equipment Configuration .......................................................................................................................................9 A. Overview .............................................................................................................................................................9 B. References ......................................................................................................................................................... 10 C. Test Site ............................................................................................................................................................ 11 D. Measurement Uncertainty ................................................................................................................................. 11 E. Description of Test Sample ............................................................................................................................... 12 F. Equipment Configuration .................................................................................................................................. 15 G. Support Equipment ........................................................................................................................................... 15 H. Ports and Cabling Information .......................................................................................................................... 15 I. Modifications ..............…

Text truncated - open the document above for the full version.

Conducted Emissions Frequency Stability (Internal Chamber View) Frequency Stability (External Chamber View) Radiated Emissions Below 30MHz Radiated Emissions Above 30MHz
