2A8JK-FIDES-LINK2Fides-Link2

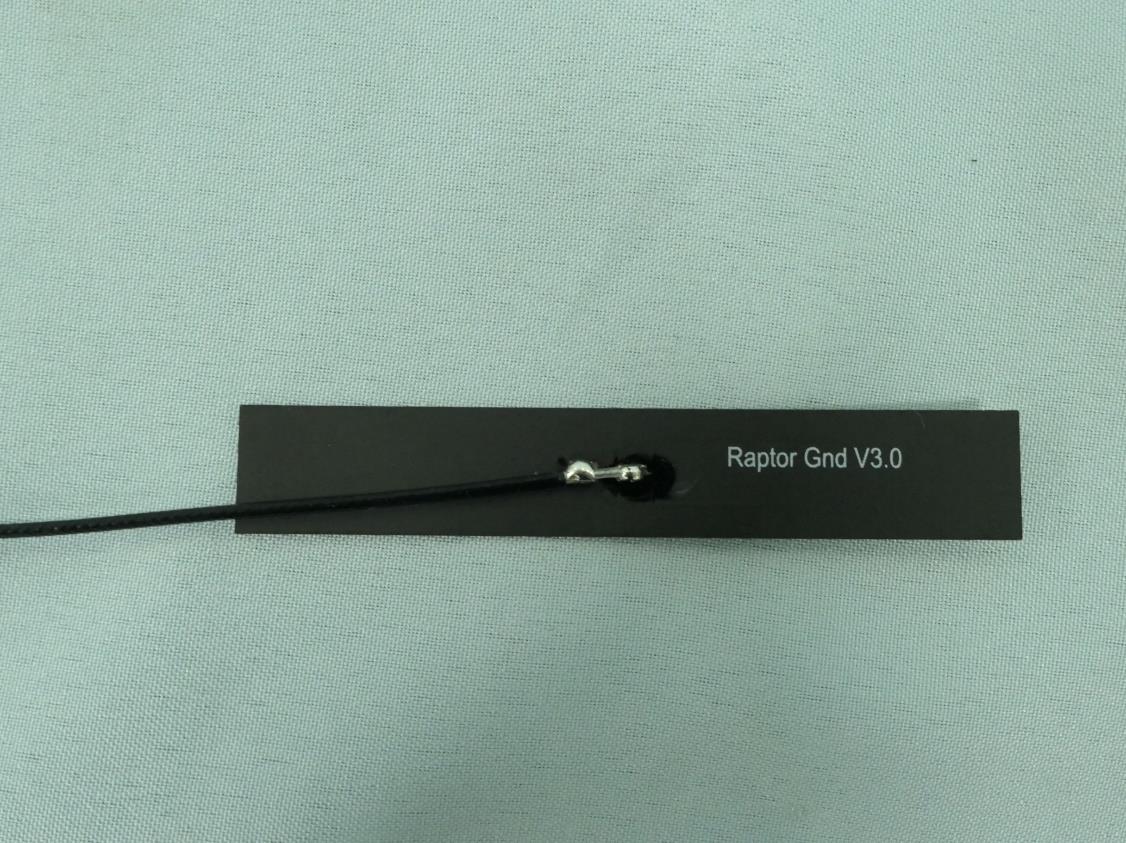

Raptor User Manual www.taisync.com Contents 1. Package Contents ............................................................................. 1 2. Product Description ......................................................................... 2 2.1. Parameters ............................................................................ 2 2.2. Air Unit Interfaces ................................................................ 3 2.3. Ground Unit Interfaces ......................................................... 5 3. System setup .................................................................................... 7 3.1. Air Unit Installation .............................................................. 7 3.1.1. Antenna installation ................................................... 7 3.1.2. Power supply ............................................................. 8 3.1.3. Connect camera ......................................................... 9 3.1.4. Connect flight controller (telemetry) ......................... 9 3.1.5. Configuration serial port connection ....................... 10 3.2. Ground unit installation ...................................................... 11 3.2.1. Antenna installation ................................................. 11 3.2.2. Power supply ........................................................... 11 3.2.3. Telemetry connection .............................................. 12 3.2.4. Configuration serial port connection ....................... 13 3.2.5. Setup video output ................................................... 14 4. Raptor commands sets ................................................................... 14 4.1. Commands used to check status ......................................... 14 4.2. Commands used under normal working mode ................... 15 4.3. Commands used under single unit configuration mode ..... 16 4.4. Commands used under testing mode .................................. 18 4.5. Commands used under OTA mode .................................... 19 5. Notes .............................................................................................. 20 5.1. Link performance ............................................................... 20 5.2. Firmware update ................................................................. 22 6. FAQ................................................................................................ 29 1 1. Package Contents Air Unit & Ground Unit Air unit antenna × 2 （2.4G & 5G antenna for air unit） Ground unit antenna × 2 （2.4G & 5G antenna for ground unit） Air Unit Cables Power cable x1 This is used to connect the output of a battery to the power input of the air unit. RJ45 Ethernet cable x1 This is used to connect the ETH output of camera to the ETH input of the air unit. 2 Serial cable x1 This is used to connect the telemetry port of flight controller to the telemetry serial port of the air unit. Serial-USB cable（UART） x1 This is used to connect the configuration serial port of air unit to the USB port of PC running serial tool. Ground Unit Cables Power cable x1 This is used to connect the output of a battery to the power input of the air unit. RJ45 Ethernet cable x1 This is used to connect the ETH output of ground unit to the ETH input of a pc or laptop. Serial-USB cable（UART） x1 This is used to connect the telemetry port of ground unit to the USB port of ground station. Serial-USB cable（UART） x1 This is used to connect the configuration serial port of ground unit to the USB port of PC running serial tool. 2. Product Description 2.1.Parameters Parameter Value Frequency 2.4GHz/5.8GHz Band width 10MHz (uplink), 10MHz (downlink) Power [email protected], [email protected] 3 Modulation OFDM Constellation BPSK, QPSK FEC LDPC (1/2, 2/3, 3/4, 5/6) Duplex TDD Downlink throughput 2.08Mbps ~ 6.57Mbps Uplink throughput 400kbps Encryption AES256 Telemetry baud rate 9600/57600/115200bps Configuration baud rate 115200bps Interface Ethernet, Serial Weight 23.9g Rated voltage/current DC12V/1.5A (or 3S lithium battery) Working temperature -10°C ~50°C 2.2.Air Unit Interfaces No. Interface Description 1 Power input Connect 12V power source to this port. The power supply recommended 3s battery. 2 RJ45 Ethernet port Connect the Ethernet output of camera to the Ethernet input of the air unit. ③ ② ① ④ ⑤ 4 3 Configuration serial port Connect the configuration serial port of air unit to the USB port of PC running serial tool. 4 Telemetry serial port Connect this port to the telemetry port of a flight controller for telemetry communication with the ground unit. 5 FPC connector Connect this port between baseboard and transmission board. Pin (from left to right) definition of FPC connector: Name Pin Type Description PWR 1,2 PI Power input(12V±5%，2A) GND 7,8 - Ground UART1_TX 5 DO/NP UART1 transmit UART1_RX 6 DI/PU UART1 receive UART2_TX 3 DO/NP UART2 transmit UART2_RX 4 DI/PU UART2 receive FEA_TDP 9 AIO/PU Ethernet in/out differential positive signal of interface 1 FEA_TDN 10 AIO/PU Ethernet in/out differential negative signal of interface 1 FEA_RDP 11 AIO/PU Ethernet in/out differential positive signal of interface 2 ① ② ③ 5 No. Interface Description 1 RF port 1 Connect the 1st air unit antenna to this port. 2 RF port 2 Connect the 2nd air unit antenna to this port 3 FPC connector Connect this port between baseboard and transmission board. 2.3.Ground Unit Interfaces No. Interface Description 1 Power input Connect 12V power source to this port. The power supply recommended 3s battery. 2 RJ45 Ethernet port Connect the Ethernet output of ground unit to the Ethernet input of PC. 3 Configuration serial port Connect the configuration serial port of ground unit to the USB port of PC running serial tool. 4 Telemetry serial port Connect this port to the USB port of ground station 5 FPC connector Connect this port between baseboard and transmission board. Pin (from left to right) definition of FPC connector: ③ ② ① ④ ⑤ 6 Name Pin Type Desc…
