2A8JK-GS5US-FALCONSmart Controller

1 Industrial Smart Controller GS5 Tenso-F3 User Manual Ver. 2.1 Be sure to read this manual before using the product. 2 Table of Contents 1. Legend ............................................................................................................................................................ 4 2. Package contents .......................................................................................................................................... 4 3. Performance specifications ........................................................................................................................... 5 4. Controller part names .................................................................................................................................... 7 Collision avoidance ........................................................................................................................................ 9 Camera operation ........................................................................................................................................... 9 Go Home ....................................................................................................................................................... 11 5. Indicators ...................................................................................................................................................... 12 Battery level indicator LED .......................................................................................................................... 12 Connection indicator LED ............................................................................................................................ 12 6. Mounting antennas ...................................................................................................................................... 13 7. Attaching a strap .......................................................................................................................................... 13 8. Charging ....................................................................................................................................................... 14 9. Startup and shutdown .................................................................................................................................. 14 10. Pilot mode and observer mode ................................................................................................................. 15 11. Home screen .............................................................................................................................................. 16 12. Operation icons .......................................................................................................................................... 16 13. GCS (Ground Control System) ................................................................................................................. 17 Setting communication link (Tenso-F3) ...................................................................................................... 17 Setting for video streaming (Tenso-F3) ...................................................................................................... 19 Force stop of GCS (Tenso-F3) .................................................................................................................... 20 Installation of GCS app (Tenso-F3) ............................................................................................................. 22 Uninstalling the GCS app ............................................................................................................................ 26 14. Settings ....................................................................................................................................................... 27 Control mode ................................................................................................................................................ 27 Stick calibration ............................................................................................................................................ 28 Monitor .......................................................................................................................................................... 29 Wheel calibration .......................................................................................................................................... 30 Pairing with a communication device (Hedwig-T5) .................................................................................... 31 Pairing with communication device (Tenso-F3) ......................................................................................... 32 Request switching ........................................................................................................................................ 34 Warning with vibration .................................................................................................................................. 35 Language ...................................................................................................................................................... 36 Network ......................................................................................................................................................... 36 About this controller...................................................................................................................................... 39 15. Video ........................................................................................................................................................... 40 3 16. System update ........................................................................................................................................... 40 Preparation ..............…

Text truncated - open the document above for the full version.

Company name: ACSL Ltd. Address: Hulic Kasai Rinkai Bldg. 2F, 3-6-4 Rinkaicho, Edogawa-ku, Tokyo, Japan 134-0086 Tel: +81-3-6456-0931 Fax: +81-3-6456-0932 Email: [email protected] Date: 04/24/2024 Attestation Letter FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oaklan d Mills Road Columbia, MD 21046 To whom it may concern: We, ACSL Ltd., declared that the device only apply 2.4G SRD (2412-2467 MHz) & BLE 1M/BT (2402-2480 MHz) & 2.4G WiFi (2412-2462MHz) & 5G WiFi (B1: 5150-5250 MHz, B2: 5250-5350 MHz, B3: 5470-5725 MHz, B4: 5725-5850 MHz). Other functions were shield ed by software, the end users can’t have th e capacity to activ e it. Product type or descriptio n: Smart Controller Model number: TENSO-F3 FCC ID: 2A8JK-GS5US-FALCON Pleas e contact me if there is need for any additional clarification or information. Best Regards, Sincerely Yours, Signature: Typed or Printed Name: Yasuki Ikeuchi Title: Manager

QA- FR-171-A Company name: ACSL Ltd. Address: Hulic Kasai Rinkai Bldg. 2F, 3-6-4 Rinkaicho, Edogawa-ku, Tokyo, Japan 134- 0086 Tel: +81-3-6456-0931 Fax: +81-3-6456-0932 Email: [email protected] FCC Confidential Authorization D ate: 2024-04-24 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2A8JK-GS5US-FALCON In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, ACSL Ltd. hereby requests long-term confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics Op eration Descriptio n U-NII Devi ce Security Declarati on_5G Th e above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Printed Name: Yasuki Ikeuchi Title: Manager

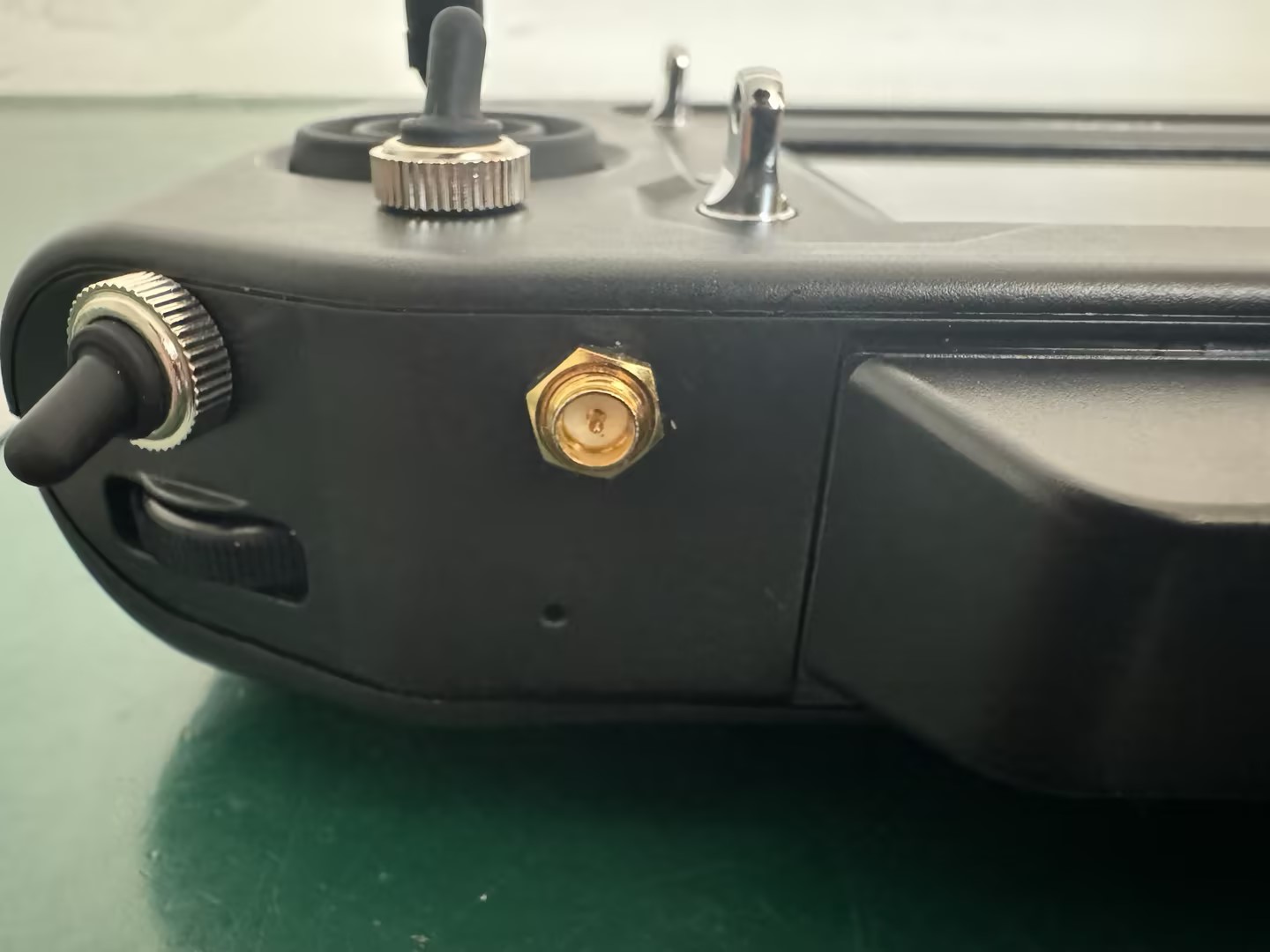

Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240424001 1 / 5 EXHIBIT A - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240424001 2 / 5 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240424001 3 / 5 2.4G SRD TX ANTENNA 2.4G SRD RX ANTENNA Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240424001 4 / 5 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240424001 5 / 5

Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240424001 1 / 23 EXHIBIT B - EUT INTERNAL PHOTOGRAPHS Wi-Fi & BT & BLE Antenna Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240424001 2 / 23 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240424001 3 / 23 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240424001 4 / 23 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240424001 5 / 23 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240424001 6 / 23 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240424001 7 / 23 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240424001 8 / 23 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240424001 9 / 23 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240424001 10 / 23 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240424001 11 / 23 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240424001 12 / 23 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240424001 13 / 23 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240424001 14 / 23 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240424001 15 / 23 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240424001 16 / 23 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240424001 17 / 23 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240424001 18 / 23 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240424001 19 / 23 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240424001 20 / 23 SRD antenna port Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240424001 21 / 23 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240424001 22 / 23 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RSHA240424001 23 / 23 Wi-Fi & BT & BLE Antenna

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Kunshan). This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, or any agency of the U.S.Govemment. SAR EVALUATION REPORT For ACSL Ltd Hulic Kasai Rinkai Bldg. 2F, 3-6-4 Rinkaicho, Edogawa-ku, Tokyo, Japan 134-0086 FCC ID: 2A8JK-GS5US-FALCON Report Type: Original Report Product Type: Smart Controller Pro ject Engineer: Bard Liu Re port Number: RSHA240424001-20B Re port Date: 2024-07-12 Reviewed By: Oscar Ye EMC Mana ger Test Laboratory: Bay Area Compliance Laboratories Corp. (Kunshan) No.248, Chenghu Road, Development Zone, Yushan, Kunshan, Suzhou, Jiangsu, China Tel: +86-512-86175000 Fax: +86-512-88934268 www.baclcor p.com.cn Bay Area Compliance Laboratories Corp. (Kunshan ) Report No.: RSHA240424001-20B SAR Evaluation Report 2 of 60 Attestation of Test Results EUT Information EUT Description Smart Controller Tested Model TENSO-F3 FCC ID 2A8JK-GS5US-FALCON Serial Number RSHA240424001-1 Test Date 2024-05-15~ 2024-05-16 MODE Max. SAR Level(s) Reported(W/kg) Limit 2.4GHz WLAN 0.187 W/kg 1g Body SAR 1.6 W/kg 5.2GHz WLAN 0.184 W/kg 1g Body SAR 5.3GHz WLAN 0.099 W/kg 1g Body SAR 5.6GHz WLAN 0.209 W/kg 1g Body SAR 5.8GHz WLAN 0.447 W/kg 1g Body SAR 2.4G SRD 1.191 W/kg 1g Body SAR Simultaneous 1.585 W/kg 1g Body SAR Applicable Standards FCC 47 CFR part 2.1093 Radiofrequency radiation exposure evaluation: portable devices RF Exposure Procedures: TCB Workshop April 2019 IEEE 1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques IEC 62209-1:2016 Measurement procedure for the assessment of specific absorption rate of human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices – Part 1: Devices used next to the ear (Frequenc y range of 300 MHz to 6 GHz IEC 62209-2:2010 Human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices-Human models, instrumentation, and procedures-Part 2: Procedure to determine the specific absorption rate (SAR) for wireless communication devices used in close proximity to the human body (frequency range of 30 MHz to 6 GHz) KDB procedures KDB 447498 D01 General RF Exposure Guidance v06 KDB 248227 D01 802.11 Wi-Fi SAR v02r02 Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in FCC 47 CFR part 2.1093 and has been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Kunshan ) Report No.: RSHA240424001-20B SAR Evaluation Report 3 of 60 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 4 EUT DESCRIPTION .................................................................................................................................................... 5 TECHNICAL SPECIFICATION ......................................................................................................................................... 5 REFERENCE, STANDARDS, AND GUIDELINES .................................................................................................. 6 SAR LIMITS ................................................................................................................................................................. 6 FACILITIES .................................................................................................................................................................. 7 DESCRIPTION OF TEST SYSTEM .......................................................................................................................... 8 EQUIPMENT LIST AND CALIBRATION ............................................................................................................. 19 EQUIPMENTS LIST & CALIBRATION INFORMATION .................................................................................................... 19 SAR MEASUREMENT SYSTEM VERIFICATION .............................................................................................. 20 LIQUID VERIFICATION ............................................................................................................................................... 20 SYSTEM ACCURACY VERIFICATION ........................................................................................................................... 22 SAR SYSTEM VALIDATION DATA ..................................................................................................................... 24 EUT TEST STRATEGY AND METHODOLOGY ................................................................................................. 28 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS .............................................................................. 28 TEST DISTANCE FOR SAR EVALUATION .................................................................................................................... 28 SAR EVALUATION PROCEDURE ................................................................................................................................. 29 CONDUCTED OUTPUT POWER MEASUREMENT ........................................................................................... 30 TEST PROCEDURE ........................................................................................................................................…

Text truncated - open the document above for the full version.

1#_WLAN 2.4GHz_802.11b 1Mbps_Front_0mm_Ch6 Communication System: UID 0, WIFI2.4G (0); Frequency: 2437 MHz;Duty Cycle: 1:1.016 Medium parameters used: f = 2437 MHz; σ = 1.862 S/m; ε r = 38.403; ρ = 1000 kg/m 3 DASY5 Configuration: • Probe: EX3DV4 - SN7557; ConvF(7.27, 7.27, 7.27); Calibrated: 3/26/2024; • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn527; Calibrated: 3/26/2024 • Phantom: ELI V8.0; Type: QD OVA 004 Ax; Serial: 2095 • Measurement SW: DASY52, Version 52.10 (1); SEMCAD X Version 14.6.11 (7437) Area Scan (11x13x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.0884 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.637 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.0980 W/kg SAR(1 g) = 0.063 W/kg; SAR(10 g) = 0.039 W/kg Maximum value of SAR (measured) = 0.0852 W/kg 0 dB = 0.0884 W/kg = -10.54 dBW/kg 2#_WLAN 2.4GHz_802.11b 1Mbps_Back_0mm_Ch6 Communication System: UID 0, WIFI2.4G (0); Frequency: 2437 MHz;Duty Cycle: 1:1.016 Medium parameters used: f = 2437 MHz; σ = 1.862 S/m; ε r = 38.403; ρ = 1000 kg/m 3 DASY5 Configuration: • Probe: EX3DV4 - SN7557; ConvF(7.27, 7.27, 7.27); Calibrated: 3/26/2024; • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn527; Calibrated: 3/26/2024 • Phantom: ELI V8.0; Type: QD OVA 004 Ax; Serial: 2095 • Measurement SW: DASY52, Version 52.10 (1); SEMCAD X Version 14.6.11 (7437) Area Scan (11x13x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.194 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.415 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 0.297 W/kg SAR(1 g) = 0.164 W/kg; SAR(10 g) = 0.079 W/kg Maximum value of SAR (measured) = 0.244 W/kg 0 dB = 0.244 W/kg = -6.13 dBW/kg 3#_WLAN 2.4GHz_802.11b 1Mbps_Back_0mm_Ch1 Communication System: UID 0, WIFI2.4G (0); Frequency: 2412 MHz;Duty Cycle: 1:1.016 Medium parameters used: f = 2412 MHz; σ = 1.833 S/m; ε r = 38.511; ρ = 1000 kg/m 3 DASY5 Configuration: • Probe: EX3DV4 - SN7557; ConvF(7.27, 7.27, 7.27); Calibrated: 3/26/2024; • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn527; Calibrated: 3/26/2024 • Phantom: ELI V8.0; Type: QD OVA 004 Ax; Serial: 2095 • Measurement SW: DASY52, Version 52.10 (1); SEMCAD X Version 14.6.11 (7437) Area Scan (11x13x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.202 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.644 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 0.256 W/kg SAR(1 g) = 0.156 W/kg; SAR(10 g) = 0.088 W/kg Maximum value of SAR (measured) = 0.218 W/kg 0 dB = 0.218 W/kg = -6.62 dBW/kg 4#_WLAN 2.4GHz_802.11b 1Mbps_Back_0mm_Ch13 Communication System: UID 0, WIFI2.4G (0); Frequency: 2462 MHz;Duty Cycle: 1:1.016 Medium parameters used: f = 2462 MHz; σ = 1.891 S/m; ε r = 38.296; ρ = 1000 kg/m 3 DASY5 Configuration: • Probe: EX3DV4 - SN7557; ConvF(7.27, 7.27, 7.27); Calibrated: 3/26/2024; • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn527; Calibrated: 3/26/2024 • Phantom: ELI V8.0; Type: QD OVA 004 Ax; Serial: 2095 • Measurement SW: DASY52, Version 52.10 (1); SEMCAD X Version 14.6.11 (7437) Area Scan (11x13x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.109 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.845 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 0.125 W/kg SAR(1 g) = 0.077 W/kg; SAR(10 g) = 0.050 W/kg Maximum value of SAR (measured) = 0.108 W/kg 0 dB = 0.109 W/kg = -9.63 dBW/kg 5#_WLAN 5.2GHz_802.11a 6Mbps_Front_0mm_Ch40 Communication System: UID 0, WIFI 5G (0); Frequency: 5200 MHz;Duty Cycle: 1:1.055 Medium parameters used: f = 5200 MHz; σ = 4.68 S/m; ε r = 37.551; ρ = 1000 kg/m 3 DASY5 Configuration: • Probe: EX3DV4 - SN7557; ConvF(5.25, 5.25, 5.25); Calibrated: 3/26/2024; • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn527; Calibrated: 3/26/2024 • Phantom: ELI V8.0; Type: QD OVA 004 Ax; Serial: 2095 • Measurement SW: DASY52, Version 52.10 (1); SEMCAD X Version 14.6.11 (7437) Area Scan (12x15x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.176 W/kg Zoom Scan (9x9x17)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 3.189 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 0.232 W/kg SAR(1 g) = 0.110 W/kg; SAR(10 g) = 0.063 W/kg Maximum value of SAR (measured) = 0.183 W/kg 0 dB = 0.183 W/kg = -7.38 dBW/kg 6#_WLAN 5.2GHz_802.11a 6Mbps_Back_0mm_Ch40 Communication System: UID 0, WIFI 5G (0); Frequency: 5200 MHz;Duty Cycle: 1:1.055 Medium parameters used: f = 5200 MHz; σ = 4.68 S/m; ε r = 37.551; ρ = 1000 kg/m 3 DASY5 Configuration: • Probe: EX3DV4 - SN7557; ConvF(5.25, 5.25, 5.25); Calibrated: 3/26/2024; • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn527; Calibrated: 3/26/2024 • Phantom: ELI V8.0; Type: QD OVA 004 Ax; Serial: 2095 • Measurement SW: DASY52, Version 52.10 (1); SEMCAD X Version 14.6.11 (7437) Area Scan (13x15x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.216 W/kg Zoom Scan (9x9x17)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 0 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 0.300 W/kg SAR(1 g) = 0.115 W/kg; SAR(10 g) = 0.049 W/kg Maximum value of SAR (measured) = 0.213 W/kg 0 dB = 0.216 W/kg = -6.66 dBW/kg 7#_WLAN 5.2GHz_802.11a 6Mbps_Back_0mm_Ch36 Communication System: UID 0, WIFI 5G (0); Frequency: 5180 MHz;Duty Cycle: 1:1.055 Medium parameters used: f = 5180 MHz; σ = 4.661 S/m; ε r = 37.577; ρ = 1000 kg/m 3 DASY5 Configuration: • Probe: EX3DV4 - SN7557; ConvF(5.25, 5.25, 5.25); Calibrated: 3/26/2024; • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn527; Calibrated: 3/26/2024 • Phantom: ELI V8.0; Type: QD OVA 004 Ax; Serial: 2095 • Measureme…

Text truncated - open the document above for the full version.

R & D Center：Room D 5 th Floor Building L,Block E ,71 Baocheng District ,Baoan District ,Shenzhen Factory：6 Floor,GangHuaXing Industrial Park,Rongshu Road 2 nd ,Fuyong,Baoan ,shenzhen Email:[email protected] Shenzhen SKYLink Technology Co.,Ltd Antenna Specification for Approval Customer Name： Product Name： SRD ANTENNA Part NO.: EWF046.DF01B.SMAMF Write By： Damon Cui Issued Date: 2024-7-30 Customer R&D Dept Business Dept Approved By SKYLink R&D Dept Engineer Dept Approval R & D Center：Room D 5 th Floor Building L,Block E ,71 Baocheng District ,Baoan District ,Shenzhen Factory：6 Floor,GangHuaXing Industrial Park,Rongshu Road 2 nd ,Fuyong,Baoan ,shenzhen Email:[email protected] Product Specification A. Electrical Characteristics Frequency 2400MHz ~2500MHz VSWR 2400MHz ~2500MHz <2.0 Efficiency >50% Impedance 50 Ohm Polarization Line Gain ≤3DBi @ 2400MHz ~2500MHz B. Material & Mechanical Characteristics Material of Radiator Cu Cable Type RG178 Connector Type SMA Dimension C. Environmental Operation Temperature - 30 ̊C ~ + 80 ̊C Storage Temperature - 30 ̊C ~ + 85 ̊C R & D Center：Room D 5 th Floor Building L,Block E ,71 Baocheng District ,Baoan District ,Shenzhen Factory：6 Floor,GangHuaXing Industrial Park,Rongshu Road 2 nd ,Fuyong,Baoan ,shenzhen Email:[email protected] Test Equipment & Conditions 1． Network Analyzers : Agilent 8753D 5071B 2． Communications Test Set: Agilent E5515C 3． 3D Chamber Test System R & D Center：Room D 5 th Floor Building L,Block E ,71 Baocheng District ,Baoan District ,Shenzhen Factory：6 Floor,GangHuaXing Industrial Park,Rongshu Road 2 nd ,Fuyong,Baoan ,shenzhen Email:[email protected] S11 R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected] Gain： Fren(MHz)Gain(dBi) 24001.99 24101.95 24201.91 24301.85 24401.84 24501.87 24601.93 24701.96 24801.92 24902.23 25002.35 Effciency： Fren(MHz)Effi(%) 240070.25 241069.47 242068.73 243067.58 244066.35 245066.02 246065.21 247067.82 248066.34 249068.23 250072.14 R & D Center：Room D 5 th Floor Building L,Block E ,71 Baocheng District ,Baoan District ,Shenzhen Factory：6 Floor,GangHuaXing Industrial Park,Rongshu Road 2 nd ,Fuyong,Baoan ,shenzhen Email:[email protected] Radiation Pattern: R & D Center：Room D 5 th Floor Building L,Block E ,71 Baocheng District ,Baoan District ,Shenzhen Factory：6 Floor,GangHuaXing Industrial Park,Rongshu Road 2 nd ,Fuyong,Baoan ,shenzhen Email:[email protected] Test Item Test condition Equipment Specification Result 1 Low Temp. Storage Test Temperature: -30°C， Time:48hrs Test condition: Placing antenna in a Low/High Temperature Chamber, keep the temp is 25°C and humidity is 65% for one hour, then step-down the temp. to -30°C in one hour, store antenna for 44 hours; step-up temp to 25°C,test antenna after 2 hours. Temp.&Humi. Tester No material deformation is allowed. Electronic Performance is ok . PASS 2 High Temp./High Humid Storage Test Temperature: 85°C Humidity: 85% RH Time:48hrs Test condition: Placing antenna in a Low/High Temperature Chamber, keep the temp is 25°C and humidity is 65% for one hour, then step-up the temp. to 80°C and the humidity up to 85% in one hour, store antenna for 44 hours; step-down temp to 25°C,test antenna after 2 hours. Temp.&Humi. Tester No material deformation is allowed. Electronic Performance is ok . PASS 3 Salt-Spray 6 pray Test Placing antenna in the Salt-Spray Tester ,set the test condition ，Temp: 35±2°C Humidity: 85% NaCl salt spray :5 ±1 %.PH value :6.5~7.2 Test time:12hours Salt-Spray Tester No color change No appear rusting PASS

UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝± X.X＝± X.XX＝± ANGLES＝± HOLEDIA＝± SCALE： / UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY： 陆晓华 CHECKED BY： 林娟 DESIGNED BY：黄璐璐 APPROVED BY：唐龙 TITLE：WA-F-LB-02-238 Specification DOCUMENT ENS000140150 PAGE REV. NO. P3 PAGE 1 OF 4 WA-F-LB-02-238 Specification 1.Explanation of part number : WA _ F _ LB _ 02 _ 238 (1) (2) (3) (4) (5) (1) Product Type: Wireless Antenna (2) Material: FPC+Cable (3) Frequency: 2400MHz-2500MHz&5100MHz-5800MHz (4) Coaxial Cable Type : With ∮1.13 Black (5) Suffix : 238 2.Operating Condition: Temperature-40 to +70°C Humidity 20 to 65% RH 3.Storage Condition: Temperature-40 to +70°C Humidity10 to 85% RH 4.Electrical Specification : Those specifications were specially defined for GCS5 model, and all characteristics were measured under the model’s handset testing. 4-1. Frequency Band: Frequency Band MHz WIFI 2400~2500&5100~5800 4-2. Impedance 50 ohm nominal 4-3. Matching circuit None UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝± X.X＝± X.XX＝± ANGLES＝± HOLEDIA＝± SCALE： / UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY： 陆晓华 CHECKED BY： 林娟 DESIGNED BY：黄璐璐 APPROVED BY：唐龙 TITLE：WA-F-LB-02-238 Specification DOCUMENT ENS000140150 PAGE REV. NO. P3 PAGE 2 OF 4 4-4. VSWR 4-4.1 Measuring Method 1.50Ωcoaxial cable is connected to the antenna. Then this cable is connected to a network analyzer to measure the VSWR 2.Keeping this jig away from metal at least 20cm 4-4.2 Measurement frequency points and VSWR value 4-5. Efficiency and Gain 4-5.1 Measure method 1. Using a low loss coaxial cable to link a standard handset jig 2.Fixed this handset jig on chamber’s rotator plane 3. Linking jig into network analyzer port and using a probing horn antenna to collect data. 4. Using another standard gain horn antenna to calibrated those data 4-5.2 Chamber definition 1.An anechoic chamber (7mx4mx3m) which satisfied far-field condition was applied to Mark Frequency VSWR 1 2400MHz ≤3.0 2 2500 MHz ≤3.0 3 5100MHz ≤4.5 4 5800MHz ≤4.5 UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝± X.X＝± X.XX＝± ANGLES＝± HOLEDIA＝± SCALE： / UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY： 陆晓华 CHECKED BY： 林娟 DESIGNED BY：黄璐璐 APPROVED BY：唐龙 TITLE：WA-F-LB-02-238 Specification DOCUMENT ENS000140150 PAGE REV. NO. P3 PAGE 3 OF 4 avoid multi-path effect 2.The quite room region is 40cmx40cmx40cm at the center of rotator 3.The distance between DUT and standard antenna is 4.38 m 4.Probing antenna (9120D horn antenna) and standard gain horn antenna (BBHA9120 LPF 700MHz ~6GHz) 4-5.3 Antenna Passive Test Result Frequency (MHz) Peak Gain(dBi) Efficiency(dBi) Efficiency(%) 2400 0.90 -4.62 34.48 2500 -0.29 -5.24 29.92 5100~5350 1.92 -2.28 59.15 5470~5900 0.15 -4.66 34.23 5.Mechanical Specification : 5-1Mechanical Configuration (Unit: mm) UNLESS OTHER SPECIFIED TOLERANCES ON： INPAQ TECHNOLOGY CO., LTD. X＝± X.X＝± X.XX＝± ANGLES＝± HOLEDIA＝± SCALE： / UNIT：mm THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF INPAQ TECHNOLOGY CO.,LTD.AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION DRAWN BY： 陆晓华 CHECKED BY： 林娟 DESIGNED BY：黄璐璐 APPROVED BY：唐龙 TITLE：WA-F-LB-02-238 Specification DOCUMENT ENS000140150 PAGE REV. NO. P3 PAGE 4 OF 4 2.4G …

Text truncated - open the document above for the full version.
