2A8K6-SWA31010.1 Inch Tablet

WarningT his device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference (1) this device maynot cause harmful interference, and (2) this device must accept any interferencereceived, including interference that may cause undesired operation.Any changesor modifications not expressly approved by the party responsible for compliancecould void the user's authority to operate the equipment. NOTE: This equipmenthas been tested and found to comply with the limits for a Class B digital device,pursuant to Part 15 of the FCC Rules. These limits are designed to providereasonable protection against harmful interference in a residential installation. Thisequipment generates, uses and can radiate radio frequency energy and, if notinstalled and used in accordance with the instructions,may cause harmful interference to radio communications. However, there is noguarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user isencouraged to try to correct the interference by one or more of the followingmeasures:-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver.-- Connect the equipment into an outlet on a circuit differentfrom that to which the receiver is connected.-- Consult the dealer or an experienced radio/TV technician for help. Specific absorption rate (SAR):This Tablet PC meets the government's requirements for exposure to radio waves.The guidelines arebased on standards developed by independent scientific organizations throughperiodic and thorough evaluation of scientific studies. The standards includea margin of safety designed to ensure the safety of all people regardless of theirage or health.The FCC Statement of Exposure to RF and the SAR limit for the United States(FCC) is 1.6 W/kgaverage for each gram of tissue. This device was tested for typical operations ofuse on the body,The use of belt clips, covers and similar accessories must not contain metallic components in their assembly. The use of accessories that do not meet these requirements may not meet FCC RF exposure requirements and should be avoided.Use only the supplied antenna or an approved antenna.

SW CHANGZHOU SPORTS TECHNOLOGY LTD Address: No 105 Lvchangtou, Putian community, Lanling Street, Tianning District, Changzhou, Jiangsu, China Tel: 17625224134 E-mail: [email protected] Date: 2023-10-13 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2A8K6-SWA310) [SW CHANGZHOU SPORTS TECHNOLOGY LTD] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Wendy Wang) SW CHANGZHOU SPORTS TECHNOLOGY LTD Address: No 105 Lvchangtou, Putian community, Lanling Street, Tianning District, Changzhou, Jiangsu, China Tel: 17625224134 E-mail: [email protected] Date: 2023-10-13 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2A8K6-SWA310) [SW CHANGZHOU SPORTS TECHNOLOGY LTD] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Wendy Wang)

U.S.AGENTLETTEROFATTESTATION Date:2023-09-22 FEDERALCOMMUNICATIONSCOMMISSION AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Ref:AttestationStatementsCFR47§2.911(d)(7)Filing FCCID:2A8K6-SWA310 SWCHANGZHOUSPORTSTECHNOLOGYLTDcertifiesthat,asofthedateofthe filingoftheapplication,IconsighInc.isourdesignatedU.S.agentforserviceofprocessfor theabovereferencedFCCID.SWCHANGZHOUSPORTSTECHNOLOGYLTDaccepts tomaintainanagentfornolessthanoneyearafterthegranteehasterminatedallmarketing andimportationortheconclusionofanyCommission-relatedproceedinginvolvingthe equipment. IconsighInc.accepts,asofthedateofthefilingoftheapplication,theobligationofthe designatedU.S.agentforserviceofprocessfortheabovereferencedFCCID. DesignatedU.S.AgentInformation: CompanyName:IconsighInc. Address:2310HomesteadRoad,SuiteC1,LosAltos,CA,94024,USA FRN:0033398652 Tel.:+1(408)320-9867 Email:[email protected] Signedby(printedname):BenjaminKaur Signature: Applicant:SWCHANGZHOUSPORTSTECHNOLOGYLTD Address:No105Lvchangtou,Putiancommunity,LanlingStreet,TianningDistrict, Changzhou,Jiangsu,China FRN:0032844078 Tel:17625224134 Email:[email protected] Signedby(printedname):Wendywang Signature:

SW CHANGZHOU SPORTS TECHNOLOGY LTD Address: No 105 Lvchangtou, Putian community, Lanling Street, Tianning District, Changzhou, Jiangsu, China Tel: 17625224134 E- mail: [email protected] D ate: 2023-09-22 F EDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 D ear Sir/Madam, We, SW CHANGZHOU SPORTS TECHNOLOGY LTD hereby authorize China Certification ICT Co., Ltd (Dongguan) to act as a laboratory for testing and test report generation for the following project(s): ( Product description: 10.1 Inch Tablet , FCC ID: 2A8K6-SWA310) For use in America this chip only support/enable BDR,EDR,BLE(BLE 1M&BLE 2M), 2.4GWIFI(2412~2462MHz),5G WIFI(5150~5250 MHz, 5725~5850 MHz), GSM850, GSM1900, WCDMA Band 2/4/5, LTE Band 2/4/5/7/12/17/41(2555-2655MHz)/66/71 and other functions have been shielded by the manufacturer using the software and the end user cannot activate. S incerely, S ignature: C ontact person: Wendy wang Title:Manager

SW CHANGZHOU SPORTS TECHNOLOGY LTD Address: No 105 Lvchangtou, Putian community, Lanling Street, Tianning District, Changzhou, Jiangsu, China Tel: 17625224134 E- mail: [email protected] Date: 2023-10-13 E urofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (10.1 Inch Tablet/SWA310 /FCC ID: 2A8K6-SWA310) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Block Diagram; Schematics; Operation Description; BOM/Turn up procedure; Software Security Description required to be submitted with this application be permanently withheld from public review. T he above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. P lease contact me if there is any information you may need. Sincerely, C ontact person: Wendy Wang T itle:Manager

SW CHANGZHOU SPORTS TECHNOLOGY LTD Address: No 105 Lvchangtou, Putian community, Lanling Street, Tianning District, Changzhou, Jiangsu, China Tel: 17625224134 E-mail: [email protected] Date: 2023-10-13 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize China Certification ICT Co., Ltd (Dongguan) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Contact person: Wendy wang Title:Manager

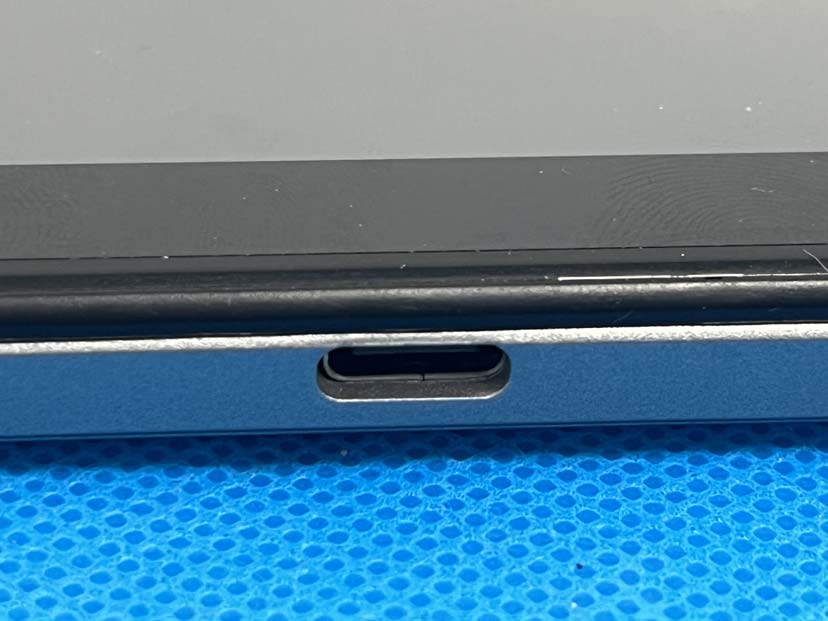

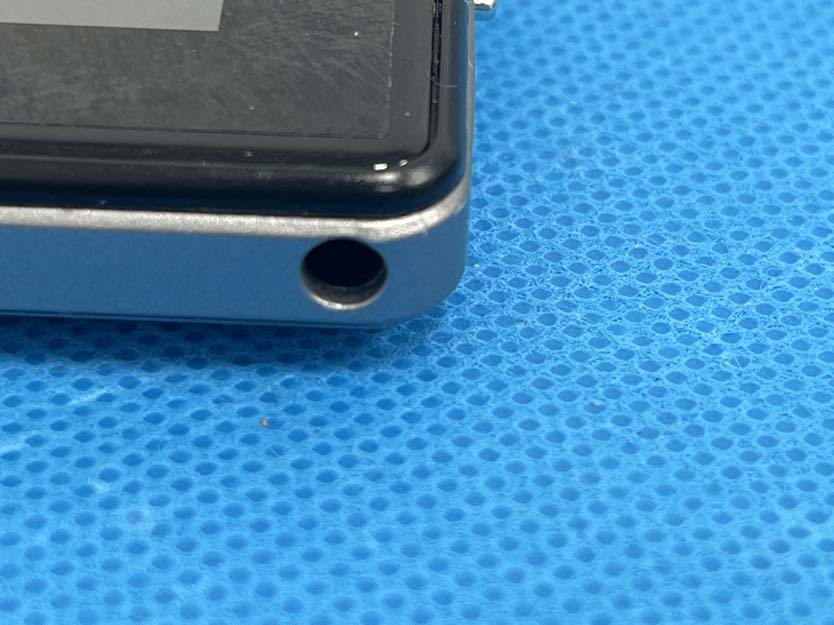

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845886-EXP Page 1 of 6 EUT EXTERNAL PHOTOGRAPHS EUT China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845886-EXP Page 2 of 6 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845886-EXP Page 3 of 6 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845886-EXP Page 4 of 6 Port China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845886-EXP Page 5 of 6 Port China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845886-EXP Page 6 of 6

EXHIBITA-FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the time purchase (Labeling requirements per 2.295)

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845886-INP Page 1 of 13 EUT INTERNAL PHOTOGRAPHS Uncover China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845886-INP Page 2 of 13 Main ANT China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845886-INP Page 3 of 13 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845886-INP Page 4 of 13 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845886-INP Page 5 of 13 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845886-INP Page 6 of 13 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845886-INP Page 7 of 13 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845886-INP Page 8 of 13 Main ANT connected board and cable DIV ANT China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845886-INP Page 9 of 13 GWBANT China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845886-INP Page 10 of 13 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845886-INP Page 11 of 13 Chip Chip China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845886-INP Page 12 of 13 Chip Chip China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845886-INP Page 13 of 13 Chip

China Certification ICT Co., Ltd (Dong guan) Report No.: CR23085886-20 Page 1 of 64 Plot 1#: GSM 850 Mid _ Body Worn Back DUT: 10.1 Inch Tablet; Type: SWA310 ; Serial: 29K2-1 Communication System: Generic GSM (0); Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.919 S/m; ε r = 41.581; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(9.9, 9.9, 9.9) @ 836.6 MHz; Calibrated: 2023/5/29  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1354; Calibrated: 2022/10/31  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1470  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (9x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0303 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.304 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 0.0850 W/kg SAR(1 g) = 0.030 W/kg; SAR(10 g) = 0.015 W/kg Maximum value of SAR (measured) = 0.0335 W/kg 0 dB = 0.0335 W/kg = -14.75 dBW/kg China Certification ICT Co., Ltd (Dong guan) Report No.: CR23085886-20 Page 2 of 64 Plot 2#: GSM 850 Mid_ Body Back DUT: 10.1 Inch Tablet; Type: SWA310 ; Serial: 29K2-1 Communication System: Generic GPRS-2 slots (0); Frequency: 836.6 MHz;Duty Cycle: 1:4 Medium parameters used: f = 836.6 MHz; σ = 0.919 S/m; ε r = 41.581; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(9.9, 9.9, 9.9) @ 836.6 MHz; Calibrated: 2023/5/29  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1354; Calibrated: 2022/10/31  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1470  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (9x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.131 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.934 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 0.197 W/kg SAR(1 g) = 0.089 W/kg; SAR(10 g) = 0.050 W/kg Maximum value of SAR (measured) = 0.143 W/kg 0 dB = 0.143 W/kg = -8.45 dBW/kg China Certification ICT Co., Ltd (Dong guan) Report No.: CR23085886-20 Page 3 of 64 Plot 3#: GSM 850 Mid_ Body Left DUT: 10.1 Inch Tablet; Type: SWA310 ; Serial: 29K2-1 Communication System: Generic GPRS-2 slots (0); Frequency: 836.6 MHz;Duty Cycle: 1:4 Medium parameters used: f = 836.6 MHz; σ = 0.919 S/m; ε r = 41.581; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(9.9, 9.9, 9.9) @ 836.6 MHz; Calibrated: 2023/5/29  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1354; Calibrated: 2022/10/31  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1470  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (5x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0220 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.641 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.0300 W/kg SAR(1 g) = 0.013 W/kg; SAR(10 g) = 0.00909 W/kg Maximum value of SAR (measured) = 0.0254 W/kg 0 dB = 0.0254 W/kg = -15.95 dBW/kg China Certification ICT Co., Ltd (Dong guan) Report No.: CR23085886-20 Page 4 of 64 Plot 4#: GSM 850 Mid_ Body Top DUT: 10.1 Inch Tablet; Type: SWA310 ; Serial: 29K2-1 Communication System: Generic GPRS-2 slots (0); Frequency: 836.6 MHz;Duty Cycle: 1:4 Medium parameters used: f = 836.6 MHz; σ = 0.919 S/m; ε r = 41.581; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(9.9, 9.9, 9.9) @ 836.6 MHz; Calibrated: 2023/5/29  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1354; Calibrated: 2022/10/31  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1470  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.671 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.86 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 1.35 W/kg SAR(1 g) = 0.349 W/kg; SAR(10 g) = 0.138 W/kg Maximum value of SAR (measured) = 0.744 W/kg 0 dB = 0.744 W/kg = -1.28 dBW/kg China Certification ICT Co., Ltd (Dong guan) Report No.: CR23085886-20 Page 5 of 64 Plot 5#: GSM 1900 Mid_ Body Worn Back DUT: 10.1 Inch Tablet; Type: SWA310 ; Serial: 29K2-1 Communication System: Generic GSM (0); Frequency: 1880 MHz;Duty Cycle: 1:8 Medium parameters used: f = 1880 MHz; σ = 1.373 S/m; ε r = 39.888; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(7.94, 7.94, 7.94) @ 1880 MHz; Calibrated: 2023/5/29  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1354; Calibrated: 2022/10/31  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1470  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (9x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0886 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.754 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 0.207 W/kg SAR(1 g) = 0.092 W/kg; SAR(10 g) = 0.047 W/kg Maximum value of SAR (measured) = 0.110 W/kg 0 dB = 0.110 W/kg = -9.59 dBW/kg China Certification ICT Co., Ltd (Dong guan) Report No.: CR23085886-20 Page 6 of 64 Plot 6#: PCS 1900 Mid_ Body Back DUT: 10.1 Inch Tablet; Type: SWA310 ; Serial: 29K2-1 Communication System: Generic GPRS-3 slots (0); Frequency: 1880 MHz;Duty Cycle: 1:2.66 Medium parameters used: f = 1880 MHz; σ = 1.373 S/m; ε r = 39.888; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(7.94, 7.94, 7.94) @ 1880 MHz; Calibrated: 2023/5/29  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electr…

Text truncated - open the document above for the full version.

Report No.: CR230845886-20 Page 1 of 3 APPENDIX B EUT TEST POSITION PHOTOS Liquid depth ≥ 15cm Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP: 1470 Report No.: CR230845886-20 Page 2 of 3 Body (Worn) Back Setup Photo (0mm) Body Left Setup Photo (0mm) Report No.: CR230845886-20 Page 3 of 3 Body Bottom Setup Photo (0mm) Body Top Setup Photo (0mm)

SAR TEST REPORT Applicant: SW CHANGZHOU SPORTS TECHNOLOGY LTD Address: No 105 Lvchangtou, Putian community,Lanling Street, Tianning District,Changzhou , Jiangsu, China FCC ID: 2A8K6-SWA310 Product Name: 10.1 Inch Tablet Tested Model: SWA310 Standard(s): 47 CFR Part 2(2.1093) The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR230845886-20 Date Of Issue: 2023-09-28 Reviewed By: Karl Gong Title: SAR Engineer Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845886-20 Page 2 of 89 SAR TEST RESULTS SUMMARY Operation Frequency Bands Highest Reported 1g SAR (W/kg) Limits (W/kg) Body-Supported GSM 850 0.36 1.6 PCS 1900 0.93 WCDMA Band 2 0.75 WCDMA Band 4 1.03 WCDMA Band 5 0.8 LTE Band 2 0.8 LTE Band 5 0.78 LTE Band 7 0.6 LTE Band 12&17 0.8 LTE Band 41 0.43 LTE Band 66&4 0.57 LTE Band 71 0.79 WLAN 2.4G 0.38 WLAN 5.2G 0.39 WLAN 5.8G 1.5 Bluetooth 0.03 Maximum Simultaneous Transmission SAR Items Body-Supported Limits Sum SAR(W/kg) 1.5 1.6 SPLSR N/A 0.04 EUT Received Date: 2023/08/24 Tested Date: 2023/09/08 ~ 2023/09/26 Tested Result: Pass China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845886-20 Page 3 of 89 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845886-20 Page 4 of 89 CONTENTS SAR TEST RESULTS SUMMARY .............................................................................................. 2 TEST FACILITY .......................................................................................................................................... 3 DECLARATIONS .......................................................................................................................................... 3 DOCUMENT REVISION HISTORY .......................................................................................... 6 1. GENERAL INFORMATION .................................................................................................... 7 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 7 1.2 TEST SPECIFICATION, METHODS AND PROCEDURES ........................................................................ 8 1.3 SAR LIMTS ........................................................................................................................................... 9 2. SAR MEASUREMENT SYSTEM .......................................................................................... 10 3. EQUIPMENT LIST AND CALIBRATION .......................................................................... 17 3.1 EQUIPMENTS LIST & CALIBRATION INFORMATION ....................................................................... 17 4. SAR MEASUREMENT SYSTEM VERIFICATION ........................................................... 18 4.1 LIQUID VERIFICATION ...................................................................................................................... 18 4.2 SYSTEM ACCURACY VERIFICATION ................................................................................................. 21 4.3 SAR SYSTEM VALIDATION DATA ............................................................................................. 22 5. EUT TEST STRATEGY AND METHODOLOGY .............................................................. 29 5.1 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR ......................................... 29 5.2 CHEEK/TOUCH POSITION .................................................................................................................. 30 5.3 EAR/TILT POSITION ........................................................................................................................... 30 5.4 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS ................................................ 31 5.5 TEST DISTANCE FOR SAR EVALUATION .......................................................................................... 32 5.6 SAR EVALUATION PROCEDURE ....................................................................................................... 33 6. CONDUCTED OUTPUT POWER MEASUREMENT ........................................................ 34 6.1 TEST PROCEDURE .............................................................................................................................. 34 6.2 DESCRIPTION OF TEST CONFIGURATION ................................................................................…

Text truncated - open the document above for the full version.

APPENDIX C CALIBRATION CERTIFICATES ',32/(&$/,%5$7,21&(57,),&$7(6

TEST REPORT Applicant: SW CHANGZHOU SPORTS TECHNOLOGY LTD Address: No 105 Lvchangtou, Putian community, Lanling Street, Tianning District, Changzhou, Jiangsu,China. FCC ID: 2A8K6-SWA310 Product Name: 10.1 Inch Tablet Standard(s): 47 CFR Part 15, Subpart C(15.247) ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR230845886-00B Date Of Issue: 2023/9/27 Reviewed By: Calvin Chen Title: RF Engineer Approved By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845886-00B Page 2 of 61 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845886-00B Page 3 of 61 CONTENTS T EST FACILITY .......................................................................................................................................... 2 DECLARATIONS .......................................................................................................................................... 2 DOCUMENT REVISION HISTORY .......................................................................................... 5 1. GENERAL INFORMATION .................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 6 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 7 1.2.1 EUT Operation Condition: ............................................................................................................................. 7 1.2.2 Support Equipment List and Details .............................................................................................................. 7 1.2.3 Support Cable List and Details ...................................................................................................................... 7 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 8 1.3 MEASUREMENT UNCERTAINTY .......................................................................................................... 9 2. SUMMARY OF TEST RESULTS .......................................................................................... 10 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 11 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 11 3.1.1 Applicable Standard ..................................................................................................................................... 11 3.1.2 EUT Setup.................................................................................................................................................... 12 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 12 3.1.4 Test Procedure ............................................................................................................................................. 13 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 13 3.2 RADIATED SPURIOUS EMISSIONS ...................................................................................................... 14 3.2.1 Applicable Standard ..................................................................................................................................... 14 3.2.2 EUT Setup.................................................................................................................................................... 14 3.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 15 3.2.4 Test Procedure ............................................................................................................................................. 15 3.2.5 Corrected Amplitude & Margin Calculation ................................................................................................ 15 3.3 20 DB EMISSION BANDWIDTH ................................................…

Text truncated - open the document above for the full version.

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845886-00B-TSP TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View China Certification ICT Co., Ltd (Dongguan) Report No.: CR230743940-00B-TSP Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View
