2A8K6-TK-X20L10.1 INCH TABLET

This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordanc e with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, t he user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The dev ice can be used in portable exposure condition without restriction. Specific absorption rate (SAR): This Tablet PC meets the government's requirements for exposure to radio waves. The guidelines are based on standards developed by independent s cientific organizations through periodic and thorough evaluation of scientific studies. The standards include a margin of safety designed to ensure the safety of all people regardless of their age or health. The FCC Statement of Exposure to RF and the SAR limit for the United States (FCC) is 1.6 W/kg average for each gram of tissue. This device was tested for typical operations of use on the body, with the back of the Tablet PC at 0mm from the body. To maintain compliance with FCC RF exposu re requirements, use accessories that maintain a distance of 0mm between the user's body and the back of the Tablet PC. The use of belt clips, covers and similar accessories must not contain metallic c omponents in their assembly. The use of accessories that do not meet these requirements may not meet FCC RF exposure requirements and should be avoided. Functioning in the body This device was tested for typical operations of use in the body. To comply with RF exposure requirements, a minimum separation distance of 0mm must be maintained between the user's body and the telephone, including the antenna. Third- party accessories suc h as belt clips. covers and similar accessories used with this device should not contain metallic components, accessories that do not meet these RF exposure requirements and s hould be avoided from use on the body. Use only the supplied antenna or an approved antenna.

SW CHANGZHOU SPORTS TECHNOLOGY LTD Family models difference declaration Product Name: 10.1 INCH TABLET Trade Name: SWACONNECT Model Name: TK-X20L, E10AP, E101GC, E101GCM, E109GCM, P80, P90, P30, P50, P86, P88 Difference declaration: All models are the same circuit and RF module, except the appearance. Regards, Signature Name: Wendy wang Date: 2022-09-08

SW CHANGZHOU SPORTS TECHNOLOGY LTD Office of Engineering Techno , og 》 Federal Communications Commission 7435 Oakland Mills Roaa Columbia, MD 21046 USA Subject; Request for Confidentiality FCC ID:2A8K6-TK-X20L 了。Whom It May Concern, Oate: 09/06/2022 Pursuant to the provisions of the Commission ’ s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following a忧achment(s) as confidential documents from public disclosure indefinite1y. These documents contain detailed system and equipm ent descriptions and are considered as proprieta叩 information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. 因Schematic Diagram 因BOM List 因Block Diagram 因Operational Description 囚Tune-up procedure 因FCC Software Security Requ irements for UNII devices In additional to above mentioned documents. in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality 。 f the following attachment( s ); 口 ExternalPhotos 口 TestSetup Photos 囚InternalPhotos 囚UserManual 口 For 45 days, pursuant to Public Notice DA 04-1705. OR 因For 180 days pursuantto KDB 726920 001. Jt is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, 印 A这w才／ Signature: Name:Wendy wang Title: Manager

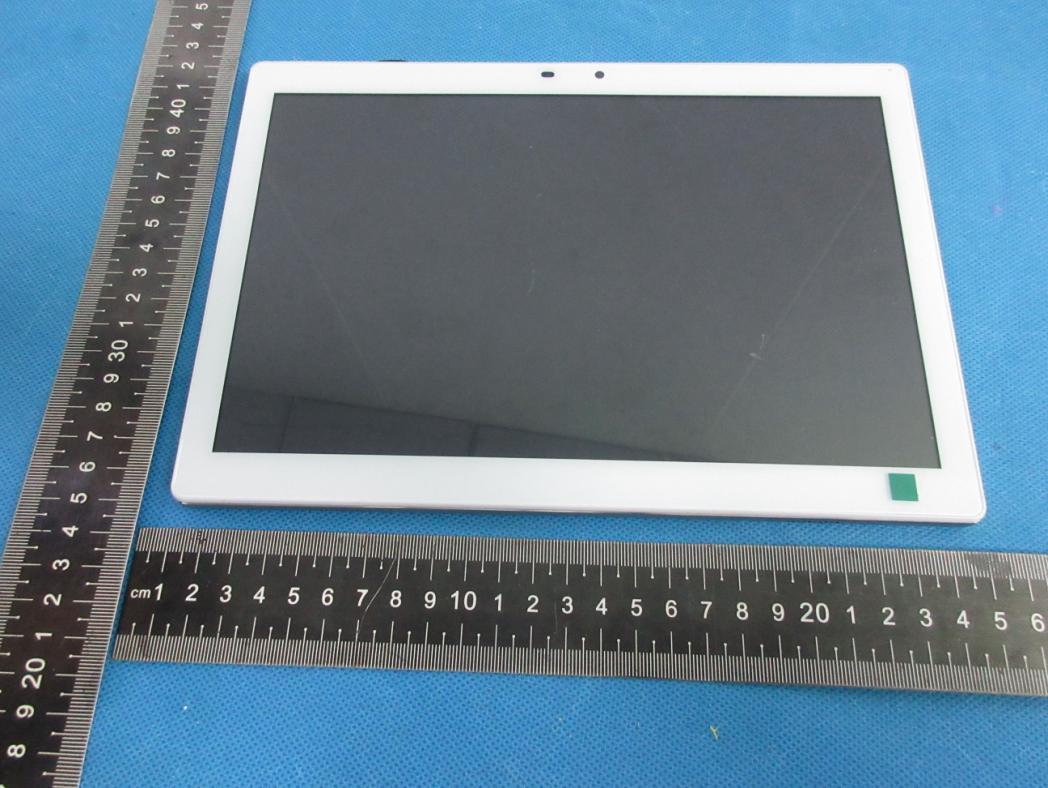

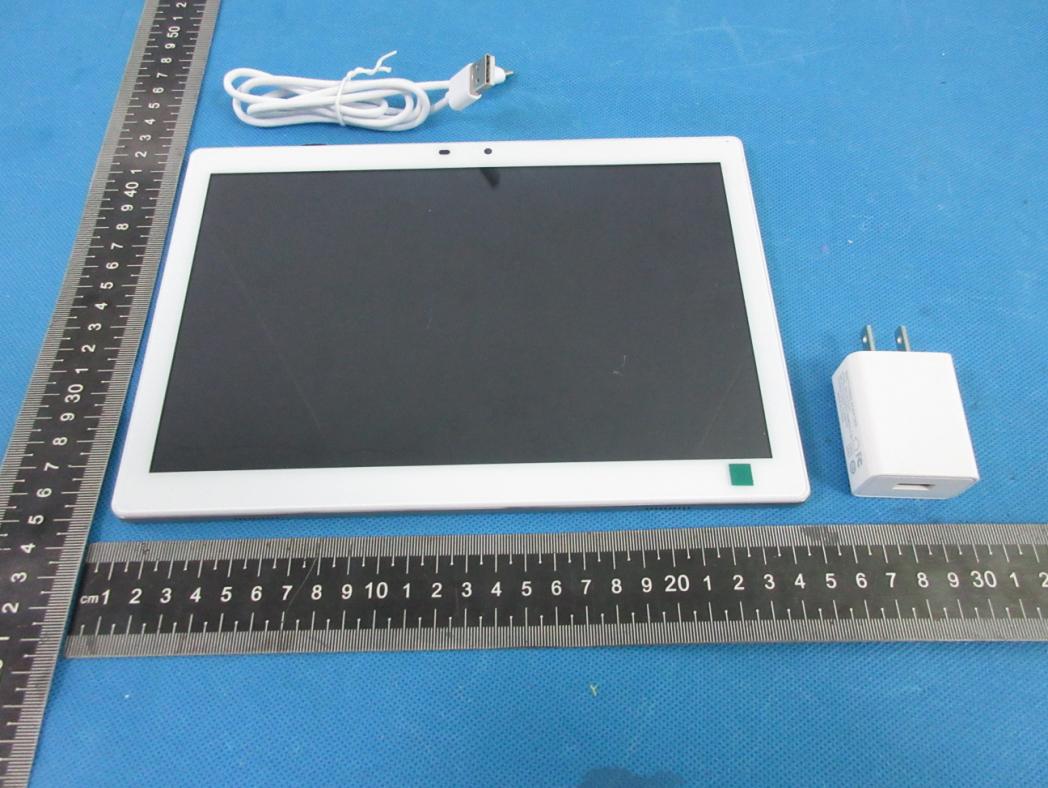

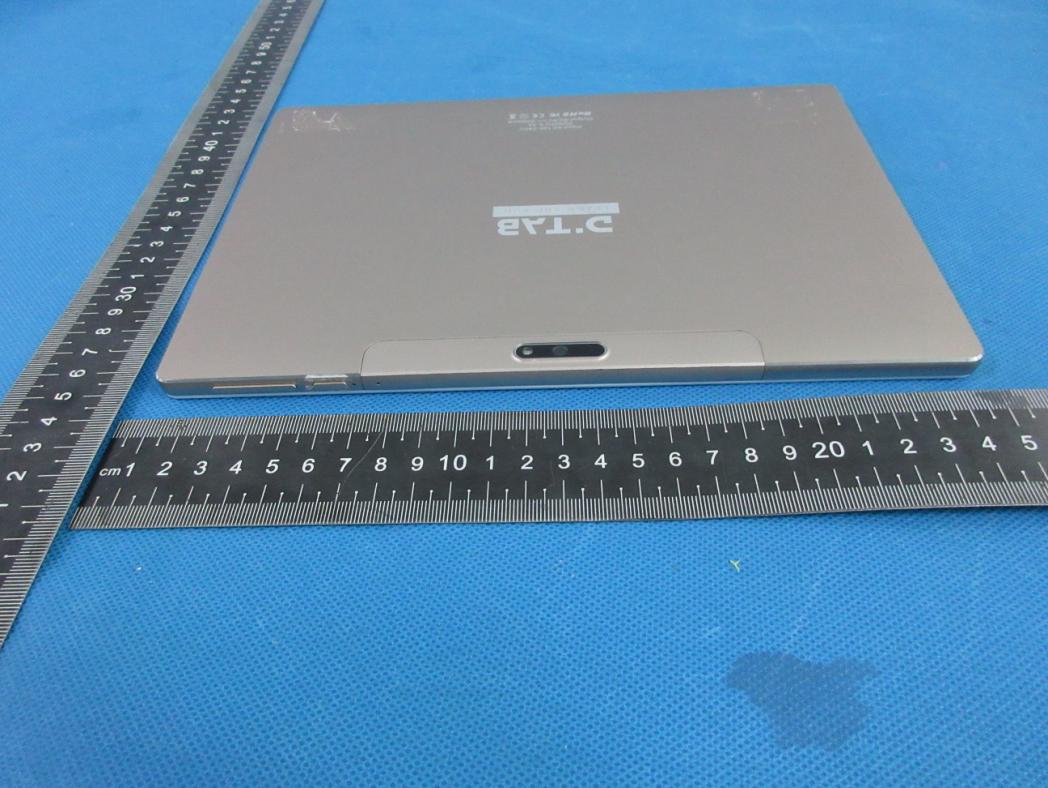

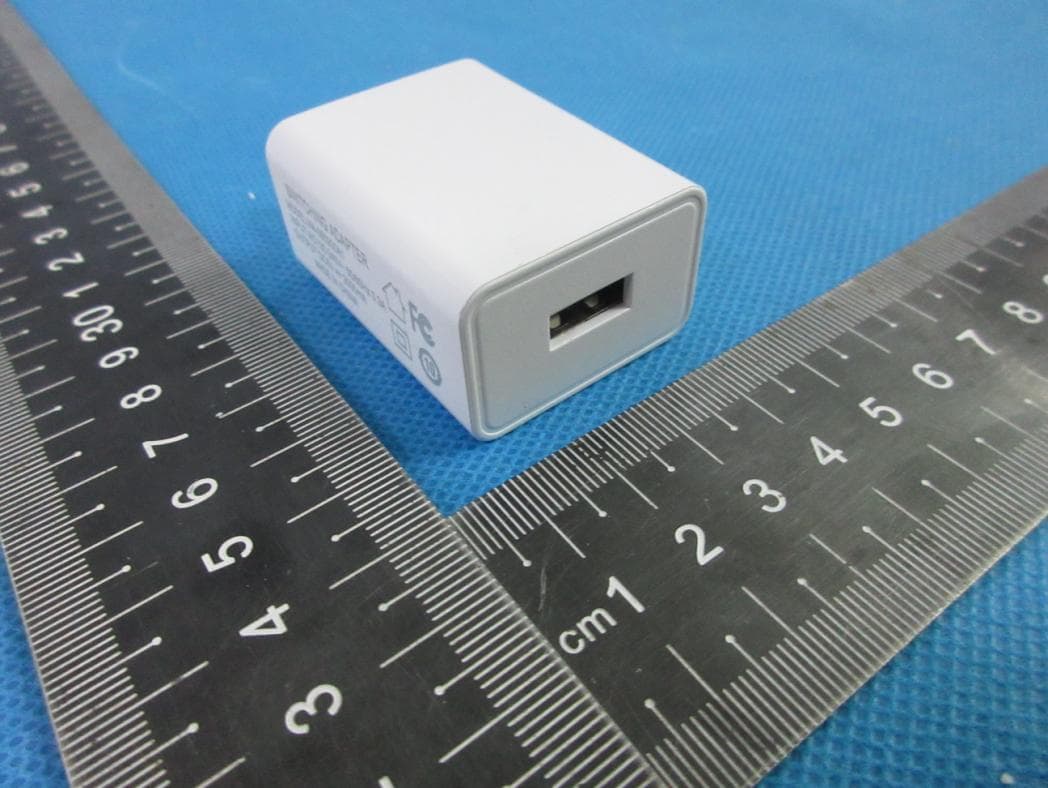

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 GSM/WCDMA/ LTE Main ANT LTE AUX ANT Photo 11 BT/WIFI ANT

Page 1 of 169 Report No.: S22080800403001 FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093), ANSI/IEEE C95.1-1992 and IEEE Std 1528-2013 Product Name： 10.1 INCH TABLET Trademark： SWACONNECT Model Name： TK-X20L Family Model： E10AP, E101GC, E101GCM, E109GCM, P80, P90, P30, P50, P86, P88 Report No.： S22080800403001 FCC ID： 2A8K6-TK-X20L Prepared for SW CHANGZHOU SPORTS TECHNOLOGY LTD No 105 Lvchangtou, Putian community, Lanling Street, Tianning District, Changzhou , Jiangsu ,China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao'an District, Shenzhen 518126 P.R.China. Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Page 2 of 169 Report No.: S22080800403001 TEST RESULT CERTIFICATION Applicant’s name .................. : SW CHANGZHOU SPORTS TECHNOLOGY LTD Address .................................. : No 105 Lvchangtou, Putian community, Lanling Street, Tianning District, Changzhou , Jiangsu ,China Manufacturer's Name ........... : SW CHANGZHOU SPORTS TECHNOLOGY LTD Address .................................. : No 105 Lvchangtou, Putian community, Lanling Street, Tianning District, Changzhou , Jiangsu ,China Product description Product name ......................... : 10.1 INCH TABLET Trademark ............................ : SWACONNECT Model Name ......................... : TK-X20L Family Model .......................... : E10AP, E101GC, E101GCM, E109GCM, P80, P90, P30, P50, P86, P88 Standards .............................. : FCC 47 CFR Part 2(2.1093); ANSI/IEEE C95.1-1992 IEEE Std 1528-2013; Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093) and ANSI/IEEE C95.1-1992. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Test Sample Number ............................ : S220808004003 Date of Test Date (s) of performance of tests ............. : Aug. 08, 2022 ~ Aug. 19, 2022 Date of Issue .......................................... : Sep. 01, 2022 Test Result .............................................. : Pass Prepared By (Test Engineer) : (Jacob Chen) Approved By (Lab Manager) : (Alex Li) Page 3 of 169 Report No.: S22080800403001 ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Sep. 01, 2022 Jacob Chen Page 4 of 169 Report No.: S22080800403001 TABLE OF CONTENTS 1. General Information ............................................................................................ 6 1.1. RF exposure limits .................................................................................... 6 1.2. Statement of Compliance ........................................................................ 7 1.3. EUT Description ....................................................................................... 7 1.4. Test specification(s) .................................................................................. 9 1.5. Ambient Condition ................................................................................... 9 2. SAR Measurement System ................................................................................. 10 2.1. SATIMO SAR Measurement Set-up Diagram .......................................... 10 2.2. Robot ..................................................................................................... 11 2.3. E-Field Probe .......................................................................................... 12 2.3.1. E-Field Probe Calibration ................................................................. 12 2.4. SAM phantoms ...................................................................................... 13 2.4.1. Technical Data .................................................................................. 14 2.5. Device Holder ........................................................................................ 15 2.6. Test Equipment List ................................................................................ 16 3. SAR Measurement Procedures .......................................................................... 18 3.1. Power Reference ................................................................................... 18 3.2. Area scan & Zoom scan .......................................................................... 18 3.3. Description of interpolation/extrapolation scheme .............................. 20 3.4. Volumetric Scan ..................................................................................... 20 3.5. Power Drift ............................................................................................ 20 4. System Verification Procedure .......................................................................... 21 4.1. Tissue Verification ................................................................................. 21 4.1.1. Tissue Dielectric Parameter Check Results ...................................... 22 4.2. System Verification Procedure .............................................................. 23 4.2.1. System Verification Results .............................................................. 24 5. SAR Measurement variability and uncertainty .................................................. 25 5.1. SAR measureme…

Text truncated - open the document above for the full version.

Page 121 of 169 Report No.: S22080800403001 Page 122 of 169 Report No.: S22080800403001 Page 123 of 169 Report No.: S22080800403001 Page 124 of 169 Report No.: S22080800403001 Page 125 of 169 Report No.: S22080800403001 Page 126 of 169 Report No.: S22080800403001 Page 127 of 169 Report No.: S22080800403001 Page 128 of 169 Report No.: S22080800403001 Page 129 of 169 Report No.: S22080800403001 Page 130 of 169 Report No.: S22080800403001 Page 131 of 169 Report No.: S22080800403001 Page 132 of 169 Report No.: S22080800403001 Page 133 of 169 Report No.: S22080800403001 Page 134 of 169 Report No.: S22080800403001 Page 135 of 169 Report No.: S22080800403001 Page 136 of 169 Report No.: S22080800403001 Page 137 of 169 Report No.: S22080800403001 Page 138 of 169 Report No.: S22080800403001 Page 139 of 169 Report No.: S22080800403001 Page 140 of 169 Report No.: S22080800403001 Page 141 of 169 Report No.: S22080800403001 Page 142 of 169 Report No.: S22080800403001 Page 143 of 169 Report No.: S22080800403001 Page 144 of 169 Report No.: S22080800403001 Page 145 of 169 Report No.: S22080800403001 Page 146 of 169 Report No.: S22080800403001 Page 147 of 169 Report No.: S22080800403001 Page 148 of 169 Report No.: S22080800403001 Page 149 of 169 Report No.: S22080800403001 Page 150 of 169 Report No.: S22080800403001 Page 151 of 169 Report No.: S22080800403001 Page 152 of 169 Report No.: S22080800403001 Page 153 of 169 Report No.: S22080800403001 Page 154 of 169 Report No.: S22080800403001 Page 155 of 169 Report No.: S22080800403001 Page 156 of 169 Report No.: S22080800403001 Page 157 of 169 Report No.: S22080800403001 Page 158 of 169 Report No.: S22080800403001 Page 159 of 169 Report No.: S22080800403001 Page 160 of 169 Report No.: S22080800403001 Page 161 of 169 Report No.: S22080800403001 Page 162 of 169 Report No.: S22080800403001 Page 163 of 169 Report No.: S22080800403001 <Justification of the extended calibration> If dipoles are verified in return loss (<-20dB, within 20% of prior calibration for below 3GHz, and <-8dB, within 20% of prior calibration for 5GHz to 6GHz), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Head 835MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -25.44 - 54.40 - Mar. 01, 2021 -25.803 1.43 54.492 0.092 Feb. 28, 2022 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 164 of 169 Report No.: S22080800403001 <Head 1800MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -28.85 - 47.90 - Mar. 01, 2021 -28.545 1.06 47.809 0.091 Feb. 28, 2022 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 165 of 169 Report No.: S22080800403001 <Head 1900MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -24.79 - 50.80 - Mar. 01, 2021 -24.518 1.10 50.516 0.284 Feb. 28, 2022 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 166 of 169 Report No.: S22080800403001 <Head 2450MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -23.18 - 56.30 - Mar. 01, 2021 -23.39 0.91 56.342 0.042 Feb. 28, 2022 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 167 of 169 Report No.: S22080800403001 <Head 2600MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -21.15 - 52.70 - Mar. 01, 2021 -21.248 0.46 53.053 0.353 Feb. 28, 2022 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 168 of 169 Report No.: S22080800403001 <Head 5200MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -9.15 - 21.17 - Mar. 01, 2021 -9.1819 0.35 21.191 0.021 Feb. 28, 2022 The return loss is <-8dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 169 of 169 Report No.: S22080800403001 <Head 5800MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -14.30 - 54.74 - Mar. 01, 2021 -14.349 0.34 55.115 0.375 Feb. 28, 2022 The return loss is <-8dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data _______________________________________END _____________________________________

Report No.: S22080800402004 1 / 40 13 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict EGPRS1900 1 Slot 512 1850.2 30.09 PASS EGPRS1900 1 Slot 661 1880 29.95 PASS EGPRS1900 1 Slot 810 1909.8 30.11 PASS EGPRS1900 2 Slot 512 1850.2 29.72 PASS EGPRS1900 2 Slot 661 1880 29.81 PASS EGPRS1900 2 Slot 810 1909.8 29.50 PASS EGPRS1900 3 Slot 512 1850.2 28.94 PASS EGPRS1900 3 Slot 661 1880 28.82 PASS EGPRS1900 3 Slot 810 1909.8 28.57 PASS EGPRS1900 4 Slot 512 1850.2 28.38 PASS EGPRS1900 4 Slot 661 1880 28.11 PASS EGPRS1900 4 Slot 810 1909.8 27.96 PASS EGPRS850 1 Slot 128 824.2 25.29 PASS EGPRS850 1 Slot 189 836.4 25.63 PASS EGPRS850 1 Slot 251 848.8 25.94 PASS EGPRS850 2 Slot 128 824.2 24.97 PASS EGPRS850 2 Slot 189 836.4 24.57 PASS EGPRS850 2 Slot 251 848.8 24.69 PASS EGPRS850 3 Slot 128 824.2 24.48 PASS EGPRS850 3 Slot 189 836.4 22.97 PASS EGPRS850 3 Slot 251 848.8 23.51 PASS EGPRS850 4 Slot 128 824.2 21.89 PASS EGPRS850 4 Slot 189 836.4 21.86 PASS EGPRS850 4 Slot 251 848.8 22.30 PASS 15 Peak-to-Average Ratio Band Channel Frequency (MHz) Result (dB) high Limit (dB) Verdict EGPRS1900 512 1850.2 3.639862205 13.00 PASS EGPRS1900 661 1880 3.724208 13.00 PASS EGPRS1900 810 1909.8 3.754113475 13.00 PASS EGPRS850 128 824.2 9.75596817 13.00 PASS EGPRS850 189 836.4 8.059749357 13.00 PASS EGPRS850 251 848.8 9.038214005 13.00 PASS EGPRS1900 Channel=661 Report No.: S22080800402004 2 / 40 EGPRS1900 Channel=512 EGPRS1900 Channel=810 Report No.: S22080800402004 3 / 40 EGPRS850 Channel=128 EGPRS850 Channel=189 Report No.: S22080800402004 4 / 40 EGPRS850 Channel=251 16 Occupied bandwidth Report No.: S22080800402004 5 / 40 Band Channel Frequency (MHz) 99% OBW (kHz) -26dB EBW (kHz) Verdict EGPRS1900 512 1850.2 301.705 419.042 PASS EGPRS1900 661 1880 300.736 420.509 PASS EGPRS1900 810 1909.8 299.612 431.801 PASS EGPRS850 128 824.2 257.633 333.088 PASS EGPRS850 189 836.4 249.733 320.871 PASS EGPRS850 251 848.8 254.846 319.232 PASS EGPRS1900 Channel=661 EGPRS1900 Channel=512 Report No.: S22080800402004 6 / 40 EGPRS1900 Channel=810 EGPRS850 Channel=189 Report No.: S22080800402004 7 / 40 EGPRS850 Channel=128 EGPRS850 Channel=251 Report No.: S22080800402004 8 / 40 17 Band edge Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict EGPRS1900 512 1850.2 1849.99 -19.47 -13 PASS EGPRS1900 810 1909.8 1910.00 -20.93 -13 PASS EGPRS850 128 824.2 823.99 -32.55 -13 PASS EGPRS850 251 848.8 849.02 -35.92 -13 PASS EGPRS1900 Channel=810 Report No.: S22080800402004 9 / 40 EGPRS1900 Channel=512 EGPRS850 Channel=128 Report No.: S22080800402004 10 / 40 EGPRS850 Channel=251 18 Out-of-band emissions Report No.: S22080800402004 11 / 40 Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict EGPRS1900 512 1850.2 25489.51 -18.91 -13 PASS EGPRS1900 661 1880 25993.76 -18.20 -13 PASS EGPRS1900 810 1909.8 26005.01 -18.28 -13 PASS EGPRS850 128 824.2 25899.79 -20.76 -13 PASS EGPRS850 189 836.4 26052.00 -20.25 -13 PASS EGPRS850 251 848.8 25961.34 -19.52 -13 PASS EGPRS1900 Channel=661 EGPRS1900 Channel=512 Report No.: S22080800402004 12 / 40 EGPRS1900 Channel=810 EGPRS850 Channel=189 Report No.: S22080800402004 13 / 40 EGPRS850 Channel=128 EGPRS850 Channel=251 Report No.: S22080800402004 14 / 40 07 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict GPRS1900 1 Slot 512 1850.2 28.29 PASS GPRS1900 1 Slot 661 1880 28.37 PASS GPRS1900 1 Slot 810 1909.8 28.29 PASS GPRS1900 2 Slot 512 1850.2 27.73 PASS GPRS1900 2 Slot 661 1880 27.79 PASS GPRS1900 2 Slot 810 1909.8 27.67 PASS GPRS1900 3 Slot 512 1850.2 26.19 PASS GPRS1900 3 Slot 661 1880 26.24 PASS GPRS1900 3 Slot 810 1909.8 26.10 PASS GPRS1900 4 Slot 512 1850.2 25.09 PASS GPRS1900 4 Slot 661 1880 25.14 PASS GPRS1900 4 Slot 810 1909.8 25.01 PASS GPRS850 1 Slot 128 824.2 32.02 PASS GPRS850 1 Slot 189 836.4 32.09 PASS GPRS850 1 Slot 251 848.8 32.04 PASS GPRS850 2 Slot 128 824.2 31.10 PASS GPRS850 2 Slot 189 836.4 31.16 PASS GPRS850 2 Slot 251 848.8 31.10 PASS GPRS850 3 Slot 128 824.2 31.07 PASS GPRS850 3 Slot 189 836.4 29.15 PASS GPRS850 3 Slot 251 848.8 29.15 PASS Report No.: S22080800402004 15 / 40 GPRS850 4 Slot 128 824.2 27.92 PASS GPRS850 4 Slot 189 836.4 28.02 PASS GPRS850 4 Slot 251 848.8 28.03 PASS 09 Peak-to-Average Ratio Band Channel Frequency (MHz) Result (dB) high Limit (dB) Verdict GPRS1900 512 1850.2 2.678502994 13.00 PASS GPRS1900 661 1880 2.691556017 13.00 PASS GPRS1900 810 1909.8 2.668824427 13.00 PASS GPRS850 128 824.2 2.680175801 13.00 PASS GPRS850 189 836.4 2.666537458 13.00 PASS GPRS850 251 848.8 2.679636469 13.00 PASS GPRS1900 Channel=512 GPRS1900 Channel=661 Report No.: S22080800402004 16 / 40 GPRS1900 Channel=810 GPRS850 Channel=128 Report No.: S22080800402004 17 / 40 GPRS850 Channel=251 GPRS850 Channel=189 Report No.: S22080800402004 18 / 40 10 Occupied bandwidth Band Channel Frequency (MHz) 99% OBW (kHz) -26dB EBW (kHz) Verdict GPRS1900 512 1850.2 246.984 318.193 PASS GPRS1900 661 1880 237.967 309.338 PASS GPRS1900 810 1909.8 245.384 303.794 PASS GPRS850 128 824.2 248.585 323.302 PASS GPRS850 189 836.4 244.617 312.586 PASS GPRS850 251 848.8 246.672 316.841 PASS GPRS1900 Channel=661 Report No.: S22080800402004 19 / 40 GPRS1900 Channel=512 GPRS1900 Channel=810 Report No.: S22080800402004 20 / 40 GPRS850 Channel=128 GPRS850 Channel=189 Report No.: S22080800402004 21 / 40 GPRS850 Channel=251 11 Band edge Report No.: S22080800402004 22 / 40 Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict GPRS1900 512 1850.2 1850.00 -31.47 -13 PASS GPRS1900 810 1909.8 1910.03 -30.17 -13 PASS GPRS850 128 824.2 823.99 -27.33 -13 PASS GPRS850 251 848.8 849.01 -27.40 -13 PASS GPRS1900 Channel=810 GPRS1900 Channel=512 Report No.: S22080800402004 23 / 40 GPRS850 Channel=128 GPRS850 Channel=251 Report No.: S22080800402004 24 / 40 12 Out-of-band emissions Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict GPRS1900 512 1850.2 25527.89 -18.63 -13 PASS GPRS190…

Text truncated - open the document above for the full version.

Report No.: S22080800402004 1 / 21 01 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict WCDMA Band2 9262 1852.4 22.04 PASS WCDMA Band2 9400 1880 22.02 PASS WCDMA Band2 9538 1907.6 21.93 PASS WCDMA Band4 1312 1712.4 21.82 PASS WCDMA Band4 1413 1732.6 21.80 PASS WCDMA Band4 1513 1752.6 22.08 PASS WCDMA Band5 4132 826.4 21.86 PASS WCDMA Band5 4182 836.4 21.80 PASS WCDMA Band5 4233 846.6 21.68 PASS 03 Peak-to-Average Ratio Band Channel Frequency (MHz) Result (dB) high Limit (dB) Verdict WCDMA Band2 9262 1852.4 3.05 13 PASS WCDMA Band2 9400 1880 3.17 13 PASS WCDMA Band2 9538 1907.6 2.98 13 PASS WCDMA Band4 1312 1712.4 1.76 13 PASS WCDMA Band4 1413 1732.6 3.19 13 PASS WCDMA Band4 1513 1752.6 2.36 13 PASS WCDMA Band5 4132 826.4 3.02 13 PASS WCDMA Band5 4182 836.4 3.15 13 PASS WCDMA Band5 4233 846.6 3.03 13 PASS WCDMA Band2 Channel=9400 Report No.: S22080800402004 2 / 21 WCDMA Band2 Channel=9262 WCDMA Band2 Channel=9538 Report No.: S22080800402004 3 / 21 WCDMA Band4 Channel=1312 WCDMA Band4 Channel=1513 Report No.: S22080800402004 4 / 21 WCDMA Band4 Channel=1413 WCDMA Band5 Channel=4182 Report No.: S22080800402004 5 / 21 WCDMA Band5 Channel=4132 WCDMA Band5 Channel=4233 Report No.: S22080800402004 6 / 21 04 Occupied bandwidth Band Channel Frequency (MHz) 99% OBW (kHz) -26dB EBW (kHz) Verdict WCDMA Band2 9262 1852.4 4161.081 4663.444 PASS WCDMA Band2 9400 1880 4165.281 4653.653 PASS WCDMA Band2 9538 1907.6 4164.061 4646.383 PASS WCDMA Band4 1312 1712.4 4239.057 5245.213 PASS WCDMA Band4 1413 1732.6 4168.816 4652.874 PASS WCDMA Band4 1513 1752.6 4198.414 4753.830 PASS WCDMA Band5 4132 826.4 4182.790 4663.593 PASS WCDMA Band5 4182 836.4 4151.979 4680.455 PASS WCDMA Band5 4233 846.6 4151.391 4684.863 PASS WCDMA Band2 Channel=9400 Report No.: S22080800402004 7 / 21 WCDMA Band2 Channel=9262 WCDMA Band2 Channel=9538 Report No.: S22080800402004 8 / 21 WCDMA Band4 Channel=1312 WCDMA Band4 Channel=1413 Report No.: S22080800402004 9 / 21 WCDMA Band4 Channel=1513 WCDMA Band5 Channel=4132 Report No.: S22080800402004 10 / 21 WCDMA Band5 Channel=4182 WCDMA Band5 Channel=4233 Report No.: S22080800402004 11 / 21 05 Band edge Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict WCDMA Band2 9262 1852.4 1850.00 -25.45 -13 PASS WCDMA Band2 9538 1907.6 1910.00 -25.57 -13 PASS WCDMA Band4 1312 1712.4 1710.00 -14.83 -13 PASS WCDMA Band4 1513 1752.6 1755.00 -19.75 -13 PASS WCDMA Band5 4132 826.4 824.00 -24.10 -13 PASS WCDMA Band5 4233 846.6 849.00 -26.40 -13 PASS WCDMA Band2 Channel=9538 Report No.: S22080800402004 12 / 21 WCDMA Band2 Channel=9262 WCDMA Band4 Channel=1312 Report No.: S22080800402004 13 / 21 WCDMA Band4 Channel=1513 WCDMA Band5 Channel=4233 Report No.: S22080800402004 14 / 21 WCDMA Band5 Channel=4132 06 Out-of-band emissions Report No.: S22080800402004 15 / 21 Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict WCDMA Band2 9262 1852.4 17087.87 -23.78 -13 PASS WCDMA Band2 9400 1880 19941.09 -23.25 -13 PASS WCDMA Band2 9538 1907.6 19975.54 -22.34 -13 PASS WCDMA Band4 1312 1712.4 19949.58 -23.05 -13 PASS WCDMA Band4 1413 1732.6 18333.00 -24.03 -13 PASS WCDMA Band4 1513 1752.6 17086.38 -23.58 -13 PASS WCDMA Band5 4132 826.4 3134.91 -29.95 -13 PASS WCDMA Band5 4182 836.4 7619.41 -29.72 -13 PASS WCDMA Band5 4233 846.6 6026.46 -29.86 -13 PASS WCDMA Band2 Channel=9262 WCDMA Band2 Channel=9400 Report No.: S22080800402004 16 / 21 WCDMA Band2 Channel=9538 WCDMA Band4 Channel=1413 Report No.: S22080800402004 17 / 21 WCDMA Band4 Channel=1312 WCDMA Band4 Channel=1513 Report No.: S22080800402004 18 / 21 WCDMA Band5 Channel=4132 WCDMA Band5 Channel=4233 Report No.: S22080800402004 19 / 21 WCDMA Band5 Channel=4182 07 Conducted output power Report No.: S22080800402004 20 / 21 Band Channel Frequency (MHz) Power (dBm) Verdict HSDPA Band2 Subtest1 9262 1852.4 21.09 PASS HSDPA Band2 Subtest2 9262 1852.4 20.80 PASS HSDPA Band2 Subtest3 9262 1852.4 19.61 PASS HSDPA Band2 Subtest4 9262 1852.4 19.78 PASS HSDPA Band2 Subtest1 9400 1880 20.97 PASS HSDPA Band2 Subtest2 9400 1880 20.78 PASS HSDPA Band2 Subtest3 9400 1880 19.70 PASS HSDPA Band2 Subtest4 9400 1880 19.57 PASS HSDPA Band2 Subtest1 9538 1907.6 20.98 PASS HSDPA Band2 Subtest2 9538 1907.6 20.51 PASS HSDPA Band2 Subtest3 9538 1907.6 19.23 PASS HSDPA Band2 Subtest4 9538 1907.6 19.56 PASS HSDPA Band4 Subtest1 1312 1712.4 20.83 PASS HSDPA Band4 Subtest2 1312 1712.4 20.40 PASS HSDPA Band4 Subtest3 1312 1712.4 19.00 PASS HSDPA Band4 Subtest4 1312 1712.4 19.35 PASS HSDPA Band4 Subtest1 1413 1732.6 20.88 PASS HSDPA Band4 Subtest2 1413 1732.6 20.45 PASS HSDPA Band4 Subtest3 1413 1732.6 19.08 PASS HSDPA Band4 Subtest4 1413 1732.6 19.58 PASS HSDPA Band4 Subtest1 1513 1752.6 21.14 PASS HSDPA Band4 Subtest2 1513 1752.6 20.68 PASS HSDPA Band4 Subtest3 1513 1752.6 19.49 PASS HSDPA Band4 Subtest4 1513 1752.6 19.49 PASS HSDPA Band5 Subtest1 4132 826.4 20.87 PASS HSDPA Band5 Subtest2 4132 826.4 20.70 PASS HSDPA Band5 Subtest3 4132 826.4 19.57 PASS HSDPA Band5 Subtest4 4132 826.4 19.75 PASS HSDPA Band5 Subtest1 4182 836.4 20.84 PASS HSDPA Band5 Subtest2 4182 836.4 20.67 PASS HSDPA Band5 Subtest3 4182 836.4 19.07 PASS HSDPA Band5 Subtest4 4182 836.4 19.43 PASS HSDPA Band5 Subtest1 4233 846.6 20.80 PASS HSDPA Band5 Subtest2 4233 846.6 20.39 PASS HSDPA Band5 Subtest3 4233 846.6 19.50 PASS HSDPA Band5 Subtest4 4233 846.6 19.34 PASS 13 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict HSUPA Band2 Subtest1 9262 1852.4 19.68 PASS HSUPA Band2 Subtest2 9262 1852.4 20.88 PASS HSUPA Band2 Subtest3 9262 1852.4 19.51 PASS HSUPA Band2 Subtest4 9262 1852.4 21.01 PASS Report No.: S22080800402004 21 / 21 HSUPA Band2 Subtest5 9262 1852.4 19.99 PASS HSUPA Band2 Subtest1 9400 1880 20.84 PASS HSUPA Band2 Subtest2 9400 1880 20.81 PASS HSUPA Band2 Subtest3 9400 1880 19.63 PASS HSUPA Band2 Subtest4 9400 1880 21.00 PASS HSUPA Band2 Subtest5 9400 1880 20.33 PASS HSUPA Band2 Subtest1 9538 1907.6 20.70 PASS HSUPA Band2…

Text truncated - open the document above for the full version.

Report No.: S22080800402005 Page 1 of 251 01 Conducted output power Band Bandwidth (MHz) UL Channel RB Size RB Position Modulation Power (dBm) Verdict Band2 1.4 18607 1 #0 QPSK 22.88 PASS Band2 1.4 18607 1 #Mid QPSK 22.85 PASS Band2 1.4 18607 1 #Max QPSK 22.88 PASS Band2 1.4 18607 3 #0 QPSK 23.02 PASS Band2 1.4 18607 3 #Mid QPSK 23.04 PASS Band2 1.4 18607 3 #Max QPSK 23.03 PASS Band2 1.4 18607 6 #0 QPSK 22.06 PASS Band2 1.4 18607 1 #0 QAM16 22.24 PASS Band2 1.4 18607 1 #Mid QAM16 22.20 PASS Band2 1.4 18607 1 #Max QAM16 22.09 PASS Band2 1.4 18607 3 #0 QAM16 22.02 PASS Band2 1.4 18607 3 #Mid QAM16 22.06 PASS Band2 1.4 18607 3 #Max QAM16 22.07 PASS Band2 1.4 18607 6 #0 QAM16 21.15 PASS Band2 1.4 18900 1 #0 QPSK 23.07 PASS Band2 1.4 18900 1 #Mid QPSK 23.03 PASS Band2 1.4 18900 1 #Max QPSK 23.06 PASS Band2 1.4 18900 3 #0 QPSK 23.19 PASS Band2 1.4 18900 3 #Mid QPSK 23.17 PASS Band2 1.4 18900 3 #Max QPSK 23.18 PASS Band2 1.4 18900 6 #0 QPSK 22.18 PASS Band2 1.4 18900 1 #0 QAM16 22.44 PASS Band2 1.4 18900 1 #Mid QAM16 22.39 PASS Band2 1.4 18900 1 #Max QAM16 22.32 PASS Band2 1.4 18900 3 #0 QAM16 22.22 PASS Band2 1.4 18900 3 #Mid QAM16 22.23 PASS Band2 1.4 18900 3 #Max QAM16 22.23 PASS Band2 1.4 18900…

Text truncated - open the document above for the full version.
