2A8QU-EP416Emay Plus Dual Lifting Face Slimmer

EMAY© PLUS 懿祭圉有限公司 EMAY GLOBAL LIMITED 1/ F. , Centre 600 , 82 Kin g Lam Street , Cheun g Sha Wan , Kowloon , Hon g Kon g Email : cs@ema yp lus.com Tel : +852 2312 0900 (HK) / +86 755 8654 2891 (China) EP-416 www.ema yp lus.com EMAY© PLUS Dual Lifting Face Slimmer User Guide EU regulatory conformance： CE DOC Hereby,[ Emay Global Limited ] declares that the radio equipment type [E P-416] is in compliance with Directive 2014/53/EU . The full text of the EU declaration of conformity is available at the following internet address: https://www.emayplus.com RF exposure information: The EIRP power of the device at maximal case is below the exempt condition, 20mW specified in EN62479: 2010. RF exposure assessment has bee n performed to prove that this unit will not generate the harmful EM emission above the reference level as specified in EC Cou ncil Recommendation(1999/519/EC). Operation temperature: 0~45°C Operation frequency(Max power) Bluetooth: 2402-2480 (0 dBm) FCC regulatory conformance： This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. IC regulatory conformance This device complies with CAN ICES-003 (B)/NMB-003(B). This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Cet appareil est conforme à la norme CAN ICES-003 (B)/NMB-003 (B). Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. Cet équipement est conforme aux limites d'exposition aux radiations de la IC définies pour un environnement non contrôlé.

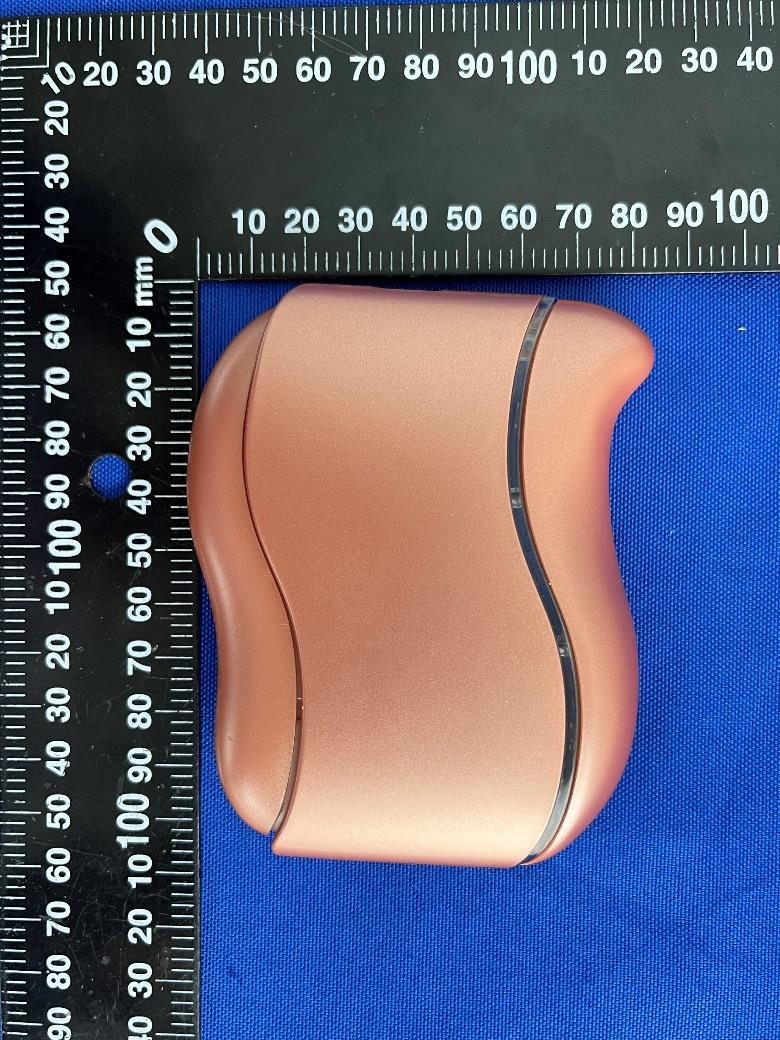

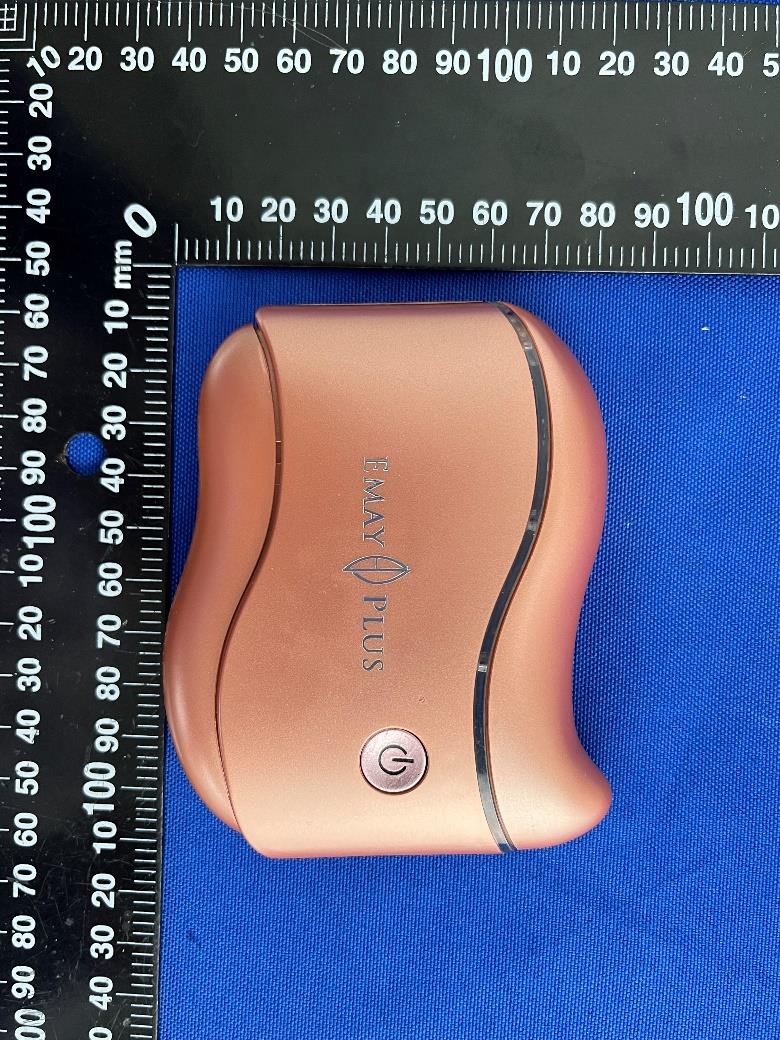

Report No.: BL-SZ2290455-AW 1 / 4 1.1 EUT EXTERNAL PHOTOS FRONT VIEW OF EUT REAR VIEW OF EUT Report No.: BL-SZ2290455-AW 2 / 4 LEFT VIEW OF EUT RIGHT VIEW OF EUT Report No.: BL-SZ2290455-AW 3 / 4 TOP VIEW OF EUT BOTTOM VIEW OF EUT Report No.: BL-SZ2290455-AW 4 / 4 Accessory-TYPE-C Cable

Label: Location： Label

Report No.: BL-SZ2290455-AI 1 / 3 1.1 EUT INTERNAL PHOTOS EUT UNCOVER VIEW 1 MAIN BOARD TOP VIEW PCB Antenna RF Chip Report No.: BL-SZ2290455-AI 2 / 3 MAIN BOARD REAR VIEW BATTERY (FRONT) Report No.: BL-SZ2290455-AI 3 / 3 BATTERY (REAR)

Report No.: BL-SZ2290530-AA 1 / 1 1.1 EUT PHOTO Antenna

Report No.: BL-SZ2290455-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 10 Web: www.titcgroup.com Template No.: TRP-FCC-Portable-2 (2022-08-15) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China TEST REPORT Applicant: Emay Global Limited Address: 1/F., Centre 600, 82 King Lam Street, Cheung Sha Wan, Kowloon, Hong Kong Equipment Type: Emay Plus Dual Lifting Face Slimmer Model Name: EP-416 Brand Name: Emay Plus FCC ID: 2A8QU-EP416 Test Standard: 47 CFR Part 2.1093 KDB 447498 D04 Test Date Sep. 15, 2022 - Sep. 19, 2022 Date of Issue: Nov. 15, 2022 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Julie Zhu Checked by: Xu Rui Approved by: Wei Yanquan (Chief Engineer) _______________ _______________ _______________ Report No.: BL-SZ2290455-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 10 Web: www.titcgroup.com Template No.: TRP-FCC-Portable-2 (2022-08-15) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Revision History Version Issue Date Revisions Content Rev. 01 Nov. 15, 2022 Initial Issue TABLE OF CONTENTS 1 GENERAL INFORMATION ........................................................................................................ 3 1.1 Test Laboratory ............................................................................................................ 3 1.2 Test Location ................................................................................................................ 3 2 PRODUCT INFORMATION ....................................................................................................... 4 2.1 Applicant Information .................................................................................................... 4 2.2 Manufacturer Information .............................................................................................. 4 2.3 Factory Information ....................................................................................................... 4 2.4 General Description for Equipment under Test (EUT) ................................................... 4 2.5 Ancillary Equipment ...................................................................................................... 4 2.6 Technical Information ................................................................................................... 5 3 SUMMARY OF TEST RESULT ................................................................................................. 6 3.1 Test Standards ............................................................................................................. 6 4 DEVICE CATEGORY AND LEVELS LIMITS ............................................................................. 7 5 ASSESSMENT RESULT ........................................................................................................... 9 5.1 Output Power ............................................................................................................... 9 5.2 Turn-up power .............................................................................................................. 9 5.3 RF Exposure Evaluation Result .................................................................................... 9 5.4 Conclusion .................................................................................................................... 9 Report No.: BL-SZ2290455-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 3 / 10 Web: www.titcgroup.com Template No.: TRP-FCC-Portable-2 (2022-08-15) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1 GENERAL INFORMATION 1.1 Test Laboratory Name Shenzhen BALUN Technology Co., Ltd. Address Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Phone Number +86 755 6685 0100 1.2 Test Location Name Shenzhen BALUN Technology Co., Ltd. Location Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1/F, Building B, Ganghongji High-tech Intelligent Industrial Park, No. 1008, Songbai Road, Yangguang Community, Xili Sub-district, Nanshan District, Shenzhen, Guangdong Province, P. R. China Accreditation Certificate The laboratory is a testing organization accredited by FCC as a accredited testing laboratory. The designation number is CN1196. Report No.: BL-SZ2290455-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 4 / 10 Web: www.titcgroup.com Template No.: TRP-FCC-Portable-2 (2022-08-15) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 2 PRODUCT INFORMATION 2.1 Applicant Information Applicant Emay Global Limited Address 1/F., Centre 600, 82 King Lam Street, Cheung Sha Wan, Kowloon, Hong Kong 2.2 Manufacturer Information Manufacturer Emay Global Limited Address 1/F., Centre 600, 82 King Lam Street, Cheung Sha Wan, Kowloon, Hong Kong 2.3 Factory Information Factory Wynnewood Industrial (Heyuan) Co. Ltd Address The Crossing of Xingye Avenue and Science Technology No. 8 Road in Hitech Zone, Heyuan City, Guangdong Province, China 2.4 General Description for Equipment under Test (EUT) EUT Name Emay Plus Dual Lifting Face Slimmer Model Name Under Test EP-416 Series Model Name N/A Description of Model name differentiation N/A Hardware Version 1.3 Software Version 2.0 Dimensions (Approx.) N/A Weight (Approx.) N/A 2.5 Ancillary Equipment Ancillary Equipment 1 Battery Brand Name N/A Model No. ARK 802035 Serial No. N/A Capacitance 500mAh Rated Voltage 3.7V Report No.: BL-SZ2290455-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 5 / 10 Web: www.titcgroup.com Template No.: TRP-FCC-Portable-2 (2022-08-15) Add: Block B, 1/F, Baisha Science a…

Text truncated - open the document above for the full version.

Report No.: BL-SZ2290455-601 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 54 Web: www.titcgroup.com Template No.: TRP-FCC&ISED 247 (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China TEST REPORT Applicant: Emay Global Limited Address: 1/F., Centre 600, 82 King Lam Street, Cheung Sha Wan, Kowloon, Hong Kong Equipment Type: Emay Plus Dual Lifting Face Slimmer Model Name: EP-416 Brand Name: Emay Plus FCC ID: 2A8QU-EP416 ISED Number: 29352-EP416 Test Standard: 47 CFR Part 15 Subpart C RSS-Gen Issue 5 RSS-247 Issue 2 (refer section 3.1) Test Date: Sep. 15, 2022 - Sep. 19, 2022 Date of Issue: Nov. 15, 2022 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Julie Zhu Checked by: Ye Hongji Approved by: Liao Jianming (Technical Director) _______________ _______________ _______________ Report No.: BL-SZ2290455-601 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 54 Web: www.titcgroup.com Template No.: TRP-FCC&ISED 247 (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Revision History Version Issue Date Revisions Rev. 01 Nov. 15, 2022 Initial Issue TABLE OF CONTENTS 1 GENERAL INFORMATION ........................................................................................................ 4 1.1 Test Laboratory ............................................................................................................ 4 1.2 Test Location ................................................................................................................ 4 2 PRODUCT INFORMATION ....................................................................................................... 5 2.1 Applicant Information .................................................................................................... 5 2.2 Manufacturer Information .............................................................................................. 5 2.3 Factory Information ....................................................................................................... 5 2.4 General Description for Equipment under Test (EUT) ................................................... 5 2.5 Technical Information ................................................................................................... 6 3 SUMMARY OF TEST RESULTS ............................................................................................... 7 3.1 Test Standards ............................................................................................................. 7 3.2 Test Verdict .................................................................................................................. 7 4 GENERAL TEST CONFIGURATIONS ...................................................................................... 8 4.1 Test Environments ........................................................................................................ 8 4.2 Test Equipment List ...................................................................................................... 8 4.3 Test Software List ......................................................................................................... 8 4.4 Measurement Uncertainty ............................................................................................. 9 4.5 Description of Test Setup ............................................................................................. 9 4.6 Measurement Results Explanation Example ............................................................... 12 5 TEST ITEMS ........................................................................................................................... 13 5.1 Antenna Requirements ............................................................................................... 13 5.2 Output Power ............................................................................................................. 14 5.3 Occupied Bandwidth ................................................................................................... 16 5.4 Conducted Spurious Emission .................................................................................... 17 Report No.: BL-SZ2290455-601 Tel: +86-755-66850100 E-mail: [email protected] Page No. 3 / 54 Web: www.titcgroup.com Template No.: TRP-FCC&ISED 247 (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 5.5 Band Edge (Authorized-band band-edge) ................................................................... 19 5.6 Conducted Emission ................................................................................................... 21 5.7 Radiated Spurious Emission ....................................................................................... 22 5.8 Band Edge (Restricted-band band-edge) .................................................................... 27 5.9 Power Spectral density (PSD) .................................................................................... 28 ANNEX A TEST RESULT ........................................................................................................... 29 A.1 Output Power, E.I.R.P Duty Cycle .............................................................................. 29 A.2 Occupied Bandwidth ................................................................................................... 32 A.3 Conducted Spurious Emissions .................................................................................. 34 A.4 Band Edge (Authorized-band band-edge) ................................................................... 38 A.5 Conducted Emissions ................................................................................................. 39 A.6 Radiated Spurious Emission ........................…

Text truncated - open the document above for the full version.

Report No.: BL-SZ2290530-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 12 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-09-07) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China TEST REPORT Applicant: Emay Global Limited Address: 1st Floor, Centre 600, 82 King Lam Street, Cheung Sha Wan, Kowloon, HK Equipment Type: Emay Plus Dual Lifting Face Slimmer Model Name: EP-416 Brand Name: Emay Plus Test Standard: ANSI/IEEE Std 149-1979 Test Date: Sep. 16, 2022 Date of Issue: Oct. 31, 2022 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Mai Jintian Checked by: Tolan Tu Approved by: Wei Yanquan (Chief Engineer) _______________ _______________ _______________ Report No.: BL-SZ2290530-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 12 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-09-07) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Revision History Version Issue Date Revisions Rev. 01 Oct. 31, 2022 Initial Issue TABLE OF CONTENTS 1 GENERAL INFORMATION ........................................................................................................ 3 1.1 Test Laboratory ................................................................................................................... 3 1.2 Test Location ....................................................................................................................... 3 2 PRODUCT INFORMATION ....................................................................................................... 4 2.1 Applicant Information ........................................................................................................... 4 2.2 Manufacturer Information .................................................................................................... 4 2.3 General Description for Equipment under Test (EUT) ......................................................... 4 2.4 Ancillary Equipment ............................................................................................................. 4 2.5 Technical Information .......................................................................................................... 4 3 SUMMARY OF TEST RESULTS ............................................................................................... 5 3.1 Test Standards .................................................................................................................... 5 3.2 Test Verdict ......................................................................................................................... 5 3.3 Test Uncertainty .................................................................................................................. 5 4 GENERAL TEST CONFIGURATIONS ...................................................................................... 6 4.1 Test Condition ..................................................................................................................... 6 4.2 Test Equipment List ............................................................................................................. 6 4.3 Test Setup ........................................................................................................................... 6 ANNEX A TEST RESULTS ........................................................................................................... 7 A.1 Gain and Efficiency ............................................................................................................. 7 ANNEX B RADIATION PATTERN ................................................................................................ 8 ANNEX C TEST SETUP PHOTOS ............................................................................................. 11 ANNEX D EUT PHOTO .............................................................................................................. 11 Report No.: BL-SZ2290530-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 3 / 12 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-09-07) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1 GENERAL INFORMATION 1.1 Test Laboratory Name Shenzhen BALUN Technology Co., Ltd. Address Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Phone Number +86 755 6685 0100 1.2 Test Location Name Shenzhen BALUN Technology Co., Ltd. Location Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1/F, Building B, Ganghongji High-tech Intelligent Industrial Park, No. 1008, Songbai Road, Yangguang Community, Xili Sub-district, Nanshan District, Shenzhen, Guangdong Province, P. R. China Report No.: BL-SZ2290530-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 4 / 12 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-09-07) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 2 PRODUCT INFORMATION 2.1 Applicant Information Applicant Emay Global Limited Address 1st Floor, Centre 600, 82 King Lam Street, Cheung Sha Wan, Kowloon, HK 2.2 Manufacturer Information Manufacturer Emay Global Limited Address 1st Floor, Centre 600, 82 King Lam Street, Cheung Sha Wan, Kowloon, HK 2.3 General Description for Equipment under Test (EUT) EUT Name Emay Plus Dual Lifting Face Slimmer Model Name Under Test EP-416 Antenna Type PCB Antenna Dimensions 10*6mm 2.4 Ancillary Equipment Note: Not applicable. 2.5 Technical Information Test Frequencies 2400MHz, 2410MHz, 2420MHz, 2430MHz, 2440MHz, 2450MHz, 2460MHz, 2470MHz, 2480MHz, 2490MHz, 2500MHz. Report No.: BL-SZ2290530-901 Tel: +86-755-66850100 E-mail: qc@balu…

Text truncated - open the document above for the full version.

Report No.: BL-SZ2290455-AR 1 / 5 TEST SETUP PHOTOS 1 Radiated Test Photo Below 30MHz Close-up Report No.: BL-SZ2290455-AR 2 / 5 30MHz-1GHz Close-up Report No.: BL-SZ2290455-AR 3 / 5 Above 1GHz Close-up Report No.: BL-SZ2290455-AR 4 / 5 2 Conducted Test Photo Conducted Test Report No.: BL-SZ2290455-AR 5 / 5 3 Conducted Emissions Test Photo 1 Test Photo 2
