2A8XN-CS529Fully Automatic Belt Drive Turntable

DE: Betriebsanleitung: Hi-Fi Plattenspieler mit Vollautomatik Seiten 2 - 11 EN: Instruction Manual: Hi-Fi Turntable fully automatic Pages 13 – 24 FR: Manuel d'utilisation: Tourne-disque Hi-Fi automatique Télécharger depuis l'internet CS 529 BDA CS ρ29_V1_DE_EN 2 Inhaltsverzeichnis Inhalt Seite Inhaltsverzeichnis 2 Technische Daten 3 Vorwort 4 Zielgruppe dieser Bedienungsanleitung 4 Warnhinweise 4 Richtlinien und Normen 4 Entsorgungshinweise 4 Hinweise zur Handhabung 5 Sicherheitshinweise 5 Bestimmungsgemäße Verwendung 5 Lieferumfang / Verpacken 6 Geräteübersicht 7 Aufbau 8 Plattenteller montieren 8 Tonarm 8 Tonarmkopf montieren 8 Tonarm-Gegengewicht montieren 8 Tonarm ausbalancieren 8 Auflagekraft einstellen 8 Anti-Skating-Einstellung 8 Abdeckhaube montieren 9 Plattenspieler am Verstärker anschließen 9 Steckernetzteil anschließen 9 Bedienung 10 Abnehmen / Anbringen der Nadelschutzkappe 10 Schallplatte abspielen (manuell) 10 Schallplatte abspielen (automatisch) 10 Drehzahl feineinstellen 10 Wiederholung 10 Nadel am Tonabnehmer auswechseln 10 Bluetooth Bedienung 11 Gerät reinigen 12 Nadel und Platte reinigen 12 Plattenspieler reinigen 12 Fehlerbehebung 12 Ersatzteile & Zubehör 12 3 Technische Daten Technische Änderungen und Irrtümer vorbehalten. Die Abmessungen sind ungefähre Werte. Antrieb Antrieb Riemen / DC Servo-Motor mit optischer Drehzahlregelung Drehzahl in U/min 33/45/78 Gleichlaufschwankung < ±0,08 % (DIN bewertet) Tonarm Funktion Vollautomatische oder manuelle Bedienung aller Funktionen Lager Kugelgelagert / Vollkardanisch Effektive Tonarmlänge 221,5 mm Kröpfung 25,6° Überhang 19 mm Auflagekraft Statisch, durch Verschiebung des Gegengewichtes Auflagegewicht 0 bis 4 g Tonabnehmer verwendbar mit einer Masse von 5 g bis 9 g Tonabnehmer montiert Ortofon 2M Red Ersatz-Tonnadel Ortofon Stylus 2M Red Plattenteller Material Aluminium-Druckguss Tellerauflage Gummi 2,5 mm Motorlager Achse aus gehärtetem Stahl, Lagerbuchse aus Messing Durchmesser 305 mm Gesamtmasse inkl. Tellerauflage 850 g Gehäuse Gehäusematerial MDF: Vinyl = schwarz / Holz Furnier = Walnuss Füße Ø 62 mm / mit Elastomer-Dämpfer Anschluss RCA-Buchsen Anschluss an Phonoeingang JA Anschluss an Hochpegeleingang JA Digital-Ausgang Bluetooth Maße Haube geschlossen 435 x 367 x 148.5 mm Maße Haube geöffnet T: 415 mm / H: 400 mm Gewicht 6,7 kg Steckernetzteil Typ FJ-SW1202000N Eingangsspannung 100 (-10 %) V AC bis 240 (+10 %) V AC Eingangsfrequenz 50 / 60 Hz Ausgangsspannung 12 V DC Ausgangsstrom 2,0 A Ausgangsleistung 24 W Durchschnittliche Effizienz im Betrieb ≥ 86.2% Leistungsaufnahme bei Nulllast < 0,1 W 4 Diese Bedienungsanleitung hilft beim bestimmungsgemäßen und sicheren Gebrauch des Gerätes. Die Bedienungsanleitung aufmerksam durchlesen und für den späteren Gebrauch aufbewahren. Insbesondere die enthaltenen Sicherheits- und Warnhinweise müssen beachtet werden, um mögliche Gefahren beim Gebrauch des Gerätes abzuwenden. Vorwort Zielgruppe dieser Bedienungsanleitung Die Bedienungsanleitung richtet sich an jede Person, die das Gerät • aufstellt, • bedient, • reinigt oder • entsorgt. Warnhinweise Die Warnhinweise in dieser Bedienungsanleitung sind gemäß nachfolgendem Schema aufgebaut: Das Signalwort „GEFAHR“ kennzeichnet eine Warnung vor unmittelbarer Lebensgefahr! Das Signalwort „WARNUNG“ kennzeichnet eine Warnung vor möglicher Lebensgefahr und/oder schweren irreversiblen Verletzungen! Das Signalwort „VORSICHT“ kennzeichnet eine Warnung vor möglichen mittleren und oder leichten Verletzungen! Das Signalwort „ACHTUNG“ kennzeichnet mögliche Sachschäden. Hinweis: „Hinweis“ kennzeichnet nützliche oder wichtige Informationen zum Produkt. Richtlinien und Normen Dieses Gerät entspricht folgenden Richtlinien: • EMV-Richtlinie 2014/30/EU • Niederspannungsrichtlinie 2014/35/EU • Öko-Design Richtlinie 2009/125/EG • RoHS-Richtlinie 2011/65/EU. Der vollständige Text der EU-Konformitätserklärung ist auf Anfrage bei Dual erhältlich: [email protected] Entsorgung der Verpackung GEFAHR Lebensgefahr durch Ersticken! Erstickungsgefahr durch Folien und andere Verpackungsmaterialien. Die Verpackung und deren Teile nicht Kindern überlassen. Das Gerät wurde beim Transport durch die Verpackung geschützt. Alle eingesetzten Materialien sind umweltverträglich und wieder verwertbar. Die Verpackung umweltgerecht entsorgen. Beim Händler oder über die kommunale Entsorgungseinrichtung nach Möglichkeiten einer umwelt- und sachgerechten Entsorgung der Verpackung erkundigen. Entsorgung des Gerätes Altgeräte sind kein wertloser Abfall. Durch umweltgerechte Entsorgung können wertvolle Rohstoffe wiedergewonnen werden. Dieses Gerät ist entsprechend der Richtlinie 2012/19/EU über Elektro- und Elektronik-Altgeräte (WEEE) gekennzeichnet. Dieses Produkt darf am Ende seiner Lebensdauer nicht über den normalen Haushaltsabfall entsorgt werden, sondern muss an einem Sammelpunkt für das Recycling von elektrischen und elektronischen Geräten abgegeben werden. Das Symbol auf dem Produkt, der Gebrauchsanleitung oder der Verpackung weist darauf hin. Die Werkstoffe sind gemäß ihrer Kennzeichnung wiederverwertbar. Mit der Wiederverwendung, der stofflichen Verwertung oder anderen Formen der Verwertung von Altgeräten wird ein wichtiger Beitrag zum Schutz der Umwelt geleistet. Beim Händler oder über die kommunale Entsorgungseinrichtung nach Möglichkeiten einer umwelt- und sachgerechten Entsorgung des Gerätes erkundigen. 5 Hinweise zur Handhabung Alle Sicherheitshinweise sorgfältig durchlesen und diese Bedienungsanleitung für spätere Fragen aufbewahren. Alle Warnungen und Hinweise in dieser Bedienungsanleitung befolgen. Sicherheitshinweise zum Umgang mit dem Steckernetzteil Das Steckernetzteil darf nur an eine Netzspannung von 100-240 V~, 50/60 Hz angeschlossen werden. Niemals das Steckernetzteil mit einer anderen Spannung betreiben. • Nur das mitgelieferte Steckernetzteil verwenden. • Das Steckernetzteil erst anschließen, nachdem die Installation vorschriftsmäßig beendet ist. • Das Gerät nur…

Text truncated - open the document above for the full version.

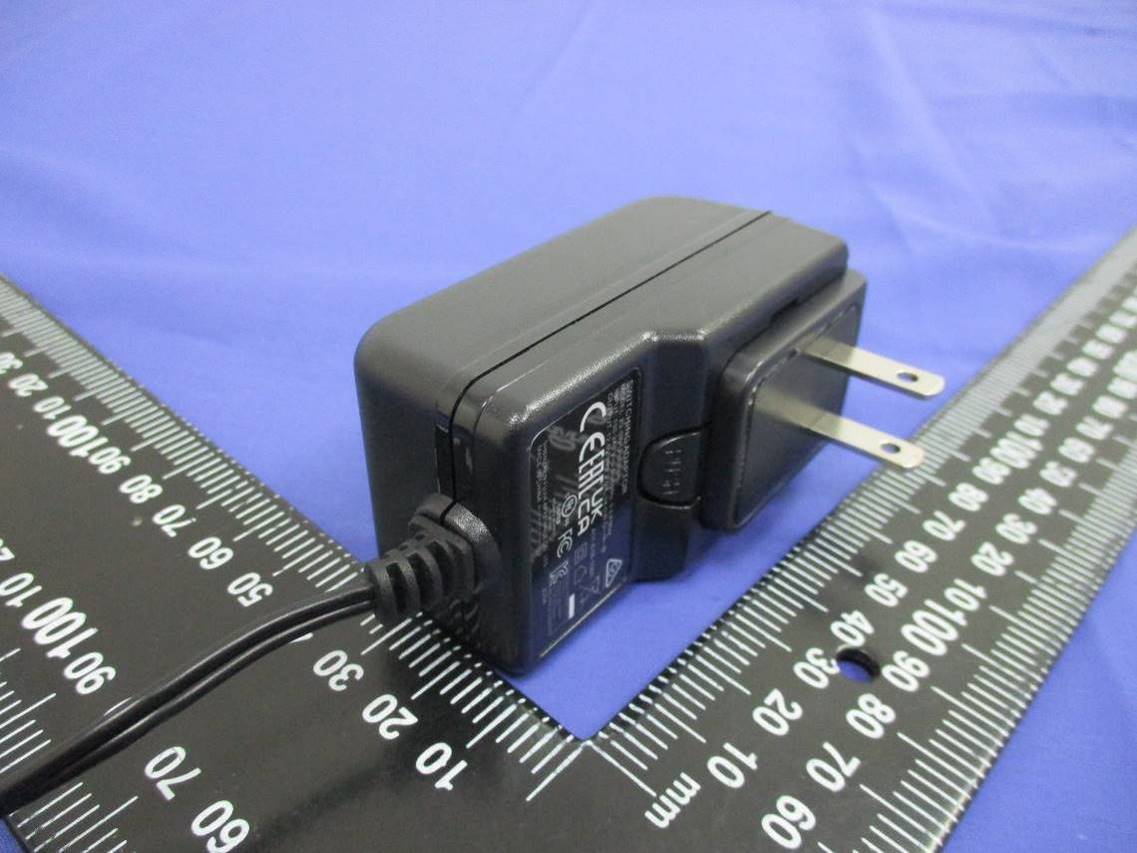

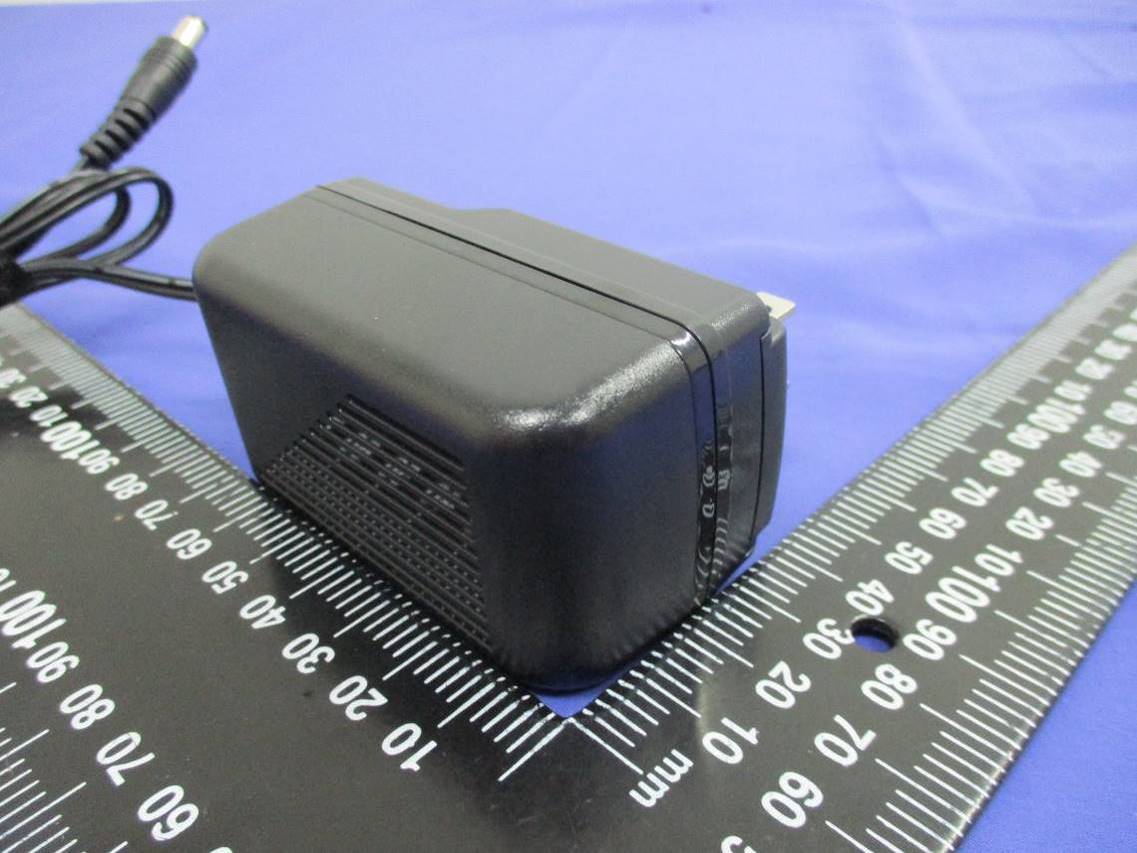

Pa ge: 108 / 119 Repo rt No.: TMTN2207001067NR Rev.: 02 APPENDIX II PHOTOGRPHS OF EUT External Photo Model: CS 529 Pa ge: 109 / 119 Repo rt No.: TMTN2207001067NR Rev.: 02 Pa ge: 110 / 119 Repo rt No.: TMTN2207001067NR Rev.: 02 Pa ge: 111 / 119 Repo rt No.: TMTN2207001067NR Rev.: 02

Pa ge: 112 / 119 Repo rt No.: TMTN2207001067NR Rev.: 02 Internal Photo Model: CS 529 Pa ge: 113 / 119 Repo rt No.: TMTN2207001067NR Rev.: 02 Pa ge: 114 / 119 Repo rt No.: TMTN2207001067NR Rev.: 02 Pa ge: 115 / 119 Repo rt No.: TMTN2207001067NR Rev.: 02 Pa ge: 116 / 119 Repo rt No.: TMTN2207001067NR Rev.: 02 Pa ge: 117 / 119 Repo rt No.: TMTN2207001067NR Rev.: 02 Pa ge: 118 / 119 Repo rt No.: TMTN2207001067NR Rev.: 02 Pa ge: 119 / 119 Repo rt No.: TMTN2207001067NR Rev.: 02 Antenna

Project No: TM-2207000499P FCC ID: 2A8XN-CS529 Page 1 / 15 Report No.: TMWK2207003099KS Rev.: 00 No.11, Wugong 6th Rd., Wugu Dist., New Taipei City , Taiwan /新北市五股區五工六路11號 t:(886-2) 2299-9720 f:(886-2) 2299-9721 www.sgs.com.tw Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group RF Exposure Evaluation Report FCC 47 CFR § 2.1091 for Fully Automatic Belt Drive Turntable Model Name.: CS 529 Prepared for: Dual GmbH Hauptstrasse 1, 86925 Fuchstal, Germany Prepared by Compliance Certification Services Inc. Wugu Laboratory No.11, Wugong 6th Rd., Wugu Dist., New Taipei City, Taiwan. (R.O.C.) Issue Date: November 21, 2022 Note: This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, NIST or any government agencies. The test results in the report only apply to the tested sample. This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 2 / 15 Report No.: TMWK2207003099KS Rev.: 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 November 21, 2022 Initial Issue ALL Angel Cheng This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 3 / 15 Report No.: TMWK2207003099KS Rev.: 00 Table of Contents 1 ATTESTATION OF TEST RESULTS ................................................................... 4 2 TEST SPECIFICATION, METHODS AND PROCEDURES ................................. 5 3 DEVICE UNDER TEST (DUT) INFORMATION .................................................... 6 3.1 DUT DESCRIPTION .............................................................................................................. 6 3.2 WIRELESS TECHNOLOGIES ............................................................................................... 7 4 MAXIMUM PERMISSIBLE EXPOSURE .............................................................. 9 4.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) ............................................... 9 4.2 MPE CALCULATION METHOD ........................................................................................... 10 4.3 MPE EXEMPTION ............................................................................................................... 11 4.4 MULTIPLE RF SOURCES ................................................................................................... 12 5 MPE EXEMPTION OPTION A ............................................................................ 13 6 SIMULTANEOUS TRANSMISSION ANALYSIS ................................................ 14 7 FACILITIES ........................................................................................................ 15 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 4 / 15 Report No.: TMWK2207003099KS Rev.: 00 1 Attestation of Test Results Applicant Name Dual GmbH Model Name CS 529 Applicable Standards FCC 47 CFR § 2.1091 KDB 447498 D04 FCC 47 CFR § 1.1307 FCC 47 CFR § 1.1310 Published RF exposure KDB procedures Receive EUT Date: August 01, 2022 Compliance Certification Services Inc. , tested the above equipment in accordance with the requirements set forth in the above standards. Determination of compliance is based on the results of the compliance measurement,not taking into account measurement instrumentation uncertainy.All indications of Pass/Fail in this report are opinions expressed by Compliance Certification Services Inc, based on interpretations and/or observations of test results. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Approved & Released By: Sky Zhou Asst. Section Manager Compliance Certification Services Inc. This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 5 / 15 Report No.: TMWK2207003099KS Rev.: 00 2 Test Specification, Methods and Procedures The tests documented in this report were performed in accordance with FCC 47 CFR § 2.1091, the following FCC Published RF exposure KDB procedures: o 447498 D04 Interim General RF Exposure Guidance v01 o 865664 D02 RF Exposure Reporting v01r02 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 6 / 15 Report No.: TMWK2207003099KS Rev.: 00 3 Device Under Test (DUT) Information 3.1 DUT Description Product Fully Automatic Belt Drive Turntable Trade…

Text truncated - open the document above for the full version.

RF Performance Test Report CS 529 2022.07.11 TESTER:MO LITE 1Confidential – Provided under NDAYou One-Stop Wireless Solution Provider Confidential Provide to Hanpin From Sunitec July 11 2022 Confidential Provide to Hanpin From Sunitec July 11 2022 2Confidential – Provided under NDAYou One-Stop Wireless Solution Provider Product appearance Confidential Provide to Hanpin From Sunitec July 11 2022 Confidential Provide to Hanpin From Sunitec July 11 2022 3 Confidential – Provided under NDAYou One-Stop Wireless Solution Provider VSWR 、Return loss and impedance : Antenna Performance Test Report CT01=0.2PF CT03=5.6NH CT02=NC Confidential Provide to Hanpin From Sunitec July 11 2022 Confidential Provide to Hanpin From Sunitec July 11 2022 4 Confidential – Provided under NDAYou One-Stop Wireless Solution Provider Antenna Test Settings:垂直 Antenna Performance Test Report Copper Confidential Provide to Hanpin From Sunitec July 11 2022 Confidential Provide to Hanpin From Sunitec July 11 2022 5 Confidential – Provided under NDAYou One-Stop Wireless Solution Provider Antenna Efficiency 2441MHz 3D Radiation Pattern :垂直 Antenna Performance Test Report Confidential Provide to Hanpin From Sunitec July 11 2022 Confidential Provide to Hanpin From Sunitec July 11 2022 6 Confidential – Provided under NDAYou One-Stop Wireless Solution Provider RF Performance Test Report Antenna performance data:垂直 Confidential Provide to Hanpin From Sunitec July 11 2022 Confidential Provide to Hanpin From Sunitec July 11 2022 7 Confidential – Provided under NDAYou One-Stop Wireless Solution Provider Antenna Test Settings:水平 Antenna Performance Test Report Copper Confidential Provide to Hanpin From Sunitec July 11 2022 Confidential Provide to Hanpin From Sunitec July 11 2022 8 Confidential – Provided under NDAYou One-Stop Wireless Solution Provider Antenna Efficiency 2441MHz 3D Radiation Pattern :水平 Antenna Performance Test Report Confidential Provide to Hanpin From Sunitec July 11 2022 Confidential Provide to Hanpin From Sunitec July 11 2022 9 Confidential – Provided under NDAYou One-Stop Wireless Solution Provider RF Performance Test Report Antenna performance data:水平 Confidential Provide to Hanpin From Sunitec July 11 2022 Confidential Provide to Hanpin From Sunitec July 11 2022 10 Confidential – Provided under NDAYou One-Stop Wireless Solution Provider Antenna Performance Test Report CS 529 Frequency(MHz) 垂直水平 Efficiency (%)Gain (dBi)Efficiency (%)Gain (dBi) 240228.70.828.60.4 244129.21.028.91.8 248031.92.227.82.2 MAX Efficiency32.0% @2.475GHz29.0% @2.452GHz MAX Gain 2.2dBi @2.475GHz2.2dBi @2.480GHz RF data summary Confidential Provide to Hanpin From Sunitec July 11 2022 Confidential Provide to Hanpin From Sunitec July 11 2022 11 Confidential – Provided under NDAYou One-Stop Wireless Solution Provider CS 529 working distance on copper board test result: Test condition:Connect JBL charge 2 with CS 529 for testing， Place JBL charge 2 on 80cm high platform， So is CS 529 ，rotate CS 529 in 360°，and keep away from JBL charge 2 ，until JBL charge 2 occurs staccato phenomenon 。 Test place： Sunitec parking lot Test distance: 38m Test date：2022-07-11 Antenna Performance Test Report Confidential Provide to Hanpin From Sunitec July 11 2022 Confidential Provide to Hanpin From Sunitec July 11 2022

Pro ject No.: TM-2207000499P FCC ID: 2A8XN-CS529 Page: 1 / 119 Report No.: TMTN2207001067NR Rev.: 02 No.8, Jiucengling, Xinhua Dist., Tainan City, Taiwan /台南市新化區礁坑里九層嶺8號 t:(886-6) 5802-201 f:(886-6) 5802-202 www.sgs.com.tw Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group FCC 47 CFR PART 15 SUBPART C AND ANSI C63.10: 2013 TEST REPORT ( Class I Permissive Change Report ) For Fully Automatic Belt Drive Turntable Model: CS 529 Data Applies To: N/A Brand Name: Dual Issued for Dual GmbH Hauptstrasse 1, 86925 Fuchstal, Germany Issued By Compliance Certification Services Inc. Tainan Lab. No.8, Jiucengling, Xinhua Dist., Tainan Cit y, Taiwan Issued Date: December 08, 2022 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Pa ge: 2 / 119 Repo rt No.: TMTN2207001067NR Rev.: 02 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 November 21, 2022 Initial Issue ALL Gina Lin 01 November 30, 2022 See the following note rev.01 Page 87, 88, 101, 102 Gina Lin 02 December 08, 2022 See the following note rev.02 Page 77, 78, 87, 88 Gina Lin Note: ※ Rev.01 Issue Date: November 30, 2022 Update test data of radiated emission & conducted emissions. ※ Rev.02 Issue Date: December 08, 2022 Correct wrongly transplanted test data. Pa ge: 3 / 119 Repo rt No.: TMTN2207001067NR Rev.: 02 TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION .................................................................................. 4 2. TEST RESULT SUMMARY ............................................................................................ 5 3. EUT DESCRIPTION ....................................................................................................... 6 3.1 DESCRIPTION OF EUT & POWER ...................................................................................... 6 4. DESCRIPTION OF TEST MODES ................................................................................. 7 5. TEST METHODOLOGY ................................................................................................. 9 6. FACILITIES AND ACCREDITATIONS......................................................................... 10 6.1 FACILITIES ......................................................................................................................... 10 6.2 EQUIPMENT ....................................................................................................................... 10 6.3 LABORATORY ACCREDITATIONS LISTINGS .................................................................. 10 6.4 TABLE OF ACCREDITATIONS AND LISTINGS ................................................................ 11 6.5 MEASUREMENT EQUIPMENT USED ............................................................................... 12 6.6 MEASURING INSTRUMENT CALIBRATION ..................................................................... 13 6.7 MEASUREMENT UNCERTAINTY ...................................................................................... 13 7. SETUP OF EQUIPMENT UNDER TEST ...................................................................... 14 7.1 SETUP CONFIGURATION OF EUT ................................................................................... 14 7.2 SUPPORT EQUIPMENT ..................................................................................................... 14 8. APPLICABLE LIMITS AND TEST RESULTS .............................................................. 18 8.1 20dB BANDWIDTH FOR HOPPING ................................................................................... 18 8.2 MAXIMUM PEAK OUTPUT POWER .................................................................................. 24 8.3 HOPPING CHANNEL SEPARATION .................................................................................. 36 8.4 NUMBER OF HOPPING FREQUENCY USED ................................................................... 41 8.5 DWELL TIME ON EACH CHANNEL ................................................................................... 44 8.6 DUTY CYCLE ...................................................................................................................... 58 8.7 CONDUCTED SPURIOUS EMISSION ............................................................................... 63 8.8 RADIATED…

Text truncated - open the document above for the full version.

Pa ge: 44 / 119 Repo rt No.: TMTN2207001067NR Rev.: 02 8.5 DWELL TIME ON EACH CHANNEL LIMIT §15.247(a)(1)(iii) For frequency hopping system operating in the 2400-2483.5MHz band, the average time of occupancy on any frequency shall not be greater than 0.4 second within a 31.6 second period. TEST SETUP TEST PROCEDURE 1. Check the calibration of the measuring instrument using either an internal calibrator or a known signal from an external generator. 2. Position the EUT as shown in test setup without connection to measurement instrument. Turn on the EUT and connect its antenna terminal to measurement instrument via a low loss cable. Then set it to any one measured frequency within its operating range and make sure the instrument is operated in its linear range. 3. Adjust the center frequency of spectrum analyzer on any frequency be measured and set spectrum analyzer to zero span mode. And then, set RBW and VBW of spectrum analyzer to proper value. 4. Measure the time duration of one transmission on the measured frequency. And then plot the result with time difference of this time duration. 5. Repeat above procedures until all frequencies measured were complete. 6. The Bluetooth Headset has 3 type of payload, DH1, DH3, DH5. The hopping rate is 1600 per second. The longer the payload is, the slower the hopping rate is. EUT SPECTRUM ANALYZER Pa ge: 45 / 119 Repo rt No.: TMTN2207001067NR Rev.: 02 TEST RESULTS Time of occupancy on the TX channel in 31.6sec = time domain slot length × hop rate ÷ number of hop per channel × 31.6 Refer to the attached graph. The hopping rates of Bluetooth devices change with different types of payload. The longer the payload is, the slower the hopping rate. The hopping rate scenario is defined in Bluetooth core specification. Model Name CS 529 Test By Ted Huang Temp & Humidity 26.2°C, 55% Test Date 08/17/2022 Modulation Type: GFSK / DH5 Transmitting Frequency Packet type Dwell time (ms) Time of occupancy on the TX channel in 31.6sec (ms) Limit for Time of occupancy on the TX channel in 31.6sec (ms) Results 2441MHz DH1 0.400 128.00 400.000 PASS 2441MHz DH3 1.660 265.60 400.000 PASS 2441MHz DH5 2.900 309.33 400.000 PASS 2441MHz AFH 2.900 154.67 400.000 PASS DH1 Dwell tine= 0.400 ms×(1600÷2)÷79×31.6= 128.00 (ms) DH3 Dwell tine= 1.660 ms×(1600÷4)÷79×31.6= 265.60 (ms) DH5 Dwell tine= 2.900 ms×(1600÷6)÷79×31.6= 309.33 (ms) AFH Dwell tine= 2.900 ms×(800÷6)÷20×8= 154.67 (ms) Modulation Type: 8-DPSK / 3-DH5 Transmitting Frequency Packet type Dwell time (ms) Time of occupancy on the TX channel in 31.6sec (ms) Limit for Time of occupancy on the TX channel in 31.6sec (ms) Results 2441MHz 3DH1 0.400 128.00 400.000 PASS 2441MHz 3DH3 1.660 265.60 400.000 PASS 2441MHz 3DH5 2.900 309.33 400.000 PASS 2441MHz AFH 2.900 154.67 400.000 PASS 3DH1 Dwell tine= 0.400 ms×(1600÷2)÷79×31.6= 128.00 (ms) 3DH3 Dwell tine= 1.660 ms×(1600÷4)÷79×31.6= 265.60 (ms) 3DH5 Dwell tine= 2.900 ms×(1600÷6)÷79×31.6= 309.33 (ms) AFH Dwell tine= 2.900 ms×(800÷6)÷20×8= 154.67 (ms) Pa ge: 46 / 119 Repo rt No.: TMTN2207001067NR Rev.: 02 DWELL TIME ON EACH PAYLOAD DH1 CH Low ( GFSK ) DH1 CH Middle ( GFSK ) Pa ge: 47 / 119 Repo rt No.: TMTN2207001067NR Rev.: 02 DH1 CH High ( GFSK ) Pa ge: 48 / 119 Repo rt No.: TMTN2207001067NR Rev.: 02 DH3 CH Low ( GFSK ) DH3 CH Middle ( GFSK ) Pa ge: 49 / 119 Repo rt No.: TMTN2207001067NR Rev.: 02 DH3 CH High ( GFSK ) Pa ge: 50 / 119 Repo rt No.: TMTN2207001067NR Rev.: 02 DH5 CH Low ( GFSK ) DH5 CH Middle ( GFSK ) Pa ge: 51 / 119 Repo rt No.: TMTN2207001067NR Rev.: 02 DH5 CH High ( GFSK ) Pa ge: 52 / 119 Repo rt No.: TMTN2207001067NR Rev.: 02 3DH1 CH Low ( 8-DPSK) 3DH1 CH Middle ( 8-DPSK) Pa ge: 53 / 119 Repo rt No.: TMTN2207001067NR Rev.: 02 3DH1 CH High ( 8-DPSK) Pa ge: 54 / 119 Repo rt No.: TMTN2207001067NR Rev.: 02 3DH3 CH Low ( 8-DPSK) 3DH3 CH Middle ( 8-DPSK) Pa ge: 55 / 119 Repo rt No.: TMTN2207001067NR Rev.: 02 3DH3 CH High ( 8-DPSK) Pa ge: 56 / 119 Repo rt No.: TMTN2207001067NR Rev.: 02 3DH5 CH Low ( 8-DPSK) 3DH5 CH Middle ( 8-DPSK) Pa ge: 57 / 119 Repo rt No.: TMTN2207001067NR Rev.: 02 3DH5 CH High ( 8-DPSK) Pa ge: 58 / 119 Repo rt No.: TMTN2207001067NR Rev.: 02 8.6 DUTY CYCLE LIMIT Nil (No dedicated limit specified in the Rules) TEST SETUP TEST PROCEDURE 1. Place the EUT on the table and set it in transmitting mode. 2. Remove the antenna from the EUT and then connect a low loss RF cable from the antenna port to the spectrum analyzer. 3. The zero-span mode on a spectrum analyzer or EMI receiver if the response time and spacing between bins on the sweep are sufficient to permit accurate measurements of the on and off times of the transmitted signal. Set the center frequency of the instrument to the center frequency of the transmission. Set RBW ≥ OBW if possible; otherwise, set RBW to the largest available value. Set VBW ≥ RBW. Set detector = peak or average. The zero-span measurement method shall not be used unless both RBW and VBW are > 50/T and the number of sweep points across duration T exceeds 100. (For example, if VBW and/or RBW are limited to 3 MHz, then the zero-span method of measuring duty cycle shall not be used if T ≤ 16.7 microseconds.) Pa ge: 59 / 119 Repo rt No.: TMTN2207001067NR Rev.: 02 TEST RESULTS No non-compliance noted. TEST DATA Model Name CS 529 Test By Ted Huang Temp & Humidity 26.2°C, 55% Test Date 08/17/2022 Modulation Type: GFSK / DH5 us Times Ton Total Ton time(ms) Ton1 2900.000 1 2900 Ton2 0 0 Ton3 0 2.9 Tp 3.74 Ton 2.9 Tp(Ton+Toff) 3.74 Duty Cycle 0.775 Duty Factor 1.105 Modulation Type: 8-DPSK / 3-DH5 us Times Ton Total Ton time(ms) Ton1 2900.000 1 2900 Ton2 0 0 Ton3 0 2.9 Tp 3.74 Ton 2.9 Tp(Ton+Toff) 3.74 Duty Cycle 0.775 Duty Factor 1.105 Pa ge: 60 / 119 Repo rt No.: TMTN2207001067NR Rev.: 02 TEST PLOT Duty Cycle GFSK(Low) GFSK(Middle) Pa ge: 61 / 119 Repo rt No.: TMTN2207001067NR Rev.: 02 GFSK(High) 8-DPSK (Low) Pa ge: 62 / 119 Repo rt No.: TMTN2207001067NR Rev.: 02 8-DPSK (Middle) 8-DPSK (High) Pa ge: 63 / 119 Repo rt No.: TMTN2207001067…

Text truncated - open the document above for the full version.

Pa ge: 103 / 119 Repo rt No.: TMTN2207001067NR Rev.: 02 APPENDIX I PHOTOGRPHS OF TEST SETUP RADIATED EMISSION MEASUREMENT SETUP Below 1GHz Pa ge: 104 / 119 Repo rt No.: TMTN2207001067NR Rev.: 02 Pa ge: 105 / 119 Repo rt No.: TMTN2207001067NR Rev.: 02 RADIATED RF MEASUREMENT SETUP Pa ge: 106 / 119 Repo rt No.: TMTN2207001067NR Rev.: 02 RF CONDUCTED SETUP Pa ge: 107 / 119 Repo rt No.: TMTN2207001067NR Rev.: 02 CONDUCTED EMISSION MEASUREMENT SETUP MODE: NORMAL OPERATION
