2A8XN-CS629QFully Automatic Direct Drive Turntable

1 CS 629Q Manual 2 Reinigen und Fehlerbehebung Contents Page Contents 13 Technical specifications 14 Preface 15 Intended users of this operating manual 15 Warnings 15 Directives 15 Disposal 15 Safety instructions 16 Safety 16 Intended use 16 List of contents / Packaging instructions 17 Product overview 18 Set Up 19 Platter and belt installation 19 Tonearm 19 Fitting the headshell 19 Counterweight fitting 19 Balancing the tonearm 19 Tracking force 19 Anti-Skating-adjustment 19 Dust cover fitting 20 Connection to amplifier 20 Connection to power supply 20 Operating the turntable 21 Removing / Attaching the stylus protection cap 21 To play the record (manually) 21 To play the record (automatically) 21 To set the speed 21 Repeat function 21 Replacing the stylus 21 Operating Bluetooth 22 Cleaning 23 Cleaning the stylus and record 23 Cleaning the record player 23 Troubleshooting 23 Spare Parts & Accessories 23 3 Motor Drive Direct-Drive, low torque, brushless motor Speed settings 33/45/78 Wow & Flutter < ±0.06 % (DIN WTD) Tonearm Function All functions are automatic, remote controlled or manual Bearing Ball-Bearing / Twin Gimbal Mounting Effective length 221.5 mm Offset Angle 25.6° Overhang 19 mm Type statically balanced with counterweight Stylus Pressure Range 0 to 4 g Cartridge Weight Range 5 g to 9 g Factory installed Pick-up Ortofon 2M Blue Replacement Stylus Ortofon Stylus 2M Blue Platter Material Aluminium Die-cast Mat Rubber 2.5 mm Bearing Hardened Steel Spindle, Brass Bushing Diameter 305 mm Weight incl. Mat 1450 g Plinth Surface Finish MDF: Vinyl veneer = Black / Wood Veneer = Walnut Feet Ø 62 mm / Elastomer Damping Element Connection RCA socket Connection to Phono Input YES Connection to Line Input YES Digital Output YES Dimension (closed dust cover) 435 x 367 x 145 mm Dimension (open dust cover) D: 415 mm / H: 400 mm Weight 7.5 kg Power Supply The efficiency readings were taken with an input Voltage of 230 V AC at 50 Hz Type FJ -SW1202000N Input Voltage 100 (-10 %) V AC to 240 (+10 %) V AC Frequency 50 / 60 Hz Output Voltage 12 V DC Output Current 2,0 A Output Watt 24 W Average Efficiency During Operation ≥ 86.2% Power Consumption at Idle < 0,5 W Technical Specifications 4 Preface This instruction manual will help you to operate the turntable in a safe way. Please read this manual and the safety notices carefully before using the unit and keep them for later use. Be sure to make them accessible to other users and observe all information given here. Intended users of this operating manual This operating manual is intended for everyone who: • sets up, • operates, • cleans • or disposes of the record player. Warnings The warning signs in this operating manual are structured as seen below: The word „DANGER“ is pointing out an immediate life hazard! The word „WARNING“ is pointing out a potential life-threatening situation or irreversible injuries! The word „CAREFUL“ is pointing out the possible threat of medium or light injuries! The word „ATTENTION“ is pointing out potential damages to the product. Note: „NOTE“ provides useful or important information. Directives and standards This product conforms to: • the Low-voltage Directive (2014/35/EU), • the EMC Directive (2014/30/EU), • RoHS Directive 2011/65/EU, • ERP 2009/125/EC and • CE Marking Directive. Disposal of packaging GEFAHR „Danger“ through suffocation! Keep the packaging and its parts out of the reach of children. Risk of suffocation from foil and other packaging materials. Your new unit was protected on its way to you by the packaging. All materials used are environmentally safe and can be recycled. Please help and dispose of the packaging in an environmentally responsible manner. To learn about current disposal methods, contact your dealer or your local disposal facility. Disposal of turntable Old units are not simply waste. Valuable raw materials can be salvaged through environmentally friendly disposal. For information about the correct and environmentally friendly disposal of your unit, please contact your local council. This unit is labelled according to 2002/96/EC, the Waste Electrical and Electronic Equipment Directive (WEEE). This product must not be disposed of with normal household waste. Instead, it must be deposited at a recycling station for electrical and electronic devices. The symbol on the product and the instructions for use or the packaging indicate this. The materials can be recycled in accordance with their marking. By re-using, recycling, or repurposing old units, you make an important contribution to protecting our environment. 5 Safety instructions Please read through all of the safety instructions carefully and keep them for questions that may arise later. Always observe all warnings and instructions in this operating manual and on the rear of the unit. Safety instructions for using the power supply • The unit should only be connected to a mains voltage supply of 100- 240 V~, 50/60 Hz. • Never try to operate the unit with a different voltage. • Only use the supplied power supply or an original Dual alternative. • The mains plug should only be connected after installation has been completed according to the instructions. • Use a suitable, easily accessible mains connection and avoid using multiple sockets! • This socket should be as close to the unit as possible. • Make sure the power cable or plug is always easily accessible so that the unit can be disconnected quickly from the power supply! • Lay the mains cable in such a way that no one can trip over it and do not place any heavy objects on the mains cable. • Fully insert the mains plug into the socket. • Do not touch the mains plug with wet hands—risk of electric shock! • If the mains plug of the unit is defective or if the unit shows other damage, it must not be operated. • When unplugging the mains cable from the socket pull on the mains plug, not on the cable. • Disconnect the mains plug from the socket if you do not intend to use the unit for a pro…

Text truncated - open the document above for the full version.

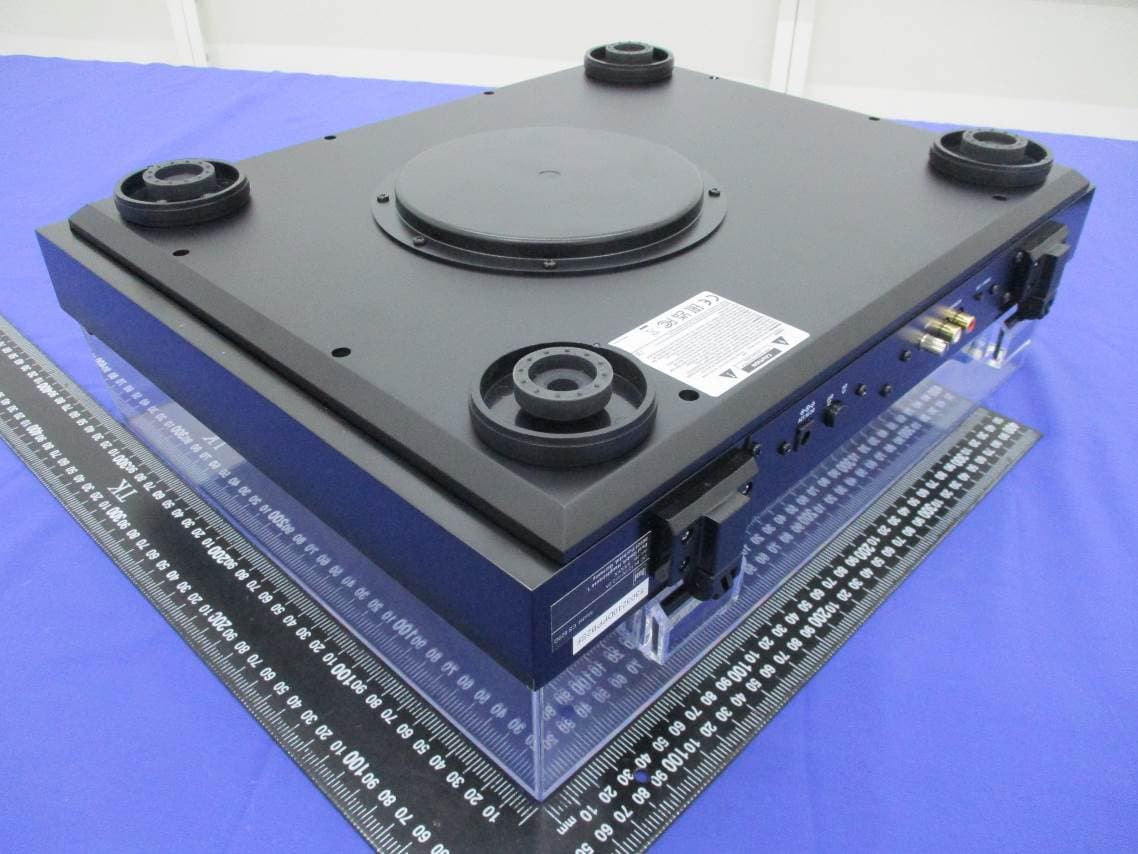

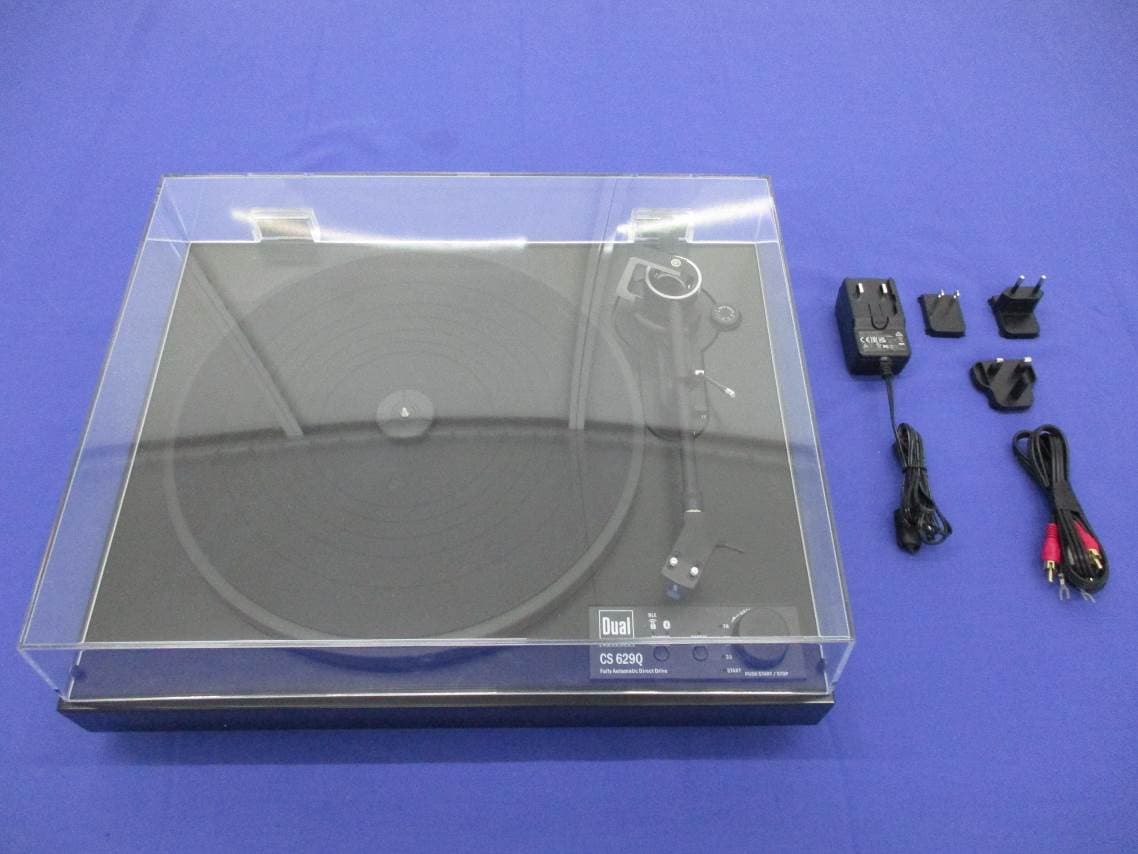

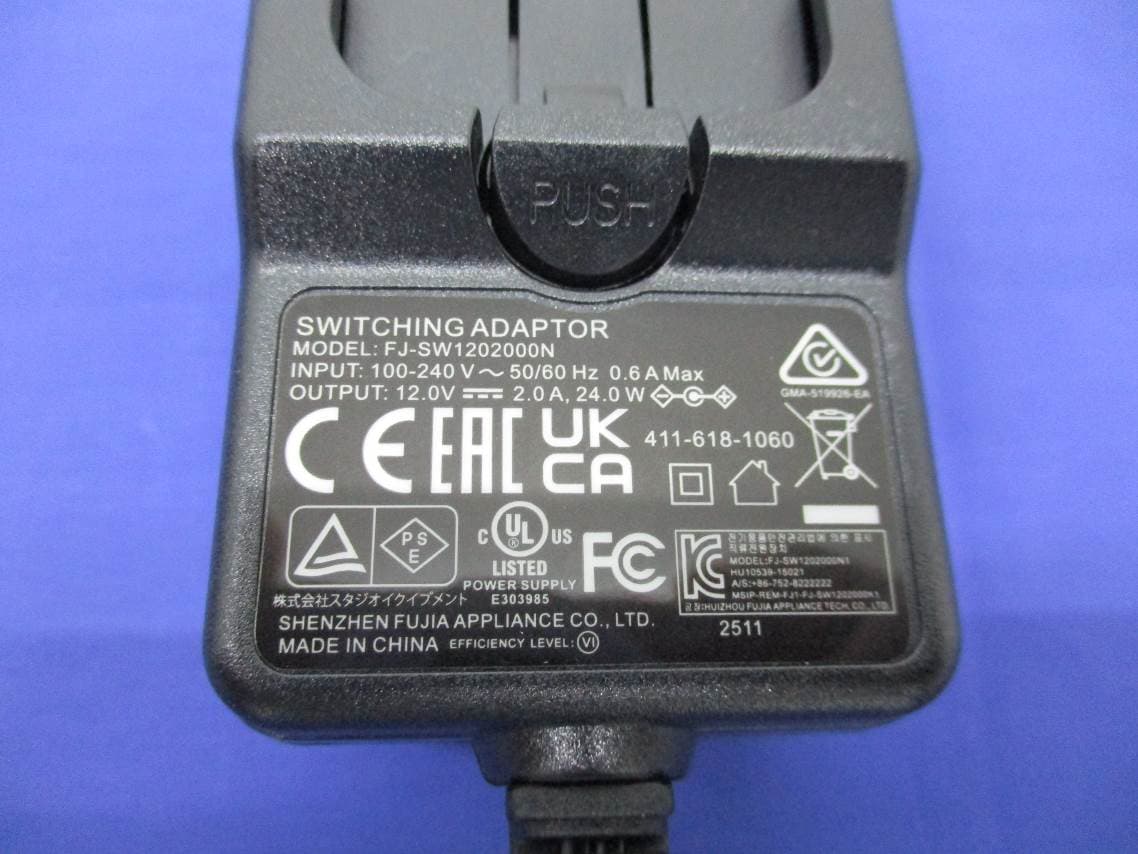

Page: 118 / 130 Re port No.: TMTN2604000377NR Ref. No.: Rev.: 01 APPENDIX II PHOTOGRPHS OF EUT External Photo Model: CS 629Q Page: 119 / 130 Re port No.: TMTN2604000377NR Ref. No.: Rev.: 01 Page: 120 / 130 Re port No.: TMTN2604000377NR Ref. No.: Rev.: 01

IC : 29511-CS629QIC : 29511-CS629Q FCC ID : 2A8XN-CS629QFCC ID : 2A8XN-CS629Q Serial No. Label

Page: 121 / 130 Re port No.: TMTN2604000377NR Ref. No.: Rev.: 01 Internal Photo Model: CS 629Q Page: 122 / 130 Re port No.: TMTN2604000377NR Ref. No.: Rev.: 01 Page: 123 / 130 Re port No.: TMTN2604000377NR Ref. No.: Rev.: 01 Page: 124 / 130 Re port No.: TMTN2604000377NR Ref. No.: Rev.: 01 Page: 125 / 130 Re port No.: TMTN2604000377NR Ref. No.: Rev.: 01 Antenna Page: 126 / 130 Re port No.: TMTN2604000377NR Ref. No.: Rev.: 01 Page: 127 / 130 Re port No.: TMTN2604000377NR Ref. No.: Rev.: 01 Page: 128 / 130 Re port No.: TMTN2604000377NR Ref. No.: Rev.: 01 Page: 129 / 130 Re port No.: TMTN2604000377NR Ref. No.: Rev.: 01 Page: 130 / 130 Re port No.: TMTN2604000377NR Ref. No.: Rev.: 01 Antenna

Project No: TM-2604000278P Page 1 / 14 Report No.: TMWK2604001822KS FCC ID: 2A8XN-CS629Q Rev.: 00 No.11, Wugong 6th Rd., Wugu Dist., New Taipei City , Taiwan /新北市五股區五工六路11號 t:(886-2) 2299-9720 f:(886-2) 2299-9721 www.sgs.com.tw Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group RF Exposure Evaluation Report FCC 47 CFR § 2.1091 for Fully Automatic Direct Drive Turntable Model Name.: CS 629Q Prepared for: Dual GmbH Hauptstrasse 1, 86925 Fuchstal, Germany Prepared by Compliance Certification Services Inc. Wugu Laboratory No.11, Wugong 6th Rd., Wugu Dist., New Taipei City, Taiwan. Issue Date: June 25, 2026 Note: This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, NIST or any government agencies. The test results in the report only apply to the tested sample. This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No: TM-2604000278P Page 2 / 14 Report No.: TMWK2604001822KS Rev.: 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 June 25, 2026 Initial Issue ALL Doris Chu This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No: TM-2604000278P Page 3 / 14 Report No.: TMWK2604001822KS Rev.: 00 Table of Contents 1 ATTESTATION OF TEST RESULTS ............................................................................. 4 2 TEST SPECIFICATION, METHODS AND PROCEDURES ............................................ 5 3 DEVICE UNDER TEST (DUT) INFORMATION .............................................................. 6 3.1 DUT DESCRIPTION .............................................................................................. 6 3.2 WIRELESS TECHNOLOGIES ............................................................................... 7 4 MEASUREMENT UNCERTAINTY .................................................................................. 8 5 MAXIMUM PERMISSIBLE EXPOSURE ......................................................................... 9 5.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) ................................ 9 5.2 MPE CALCULATION METHOD ........................................................................... 10 5.3 MPE EXEMPTION ............................................................................................... 11 5.4 MULTIPLE RF SOURCES ................................................................................... 12 6 MPE EXEMPTION OPTION B ...................................................................................... 13 7 FACILITIES .................................................................................................................. 14 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No: TM-2604000278P Page 4 / 14 Report No.: TMWK2604001822KS Rev.: 00 1 Attestation of Test Results Applicant Name Dual GmbH Model Name CS 629Q Applicable Standards FCC 47 CFR § 2.1091 FCC 47 CFR § 1.1310 Published RF exposure KDB procedures Receive EUT Date: April 20, 2026 Date of Test: May 22, 2026 Compliance Certification Services Inc. , tested the above equipment in accordance with the requirements set forth in the above standards. Determination of compliance is based on the results of the compliance measurement,not taking into account measurement instrumentation uncertainy.All indications of Pass/Fail in this report are opinions expressed by Compliance Certification Services Inc, based on interpretations and/or observations of test results. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Approved & Released By: Tested by: Sky Zhou Asst. Section Manager Compliance Certification Services Inc. KW Huang Engineer Compliance Certification Services Inc. This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No: TM-2604000278P Page 5 / 14 Report No.: TMWK2604001822KS Rev.: 00 2 Test Specification, Methods and Procedures The tests documented in this report were performed in accordance with FCC 47 CFR § 2.1091, the following FCC Published RF exposure KDB procedures: o 447498 D04 Interim General RF Exposure Guidance v01 o 865664 D02 RF Exposure Reporting v01r02 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No: TM-2…

Text truncated - open the document above for the full version.

Pro ject No.: TM-2604000278P FCC ID: 2A8XN-CS629Q Page: 1 / 130 Report No.: TMTN2604000377NR Rev.: 01 No. 168, Ln. 523, Sec. 3, Zhongzheng Rd., Rende Dist., Tainan City, 717017, Taiwan /台南市仁德區中正路三段523巷168號 t:(886-6) 5802-201 f:(886-6) 5802-202 www.sgs.com.tw Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Compliance Certification Services Inc. 程智科技股份有限公司 FCC 47 CFR PART 15 SUBPART C AND ANSI C63.10: 2020 TEST REPORT ( Class I Permissive Change Report ) For Fully Automatic Direct Drive Turntable Model: CS 629Q Data Applies To: N/A Brand Name: Dual Issued for Dual GmbH Hauptstrasse 1, 86925 Fuchstal, Germany Issued By Compliance Certification Services Inc. Tainan Lab. No. 168, Ln. 523, Sec. 3, Zhongzheng Rd., Rende Dist., Tainan Cit y, 717017, Taiwan Issued Date: August 07, 2026 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Page: 2 / 130 Re port No.: TMTN2604000377NR Ref. No.: Rev.: 01 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 August 04, 2026 Initial Issue All Page Gina Lin 01 August 07, 2026 See the following note rev.01 P.10 Gina Lin 02 January 24, 2024 See the following note rev.02 ALL Polly Wang Note: ※ Rev.00 Issue Date: August 04, 2026 Original report. ※ Rev.01 Issue Date: August 07, 2026 Corrected registration no. ※ Rev.02 Issue Date: January 24, 2024 Update Product Name. Page: 3 / 130 Re port No.: TMTN2604000377NR Ref. No.: Rev.: 01 TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION .................................................................................. 4 2. TEST RESULT SUMMARY ............................................................................................ 5 3. EUT DESCRIPTION ....................................................................................................... 6 3.1 DESCRIPTION OF EUT & POWER ...................................................................................... 6 4. DESCRIPTION OF TEST MODES ................................................................................. 7 5. TEST METHODOLOGY ................................................................................................. 9 6. FACILITIES AND ACCREDITATIONS......................................................................... 10 6.1 FACILITIES ......................................................................................................................... 10 6.2 EQUIPMENT ....................................................................................................................... 10 6.3 LABORATORY ACCREDITATIONS LISTINGS .................................................................. 10 6.4 TABLE OF ACCREDITATIONS AND LISTINGS ................................................................ 11 6.5 MEASUREMENT EQUIPMENT USED ............................................................................... 12 6.6 MEASURING INSTRUMENT CALIBRATION ..................................................................... 13 6.7 MEASUREMENT UNCERTAINTY ...................................................................................... 13 7. SETUP OF EQUIPMENT UNDER TEST ...................................................................... 14 7.1 SETUP CONFIGURATION OF EUT ................................................................................... 14 7.2 SUPPORT EQUIPMENT ..................................................................................................... 15 8. APPLICABLE LIMITS AND TEST RESULTS .............................................................. 17 8.1 20DB BANDWIDTH FOR HOPPING ................................................................................... 17 8.2 MAXIMUM PEAK OUTPUT POWER .................................................................................. 23 8.3 HOPPING CHANNEL SEPARATION .................................................................................. 35 8.4 NUMBER OF HOPPING FREQUENCY USED ................................................................... 41 8.5 DWELL TIME ON EACH CHANNEL ................................................................................... 44 8.6 DUTY CYCLE ...................................................................................................................... 58 8.7 CONDUCTED SPURIOUS EMISSION ...................................................................…

Text truncated - open the document above for the full version.

Page: 68 / 130 Re port No.: TMTN2604000377NR Ref. No.: Rev.: 01 HOP (GFSK ) Page: 69 / 130 Re port No.: TMTN2604000377NR Ref. No.: Rev.: 01 CH Low ( 30MHz ~ 26.5GHz / 8-DPSK ) Page: 70 / 130 Re port No.: TMTN2604000377NR Ref. No.: Rev.: 01 CH Mid ( 30MHz ~ 26.5GHz / 8-DPSK ) Page: 71 / 130 Re port No.: TMTN2604000377NR Ref. No.: Rev.: 01 CH High ( 30MHz ~ 26.5GHz / 8-DPSK ) Page: 72 / 130 Re port No.: TMTN2604000377NR Ref. No.: Rev.: 01 HOP (8-DPSK ) Page: 73 / 130 Re port No.: TMTN2604000377NR Ref. No.: Rev.: 01 8.8 RADIATED EMISSIONS 8.8.1 TRANSMITTER RADIATED SUPURIOUS EMSSIONS LIMITS § 15.205 (a) Except as shown in paragraph (d) of this section, only spurious emissions are permitted in any of the frequency bands listed below: MHz MHz MHz GHz 0.090 - 0.110 16.42 - 16.423 399.9 - 410 4.5 - 5.15 1 0.495 - 0.505 16.69475 - 16.69525 608 - 614 5.35 - 5.46 2.1735 - 2.1905 16.80425 - 16.80475 960 - 1240 7.25 - 7.75 4.125 - 4.128 25.5 - 25.67 1300 - 1427 8.025 - 8.5 4.17725 - 4.17775 37.5 - 38.25 1435 - 1626.5 9.0 - 9.2 4.20725 - 4.20775 73 - 74.6 1645.5 - 1646.5 9.3 - 9.5 6.215 - 6.218 74.8 - 75.2 1660 -1710 10.6 -12.7 6.26775 - 6.26825 108 -121.94 1718.8 - 1722.2 13.25 -13.4 6.31175 - 6.31225 123 - 138 2200 - 2300 14.47 – 14.5 8.291 - 8.294 149.9 - 150.05 2310 - 2390 15.35 -16.2 8.362 - 8.366 156.52475 - 156.52525 2483.5 - 2500 17.7 - 21.4 8.37625 - 8.38675 156.7 - 156.9 2655 - 2900 22.01 - 23.12 8.41425 - 8.41475 162.0125 - 167.17 3260 - 3267 23.6 - 24.0 12.29 - 12.293 167.72 - 173.2 3332 - 3339 31.2 - 31.8 12.51975 - 12.52025 240 - 285 3345.8 - 3338 36.43 - 36.5 12.57675 - 12.57725 322 -335.4 3600 - 4400 ( 2 ) 13.36 - 13.41 1 Until February 1, 1999, this restricted band shall be 0.490-0.510 MHz. 2 Above 38.6 § 15.205 (b) Except as provided in paragraphs (d) and (e), the field strength of emissions appearing within these frequency bands shall not exceed the limits shown is Section 15.209. At frequencies equal to or less than 1000 MHz, compliance with the limits in Section 15.209 shall be demonstrated using measurement instrumentation employing a CISPR quasi-peak detector. Above 1000 MHz, compliance with the emission limits in Section 15.209 shall be demonstrated based on the average value of the measured emissions. The provisions in Section 15.35 apply to these measurements. Page: 74 / 130 Re port No.: TMTN2604000377NR Ref. No.: Rev.: 01 § 15.209 (a) Except as provided elsewhere in this Subpart, the emissions from an intentional radiator shall not exceed the field strength levels specified in the following table : Frequency (MHz) Field Strength (microvolts/meter) Measurement Distance (meters) 30 - 88 100 ** 3 88 - 216 150 ** 3 216 - 960 200 ** 3 Above 960 500 3 ** Except as provided in paragraph (g), fundamental emissions from intentional radiators operating under this Section shall not be located in the frequency bands 54-72 MHz, 76-88 MHz, 174-216 MHz or 470-806 MHz, However, operation within these frequency bands is permitted under other sections of this Part, e-g, Sections 15.231 and 15.241. § 15.209 (b) In the emission table above, the tighter limit applies at the band edges. Page: 75 / 130 Re port No.: TMTN2604000377NR Ref. No.: Rev.: 01 TEST SETUP The diagram below shows the test setup that is utilized to make the measurements for emission from below 1GHz. 9kHz ~ 30MHz Spectrum analyzer Loop antenna 3m 1m Turntable EUT 0.8m Reference ground plane 30MHz ~ 1GHz Spectrum analyzer 3m 1~4m Turntable EUT 0.8m Antenna tower Reference ground plane Bi-log antenna Page: 76 / 130 Re port No.: TMTN2604000377NR Ref. No.: Rev.: 01 The diagram below shows the test setup that is utilized to make the measurements for emission above 1GHz. TEST PROCEDURE a. The EUT was placed on the top of a rotating table 0.8/1.5 meters above the ground at a 3 meter chamber test site. The table was rotated 360 degrees to determine the position of the highest radiation. b. While measuring the radiated emission below 1GHz, the EUT was set 3 meters away from the interference-receiving antenna, which was mounted on the top of a variable-height antenna tower. While measuring the radiated emission above 1GHz, the EUT was set 3 meters away from the interference-receiving antenna c. The antenna is a broadband antenna, and its height is varied from one meter to four meters above the ground to determine the maximum value of the field strength. Both horizontal and vertical polarization of the antenna are set to make the measurement. d. For each suspected emission, the EUT was arranged to its worst case and then the antenna was tuned to heights from 1 meter to 4 meters and the table was turned from 0 degrees to 360 degrees to find the maximum reading. e. The spectrum analyzer was set to Peak Detect Function and Specified Bandwidth with Maximum Hold Mode. f. If the emission level of the EUT in peak mode was 10 dB lower than the limit specified, then testing could be stopped and the peak values of the EUT would be reported. Otherwise the emissions that did not have 10 dB margin would be re-tested one by one using peak, quasi-peak or average method as specified and then reported in a data sheet. g. The tests were performed in accordance with 558074 D01 15.247 Meas Guidance v05 Note： NOTE： 1. The resolution bandwidth of test receiver is 200Hz for Quasi-peak detection (QP) and Average detection (AV) at frequency 9~150(kHz). 2. The resolution bandwidth of test receiver is 9kHz for Quasi-peak detection (QP) and Average detection (AV) at frequency 0.15~30(MHz). Page: 77 / 130 Re port No.: TMTN2604000377NR Ref. No.: Rev.: 01 3. The resolution bandwidth of test receiver is 120kHz for Quasi-peak detection (QP) at frequency 30~1000(MHz). 4. The resolution bandwidth and video bandwidth of test receiver/spectrum analyzer is 1 MHz for Peak detection and frequency above 1GHz. 5. The resolution bandwidth of test receiver/spectrum analyzer is 1 MHz and the video bandwidth ≦1/T for Average detection (AV) at frequency above 1GHz. TEST RESULTS No no…

Text truncated - open the document above for the full version.

RF Performance Test Report CS629Q 2026.04.29 TESTER:MO LITE 1Confidential – Provided under NDAYou One-Stop Wireless Solution Provider 2 Confidential – Provided under NDAYou One-Stop Wireless Solution Provider VSWR 、 Return loss and impedance : Antenna Performance Test Report CT01=0.2PF CT03=5.6NH CT02=NC 3 Confidential – Provided under NDAYou One-Stop Wireless Solution Provider Antenna Test Settings: 垂直 Antenna Performance Test Report Copper 4 Confidential – Provided under NDAYou One-Stop Wireless Solution Provider Antenna Efficiency 2441MHz 3D Radiation Pattern : 垂直 Antenna Performance Test Report 5 Confidential – Provided under NDAYou One-Stop Wireless Solution Provider RF Performance Test Report Antenna performance data: 垂直 6 Confidential – Provided under NDAYou One-Stop Wireless Solution Provider Antenna Test Settings: 水平 Antenna Performance Test Report Copper 7 Confidential – Provided under NDAYou One-Stop Wireless Solution Provider Antenna Efficiency 2441MHz 3D Radiation Pattern : 水平 Antenna Performance Test Report 8 Confidential – Provided under NDAYou One-Stop Wireless Solution Provider RF Performance Test Report Antenna performance data: 水平 9 Confidential – Provided under NDAYou One-Stop Wireless Solution Provider Antenna Performance Test Report CS629Q Frequency(MHz) 垂直 水平 Efficiency (%) Gain (dBi) Efficiency (%) Gain (dBi) 240228.70.828.60.4 244129.21.028.91.8 248031.92.227.82.2 MAX Efficiency32.0% @2.475GHz29.0% @2.452GHz MAX Gain 2.2dBi @2.475GHz2.2dBi @2.480GHz RF data summary

Page: 112 / 130 Re port No.: TMTN2604000377NR Ref. No.: Rev.: 01 APPENDIX I PHOTOGRPHS OF TEST SETUP RADIATED EMISSION MEASUREMENT SETUP Below 1GHz 9kHz~30MHz Page: 113 / 130 Re port No.: TMTN2604000377NR Ref. No.: Rev.: 01 30MHz ~ 1GHz Page: 114 / 130 Re port No.: TMTN2604000377NR Ref. No.: Rev.: 01 Page: 115 / 130 Re port No.: TMTN2604000377NR Ref. No.: Rev.: 01 RADIATED RF MEASUREMENT SETUP Page: 116 / 130 Re port No.: TMTN2604000377NR Ref. No.: Rev.: 01 RF CONDUCTED SETUP Page: 117 / 130 Re port No.: TMTN2604000377NR Ref. No.: Rev.: 01 CONDUCTED EMISSION MEASUREMENT SETUP Mode: Normal Operation
