2A8Z8-CARVERACarvera Desktop CNC machine

Smart Desktop CNC Machine INSTRUCTION MANUAL FOR THE ERA OF MAKERS www.makera.comv 1.0 02 Welcome 04 Safety 08 Unpack 14 Preparation 22 Software Overview 24 Status Toolbar 25 Task Toolbar 30 G-Code/MDI 33 G-Code Preview 34 Manual Operation 35 Errors 36 General Steps 37 Tool Preparation 16 Phone/Pad Stand Installation 16 Adjust Dust Shoe 17 Charge Wireless Probe 18 Control Software Installation 18 WiFi Configuration 19 Test Auto Tool Changer 20 38 Tool Kit Wireless Probe 40 Manual Probe 42 Emergency Stop Button 43 Air Assist Module 44 Workholding Tools 45 Bit Collar Installer 46 Dust Collection Module 47 Rotary Module 49 Spindle Collet Installer 52 Laser Module 53 54 Feed & Speed 55 CAM For specifications and more information, please visit our official website: www.makera.com If you have any problems with Carvera, please contact us directly: [email protected] Also, join in the Facebook group to discuss and share your experience with other Carvera users: www.facebook.com/groups/carvera We will keep updating video tutorials and sample making cases on the YouTube channel, do not forget to subscribe! www.youtube.com/c/Makera In this manual, you will have a quick walk- through of how to use your Carvera and know its powerful abilities. Welcome HiWe are so excited to welcome you to join our Carvera world! Whether you are an expert or completely new to CNC, with amazing functions such as auto tool chang- ing, auto probing and auto-leveling, which significantly reduce the difficulty of learning and operating, you will experience the extraordinary machining capabilities that Carvera brings you with ease. This manual does not include CAD and CAM tutorials but focuses on the instruc- tion of this machine and its control soft- ware. Carvera supports standard G-Code and is compatible with most CAD/CAM software. 02 Welcome 03MAKERA If an emergency occurred in machining, such as the workpiece being loose from holding, components damaging, unusual light or sound coming from the machine, etc. Press the main button or E-Stop button, all ongoing procedures will stop immediately, or cut off the power to shut it down. Carvera is built by closed-loop servo motors, and it saves the coordinates and status at each step. Therefore, no need to recalibrate after reboot, just restart the job. Carvera has a safety option that allows the machine to automatically stop working when opening the cover, which is useful for schools or work environments where children may reach. Please read this manual carefully before using the Carvera. Failure to read the manual may lead to personal injury, inferior results, or damage to the Carvera products. This manual is provided for reference purposes only. We reserve the right to modify or revise this manual, users can download the most up-to-date version of this manual on our website. Carvera is equipped with multiple sensors (Motor stall sensor, Spindle abnormal sensor, etc.). However, you should always pay attention in operation that milling cutters revolving in high-speed, unstable components or laser in operation are dangerous to people without protection. Please carefully read the safety instructions below to avoid unnecessary casual- ties. 1. Always wear safety goggles when operating Carvera, especially when the protective cover is open. 2. Always wear laser protection goggles when using laser function. 3. Please wear hearing protection when Carvera is machining on the hard materials. 4. Do not put your hands close to the spindle or machining area. Keep the protective cover closed when operating Carvera. 5. Do not leave your Carvera unattended while it is machining. 6. Please be aware of the sharpness of the milling bits during installation, dust collection, and other operations. 7. Milling and laser carving will generate heat. Inappropriate parameters will cause fire hazards. Make sure an extinguisher is in your vicinity. 8. Some materials are harmful to people when machining or laser craving, such as carbon fiber and epoxy resin. Please wear a face mask and turn on the automatic dust collection. 9. Do not expose this machine to rain or wet conditions. 10. Keep children and bystanders away while operating this machine. It requires supervision and the assistance of an adult when children use this machine. Disclaimer Safety Instructions Safety 04 Safety 05 Safety FCC Compliance This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio / TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any inter- ference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be install…

Text truncated - open the document above for the full version.

Huaibei Makera Technology Co., Ltd Agent Authorization Letter 2022-10-28 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen Most Technology Service Co., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Name: ZHANG QIUXI Position: CEO Company Name: Huaibei Makera Technology Co., Ltd Address: 1st floor, building C1, e-commerce Industrial Park,Suixi Economic Development Zone, Suixi County, Huaibei City,Anhui Province,China Tel / Fax 0561-6066386/N/A E-Mail: [email protected]

Huaibei Makera Technology Co., Ltd Long Term Confidentiality Request Letter 2022-10-28 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR (FCC ID: 2A8Z8-CARVERA) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - e.g. Block diagram - e.g. SCH - e.g. Operational Description required to be submitted with this application be permanently withheld from public review. The above documents are company proprietary information that could never get into the possession of your competition. Please contact me if there is any information you may need. Sincerely, Name: ZHANG QIUXI Position: CEO Company Name: Huaibei Makera Technology Co., Ltd Address: 1st floor, building C1, e-commerce Industrial Park,Suixi Economic Development Zone, Suixi County, Huaibei City,Anhui Province,China Tel / Fax 0561-6066386/N/A E-Mail: [email protected]

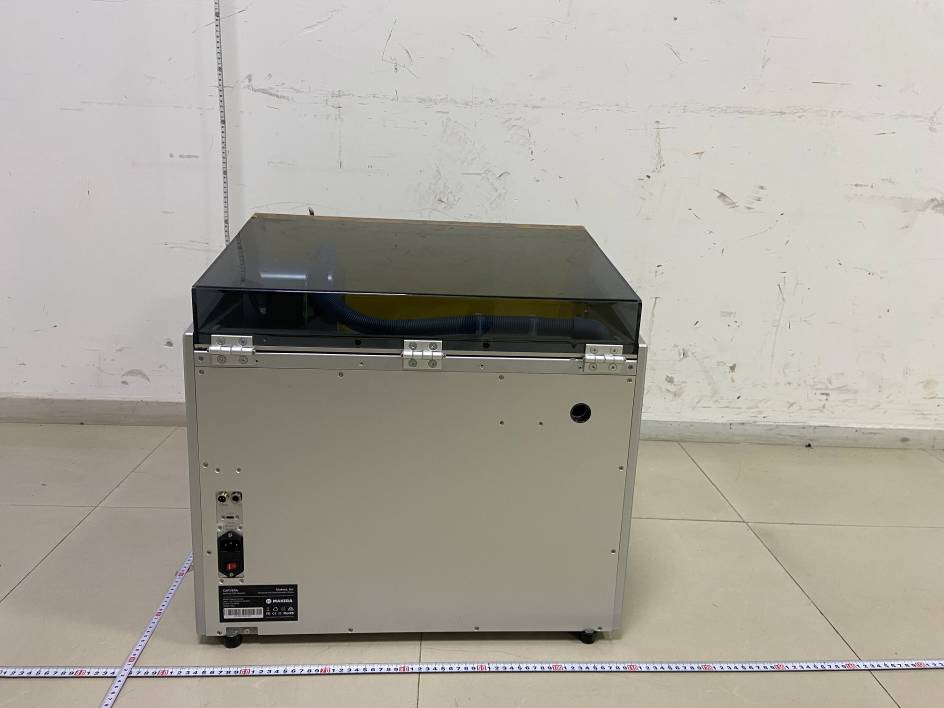

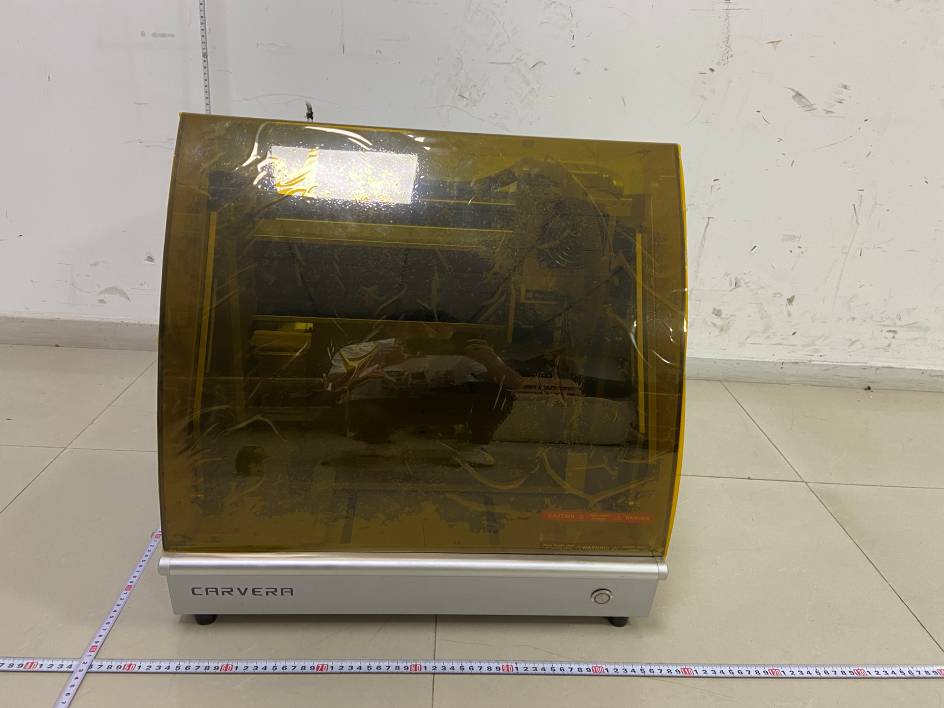

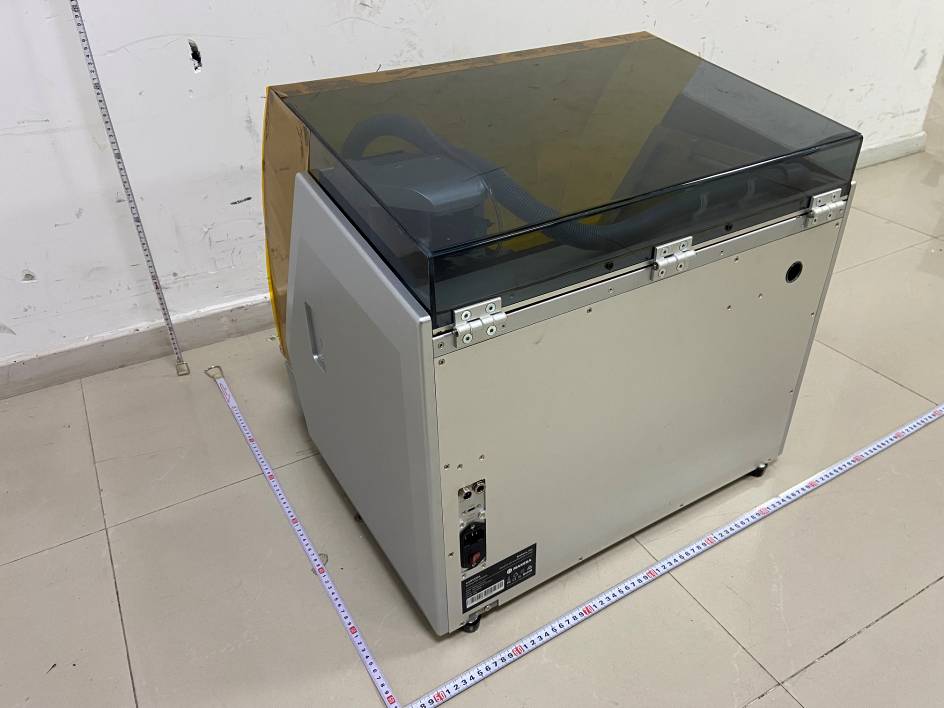

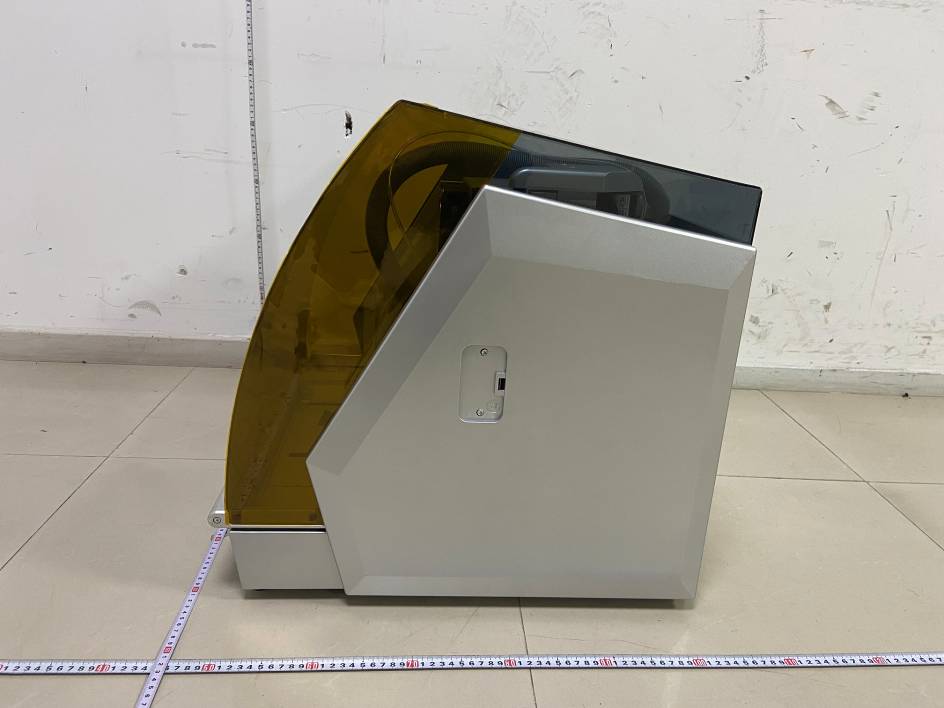

Model No.: Carvera FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE Model No.: Carvera LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE Model No.: Carvera TOP VIEW OF SAMPLE BOTTOM VIEW OF SAMPLE

label location size：50mm*40mm

Model No.: Carvera Page 1 of 7 INTERNAL PHOTO OF SAMPLE INTERNAL PHOTO OF SAMPLE Model No.: Carvera Page 2 of 7 INTERNAL PHOTO OF SAMPLE INTERNAL PHOTO OF SAMPLE Model No.: Carvera Page 3 of 7 INTERNAL PHOTO OF SAMPLE PCB INTERNAL PHOTO OF SAMPLE PCB Model No.: Carvera Page 4 of 7 INTERNAL PHOTO OF SAMPLE PCB INTERNAL PHOTO OF SAMPLE PCB Model No.: Carvera Page 5 of 7 INTERNAL PHOTO OF SAMPLE PCB INTERNAL PHOTO OF SAMPLE PCB Model No.: Carvera Page 6 of 7 INTERNAL PHOTO OF SAMPLE PCB INTERNAL PHOTO OF SAMPLE PCB Model No.: Carvera Page 7 of 7 INTERNAL PHOTO OF SAMPLE PCB INTERNAL PHOTO OF SAMPLE PCB wifi Antenna location zegbee Antenna location

Inverted F Antenna Specification Summary ITEM Zigb ee Model Name CC2530 HorizontalVertical 2405MHz 2440MHz2480MHz2405MHz2440MHz 2480MHz Center Frequency 2.23 2.82 3.0 -1.67 1.12 1.72 MAX. Gain 3dBi PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length 18*5mm Antenna Photo & Length (mm) Size（Include antenna）： 21*18*0.8mm Size（Without antenna）：16*18*0.8mm Horizontal: 2405 MHz 2440 MHz 2480 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dBi) Frequency (MHz) MaxMinAvg 24 05 2.23 -30.0801-7.18716 24402.82 -36.5604-7.48023 24 80 3.00 -22.0315-6.59127 Vertical: 2405 MHz 2440 MHz 2480 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dBi) Frequency (MHz) MaxMinAvg 2 405 -1.67 -22.1424-12.4294 2 440 1.12 -24.5837-10.4702 2 480 1.72 -29.5214-9.20432 Test Labs：Attestation of Global Compliance Co., Ltd.

Antenna Specification 3D Radiation Pattern Frequency Range(MHz) 2400 2450 2500 Rad effic 2.15 0.596 2.74 Tot effic 1.88 2.58 4.23 Gain 2.36 3.39 5.0 Dimensions:

Shenzhen Most Technology Service Co., Ltd. No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China. RF Exposure Evaluation Report Report Reference No. ..................... : FCC ID.. .......................................... : MTWG2209320-H 2A8Z8-CARVERA Compiled by ( position+printed name+signature) .. : File administrators Alisa Luo Supervised by ( position+printed name+signature) .. : Test Engineer Sunny Deng Approved by ( position+printed name+signature) .. : Manager Yvette Zhou Date of issue ..................................... : October 21,2022 Representative Laboratory Name .: Shenzhen Most Technology Service Co., Ltd. Address ............................................ : No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China. Applicant’s name ............................ : Huaibei Makera Technology Co., Ltd Address ............................................ : 1st floor, building C1, e-commerce Industrial Park, Suixi Economic Development Zone, Suixi County, Huaibei City, Anhui Province, China Test specification/ Standard ..........: 47 CFR Part 1.1307 47 CFR Part 2.1093 TRF Originator .................................. : Shenzhen Most Technology Service Co., Ltd. Shenzhen Most Technology Service Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Most Technology Service Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Most Technology Service Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Carvera Desktop CNC machine Trade Mark ....................................... : Carvera Model/Type reference....................... : CARVERA Listed Models .................................. : N/A Modulation Type ............................... : O-QPSK CCK/DSSS/ OFDM Operation Frequency ........................ : From 2405MHz ~ 2480MHz Rating ............................................... : 100-240VAC 4A Hardware version ............................. : V1.0 Software version .............................. : V1.0 Result................................................ : PASS Report No.: MTWG2209320-H Page 2 of 6 T E S T R E P O R T Equipment under Test : Carvera Desktop CNC machine Model /Type : CARVERA Listed Models : Carvera Remark : N/A Applicant : Huaibei Makera Technology Co., Ltd Address : 1st floor, building C1, e-commerce Industrial Park, Suixi Economic Development Zone, Suixi County, Huaibei City, Anhui Province, China Manufacturer : Huaibei Makera Technology Co., Ltd Address : 1st floor, building C1, e-commerce Industrial Park, Suixi Economic Development Zone, Suixi County, Huaibei City, Anhui Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: MTWG2209320-H Page 3 of 6 1. Revision History Revision Issue Date Revisions Revised By 00 2022.10.21 Initial Issue Alisa Luo Report No.: MTWG2209320-H Page 4 of 6 2. SAR Evaluation 2.1 RF Exposure Compliance Requirement According to FCC Part1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in part1.1307(b) F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4* Pi * R 2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No.: MTWG2209320-H Page 5 of 6 2.1.3 EUT RF Exposure Measurement Data Antenna Gain (dBi)：5 Wifi 2.4G 802.11b Test channel Peak Output Power (dBm) Tune up tolerance (dBm) Maximum tune-up Power (dBm) Lowest(2412MHz) 8.90 8.90±1 9.90 Middle(2437MHz) 10.23 10.23±1 11.23 Highest(2462MHz) 11.33 11.33±1 12.33 802.11g Test channel Peak Output Power (dBm) Tune up tolerance (dBm) Maximum tune-up Power (dBm) Lowest(2412MHz) 9.01 9.01±1 10.01 Middle(2437MHz) 9.11 9.11±1 10.11 Highest(2462MHz) 11.01 11.01±1 12.01 802.11n(HT20) Test channel Peak Output Power (dBm) Tune up tolerance (dBm) Maximum tune-up Power (dBm) Lowest(2412MHz) 8.79 8.79±1 9.79 Middle(2437MHz) 9.03 9.03±1 10.03 Highest(2462MHz) 11.02 11.02±1 12.02 Worst case: 802.11b Channel Maximum Peak Conducted Output Power (dBm) Maximum Peak Conducted Output Power (MW) Antenna Gain (dBi) Power Density at R = 20 cm (mW/cm2) Limit Result Highest(2462 MHz) 12.33 17.10 5 0.0107 1.0 Pass Note: 1) Refer to report MTWG2209320-R1 for EUT test Max Conducted average Output Power value. Note: 2) Pd = (Pout*G)/(4* Pi * R2)=(17.10*3.16)/(4*3.1416*20 2 )=0.0107 Note: 3 )EUT's Bluetooth module is more than 20cm away from the human body. Report No.: MTWG2209320-H Page 6 of 6 Measurement Data Antenna Gain (dBi)：3 O-QPSK O-QPSK Test channel Peak Output Power (dBm) Tune up tolerance (dBm) Maximum tune-up Power (dBm) Lowest(2405MHz) 5.568 5.568±1 6.568 Middle(2440MHz) 5.732 5.732±1 6.732 Highest(2480MHz) 6.010 6.010±1 7.010 Worst case: O-QPSK Channel Maximum Peak Conducted Output Power (dBm) Maximum Peak Conducted Output Power (MW) Antenna Gain (dBi) Power Density at R = 20 cm (mW/cm2) Limit Result Highest(2480MHz ) 7.010 5.023 3 0.002 1.0 Pass Note: 1) Refer to report MTWG2209320-R2 for EUT test Max Conducted average Output Power value. Note: 2) Pd = (Pout*G)/(4* Pi * R2)=( 5.023*1.99)/(4*3.1416*20 2 )=0.002 Note: 3 )EUT's Bluetooth module is more than 20cm away…

Text truncated - open the document above for the full version.

Shenzhen Most Technology Service Co., Ltd. No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China. TEST REPORT FCC Rules Part 15.247 Report Reference No. ..................... : FCC ID.. .......................................... : MTWG2209320-R2 2A8Z8-CARVERA Compiled by ( position+printed name+signature) .. : File administrators Alisa Luo Supervised by ( position+printed name+signature) .. : Test Engineer Sunny Deng Approved by ( position+printed name+signature) .. : Manager Yvette Zhou Date of issue ..................................... : October 21,2022 Representative Laboratory Name .: Shenzhen Most Technology Service Co., Ltd. Address ............................................ : No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China. Applicant’s name ............................ : Huaibei Makera Technology Co., Ltd Address ............................................ : 1st floor, building C1, e-commerce Industrial Park, Suixi Economic Development Zone, Suixi County, Huaibei City, Anhui Province, China Test specification/ Standard ..........: FCC Rules Part 15.247 TRF Originator .................................. : Shenzhen Most Technology Service Co., Ltd. Shenzhen Most Technology Service Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Most Technology Service Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Most Technology Service Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Carvera Desktop CNC machine Trade Mark ....................................... : Carvera Manufacturer .................................... : Huaibei Makera Technology Co., Ltd Model/Type reference....................... : CARVERA Listed Models .................................. : N/A Modulation Type ............................... : O-QPSK Operation Frequency ........................ : From 2405MHz ~ 2480MHz Hardware Version .............................. 1.0 Software Version ............................... 1.0 Rating ............................................... : 100-240VAC 4A Result................................................ : PASS Report No.: MTWG2209320-R2 Page 2 of 32 T E S T R E P O R T Equipment under Test : Carvera Desktop CNC machine Model /Type : CARVERA Listed Models : Carvera Remark N/A Applicant : Huaibei Makera Technology Co., Ltd Address : 1st floor, building C1, e-commerce Industrial Park, Suixi Economic Development Zone, Suixi County, Huaibei City, Anhui Province, China Manufacturer : Huaibei Makera Technology Co., Ltd Address : 1st floor, building C1, e-commerce Industrial Park, Suixi Economic Development Zone, Suixi County, Huaibei City, Anhui Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: MTWG2209320-R2 Page 3 of 32 Contents 1. REVISION HISTORY ................................................................ 4 2. TEST STANDARDS .................................................................. 5 3. SUMMARY ............................................................................. 6 3.1. General Remarks 6 3.2. Product Description 6 3.3. Equipment Under Test 6 3.4. Short description of the Equipment under Test (EUT) 6 3.5. EUT operation mode 7 3.6. Block Diagram of Test Setup 7 3.7. Test Item (Equipment Under Test) Description* 7 3.8. Auxiliary Equipment (AE) Description 7 3.9 Antenna Information* 7 3.10. EUT configuration 8 3.11. Modifications 8 4. TEST ENVIRONMENT ............................................................... 9 4.1. Address of the test laboratory 9 4.2. Environmental conditions 9 4.3. Test Description 10 4.4. Statement of the measurement uncertainty 10 4.5. Equipments Used during the Test 11 5. TEST CONDITIONS AND RESULTS ............................................ 12 5.1. AC Power Conducted Emission ................................................................................... 12 5.2. Radiated Emission ........................................................................................................ 13 5.3. Maximum Peak Output Power ...................................................................................... 20 5.4. Power Spectral Density ................................................................................................ 21 5.5. 6dB Bandwidth and 99% Bandwidth ............................................................................ 23 5.6. Band Edge Compliance of RF Emission ...................................................................... 25 5.7. Spurious RF Conducted Emission ............................................................................... 27 5.8. Antenna Requirement ................................................................................................... 30 6. TEST SETUP PHOTOS OF THE EUT .......................................... 31 7. EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 32 Report No.: MTWG2209320-R2 Page 4 of 32 1. Revision History Revision Issue Date Revisions Revised By 00 2022.10.21 Initial Issue Alisa Luo Report No.: MTWG2209320-R2 Page 5 of 32 2. TEST STANDARDS The tests were performed according to following standards: The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10:2013 : American National Standard for Testing Unlicensed Wireless Devices Report No.: MTWG2209320-R2 Page 6 of 32 3. SUMMARY 3.1. General R…

Text truncated - open the document above for the full version.

Shenzhen Most Technology Service Co., Ltd. No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China. FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID............................................. : MTWG2209320-R1 2A8Z8-CARVERA Compiled by ( position+printed name+signature) . : File administrators Alisa Luo Supervised by ( position+printed name+signature) . : Test Engineer Sunny Deng Approved by ( position+printed name+signature) . : Manager Yvette Zhou Date of issue .................................... : October 21,2022 Representative Laboratory Name . : Shenzhen Most Technology Service Co., Ltd. Address ............................................ : No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China. Applicant’s name ............................ : Huaibei Makera Technology Co., Ltd Address ............................................ : 1st floor, building C1, e-commerce Industrial Park, Suixi Economic Development Zone, Suixi County, Huaibei City, Anhui Province, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 TRF Originator .................................. : Shenzhen Most Technology Service Co., Ltd. Shenzhen Most Technology Service Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Most Technology Service Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Most Technology Service Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Carvera Desktop CNC machine Trade Mark ....................................... : Carvera Model/Type reference ...................... : CARVERA Listed Models .................................. : N/A Modulation Type ............................... : CCK/DSSS/ OFDM Operation Frequency ........................ : From 2412 - 2462MHz Rating ............................................... : 100-240VAC 4A Hardware version ............................. : V1.0 Software version .............................. : V1.0 Result ............................................... : PASS Report No.: MTWG2209320-R1 Page 2 of 36 T E S T R E P O R T Equipment under Test : Carvera Desktop CNC machine Model /Type : CARVERA Listed Models : Carvera Remark : N/A Applicant : Huaibei Makera Technology Co., Ltd Address : 1st floor, building C1, e-commerce Industrial Park, Suixi Economic Development Zone, Suixi County, Huaibei City, Anhui Province, China Manufacturer : Huaibei Makera Technology Co., Ltd Address : 1st floor, building C1, e-commerce Industrial Park, Suixi Economic Development Zone, Suixi County, Huaibei City, Anhui Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: MTWG2209320-R1 Page 3 of 36 Contents 1 REVISION HISTORY ....................................................................... 4 2 TEST STANDARDS ......................................................................... 5 3 SUMMARY .................................................................................... 6 3.1 General Remarks .......................................................................................................................................... 6 3.2 Product Description ..................................................................................................................................... 6 3.3 Equipment Under Test ................................................................................................................................. 6 3.4 Short description of the Equipment under Test (EUT) ............................................................................. 6 3.5 EUT operation mode .................................................................................................................................... 6 3.6 Block Diagram of Test Setup ...................................................................................................................... 7 3.7 Test Item (Equipment Under Test) Description* ....................................................................................... 7 3.8 Auxiliary Equipment (AE) Description ....................................................................................................... 7 3.9 Related Submittal(s) / Grant (s) ................................................................................................................... 7 3.10 Modifications .............................................................................................................................................. 7 4 TEST ENVIRONMENT ...................................................................... 8 4.1 Address of the test laboratory .................................................................................................................... 8 4.2 Test Facility ................................................................................................................................................... 8 4.3 Environmental conditions ........................................................................................................................... 8 4.4 Test Description ........................................................................................................................................... 9 4.5 Statement of the measurement uncertainty .............................................................................................. 9 4.6 Equipments Used during the Test ..................................…

Text truncated - open the document above for the full version.

Model No.: Carvera CE TEST SETUP RE TEST SETUP Model No.: Carvera RE TEST SETUP
