2A94J-CP027USB wireless adapter

Shenzhen Ningtengda Technology Co., Ltd.

Click to zoom

Application Details

Equipment Class: NII - Unlicensed National Information Infrastructure TX
Date of Grant: Jun 11, 2026
Application Purpose: Original Equipment
Equipment Note: USB wireless adapter
Frequency Range: 5180.00000000 - 5240.00000000
Company: Shenzhen Ningtengda Technology Co., Ltd.
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

size:58*89mm 折页 Note: Based on the differences in region, car model, phone brand, model, and function, it may not automatically connect next time before the next connection. At this time, please delete the Bluetooth pairing information, or re-plug the adapter, or refer to "If you can't connect again, please try the following" for solutions. Notice: 1. Before connecting, please make sure that the Bluetooth and WiFi of your phone are not connected to other devices. If there is a connection, please password is 12345678. In Safari browser, enter the website: 192.168.43.1 to search for and update the software. This is only applicable to iPhone. Note: Do not turn off the power during the upgrade process. disconnect the Bluetooth and WiFi from other devices on the phone; before 1. check for and upgrade any updates to Android Auto on your mobile device through the Google Play app store. 2. Check and make sure the Wireless Android Auto feature is enabled in the Android Auto settings on your device. 3. First, pair your phone's Bluetooth with the car stereo. Make sure your phone is connected to the car for hands-free calling (Bluetooth HFP). You can simply make or receive a call to confirm that your phone is connected to the car for hands-free calling (Bluetooth HFP). A properly handled Bluetooth HFP call will use the car's own speakers and microphone. 4. Before connecting with a different mobile phone, please turn off the Bluetooth and WiFi of the mobile phone that has previously connected to the adapter, or enable airplane mode. 5. If you need to turn off the Wireless Android Auto function, you need to turn off the Bluetooth and WiFi of the adapter on the mobile phone, or unplug the adapter. 6. After the Wireless Android Auto is successfully connected, the Bluetooth of and environmental temperature differences, using the Wireless Android Auto If you can't connect again, please try the following: the Android phone will be disconnected from our adapter. There is no need to enter a password for the device WiFi, and the backup password is 12345678. 7. If you have inserted the adapter and successfully connected to the adapter's Bluetooth, but the Android Auto continuation interface has not appeared on the car head unit or the mobile phone, please seek help in "If you can't connect again, please try the following" in the troubleshooting. If you still cannot connect after this method, it means that this device does not support your car model. 8. The content (including fonts, music, audio, maps, lyrics, touch, calls, etc.) generated by this Wireless Android Auto function has nothing to do with this product. 9. Due to regional differences, mobile phone models, mobile phone brands, 1: Make sure the Android Auto app on your phone is updated to the latest version in the Google Play Store. 2: Just make or receive a phone call to confirm that your phone is connected to the car for hands-free calling (Bluetooth HFP). Correctly handled Bluetooth HFP calls will use the car's own speakers and microphones. 3: Please restart your phone, unplug/replug the adapter, and then restart the car's infotainment system. 4: On the car screen, find the Bluetooth phone list, and then "forget" or "delete" all paired phones. 5: On the phone, find the system settings for Bluetooth, and then "forget" or "delete" the paired car and the paired Cxzconcerter-xxx. 6: On the phone, find the system settings for the application; select Android Auto; under "Storage", tap "Clear data" (this may vary slightly depending on the phone brand). 7: Plug in the data cable again and use wired Android Auto to make sure wired Androidaut can connect normally. Indicator light: 1. After the adapter is powered on, the indicator light flashes, which means the Wireless Android Auto usage method: 1. Plug this adapter into the original car's USB port. 2. Wait for 3-10 seconds. 3. Find and pair the adapter's Bluetooth in the Bluetooth list on the Android phone.The Bluetooth name is carplay- box -xxxx 4. Pairing is successful, once pairing is successful, the Android Auto continuation page will appear on the phone, and the indicator light will turn blue. 5. Please click the Android Auto icon on the original car to enter the wireless Android Auto function. Before connecting the adapter, please use a phone that supports the Android Auto function to connect to the wired Android Auto function of the car head unit to ensure that the wired Android Auto function can be used normally. If the wired Android Auto cannot be used normally, please set it up through the setting process. If the original car does not have the wired Android Auto function, the product cannot be used. RoHs Compliance function may cause the phone to consume power too quickly or the phone to heat up significantly, resulting in disconnection or degraded experience. 10. If there is a connection problem, restart the car or restore the car to factory Hereby declare that this product complies with the electrical specification requirements of RoHS Directive 2011/65/EU and Commission Delegated Directive (EU) 2015/863 as amended. Online upgrade Connect to the adapter WiFi, the WiFi name is carplay- box -xxxx, the WIFI Settings. 11. When you start the car again, the Wireless Android Auto function may not be enabled automatically. You can reconnect by re-pairing the Bluetooth or unplugging and plugging in the adapter. 12. When using this adapter in a German car, after the Bluetooth connection is successful, when the "USB recognition" appears on the car head unit interface, please click the Android Auto icon. 13. Most phone makes and models that shipped from the factory with Android 11 will work with this adapter. You can refer to the Google support page for wireless Android Auto at: https://support.google.com/androidauto/answer/ 6348019 # wireless 14. If you have problems with wireless Android Auto, you can browse https://an - droid.com/auto 8: If wired Android Auto can connect normally, then reinsert the adapte…

Text truncated - open the document above for the full version.

Cover Letter(s)

ShenzhenNingtengdaTechnologyCo.,Ltd. 1001Room,OfficePremises,FujiZhidiBuilding,LonggangRoad6018th,LonggangStreet, LonggangDistrict,Shenzhen,China Tel:15012669958 SeriesModelsDescription FCCID:2A94J-CP027 Date:June6,2026 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Towhomitmayconcern: Thedevice(ProductName:USBwirelessadapter)ModelsName:cp027, CP027-01,CP027-02,CP027-03,CP027-04,CP027-05,CP027-06,CP027-07, CP027-08,CP027-09,CP027-10,CP027-11,CP027-12,CP027-13,CP027-14, CP027-15,CP027-16,CP027-17,CP027-18,CP027-19,CP027-20,CP027-21, CP027-22,CP027-23,CP027-24,CP027-25,CP027-26,CP027-27,CP027-28, CP027-29,CP027-30,CP027-31,CP027-32,CP027-33,CP027-34,CP027-35, CP027-36,CP027-37,CP027-38,CP027-39,CP027-40,CP027-41,CP027-42, CP027-43,CP027-44,CP027-45,CP027-46,CP027-47,CP027-48,CP027-49, CP027-50,CP027-51,CP027-52,CP027-53,CP027-54,CP027-55,CP027-56, CP027-57,CP027-58,CP027-59,CP027-60,CP027-61,CP027-62,CP027-63, CP027-64,CP027-65,CP027-66,CP027-67,CP027-68,CP027-69,CP027-70, CP027-71,CP027-72,CP027-73,CP027-74,CP027-75CP027-76,CP027-77, CP027-78CP027-79,CP027-80,CP027-81,CP027-82,CP027-83,CP027-84, CP027-85,CP027-86,CP027-87,CP027-88,CP027-89,CP027-90,CP027-91, CP027-92,CP027-93,CP027-94,CP027-95,CP027-96,CP027-97,CP027-98, CP027-99,CP027-100,CP027-101,CP027-102,CP027-103,CP027-104, CP027-105,CP027-105,CP027-107,CP027-108,CP027-109,CP027-110, CP027-111,CP027-112,CP027-113,CP027-114,CP027-115,CP027-116, CP027-117,CP027-118,CP027-119,CP027-120,CP027-121,CP027-122, CP027-123,CP027-124,CP027-125,CP027-126,CP027-127,CP027-128, CP027-129,CP027-130,CP027-131,CP027-132,CP027-133,CP027-134, CP027-135,CP027-136,CP027-137,CP027-138,CP027-139,CP027-140, CP027-141,CP027-142,CP027-143,CP027-144,CP027-145,CP027-146, CP027-147,CP027-148,CP027-149,CP027-150,CP027-151,CP027-152, CP027-153,CP027-154,CP027-155,CP027-156,CP027-157,CP027-158, CP027-159,CP027-160,CP027-161,CP027-162,CP027-163,CP027-164, CP027-165,CP027-166,CP027-167,CP027-168,CP027-169,CP027-170, ShenzhenNingtengdaTechnologyCo.,Ltd. 1001Room,OfficePremises,FujiZhidiBuilding,LonggangRoad6018th,LonggangStreet, LonggangDistrict,Shenzhen,China Tel:15012669958 CP027-171,CP027-172,CP027-173,CP027-174,CP027-175,CP027-176, CP027-177,CP027-178,CP027-179,CP027-180,CP027-181,CP027-182, CP027-183,CP027-184,CP027-185,CP027-186,CP027-187,CP027-188, CP027-189,CP027-190,CP027-191,CP027-192,CP027-193,CP027-194, CP027-195,CP027-196,CP027-197,CP027-198,CP027-199,CP027-200.All productmodelsaredifferentinshellcolororcustomernumber.Its internalstructure,circuitprinciple,PCBboardwiringoftheproduct, andallkeycomponentsrelatedtosafetyandelectromagneticcompatibility performanceareexactlythesame. Sincerely, StoneJiang/PM

External Photos

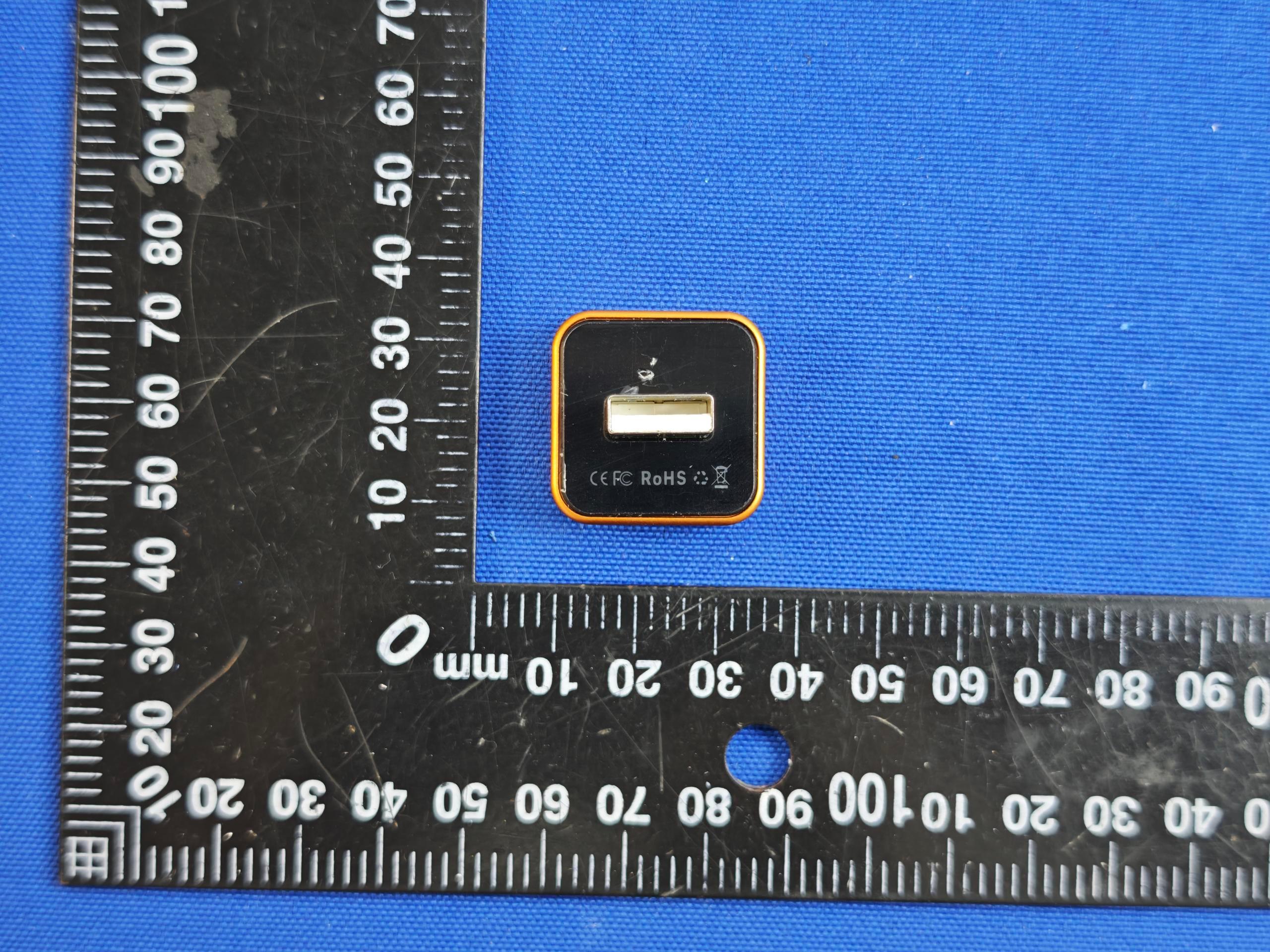

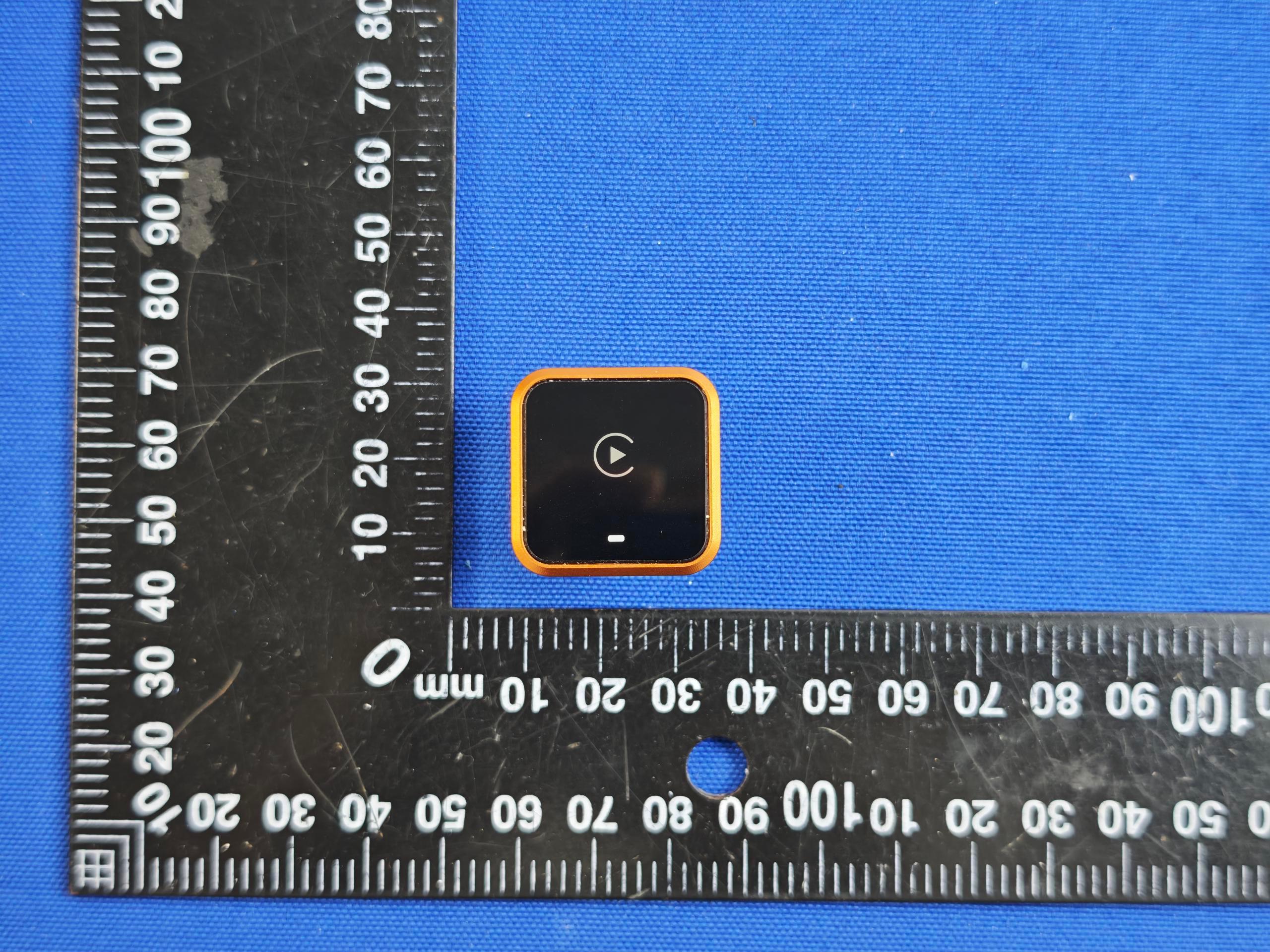

FCCID:2A94J-CP027Page 1 of 4 ReportNo.:CTL2604152052-WF ExternalPhotosofEUT CtoAadapter FCCID:2A94J-CP027Page 2 of 4 ReportNo.:CTL2604152052-WF FCCID:2A94J-CP027Page 3 of 4 ReportNo.:CTL2604152052-WF FCCID:2A94J-CP027Page 4 of 4 ReportNo.:CTL2604152052-WF

ID Label/Location Info

FCCID:2A94J-CP027Page 1 of 1 ReportNo.:CTL2604152052-WF FCCIDLabelInformation Labellocation: FCCID:2A94J-CP027

Internal Photos

FCCID:2A94J-CP027Page 1 of 3 ReportNo.:CTL2604152052-WF InternalPhotosofEUT FCCID:2A94J-CP027Page 2 of 3 ReportNo.:CTL2604152052-WF FCCID:2A94J-CP027Page 3 of 3 ReportNo.:CTL2604152052-WF BT&BLE&Wi-FiAntenna

RF Exposure Info

ShenzhenCTLTestingTechnologyCo.,Ltd. Tel:+86-755-89486194E-Mail:[email protected] RFExposureevaluation ReportReferenceNo.....................:CTL2604152052-WFH Compiledby: (printedname+signature) GaryGao Reviewedby: (printedname+signature) HappyGuo Approvedby: (printedname+signature) IvanXie ProductName.................................: USBwirelessadapter Model/Typereference....................:cp027 ListModel(s)....................................:Refertopage2 TradeMark.......................................: N/A FCCID...............................................: 2A94J-CP027 Applicant’sname...........................: ShenzhenNingtengdaTechnologyCo.,Ltd. Addressofapplicant.....................: 1001Room,OfficePremises,FujiZhidiBuilding,LonggangRoad 6018th,LonggangStreet,LonggangDistrict,Shenzhen,China Testspecification...........................: Standard ............................................ : 47CFR§1.1310 47CFR§2.1091 KDB447498D01GeneralRFExposureGuidancev06 TRFOriginator..................................: ShenzhenCTLTestingTechnologyCo.,Ltd. MasterTRF.......................................:Dated2017-01 Dateofreceiptoftestitem .......... : April20,2026 DateofTest....................................: April20,2026-May27,2026 DateofIssue....................................: May28,2026 Result ................................................ : Pass ShenzhenCTLTestingTechnologyCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenCTLTestingTechnologyCo.,Ltd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenCTLTestingTechnologyCo.,Ltd.takesnoresponsibilityforandwillnotassume liabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. V1.0Page2of16ReportNo.:CTL2604152052-WFH TESTREPORT TestReportNo.:CTL2604152052-WFH May28,2026 Dateofissue ProductName: USBwirelessadapter SampleNo:CTL260415205001,CTL260415205007, CTL260415205008 Model/Type: cp027 ListedModels : CP027-01,CP027-02,CP027-03,CP027-04,CP027-05, CP027-06,CP027-07,CP027-08,CP027-09,CP027-10, CP027-11,CP027-12,CP027-13,CP027-14,CP027-15, CP027-16,CP027-17,CP027-18,CP027-19,CP027-20, CP027-21,CP027-22,CP027-23,CP027-24,CP027-25, CP027-26,CP027-27,CP027-28,CP027-29,CP027-30, CP027-31,CP027-32,CP027-33,CP027-34,CP027-35, CP027-36,CP027-37,CP027-38,CP027-39,CP027-40, CP027-41,CP027-42,CP027-43,CP027-44,CP027-45, CP027-46,CP027-47,CP027-48,CP027-49,CP027-50, CP027-51,CP027-52,CP027-53,CP027-54,CP027-55, CP027-56,CP027-57,CP027-58,CP027-59,CP027-60, CP027-61,CP027-62,CP027-63,CP027-64,CP027-65, CP027-66,CP027-67,CP027-68,CP027-69,CP027-70, CP027-71,CP027-72,CP027-73,CP027-74,CP027-75 CP027-76,CP027-77,CP027-78CP027-79,CP027-80, CP027-81,CP027-82,CP027-83,CP027-84,CP027-85, CP027-86,CP027-87,CP027-88,CP027-89,CP027-90, CP027-91,CP027-92,CP027-93,CP027-94,CP027-95, CP027-96,CP027-97,CP027-98,CP027-99, CP027-100,CP027-101,CP027-102,CP027-103, CP027-104,CP027-105,CP027-105,CP027-107, CP027-108,CP027-109,CP027-110,CP027-111, CP027-112,CP027-113,CP027-114,CP027-115, CP027-116,CP027-117,CP027-118,CP027-119, CP027-120,CP027-121,CP027-122,CP027-123, CP027-124,CP027-125,CP027-126,CP027-127, CP027-128,CP027-129,CP027-130,CP027-131, CP027-132,CP027-133,CP027-134,CP027-135, CP027-136,CP027-137,CP027-138,CP027-139, CP027-140,CP027-141,CP027-142,CP027-143, CP027-144,CP027-145,CP027-146,CP027-147, CP027-148,CP027-149,CP027-150,CP027-151, CP027-152,CP027-153,CP027-154,CP027-155, CP027-156,CP027-157,CP027-158,CP027-159, CP027-160,CP027-161,CP027-162,CP027-163, CP027-164,CP027-165,CP027-166,CP027-167, CP027-168,CP027-169,CP027-170,CP027-171, CP027-172,CP027-173,CP027-174,CP027-175, CP027-176,CP027-177,CP027-178,CP027-179, CP027-180,CP027-181,CP027-182,CP027-183, CP027-184,CP027-185,CP027-186,CP027-187, CP027-188,CP027-189,CP027-190,CP027-191, V1.0Page3of16ReportNo.:CTL2604152052-WFH CP027-192,CP027-193,CP027-194,CP027-195, CP027-196,CP027-197,CP027-198,CP027-199, CP027-200 Applicant: ShenzhenNingtengdaTechnologyCo.,Ltd. Address : 1001Room,OfficePremises,FujiZhidiBuilding, LonggangRoad6018th,LonggangStreet,Longgang District,Shenzhen,China Manufacturer: ShenzhenNingtengdaTechnologyCo.,Ltd. Address : 1001Room,OfficePremises,FujiZhidiBuilding, LonggangRoad6018th,LonggangStreet,Longgang District,Shenzhen,China Thetestresultspresentedinthisreportrelateonlytotheobjecttested. Thisreportshallnotbereproduced,exceptinfull,withoutthewrittenapprovaloftheissuingtesting laboratory. Thedevice(ProductName:USBwirelessadapter)ModelsName:cp027,CP027-01,CP027-02,CP027-03, CP027-04,CP027-05,CP027-06,CP027-07,CP027-08,CP027-09,CP027-10,CP027-11,CP027-12, CP027-13,CP027-14,CP027-15,CP027-16,CP027-17,CP027-18,CP027-19,CP027-20,CP027-21, CP027-22,CP027-23,CP027-24,CP027-25,CP027-26,CP027-27,CP027-28,CP027-29,CP027-30, CP027-31,CP027-32,CP027-33,CP027-34,CP027-35,CP027-36,CP027-37,CP027-38,CP027-39, CP027-40,CP027-41,CP027-42,CP027-43,CP027-44,CP027-45,CP027-46,CP027-47,CP027-48, CP027-49,CP027-50,CP027-51,CP027-52,CP027-53,CP027-54,CP027-55,CP027-56,CP027-57, CP027-58,CP027-59,CP027-60,CP027-61,CP027-62,CP027-63,CP027-64,CP027-65,CP027-66, CP027-67,CP027-68,CP027-69,CP027-70,CP027-71,CP027-72,CP027-73,CP027-74,CP027-75 CP027-76,CP027-77,CP027-78CP027-79,CP027-80,CP027-81,CP027-82,CP027-83,CP027-84, CP027-85,CP027-86,CP027-87,CP027-88,CP027-89,CP027-90,CP027-91,CP027-92,CP027-93, CP027-94,CP027-95,CP027-96,CP027-97,CP027-98,CP027-99,CP027-100,CP027-101,CP027-102, CP027-103,CP027-104,CP027-105,CP027-105,CP027-107,CP027-108,CP027-109,CP027-110, CP027-111,CP027-112,CP027-113,CP027-114,CP027-115,CP027-116,CP027-117,CP027-118, CP027-119,CP027-120,CP027-121,CP027-122,CP027-123,CP027-124,CP027-125,CP027-126, CP027-127,CP027-128,CP027-129,CP027-130,CP027-131,CP027-132,CP027-133,CP027-134, CP027-135,CP027-136,CP027-137,CP027-138,CP027-139,CP027-140,CP027-141,CP027-142, CP027-143,CP027-144,CP027-145,CP027-146,CP027-147,CP027-148,CP027-149,CP027-150, CP027-151,CP027…

Text truncated - open the document above for the full version.

Test Report

ShenzhenCTLTestingTechnologyCo.,Ltd. Tel:+86-755-89486194E-mail:[email protected] TESTREPORT FCCPART15SUBPARTE15.407 ReportReferenceNo. .................... :CTL2604152052-WF03 Compiledby: (printedname+signature) GaryGao Reviewedby: (printedname+signature) HappyGuo Approvedby: (printedname+signature) IvanXie ProductName.................................: USBwirelessadapter Model/Typereference....................:cp027 ListModel(s) .................................... :Refertopage2 TradeMark ....................................... : N/A FCCID...............................................: 2A94J-CP027 Applicant’sname...........................: ShenzhenNingtengdaTechnologyCo.,Ltd. Addressofapplicant.....................: 1001Room,OfficePremises,FujiZhidiBuilding,LonggangRoad 6018th,LonggangStreet,LonggangDistrict,Shenzhen,China Testspecification...........................: Standard............................................: 47CFRFCCPart15SubpartE15.407 TRFOriginator..................................: ShenzhenCTLTestingTechnologyCo.,Ltd. MasterTRF ....................................... :Dated2011-01 Dateofreceiptoftestitem..........: April20,2026 DateofTestDate ............................ : April20,2026-May27,2026 DateofIssue....................................: May28,2026 Result................................................: Pass ShenzhenCTLTestingTechnologyCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenCTLTestingTechnologyCo.,Ltd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenCTLTestingTechnologyCo.,Ltd.takesnoresponsibilityforandwillnotassume liabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. V1.0Page2of51ReportNo.:CTL2604152052-WF03 TESTREPORT TestReportNo.:CTL2604152052-WF03 May28,2026 Dateofissue EquipmentunderTest: USBwirelessadapter SampleNo:CTL260415205001,CTL260415205007, CTL260415205008 Model/Type: cp027 ListedModels : CP027-01,CP027-02,CP027-03,CP027-04, CP027-05,CP027-06,CP027-07,CP027-08, CP027-09,CP027-10,CP027-11,CP027-12, CP027-13,CP027-14,CP027-15,CP027-16, CP027-17,CP027-18,CP027-19,CP027-20, CP027-21,CP027-22,CP027-23,CP027-24, CP027-25,CP027-26,CP027-27,CP027-28, CP027-29,CP027-30,CP027-31,CP027-32, CP027-33,CP027-34,CP027-35,CP027-36, CP027-37,CP027-38,CP027-39,CP027-40, CP027-41,CP027-42,CP027-43,CP027-44, CP027-45,CP027-46,CP027-47,CP027-48, CP027-49,CP027-50,CP027-51,CP027-52, CP027-53,CP027-54,CP027-55,CP027-56, CP027-57,CP027-58,CP027-59,CP027-60, CP027-61,CP027-62,CP027-63,CP027-64, CP027-65,CP027-66,CP027-67,CP027-68, CP027-69,CP027-70,CP027-71,CP027-72, CP027-73,CP027-74,CP027-75CP027-76, CP027-77,CP027-78CP027-79,CP027-80, CP027-81,CP027-82,CP027-83,CP027-84, CP027-85,CP027-86,CP027-87,CP027-88, CP027-89,CP027-90,CP027-91,CP027-92, CP027-93,CP027-94,CP027-95,CP027-96, CP027-97,CP027-98,CP027-99,CP027-100, CP027-101,CP027-102,CP027-103,CP027-104, CP027-105,CP027-105,CP027-107,CP027-108, CP027-109,CP027-110,CP027-111,CP027-112, CP027-113,CP027-114,CP027-115,CP027-116, CP027-117,CP027-118,CP027-119,CP027-120, CP027-121,CP027-122,CP027-123,CP027-124, CP027-125,CP027-126,CP027-127,CP027-128, CP027-129,CP027-130,CP027-131,CP027-132, CP027-133,CP027-134,CP027-135,CP027-136, CP027-137,CP027-138,CP027-139,CP027-140, CP027-141,CP027-142,CP027-143,CP027-144, CP027-145,CP027-146,CP027-147,CP027-148, CP027-149,CP027-150,CP027-151,CP027-152, CP027-153,CP027-154,CP027-155,CP027-156, CP027-157,CP027-158,CP027-159,CP027-160, CP027-161,CP027-162,CP027-163,CP027-164, CP027-165,CP027-166,CP027-167,CP027-168, CP027-169,CP027-170,CP027-171,CP027-172, V1.0Page3of51ReportNo.:CTL2604152052-WF03 CP027-173,CP027-174,CP027-175,CP027-176, CP027-177,CP027-178,CP027-179,CP027-180, CP027-181,CP027-182,CP027-183,CP027-184, CP027-185,CP027-186,CP027-187,CP027-188, CP027-189,CP027-190,CP027-191,CP027-192, CP027-193,CP027-194,CP027-195,CP027-196, CP027-197,CP027-198,CP027-199,CP027-200 Applicant: ShenzhenNingtengdaTechnologyCo.,Ltd. Address : 1001Room,OfficePremises,FujiZhidiBuilding, LonggangRoad6018th,LonggangStreet,Longgang District,Shenzhen,China Manufacturer:ShenzhenNingtengdaTechnologyCo.,Ltd. Address : 1001Room,OfficePremises,FujiZhidiBuilding, LonggangRoad6018th,LonggangStreet,Longgang District,Shenzhen,China TestresultPass* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedpage5. Thetestresultspresentedinthisreportrelateonlytotheobjecttested. Thisreportshallnotbereproduced,exceptinfull,withoutthewrittenapprovaloftheissuingtesting laboratory. Thedevice(ProductName:USBwirelessadapter)ModelsName:cp027,CP027-01,CP027-02,CP027-03, CP027-04,CP027-05,CP027-06,CP027-07,CP027-08,CP027-09,CP027-10,CP027-11,CP027-12, CP027-13,CP027-14,CP027-15,CP027-16,CP027-17,CP027-18,CP027-19,CP027-20,CP027-21, CP027-22,CP027-23,CP027-24,CP027-25,CP027-26,CP027-27,CP027-28,CP027-29,CP027-30, CP027-31,CP027-32,CP027-33,CP027-34,CP027-35,CP027-36,CP027-37,CP027-38,CP027-39, CP027-40,CP027-41,CP027-42,CP027-43,CP027-44,CP027-45,CP027-46,CP027-47,CP027-48, CP027-49,CP027-50,CP027-51,CP027-52,CP027-53,CP027-54,CP027-55,CP027-56,CP027-57, CP027-58,CP027-59,CP027-60,CP027-61,CP027-62,CP027-63,CP027-64,CP027-65,CP027-66, CP027-67,CP027-68,CP027-69,CP027-70,CP027-71,CP027-72,CP027-73,CP027-74,CP027-75 CP027-76,CP027-77,CP027-78CP027-79,CP027-80,CP027-81,CP027-82,CP027-83,CP027-84, CP027-85,CP027-86,CP027-87,CP027-88,CP027-89,CP027-90,CP027-91,CP027-92,CP027-93, CP027-94,CP027-95,CP027-96,CP027-97,CP027-98,CP027-99,CP027-100,CP027-101,CP027-102, CP027-103,CP027-104,CP027-105,CP027-105,CP027-107,CP027-108,CP027-109,CP027-110, CP027-111,CP027-112,CP027-113,CP027-114,CP027-115,CP027-116,CP027-117,CP027-118, CP027-119,CP027-120,CP027-121,CP027-122,CP027-123,CP027-124,CP027-125,CP027-126, CP027-127,CP027-128,CP027-129,CP027-130,CP027-131,CP027-132,CP027-133,CP027-134, CP027-135,CP027-136,CP027-137,CP027-138,CP027-139,CP027-140,CP027-141,CP027-142, CP027-143,CP027-14…

Text truncated - open the document above for the full version.

Test Report

ShenzhenCTLTestingTechnologyCo.,Ltd. Fl.A1,Bldg.A3,No.2533GuanGuangRoad,FenghuangCommunity FenghuangStreet,GuangmingDistrictShenzhen,Guangdong,People’sRepublicofChina Tel:+86-755-89486194E-mail:[email protected] Annexfor5GWi-FiBand1 TestReportNo.:CTL2604152052-WF03 TABLEOFCONTENTS 1.DutyCycle...............................................................................................................................................2 2.Bandwidth................................................................................................................................................9 3.MaximumConductedOutputPower.....................................................................................................22 4.MaximumPowerSpectralDensity........................................................................................................23 5.FrequencyStability................................................................................................................................30 6.Form731................................................................................................................................................31 Annexfor5GWi-FiBand1TestReportNo.:CTL2604152052-WF03 FCCID:2A94J-CP027 Page2/31 1.DutyCycle 1.1TestResult 1.1.1Ant1 Ant1 Mode TX Type Frequency (MHz) RU RU Pos T_on (ms) Period (ms) DutyCycle (%) DutyCycle CorrectionFactor(dB) Max.DC Variation(%) 802.11aSISO 5180//2.0243.72354.362.650.03 5200//2.0253.72454.382.650.03 5240//2.0243.72354.362.650.03 802.11n (HT20) SISO 5180//1.7033.40250.063.010.02 5200//1.7033.40250.063.010.05 5240//1.7033.40250.063.010.04 802.11ac (VHT20) SISO 5180//1.7063.40550.103.000.05 5200//1.7083.40750.133.000.04 5240//1.7073.40650.123.000.04 802.11ax (HEW20) SISO 5180SU/1.4533.15246.103.360.02 5200SU/1.4533.15246.103.360.02 5240SU/1.4533.15246.103.360.03 Annexfor5GWi-FiBand1TestReportNo.:CTL2604152052-WF03 FCCID:2A94J-CP027 Page3/31 1.2TestGraph 1.2.1Ant1 802.11a_LCH_5180MHz_Ant1_NTNV 802.11a_MCH_5200MHz_Ant1_NTNV Annexfor5GWi-FiBand1TestReportNo.:CTL2604152052-WF03 FCCID:2A94J-CP027 Page4/31 802.11a_HCH_5240MHz_Ant1_NTNV 802.11n(HT20)_LCH_5180MHz_Ant1_NTNV Annexfor5GWi-FiBand1TestReportNo.:CTL2604152052-WF03 FCCID:2A94J-CP027 Page5/31 802.11n(HT20)_MCH_5200MHz_Ant1_NTNV 802.11n(HT20)_HCH_5240MHz_Ant1_NTNV Annexfor5GWi-FiBand1TestReportNo.:CTL2604152052-WF03 FCCID:2A94J-CP027 Page6/31 802.11ac(VHT20)_LCH_5180MHz_Ant1_NTNV 802.11ac(VHT20)_MCH_5200MHz_Ant1_NTNV Annexfor5GWi-FiBand1TestReportNo.:CTL2604152052-WF03 FCCID:2A94J-CP027 Page7/31 802.11ac(VHT20)_HCH_5240MHz_Ant1_NTNV 802.11ax(HEW20)_LCH_5180MHz_SU_/_Ant1_NTNV Annexfor5GWi-FiBand1TestReportNo.:CTL2604152052-WF03 FCCID:2A94J-CP027 Page8/31 802.11ax(HEW20)_MCH_5200MHz_SU_/_Ant1_NTNV 802.11ax(HEW20)_HCH_5240MHz_SU_/_Ant1_NTNV Annexfor5GWi-FiBand1TestReportNo.:CTL2604152052-WF03 FCCID:2A94J-CP027 Page9/31 2.Bandwidth 2.1TestResult 2.1.1OBW Mode TX Type Frequency (MHz) RU RU Pos ANT 99%OccupiedBandwidth(MHz) Verdict ResultLimit 802.11aSISO 5180//116.450/Pass 5200//116.424/Pass 5240//116.366/Pass 802.11n (HT20) SISO 5180//117.622/Pass 5200//117.598/Pass 5240//117.566/Pass 802.11ac (VHT20) SISO 5180//117.631/Pass 5200//117.597/Pass 5240//117.577/Pass 802.11ax (HEW20) SISO 5180SU/118.859/Pass 5200SU/118.895/Pass 5240SU/118.811/Pass 2.1.226dBBW Mode TX Type Frequency (MHz) RU RU Pos ANT 26dBBandwidth(MHz) Verdict ResultLimit 802.11aSISO 5180//118.165/Pass 5200//118.513/Pass 5240//118.461/Pass 802.11n (HT20) SISO 5180//136.606/Pass 5200//126.791/Pass 5240//119.508/Pass 802.11ac (VHT20) SISO 5180//134.846/Pass 5200//136.137/Pass 5240//119.370/Pass 802.11ax (HEW20) SISO 5180SU/134.999/Pass 5200SU/134.023/Pass 5240SU/119.822/Pass Annexfor5GWi-FiBand1TestReportNo.:CTL2604152052-WF03 FCCID:2A94J-CP027 Page10/31 2.2TestGraph 2.2.1OBW 802.11a_LCH_5180MHz_Ant1_NTNV 802.11a_MCH_5200MHz_Ant1_NTNV Annexfor5GWi-FiBand1TestReportNo.:CTL2604152052-WF03 FCCID:2A94J-CP027 Page11/31 802.11a_HCH_5240MHz_Ant1_NTNV 802.11n(HT20)_LCH_5180MHz_Ant1_NTNV Annexfor5GWi-FiBand1TestReportNo.:CTL2604152052-WF03 FCCID:2A94J-CP027 Page12/31 802.11n(HT20)_MCH_5200MHz_Ant1_NTNV 802.11n(HT20)_HCH_5240MHz_Ant1_NTNV Annexfor5GWi-FiBand1TestReportNo.:CTL2604152052-WF03 FCCID:2A94J-CP027 Page13/31 802.11ac(VHT20)_LCH_5180MHz_Ant1_NTNV 802.11ac(VHT20)_MCH_5200MHz_Ant1_NTNV Annexfor5GWi-FiBand1TestReportNo.:CTL2604152052-WF03 FCCID:2A94J-CP027 Page14/31 802.11ac(VHT20)_HCH_5240MHz_Ant1_NTNV 802.11ax(HEW20)_LCH_5180MHz_SU_/_Ant1_NTNV Annexfor5GWi-FiBand1TestReportNo.:CTL2604152052-WF03 FCCID:2A94J-CP027 Page15/31 802.11ax(HEW20)_MCH_5200MHz_SU_/_Ant1_NTNV 802.11ax(HEW20)_HCH_5240MHz_SU_/_Ant1_NTNV Annexfor5GWi-FiBand1TestReportNo.:CTL2604152052-WF03 FCCID:2A94J-CP027 Page16/31 2.2.226dBBW 802.11a_LCH_5180MHz_Ant1_NTNV 802.11a_MCH_5200MHz_Ant1_NTNV Annexfor5GWi-FiBand1TestReportNo.:CTL2604152052-WF03 FCCID:2A94J-CP027 Page17/31 802.11a_HCH_5240MHz_Ant1_NTNV 802.11n(HT20)_LCH_5180MHz_Ant1_NTNV Annexfor5GWi-FiBand1TestReportNo.:CTL2604152052-WF03 FCCID:2A94J-CP027 Page18/31 802.11n(HT20)_MCH_5200MHz_Ant1_NTNV 802.11n(HT20)_HCH_5240MHz_Ant1_NTNV Annexfor5GWi-FiBand1TestReportNo.:CTL2604152052-WF03 FCCID:2A94J-CP027 Page19/31 802.11ac(VHT20)_LCH_5180MHz_Ant1_NTNV 802.11ac(VHT20)_MCH_5200MHz_Ant1_NTNV Annexfor5GWi-FiBand1TestReportNo.:CTL2604152052-WF03 FCCID:2A94J-CP027 Page20/31 802.11ac(VHT20)_HCH_5240MHz_Ant1_NTNV 802.11ax(HEW20)_LCH_5180MHz_SU_/_Ant1_NTNV Annexfor5GWi-FiBand1TestReportNo.:CTL2604152052-WF03 FCCID:2A94J-CP027 Page21/31 802.11ax(HEW20)_MCH_5200MHz_SU_/_Ant1_NTNV 802.11ax(HEW20)_HCH_5240MHz_SU_/_Ant1_NTNV Annexfor 5G Wi-FiBand1Test ReportNo.: CTL2604152052-WF03 FCC ID: 2A94J-CP027 Page22 / 31 3. MaximumConductedOutputPower 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) RU RU Pos MaximumAverageConductedOutputPower (dBm) Verdict DutyCycle CorrectionFactor (dB) ANT1Limit 802.11aSISO 5180//2.6513.62<=30Pass 5200//2.6513.41<=30Pass 5240//2.6511.47<=30Pass 802.11n (HT20) SISO 5180//3.0113.44<=30…

Text truncated - open the document above for the full version.

Test Report

Text truncated - open the document above for the full version.

Contact Information

Applicant

Stone Jiang

[email protected]Fax: /

Technical Contact

HOORAY INDUSTRY LLCCindy Wu

[email protected]

1408 Pinon Place, Fullerton, · United States

Test Firm

Shenzhen CTL Testing Technology Co., Ltd.Tracy Qi

[email protected]

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15E	5.18 GHz - 5.24 GHz	23.30 mW
2	15E	5.75 GHz - 5.83 GHz	31.60 mW

Confidentiality

Long Term

Grant Notes

Output power listed is average conducted. This device supports 802.11a, 802.11n, 802.11ac and 802.11ax with a 20 MHz bandwidth mode. RF exposure compliance is addressed for 1.1310 and 2.1091 MPE limits. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. End Users must be provided with transmitter operation conditions for satisfying RF exposure compliance.
