2A94K-A325-51Laptop

User Manual Aspire 3 A325-51 1 About this Concise User Guide This quick guide is a brief introduction to getting your system started. This is a supplement, and not a substitute for the expanded English language User’s Manual in Adobe Acrobat format on the Device D rivers & Utilities + User’s Manual disc supplied with your computer. This disc also contains the drivers and utilities necessary for the proper operation of the computer (Note: The company reserves the right to revise this publication or to change its contents without notice). Some or all of the computer’s features may already have been setup. If they aren’t, or you are planning to re-configure (or re-install) portions of the system, refer to the expanded User’s Manual. The Device Drivers & Utilities + User’s Manual disc does not contain an operating system . Regulatory and Safety Information Please pay careful attention to the full regulatory notices and safety information contained in the expanded User’s Man- ual on the Device Drivers & Utilities + User’s Manual disc. © March 2024 Trademarks Intel is a trademark/registered trademark of Intel Corporation. Windows is a registered trademark of Microsoft Corporation.  FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interfer ence. 2. This device must accept any interference received, includ- ing interference that may cause undesired operation. 2 Instructions for Care and Operation The computer is quite rugged, but it can be damaged. To pre- vent this, follow these suggestions: •Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged. •Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating element. This is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged. •Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong magnetic fields. These can hinder proper performance and damage your data. •Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save your work. Remember to periodically save your data as data may be lost. Servicing Do not attempt to service the computer yourself. Doing so may violate your warranty and expose you and the computer to electric shock. Refer all servicing to authorized service person- nel. Unplug the computer from the power supply. Then refer servicing to qualified service personnel under any of the fol- lowing conditions: • When the power cord or AC/DC adapter is damaged or frayed. • If the computer has been exposed to any liquids. • If the computer does not work normally when you follow the operating instructions. • If the computer has been dropped or damaged (do not touch the poisonous liquid if the panel breaks). • If there is an unusual odor, heat or smoke coming from your com- puter. Safety Information • Only use an AC/DC adapter approved for use with this computer. • Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions. • Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire. • Make sure that your computer is completely powered off before putting it into a travel bag (or any such container). • Before cleaning the computer, make sure it is disconnected from any external power supplies, peripherals and cables. • Use a soft clean cloth to clean the computer, but do not apply cleaner directly to the computer. Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer. • Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service representative or qualified service personnel. •Avoid placing any other items in the carrying bag which may rub against the top of the computer during transport. If any such wear and tear develops contact your service center. 3 Polymer/Lithium-Ion Battery Precautions Note the following information which is specific to Polymer/ Lithium-Ion batteries only, and where applicable, this over- rides the general battery precaution information. • Polymer/Lithium-Ion batteries may experience a slight expansion or swelling, however this is part of the battery’s safety mechanism and is not a cause for concern. • Use proper handling procedures when using Polymer/Lithium-Ion batteries. Do not use Polymer/Lithium-Ion batteries in high ambi- ent temperature environments, and do not store unused batteries for extended periods. • If you are working in areas of low temperature use the AC/DC adapter to power the computer. Model Differences This notebook series includes different models that vary slightly in design style, color and general appearance. Note that though your computer may look slightly differ- ent from that pictured throughout this documentation, all ports, jacks, indicators, specifications and general func- tions are the same for all the design styles.  Battery Disposal & Caution The product that you have purchased contains a recharge- able battery. The battery is recyclable. At the end of its use- ful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal. Danger of explosion if battery is incorrectly replaced. Re- place only with the same or equivalent type recommended by the manufacturer. Discard used battery according to the manufacturer’s instructions. 4 System Startup 1.Remove all packing materials. 2.Plac…

Text truncated - open the document above for the full version.

Rev 1/26/2023 (Acer India PVT Limited) Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2024.4.28 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2A94K-A325-51 [Acer India PVT Limited] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Balamurugan S Rev 1/26/2023 (Acer India PVT Limited) Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2024.4.28 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2A94K-A325-51 [Acer India PVT Limited] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment.” Sincerely, (Applicant signature) (Applicant printed name) Balamurugan S

Rev 11/20/07 (Acer India PVT Limited) Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2A94K-A325-51. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name* Block diagram Block diagram Schematics Schematic Operational description Operation description Software security requirement FCC Software security operational description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, (signature) (printed name) Balamurugan S

FCC Software Configuration Control Declaration Rev1.1.docx Acer India PVT Limited FCC Software Configuration Control Declaration Date: April 28, 2024 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product/ Model Number: Laptop / Aspire 3 A325-51 Regarding FCC Country Code Selection guidelines identified in KDB 594280 D01 Software Configuration Control v02r01. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: Balamurugan S Date: 2024/4/28 Title: Manager Signature of applicant:

(Acer India PVT Limited) Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Date: 2024.4.30 SUBJECT: FCC Application for (FCC ID: 2A94K-A325-51) To Whom It May Concern: We, the undersigned, hereby authorize Alan Mei at Shenzhen BCTC Testing Co., Ltd. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Alan Mei of Shenzhen BCTC Testing Co., Ltd. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Client’s signature: Client’s name / title : Balamurugan S / Manager Contact address: Acer India PVT Limited, 6th Floor, Embassy Heights, No.13, Magrath Road, Bangalore, 560025, India

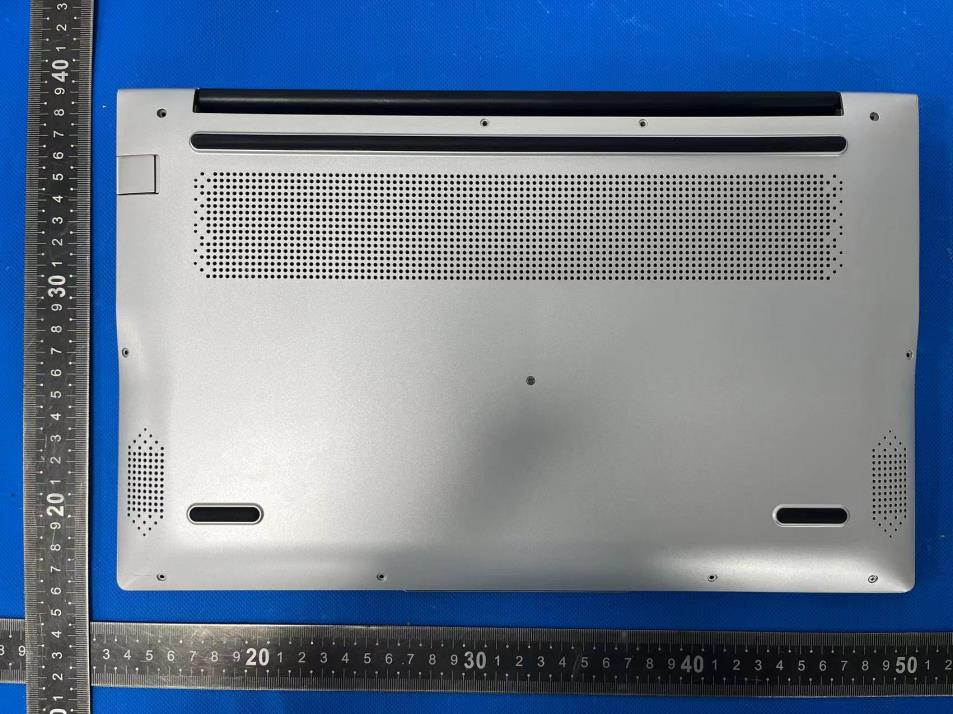

External Photos

Label & label location FCC ID: 2A94K-A325-51 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation.

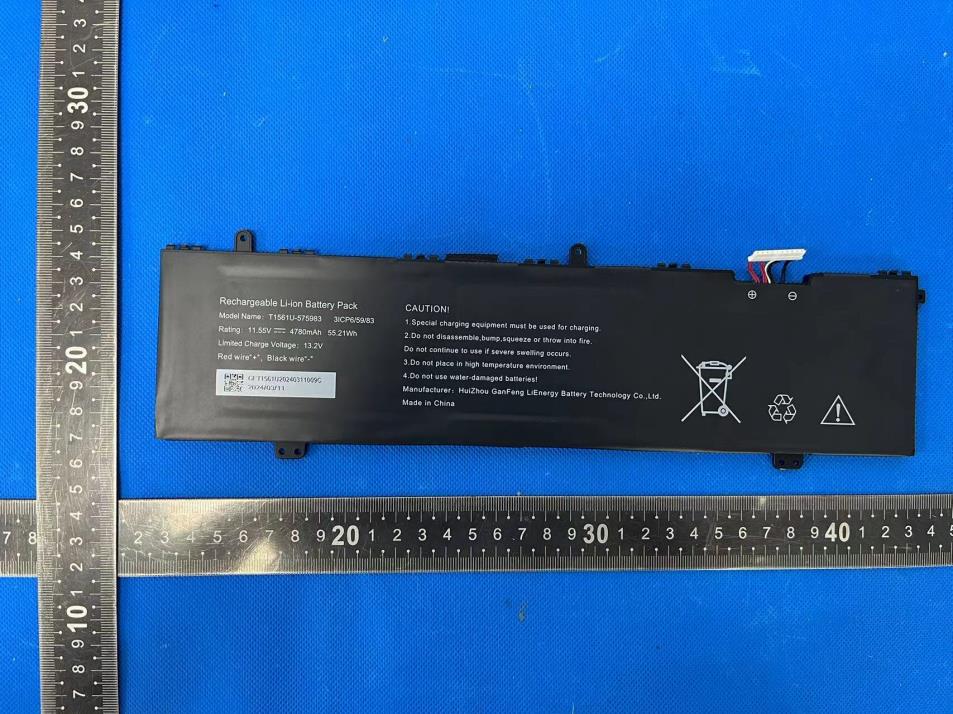

Internal Photos ANT A: BT/BLE/2.4G WIFI/5G WIFI ANT B: 2.4G WIFI/5G WIFI

No.：BCTC/RF-EMC-005 Page 1 of 101 Edition：B.0 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2403806317-5E Applicant: Acer India PVT Limited Product Name: Laptop Test Model: Aspire 3 A325-51 Tested Date: 2024-04-15 to 2024-04-18 Issued Date: 2024-04-28 Report No：BCTC2403806317-5E No.：BCTC/RF-EMC-005 Page 2 of 101 Edition：B.0 FCC ID: 2A94K-A325-51 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Laptop Trademark: Model/Type Ref.: Aspire 3 A325-51 Applicant: Acer India PVT Limited Address: Acer India PVT Limited, 6th Floor, Embassy Heights, No.13,Magrath Road, Bangalore,560025,India Manufacturer: Acer India PVT Limited Address: RS No.38/2,Sedarapet Village Villianur Commune, Pondicherry-605111 Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhanche ng , Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2024-04-15 Sample tested Date: 2024-04-15 to 2024-04-18 Issue Date: 2024-04-28 SAR Max. Values is： 0.602 W/kg (1g) for Body Test Standards: IEEE Std C95.1, 2019/ IEEE Std 1528™-2013/FCC Part 2.1093 Test Results: PASS Remark: This is SAR test report Tested by: Approved by: Min Zhi Cheng/ Project Handler Zero Zhou/Reviewer Report No：BCTC2403806317-5E No.：BCTC/RF-EMC-005 Page 3 of 101 Edition：B.0 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Standards ...................................................................................................... 6 3. Test Summary ....................................................................................................... 7 4. SAR Limits............................................................................................................. 8 5. Measurement Uncertainty ..................................................................................... 9 6. Product Information and Test Setup .................................................................... 10 6.1 Product Information ............................................................................................... 10 6.2 Test Setup Configuration ....................................................................................... 12 6.3 Support Equipment ................................................................................................ 12 6.4 Test Environment .................................................................................................. 12 7. Test Facility and Test Instrument Used ............................................................... 13 7.1 Test Facility ........................................................................................................... 13 7.2 Test Instrument Used ............................................................................................ 14 8. Specific Absorption Rate (SAR) .......................................................................... 15 8.1 Introduction ............................................................................................................ 15 8.2 SAR Definition ....................................................................................................... 15 9. SAR Measurement System ................................................................................. 16 9.1 The Measurement System ..................................................................................... 16 9.2 Probe ..................................................................................................................... 16 9.3 Probe Calibration Process ..................................................................................... 18 9.4 Phantom ................................................................................................................ 19 9.5 Device Holder ........................................................................................................ 19 10. Tissue Simulating Liquids .................................................................................... 20 10.1 Composition of Tissue Simulating Liquid ............................................................. 20 10.2 Limit ..................................................................................................................... 21 10.3 Tissue Calibration Result ..................................................................................... 22 11. System Check ..................................................................................................... 23 11.1 Purpose of System Performance Check .............................................................. 23 11.2 System Setup ...................................................................................................... 23 11.3 Validation Results ................................................................................................ 24 12. EUT Testing Position ........................................................................................... 25 13. SAR Measurement Procedures ........................................................................... 26 13.1 Measurement Procedures ................................................................................... 26 13.2 Spatial Peak SAR Evaluation .............................................................................. 26 13.3 Area & Zoom Scan Procedures ........................................................................... 27 13.4 Volume Scan Procedures .................................................................................... 28 13.5 SAR …

Text truncated - open the document above for the full version.

Report No：BCTC2403806317-5E No.：BCTC/RF-EMC-005 Page 81 of 101 Edition：B.0 Report No：BCTC2403806317-5E No.：BCTC/RF-EMC-005 Page 82 of 101 Edition：B.0 Report No：BCTC2403806317-5E No.：BCTC/RF-EMC-005 Page 83 of 101 Edition：B.0 Report No：BCTC2403806317-5E No.：BCTC/RF-EMC-005 Page 84 of 101 Edition：B.0 Report No：BCTC2403806317-5E No.：BCTC/RF-EMC-005 Page 85 of 101 Edition：B.0 Report No：BCTC2403806317-5E No.：BCTC/RF-EMC-005 Page 86 of 101 Edition：B.0 Report No：BCTC2403806317-5E No.：BCTC/RF-EMC-005 Page 87 of 101 Edition：B.0 Report No：BCTC2403806317-5E No.：BCTC/RF-EMC-005 Page 88 of 101 Edition：B.0 Report No：BCTC2403806317-5E No.：BCTC/RF-EMC-005 Page 89 of 101 Edition：B.0 Report No：BCTC2403806317-5E No.：BCTC/RF-EMC-005 Page 90 of 101 Edition：B.0 Report No：BCTC2403806317-5E No.：BCTC/RF-EMC-005 Page 91 of 101 Edition：B.0 Report No：BCTC2403806317-5E No.：BCTC/RF-EMC-005 Page 92 of 101 Edition：B.0 Report No：BCTC2403806317-5E No.：BCTC/RF-EMC-005 Page 93 of 101 Edition：B.0 Report No：BCTC2403806317-5E No.：BCTC/RF-EMC-005 Page 94 of 101 Edition：B.0 Report No：BCTC2403806317-5E No.：BCTC/RF-EMC-005 Page 95 of 101 Edition：B.0 Report No：BCTC2403806317-5E No.：BCTC/RF-EMC-005 Page 96 of 101 Edition：B.0 17. EUT Photographs EUT Front View EUT Back View Report No：BCTC2403806317-5E No.：BCTC/RF-EMC-005 Page 97 of 101 Edition：B.0 EUT Antenna View ANT 2: 2.4G WIFI/5G WIFI ANT 1: BT/BLE/2.4G WIFI/5G WIFI Report No：BCTC2403806317-5E No.：BCTC/RF-EMC-005 Page 98 of 101 Edition：B.0 18. Photographs Of The Liquid Photograph of the depth in the Body Phantom (600-10000MHz, depth >15cm) Report No：BCTC2403806317-5E No.：BCTC/RF-EMC-005 Page 99 of 101 Edition：B.0 19. EUT Test Setup Photographs Back Bottom Report No：BCTC2403806317-5E No.：BCTC/RF-EMC-005 Page 100 of 101 Edition：B.0 Right Left Report No：BCTC2403806317-5E No.：BCTC/RF-EMC-005 Page 101 of 101 Edition：B.0 STATEMENT 1. The equipment lists are traceable to the national reference standards. 2. The test report can not be partially copied unless prior written approval is issued from our lab. 3. The test report is invalid without the "special seal for inspection and testing". 4. The test report is invalid without the signature of the approver. 5. The test process and test result is only related to the Unit Under Test. 6. Sample information is provided by the client and the laboratory is not responsible for its authenticity. 7. The quality system of our laboratory is in accordance with ISO/IEC17025. 8. If there is any objection to this test report, the client should inform issuing laboratory within 15 days from the date of receiving test report. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China TEL: 400-788-9558 P. C.: 518103 FAX: 0755-33229357 Website: http://www.chnbctc.com E-Mail: [email protected] ※※※※※ END ※※※※※

Report No.: BCTC2403806317-1E No.：BCTC/RF-EMC-005 Page: 46 of 85 Edition：B.1 Band Edge NVNT 3-DH1 2402MHz No-Hopping Band Edge NVNT 3-DH1 2402MHz No-Hopping Emission Report No.: BCTC2403806317-1E No.：BCTC/RF-EMC-005 Page: 47 of 85 Edition：B.1 Band Edge NVNT 3-DH1 2480MHz No-Hopping Band Edge NVNT 3-DH1 2480MHz No-Hopping Emission Report No.: BCTC2403806317-1E No.：BCTC/RF-EMC-005 Page: 48 of 85 Edition：B.1 Test Graphs Band Edge(Hopping) NVNT 1-DH1 2402MHz Hopping Band Edge(Hopping) NVNT 1-DH1 2402MHz Hopping Emission Report No.: BCTC2403806317-1E No.：BCTC/RF-EMC-005 Page: 49 of 85 Edition：B.1 Band Edge(Hopping) NVNT 1-DH1 2480MHz Hopping Band Edge(Hopping) NVNT 1-DH1 2480MHz Hopping Emission Report No.: BCTC2403806317-1E No.：BCTC/RF-EMC-005 Page: 50 of 85 Edition：B.1 Band Edge(Hopping) NVNT 2-DH1 2402MHz Hopping Band Edge(Hopping) NVNT 2-DH1 2402MHz Hopping Emission Report No.: BCTC2403806317-1E No.：BCTC/RF-EMC-005 Page: 51 of 85 Edition：B.1 Band Edge(Hopping) NVNT 2-DH1 2480MHz Hopping Band Edge(Hopping) NVNT 2-DH1 2480MHz Hopping Emission Report No.: BCTC2403806317-1E No.：BCTC/RF-EMC-005 Page: 52 of 85 Edition：B.1 Band Edge(Hopping) NVNT 3-DH1 2402MHz Hopping Band Edge(Hopping) NVNT 3-DH1 2402MHz Hopping Emission Report No.: BCTC2403806317-1E No.：BCTC/RF-EMC-005 Page: 53 of 85 Edition：B.1 Band Edge(Hopping) NVNT 3-DH1 2480MHz Hopping Band Edge(Hopping) NVNT 3-DH1 2480MHz Hopping Emission Report No.: BCTC2403806317-1E No.：BCTC/RF-EMC-005 Page: 54 of 85 Edition：B.1 10. 20 dB Bandwidth 10.1 Block Diagram Of Test Setup 10.2 Limit N/A 10.3 Test procedure 1. Set RBW = 30kHz. 2. Set the video bandwidth (VBW) ≥ 3 x RBW. 3. Detector = Peak. 4. Trace mode = max hold. 5. Sweep = auto couple. 6. Allow the trace to stabilize. 7. Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower frequencies) that are attenuated by 6 dB relative to the maximum level measured in the fundamental emission. 10.4 Test Result Condition Mode Frequency (MHz) -20 dB Bandwidth (MHz) Verdict NVNT 1-DH1 2402 0.874 Pass NVNT 1-DH1 2441 0.896 Pass NVNT 1-DH1 2480 0.945 Pass NVNT 2-DH1 2402 1.436 Pass NVNT 2-DH1 2441 1.441 Pass NVNT 2-DH1 2480 1.432 Pass NVNT 3-DH1 2402 1.454 Pass NVNT 3-DH1 2441 1.438 Pass NVNT 3-DH1 2480 1.446 Pass Report No.: BCTC2403806317-1E No.：BCTC/RF-EMC-005 Page: 55 of 85 Edition：B.1 Test Graphs -20dB Bandwidth NVNT 1-DH1 2402MHz -20dB Bandwidth NVNT 1-DH1 2441MHz Report No.: BCTC2403806317-1E No.：BCTC/RF-EMC-005 Page: 56 of 85 Edition：B.1 -20dB Bandwidth NVNT 1-DH1 2480MHz -20dB Bandwidth NVNT 2-DH1 2402MHz Report No.: BCTC2403806317-1E No.：BCTC/RF-EMC-005 Page: 57 of 85 Edition：B.1 -20dB Bandwidth NVNT 2-DH1 2441MHz -20dB Bandwidth NVNT 2-DH1 2480MHz Report No.: BCTC2403806317-1E No.：BCTC/RF-EMC-005 Page: 58 of 85 Edition：B.1 -20dB Bandwidth NVNT 3-DH1 2402MHz -20dB Bandwidth NVNT 3-DH1 2441MHz Report No.: BCTC2403806317-1E No.：BCTC/RF-EMC-005 Page: 59 of 85 Edition：B.1 -20dB Bandwidth NVNT 3-DH1 2480MHz Report No.: BCTC2403806317-1E No.：BCTC/RF-EMC-005 Page: 60 of 85 Edition：B.1 11. Maximum Peak Output Power 11.1 Block Diagram Of Test Setup 11.2 Limit FCC Part15 (15.247) , Subpart C Section Test Item Limit Frequency Range (MHz) Result 15.247(b)(1) Peak Output Power 0.125 watt or 21dBm 2400-2483.5 PASS 11.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 2MHz. VBW = 6MHz. Sweep = auto; Detector Function = Peak. 3. Keep the EUT in transmitting at lowest, medium and highest channel individually. Record the max value. 11.4 Test Result Condition Mode Frequency (MHz) Conducted Power (dBm) Limit (dBm) Verdict NVNT 1-DH1 2402 1.56 21 Pass NVNT 1-DH1 2441 2.18 21 Pass NVNT 1-DH1 2480 2.03 21 Pass NVNT 2-DH1 2402 2.64 21 Pass NVNT 2-DH1 2441 3.5 21 Pass NVNT 2-DH1 2480 3.36 21 Pass NVNT 3-DH1 2402 2.85 21 Pass NVNT 3-DH1 2441 3.72 21 Pass NVNT 3-DH1 2480 3.56 21 Pass Report No.: BCTC2403806317-1E No.：BCTC/RF-EMC-005 Page: 61 of 85 Edition：B.1 Test Graphs Power NVNT 1-DH1 2402MHz Power NVNT 1-DH1 2441MHz Report No.: BCTC2403806317-1E No.：BCTC/RF-EMC-005 Page: 62 of 85 Edition：B.1 Power NVNT 1-DH1 2480MHz Power NVNT 2-DH1 2402MHz Report No.: BCTC2403806317-1E No.：BCTC/RF-EMC-005 Page: 63 of 85 Edition：B.1 Power NVNT 2-DH1 2441MHz Power NVNT 2-DH1 2480MHz Report No.: BCTC2403806317-1E No.：BCTC/RF-EMC-005 Page: 64 of 85 Edition：B.1 Power NVNT 3-DH1 2402MHz Power NVNT 3-DH1 2441MHz Report No.: BCTC2403806317-1E No.：BCTC/RF-EMC-005 Page: 65 of 85 Edition：B.1 Power NVNT 3-DH1 2480MHz Report No.: BCTC2403806317-1E No.：BCTC/RF-EMC-005 Page: 66 of 85 Edition：B.1 12. Hopping Channel Separation 12.1 Block Diagram Of Test Setup 12.2 Limit Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hopping channel, whichever is greater. Alternatively, frequency hopping systems operating in the 2400-2483.5 MHz band may have hopping channel carrier frequencies that are separated by 25 kHz or two-thirds of the 20 dB bandwidth of the hopping channel, whichever is greater, provided the systems operate with an output power no greater than 0.125W. 12.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 30kHz. VBW = 100kHz , Span = 2.0MHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. Use the marker-delta function to determine the separation between the peaks of the adjacent channels. The limit is specified in one of the subparagraphs of this Section Submit this plot. 12.4 Test Result Condition Mode Hopping Freq1 (MHz) Hopping Freq2 (MHz) HFS (MHz) Limit (MHz) Verdict NVNT 1-DH1 2402.024 2403.02 0.996 0.583 Pass NVNT 1-DH1 2441.022 2442.026 1.004 0.597 Pass NVNT 1-DH1 2479.024 2480.022 0.998 0.63 Pass NVNT 2-…

Text truncated - open the document above for the full version.

深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 天线测试报告 Antenna Test Report TC：昱科 MN：T1561U RF：关巍 MD：黄清清 MP：19918388579 1 2 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 测试信息 Test information WIFI ANT Test information Frequency 2.4G(2402~2483)Mhz 5G(5150~5850)Mhz Module information Driver version information 3 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 测试环境 Test environment 测试项目测试设备 S参数 （S-parameter) 1. 电压驻波比(VSWR) 2. 回波损耗（Rrtun Loss) 网络分析仪：Agilent8753ES 2.有源测试 (Active) 1. 发射功率（TRP) 2. 接收灵敏度（TIS ） 3. 屏灭/屏亮 1. 暗室：5*3*3m （3D ）Chamber 2. 综测仪：Agilent8960 CMW500 3.无源测试 （Passive) 1. 天线增益(Gain) 2. 天线效率（Efficiency) 1. 暗室：5*3*3m （3D ）Chamber 2. 网络分析仪：Agilent 8753ES CMW500 4 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 天线位置 Antenna position 1 2 5 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 匹配电路 Matching circuit 电容（PF）电感（NH） E1(0402) E2(0402) E3(0402) E4(0402) 匹配电路原理图&位号图 6 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 802.11b FrequencyTRPTIS 2412 CH1 11Mbps11.4CH1 11Mbps-79.17 2437 CH6 11Mbps11.46CH6 11Mbps-79.48 2467 CH11 11Mbps11.57CH11 11Mbps-79.42 802.11a TRPTIS 5180 CH36 6Mbps10.18CH36 54Mbps-69.54 5300 CH60 6Mbps10.26CH60 54Mbps-69.57 5805 CH161 6Mbps10.58CH161 54Mbps-69.62 有源测试数据 Active test data 7 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 吞吐量测试 Throughput test 2.4G wifi 天吐量测试 上行 下行 图片 图片 备注 8 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 吞吐量测试 Throughput test 5G wifi 天吐量测试 上行 下行 图片 图片 备注 9 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD BT天线实测 BT Antenna test 测试环境：开放空间(通道） 测试工具：蓝牙音响 测试距离：10+m 结果：播放音乐流畅，无杂音。 10 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 无源测试数据 Passive test data Frequency(MHZ)2400250051505850 Return Loss(DB) -12.98-9.98-24.81-14.14 ANT1 S11-VSWR&Return Loss 11 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 无源测试数据 Passive test data 12 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 无源测试数据 Passive test data 13 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 无源测试数据 Passive test data 14 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 无源测试数据 Passive test data 15 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 无源测试数据 Passive test data Frequency(MHZ)2400250051505850 Return Loss(DB) -12.61-9.90-18.55-17.41 ANT2 S11-VSWR&Return Loss 16 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 无源测试数据 Passive test data 17 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 无源测试数据 Passive test data 18 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 无源测试数据 Passive test data 19 深圳市星源创科技有限公司 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 无源测试数据 Passive test data mm ⋽ỵ 学孉ġŅœį 1 ⻈㔘 1:1 㭼ἳ PART NO. F1028-14MB-295 㟠DġłőőŅį mm ⋽ỵ 学孉ġŅœį 1 ⻈㔘 1:1 㭼ἳ PART NO. F1027-14MG-235 㟠DġłőőŅį 20

Conducted Measurement Photo Radiated Measurement Photos
