2A95V-AAC-0101-1Smart Care Sensor

ThisusermanualisdevelopedforthecooperationonsmartdiaperprojectwithHenkel Thisusermanualwillintroducehowtouseurinedetectorandindicator.Pleasereadbeforeusing andkeepthisusermanual. 1.Introduction UrineDetector SmartDiaper ItemDescription ①LEDLEDwillflashoncewhenthedetectorisinstalledandtwicewhenthe detectorisputoff ②ContactPinContacttosensinglinestodetectwetnessstatus ③ClampRubbermaterialusedforclampingandfixing ④SensingLinesDetectorwillclamptotheselinestodetectthewetness 2.HowtoUse 2.1UrineDetector 2.1.1Clampurinedetectortosmartdiaper Sticktheurinedetectoronthefrontbeltandopentheclamp. Turnovertheedgeofsmartdiaperandmakethesensinglinescontacttothecontactpinsof urinedetector. PresstheclampthenLEDwillflashthatindicatestheconnection. UserManualforSmartHygieneTechnologyDetector ThisusermanualisdevelopedforthecooperationonsmartdiaperprojectwithHenkel 2.1.2Releaseurinedetector Unclampwithanailorwiththeincludedkey,andremoveitfromsmartdiaper. 2.1.3Changethebatteryofurinedetector Incaseoflowbattery,theurineindicatorwillflash3timeswhenurine detectorisclampingtosmartdiaper. PrepareanewCR2016battery. Usethekeytoopenthecaseandthenreplacethebattery. 2.1.4Cleanofurinedetector Theurinedetectoriswaterproofandcanbewashedwithwater. Cleancarefullyanddonotsoakitindisinfectant. 3.ProductSpecification ItemUrineDetector Size33*33*8mm Weight(batteryincluded)Around10g BatteryCR2016 WaterproofIPX6 TransmissionBLE4.0:BluetoothLowEnergy Distance15meters Frequency2.4GHz OperatingTemperature 10ºC–40ºC StorageTemperature 0 º C–50 º C FCCWarningStatement:Changesormodificationstothisunitnotexpressly approvedbythepartyresponsibleforcompliancecouldvoidtheuser’s authoritytooperatetheequipment.Thisequipmenthasbeentestedandfound tocomplywiththelimitsforaClassBdigitaldevice,pursuanttoPart15ofthe FCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainst harmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates, usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedin accordancewiththeinstructions,maycauseharmfulinterferencetoradio communications. However,thereisnoguaranteethatinterferencewillnotoccurinaparticular installation.Ifthisequipmentdoescauseharmfulinterferencetoradioor televisionreception,whichcanbedeterminedbyturningtheequipmentoffand on,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreof thefollowingmeasures: -Reorientorrelocatethereceivingantenna. -Increasetheseparationbetweentheequipmentandreceiver. - Connecttheequipmentintoanoutletonacircuitdifferentfromthatto whichthereceiverisconnected. - Consultthedealeroranexperiencedradio/TVtechnicianforhelp. ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothe followingtwoconditions:(1)thisdevicemaynotcauseharmfulinterference, and(2)thisdevicemustacceptanyinterferencereceived,including interferencethatmaycauseundesiredoperation. FCCRadiationExposureStatement ThedevicehasbeenevaluatedtomeetgeneralRFexposurerequirement.The devicecanbeusedinportableexposureconditionwithoutrestriction.

C5266091_X8_Ed.1 1/1 LetterofAuthorization <HenkelMalaysiaSdnBhd> Company:HenkelMalaysiaSdnBhd Address:Unit2.01,2.02,Level2,Mercu3,JalanBangsar, KLEcoCity,KualaLumpur,59200,MALAYSIA ProductName: ModelNumber:AAC-0101 FCCIdentifier:2A95V-AAC-0101-1 WeauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdelCarme,s/n, 08193Bellaterra,Spain,toactonourbehalfonallmattersconcerningthe abovenamedequipment. AnyindividualwithinLGAITechnologicalCenterS.A.isauthorizedtoactonour behalfandtakeactionontheapplication. WedeclarethatauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdel Carme,s/n,08193Bellaterra,Spain,isallowedtoforwardallinformation relatedtotheapprovalprojecttotheFederalCommunicationCommissionand todiscussanyissuesconcerningtheapprovalapplication.Anyandallacts carriedoutbyLGAITechnologicalCenterS.A.onourbehalfshallhavethe sameeffectasactsofourown. Name:PoonlarpNgernmaneeratDate:2022-12-30 Title:N/A Signatureofapplicant: Smart Care Sensor

C5266091_X10_Ed.1 1/1 <HenkelMalaysiaSdnBhd> OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 Date:2022-12-30 Subject:RequestforConfidentiality FCCID:2A95V-AAC-0101-1 ToWhomItMayConcern, PursuanttotheprovisionsofSections0.457and0.459ofCommission'srules (47CFR0.457,0.459),wearerequestingtheCommissiontowithholdthefollowing attachment(s)asconfidentialdocumentfrompublicdisclosure. ExhibitsLong-Term Confidentiality Short-Term Confidentiality IDLabel/LocationNoNo AttestationStatementNoNo ExternalPhotosNo BlockDiagram Schematics TestReportNoNo TestSetupPhotosNo User’sManual InternalPhotos PartsList/TuneUp RFExposureInfo OperationalDescription CoverLetter(s)NoNo SDRSoftware/SecurityInfoNo Abovementioneddocumentcontainsdetailedsystemandequipmentdescriptionare consideredasproprietaryinformationinoperationoftheequipment.Thepublic disclosureofabovedocumentsmightbeharmfultoourcompanyandwouldgive competitoranunfairadvantageinthemarket. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondentduringcertificationreviewprocesscannotbegrantedasconfidential documentsandthoseinformationwillbeavailableforpublicreviewoncethegrantof equipmentauthorizationisissued. Sincerely, Signature: Name:PoonlarpNgernmaneerat Title:N/A

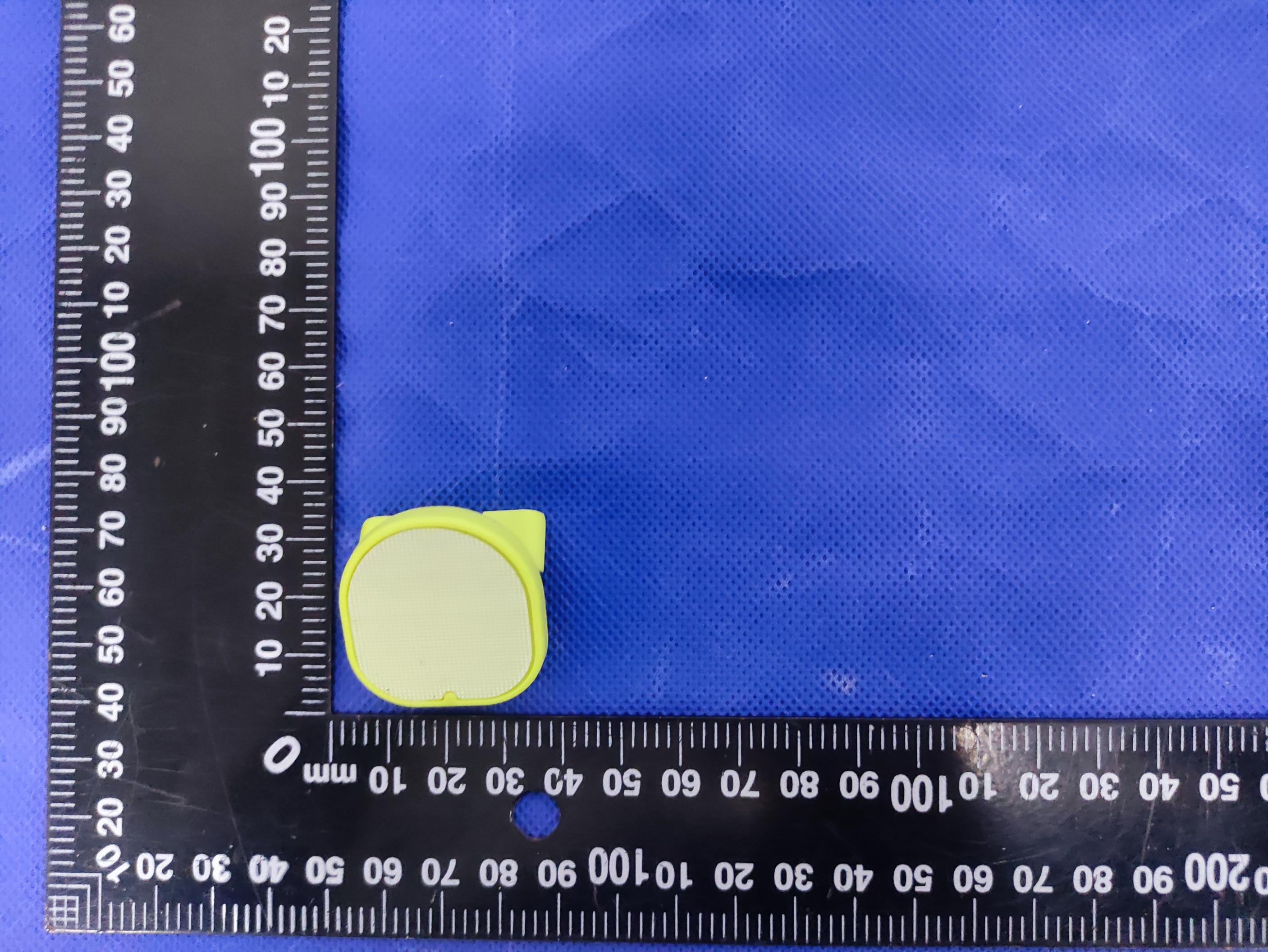

EUTPHOTO(ExternalPhotos) ※※※※※ENDOFREPORT※※※※※

Labelandlabellocation SmartCareSensor FCCID:2A95V-AAC-0101-1

EUTPHOTO(InternalPhotos) ANT ※※※※※ENDOFREPORT※※※※※

FCCID:2A95V-AAC-0101-1 RFExposureEvaluation AccordingtoKDB447498D01GeneralRFExposureGuidancev06andpart2.1093 ， UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures,standalone 1-gheadorbodyand10-gextremitySARevaluationforgeneralpopulationexposure conditions,bymeasurementornumericalsimulation,isnotrequiredwhenthe correspondingSARTestExclusionThresholdcondition(s),listedbelow,is(are)satisfied. For100MHzto6GHzandtestseparationdistances≤50mm,the1-gand10-gSARtest exclusionthresholdsaredeterminedbythefollowing: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f (GHz) ]≤3.0for1-gSAR,and≤7.5for10-gextremitySAR,where f (GHz) istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison Here, BLEMode Mode Max Power(dBm) Max Power(mW) Frequency(MHz) Min.Distance (mm) Calc. thresholds limit GFSK3.0642.02244050.643.0 SoaSARtestisnotrequired

ProjectNo.:ZKT-2212059079E Page 1 of 36 FCCTESTREPORT FCCID:2A95V-AAC-0101-1 ReportNumber. .................................... : ZKT-2212059079E DateofTest ....................................................... : Dec.01,2022toFeb.02,2023 Dateofissue ......................................... : Feb.02,2023 Totalnumberofpages..........................36 TestResult..........................................: PASS TestingLaboratory............................: ShenzhenZKTTechnologyCo.,Ltd. Address...............................................: 1/F,No.101,BuildingB,No.6,TangweiCommunityIndustrial Avenue,FuhaiStreet,Bao'anDistrict,Shenzhen,China Applicant'sname.............................: HenkelMalaysiaSdnBhd Address...............................................: Unit2.01,2.02,Level2,Mercu3,JalanBangsar, KLEcoCity,KualaLumpur,59200,MALAYSIA Manufacturer'sname......................: HenkelMalaysiaSdnBhd Address...............................................: Unit2.01,2.02,Level2,Mercu3,JalanBangsar, KLEcoCity,KualaLumpur,59200,MALAYSIA Testspecification: Standard................................................: FCCCFRTitle47Part15SubpartCSection15.247 ANSIC63.10:2013 Testprocedure.....................................: / Non-standardtestmethod ................ :N/A TestReportFormNo. ....................... : TRF-EL-111_V0 TestReportForm(s)Originator ..... : ZKTTesting MasterTRF........................................: Dated:2020-01-06 ThisdevicedescribedabovehasbeentestedbyZKT,andthetestresultsshowthattheequipmentunder test(EUT)isincompliancewiththeFCCrequirements.Anditisapplicableonlytothetestedsample identifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofZKT,thisdocumentmay bealteredorrevisedbyZKT,personalonly,andshallbenotedintherevisionofthedocument. Productname ..................................... :SmartCareSensor Trademark...........................................: HenkelQhesiveSolutions Model/Typereference......................: AAC-0101 Ratings..................................................: Input:3.0V ProjectNo.:ZKT-2212059079E Page 2 of 36 Testingprocedureandtestinglocation: TestingLaboratory ....................................... :ShenzhenZKTTechnologyCo.,Ltd. Address ............................................................ :1/F,No.101,BuildingB,No.6,TangweiCommunity IndustrialAvenue,FuhaiStreet,Bao'anDistrict, Shenzhen,China TomZou Testedby(name+signature).......................: JacksonFang Reviewer(name+signature).......................: LakeXie Approved(name+signature).......................: ProjectNo.:ZKT-2212059079E Page 3 of 36 TableofContents Page 1.VERSION5 2.SUMMARYOFTESTRESULTS6 2.1TESTFACILITY7 2.2MEASUREMENTUNCERTAINTY7 3.GENERALINFORMATION8 3.1GENERALDESCRIPTIONOFEUT8 3.2DESCRIPTIONOFTESTMODES9 3.3BLOCKDIGRAMSHOWINGTHECONFIGURATIONOFSYSTEMTESTED9 3.4DESCRIPTIONOFSUPPORTUNITS(CONDUCTEDMODE)9 3.5EQUIPMENTSLISTFORALLTESTITEMS10 4.EMCEMISSIONTEST12 4.1CONDUCTEDEMISSIONMEASUREMENT12 4.1.11POWERLINECONDUCTEDEMISSIONLIMITS12 4.1.2TESTPROCEDURE12 4.1.3DEVIATIONFROMTESTSTANDARD12 4.1.4TESTSETUP13 4.1.5EUTOPERATINGCONDITIONS13 4.1.6TESTRESULTS13 4.2RADIATEDEMISSIONMEASUREMENT14 4.2.1RADIATEDEMISSIONLIMITS14 4.2.2TESTPROCEDURE15 4.2.3DEVIATIONFROMTESTSTANDARD15 4.2.4TESTSETUP15 4.2.5EUTOPERATINGCONDITIONS16 5.RADIATEDBANDEMISSIONMEASUREMENT21 5.1TESTREQUIREMENT:21 5.2TESTPROCEDURE21 5.3DEVIATIONFROMTESTSTANDARD21 5.4TESTSETUP22 5.5EUTOPERATINGCONDITIONS22 5.6TESTRESULT23 6.POWERSPECTRALDENSITYTEST24 6.1APPLIEDPROCEDURES/LIMIT24 6.2TESTPROCEDURE24 6.3DEVIATIONFROMSTANDARD24 6.4TESTSETUP24 ProjectNo.:ZKT-2212059079E Page 4 of 36 TableofContentsPage 6.5EUTOPERATIONCONDITIONS24 6.6TESTRESULTS25 7.CHANNELBANDWIDTH27 7.1APPLIEDPROCEDURES/LIMIT27 7.2TESTPROCEDURE27 7.3DEVIATIONFROMSTANDARD27 7.4TESTSETUP27 7.5EUTOPERATIONCONDITIONS27 7.6TESTRESULTS28 8.PEAKOUTPUTPOWERTEST30 8.1APPLIEDPROCEDURES/LIMIT30 8.2TESTPROCEDURE30 8.3DEVIATIONFROMSTANDARD30 8.4TESTSETUP30 8.5EUTOPERATIONCONDITIONS30 8.6TESTRESULTS31 9.CONDUCTEDBANDEDGEANDSPURIOUSEMISSION32 9.1APPLICABLESTANDARD32 9.2TESTPROCEDURE32 9.3DEVIATIONFROMSTANDARD32 9.4TESTSETUP32 9.5EUTOPERATIONCONDITIONS32 10.ANTENNAREQUIREMENT35 11.TESTSETUPPHOTO36 12.EUTCONSTRUCTIONALDETAILS36 ProjectNo.:ZKT-2212059079E Page 5 of 36 1.VERSION ReportNo.VersionDescriptionApproved ZKT-2212059079ERev.01InitialissueofreportFeb.02,2023 ProjectNo.:ZKT-2212059079E Page 6 of 36 2.SUMMARYOFTESTRESULTS Testproceduresaccordingtothetechnicalstandards: FCCPart15(15.247),SubpartC Standard Section TestItemJudgmentRemark FCCpart15.203/15.247 (c) AntennarequirementPASS FCCpart15.207ACPowerLineConductedEmissionN/A FCCpart15.247(b)(3)ConductedPeakOutputPowerPASS FCCpart15.247(a)(2)ChannelBandwidth&99%OCBPASS FCCpart15.247(e)PowerSpectralDensityPASS FCCpart15.247(d)BandEdgePASS FCCpart15.205/15.209SpuriousEmissionPASS NOTE: (1)“N/A”denotestestisnotapplicableinthisTestReport ProjectNo.:ZKT-2212059079E Page 7 of 36 2.1TESTFACILITY ShenzhenZKTTechnologyCo.,Ltd. Add.:1/F,No.101,BuildingB,No.6,TangweiCommunityIndustrialAvenue,FuhaiStreet,Bao'an District,Shenzhen,China FCCTestFirmRegistrationNumber:692225 DesignationNumber:CN1299 ICRegisteredNo.:27033 2.2MEASUREMENTUNCERTAINTY Thereporteduncertaintyofmeasurementy±U ， whereexpendeduncertaintyUisbasedonastandard uncertaintymultipliedbyacoveragefactorofk=2 ， providingalevelofconfidenceofapproximately95 % 。 No.ItemUncertainty 1 3mcamberRadiatedspurious emission(9KHz-30MHz) U=4.5dB 2 3mcamberRadiatedspurious emission(30MHz-1GHz) U=4.8dB 3 3mchamberRadiatedspurious emission(1GHz-6GHz) U=4.9dB 4 3mchamberRadiatedspurious emission(6GHz-40GHz) U=5.0dB 5ConducteddisturbanceU=3.2dB 6RFBandEdgeU=1.68dB 7RFpowerconductedU=1.86dB 8RFconductedSpuriousEmissionU=2.2dB 9RFOccupiedBandwidthU=1.8dB 10RFPowerSpectralDensityU=1.75dB 11humidityuncertaintyU=5.3% 12Temperatureuncertainty U=0.59 °C ProjectNo.:ZKT-2212059079E Page 8 of 36 3.GENERALINFORMATION 3.1GENERALDESCRIPTIONOFEUT ProductName: Smar…

Text truncated - open the document above for the full version.

-1- BluetoothantennaofPCBon-board specification V1.0 1、Index ItemContentPageRemark 1Index1 2Specification2 3ReturnLoss3 4RadiationPattern4 DocumentType:PCBAntenna DocumentVersion:V1.0 ReleaseDate:Jan20，2021 -2- 2、Specification ProductNumber:PCBAntenna SamplePhoto: A.ElectricalCharacteristics Frequency2400~2500MHz S.W.R.<1.5 Gain1.76dBi Efficiency>56% PolarizationLinear Impedance50Ohm B.Material&MechanicalCharacteristics MaterialofRadiatorplatedcopper C.Environmental OperationTemperature -40 °C ~+85 °C StorageTemperature-40°C~+105°C 3、ReturnLoss -3- 4、RadiationPattern RadiationPatternandGainweredependentonmeasurementboarddesign.Thespecificationofcoilantennawas measuredbasedonthePCBsizeandinstallationpositionasshowninthebelowfigureTestBoard. -4-

EUTTESTPHOTO ※※※※※ENDOFREPORT※※※※※
