2A9K2-RSH-TAG08smart tag

Smart Tag 70mm 45mm Specification How to connect to the product? Find MyBluetooth 2 1 Open the Apple Find My app and make sure Bluetooth is turned on. 3 4 Make Sure the device is in a power on state, then add new item. Searching ltems 5 Connect 6 Name ltem 7 Chose an Pattern 8 Agree 9 Finish Select "Other Supported ltem" Tip: If you want a refund, please make sure to remove the items you have added before returning to avoid disclosing your privacy. How to Power On: press the button once, the device is on. How to Power Off: press and hold the button for 5 seconds, the device is turned off. How to Reset: press the button 4 times quickly within 2 seconds, then press and hold the button for the 5th time until you hear a beep, the device is in reset state. Click the button once to power on Function button *System Requirements and Compatibility: Apple ID, iPhone and iPod touch models with iOS 14.5 or later, iPad models with iPadOS 14.5 or later. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encour aged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Important: Change or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is s ubject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Verbinden: 1.Ziehen Sie die weiße Lasche heraus, um den Kopplungsmodus zu aktivieren. 2.Öffnen Sie die Apple Find My App und stellen Sie sicher, dass Bluetooth eingeschaltet ist. 3.Vergewissern Sie sich, dass das Gerät eingeschaltet ist, und klicken Sie auf "Objekt hinzufügen", wählen Sie "Anderes unterstütztes Objekt". 4.Suchen Sie nach Gegenständen. 5.Verbinden. 6.Objekt benennen. 7.Ein Muster auswählen. 8.Akzetieren. 9.Fertigstellen. Tipp: Wenn Sie eine Rückerstattung wünschen, stellen Sie bitte sicher, dass Sie die hinzugefügten Elemente vor der Rückgabe entfernen, um Ihre Privatsphäre nicht zu gefährden. Einschalten: Drücken Sie die Taste einmal, das Gerät ist eingeschaltet. Ausschalten: Halten Sie die Taste 5 Sekunden lang gedrückt, das Gerät ist ausgeschaltet. Zurücksetzen: Drücken Sie die Taste 4 Mal schnell innerhalb von 2 Sekunden, dann halten Sie die Taste 5 Mal gedrückt, bis Sie einen Signalton hören, das Gerät wird zurückgesetzt. Deutsch 接続方法: 1.白いタブを引き出すとペアリングモードになります。 2.Apple Find Myアプリを開き、Bluetoothがオンになっていること を確認します。 3.デバイスが電源オン状態であることを確認し、"持ち物を追加"を クリックし、"その他の対応している持ち物"を選択する。 4.検索。 5.接続。 6.持ち物の名称を設定。 7.絵文字を選択。 8.同意。 9.終了。 ヒント：返金を希望される場合は、プライバシーの侵害を避けるた め、返品前に追加したアイテムを必ず削除してください。 電源の入れ方：ボタンを1回押すと電源が入ります。 電源の切り方：ボタンを5秒間押し続けると、デバイスの電源が切 れます。 リセット方法：ボタンを2秒以内に素早く4回押し、ビープ音が鳴る までボタンを5回押し続けると、デバイスはリセット状態になります。 日本語 Come collegarsi: 1.Estraendo la linguetta bianca si accede alla modalità di accoppiamento. 2.Aprire l'applicazione Apple Trova il mio e assicurarsi che la funzione Bluetooth sia attivata. 3.Assicurarsi che il dispositivo sia acceso, quindi fare clic su "Aggiungi oggetto", selezionare "Altro oggetto supportato". 4.Ricerca degli oggetti. 5.Connetti. 6.Nome oggetto. 7.Scegli un'modello. 8.Accetta. 9.Fine. Suggerimento: se si desidera un rimborso, assicurarsi di rimuovere gli elementi aggiunti prima della restituzione per evitare di compromettere la propria privacy. Come accendere: premere una volta il pulsante per accendere il dispositivo. Come spegnere: tenere premuto il pulsante per 5 secondi, il dispositivo è spento. Come resettare: premere rapidamente il pulsante 4 volte entro 2 secondi, quindi tenere premuto il pulsante per la quinta volta fino a quando non si sente un segnale acustico: il dispositivo è in stato di reset. Comment se connecter : 1.Le mode d'appairage se fait en tirant sur la languette blanche. 2.Ouvrez l'application Apple Find My et assurez-vous que le Bluetooth est activé. 3.Assurez-vous que l'appareil est sous tension, puis cliquez sur "Ajouter un objet", sélectionnez "Autre objet pris en charge". 4.Rechercher des objets. 5.Connecter. 6.Nommer I'objet. 7.Choisir un modèle. 8.Accepter. 9.Terminer. Conseil : si vous souhaitez être remboursé, veillez à retirer les éléments que vous avez ajoutés avant de les renvoyer afin de ne pas compromettre votre vie privée. Mise en marche : appuyez une fois sur le bouton pour mettre l'appareil en marche. Comment éteindre l'appareil : appuyez sur le bouton et maintenez-le enfoncé pendant 5 secondes, l'appareil est éteint. Comment réinitialiser : appuyez sur le bouton 4 fois rapidement dans les 2 secondes, puis appuyez et maintenez le bouton pour la 5ème fois jusqu'à ce que vous entendiez un bip, l'appareil est en état de réinitialisation. Italiano Français Cómo conectar: 1.Sacar la pestaña blanca es el modo de emparejamiento. 2.Abra la aplicación Apple…

Text truncated - open the document above for the full version.

ShenZhenRiShengHuaTechnologyCo.,Ltd ReferenceNo.2024U0433 2.911(d)(7)USAAgentv1.3 Section2.911(d)(7)USAAgentforServiceofProcess Companyname:ShenZhenRiShengHuaTechnologyCo.,Ltd Address:Floor2,buildingE1,qiangrongEastIndustrial,Zone,No.723,Zhoushi Road,Jiuweicommunity,Hangchengstreet,Bao'anDistrict,Shenzhen,China ProductName:smarttag FCCID:2A9K2-RSH-TAG08 Model(s):RSH-tag08 2.911(d)(7)USADesignatedAgentforServiceofProcess We,[ShenZhenRiShengHuaTechnologyCo.,Ltd](“theapplicant”)designate[CELLT INC.] NOTE1 forthepurposeofacceptingserviceofprocessonbehalfoftheapplicant. Applicantconsent:WeAcknowledgeourconsenttoacceptserviceofprocessinthe UnitedStatesformattersrelatedtotheapplicableequipment,andatthephysicalU.S. addressandemailaddressofthedesignatedagentandacknowledgeouracceptance ofourobligationtomaintainanagentforserviceofprocessintheUnitedStatesforno lessthanoneyearaftereitherthegranteehaspermanentlyterminatedallmarketing andimportationoftheapplicableequipmentwithintheU.S.,ortheconclusionofany Commission-relatedadministrativeorjudicialproceedinginvolvingtheequipment, whicheverislater. Agentobligation:WeAcknowledgeourobligationtoacceptserviceofprocessinthe UnitedStatesformattersrelatedtotheapplicableequipmentatourphysicalU.S. addressandemailaddressfornolessthanoneyearaftereitherthegranteehas permanentlyterminatedallmarketingandimportationoftheapplicableequipment withintheU.S.,ortheconclusionofanyCommission-relatedadministrativeorjudicial proceedinginvolvingtheequipment,whicheverislater. USAAgent Companyname:CELLTINC. Address:24404SVERMONTAVESTE307C, HARBORCITY,CA90710,USA FCCRegistrationNumber(FRN):0036412567 ContactName:ThompsonLim TelephoneNo:001-424-3474188 Email:[email protected] Applicant Companyname:ShenZhenRiShengHua TechnologyCo.,Ltd Address:Floor2,buildingE1,qiangrongEast Industrial,Zone,No.723,ZhoushiRoad,Jiuwei community,Hangchengstreet,Bao'anDistrict, Shenzhen,China FCCRegistrationNumber(FRN):0033136797 FCCGranteeCode:2A9K2 ContactName:WeiHuangXiang TelephoneNo:0755-23576805 Email:[email protected] ShenZhenRiShengHuaTechnologyCo.,Ltd ReferenceNo.2024U0433 2.911(d)(7)USAAgentv1.3 Signature: Title: Signature: Title:Engineer Date:Jan.08,2025Date:Jan.08,2025 NOTE1:AnapplicantlocatedintheUnitedStatesmaydesignateitselfastheagentforservice ofprocess. Reference;FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-nation al-security-threats-to-the-communications-supply-chain-through-the

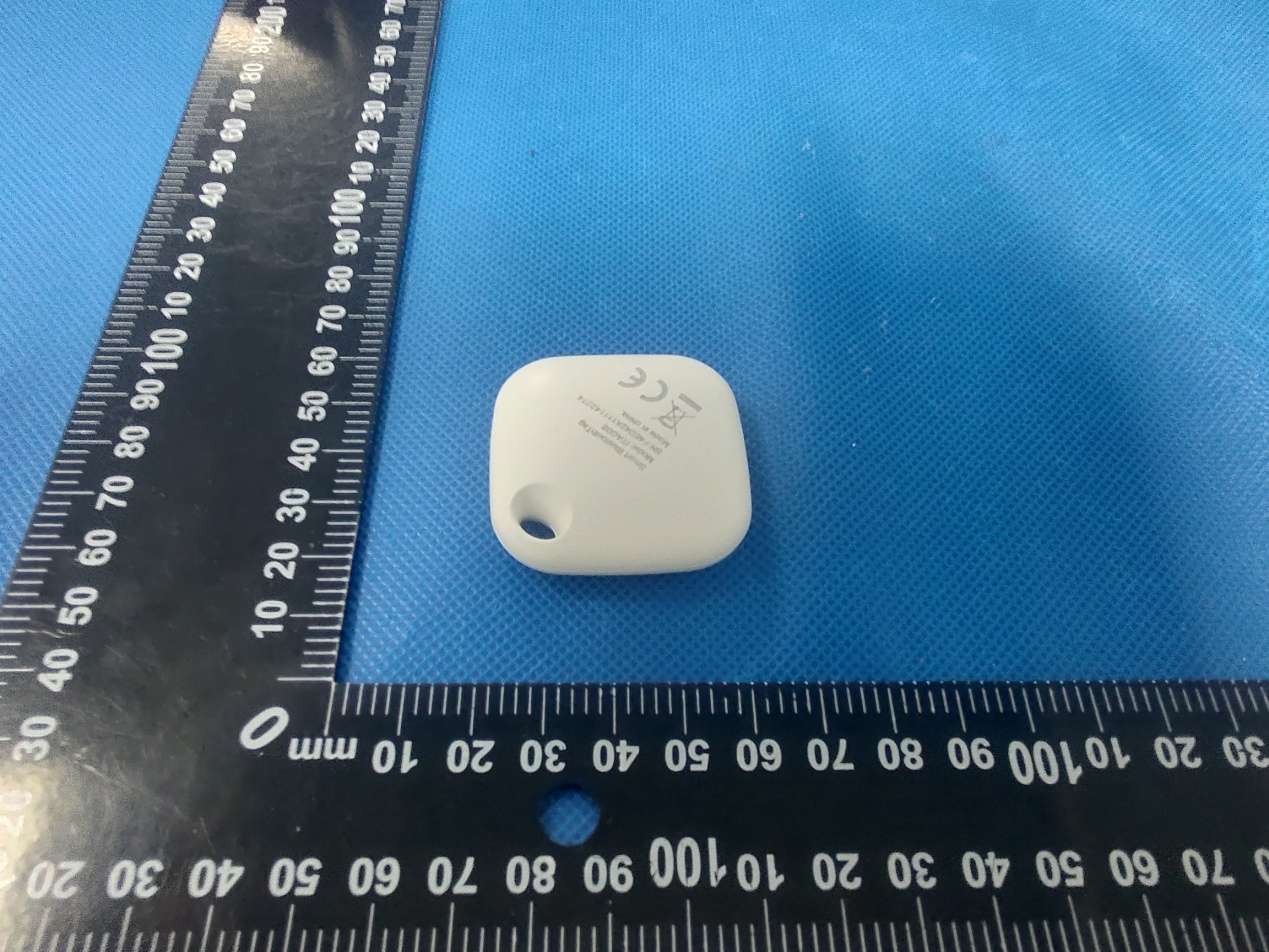

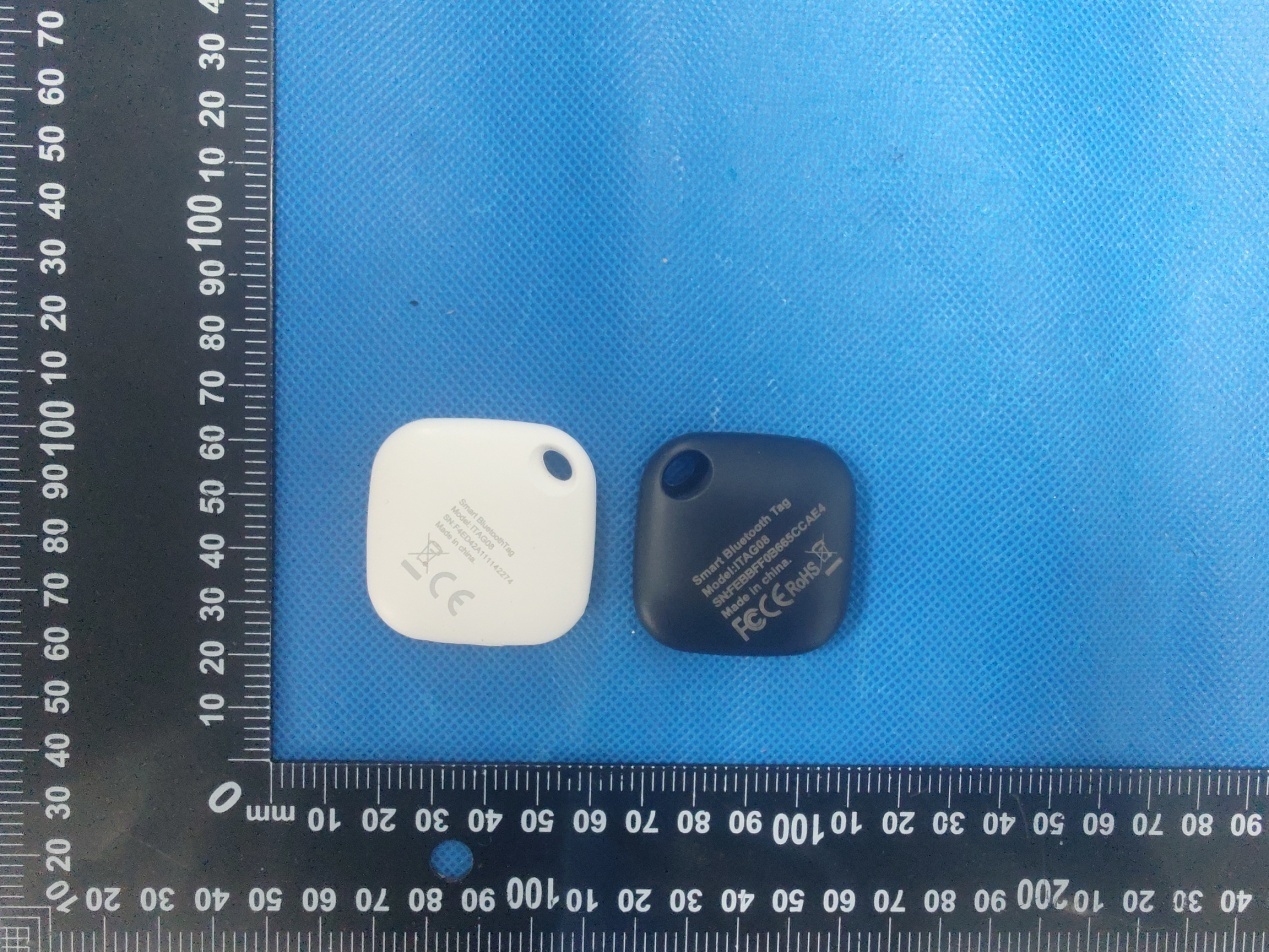

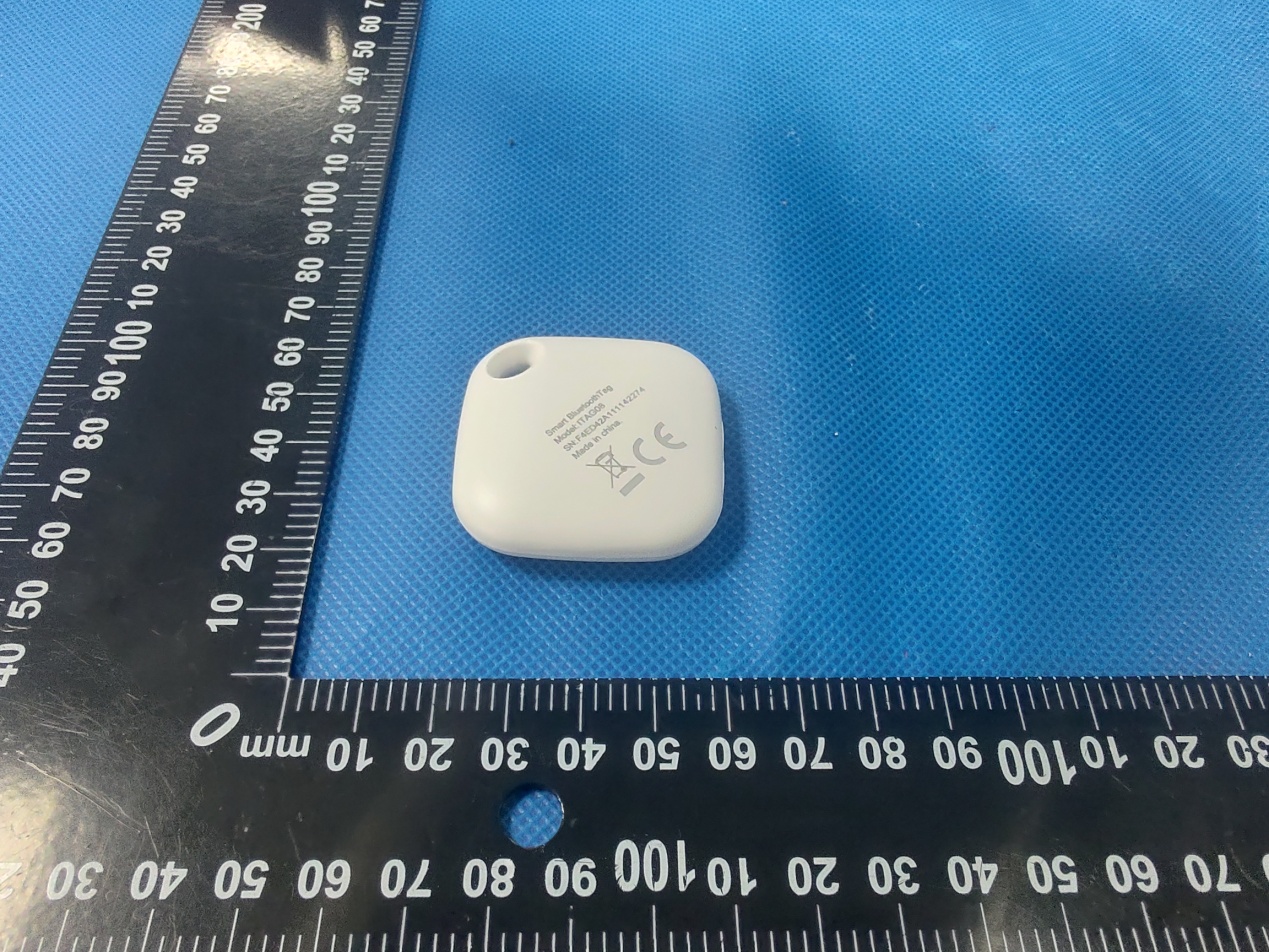

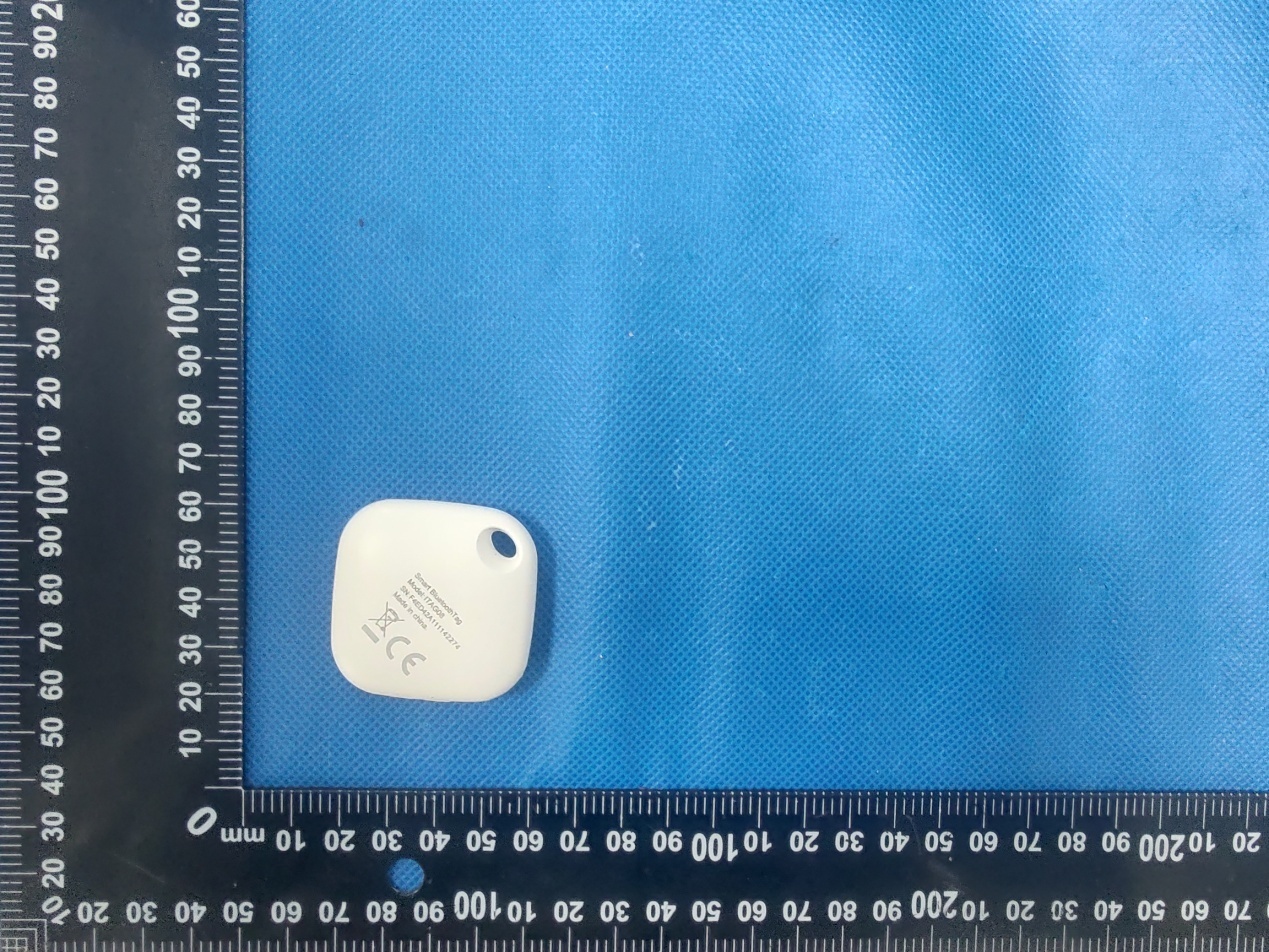

Annex A External Photos Report No.: HK2412258064-E Page 1 of 4 Report No.: HK2412258064-E Page 2 of 4 Report No.: HK2412258064-E Page 3 of 4 Report No.: HK2412258064E Page 4 of 4

FCC ID LABEL: Ca. 20mm x 10mm Label Location FCC ID:2A9K2-RSH-TAG08

Annex B Internal Photos Report No.: HK2412258064-E Page 1 of 3 Report No.: HK2412258064-E Page 2 of 3 Antenna Report No.: HK2412258064-E Page 3 of 3

FCC RF Exposure EUT Description: smart tag Model No.: RSH‐tag08 FCC ID: 2A9K2‐RSH‐TAG08 1. Limits According to KDB 447498 D01 General RF Exposure Guidance v06 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)] ·[√ f(GHz)]≤3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, Where: Result=P/D*√F F= the RF channel transmit frequency in GHz P=Maximum turn‐up power in mw D=Min. test separation distance in mm 2. Test Result of RF Exposure Evaluation Frequency (MHz) Output power (dBm) Tune Up Power (dBm) Max Tune Up power (dBm/mW) Min test separation distance (mm) Result Limit SAR Test Exclusion 2440 -0.14 ‐1±1 0/1.000 5 0.312 3.0 Pass Note: PK Output power= conducted power. Conducted power see the test report HK2412258064‐E, antenna gain= ‐0.08dBi Per KDB 447498 D01, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.312 which is<= 3, RF Exposure testing is not required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f (GHz)] f(GHz) is the RF channel transmit frequency in GHz Distance=5mm

Lenze Technology Co.,LTD Tel:+86 0755-82031775;25332530 Fax:+86 0755-82713604 26c newspaper west tower, 6008 shennan Avenue,Futian District, Shenzhen City, GuangdongProvince,China GENERAL INFORMATION 1.1 Test Environment Condition Ambient Temperature 19 to 25 °C Ambient Relative 45 to 55 % Humidity Ambient Pressure N/A (Not applicable) 1.2 Announce (1) The test report is invalid if not marked with the signatures of the persons responsible for preparing and approving the test report. (2) The test report is invalid if there is any evidence and/or falsification. (3) The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. (4) This document may not be altered or revised in any way unless done so and all revisions are duly noted in the revisions section. (5) Content of the test report, in part or in full, cannot be used for publicity and/or promotional purposes without prior written approval from the laboratory. Lenze Technology Co.,LTD Tel:+86 0755-82031775;25332530 Fax:+86 0755-82713604 26c newspaper west tower, 6008 shennan Avenue,Futian District, Shenzhen City, GuangdongProvince,China PRODUCT INFORMATION 2.1 Applicant Applicant Lenze Technology Co.,LTD Address d.c., 26c newspaper west tower, 6008 shennan Avenue, Futian District , Contact Person Tony Telephone Number +86 0755-82031775;25332530 Fax Number +86 0755-82713604 E-mail Address [email protected] 2.2 Manufacturer Manufacturer Lenze Technology Co.,LTD Address d.c., 26c newspaper west tower, 6008 shennan Avenue, Futian District , Shenzhen City, Guangdong Province, China Contact Person N/A Telephone Number N/A Fax Number N/A E-mail Address N/A 2.3 General Description for Equipment under Test (EUT) EUT Type Bluetooth Antenna Model Name PCB Antenna Antenna Type PCB Antenna Hardware Version N/A Serial Number N/A Dimensions N/A 2.4 Technical Information Frequency Range 2400MHz~ 2500MHz Test Frequencies 2402MHz, 2441MHz, 2480MHz Lenze Technology Co.,LTD Tel:+86 0755-82031775;25332530 Fax:+86 0755-82713604 26c newspaper west tower, 6008 shennan Avenue,Futian District, Shenzhen City, GuangdongProvince,China SUMMARY OF TEST RESULTS 3.1 Test Standards No. Identity Document Title 1 IEEE149-1979 IEEE Standard Test Procedures for Antennas 3.2 Test Verdict Report Section Description Remark ANNEX A.1 Gain And Efficiency -- ANNEX B Radiation Pattern -- 3.3 Test Uncertainty The uncertainty is calculated using the methods suggested in the "Guide to the Expression of Uncertainty in Measurement" (GUM) published by ISO. Item Uncertainty VSWR(S11) 0.4 Gain -0.08dBi Lenze Technology Co.,LTD Tel:+86 0755-82031775;25332530 Fax:+86 0755-82713604 26c newspaper west tower, 6008 shennan Avenue,Futian District, Shenzhen City, GuangdongProvince,China GENERAL TEST CONFIGURATIONS 4.1 Test Condition Environment Parameter Selected Values During Tests Temperature Voltage Relative Humidity Normal Temperature, Normal Voltage 25°C N/A 51% (NTNV) 4.2 Test Equipment List Description Manufacturer Model Serial No. Cal. Date Cal. Due Vector Network Agilent E5071C MY46103472 2014.09.07 2015.09.06 Analyzer 5*5*5 Full Anechoic SATIMO 5*5*5 N/A 2014.09.05 2015.09.04 Chamber SG24 Multi-probe Antenna Measurement SATIMO SG24-L 1101855-0001 2014.10.25 2015.10.24 System 4.3 Test Setup Lenze Technology Co.,LTD Tel:+86 0755-82031775;25332530 Fax:+86 0755-82713604 26c newspaper west tower, 6008 shennan Avenue,Futian District, Shenzhen City, GuangdongProvince,China ANNEX A TEST RESULTS A.1 Gain and Efficiency Frequency Gain (dBi) Efficiency (%) 2402MHz -0.08 0.99 2441MHz -0.21 1.06 2480MHz -0.18 1.12 ANNEX B RADIATION PATTERN 3DPattern 2402MHZ 0 -1 -3 -6 -15 -30 Lenze Technology Co.,LTD Tel:+86 0755-82031775;25332530 Fax:+86 0755-82713604 26c newspaper west tower, 6008 shennan Avenue,Futian District, Shenzhen City, GuangdongProvince,China 2402MHZ 1D Radiation Pattern PHI =0 Phi=0 freq=2402MHz 0 -1 -3 -6 -15 -30 Lenze Technology Co.,LTD Tel:+86 0755-82031775;25332530 Fax:+86 0755-82713604 26c newspaper west tower, 6008 shennan Avenue,Futian District, Shenzhen City, GuangdongProvince,China PHI =90 THETA = 90 Phi=90 freq=2402MHz Theta=90 freq=2402MHz Lenze Technology Co.,LTD Tel:+86 0755-82031775;25332530 Fax:+86 0755-82713604 26c newspaper west tower, 6008 shennan Avenue,Futian District, Shenzhen City, GuangdongProvince,China ANNEX C TEST SETUP PHOTO ANNEX D EUT PHOTO Antenna shape

Page 1 of 41 Report No.: HK2412258064-E FCC Test Report Test Report On Behalf of ShenZhen RiShengHua Technology Co., Ltd For smart tag Model No.: RSH-tag08 FCC ID: 2A9K2-RSH-TAG08 Prepared For: ShenZhen RiShengHua Technology Co., Ltd Floor 2, building E1, qiangrong East Industrial Zone, No. 723, Zhoushi Road, Jiuwei community, Hangcheng street, Bao'an District, Shenzhen, China Prepared By: Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Dec. 25, 2024 ~ Jan. 03, 2025 Date of Report: Jan. 03, 2025 Report Number: HK2412258064-E Page 2 of 41 Report No.: HK2412258064-E Test Result Certification Applicant’s Name ................... : ShenZhen RiShengHua Technology Co., Ltd Address .................................... : Floor 2, building E1, qiangrong East Industrial Zone, No. 723, Zhoushi Road, Jiuwei community, Hangcheng street, Bao'an District, Shenzhen, China Manufacturer's Name ............. : ShenZhen RiShengHua Technology Co., Ltd Address .................................... : Floor 2, building E1, qiangrong East Industrial Zone, No. 723, Zhoushi Road, Jiuwei community, Hangcheng street, Bao'an District, Shenzhen, China Product Description Trade Mark ................................. : RSH Product Name ............................ : smart tag Model and/or Type Reference .. : RSH-tag08 Standards ................................ : 47 CFR FCC Part 15 Subpart C 15.247 KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test .............................................. : Date (s) of Performance of Tests ............... : Dec. 25, 2024 ~ Jan. 03, 2025 Date of Issue ............................................. : Jan. 03, 2025 Test Result ................................................. : Pass Testing Engineer Len Liao Technical Manager Sliver Wan Authorized Signatory Jason Zhou Page 3 of 41 Report No.: HK2412258064-E Contents Page 1 Test Summary ................................................................................................................................................ 5 1.1 Test Description ......................................................................................................................................... 5 1.2 Measurement Uncertainty ......................................................................................................................... 6 1.3 Information of the Test Laboratory ............................................................................................................ 6 2 General Information ....................................................................................................................................... 7 2.1 General Description of EUT ...................................................................................................................... 7 2.2 Description of Test Conditions .................................................................................................................. 9 2.3 Description of Test Setup ........................................................................................................................ 10 2.4 Description of Support Units .................................................................................................................... 11 3 Equipments List for All Test Items ............................................................................................................. 12 4 Test Result .................................................................................................................................................... 13 4.1 Antenna Requirement.............................................................................................................................. 13 4.2 Conduction Emissions Measurement ...................................................................................................... 14 4.3 Radiated Emissions Measurement .......................................................................................................... 17 4.4 Maximum Output Power Measurement ................................................................................................... 26 4.5 Power Spectral Density ........................................................................................................................... 27 4.6 6dB Bandwidth ........................................................................................................................................ 30 4.7 Occupied Bandwidth ................................................................................................................................ 33 4.8 Band Edge ............................................................................................................................................... 34 4.9 Conducted Spurious Emissions .............................................................................................................. 36 5 Test Setup Photos ....................................................................................................................................... 40 6 Photos of the EUT ........................................................................................................................................ 41 Page 4 of 41 Report No.: HK2412258064-E ** Modified History ** Revision Description Issued Data Remark Revision 1.0 Initial Test Report Release Jan. 03, 2025 Jason Zhou Page 5 …

Text truncated - open the document above for the full version.

Test Model: RSH-tag08 Radiated Emission
